Startglowing function - GF15.20-P-3003HB

ENGINE 604.910 in MODEL 202.121 as of 1.8.96, 202.182

ENGINE 604.912 in MODEL 210.004 as of 1.6.96

ENGINE 604.915 in MODEL 202.122 /180

ENGINE 604.917 in MODEL 210.003

ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188

ENGINE 605.912 in MODEL 210.010 /210 /610

ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025/225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

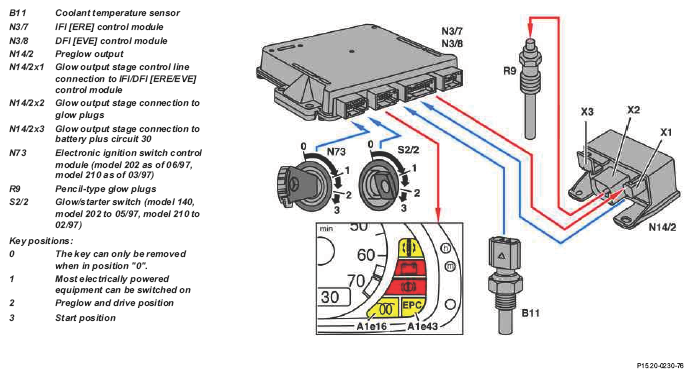

Fig 1: Identifying Startglowing Function Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

To control the glowing of the glow plugs during starting.

Function

Turning the glow/starter switch (S2/2) further to position 3 initiates startglowing. The glow output stage (N14/2) receives a signal from the DFI [EVE] control module (N3/8) that the engine is being started. Voltage thus continues to be supplied to the glow plugs (R9). A voltage drop at the DFI [EVE] control module (N3/8) discontinues startglowing and initiates afterglowing

Glow output stage location/task/design/function		GF15.20-P-2100C
Glow plugs location/task/design/function		GF15.20-P-3101H
Coolant temperature sensor location/task/ design/function		GF07.04-P-5026C
DFI [EVE] control module location/task/function	Engine 604	GF07.13-P-3102HA
IFI [ERE] control module location/task/function	Engine 605, 606	GF07.12-P-3102HA
