Injection nozzle location/task/function - GF07.03-P-3152H

ENGINE 604.910 in MODEL 202.121 /182

ENGINE 604.912 in MODEL 210.004

ENGINE 604.915 in MODEL 202.122 /180

ENGINE 604.917 in MODEL 210.003

ENGINE 605.910 in MODEL 202.125

ENGINE 605.912 in MODEL 210.010 /210 /610

ENGINE 606.912 in MODEL 210.020

ENGINE 605.960 in MODEL 202.128 /188

ENGINE 606.961 in MODEL 140.135

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 605.962 in MODEL 210.015 /215

Engine 605

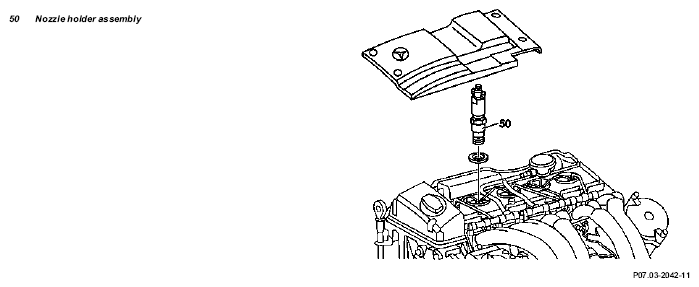

Fig 1: Identifying Nozzle Holder Assembly

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Injection nozzle task	To meter and inject the fuel delivered by the injection pump as a finely atomized spray into the prechamber or combustion chamber. Injection pressure 115-125 bar
	Injection nozzle function		GF07.03-P-3152-01H
