Overflow restrictor location/task/design/function - GF07.05-P-5000H
ENGINE 605.910 in MODEL 202.125
ENGINE 605.960 in MODEL 202.128 /188
ENGINE 605.912 in MODEL 210.010 /210 /610
ENGINE 606.912 in MODEL 210.020
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Design
| Overflow restrictor location | At the suction gallery of the inline injection pump | ||
| Overflow restrictor task | To bleed the suction gallery of the inline injection pump and ensure sufficient precompression in the suction gallery. In case of fuel supply blockage (e.g. clogged fuel filter), to prevent unfiltered fuel from entering the inline injection pump by way of the return line |
||

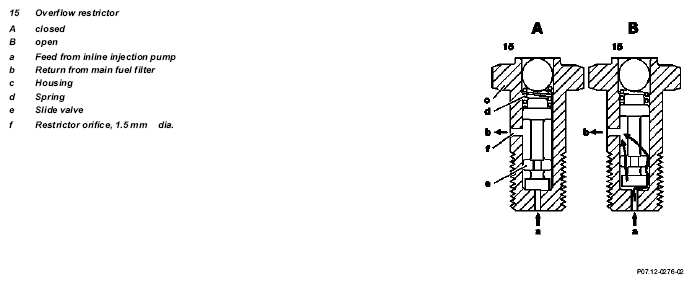

| Overflow restrictor function | Fuel continuously passes through the overflow restrictor (15) and out the return port (b) back to the fuel tank. This process removes any gas bubbles that may be produced |
