Function Tests

NOTE: Before performing function test, see TEST PREPARATION  .

Use function tests chart to determine which system test to perform. See Fig 1 . If problem is identified, perform appropriate test procedure under SYSTEMS TESTS  . If problem is not identified, continue diagnosis. See SYMPTOM INDEX  .

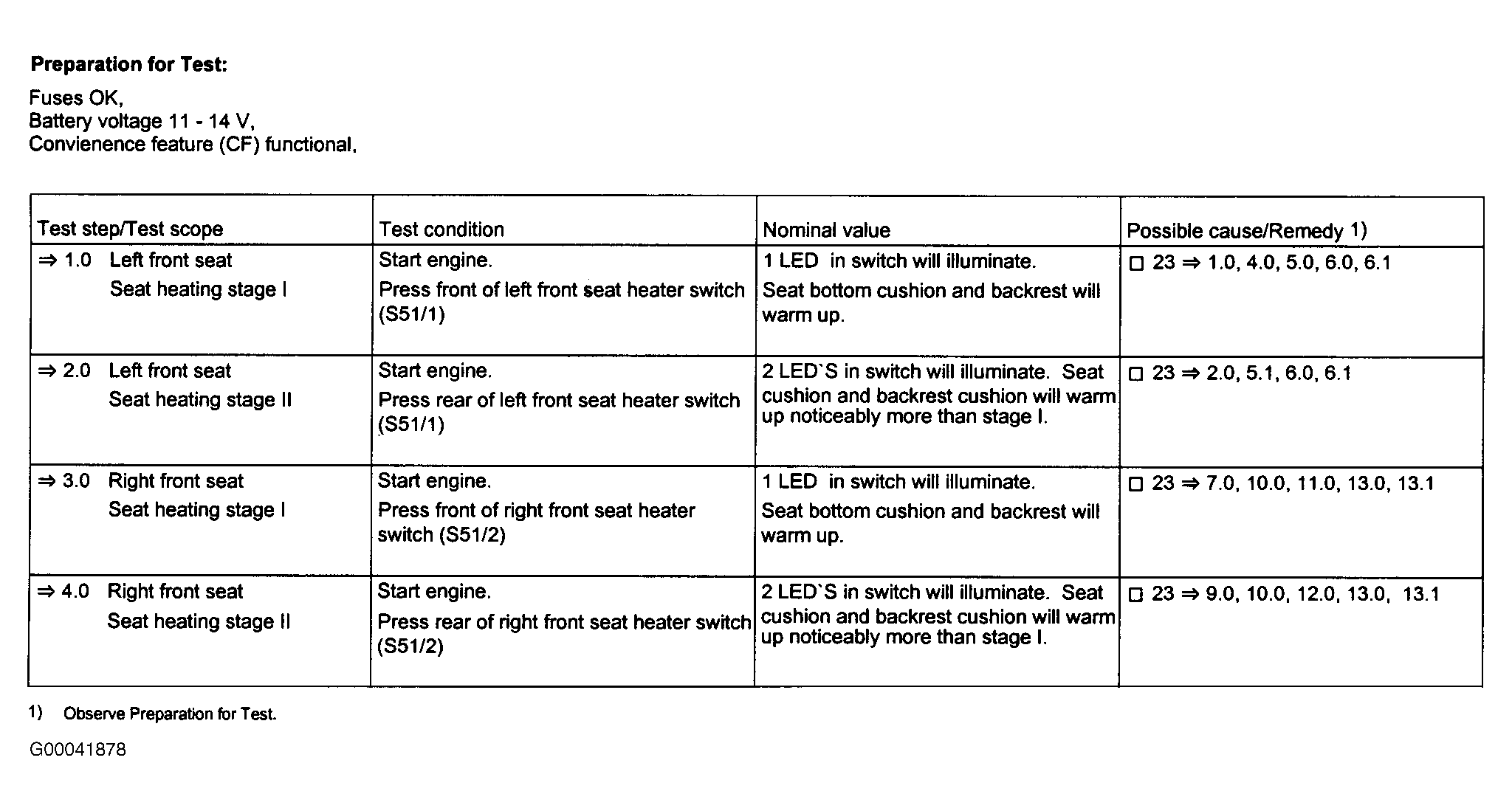

Fig 1: Function Test
G00041878Courtesy of DAIMLERCHRYSLER CORPORATION
