Kick-down, function - GF27.10-P-2010GA
TRANSMISSION 722.6 in MODEL 163, 170, 202, 208, 210 with touch shift
TRANSMISSION 722.6 in MODEL 203, 215, 220 up to 31.5.02
Operation
The driver's wish for maximum acceleration of the vehicle is met with the kick-down function.

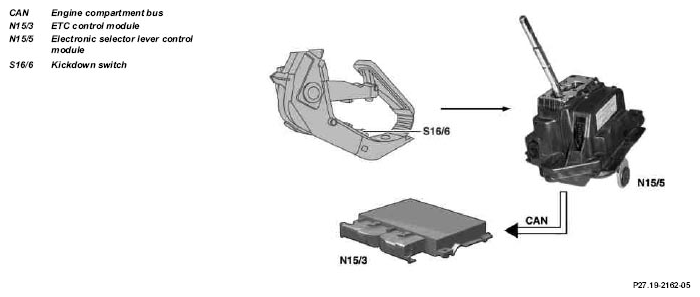

When the kick-down switch (S16/6) is operated a CAN Signal is passed on from the electronic selector lever module control module (N15/5) to the ETC control module (N15/3) via the electronic accelerator.
Based on this information the ETC control module (N15/3) actuates the solenoid valves so that the upshifts and downshifts take place at higher engine speed in order to achieve maximum performance.
| Kick-down switch, location/task/design | GF27.19-P-5141GA |
