Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

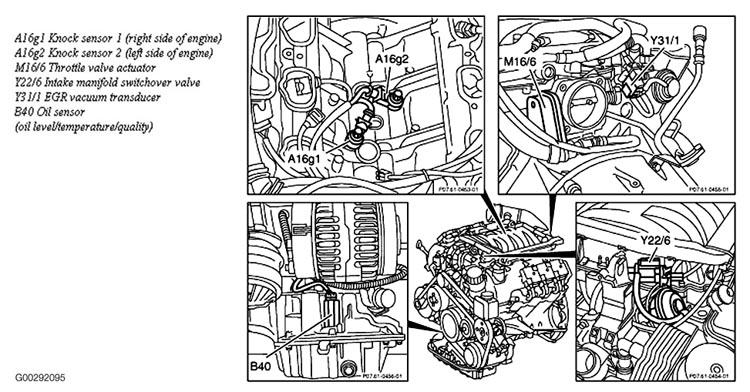

Fig 1: Engine Components (1 Of 2) (M112)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

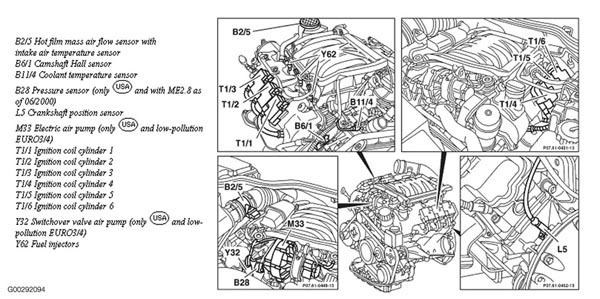

Fig 2: Engine Components (2 Of 2) (M112)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: ESP System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

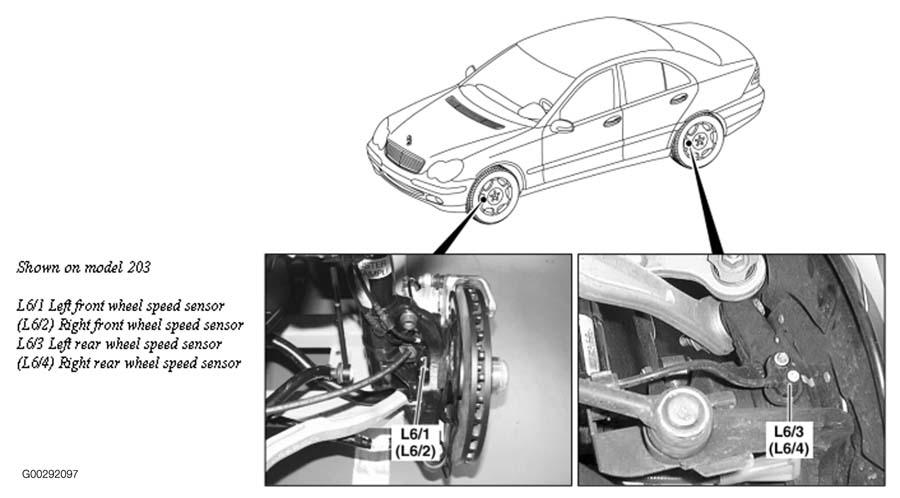

Fig 4: Wheel Speed Sensors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Brake Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

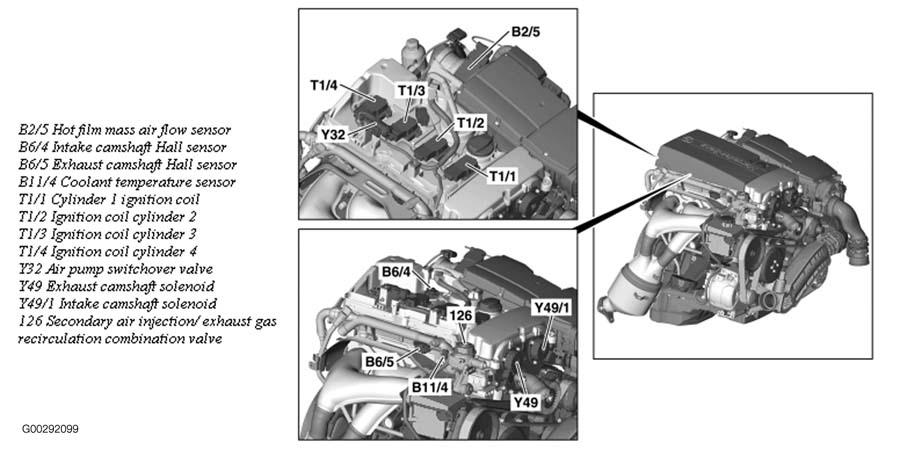

Fig 6: Engine Components (1 Of 2) (M271)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Engine Components (2 Of 2) (M271)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
