Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Regulator | On bottom of blower motor. |
| Brake Booster Vacuum Pump Control Module | In front passenger footwell. |
| CTEL [TEL] Interface (Wagon) | At front of cargo area. |
| Distronic Control Module | In front passenger footwell, under front step plate. |
| Driver Front ESA Control Module (With Memory) | Under driver's seat. |
| Electronic Selector Lever Module Control Module | At base of gear shift assembly. |

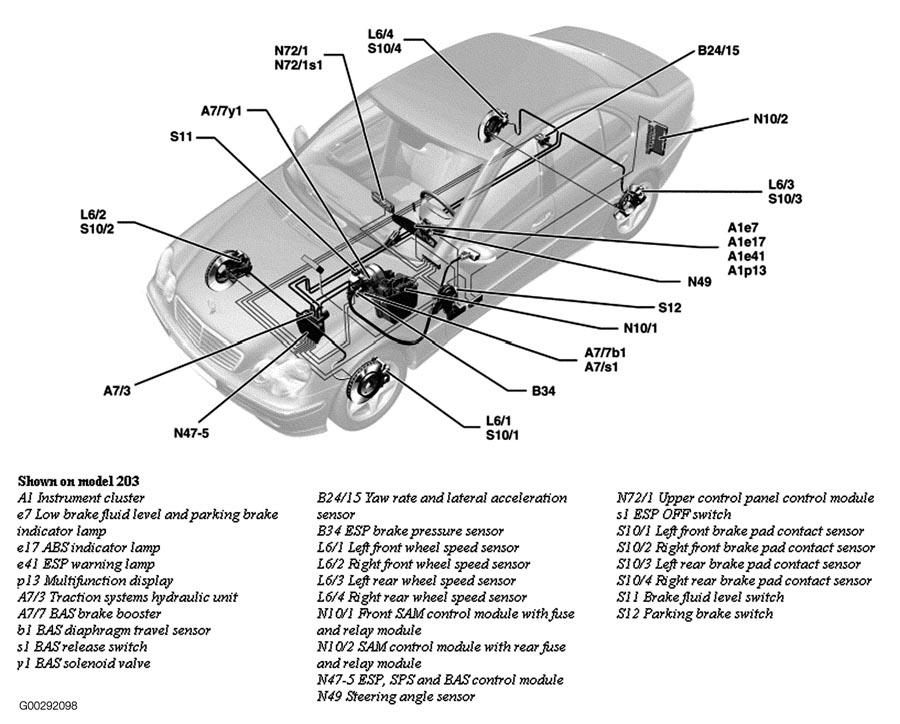

| ESP/SPS/BAS Control Module | At left side of engine compartment. See Figure . |
| ETC Control Module | Under right side of dash. |
| Fan Relay Module | In front SAM control module box. |
| Frequency Switchover Control Module | At right side of trunk. |
| Front SAM Control Module With Fuse & Relay Module | At left rear of engine compartment. See Figure . |
| Fuel Pump Relay Module | At left rear of trunk. |
| ME-SFI [ME] Control Module (M112.961) | At left rear of engine compartment. |

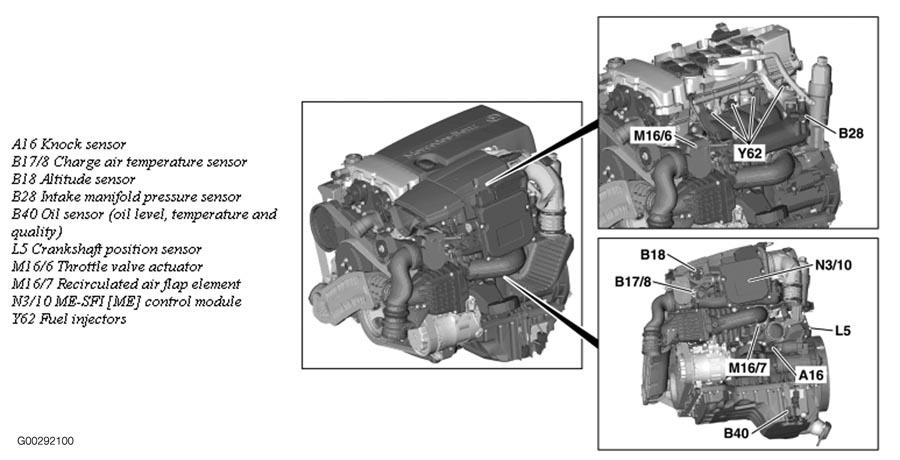

| ME-SFI (ME) Control Module (M271) | At top left side of engine. See Figure . |
| Passenger Front ESA Control Module (With Memory) | Under front passenger's seat. |
| Portable Support Electronics (PSE) CTEL Interface Module | At right side of trunk compartment. |
| PTS Control Module | Behind right side of dash. |
| Rear A/C Pushbutton Control Module | Below center console, behind rear nozzle. |
| Rear SAM Control Module With Fuse & Relay Module | At left side of trunk. See Figure . |
| Restraint System Control Module | Under center console, left of shifter. |
| SDAR Control Unit | At right rear of trunk. |
| Steering Column Module | At top of steering column. |
| Tele Aid (Emergency Call System) & D2B Telephone Transmitter/Receiver Control Module | At front of spare tire well. |
| Throttle Valve Control Element | At rear of engine. |
| Throttle Valve Control (M271) | At left side of engine compartment. |

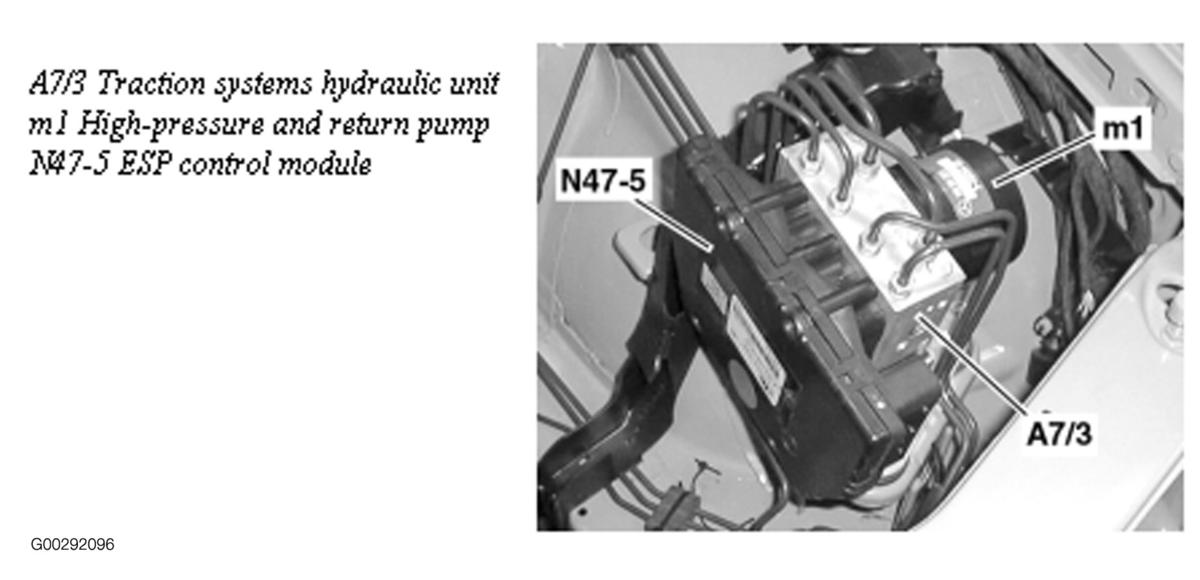

| Traction System Hydraulic Unit | Left side of engine compartment. See Figure . |
| Voice Control System Control Module (Wagon) | At front of cargo area. |
| Voice Recognition System (VRS) Control Module | At front of spare tire well. |
| Xenon Headlamp Control Module (Left/Right) | Behind respective headlamp. |
| Xenon Headlamp Ignition Module (Left/Right) | Behind respective headlamp. |
