Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

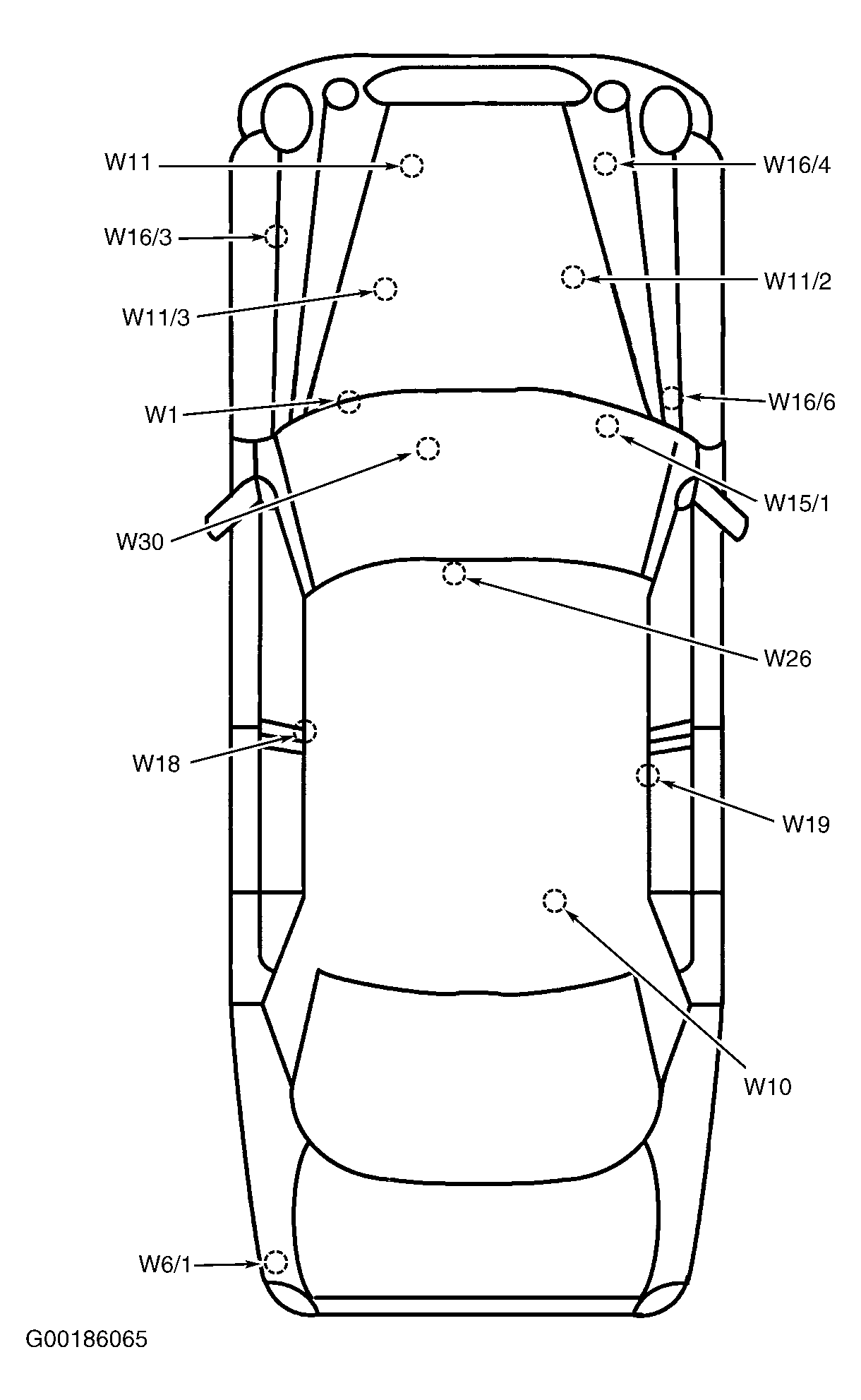

Fig 1: Vehicle Overview
G00186065Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

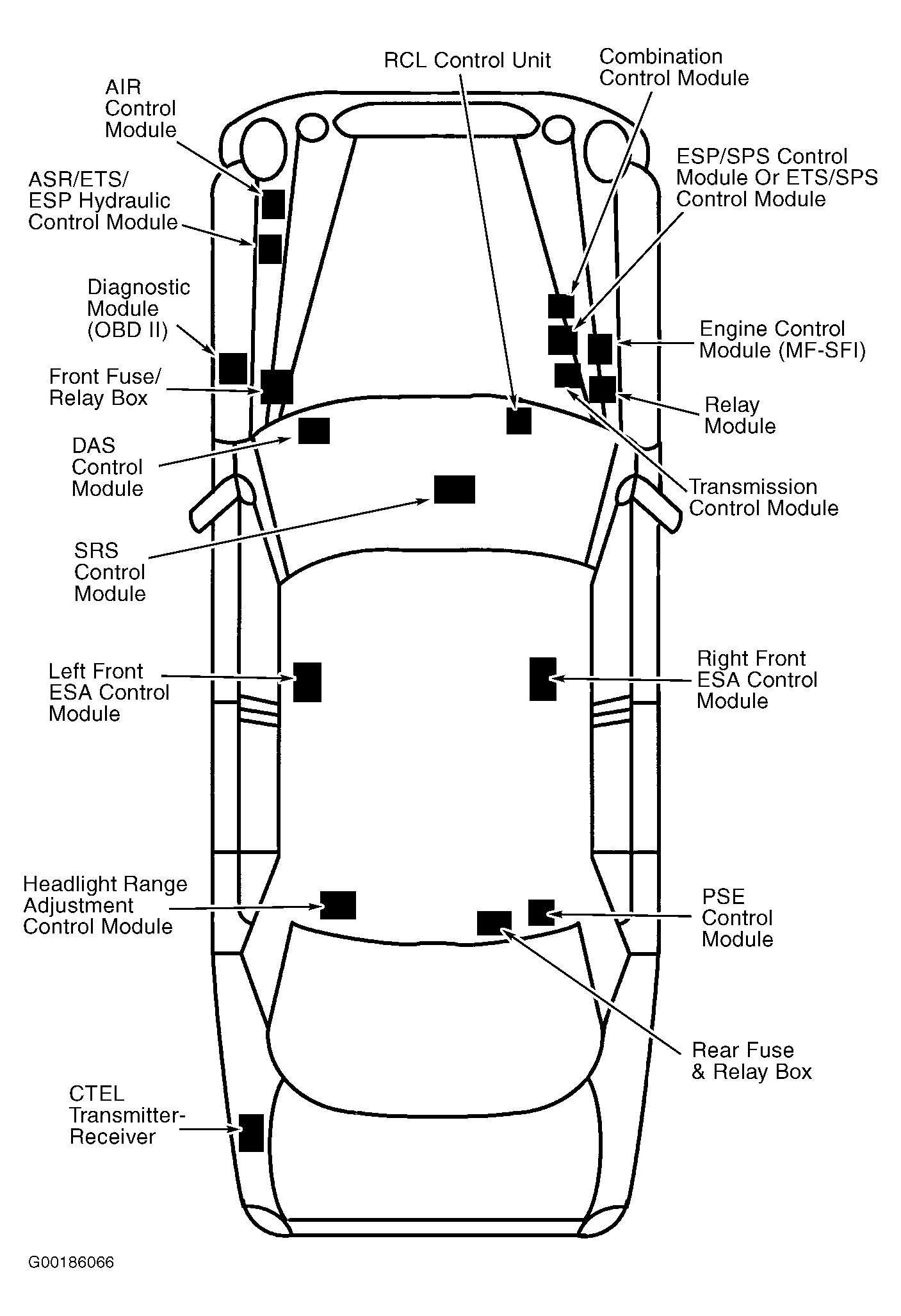

Fig 2: Vehicle Overview
G00186066Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
