Digital Tele Aid Control Module (82.95/522A)

A. RETROFITTING THE DIGITAL TELE AID CONTROL MODULE

1. Read these installation instructions in their entirety before proceeding.
2. To get access to the unit, see WIS  document AR82.95-P-0005M, "Removing and installing Tele Aid emergency call system control module" (do not remove the unit at this point).

B. RETROFITTING THE DIGITAL TELE AID CONTROL MODULE

1. Leave the analog Tele Aid control module installed to perform this step. Exchange the analog Tele Aid control module with the digital Tele Aid control module only when prompted by Star Diagnosis  .

   For automatically version coding the Tele Aid control module, select in Star Diagnosis:

   Control units > Information and communication > Audio, video, navigation and telematics > Tele Aid > Initial Startup > Initial Startup with automatic takeover of settings of previous control unit  or, for manually version coding the Tele Aid control module, select in Star Diagnosis:

   Control units > Information and communication > Audio, video, navigation and telematics > Tele Aid > Initial Startup > Initial Startup with manual settings input for new control unit

   See Section C, to better understand how the manual and/or automatic replacements have to be completed in Star Diagnosis.

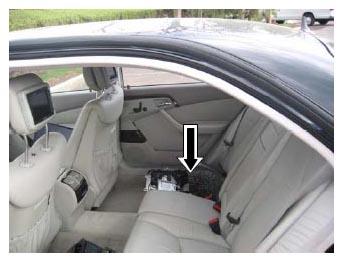

2. Remove the right, rear seat cushion and pull back the protective covering (Arrow, Fig 2).
   Fig 2: Protective Covering


3. Remove the analog Tele Aid control module from under the right, rear seat.
4. Disconnect the cables from the analog Tele Aid control module:
   1. GPS antenna connector (C, Fig 3)
   2. Power supply connector (A, Fig 3)
   3. D2B connector, if applicable (B, Fig 3)
5. Install the digital Tele Aid control module using the previously removed screws.
6. Connect the cables to the digital Tele Aid control module:
   1. GPS Antenna connector (C, Fig 3)
   2. Power supply connector (A, Fig 3)
   3. D2B connector, if applicable (B, Fig 3)
   NOTE: Incorrect installation of connectors can result in bent pins.

   Bent pins will result in component malfunction or failure.

   Inspect connectors before and after installation.

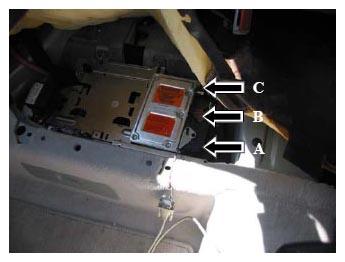

   Fig 3: Tele Aid Control Module Connections



C. VERSION CODING

1. The retrofitted digital Tele Aid control module is not activated. Activate the digital Tele Aid control module by following the Preliminary Draft of "DAS Procedure - Digital Tele Aid Control Module Retrofit" posted on Star TekInfo  .

   Also see posted on Star TekInfo  , the Preliminary Draft of "MMI Overview - Digital Tele Aid Control Module Retrofit"

   NOTE:

   • Tele Aid version coding the Instrument Cluster via Star Diagnosis is necessary on Model Year 2003 V220.

D. POWER TRUNK CLOSING ASSIST (VEHICLES EQUIPPED WITH OPTION CODE 881)

1. Perform a function check of the Power Trunk Closing Assist by depressing the button located in the trunk lid lip. If this function is inoperative, continue with steps 2 through 5 to resolve.
2. Looking at the connector for the digital teleaid control unit (Fig 4), find pin 25 located in the bottom row on the far left. Once located count 8 pins to the right (using pin 25 as 1) and locate pin 32.
3. Using a pair of needle nose pliers or similar tool remove pin 32 (Fig 4) from the digital teleaid control unit by simultaneously pulling and turning the pin.
4. Once pin 32 is removed, verify that the power trunk functions normally.
5. After the installation has been completed perform a RDU (remote door unlock) by calling ATX 1-800- 756-9018 and follow the operator's instructions.

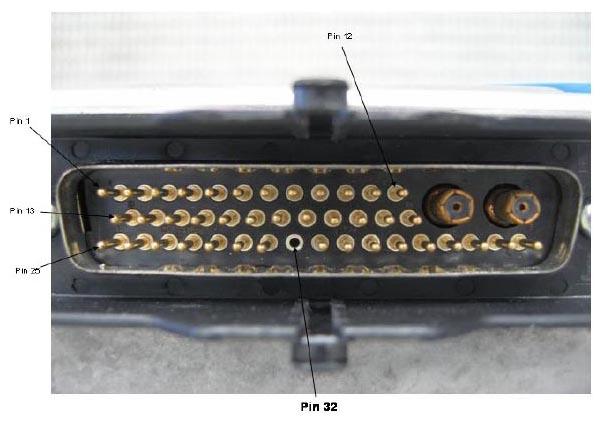

   Fig 4: Digital Teleaid Control Unit Connector Pins
