Drain valve position/task/design/function - GF47.10-P-3100H

MODEL 208 with ENGINE 111, 112, 113

MODEL 202.0 with ENGINE 111, 104, 112

MODEL 202.120 with ENGINE 601.913

MODEL 202.121 /182 with ENGINE 604.910

MODEL 202.122 /180 with ENGINE 604.915

MODEL 202.125 with ENGINE 605.910

MODEL 202.128 /188 with ENGINE 605.960

MODEL 202.133 /193 with ENGINE 611.960

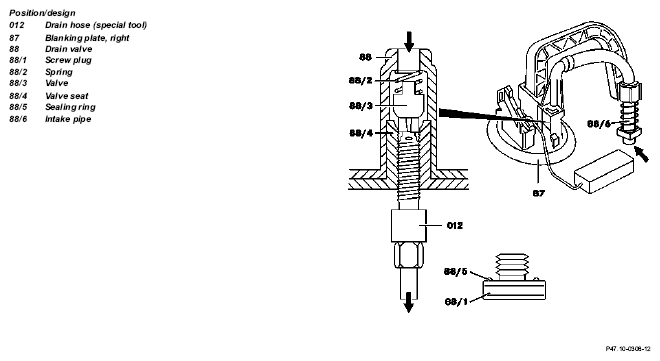

Fig 1: Identifying Drain Valve Design And Components

	Drain valve task	To enable the two fuel tank chambers to be emptied.
	Drain valve function	The valve is pressed on by screwing in the drain hose (012, special tool). The fuel tank can only be emptied via the two drain valves (88).
