Splash bowl position/task/function - GF47.10-P-3101E: Notes
MODEL 202.0, 208

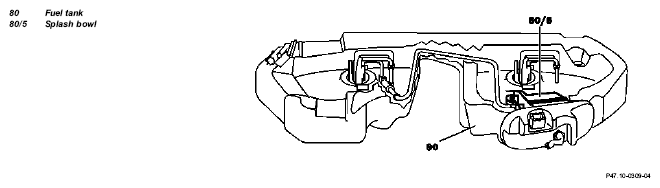

| Position | The splash bowl (80/5) is welded into the right chamber of the fuel tank (80) | ||
| Task | It acts as a reserve tank when cornering with a low level of fuel in the fuel tank and prevents the fuel pump drawing in air | ||
| Function | Splash bowl | GF47.10-P-3101-01H |
