Fuel delivery module location/task/design/function - GF47.20-P-4101P: Notes

ENGINE 111.951 /955, 112.912 /916 /946 /953 /961 in MODEL 203

ENGINE 112.912 /955, 113.968 in MODEL 209

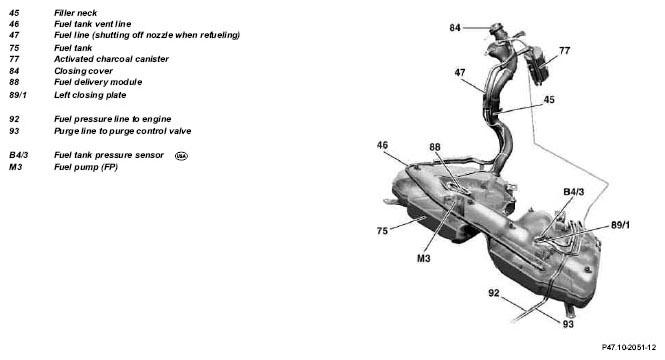

Fig 1: Fuel Delivery Module Function Diagram

Courtesy of MERCEDES-BENZ USA

Fuel delivery module position	in fuel tank	GF47.20-P-4101-01P
Fuel delivery module task	Deliver fuel in an adequate quantity and with the required pressure Deliver fuel safely if fuel level is low and during long cornering Empty fuel tank evenly Detect fuel level
Fuel delivery module design		GF47.20-P-4101-02P
Fuel delivery module function		GF47.20-P-4101-03P
