Fuel pump location/task/design/function - GF47.20-P-4003L: Notes
ENGINE 104.941 /942 /943 /944 /945 /991 /992 /994 /995
ENGINE 111.921 /942 /943 /944 /9405 /946 /947 /952 /956 /957 /958 /960 /961 /970 /973 /974 /975 /982 /983
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 119.980 /981 /982 /985
ENGINE 120.982/ 983
ENGINE 137.970
| Fuel pump position | Model 210 with Engine 112, 113 | GF47.20-P-4003-01F | |
| Model 215, 220 | GF47.20-P-4003-01M | ||
| Model 163 | GF47.20-P-4003-01GH | ||
| Model 170 | GF47.20-P-4003-01GS | ||
| Model 203, 209 | GF47.20-P-4003-01P | ||
| Model 211 | GF47.20-P-4003-01T | ||
| Model 230 | GF47.20-P-4003-01R | ||
| Fuel pump task | Supplying an adequate quantity of fuel to the fuel system at the required pressure in all driving states. | ||

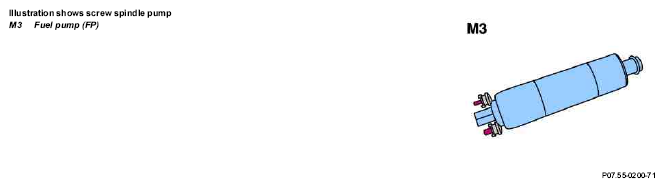

| Fuel pump design | Model 129, 140, 170, 202, 208, 210, 215, 220, 230: Helical spindle pump mounted at frame floor. Model 163, 203, 209, 211: Two stage current pump, which is integrated in the fuel feed module. |
||
| Fuel pump function | Model 129, 140, 170, 202, 208, 210, 215, 220, 230 with helical spindle pump at frame floor. | GF47.20-P-4003-02L |
