Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AIRmatic W/ADS Control Module | Under right side of dash. |
| Audio Gateway Control Module | Left side of trunk. |
| Battery Control Module | Right rear of trunk. |
| Blower Regulator | On blower motor. |
| CDI Control Module | Left rear of engine compartment. |
| Central Gateway Control Module | Under left side of dash. |
| DC/DC Converter Control Module | Behind instrument cluster. |
| DI Control Module | Near ignition switch. |
| Driver Front Seat Adjustment Control Module W/Memory | Under left front seat. |
| DTR Control Module | Integral to DTR control unit. |
| DTR Control Unit | Under right front seat. |
| Dynamic Seat Control Module (Left Front) | In left front seat back. |
| Dynamic Seat Control Module (Right Front) | In right front seat back. |
| E-Call Control Module | Center of trunk. |
| Electric Control Unit | Integral to transmission. |
| Electric Control Unit (VGS) | In transmission. |
| Electronic Selector Lever Module Control Module | Center console. |
| Electronic Steering Lock Control Module | On steering column. |
| Emergency Call System Control Unit | Center of trunk. |
| ESP/SPS/BAS (ESP, PML & BAS) Control Module | Left rear of engine compartment. |
| ETC (EGS) Control Module | Behind right side of dash. |
| Frequency Switchover Control Module | Right side of trunk. |
| Front Passenger Front Seat Adjustment Control Module W/Memory | Under right front seat. |
| Fully Integrated Transmission Control (VGS) Control Unit | Integral to electric control unit (VGS). |
| Headlight Range Adjustment Control Module | Under right front seat. |
| HRA (LWR) Power Module (Left/Right) | Attached to respective lamp unit. |
| HS (SIH) & Seat Ventilation Control Module | Under left front seat. |
| Interior Module Keyless Go Control Module | Center of dash. |
| Left Front Door Control Module | In driver's door. |
| Left Front Seat Ventilation Blower Regulator | In left front seat back. |
| Left Rear Door Control Module | Left rear door. |

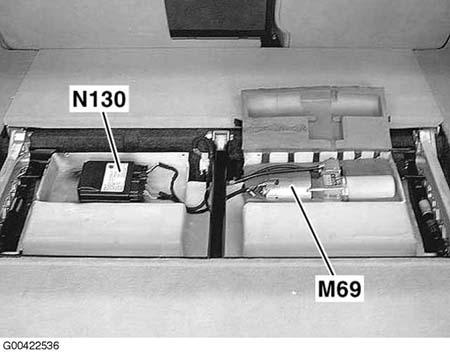

| Loading Floor Control Module (N130) | Integrated in automatic loading floor. See Figure . |
| ME-SFI (ME) Control Module | Center rear of engine compartment. |
| Navigation Processor | Left side of trunk. |
| Overhead Control Panel Control Module | In overhead console. |
| Passenger-Side SAM Control Module | Under right side of dash. |
| PTS Control Module | Left rear of trunk. |
| Radiator Shutter Control Module | In right front wheelwell. |
| Rear Axle Level Control System Control Unit | Right front upper footwell. |
| Rear Door Control Module | Right side of tailgate. |
| Rear Door Keyless Go Control Module (Left) | Left rear door. |
| Rear Door Keyless Go Control Module (Right) | Right rear door. |
| Rear Module Keyless Go Control Module | Left cargo area. |
| Restraint Systems Control Module | Front of center control module. |
| Right Front Door Control Module | Right front door. |
| Right Front Seat Ventilation Blower Regulator | In right front seat back. |
| Right Rear Door Control Module | Right rear door. |
| SBC Control Module | Integral to SBC hydraulic unit. |
| SBC Hydraulic Unit | Right front of engine compartment. |
| SDAR Control Unit | Right rear of trunk. |
| Solar Generator Control Module | Behind right side of dash. |
| Steering Column Module | Top of steering column. |
| Steering Wheel Gear Shift Signal Processing Module | Inside steering wheel. |
| TLC (HDS) Control Module | Left side of trunk. |
| TPM Control Module | Left rear of trunk. |
| Universal Portable CTEL Interface (UPCI (UHI)) Control Module | Rear center of trunk. |
| Voice Control System Control Module | Left front of trunk. |
| WSS Control Unit (Weight Sensing System) | Under right front seat. |
| Xenon Headlight Ignition Module (Left/Right) | On back of respective xenon lamp. |
| Xenon Headlight Supply Module (Left/Right) | Attached to respective lamp unit. |
