Control Units
CONTROL UNITS LOCATION

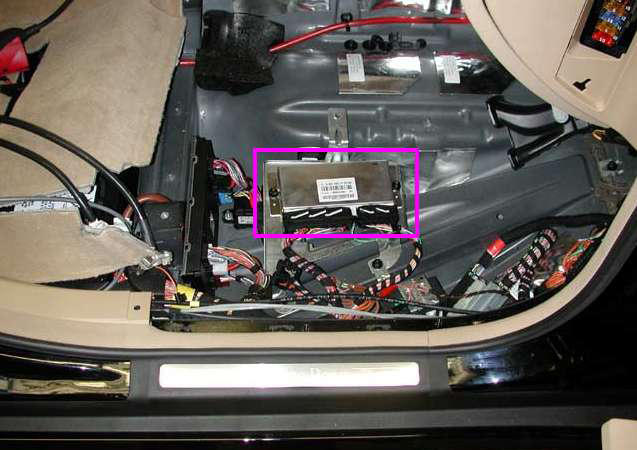

| Component | Location |
|---|---|
| AIRmatic W/ADS Control Module | Right front footwell. See Figure. |
| Blower Regulator | On bottom of blower motor. |
| Booster Blower Electronic Blower Controller | On blower motor. |
| CDI Control Module | Left front of engine compartment. |
| Central Gateway Control Module | In left front footwell. See Figure. |
| DTR Control Unit | Behind center front bumper. |
| Emergency Call System Control Unit | In left rear footwell. |

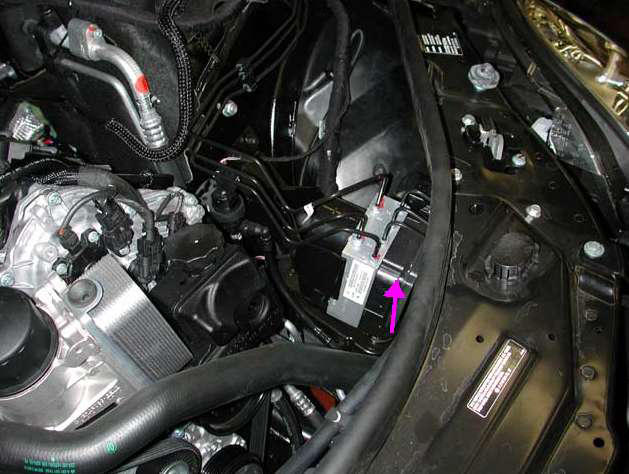

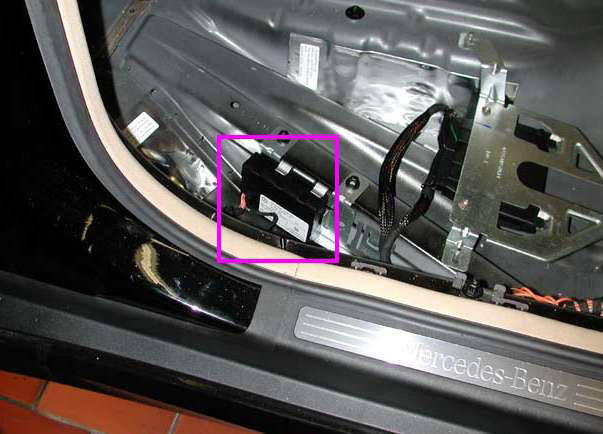

| ESP Control Module | Right front corner of engine compartment. See Figure. |
| Front Door Control Module (Left/Right) | In front of respective front door. |
| Front SAM Control Unit | Under right front seat. See Figure. |
| Front Seat Adjustment Control Module With Memory (Driver/Passenger) | Under respective front seat. |
| Front Seat Ventilation Blower Regulator (Left/Right) | In respective front seat back. |

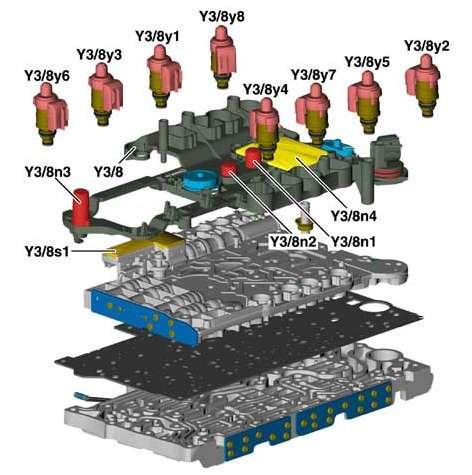

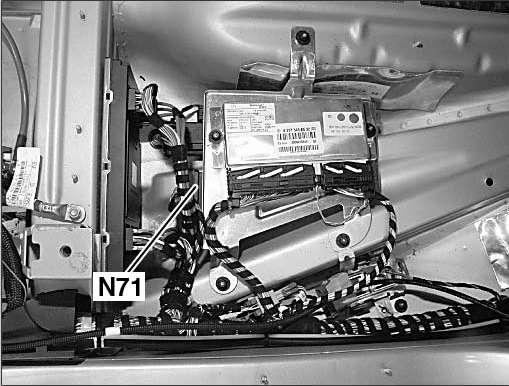

| Fully Integrated Transmission Control (VGS) Control Unit (Y3/8n4) | Part of electric control unit (VGS). See Figure. |
| Headlamp Range Adjustment Control Module | In right front footwell. See Figure. |

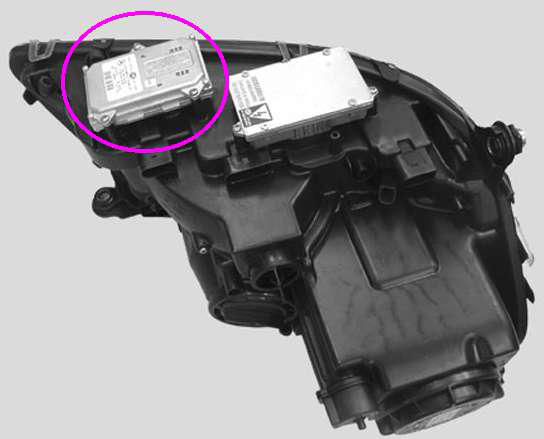

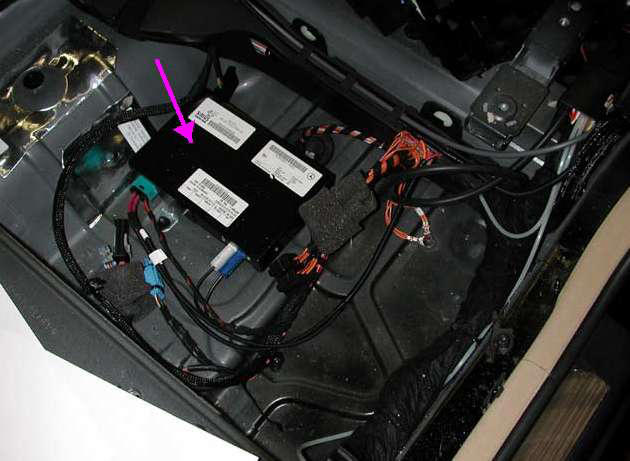

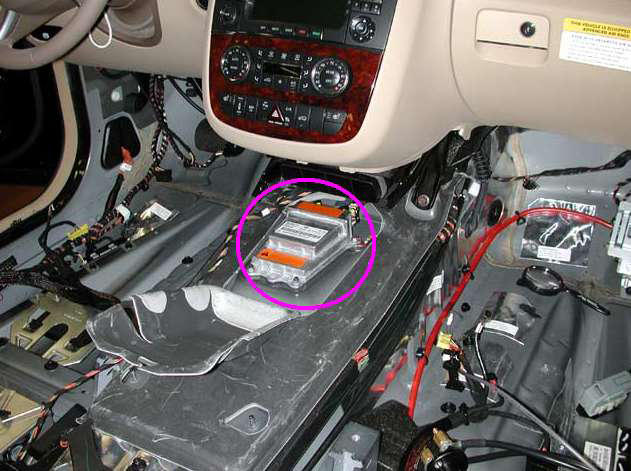

| HRA (LWR) Power Module (Left/Right) | Top of respective headlight unit. See Figure. |
| HS (SIH) Seat Ventilation & Steering Wheel Heater Control Unit | Under left seat of 2nd seat row. See Figure. |
| Keyless Go Control Module | Right side of cargo area. |
| ME-SFI (ME) Control Module | Top center of engine. |
| Multifunction Steering Wheel Electronics Unit | Inside steering wheel. |
| PTS Control Module | Under driver's seat. See Figure. |
| Rear Air Conditioning Blower Regulator | On rear blower motor. |
| Rear Axle Level Control System Control Module | In right front footwell. See Figure. |
| Rear-End Door Closing Control Module | Left rear of cargo area. |
| Rear SAM Control Module | Right rear of cargo area. |
| Restraints System Control Module | Under center console. See Figure. |

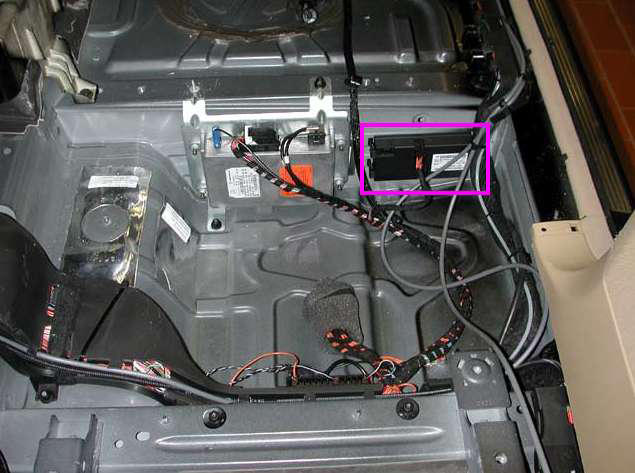

| SDAR Control Unit | In right rear footwell. See Figure. |
| Steering Column Module | Top of steering column. |

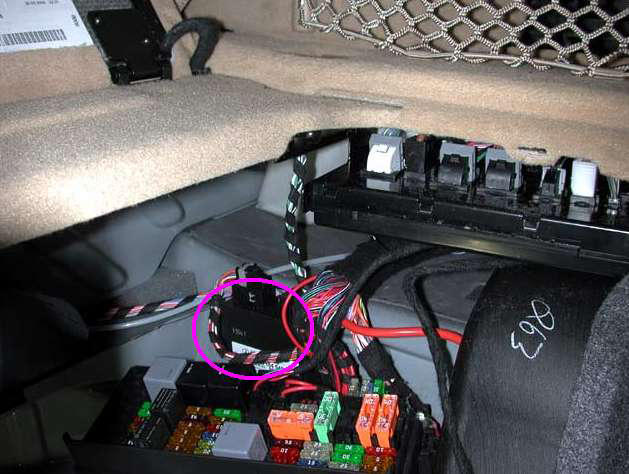

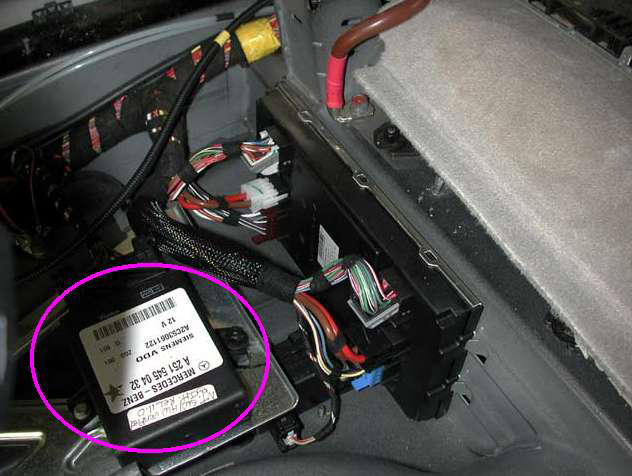

| TPM Control Module | Right rear of cargo area. See Figure. |

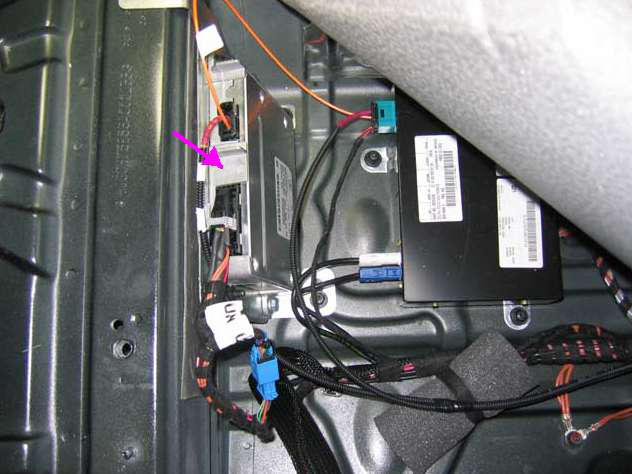

| Universal Portable CTEL Interface (UPCI (UHI)) Control Module | Under right seat of 2nd seat row. See Figure. |

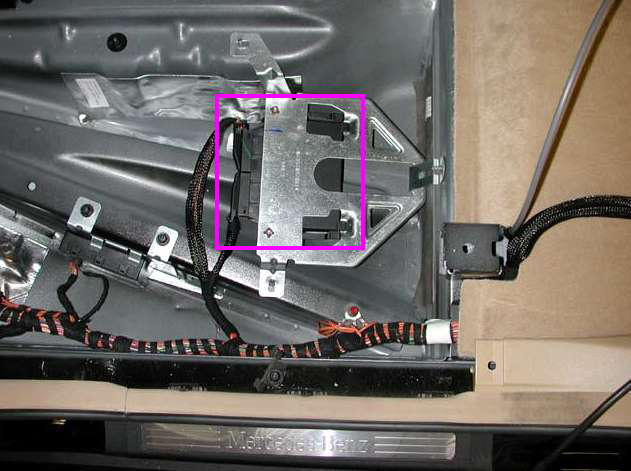

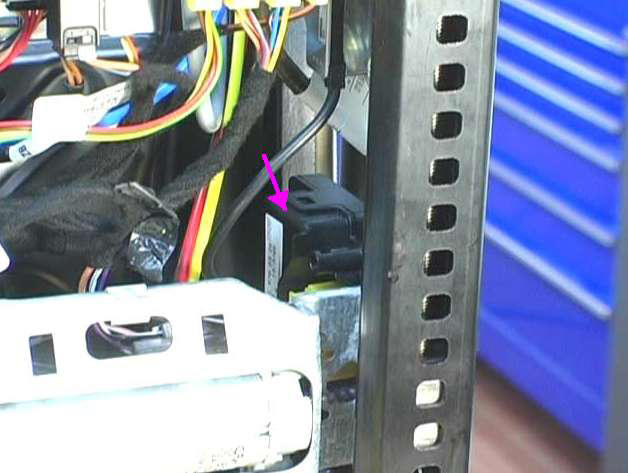

| WSS Control Unit (Weight Sensing System) | On right front seat frame. See Figure. |
