Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Vehicle Overview

G00421001

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

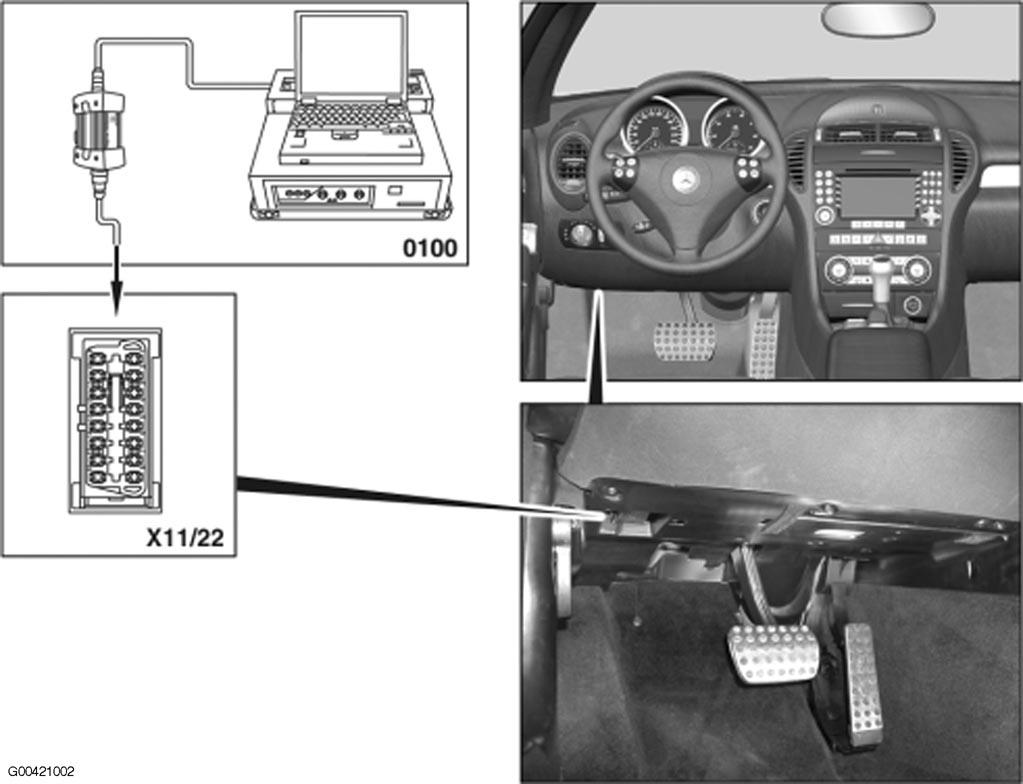

Fig 2: Left Side Of Dash

G00421002

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

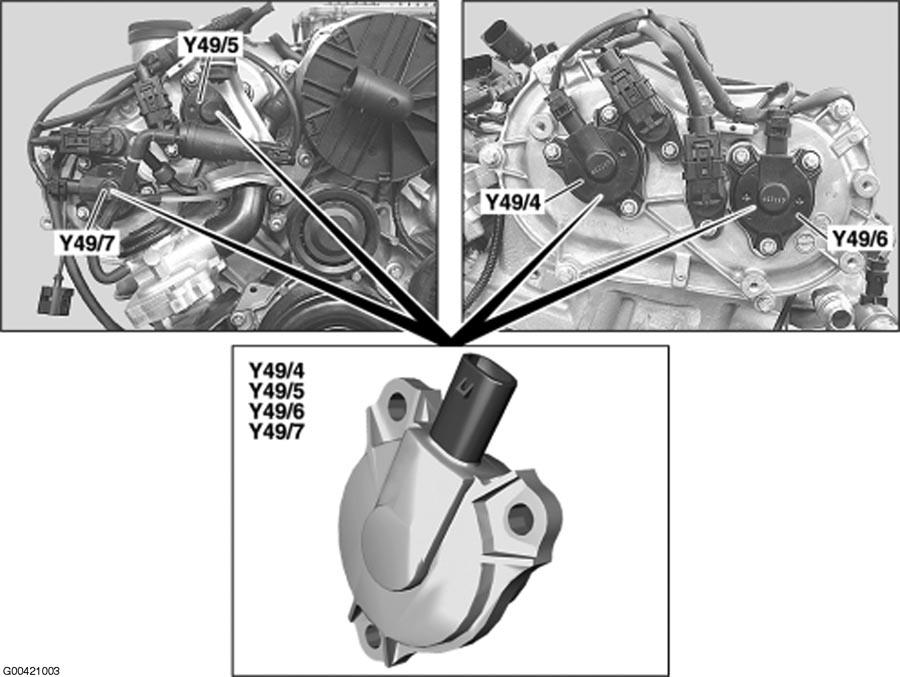

Fig 3: Engine

G00421003

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

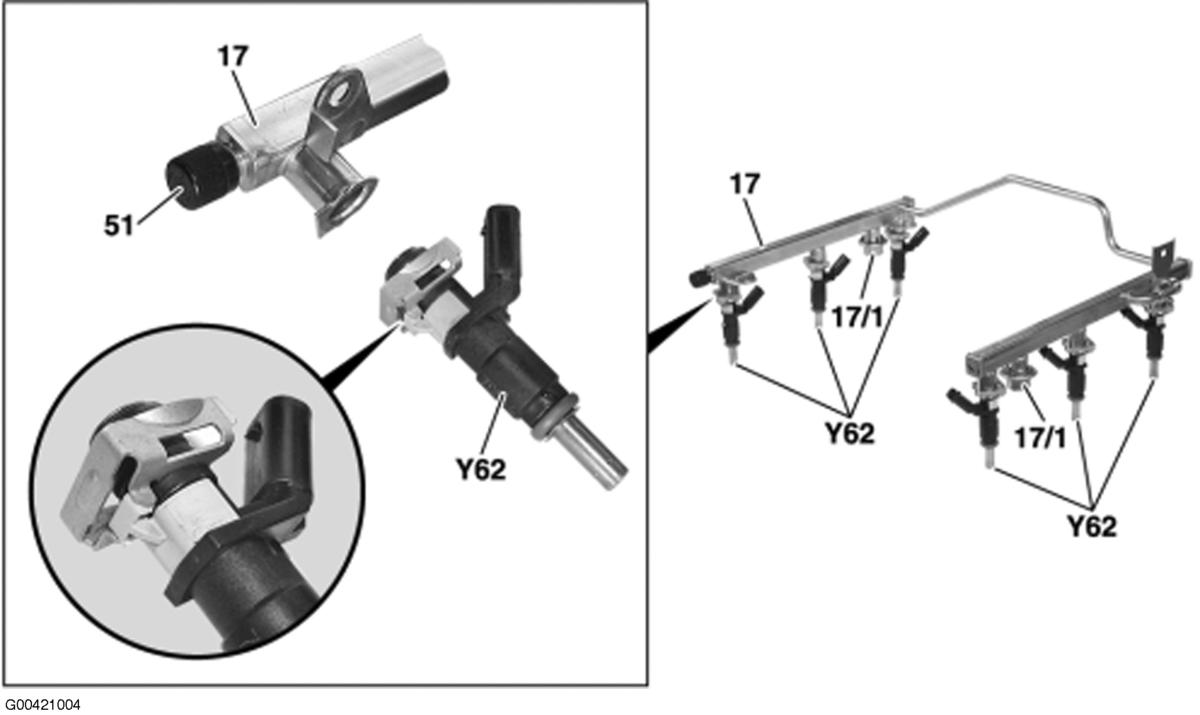

Fig 4: Fuel Rail

G00421004

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

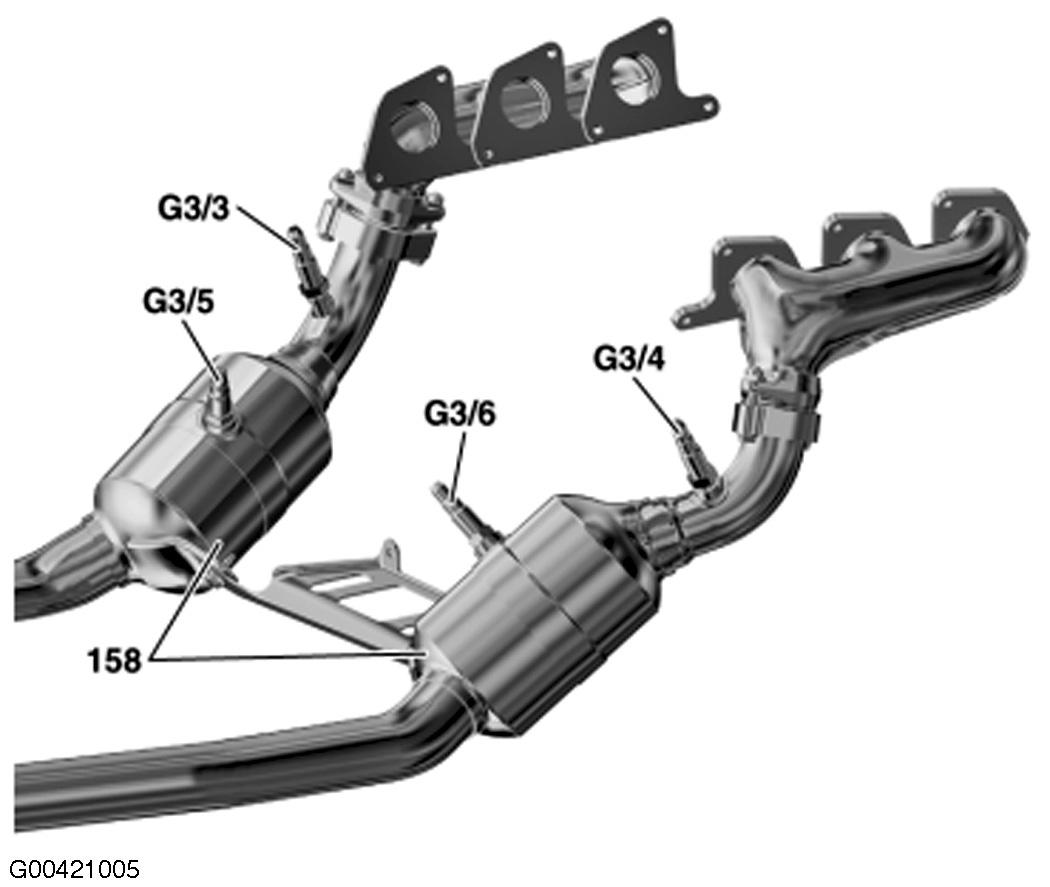

Fig 5: Exhaust System

G00421005

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

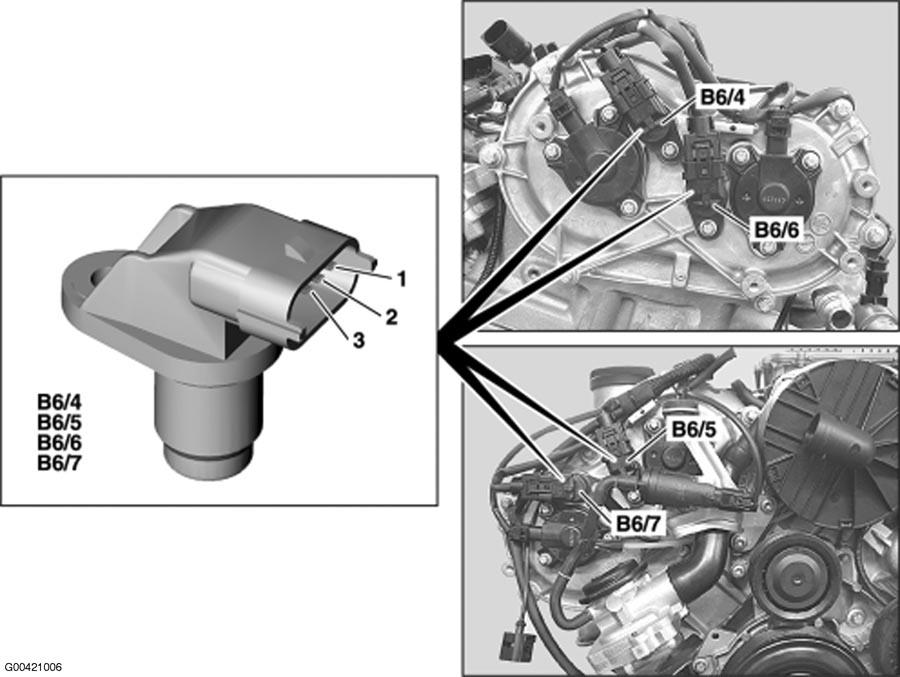

Fig 6: Engine

G00421006

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

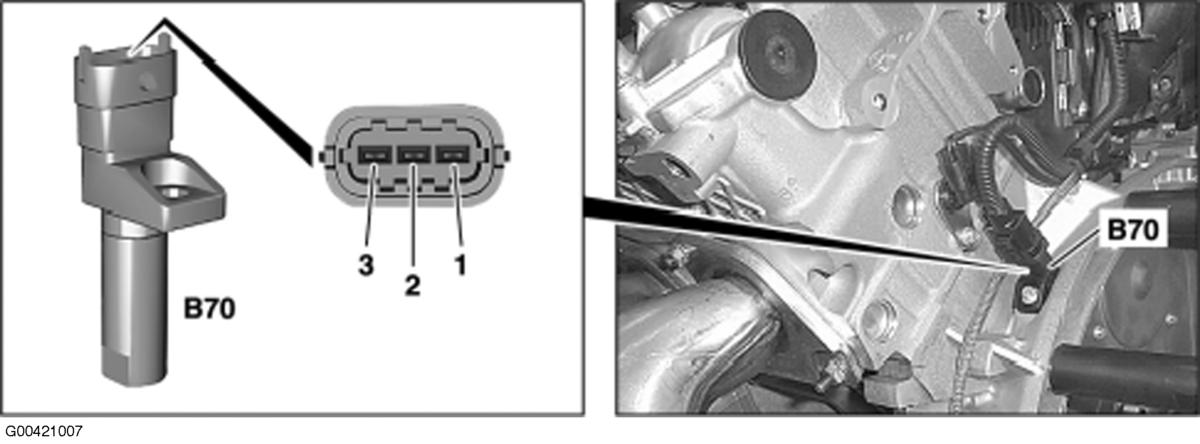

Fig 7: Engine

G00421007

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

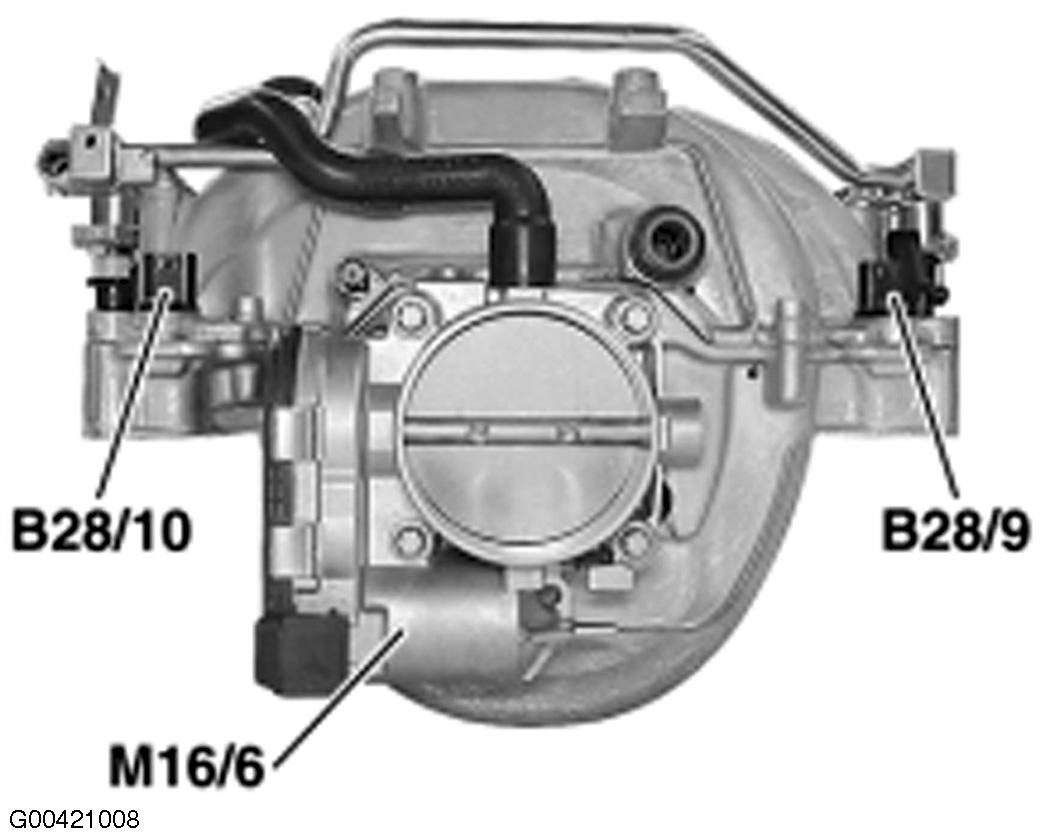

Fig 8: Throttle Body

G00421008

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

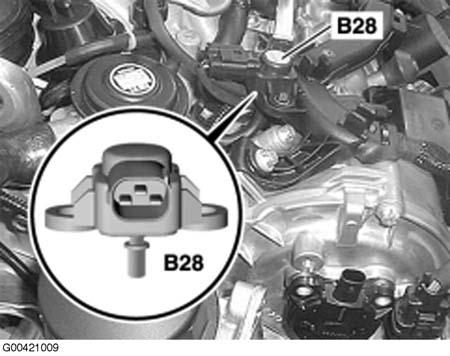

Fig 9: Engine

G00421009

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

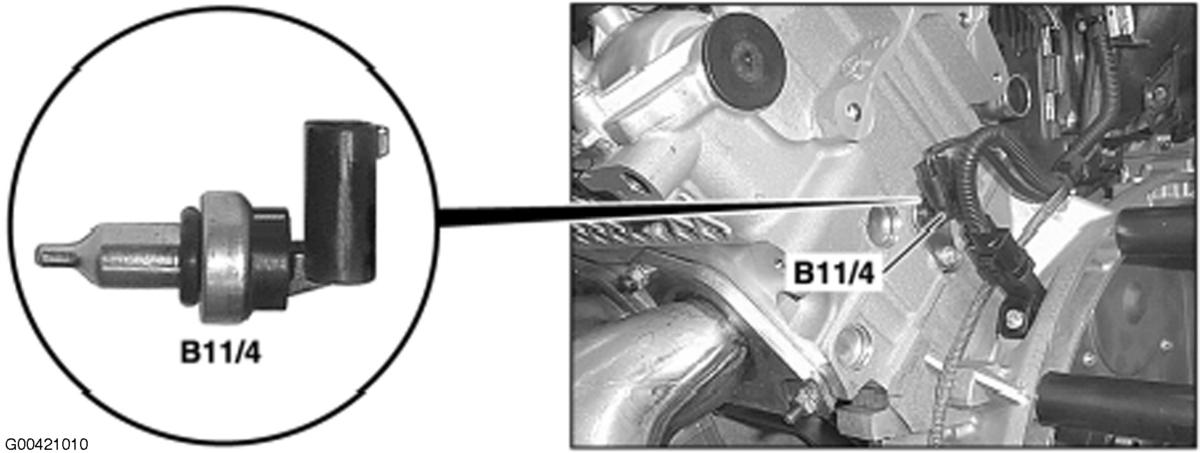

Fig 10: Engine

G00421010

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

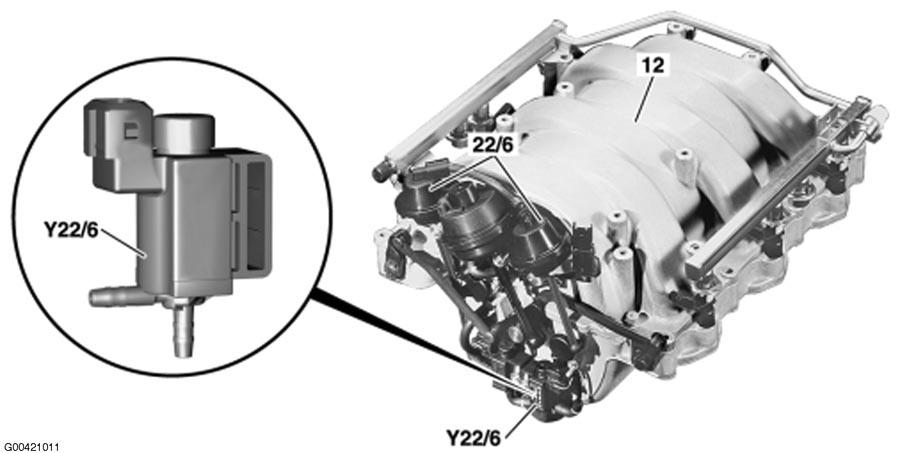

Fig 11: Intake Manifold

G00421011

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

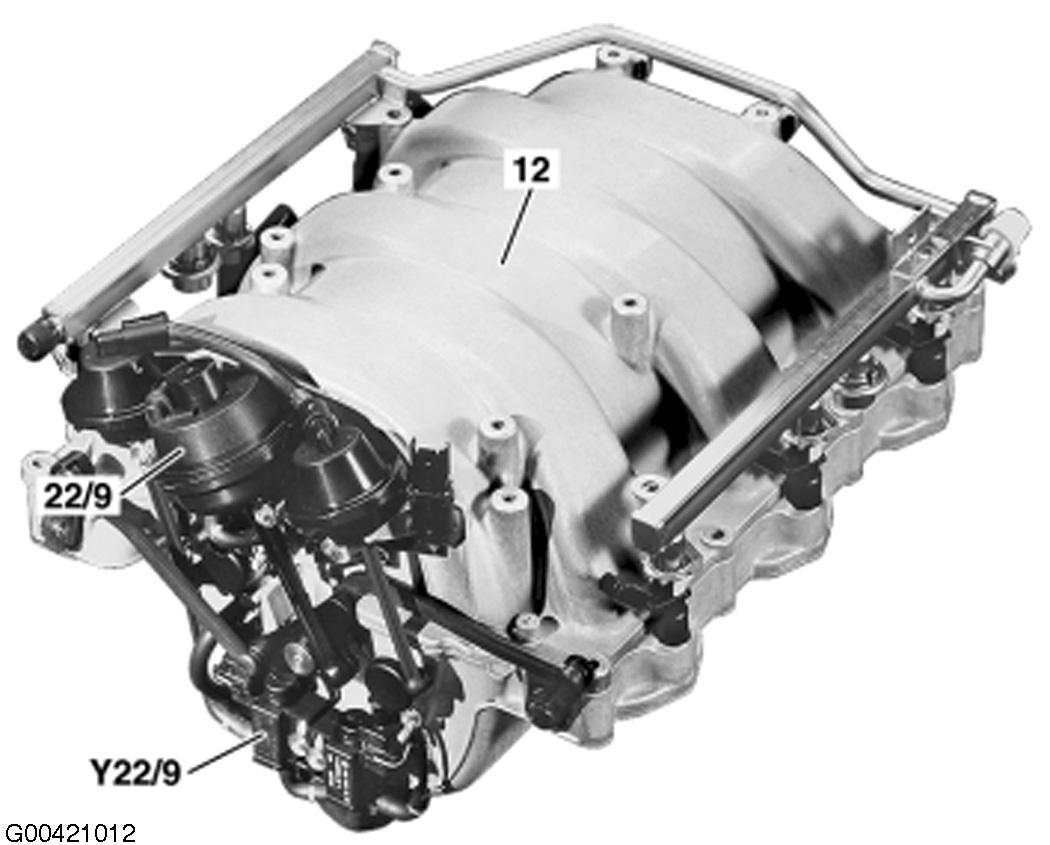

Fig 12: Intake Manifold

G00421012

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

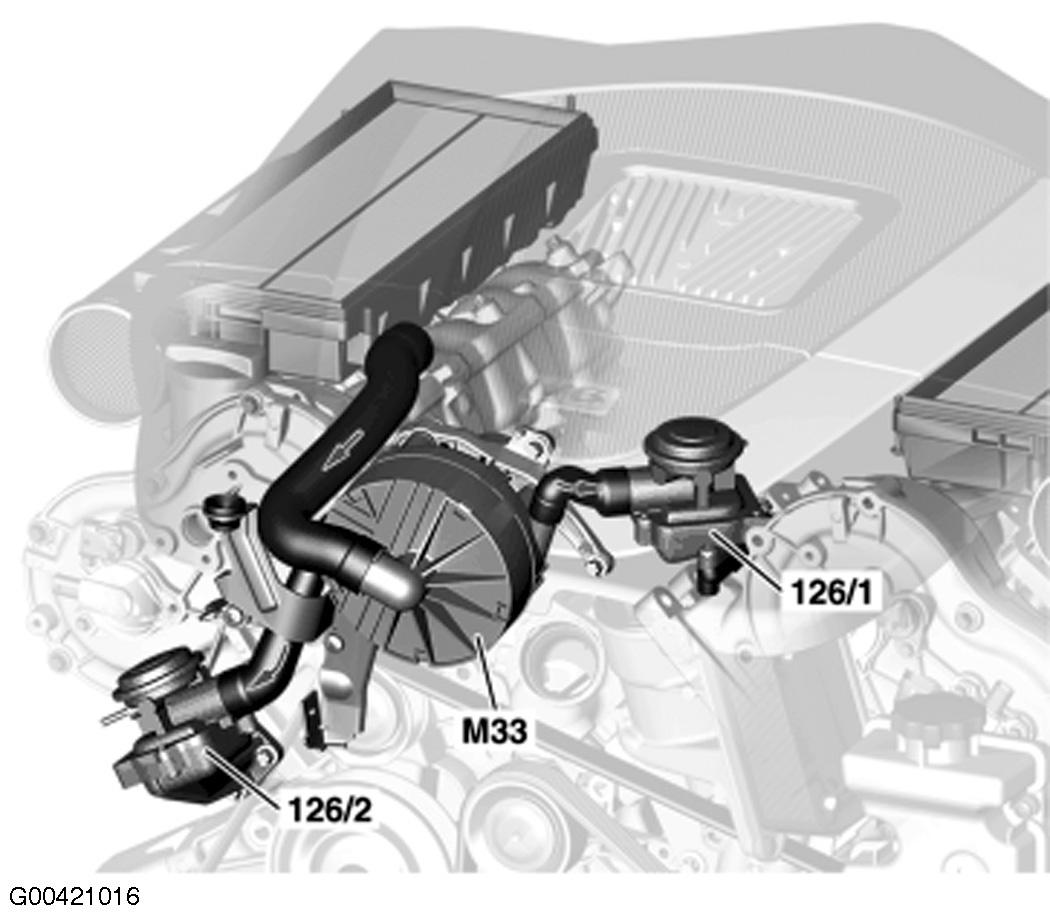

Fig 13: Front Of Engine

G00421016

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

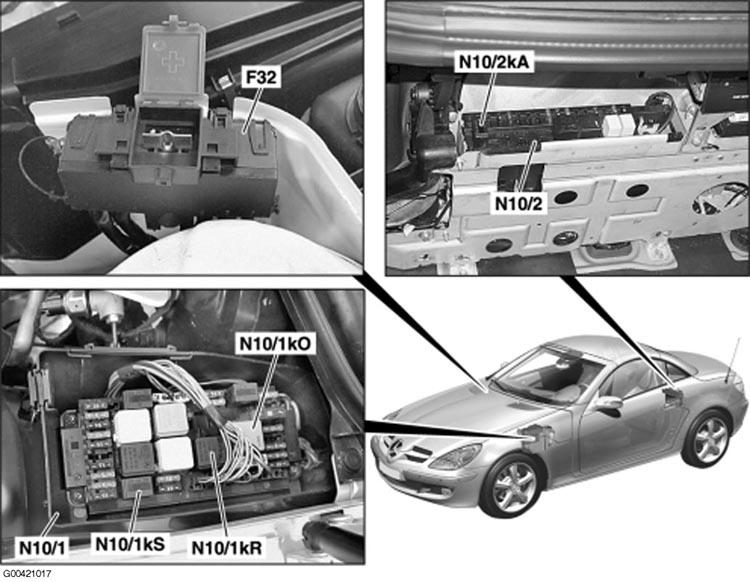

Fig 14: Vehicle Overview

G00421017

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

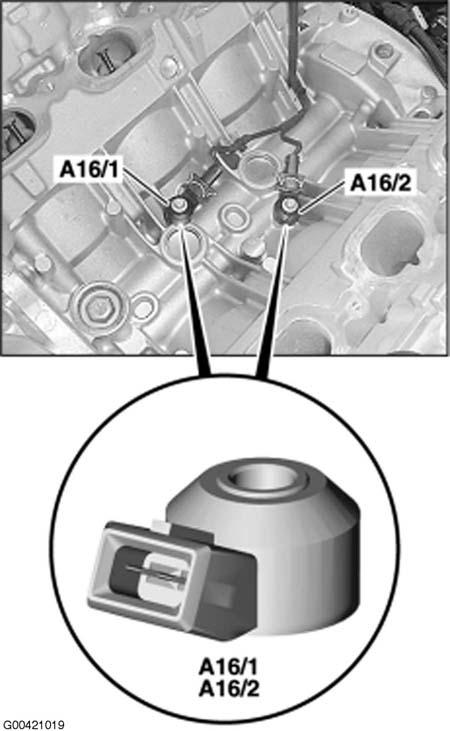

Fig 15: Top Of Engine

G00421019

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

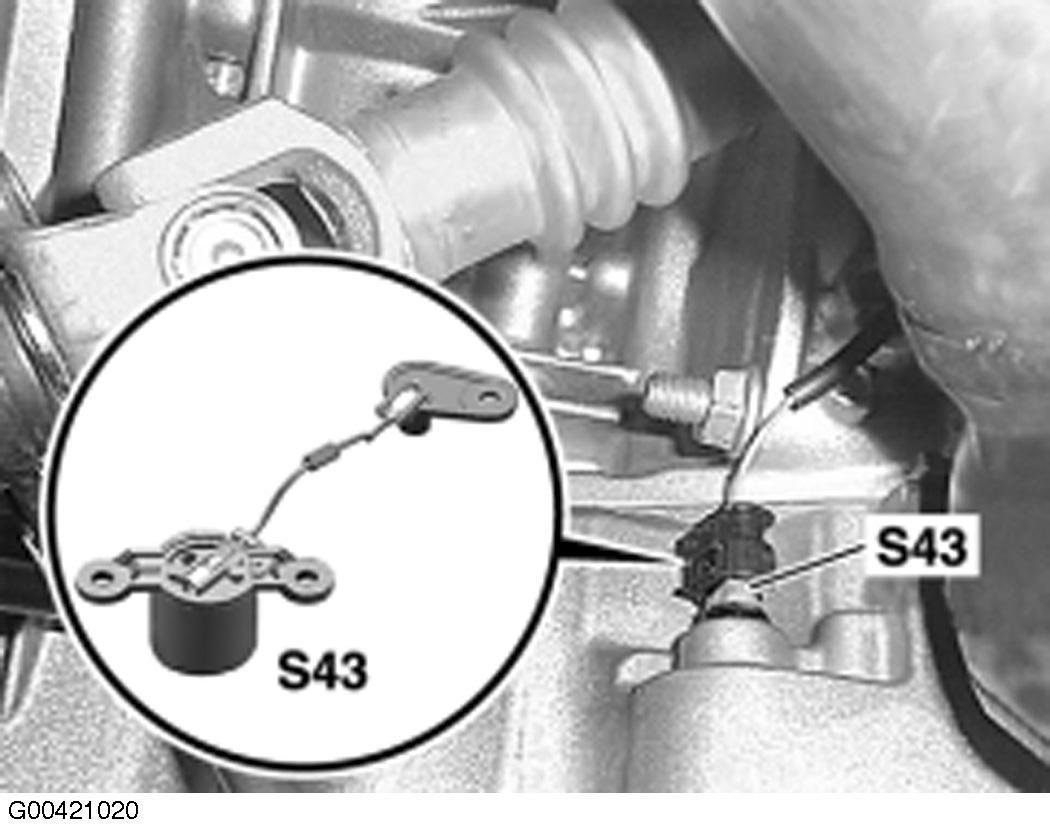

Fig 16: Bottom Of Engine

G00421020

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

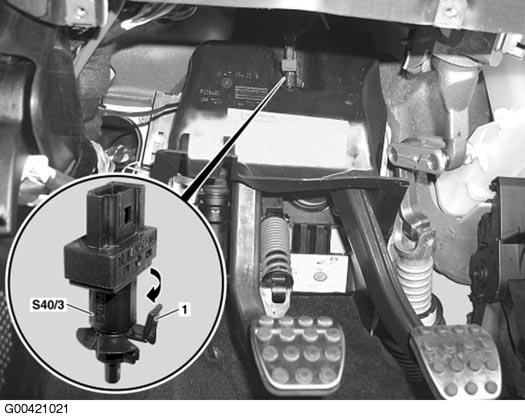

Fig 17: Under Left Side Of Dash

G00421021

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

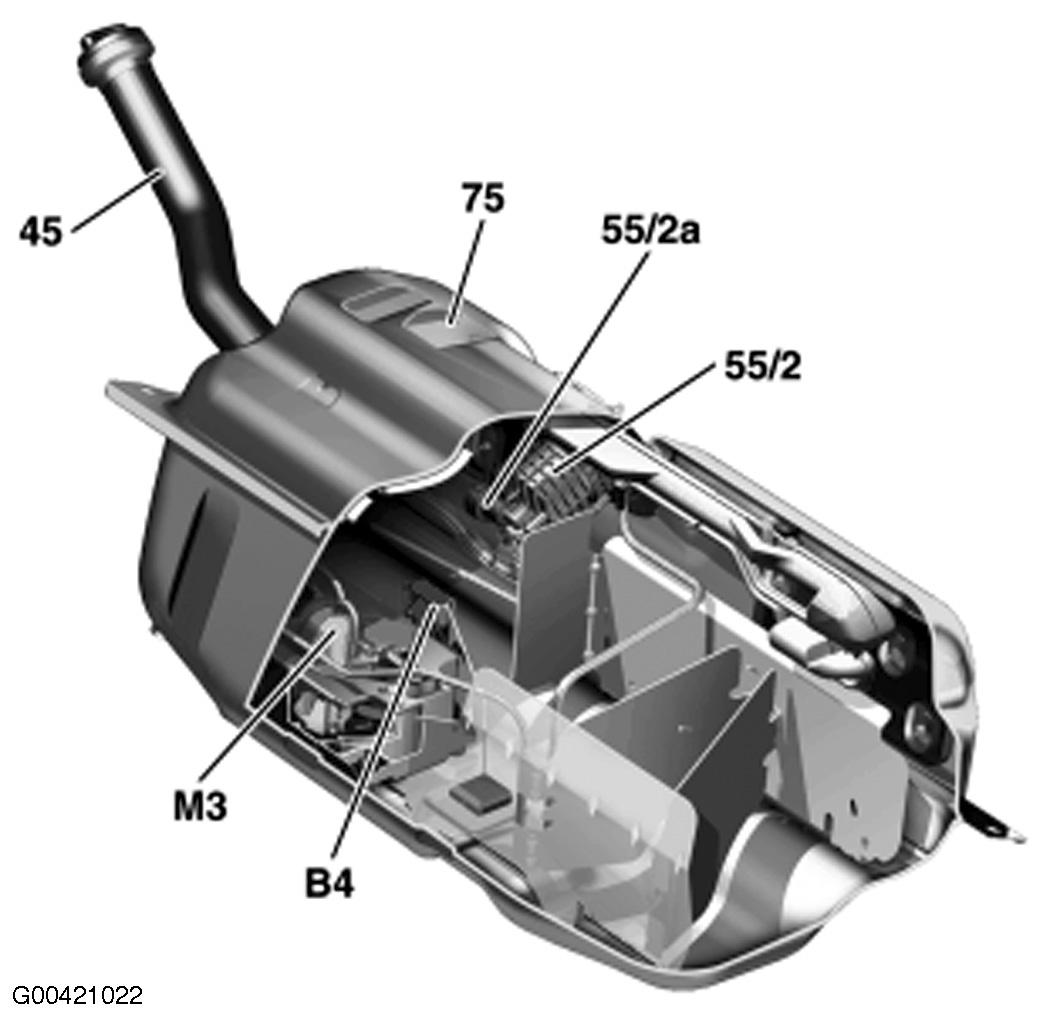

Fig 18: Fuel Tank

G00421022

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 19: Left Side Of Engine

G00421023

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

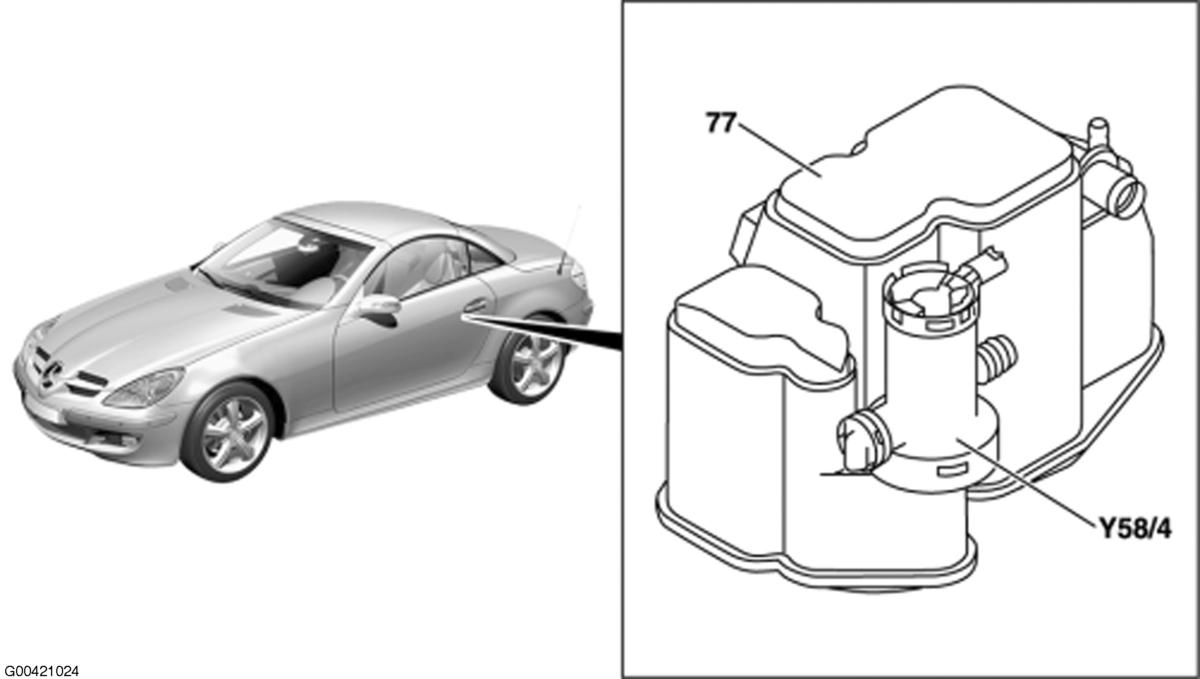

Fig 20: Rear Of Vehicle

G00421024

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

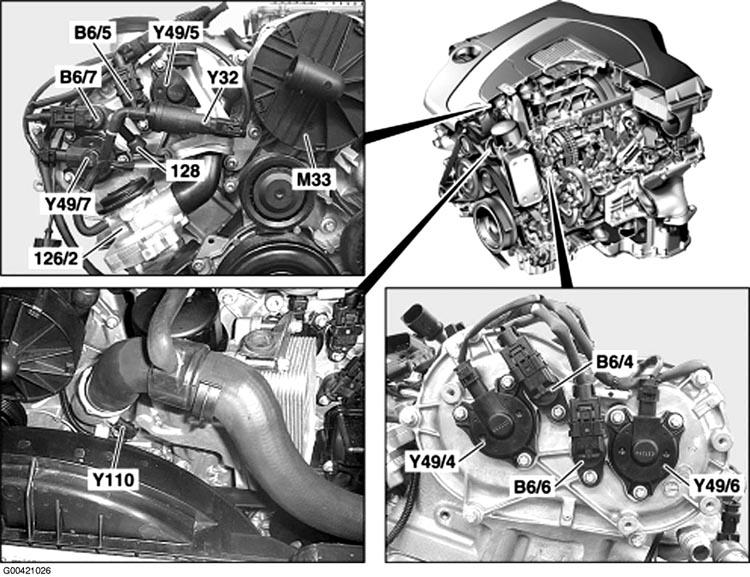

Fig 21: Engine

G00421026

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

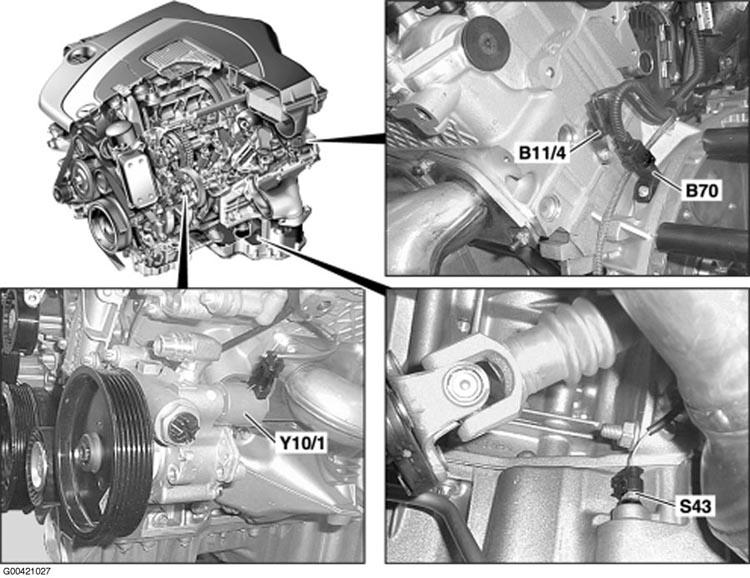

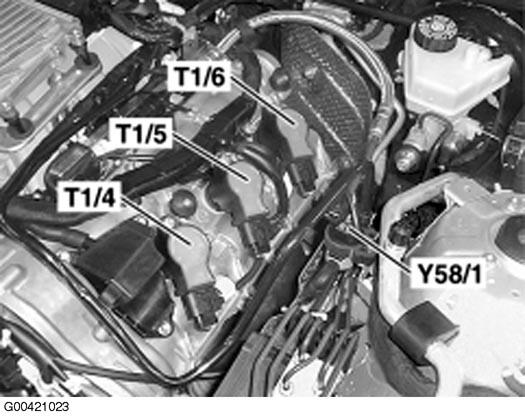

Fig 22: Left Side Of Engine

G00421027

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 23: Engine

G00421028

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

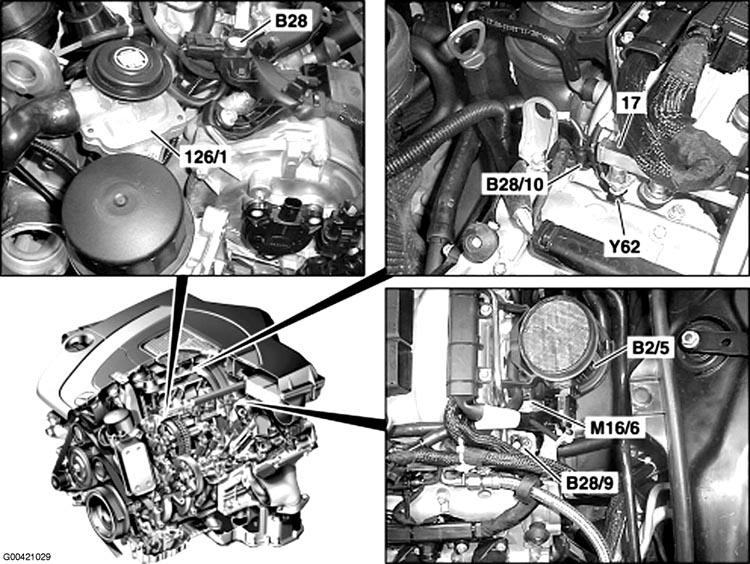

Fig 24: Engine

G00421029

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 25: Vehicle Overview

G00446600

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

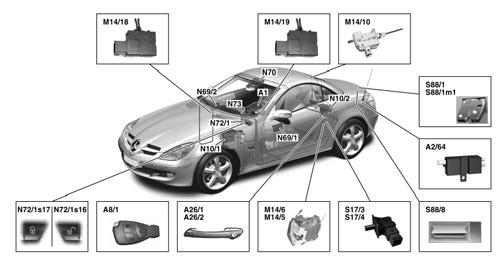

Fig 26: Vehicle Overview

G00446601

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

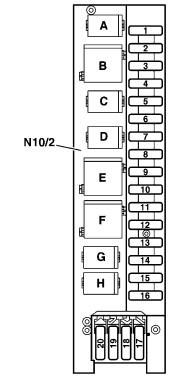

Fig 27: Rear SAM Control Unit With Fuse & Relay Module

G00446602

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

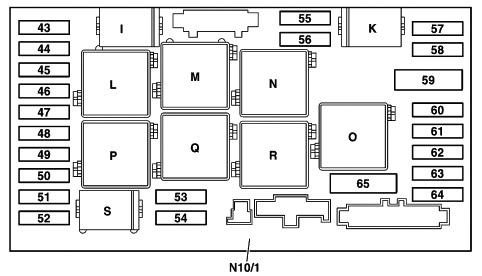

Fig 28: Driver-Side SAM Control Module With Fuse & Relay Module

G00446603

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
