Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

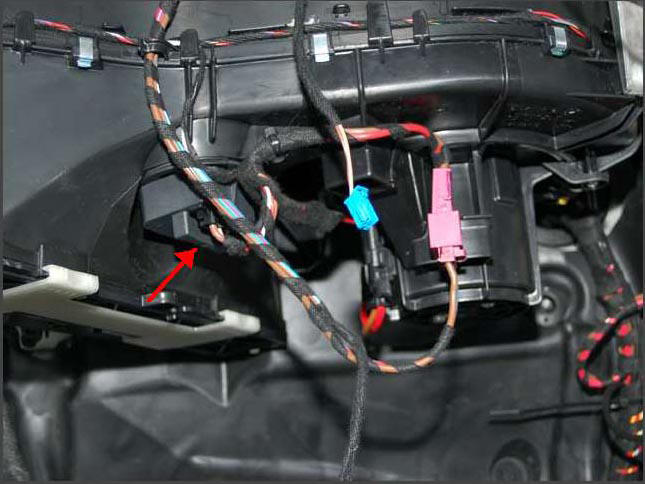

| Blower Regulator | On bottom of blower motor. See Figure. |

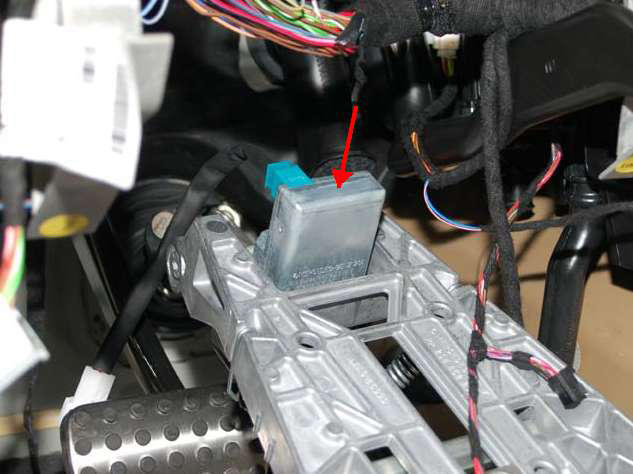

| Electric Steering Lock Control Unit | Top of steering column. See Figure. |

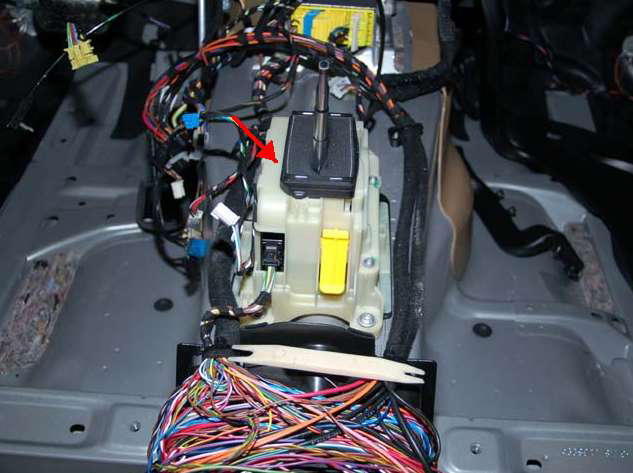

| Electronic Selector Lever Module Control Module | Under center console. See Figure. |

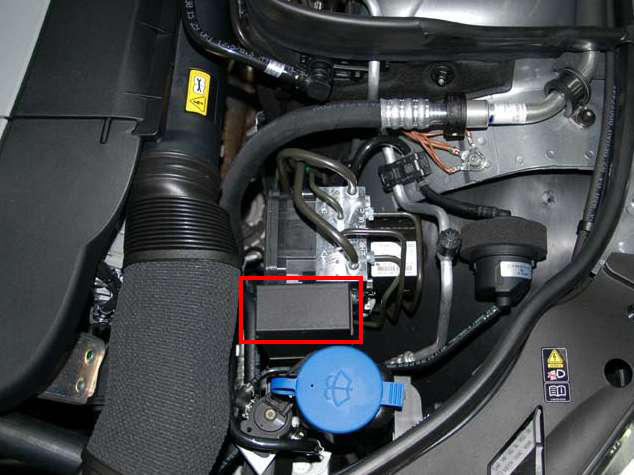

| Electronic Stability Program Control Unit | Left front of engine compartment. See Figure. |

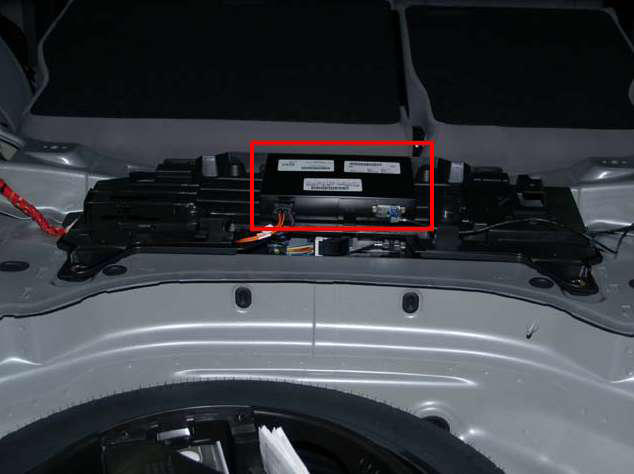

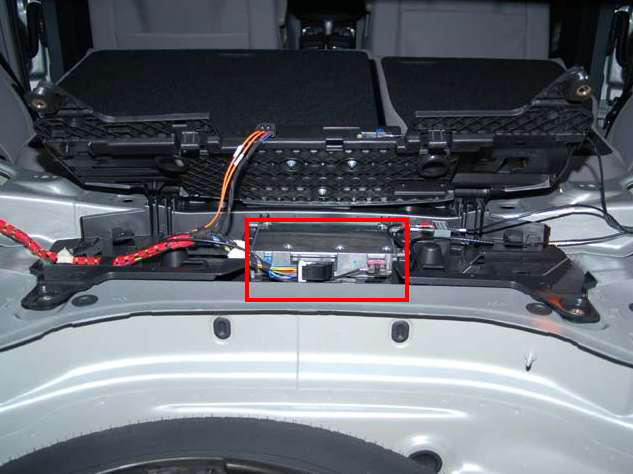

| Emergency Call System Control Unit | Center front of trunk. See Figure. |
| Fuel Pump Control Module | Under right rear seat. See Figure. |

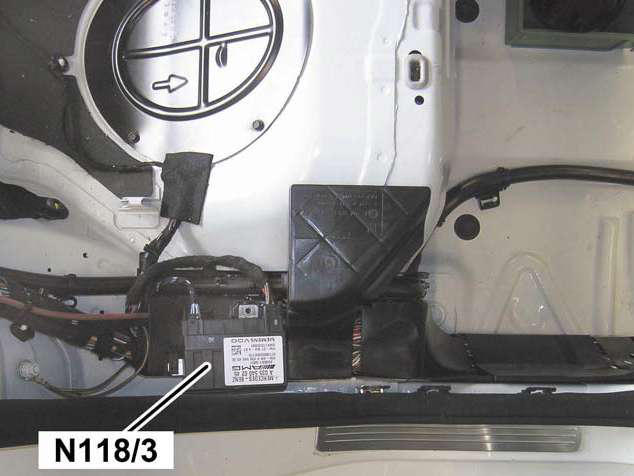

| Left Fuel Pump Control Unit | Under right rear seat. See Figure. |

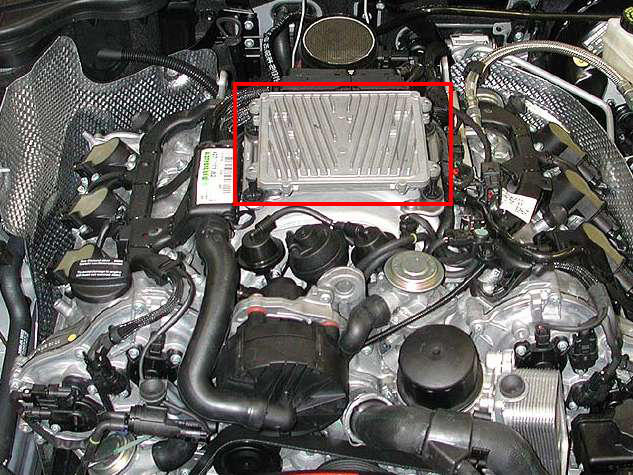

| ME-SFI (ME) Control Module | Top center of engine. See Figure. |

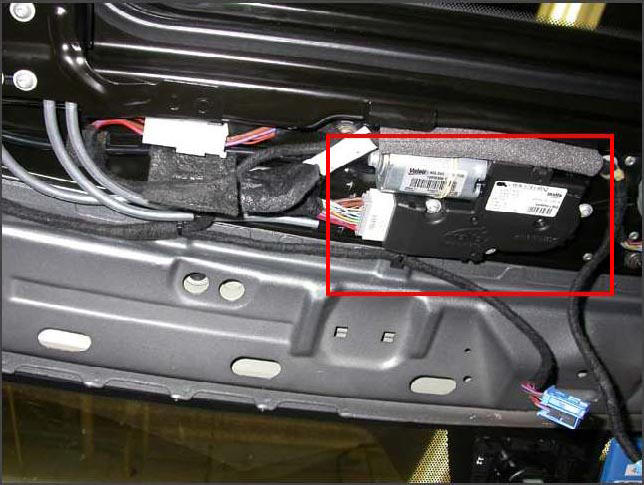

| Panoramic Sliding Roof Control Module | Left front of roof. See Figure. |

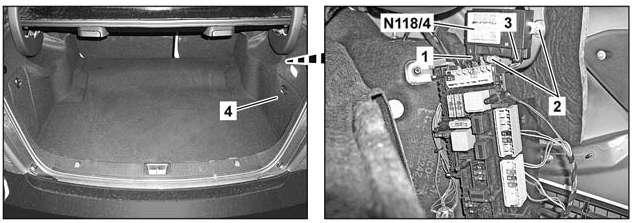

| Right Fuel Pump Control Unit (N118/4) | Right side of trunk. See Figure. |
| Satellite Digital Audio Radio (SDAR) Control Unit | Center front of trunk. See Figure. |

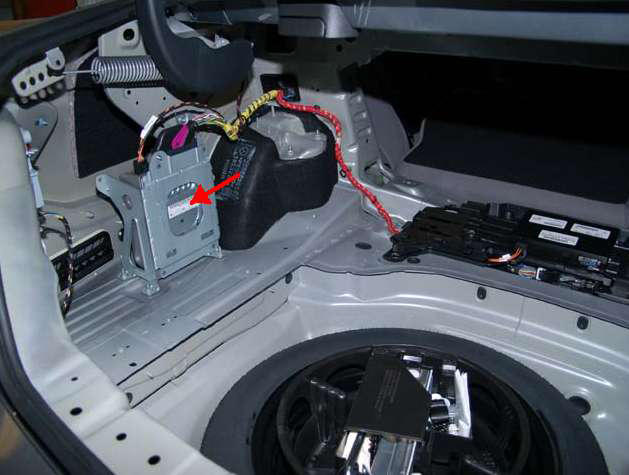

| Sound System Amplifier Control Unit | Left side of trunk. See Figure. |

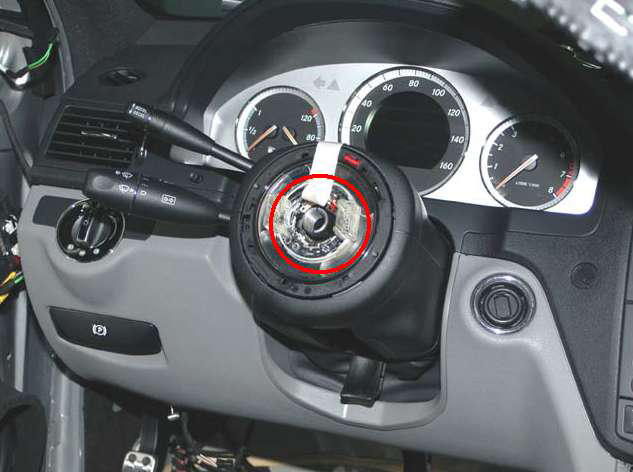

| Steering Column Module Control Unit | Top of steering column. See Figure. |
| Steering Wheel Gear Shift Signal Processing Module | Inside steering wheel. |

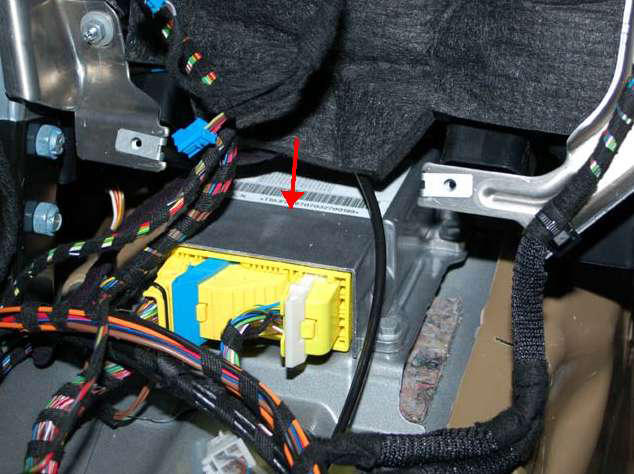

| Supplemental Restraint System Control Unit | Under front of center console. See Figure. |

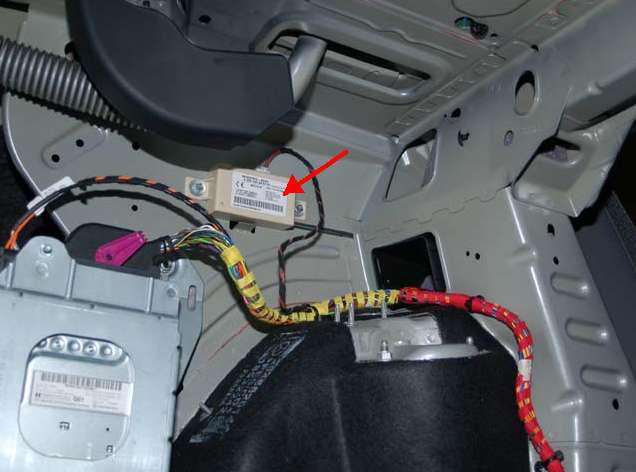

| Tire Pressure Monitor Control Unit | Left side of trunk. See Figure. |

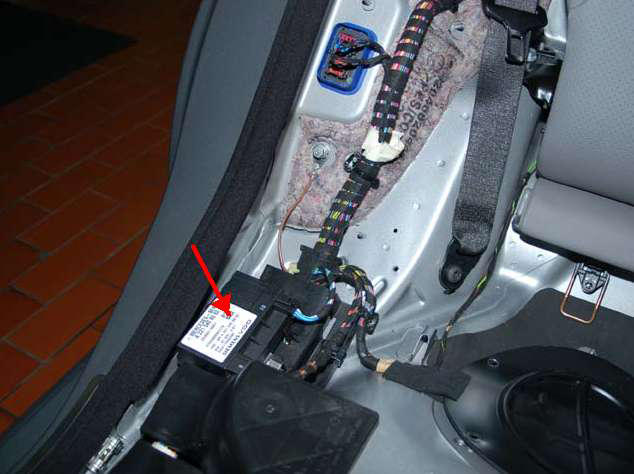

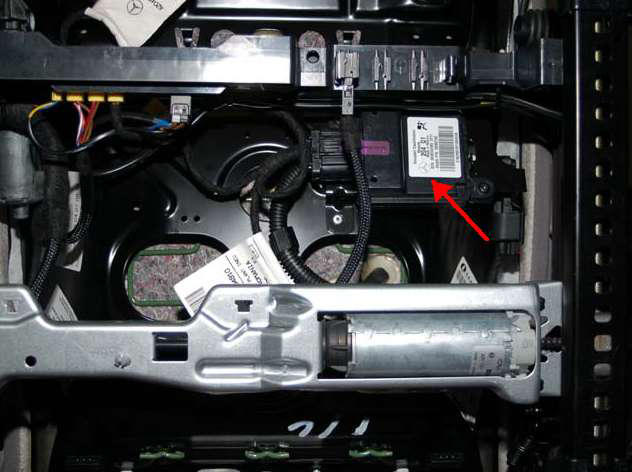

| Weight Sensing System (WSS) Control Unit | Under front passenger's seat. See Figure. |
| Xenon Headlight Control Module (Left/Right) | Behind respective headlight. |
| Xenon Headlight Ignition Module (Left/Right) | Behind respective headlight. |
