Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Vehicle Overview
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Right Rear Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Trunk Lid
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Left Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Right Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Roof
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Trunk (Convertible)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Wheel Assemblies
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 10: Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 11: Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 12: Driver's Seat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 13: Front Passenger's Seat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 14: Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 15: Left Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 16: Right Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 17: Left Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 18: Left Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 19: Center Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 20: Center Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 21: Front Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 22: Left Front Wheelwell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 23: Steering Column
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 24: Top Of Steering Column
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 25: Driver's Door
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 26: Front Passenger's Door
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 27: Right Kick Panel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 28: Right Rear Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 29: Front Center Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 30: Engine Compartment Hood
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 31: Left "B" Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 32: Right "B" Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 33: Right Side Of Dash
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 34: Under Rear Seats
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 35: Under Accelerator Pedal
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 36: Left Front Wheelwell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

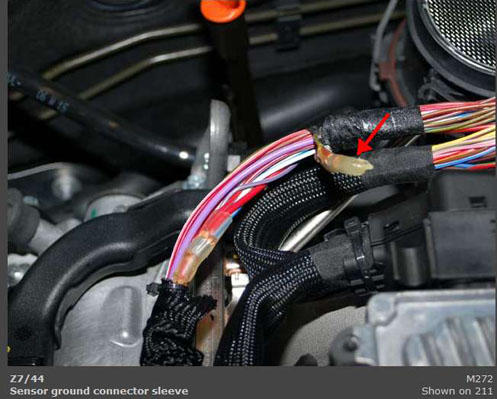

Fig 37: Left Rear Of Engine (M272)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 38: Center Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 39: Trunk Lid
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 40: Near Right Rear Seat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 41: Right Side Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 42: Left "C" Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 43: Left "C" Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 44: Right "C" Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 45: Right Side Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

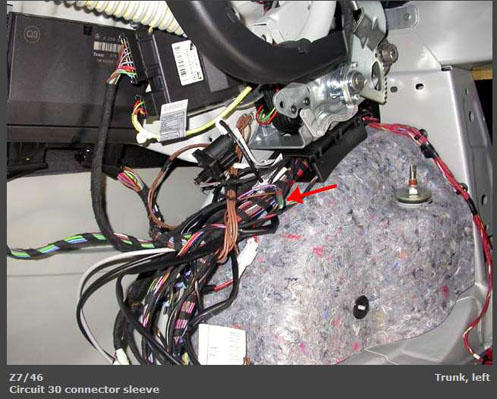

Fig 46: Left Side Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 47: Front Center Of Roof
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 48: Right Kick Panel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 49: Right Kick Panel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 50: Right Kick Panel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 51: Under Left Rear Seat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 52: Center Console
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 53: Right Rear Wheelwell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 54: Right Front Of Transmission Housing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 55: Transmission Automatic Gearbox
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 56: Steering Column
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 57: Left Rear Seat Back
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 58: Engine (M112)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 59: Engine (M112)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 60: Engine (M113)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 61: Engine (M113)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 62: Engine W/Cylinder Shutoff (M113)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

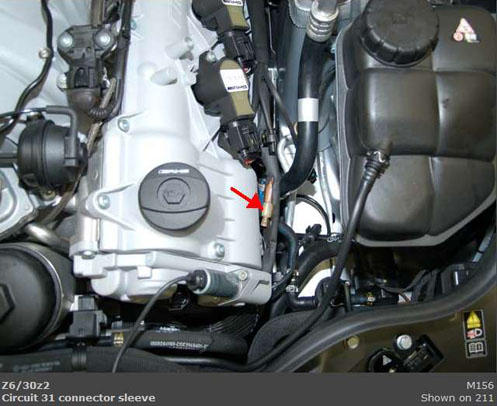

Fig 63: Engine (M156)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 64: Front SAM Control Module With Fuse & Relay Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 65: Rear SAM Control Module With Fuse & Relay Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 66: Left Side Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 67: Left Rear Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 68: Right Side Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 69: Left Front Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 70: Right Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

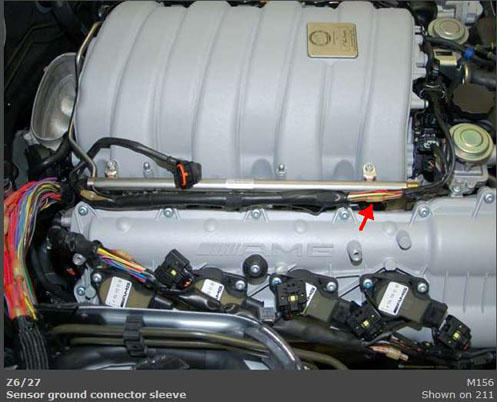

Fig 71: Front Of Engine (M156)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 72: Front Of Engine (M112 & M113)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 73: Left Side Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 74: Left Side Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 75: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 76: Left Doorsill
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 77: Right Doorsill
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 78: Center Console
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 79: Left Door Sill
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 80: Right Doorsill
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 81: Left "C" Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

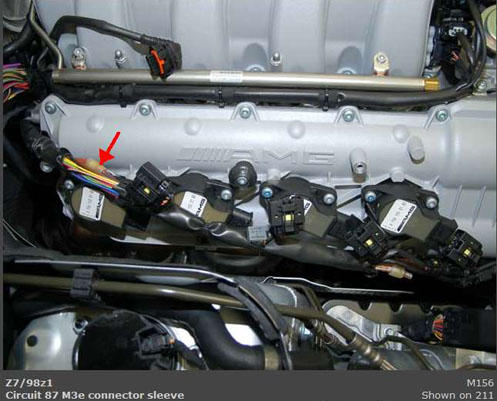

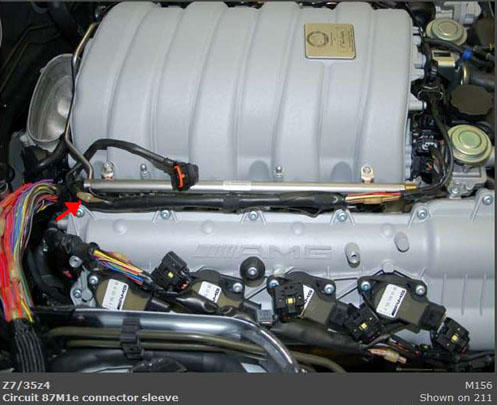

Fig 82: Front Of Engine (M156)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

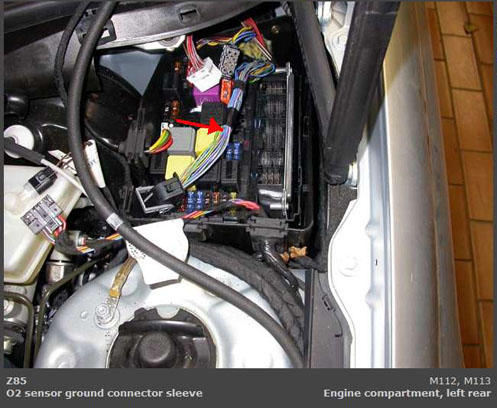

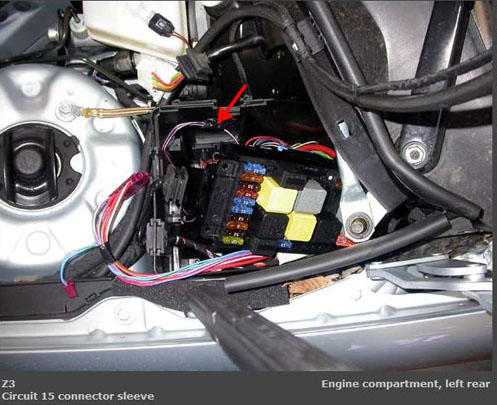

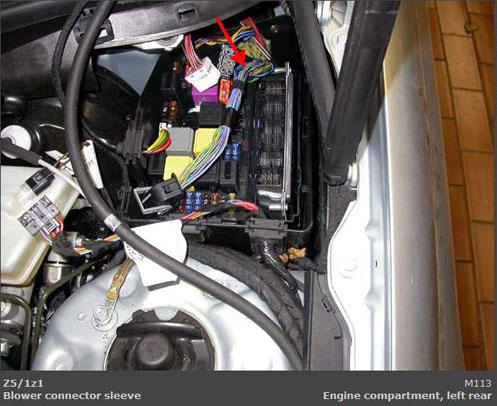

Fig 83: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 84: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

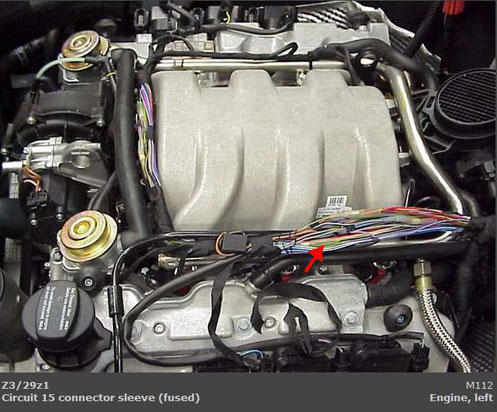

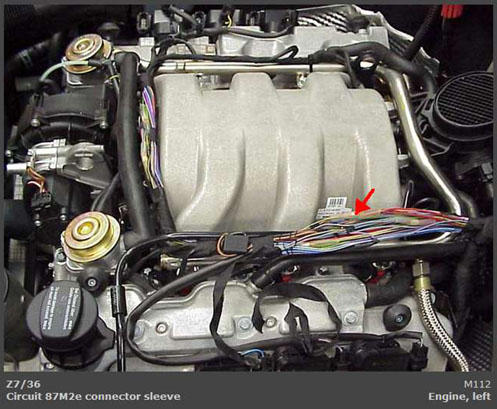

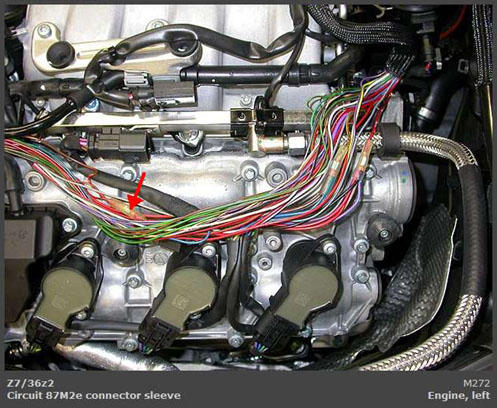

Fig 85: Left Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

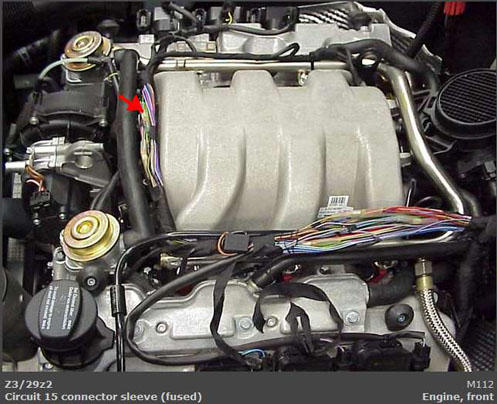

Fig 86: Front Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

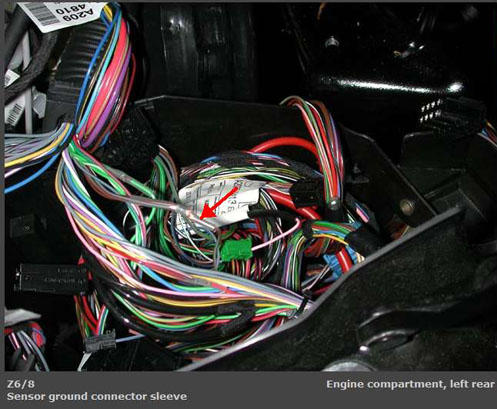

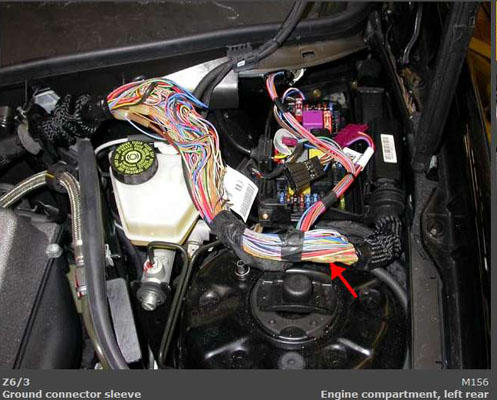

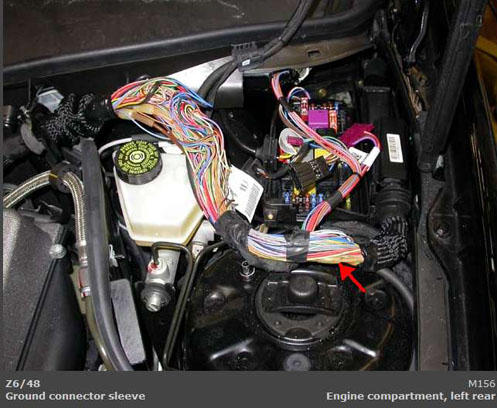

Fig 87: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 88: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

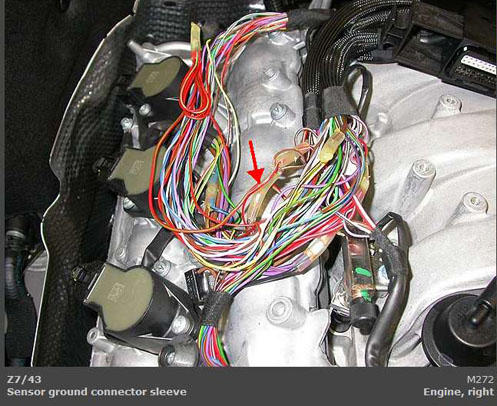

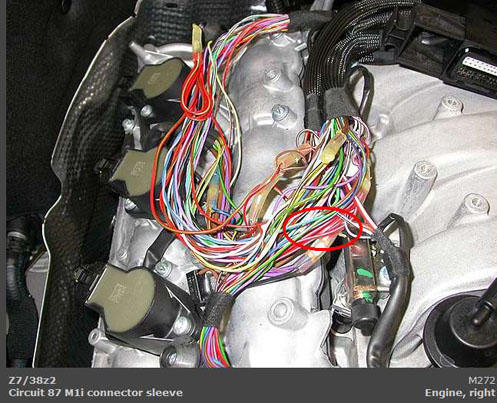

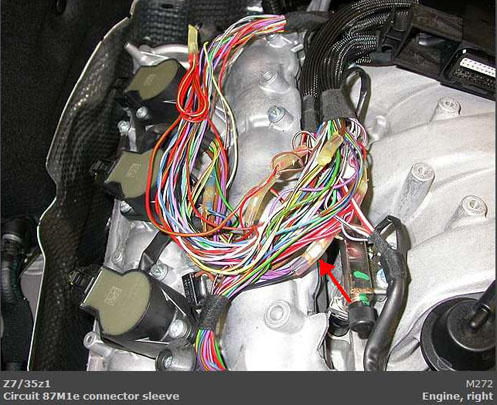

Fig 89: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 90: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 91: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

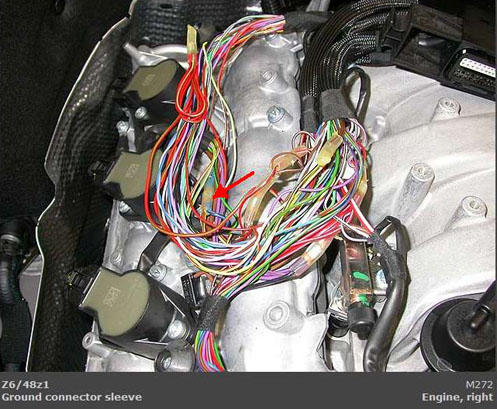

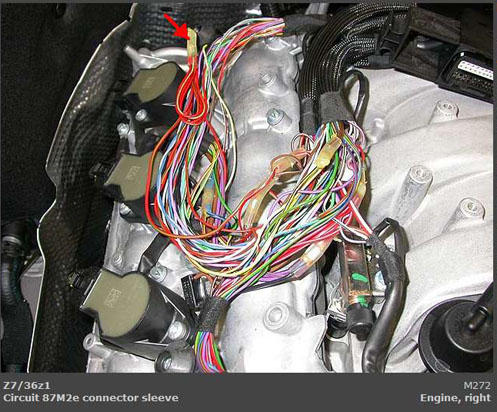

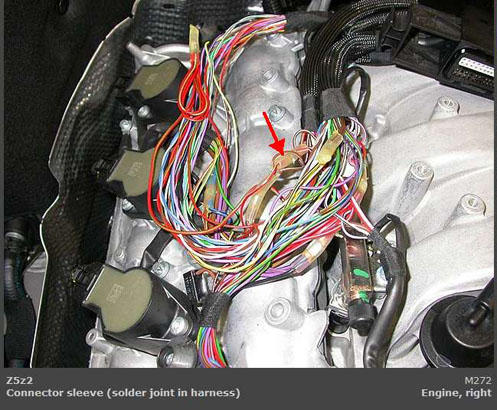

Fig 92: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

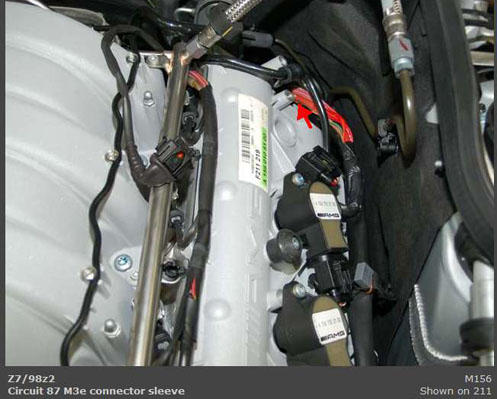

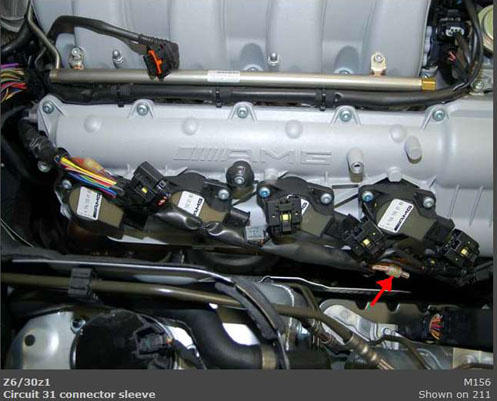

Fig 93: Right Front Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 94: Right Front Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 95: Left Front Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

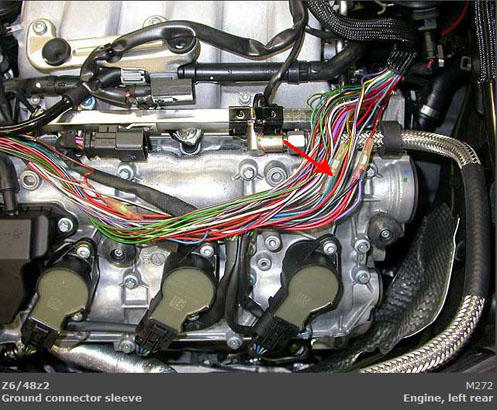

Fig 96: Left Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

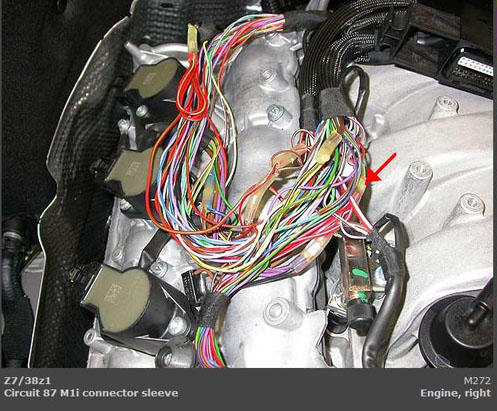

Fig 97: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

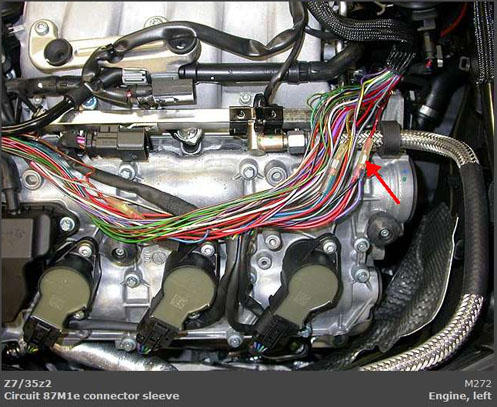

Fig 98: Left Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 99: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 100: Left Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 101: Left Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 102: Right Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 103: Left Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 104: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 105: Left Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 106: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 107: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 108: Right Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

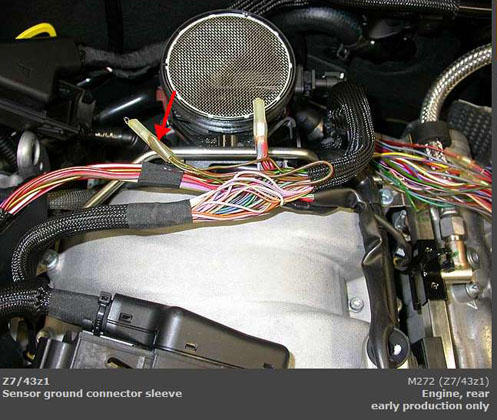

Fig 109: Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 110: Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 111: Left Side Of Trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 112: Left Rear Of Engine Compartment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 113: Right Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 114: Left Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 115: Left Rear Of Engine
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

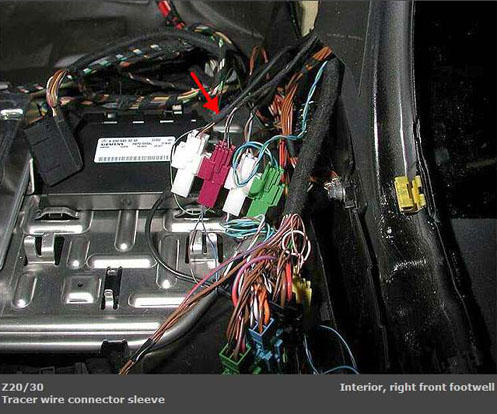

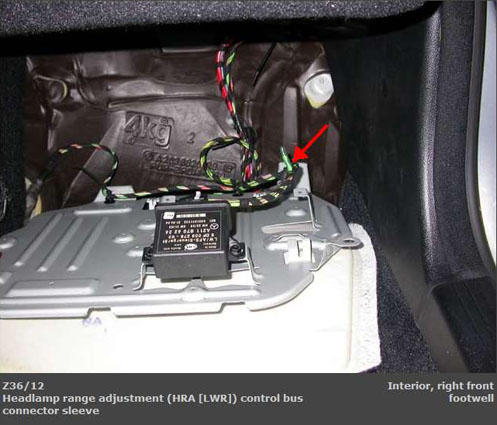

Fig 116: Right Front Footwell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 117: Right Front Footwell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

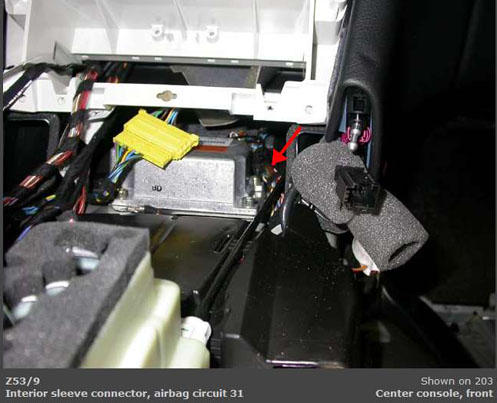

Fig 118: Front Of Floor Console
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

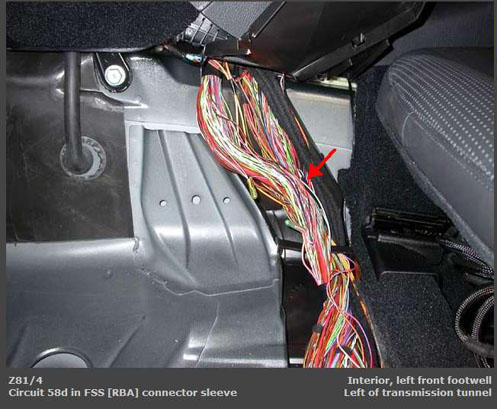

Fig 119: Left Front Footwell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
