Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Driver/Front Passenger Overvoltage Protection Diode | Respective front seat back. See Figure. |

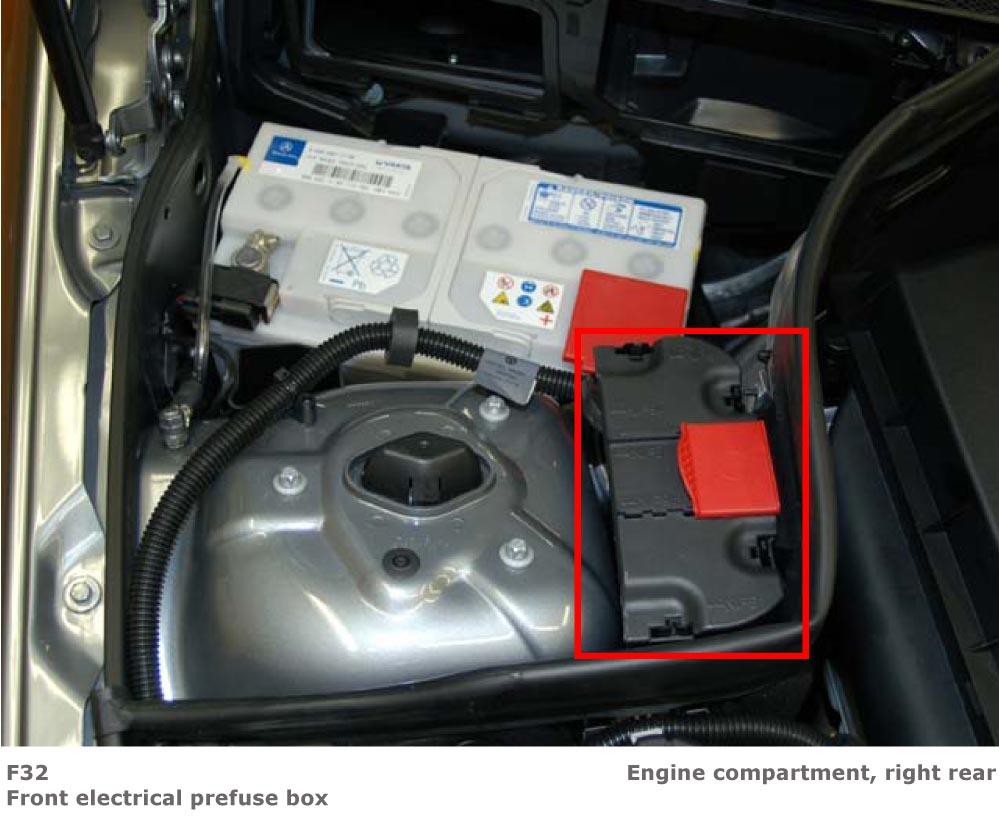

| Front Electrical Prefuse Box | Right rear engine compartment. See Figure. |
| Front SAM Control Unit W/Fuse & Relay Module | Left rear engine compartment. See Figure. |

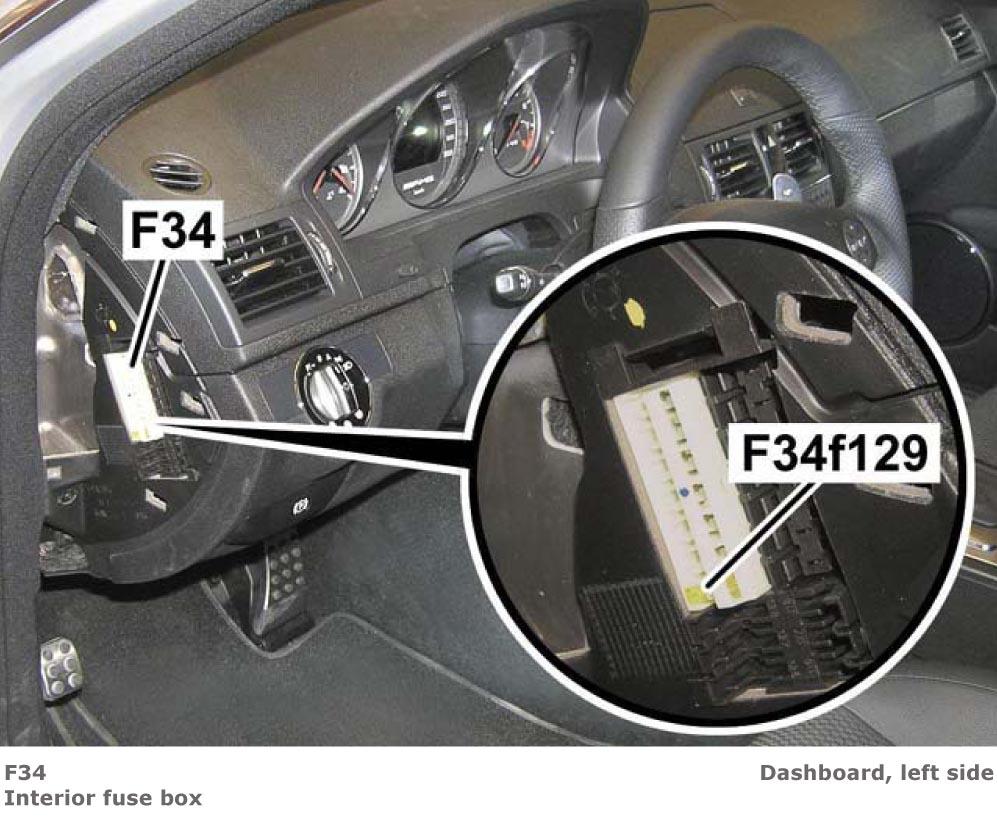

| Interior Fuse Box | Left end dash. See Figure. |

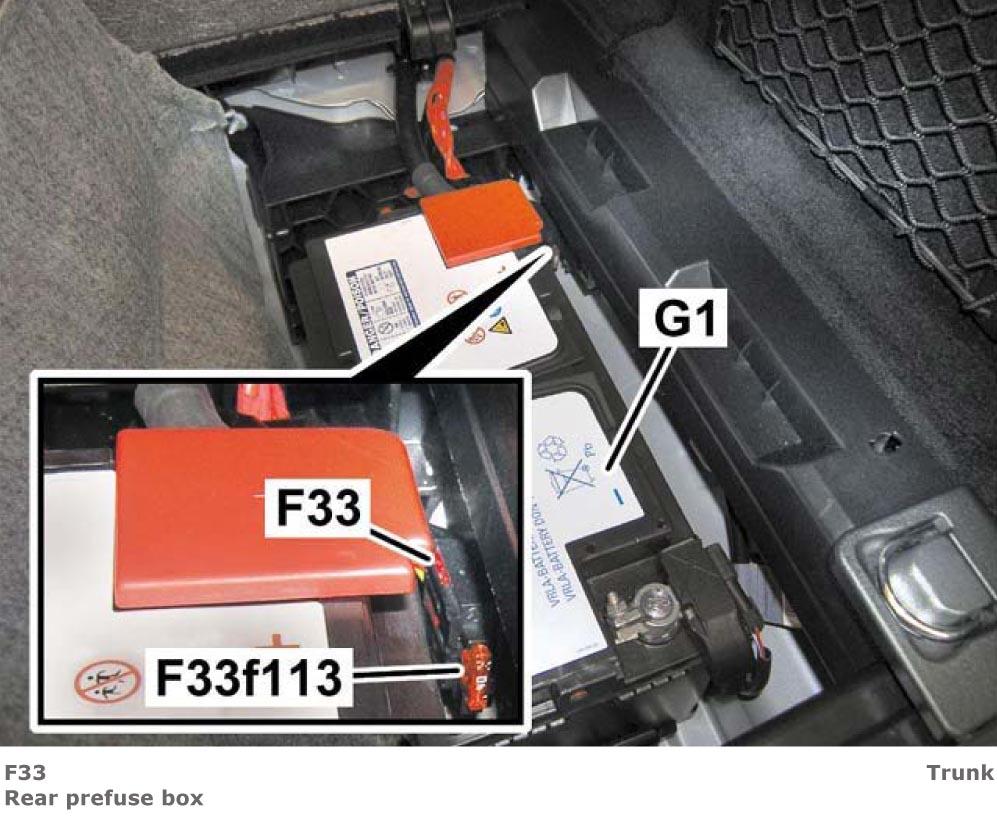

| Rear Prefuse Box (F33) | Right side trunk/cargo area. See Figure. |

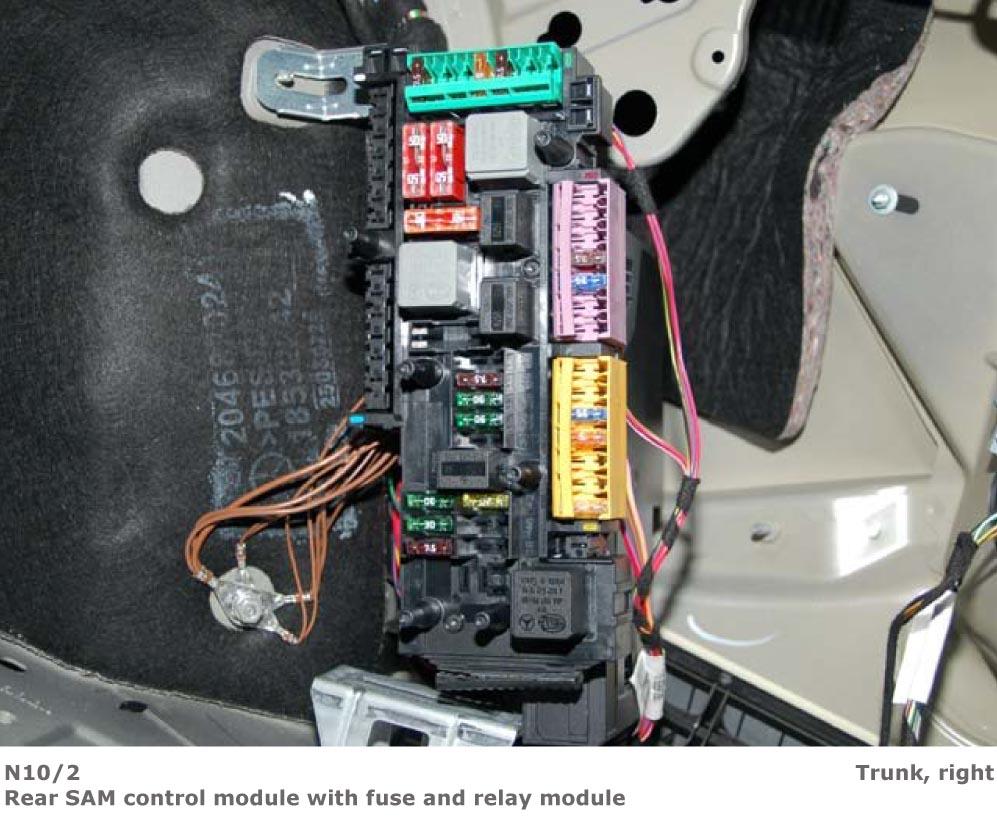

| Rear SAM Control Unit W/Fuse & Relay Module | Left side trunk/cargo area. See Figure. |
