Correction programming, function - GF07.61-P-3031M

ENGINES 275.950 in MODEL 215, 220

ENGINES 275.951 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.953 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 275.954 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.980 in MODEL 215, 220

ENGINES 275.981 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.982 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 285.950 in MODEL 240

ENGINES 285.980 in MODEL 240

Shown on model 215, 220, 230, 240

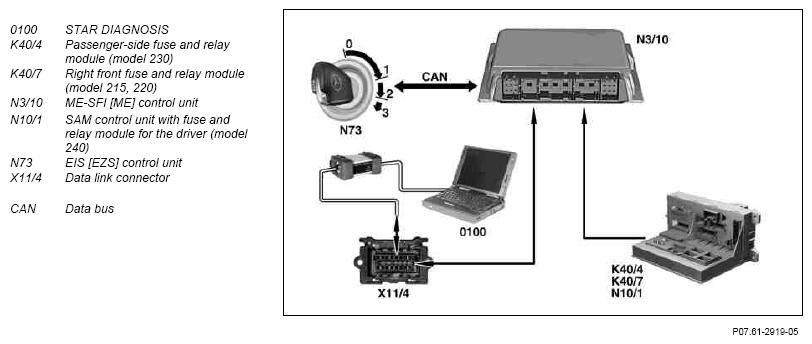

Fig 1: Identifying Correction Programming Function Diagram

Courtesy of MERCEDES-BENZ USA

Different performance maps for the engine control can be activated with the correction programming function in the ME-SFI control unit.

The programming can be carried out with STAR Diagnosis when ignition is "ON", via the data link connector.

The following performance maps can be influenced:

Ignition maps for adapting to different fuel quality (except )
Mixture maps for enriching the air/fuel mixture in different operating states (except )
Idle speed for automatic transmission and drive position engaged
Temperature correction for switching electrical suction fan on and off.

ME-SFI control unit, location/task/design/ function
