Fuel level sensor, location/task/design/function - GF47.10-P-3001M

MODEL 215, 220 with ENGINE 275.950

MODEL 230 with ENGINE 275.951 up to Model Year 8

MODEL 216, 221 with ENGINE 275.953 up to Model Year 8

MODEL 230 with ENGINE 275.954 up to Model Year 8

MODEL 215, 220 with ENGINE 275.980

MODEL 230 with ENGINE 275.981 up to Model Year 8

MODEL 216, 221 with ENGINE 275.982 up to Model Year 8

MODEL 240 with ENGINE 285.950

MODEL 240 with ENGINE 285.980

Illustrated on model 230

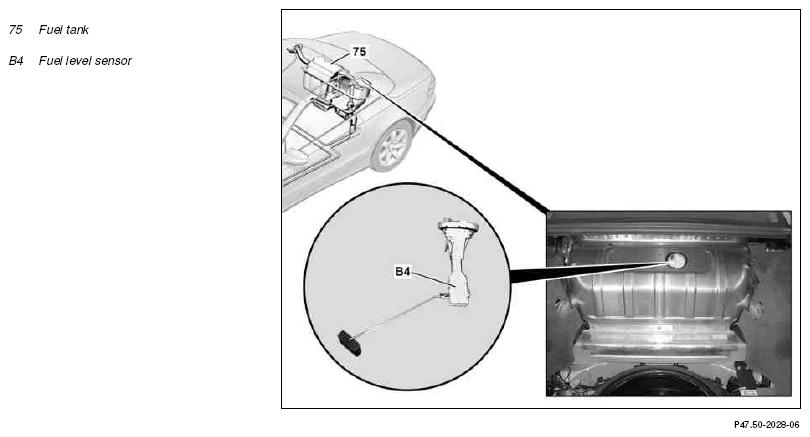

Fig 1: Identifying Fuel Level Sensor Components - Illustrated On Model 230

Courtesy of MERCEDES-BENZ USA

	Fuel gauge sensor, location	Model 215, 220, 230, 240: Installed into the fuel tank from above. Model 216, 221: One fuel level sensor is mounted in each fuel tank chamber.
	Fuel gauge sensor task	The fuel level sensor determines the fuel level in the fuel tank.
	Fuel gauge sensor design	Float-and-lever sensor with two wiper contacts (potentiometer) and a float.
	Fuel gauge sensor function	Modification of resistance value in line with fuel level.
