Purging Function - GF47.30-P-3015MNH
Engine 176.9, 177.9 in model 463
as of model year 2019

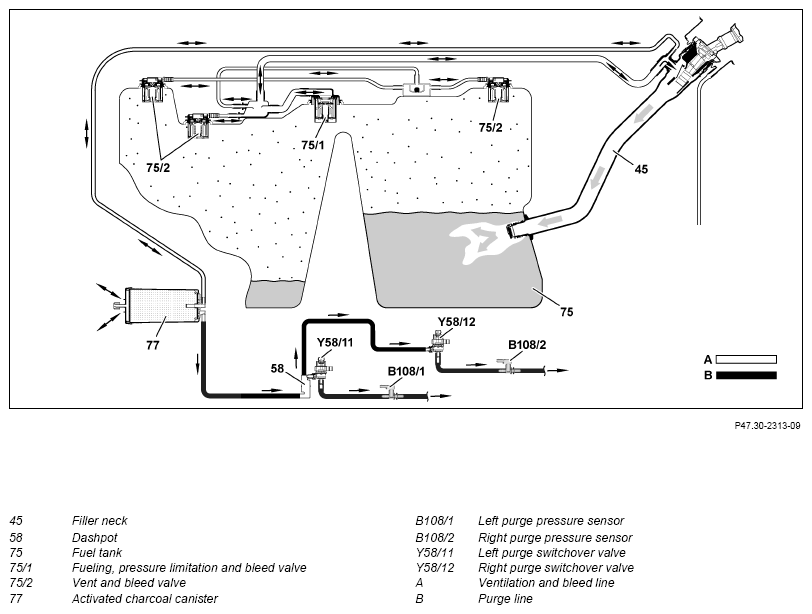

Schematic diagram of fuel tank venting and bleeding (except code ZU8 (USA version))

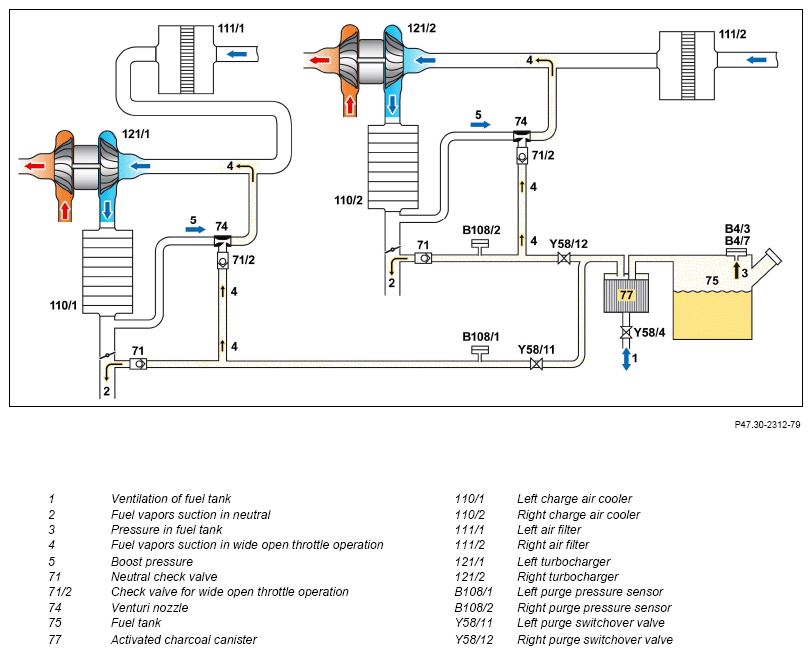

Schematic representation of purging
Purging function requirements, general points
- Circuit 87M (Engine management ON)
- Engine start before at least 60 to 80 s
- Coolant temperature>40°C
- Engine not in overrun mode
- Engine not in the lambda adaptation phase
The circuit relay 87M (K40/8kN) is switched on for circuit 15 ON.
Purging, general points
When the fuel tank is being ventilated, no fuel vapors should escape into the outside air. The fuel vapors are stored in the activated charcoal canister and burnt later in the engine.
In order to enable the purging, the ME-SFI [ME] control unit (N3/10) reads in signals from the following sensors:
- Left sensor element for lambda senor upstream of catalytic converter (G3/3b1) and right sensor element for lambda senor upstream of catalytic converter (G3/4b1)
- Coolant temperature sensor (B11/4), coolant temperature
- Left charge air temperature sensor (B17/14) and right charge air temperature sensor (B17/15), charge air temperature
- Pressure sensor downstream of left throttle valve (B28/22) and pressure sensor downstream of right throttle valve (B28/23), boost pressure
- Crankshaft Hall sensor (B70), engine speed
- Purging pressure sensor on the left and right, pressure in the vent line on the left and right
Function sequence for purging
Ventilation of the fuel tank (operational ventilation) takes place over the vent/bleed valves, the vent/bleed lines and the activated charcoal canister.
The fuel vapors here flow to the activated charcoal canister, where they are stored and from where they are extracted into the charge air distributor when purging is enabled.
When the engine is running, the fuel vapors stored in the activated charcoal canister are drawn off through the left and right purging switchover valves and combusted in the engine.
The left and right purging switchover valves are actuated by the ME-SFI [ME] control unit at the ground end to regulate the purging quantity using a current signal between 0 and 500 mA.
The purging quantity is determined through regulation of the opening cross-section of the left and right purging switchover valves.
The idle speed control prevents the purging from causing a change in rpm when the engine is at idle. The fuel/air mixture is leaned out depending on the level of fuel vapors load in the activated charcoal canister.
The function sequence for purging includes the following partial functions:
- Function sequence for neutral purging
- Function sequence for wide open throttle purging
Function sequence for neutral purging
In idling, the fuel vapors stored in the activated charcoal canister are suctioned off by the existing vacuum via the left and right purging switchover valves, the idling check valve and the idling purge lines behind the throttle valves and burned in the engine.
Function sequence for wide open throttle purging
In wide open throttle operation the fuel vapors are suctioned off through the wide open throttle operation check valve and the wide open throttle purge line.
The vacuum required for this is generated by a Venturi nozzle. The fuel vapors are then routed over the wide open throttle purge lines, ATLs and the charge air coolers to the charge air distributors. To check whether wide open throttle purging can be enabled, the left and right purging switchover valves are opened suddenly 3 times. Pressure peaks of>120 mbar must be registered here to do this. The purging pressure sensors detect the given pressure conditions in the wide open throttle purge line, and send a signal to the ME-SFI [ME] control unit.
