Circuit Breaker Test

  1. Remove circuit breaker from fuse panel. Connect tester to circuit breaker, adjust to 6 amps, and leave on for 10 minutes. Replace circuit breaker if it opens.

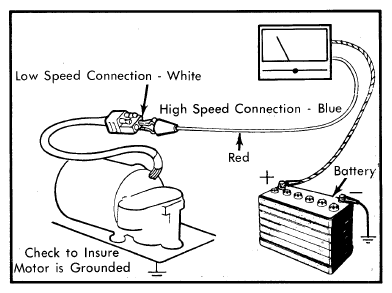

    Fig 1: Motor Current Draw Test
    G09358852Courtesy of FORD MOTOR CO.

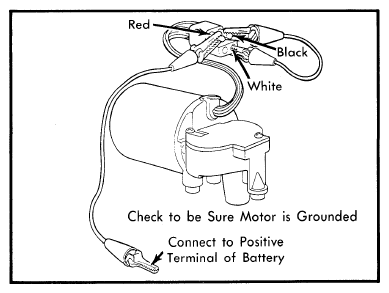

    Fig 2: Motor Park Test
    G09358853Courtesy of FORD MOTOR CO.
  2. Adjust tester so current flow is 12 amps. Breaker should open within 30 seconds. If it does not, replace breaker.
