Test Spark Plug

Use either a spark tester tool or modify a spark plug (cut off side terminal and install spring clip for grounding plug housing) for use in testing ignition system. See Fig 1.

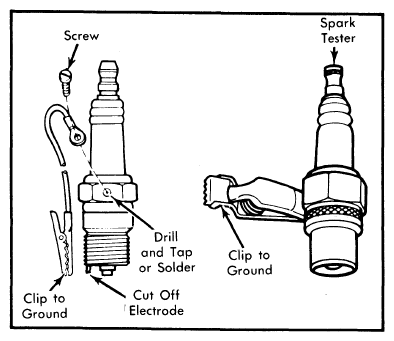

Fig 1: Modified Spark Plug and Spark Tester
G09316168Courtesy of FORD MOTOR CO.
