Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Dual Warning Buzzer | Behind right side of instrument panel, above glove box. See Figure. |
| Fuse Block | Behind left side of instrument panel. |
| Graphic Warning Module | Top center of console. |

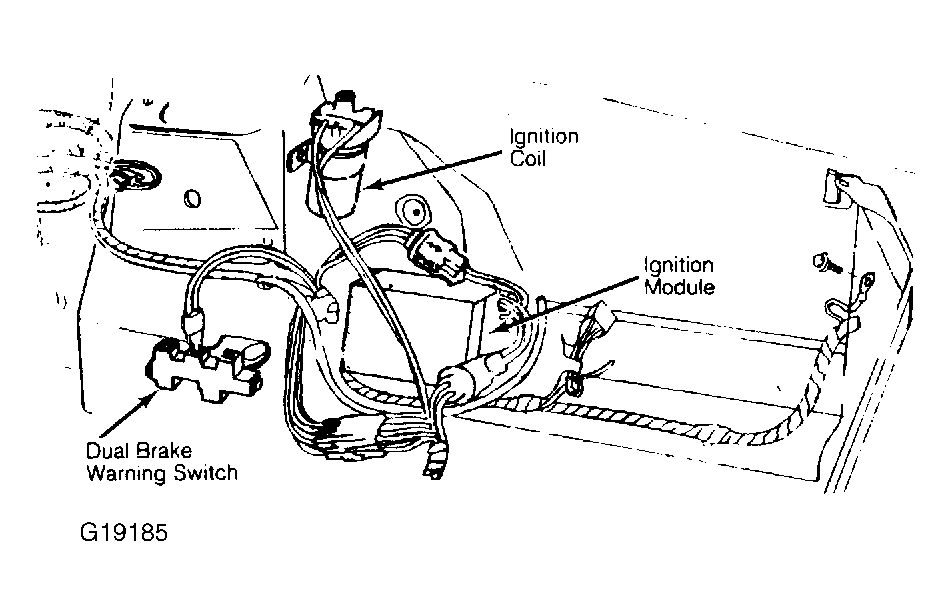

| Ignition Module | Left fender apron. See Figure. |

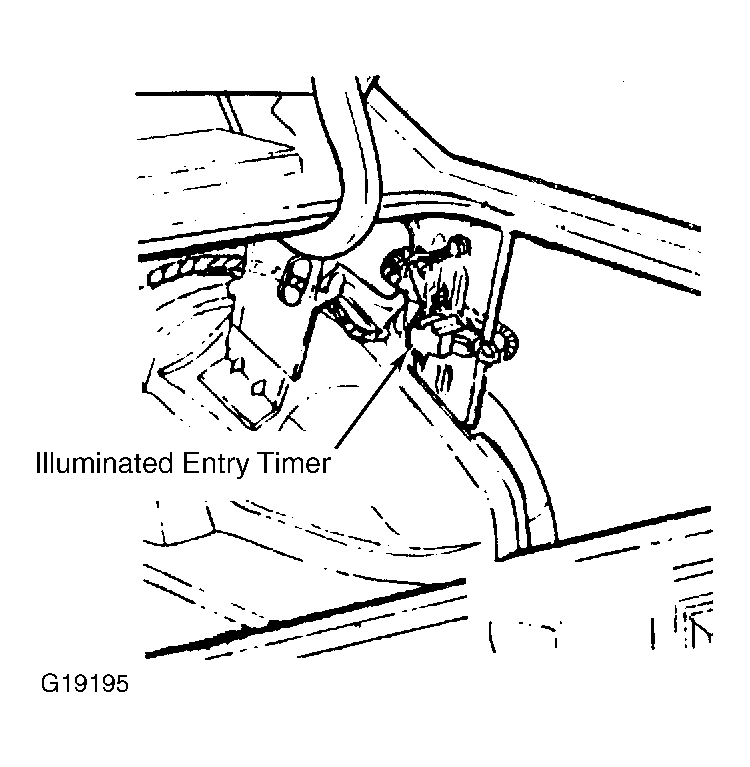

| Illuminated Entry Timer | In right side of trunk. See Figure. |
| Low Fuel Warning Module | Behind right side of instrument panel, above glove box. See Figure. |

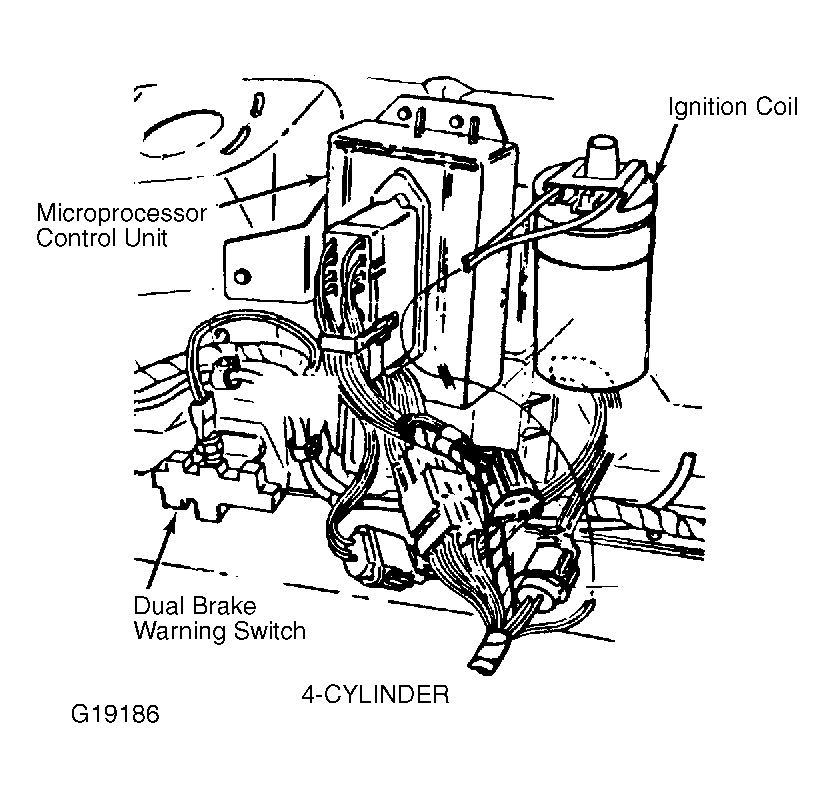

| Microprocessor Control Unit (4-Cyl.) | On left fender apron, next to ignition coil. See Figure. |
| Power Accessories Circuit Breaker | On right fender apron, attached to starter relay. |
| Rear Defroster Control Unit | Behind instrument panel. See Figure. |

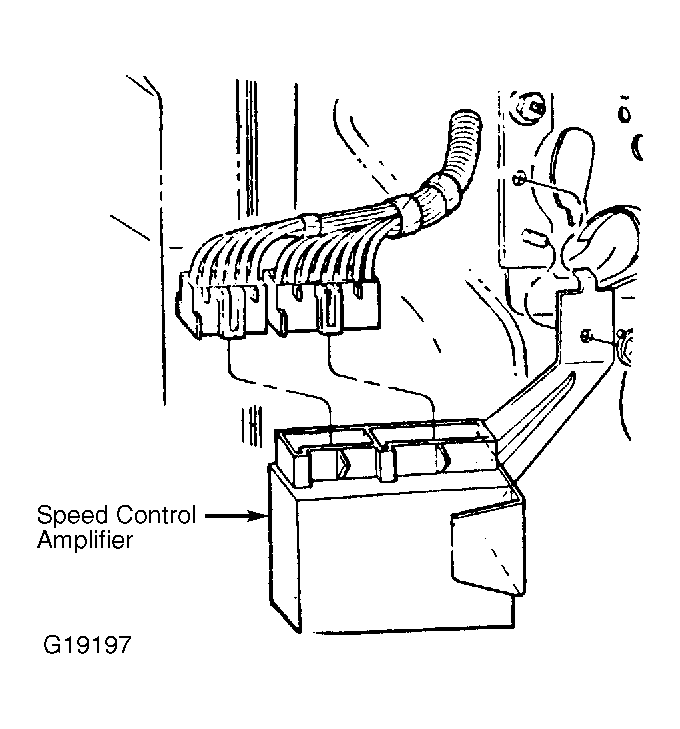

| Speed Control Amplifier | Under left cowl area, near steering column support. See Figure. |
| Upshift Indicator Module | Above brake pedal. |
| Wipers Intermittent Governor | Under left side of instrument panel, on shake brace. See Figure. |
