Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

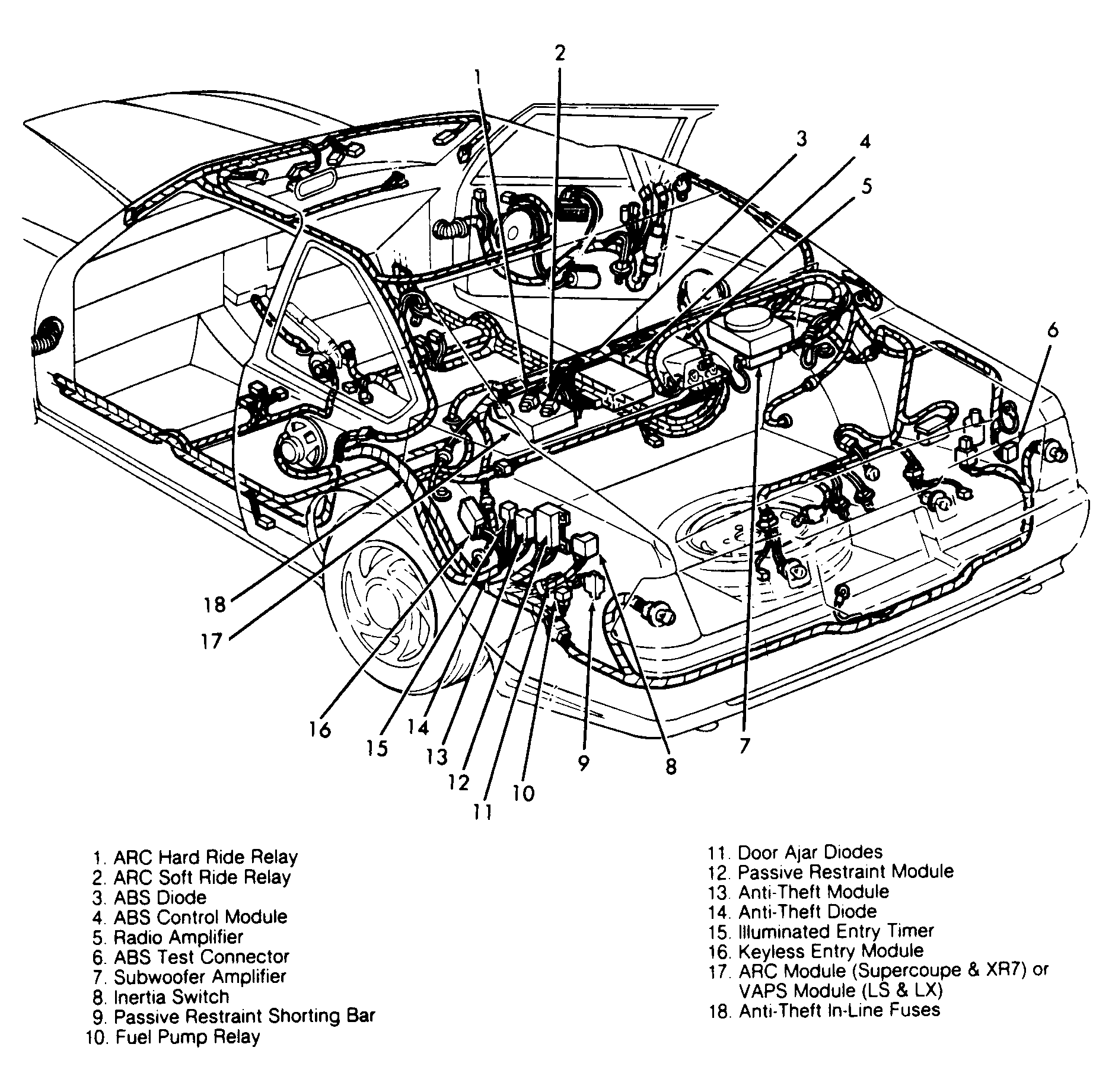

| Anti-Theft In-Line Fuses | In left front corner of trunk, in wiring harness. See Figure . | |
| Engine Compartment Fuse/Relay Block | ||

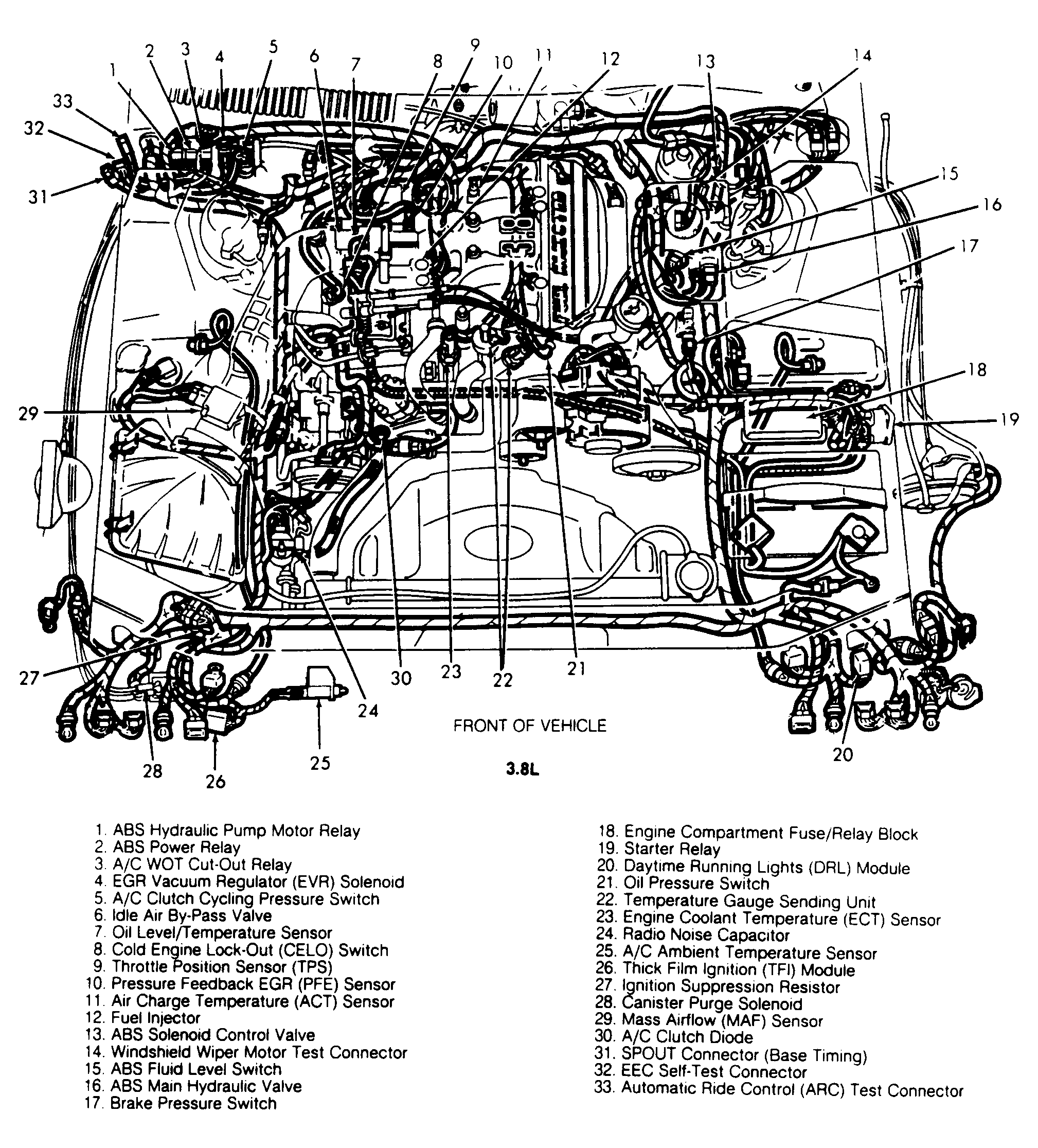

| 3.8L | On left front fender panel, behind battery. See Figure . | |

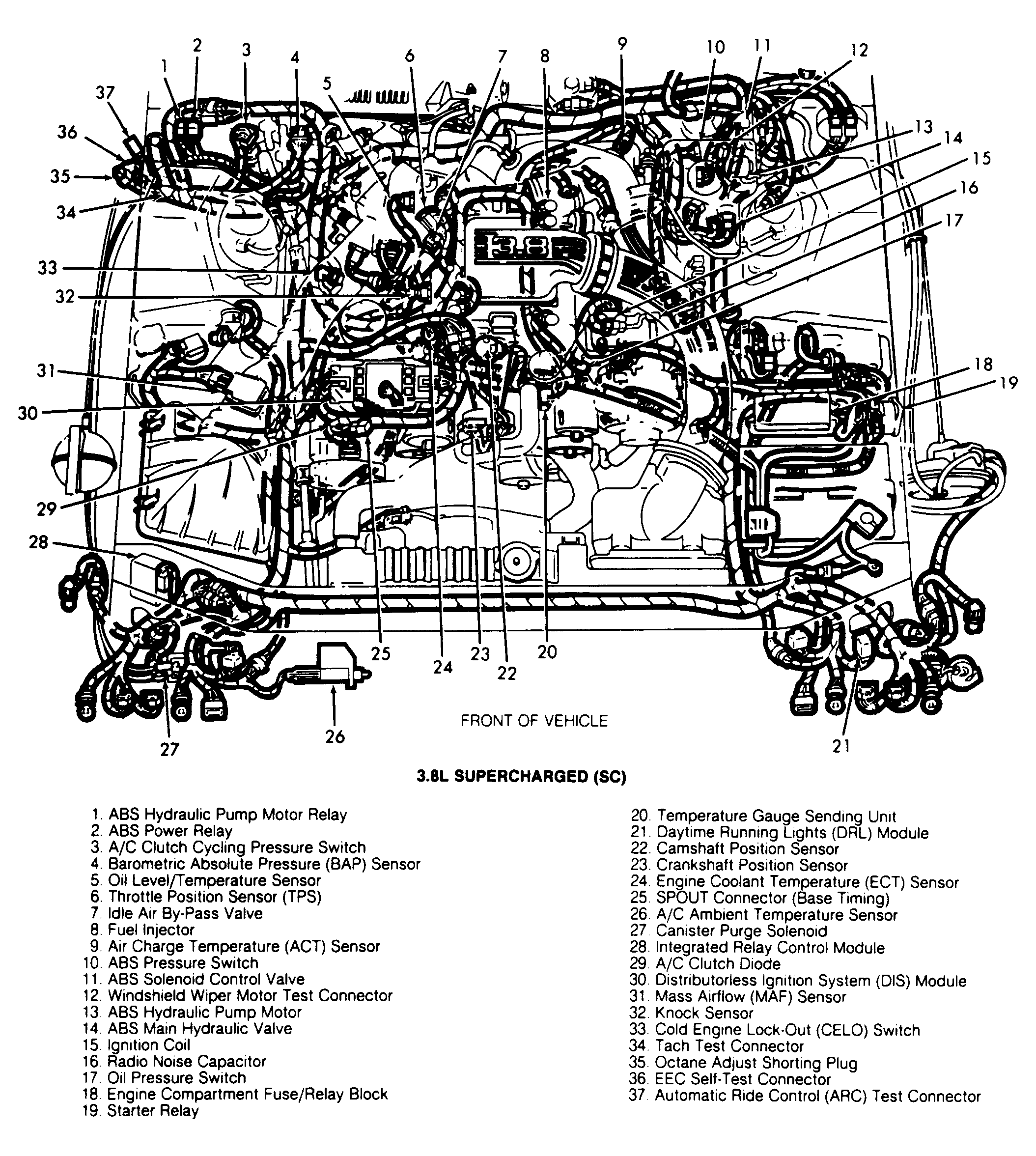

| 3.8L SC | On left front fender panel, behind battery. See Figure . | |

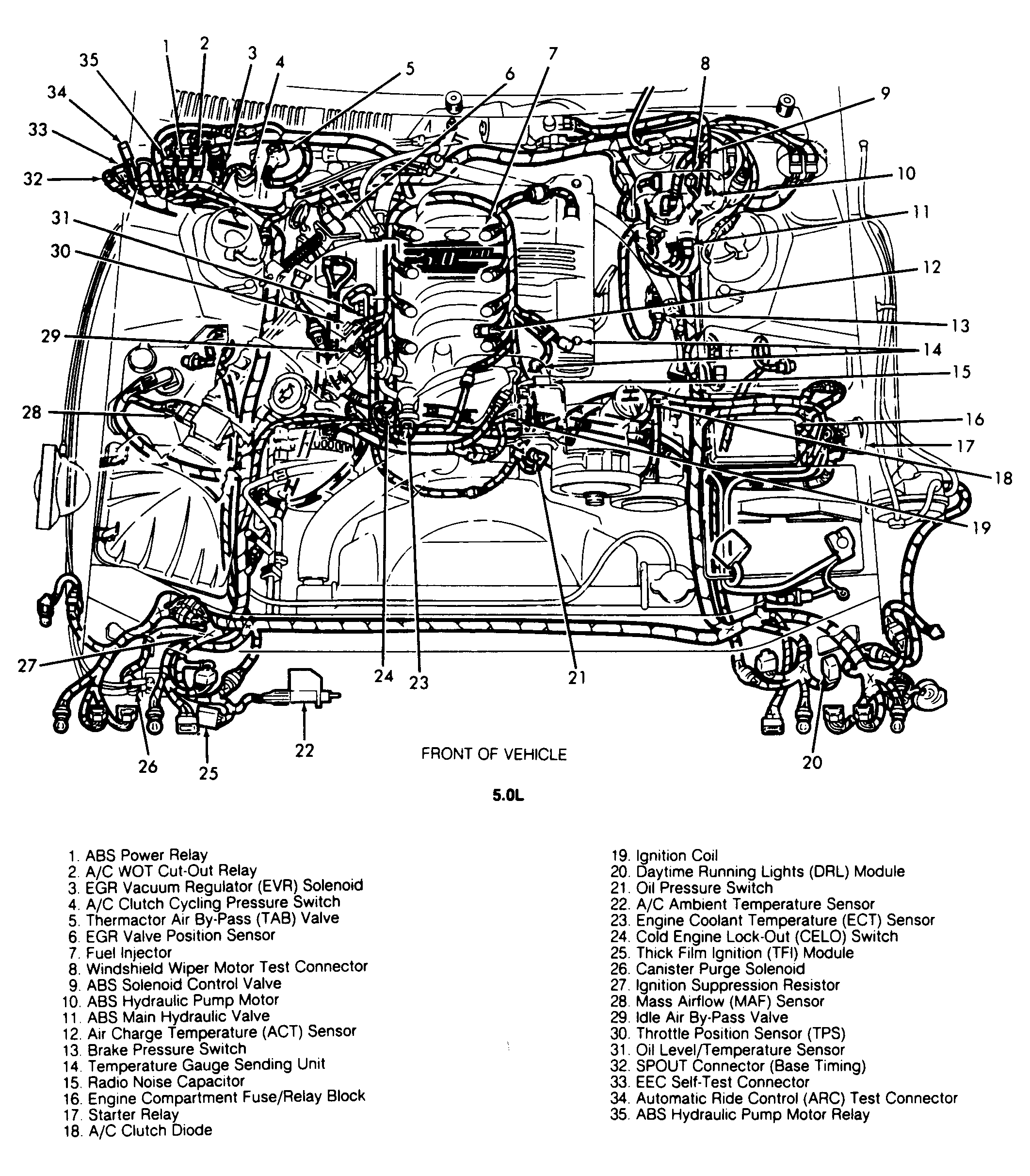

| 5.0L | On left front fender panel, behind battery. See Figure . | |
| Fusible Links | ||
| "A" (Gray) | On left side of engine bay, near starter relay. | |
| "B" (Black) | On left side of engine bay, near starter relay. | |
| "C" (Dark Blue) | On left side of engine bay, near starter relay. | |

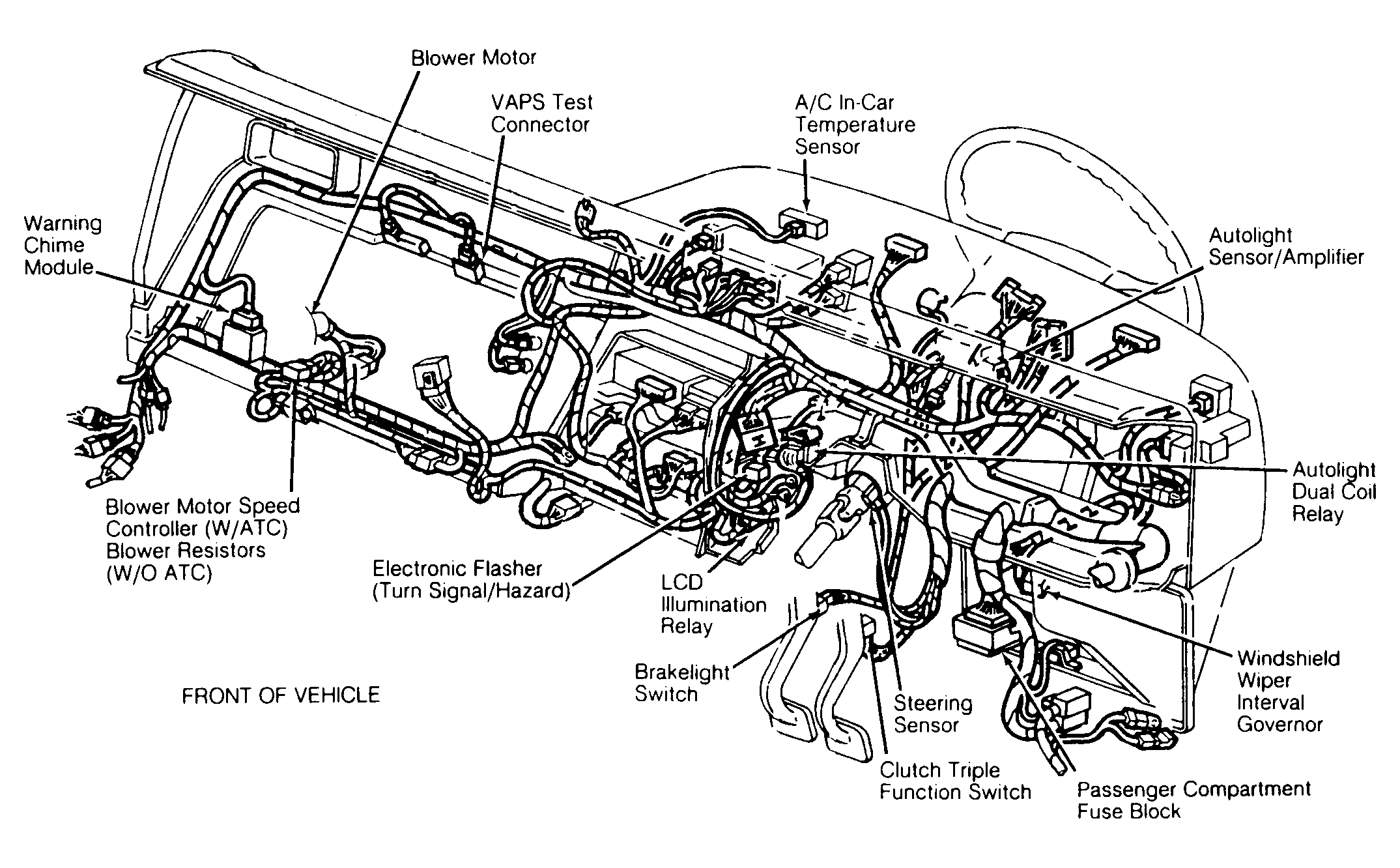

| Passenger Compartment Fuse Block | Behind left side of dash. See Figure . | |
