Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Air Bag Diagnostic Module | Behind left side of dash, next to fuse block. | |
| Daytime Running Lights (DRL) Module | ||

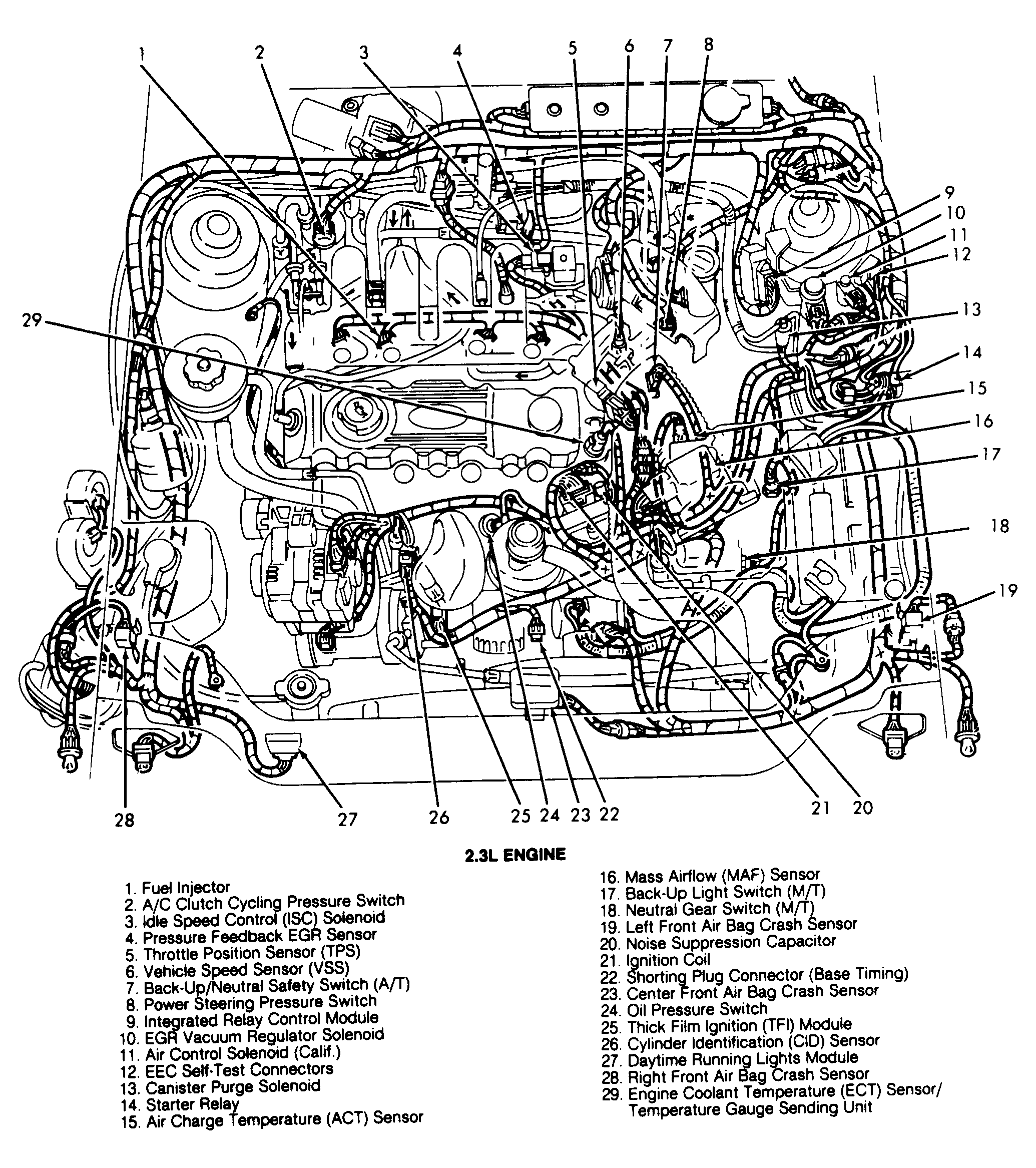

| 2.3L | On right end of radiator support. See Figure . | |

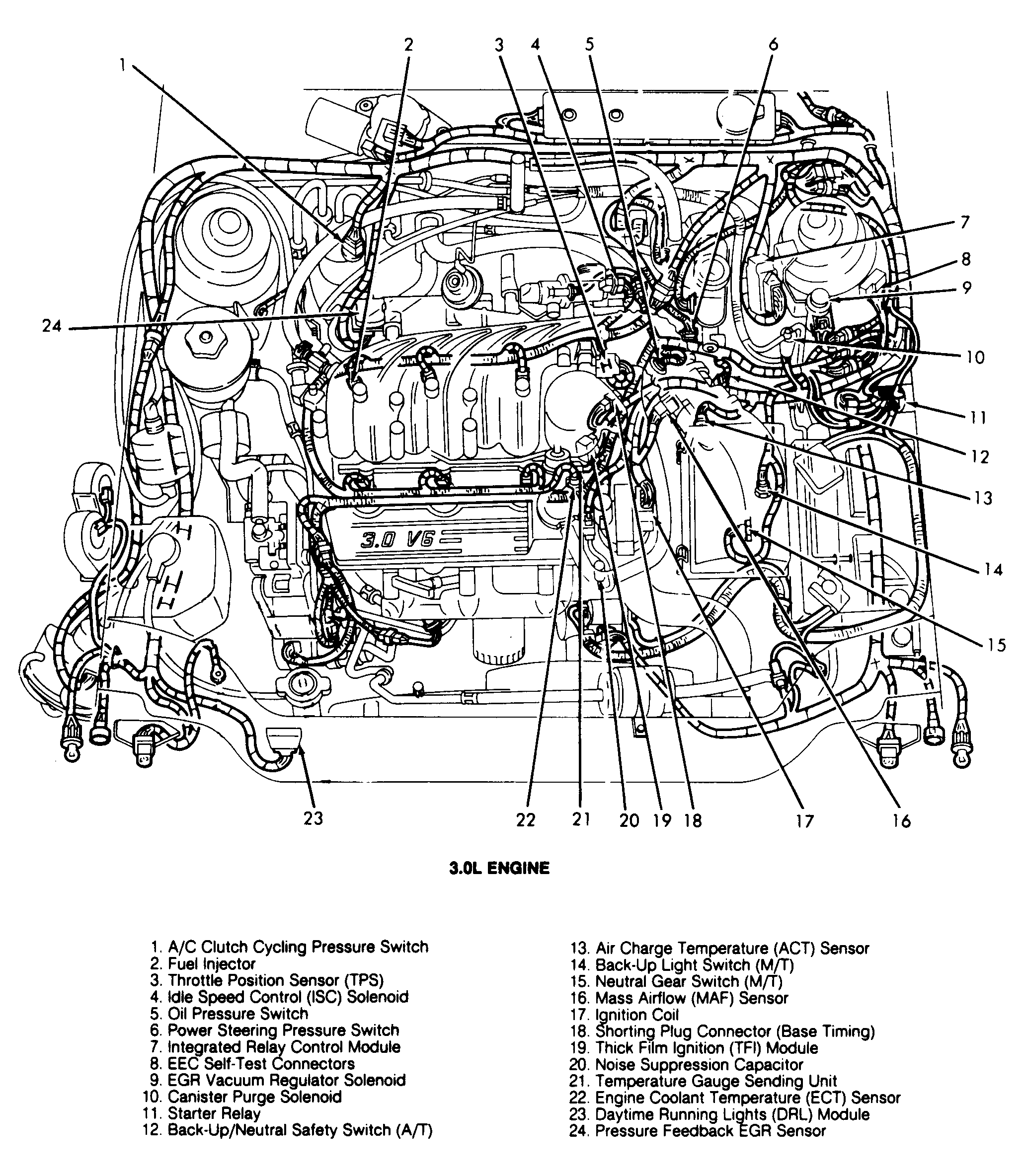

| 3.0L | On right end of radiator support. See Figure . | |
| Electronic Engine Control (EEC) Module | Behind left side of dash. | |
| Integrated Relay Control Module | ||
| 2.3L | In engine bay, on left strut tower. See Figure . | |
| 3.0L | In engine bay, on left strut tower. See Figure . | |
| Passive Restraint Module | Behind right side of dash, above glove box. | |
| Thick Film Ignition (TFI) Module | ||
| 2.3L | On distributor. See Figure . | |
| 3.0L | On distributor. See Figure . | |
| Warning Chime Module | Behind left side of dash, to right of steering column. | |
