Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

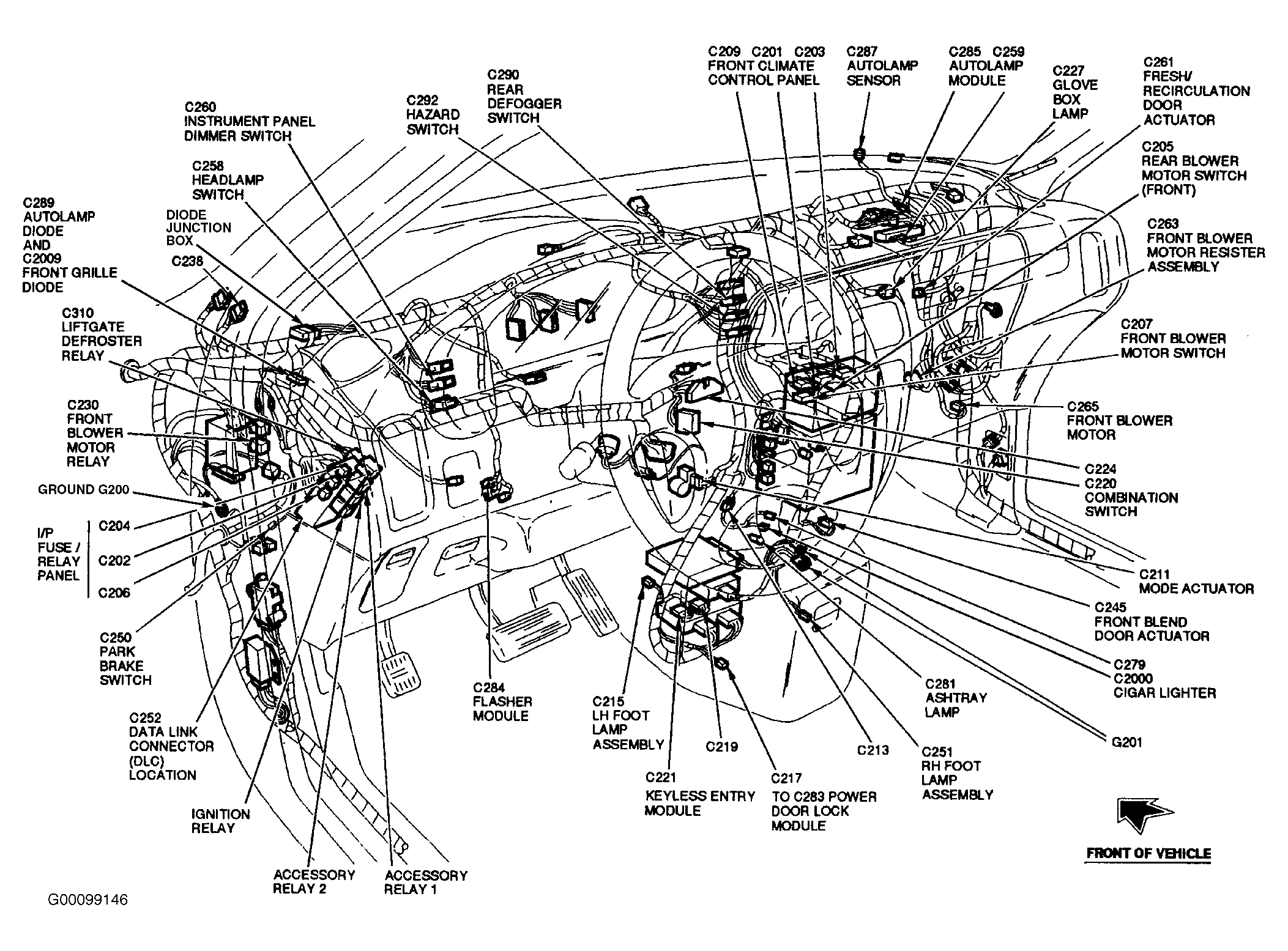

| Diode Junction Box | Behind Top Left Side Of Instrument Panel, Taped To Main Harness. See Fig 1 . |
| Ground G200 | Behind Left Side of Instrument Panel, Above Kick Panel. See Fig 1 . |
| Instrument Fuse/Relay Panel | Behind Left Side Of Instrument Panel, Left Of Steering Column |
| Left Power Mirror | Outside Of Driver Door |

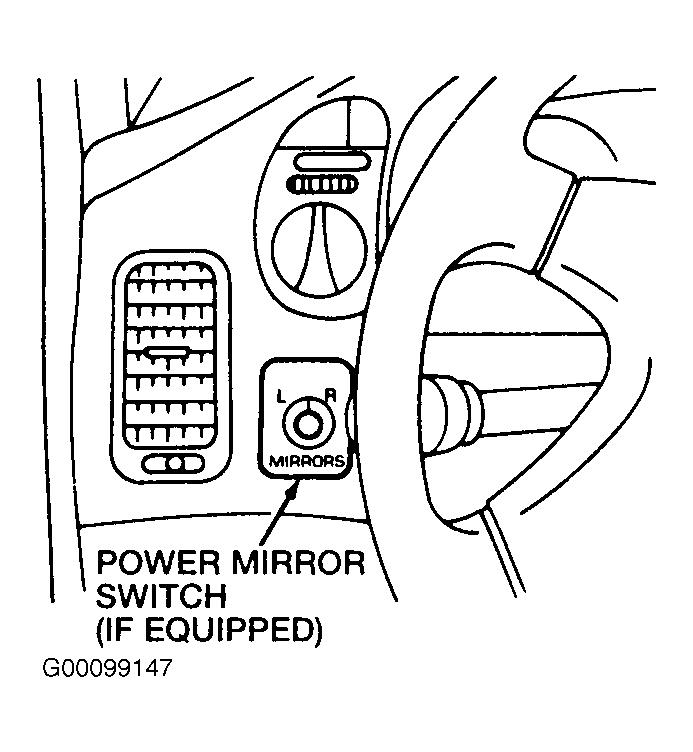

| Power Mirror Switch | Left Instrument Panel, Next To Steering Column |
| Right Power Mirror | Outside Of Passenger Door |
