Component Locations
COMPONENT LOCATIONS

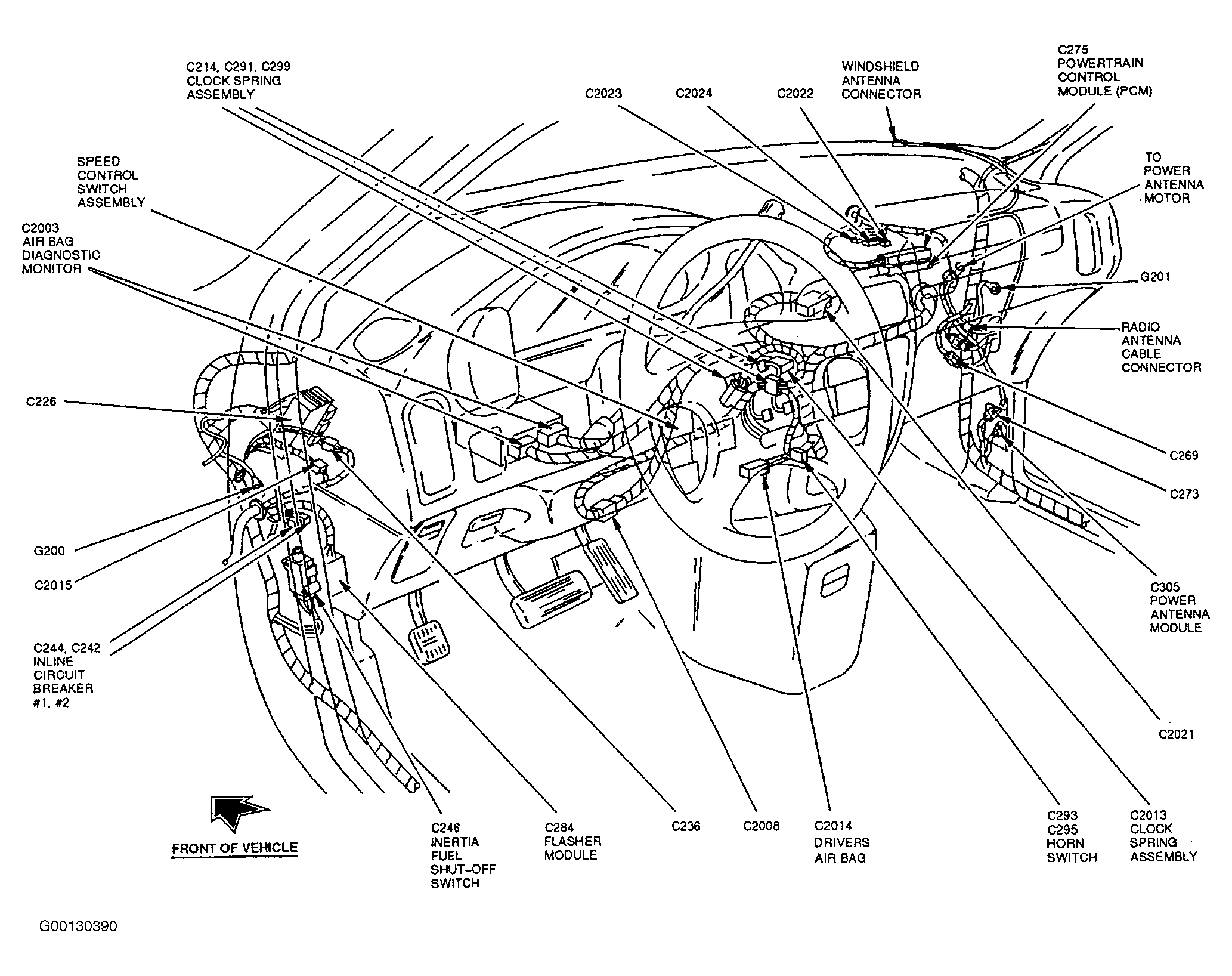

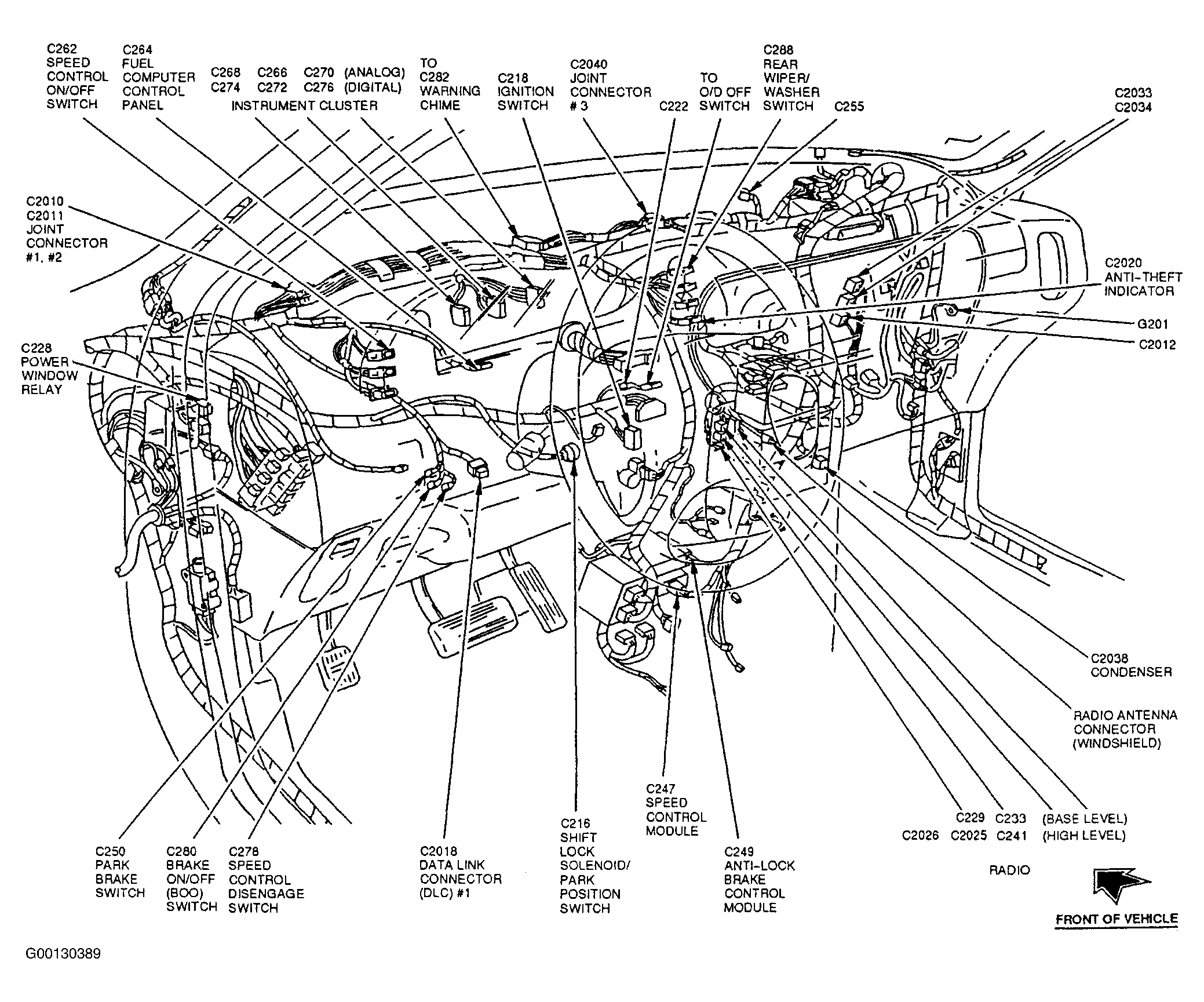

| Component | Location |
|---|---|
| Ground G200 | Behind Left Side Of Instrument Panel. See Fig 3 . |
| Ground G201 | Behind Glove Box. See Fig 3 . |
| Ground G402 | In Liftgate |

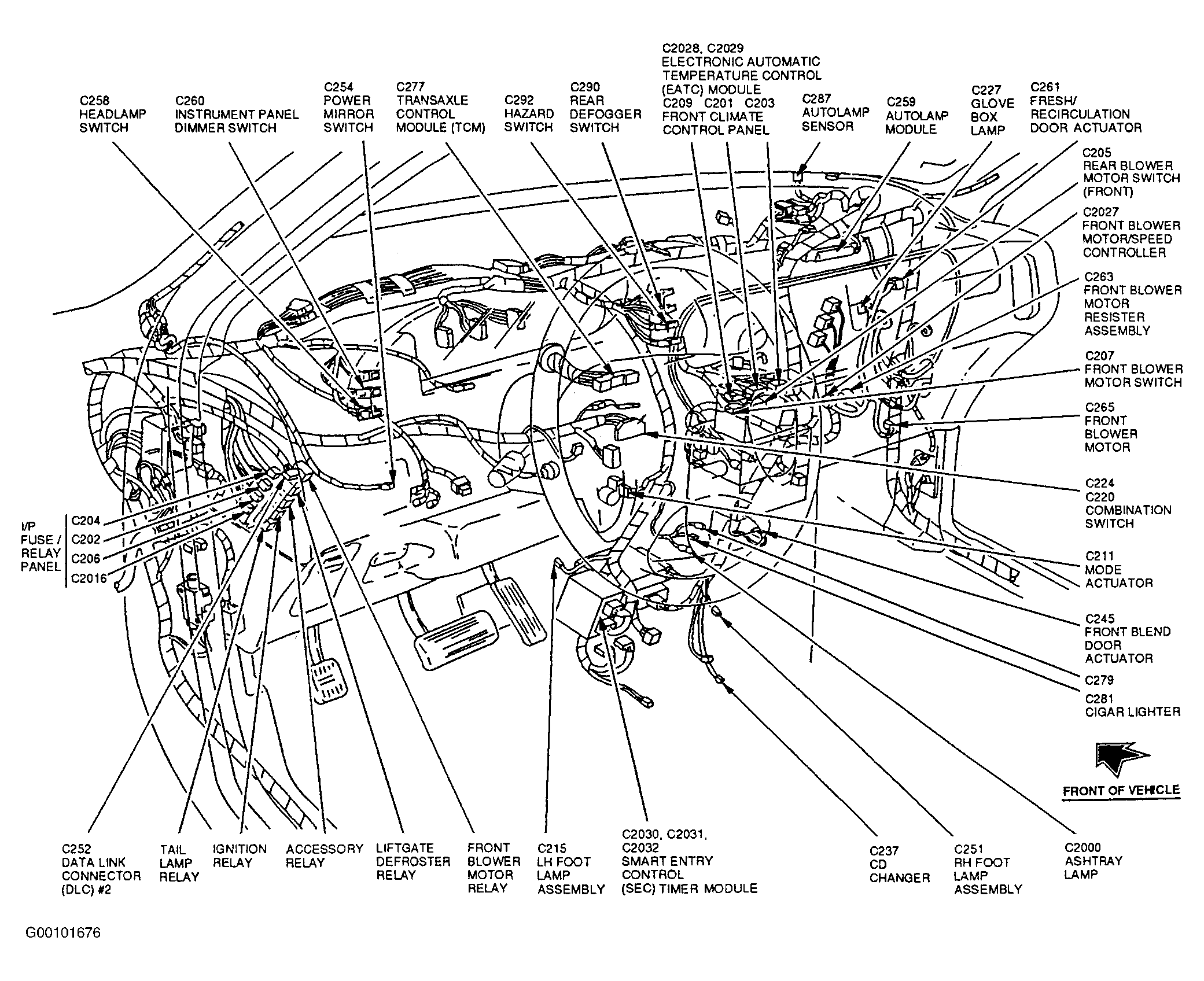

| Instrument/Panel Fuse/Relay Panel | Behind Left Hand Side Of Instrument Panel, Left Of Steering Column. See Fig 1 . |
| Joint Connector No. 1 | Behind Top Left Hand Side Of Instrument Panel, Taped To Main Harness. See Fig 1 . |
| Left Power/Heated Mirror | Top Of Left Hand Front Door |
| Power Mirror Switch | Left Hand Side Of Instrument Panel, Left Of Steering Column |
| Liftgate (Rear) Defroster Relay | In Instrument/Panel Fuse/Relay Panel. See Fig 1 . |
| Right Power/Heated Mirror | Top Of Right Hand Front Door |
| Smart Entry Control Timer Module | Behind Center Console. See Fig 1 . |
