Mirror Control Switch

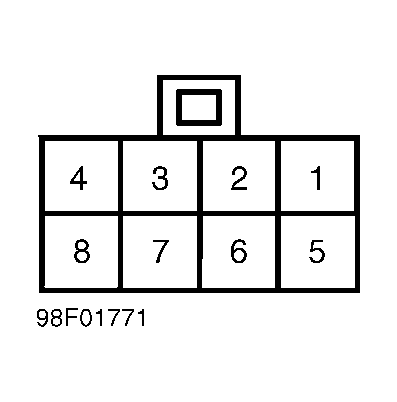

Remove mirror control switch. Measure resistance between specified terminals while operating switch in appropriate direction. See appropriate MIRROR SWITCH TERMINAL IDENTIFICATION table. See Figs. 1-3. Resistance in all tests should be less than 5 ohms. If switch fails any portion of test, replace switch.
MIRROR SWITCH TERMINAL IDENTIFICATION
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Mirror | ||
| Up | 2 & 3; 5 & 7 | |
| Down | 2 & 7; 3 & 5 | |
| Left | 2 & 3; 5 & 8 | |
| Right | 2 & 8; 3 & 5 | |
| Passenger Mirror | ||
| Up | 2 & 3; 4 & 5 | |
| Down | 2 & 4; 3 & 5 | |
| Left | 2 & 3; 5 & 6 | |
| Right | 2 & 6; 3 & 5 | |
