Driver's Side
NOTE:
There are 2 switches on driver's door panel. One for driver's side window and one for passenger's side window. This test is for both switches on driver's door panel.

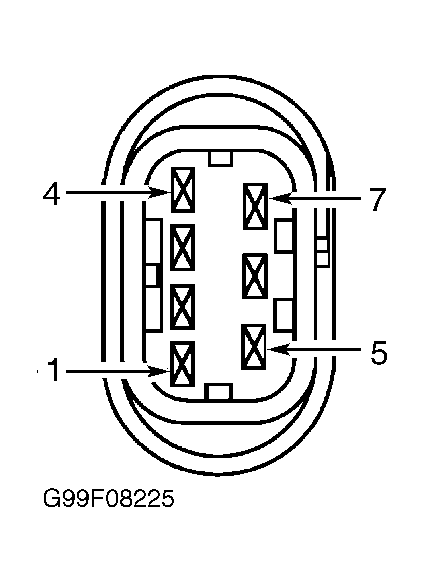

Disconnect power window control switch harness connector (remove switch if necessary). Check continuity between control switch terminals with switch in appropriate position. See DRIVER'S SIDE POWER WINDOW CONTROL SWITCH CONTINUITY table. See Fig 1 . If continuity is not as specified, replace power window control switch.
DRIVER'S SIDE POWER WINDOW CONTROL SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Down | 1 & 3; 2 & 7 |
| Neutral | 1, 3 & 7 |
| Up | 1 & 2; 3 & 7 |
