Transaxle External Controls: Specifications

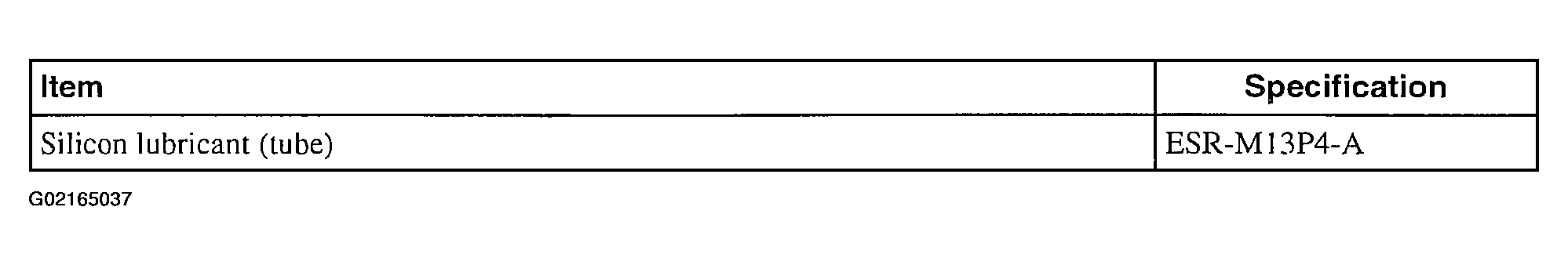

Fig 1: Lubricant

Torque Specifications

Description	Nm	lb-ft	lb-in
Selector lever assembly nuts	9	-	80
Body upper part to lower part bolts	7	-	62
Solenoid switch to selector lever assembly bolts	7	-	62
Selector lever knob bolt	1.5	-	9
Detent spring bolt	7	-	62
