Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

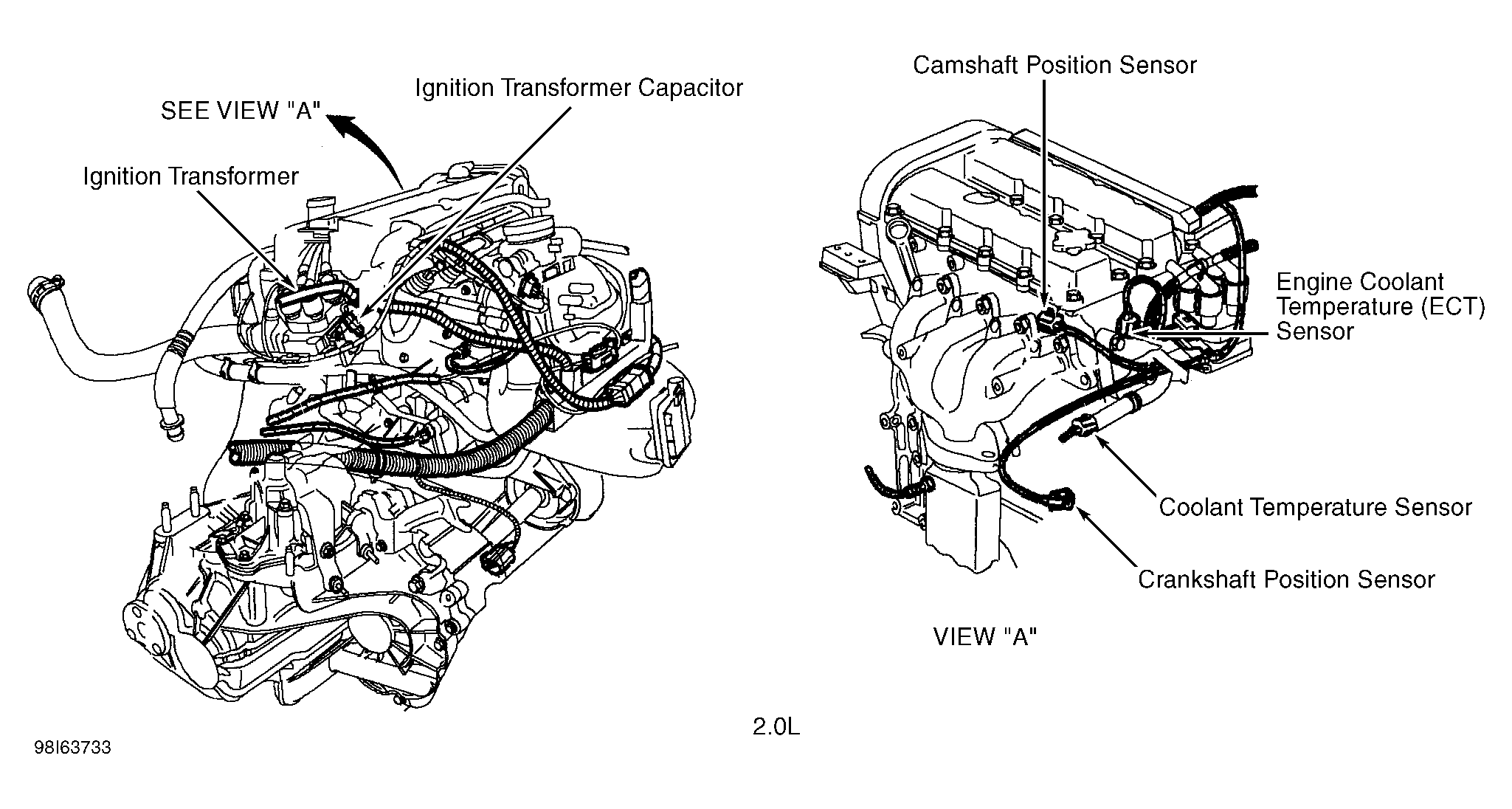

Fig 1: Engine (2.0L)

Courtesy of FORD MOTOR CO.

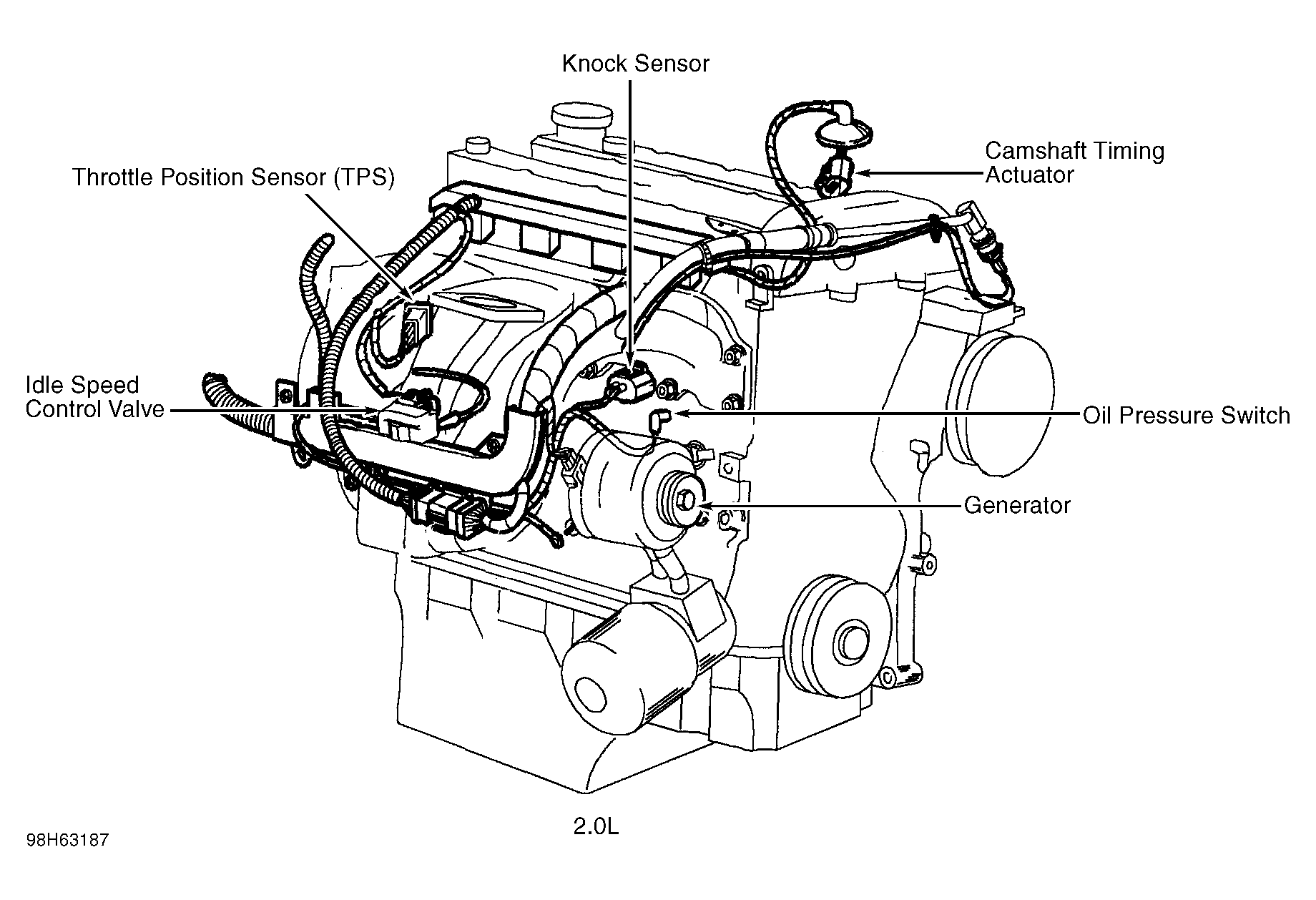

Fig 2: Right Side Of Engine (2.0L)

Courtesy of FORD MOTOR CO.

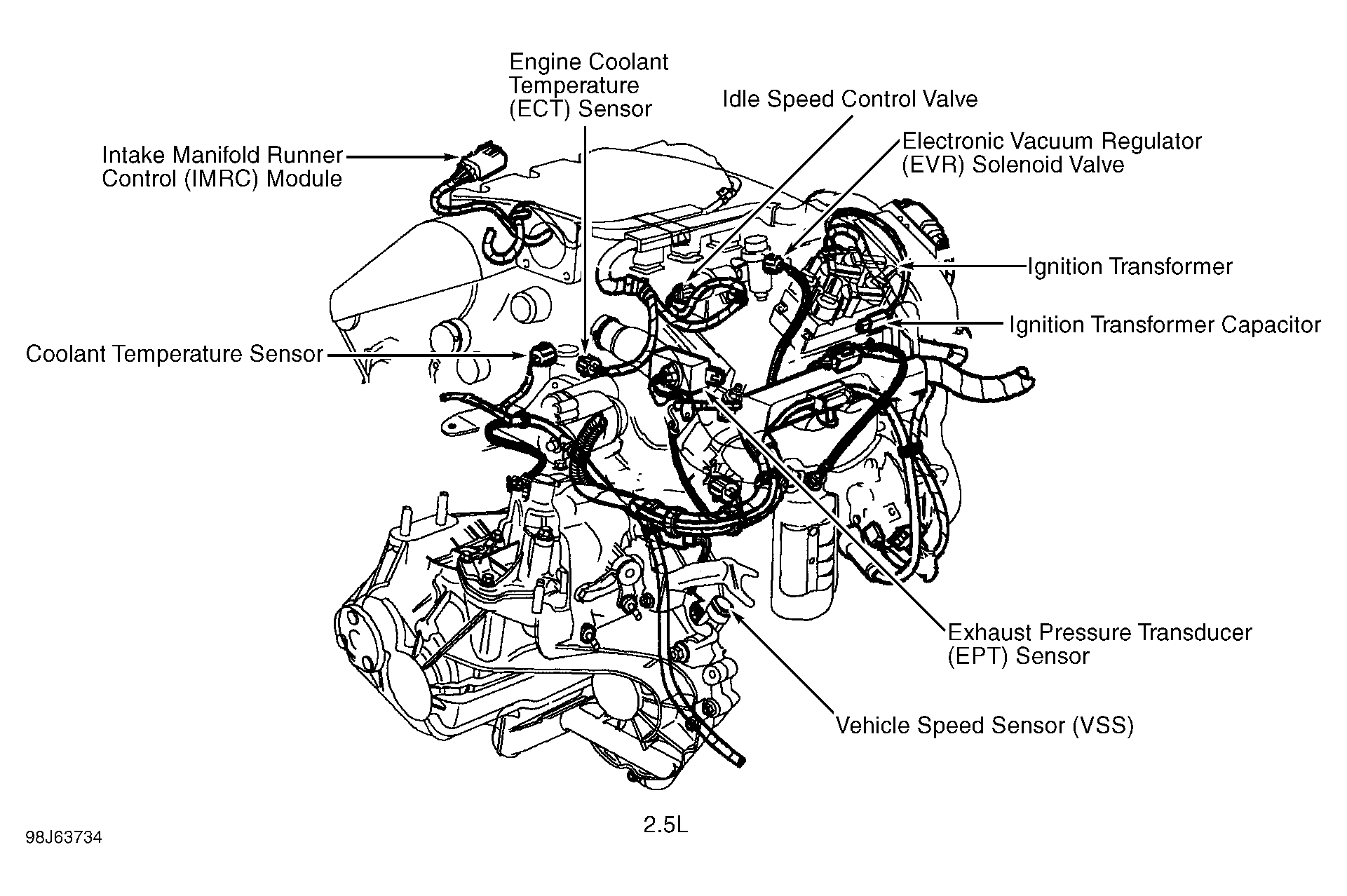

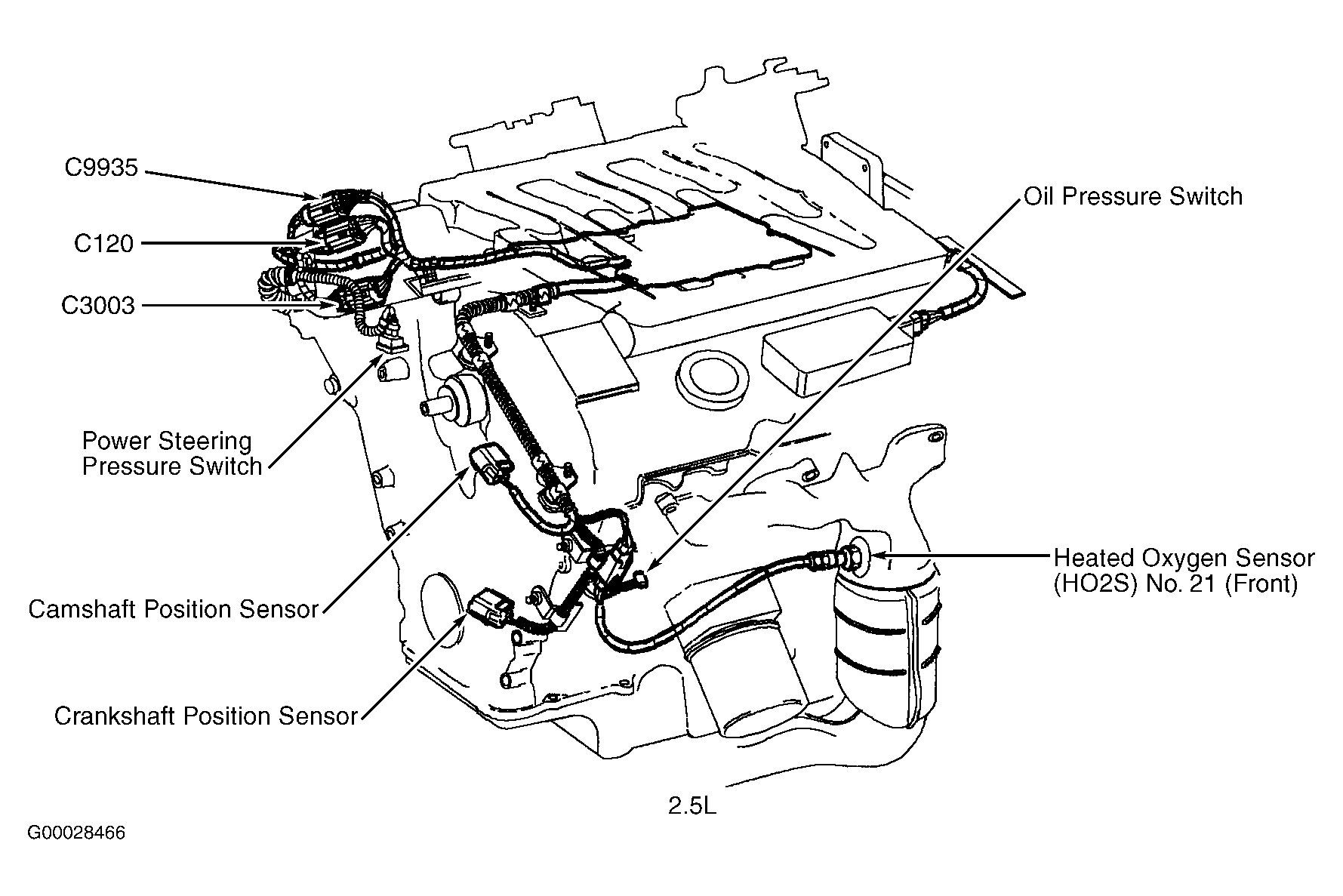

Fig 3: Left Side Of Engine (2.5L)

Courtesy of FORD MOTOR CO.

Fig 4: Right Side Of Engine (2.5L)

Courtesy of FORD MOTOR CO.

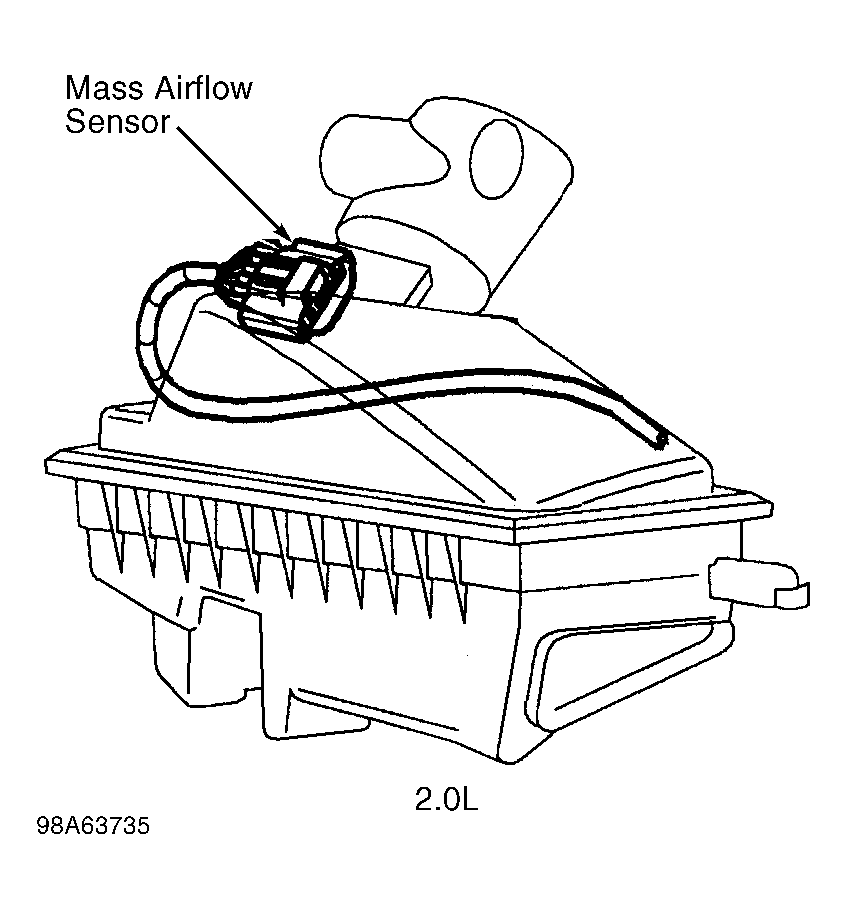

Fig 5: Air Cleaner Housing Assembly (2.0L)

Courtesy of FORD MOTOR CO.

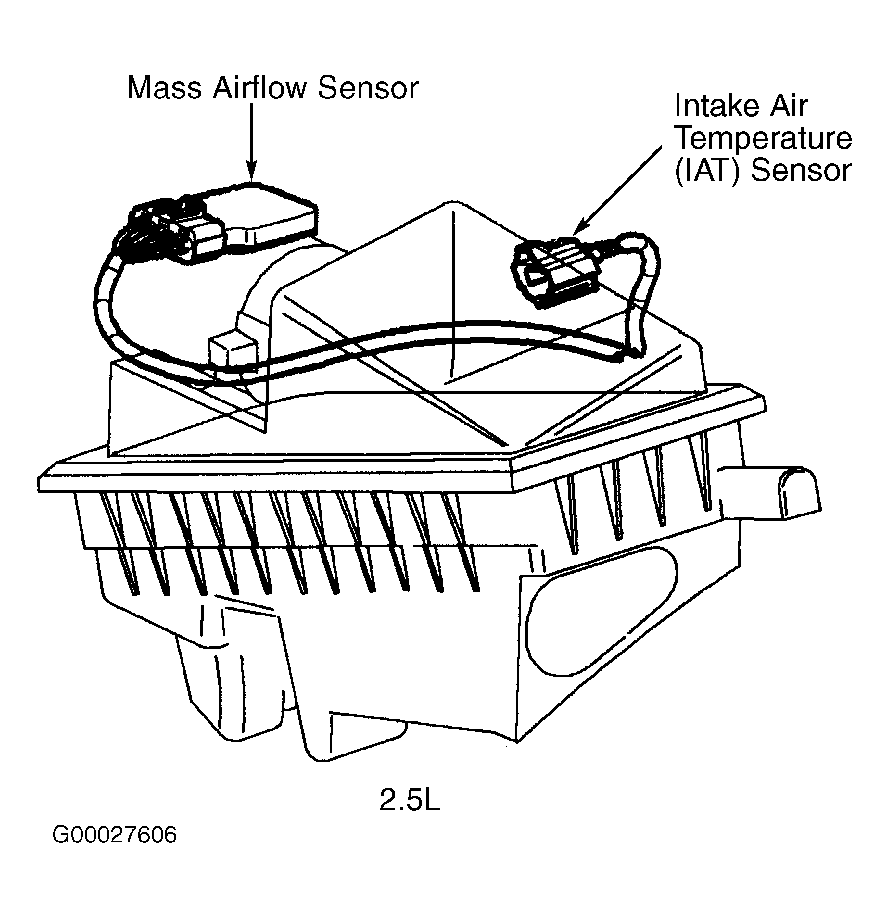

Fig 6: Air Cleaner Housing Assembly (2.5L)

Courtesy of FORD MOTOR CO.

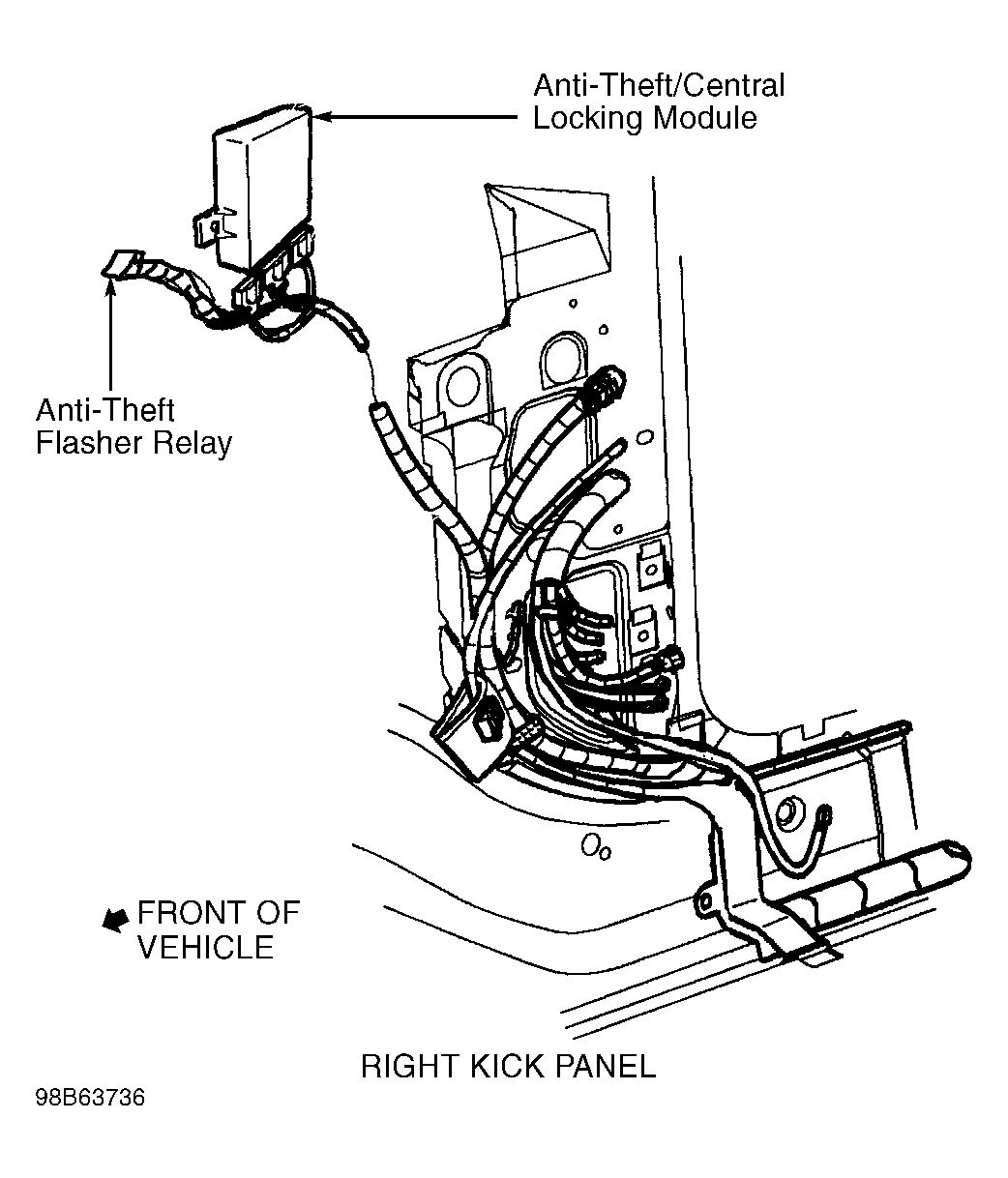

Fig 7: Right Kick Panel

Courtesy of FORD MOTOR CO.

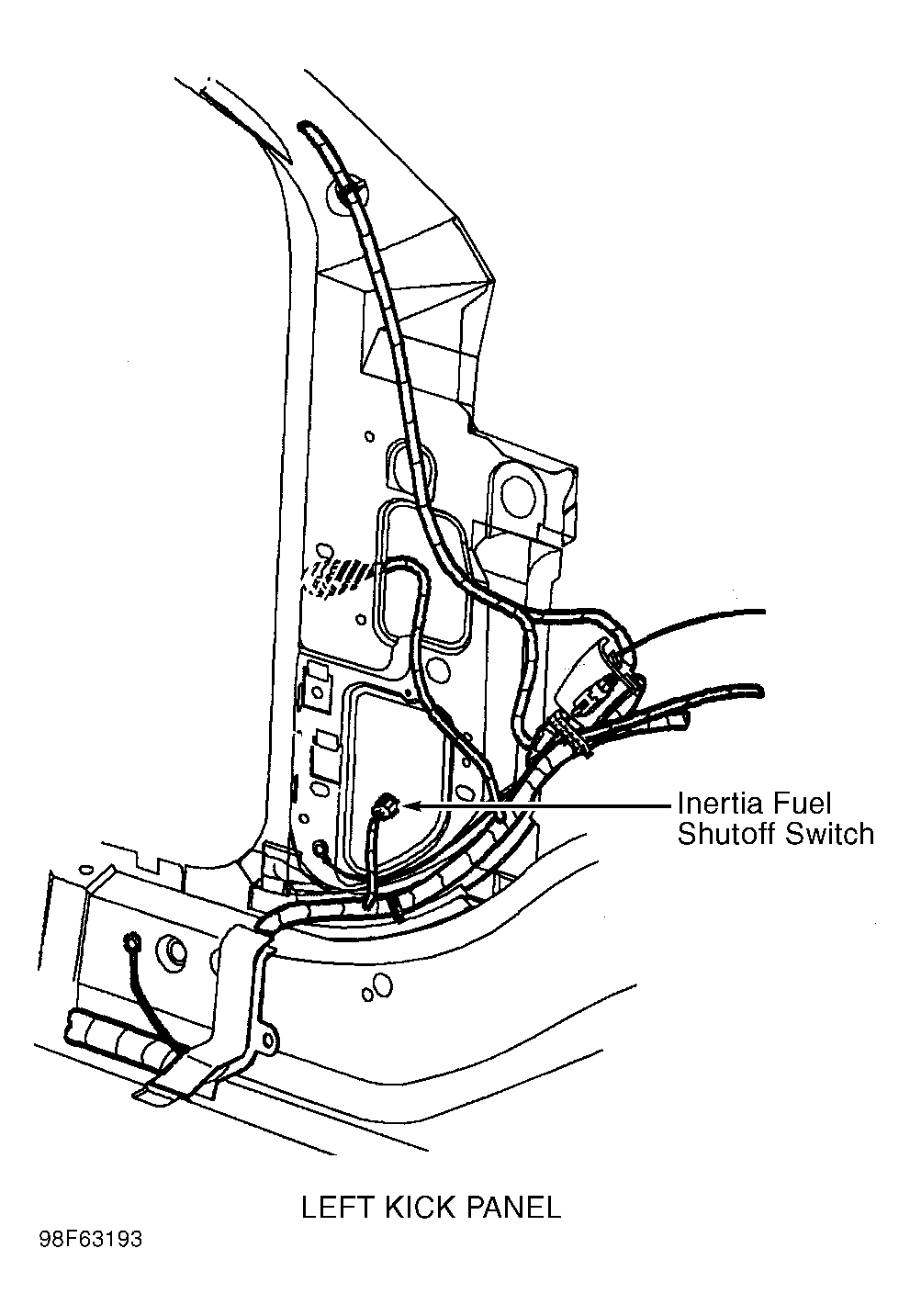

Fig 8: Left Kick Panel

Courtesy of FORD MOTOR CO.

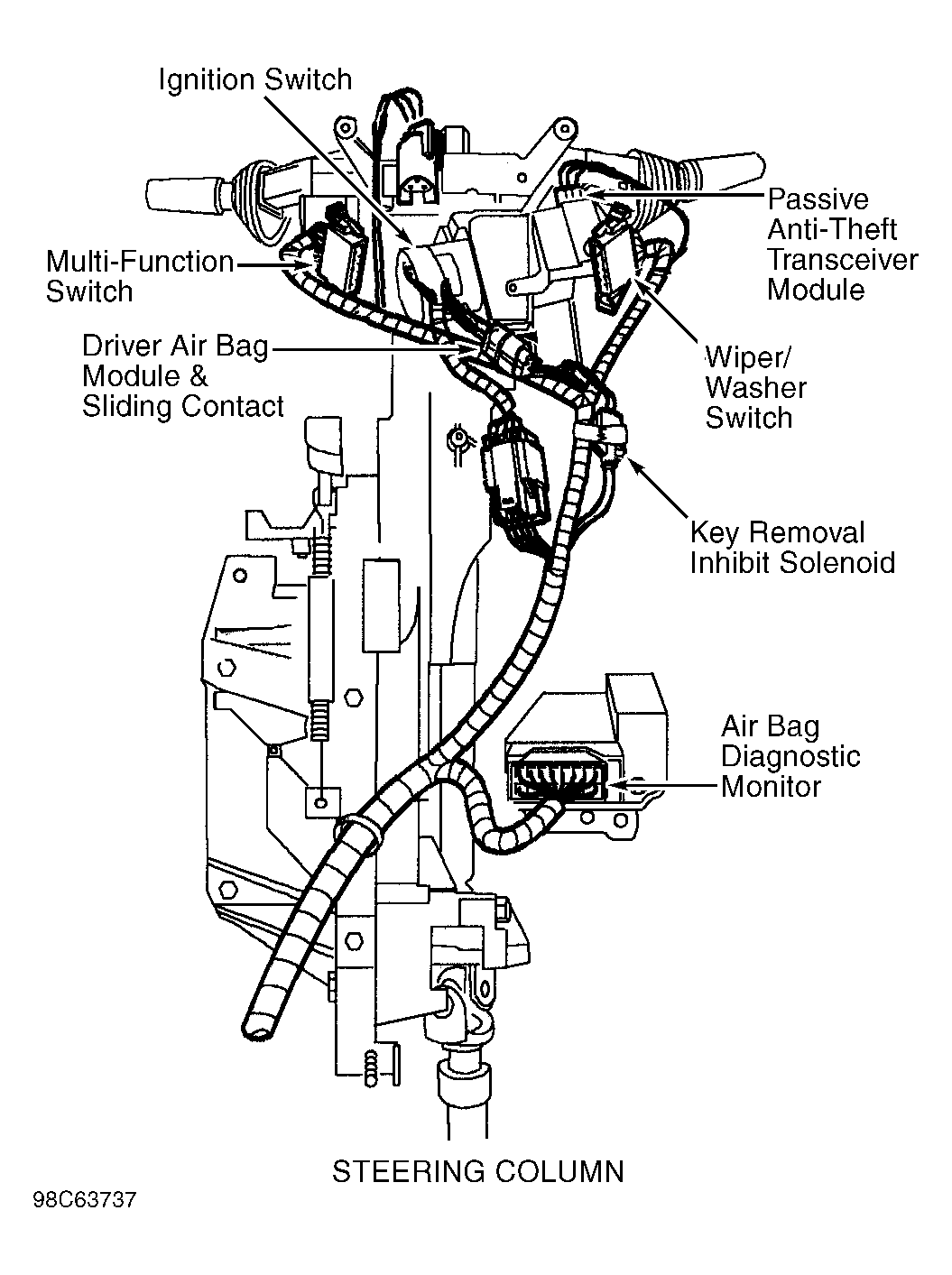

Fig 9: Steering Column

Courtesy of FORD MOTOR CO.
