Component Locations
NOTE:

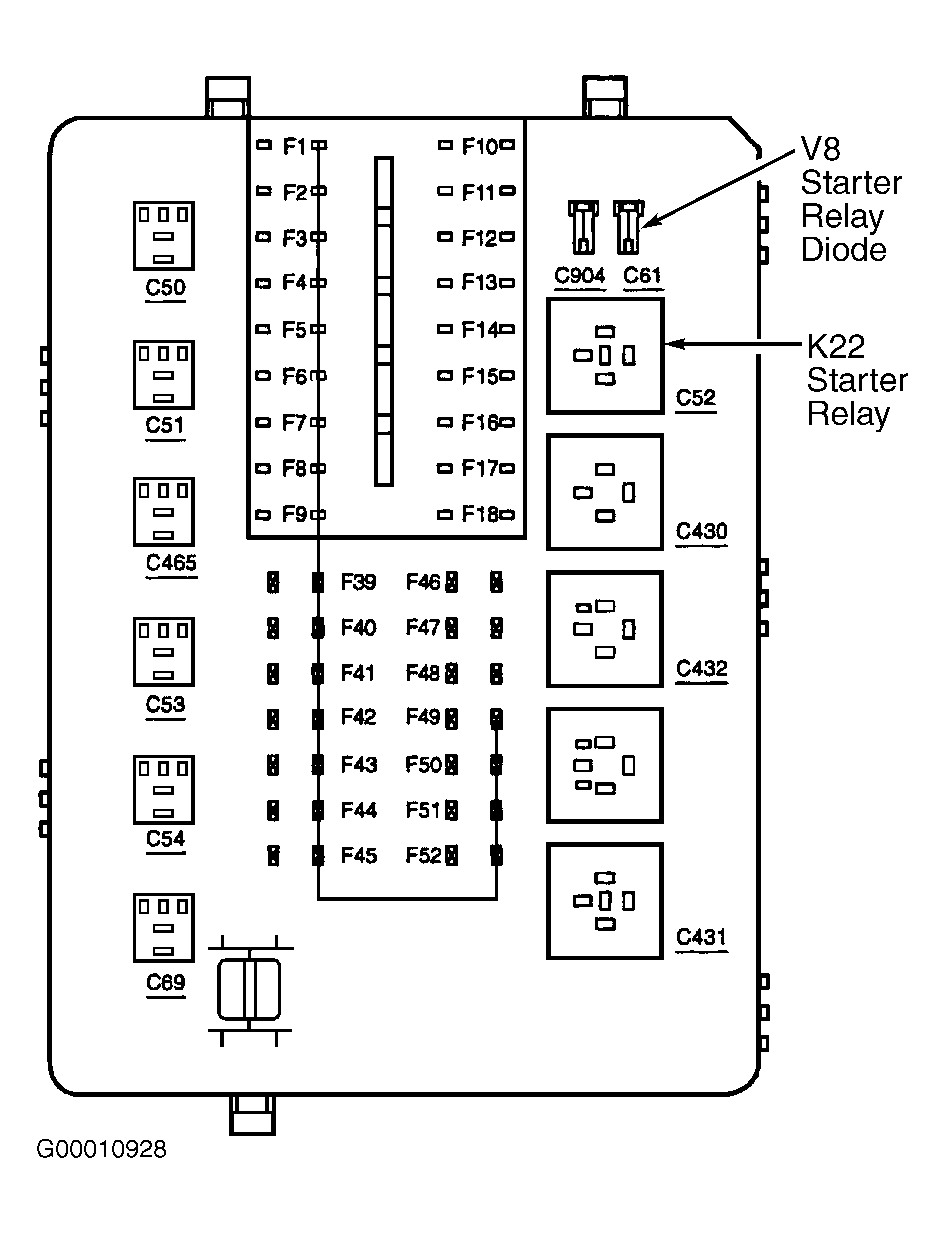

For additional component locations, refer to illustration. See Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Battery Junction Box | Left Front Of Engine Compartment |
| Powertrain Control Module | Right Rear Corner Of Engine Compartment |
| Start Inhibit Switch (M/T) | On Clutch Pedal Support |
| Starter Relay | In Battery Junction Box |
| Starter Relay Diode | In Battery Junction Box |
| Transmission Range Sensor (A/T) | Top Of Transmission |
