Connector Identification

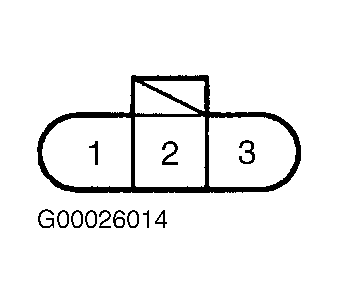

Fig 1: Identifying Output Speed Sensor Harness Connector C164 Terminals
G00026014Courtesy of FORD MOTOR CO.
Fig 2: Identifying TCM Harness Connector C277A & C277B Terminals
G00026013Courtesy of FORD MOTOR CO.

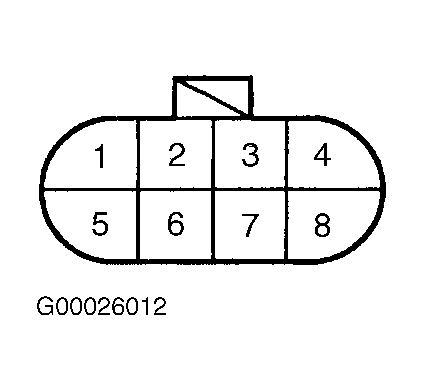

Fig 3: Identifying Transaxle Solenoid Harness Connector C165 Terminals
G00026012Courtesy of FORD MOTOR CO.

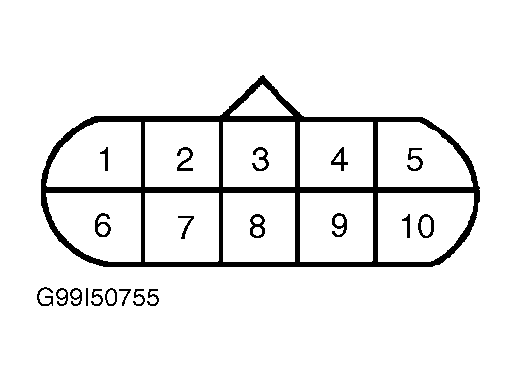

Fig 4: Identifying Transmission Range Sensor Connector C161 Terminals
G99I50755Courtesy of FORD MOTOR CO.
