MULTIFUNCTION Switch
MULTIFUNCTION Switch

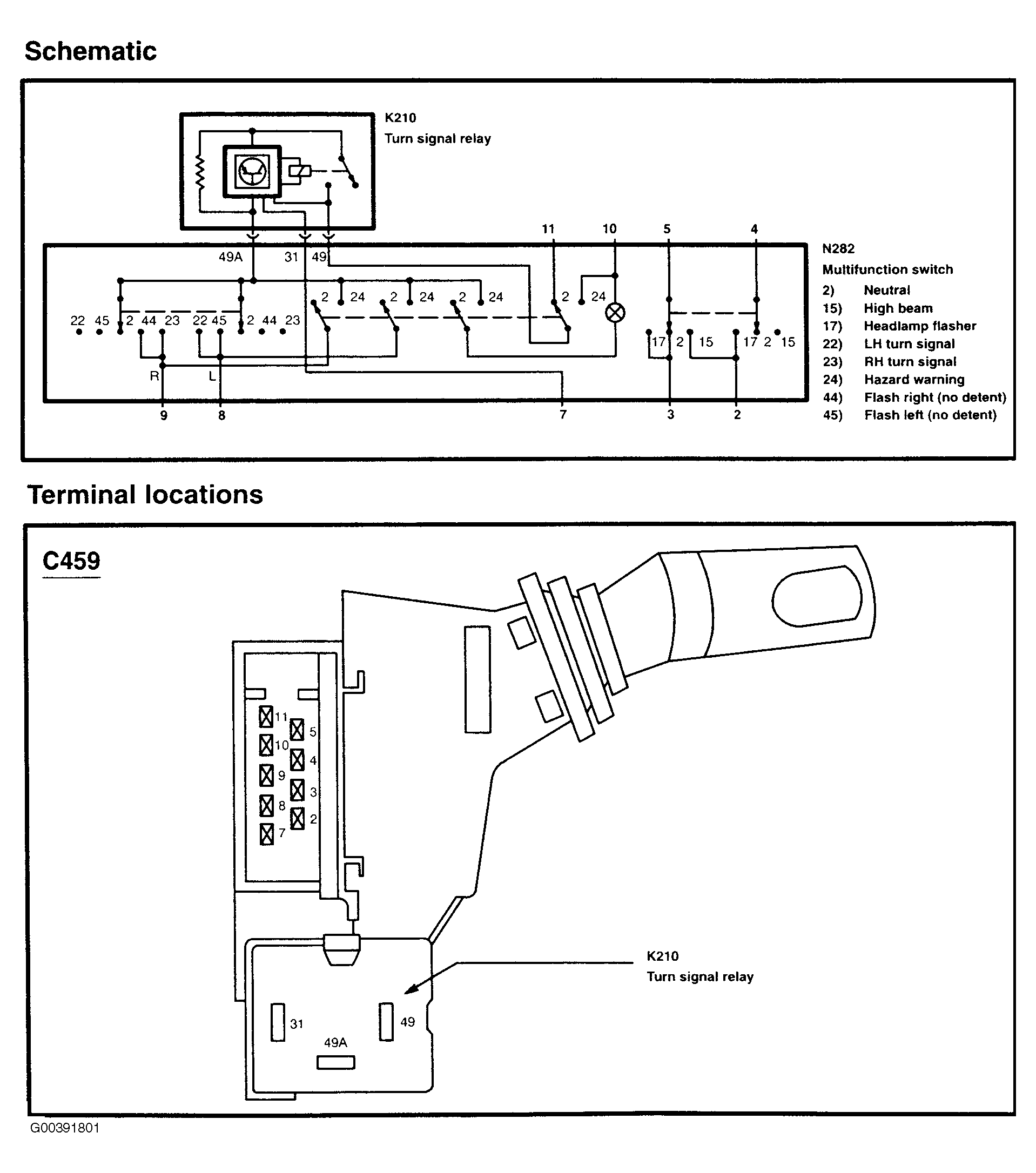

Fig 1: Testing Multifunction Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

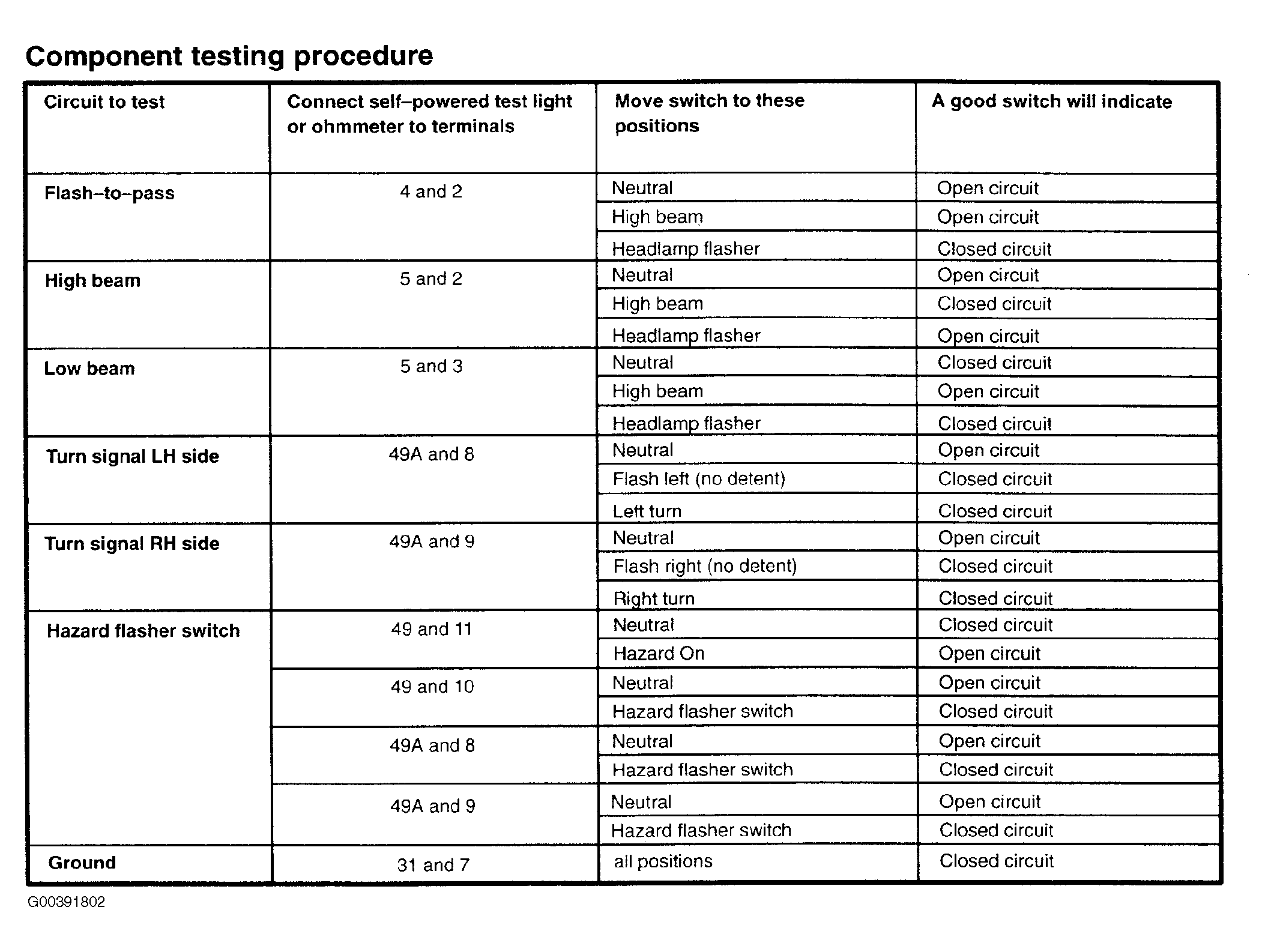

Fig 2: Testing Multifunction Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
