Home
>>
Mercury
>>
2002
>>
Cougar 2.0 3
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Component Tests
>>
Testing
>>
Power Window Switch
Power Window Switch

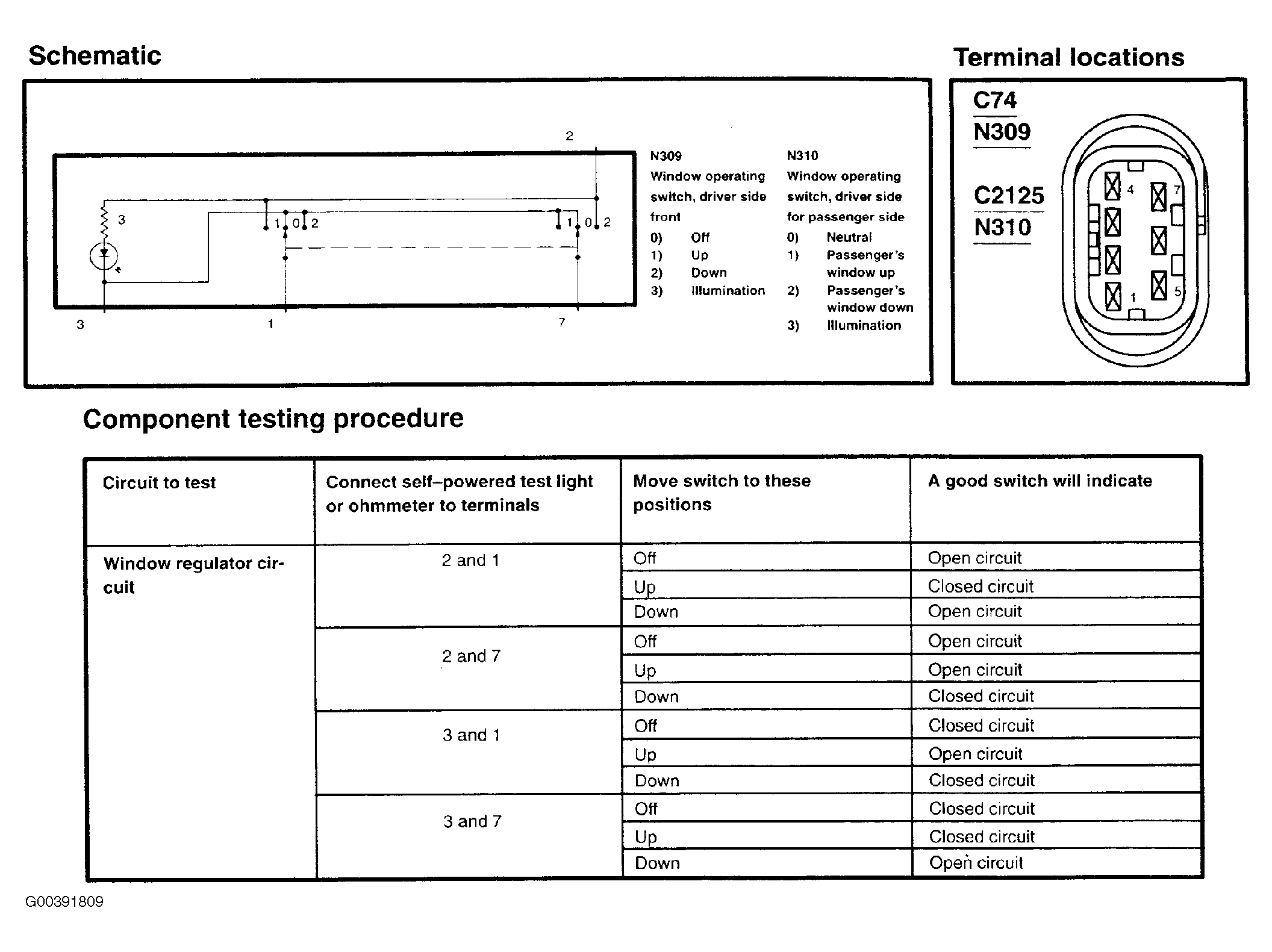

Fig 1: Testing Power Window Switch (Driver Side)
Courtesy of FORD MOTOR CO.

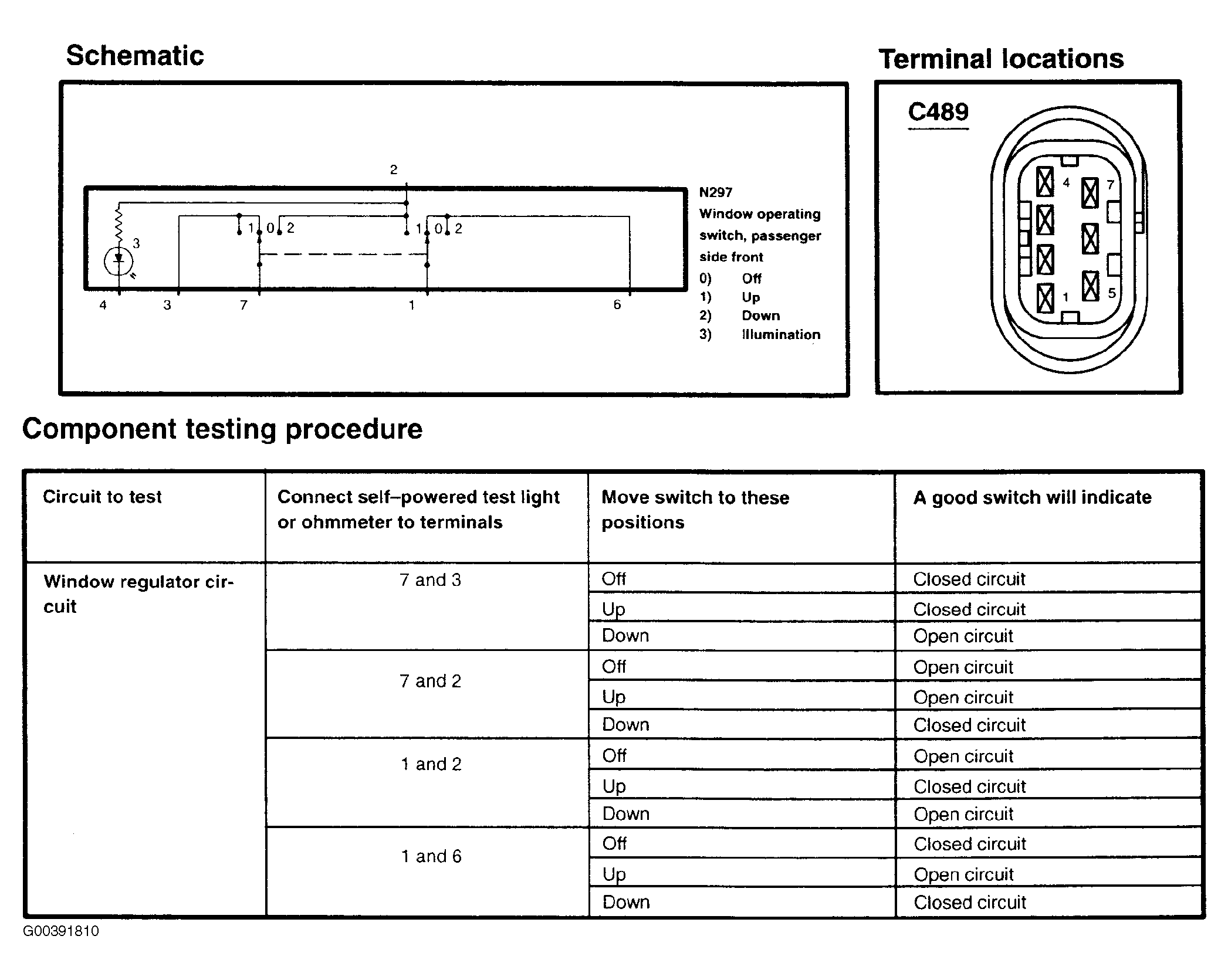

Fig 2: Testing Power Window Switch (Passenger Side)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
