Mercury
>>
2002
>>
Cougar 2.0 3
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Component Tests
>>
Testing
>>
Wiper/Washer Switch
Wiper/Washer Switch

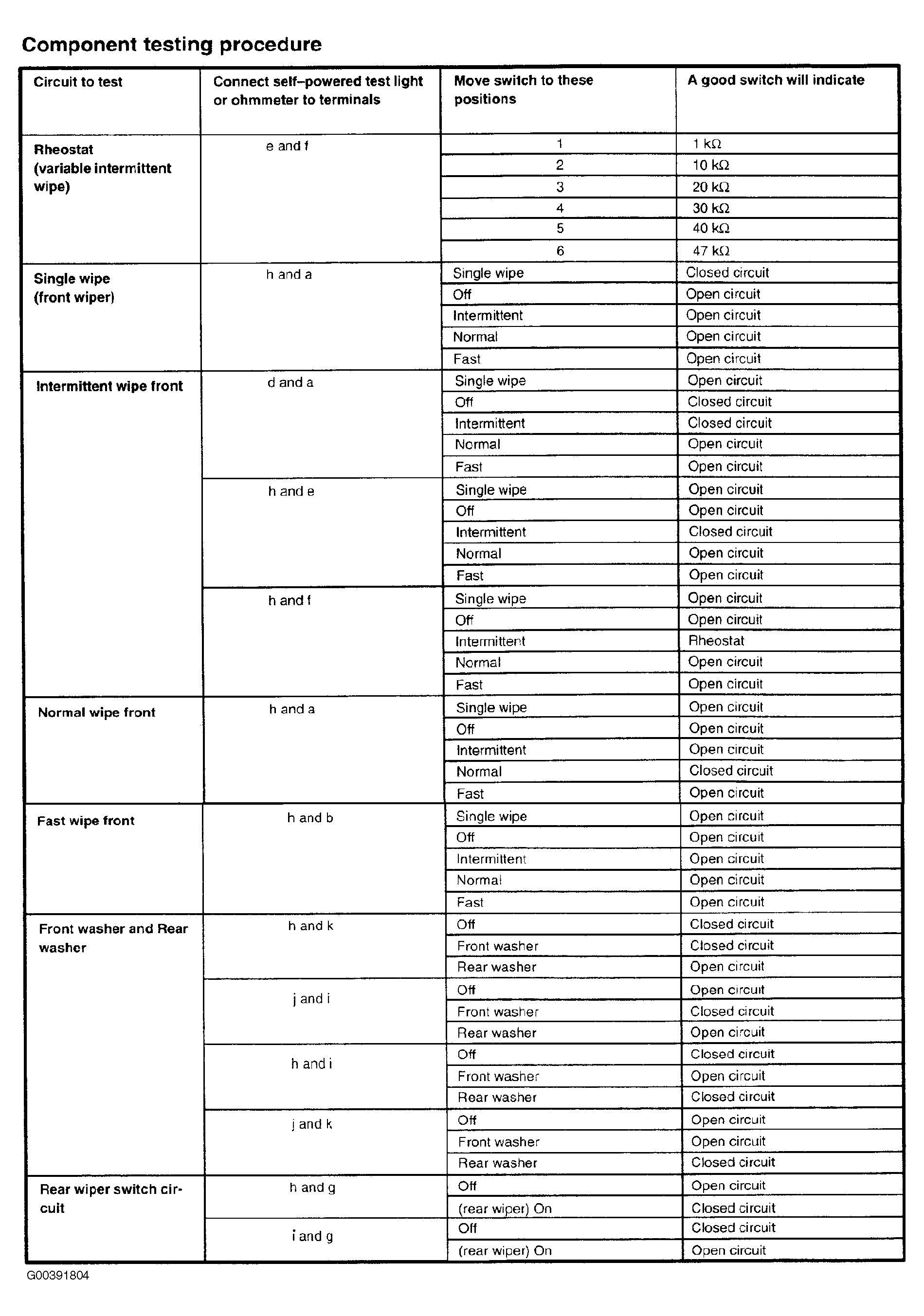

Fig 1: Testing Wiper/Washer Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

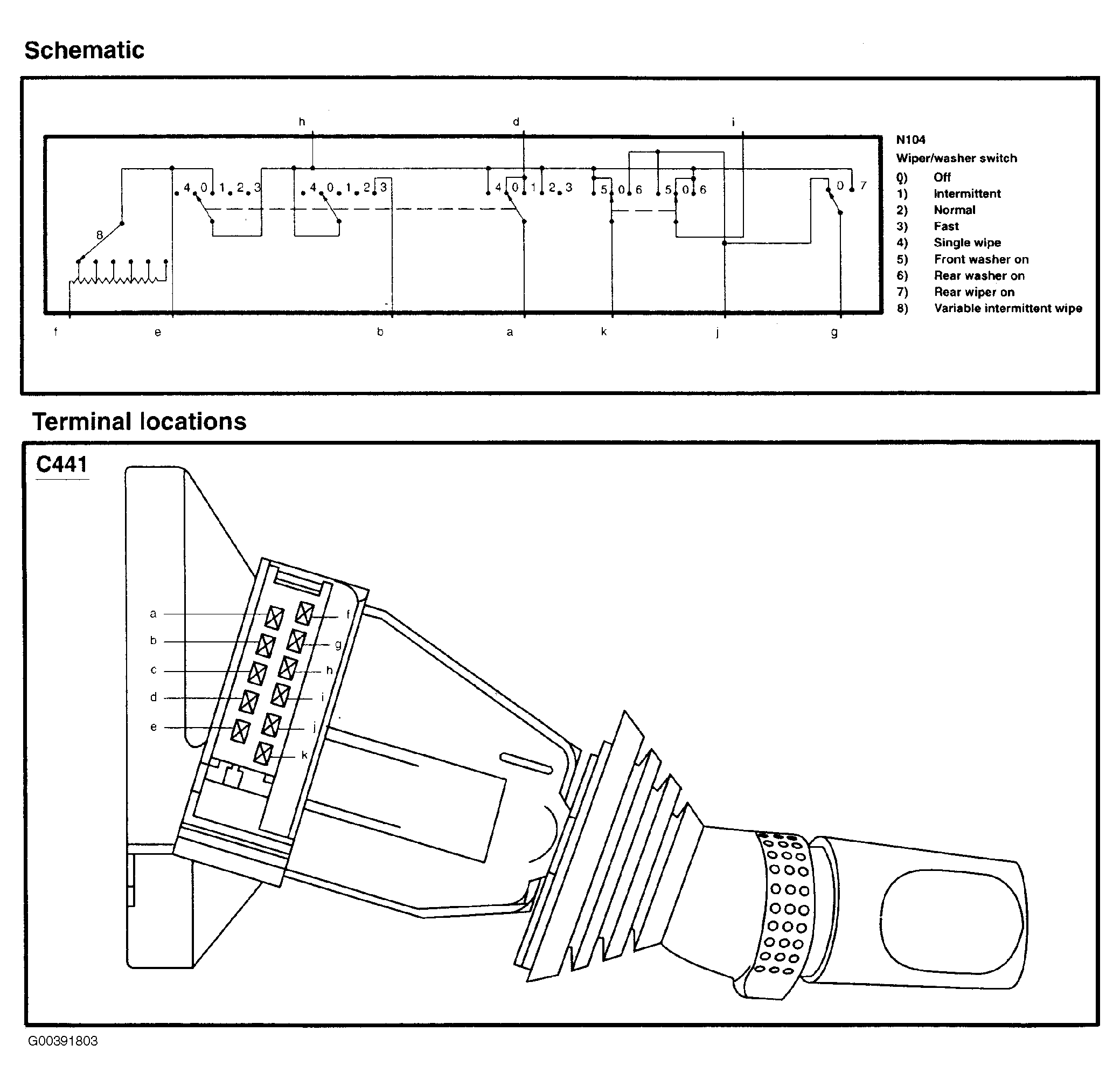

Fig 2: Testing Wiper/Washer Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
