Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Component Tests
>>
Component Testing
>>
Seat Adjust Switch
Seat Adjust Switch

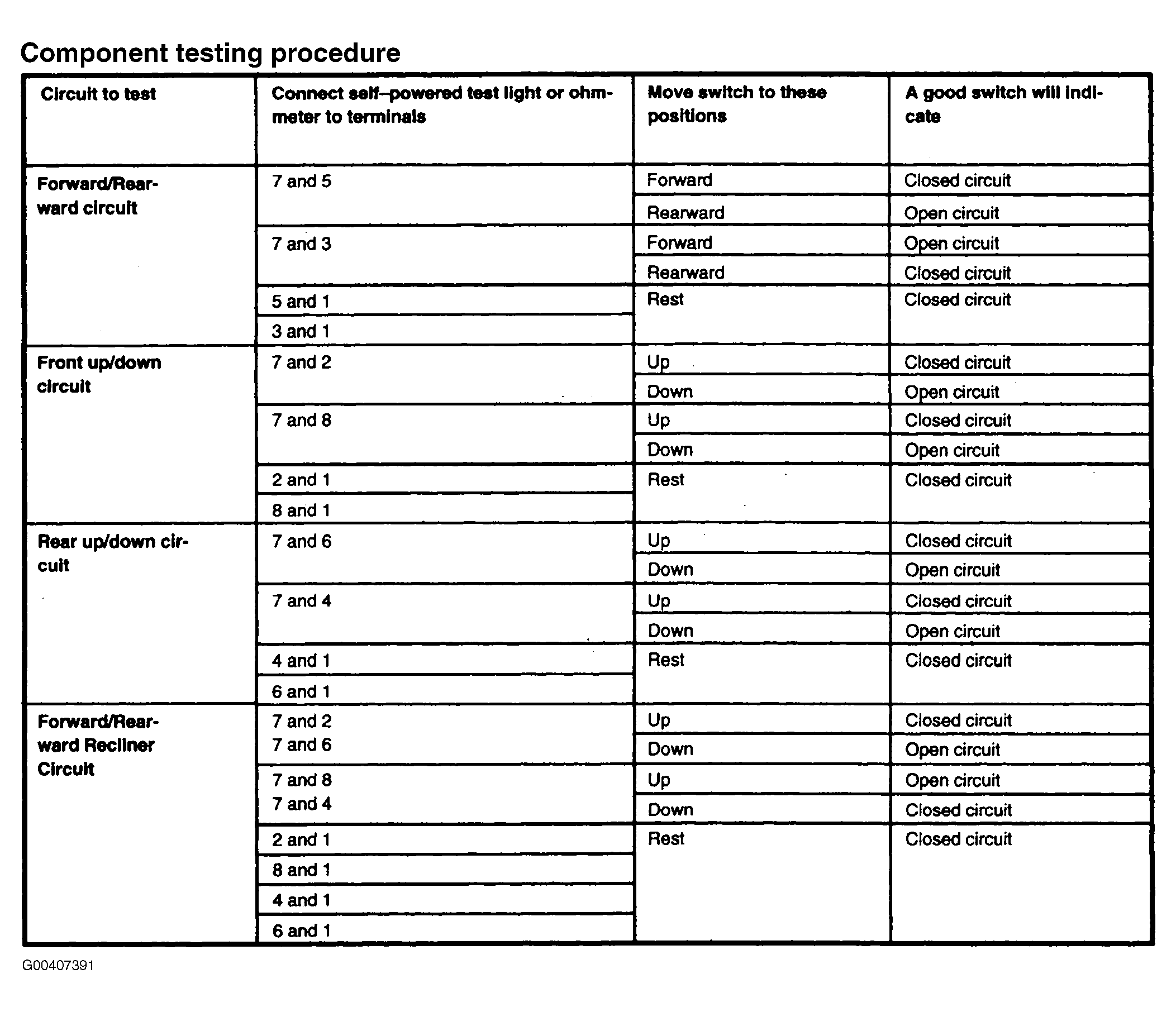

Fig 1: Testing Seat Adjust Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

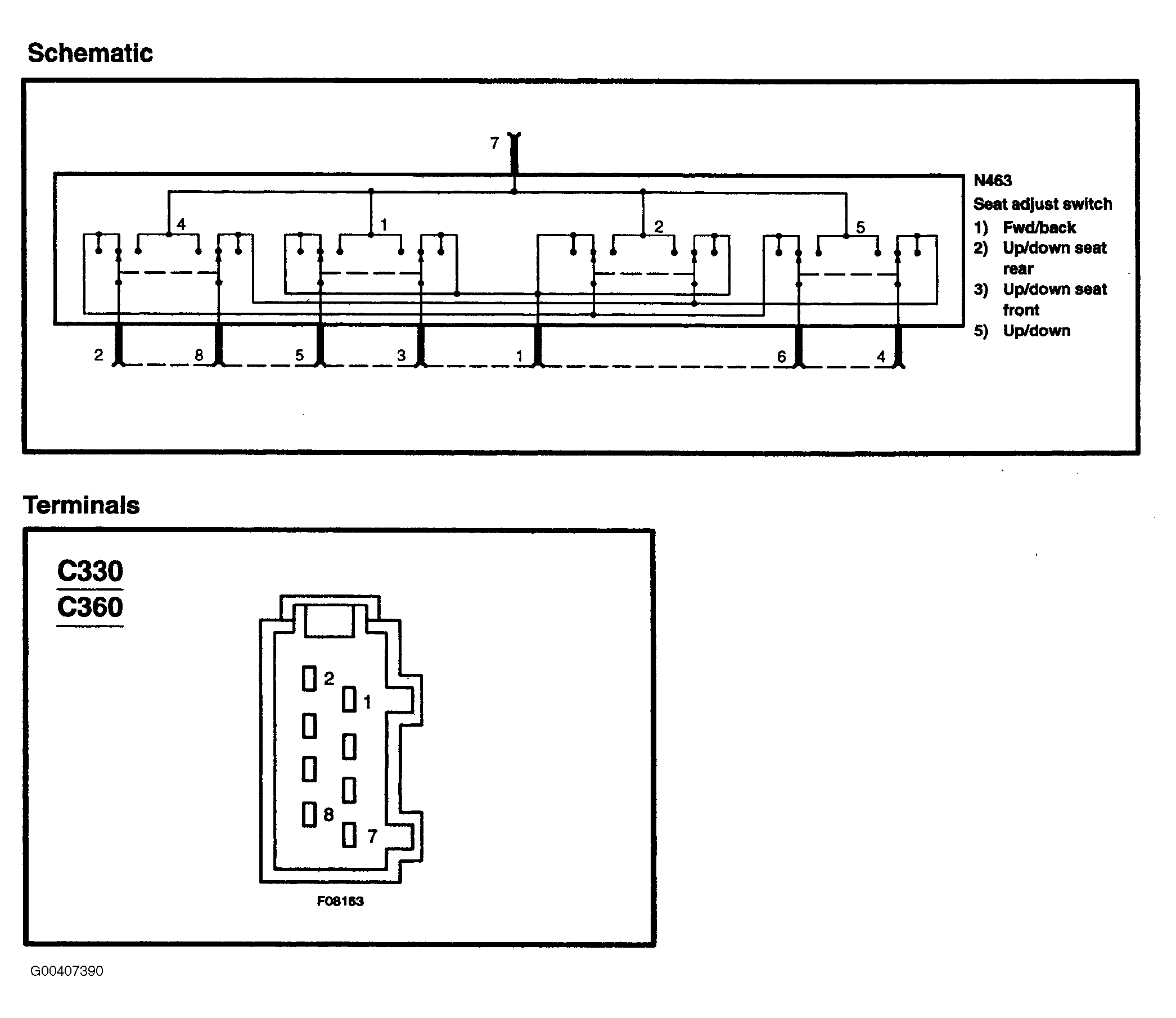

Fig 2: Testing Seat Adjust Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
