Sensor -Rear: Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

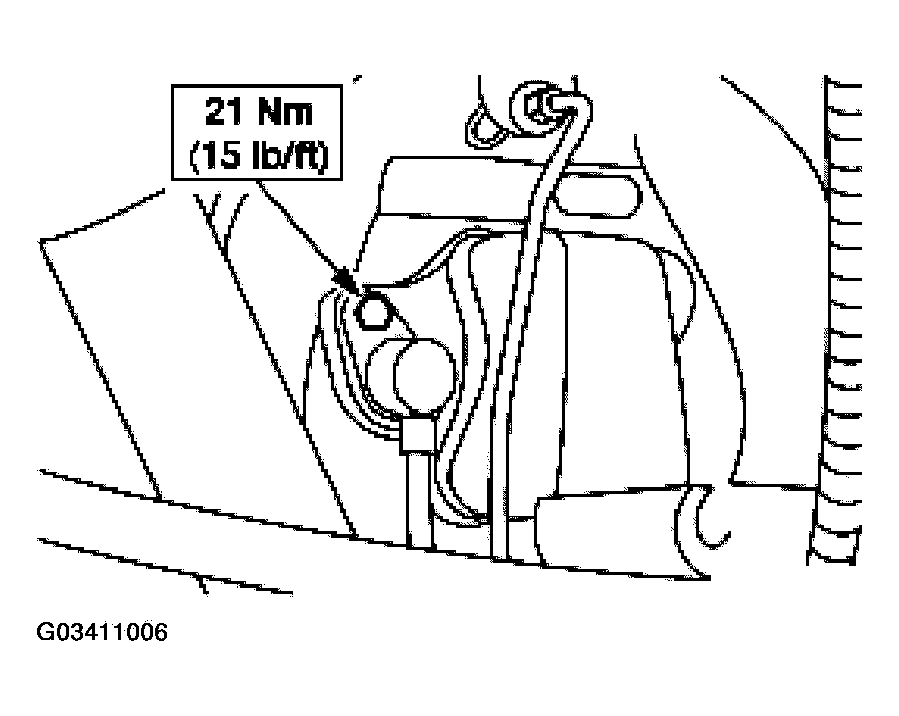

    Fig 1: Sensor -Rear Installation Procedure (1 Of 3)
    G03411006Courtesy of FORD MOTOR CO.

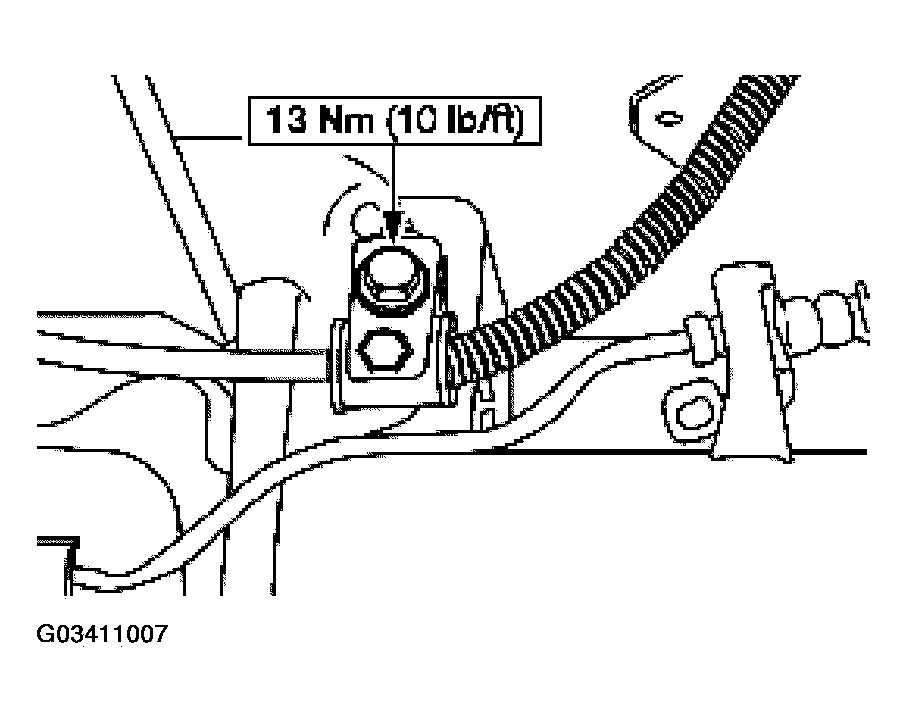

    Fig 2: Sensor -Rear Installation Procedure (2 Of 3)
    G03411007Courtesy of FORD MOTOR CO.

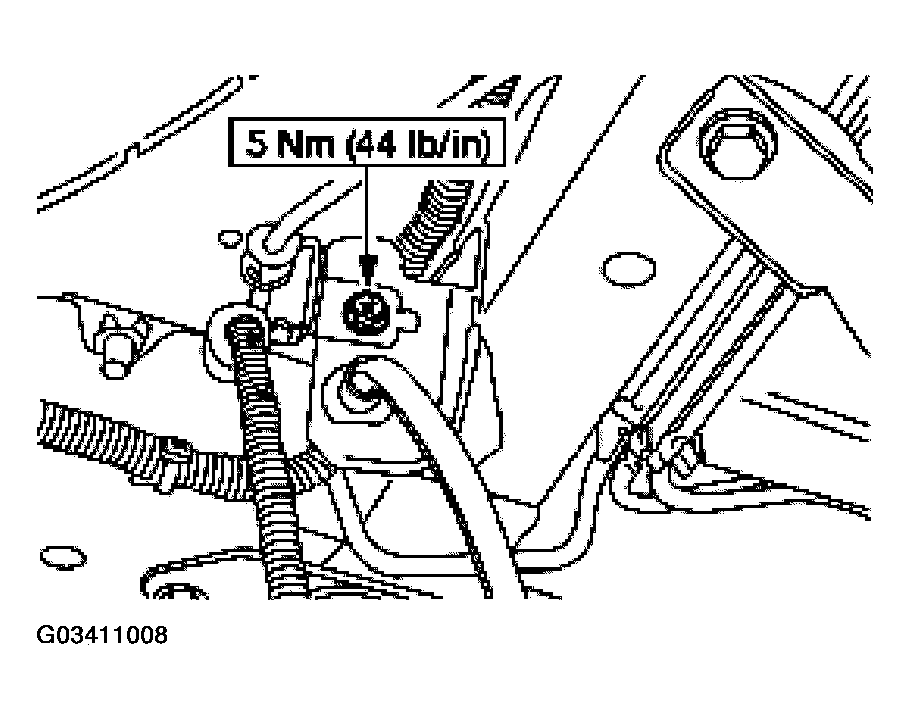

    Fig 3: Sensor -Rear Installation Procedure (3 Of 3)
    G03411008Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
