Disassembled Views

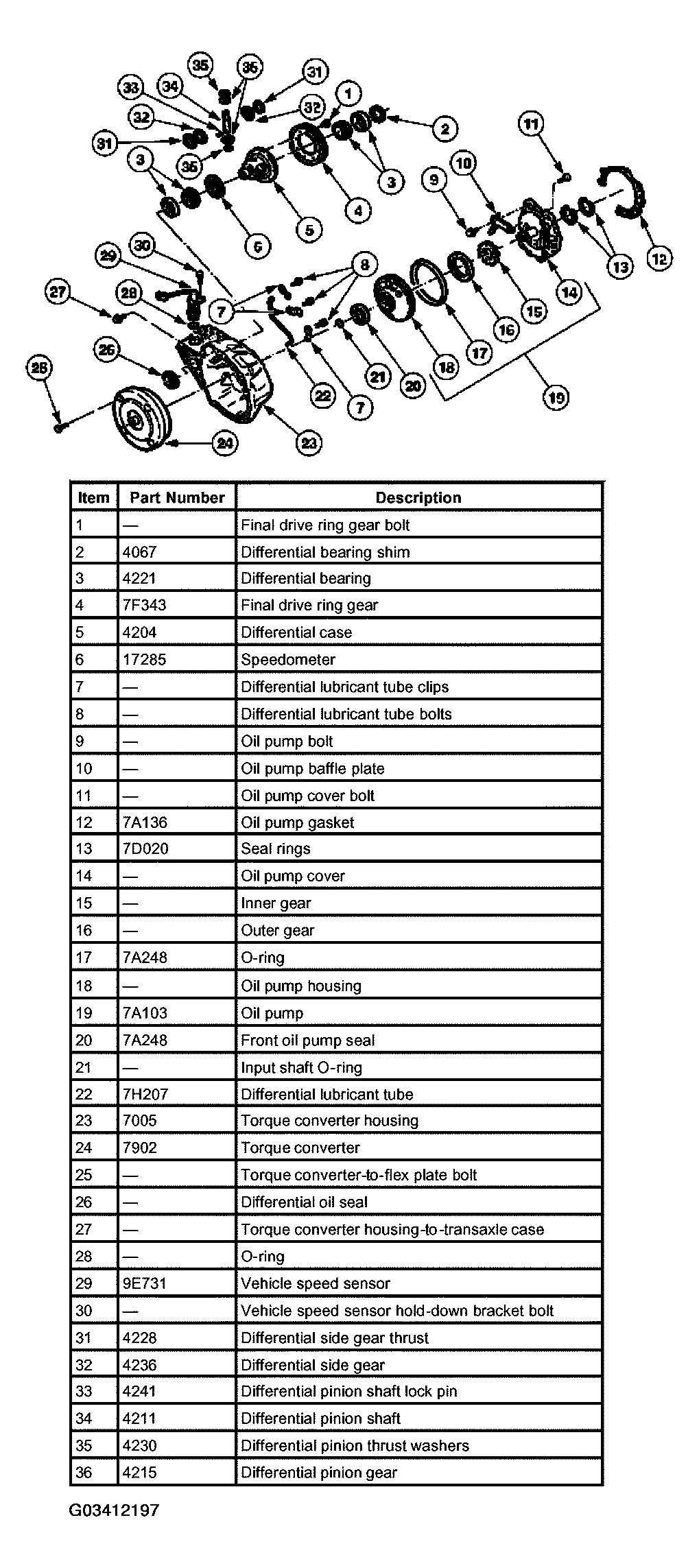

Fig 1: Disassembling Views (Differential)

Courtesy of FORD MOTOR CO.

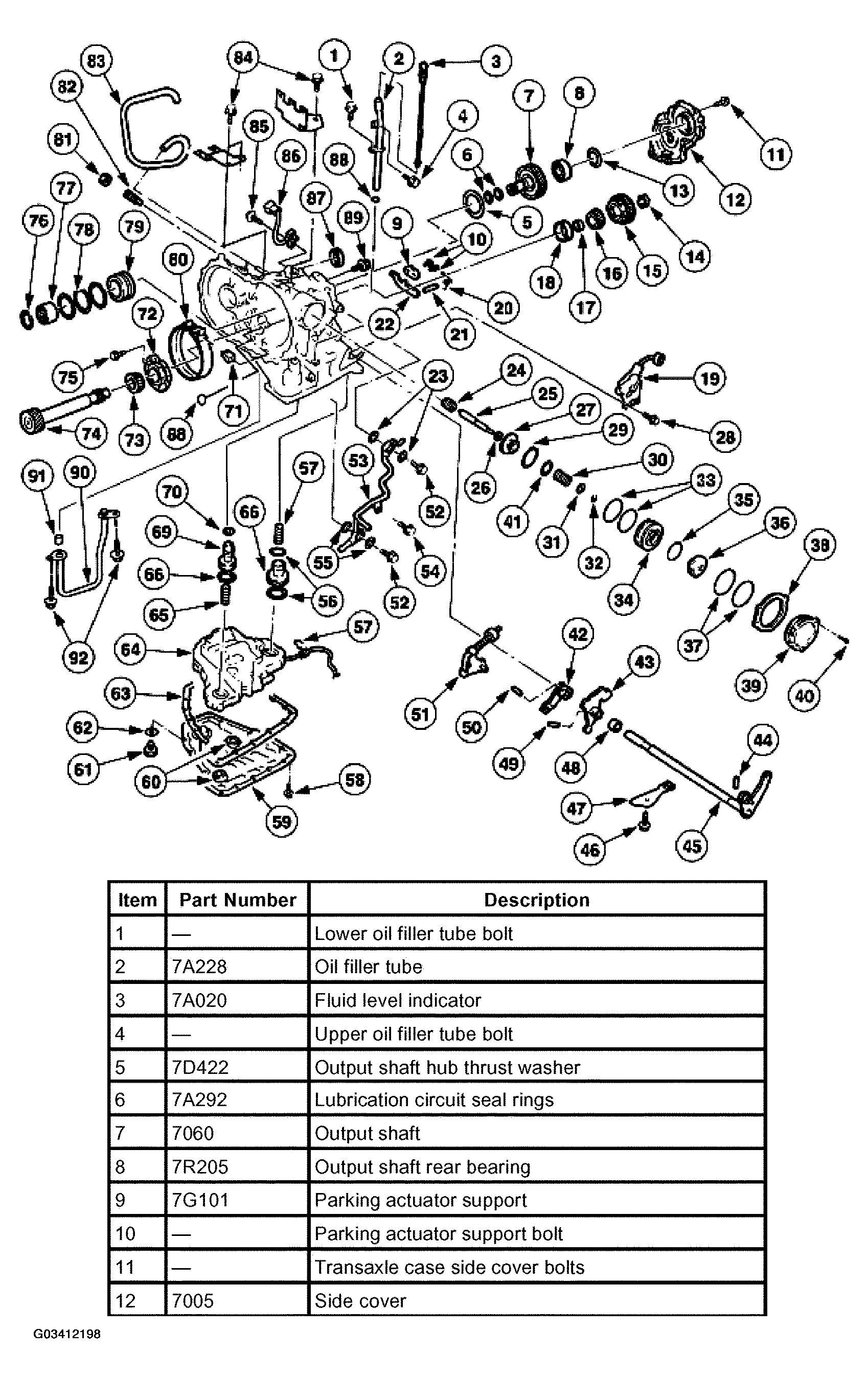

Fig 2: Disassembling Views (Transaxle) (1 Of 3)

Courtesy of FORD MOTOR CO.

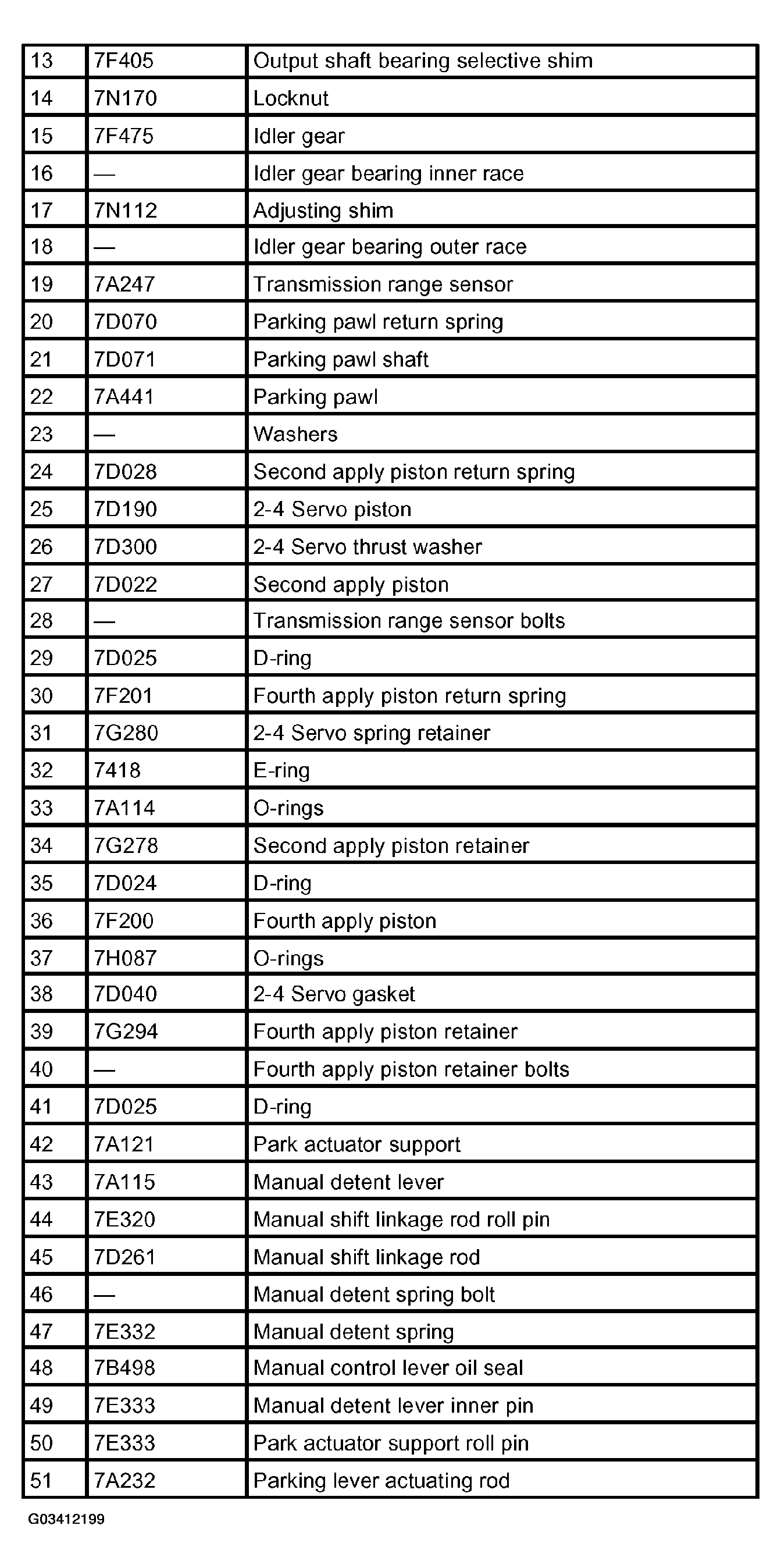

Fig 3: Disassembling Views (Transaxle) (2 Of 3)

Courtesy of FORD MOTOR CO.

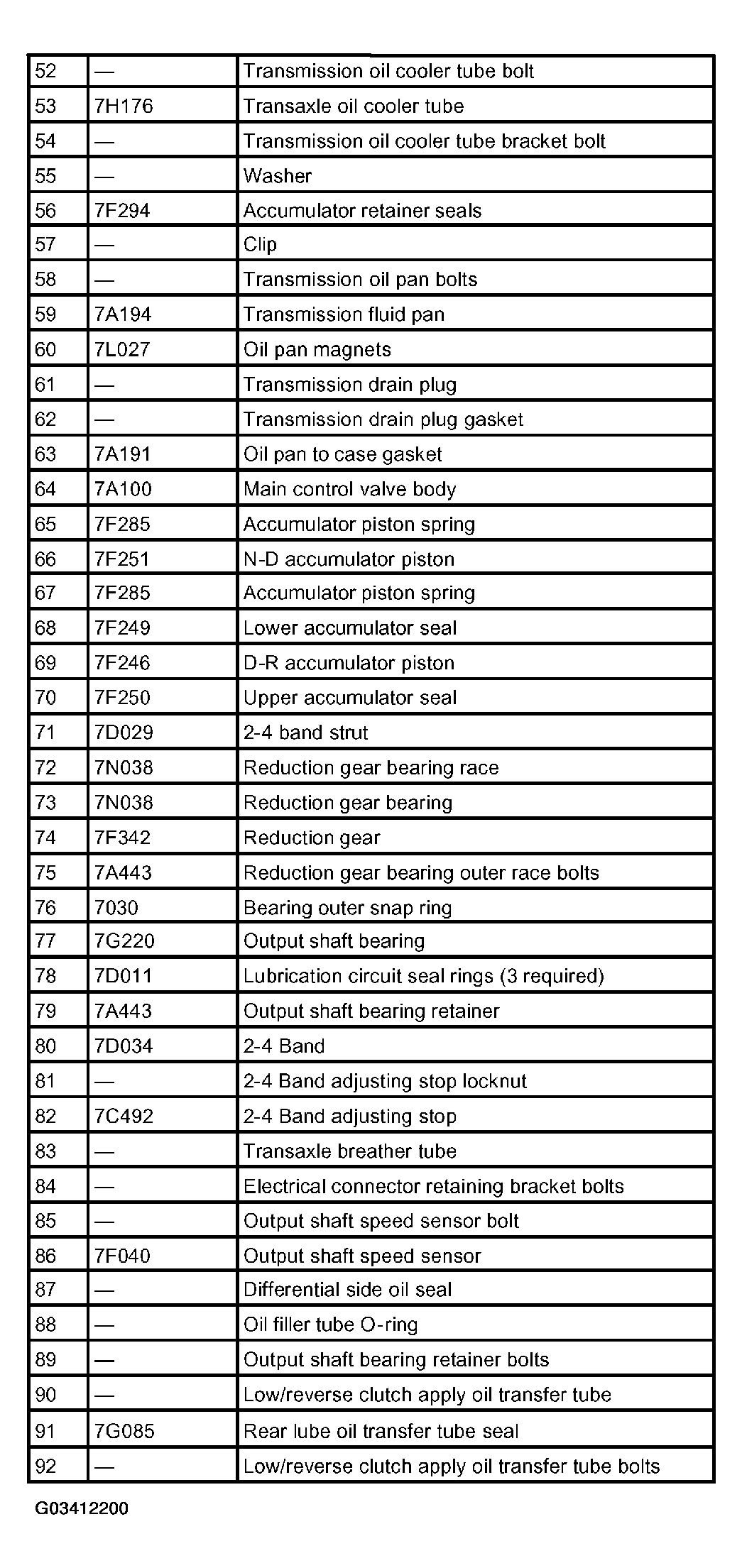

Fig 4: Disassembling Views (Transaxle) (3 Of 3)

Courtesy of FORD MOTOR CO.

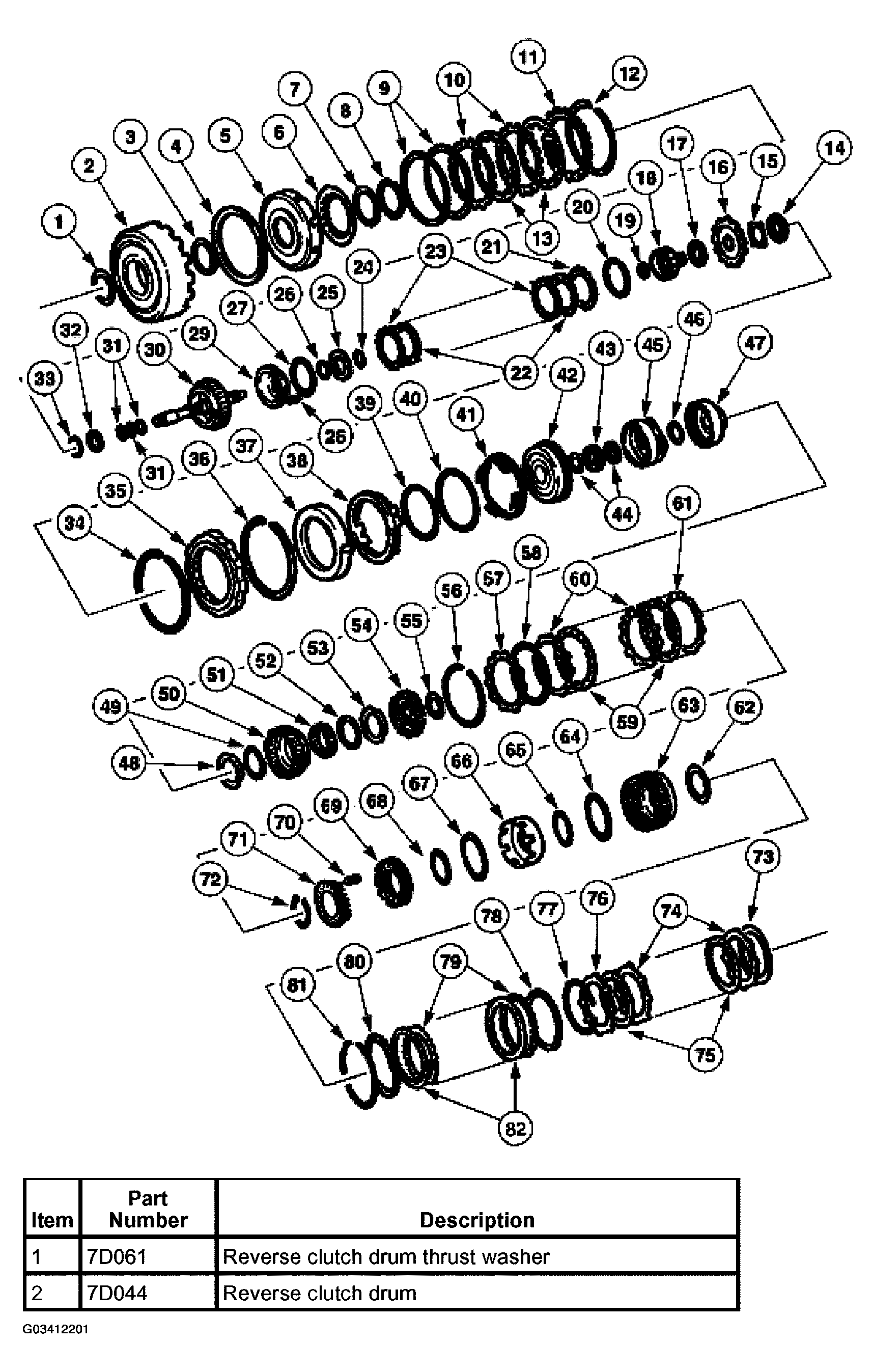

Fig 5: Disassembling Views (Reverse Clutch) (1 Of 3)

Courtesy of FORD MOTOR CO.

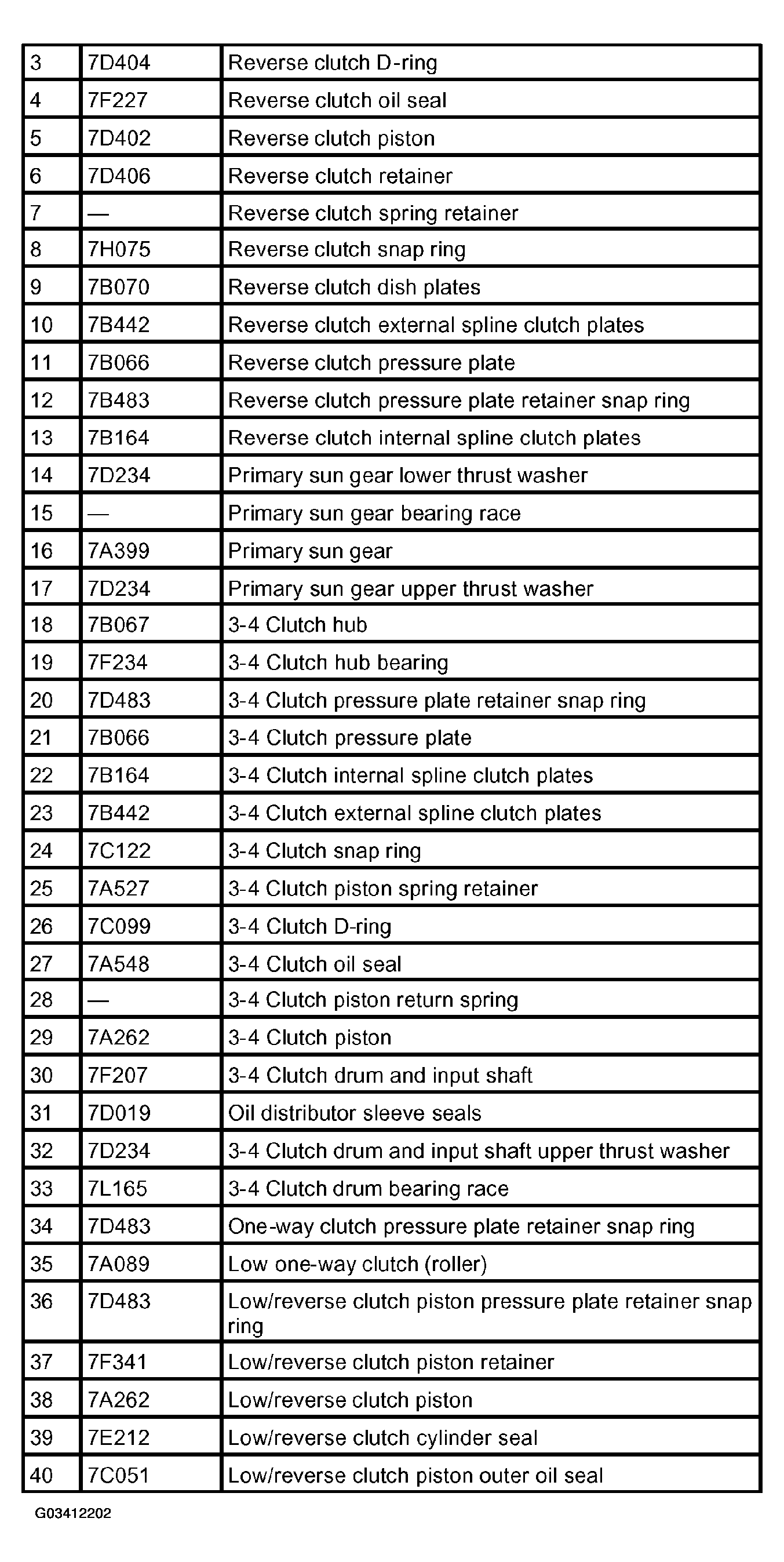

Fig 6: Disassembling Views (Reverse Clutch) (2 Of 3)

Courtesy of FORD MOTOR CO.

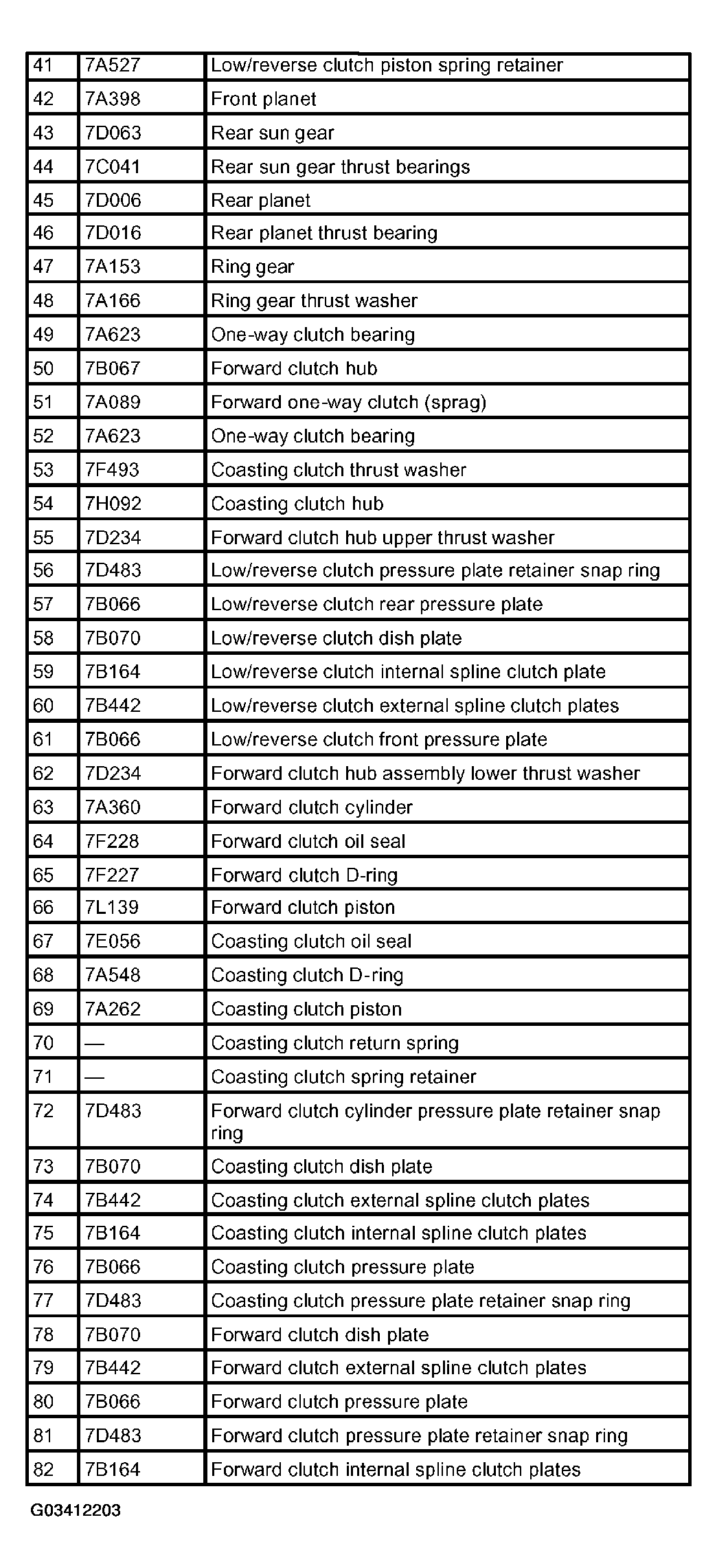

Fig 7: Disassembling Views (Reverse Clutch) (3 Of 3)

Courtesy of FORD MOTOR CO.
