Reduction Gear: Disassembly

    NOTE: Do not remove the reduction gear bearing unless it must be replaced.
    NOTE: The bearing may be damaged when removed.
  1. Inspect the reduction gear bearing. If the bearing shows signs of excessive wear or damage, remove the bearing.
  2. Remove the reduction gear bearing outer cage.

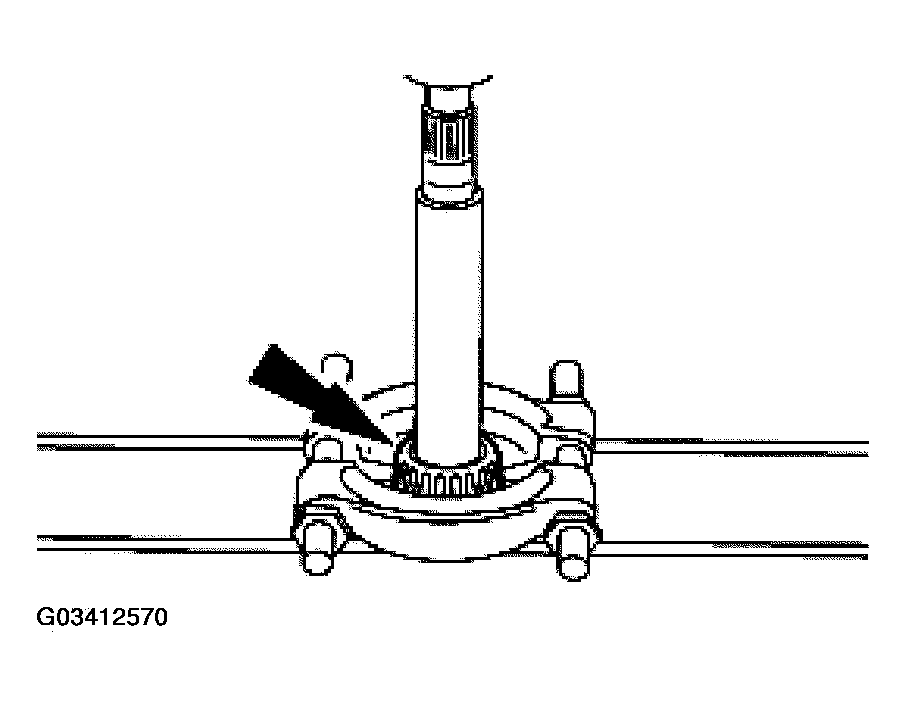

    Fig 1: Removing Reduction Gear Bearing Outer Cage
    G03412570Courtesy of FORD MOTOR CO.
