Connector End Views
>>
Connector Views
Connector Views

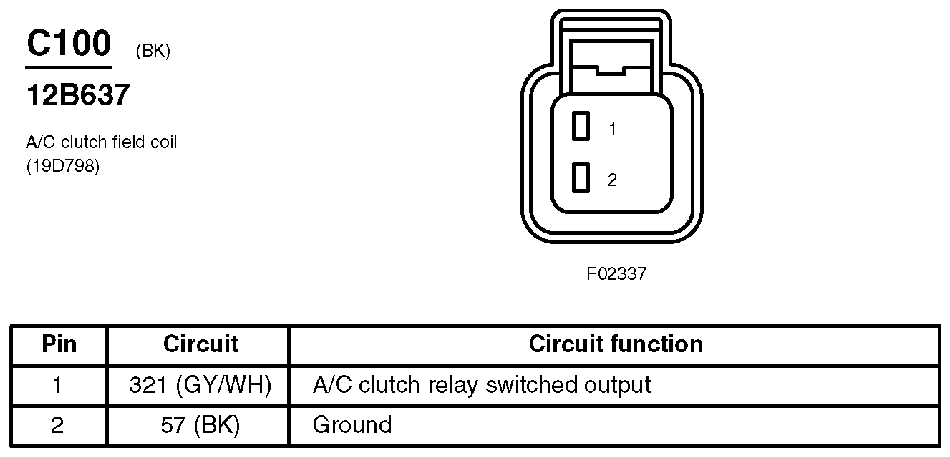

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

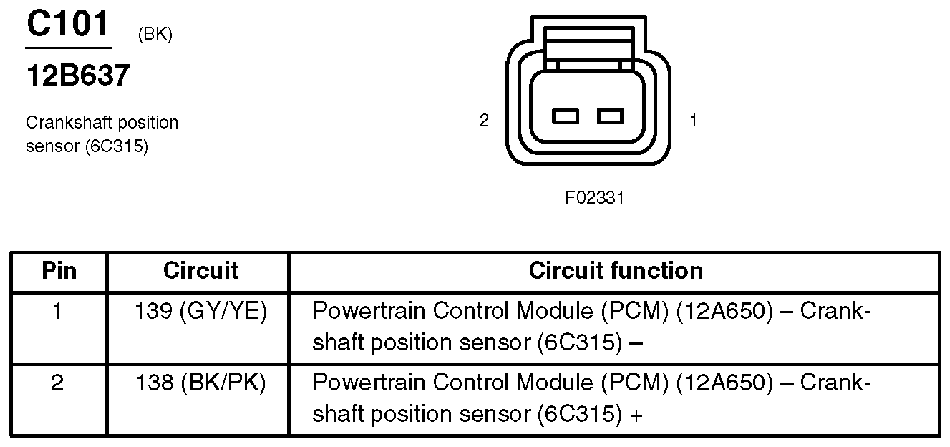

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

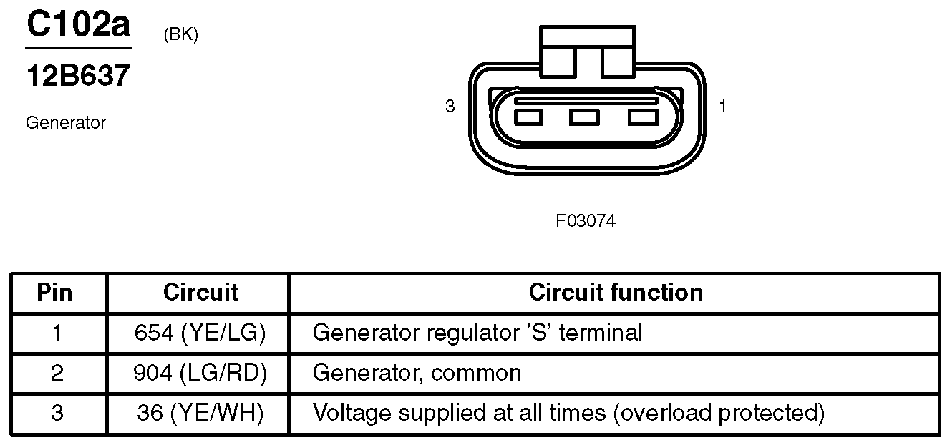

Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

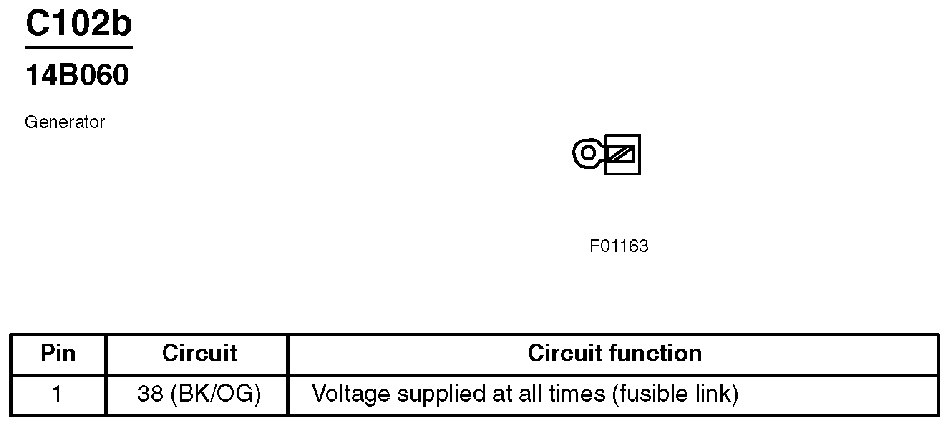

Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.

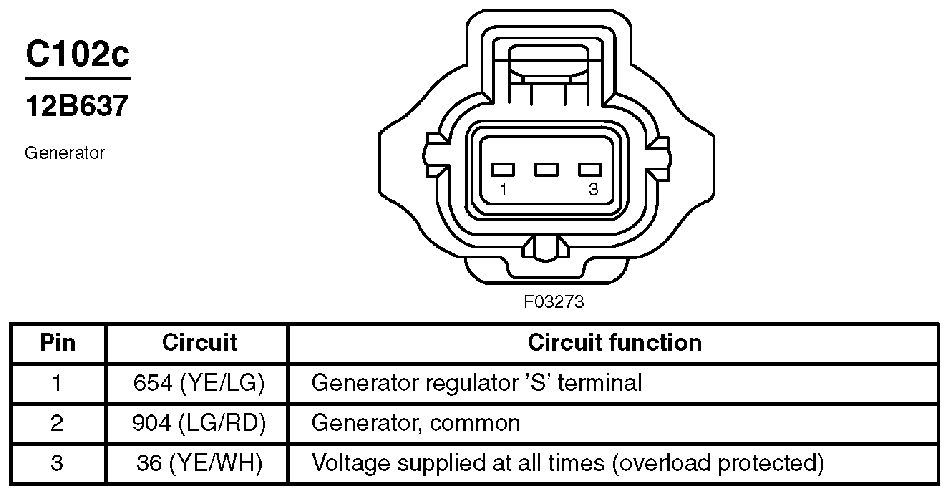

Fig 5: Generator Connector End View (C102c)
Courtesy of FORD MOTOR CO.

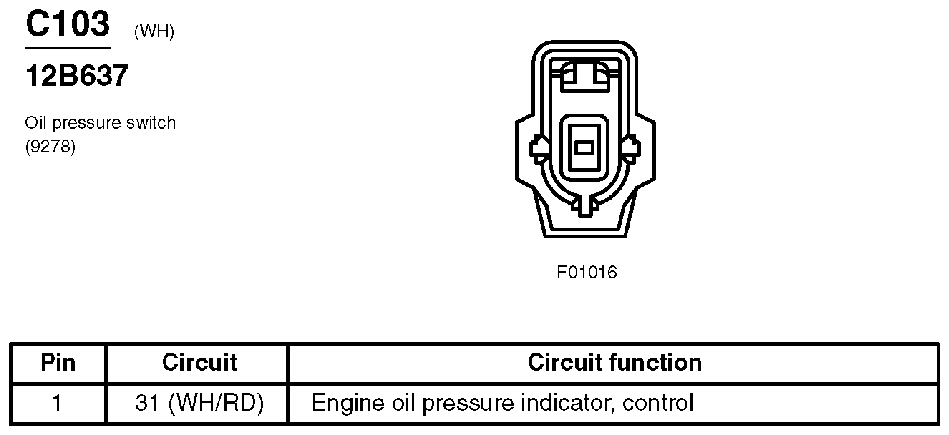

Fig 6: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

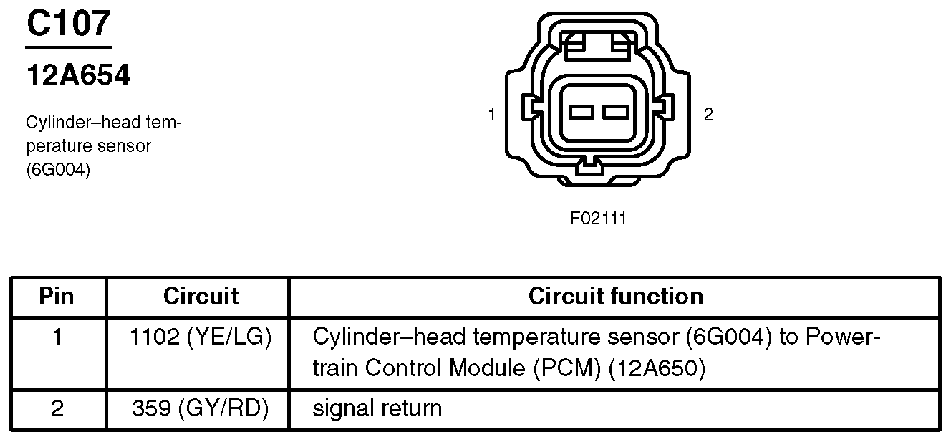

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

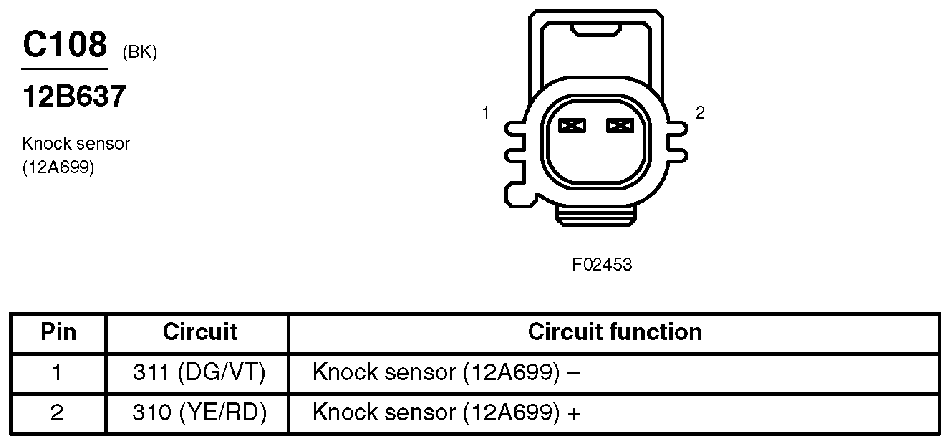

Fig 8: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.

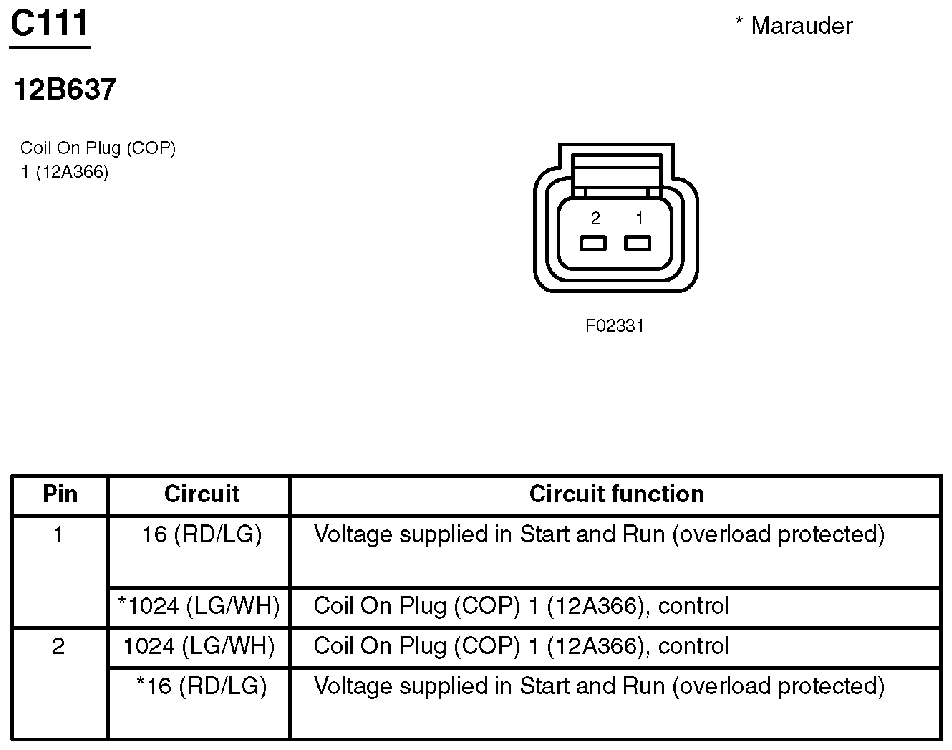

Fig 9: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 10: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 11: Coil On Plug (COP) Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 12: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.
Fig 13: Coil On Plug (COP) Connector End View (C115)
Courtesy of FORD MOTOR CO.
Fig 14: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.
Fig 15: Coil On Plug (COP) Connector End View (C117)
Courtesy of FORD MOTOR CO.

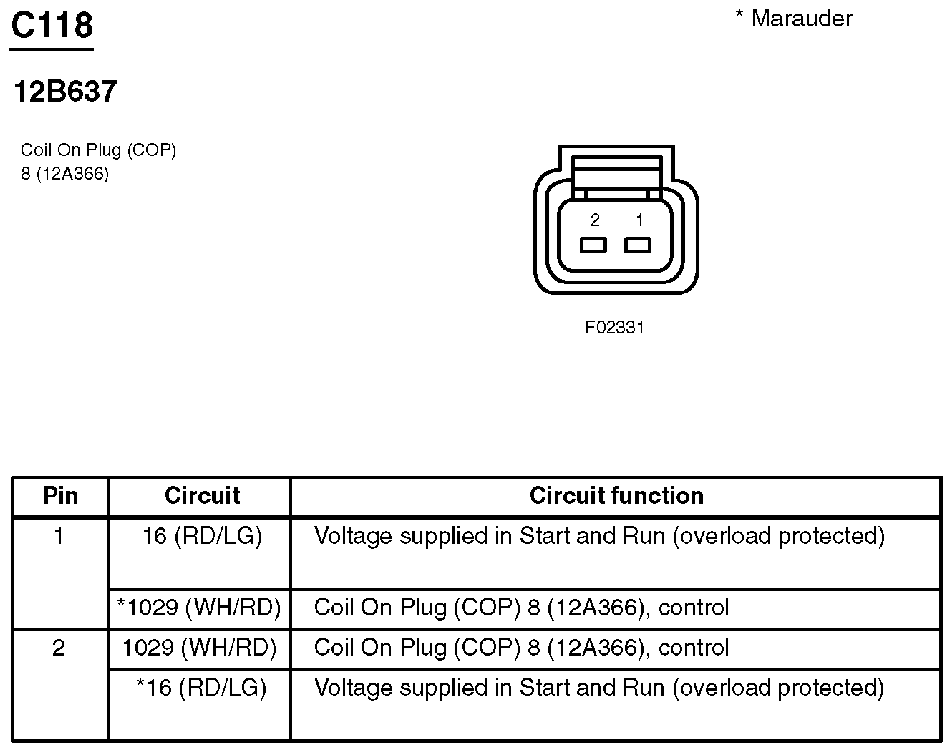

Fig 16: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

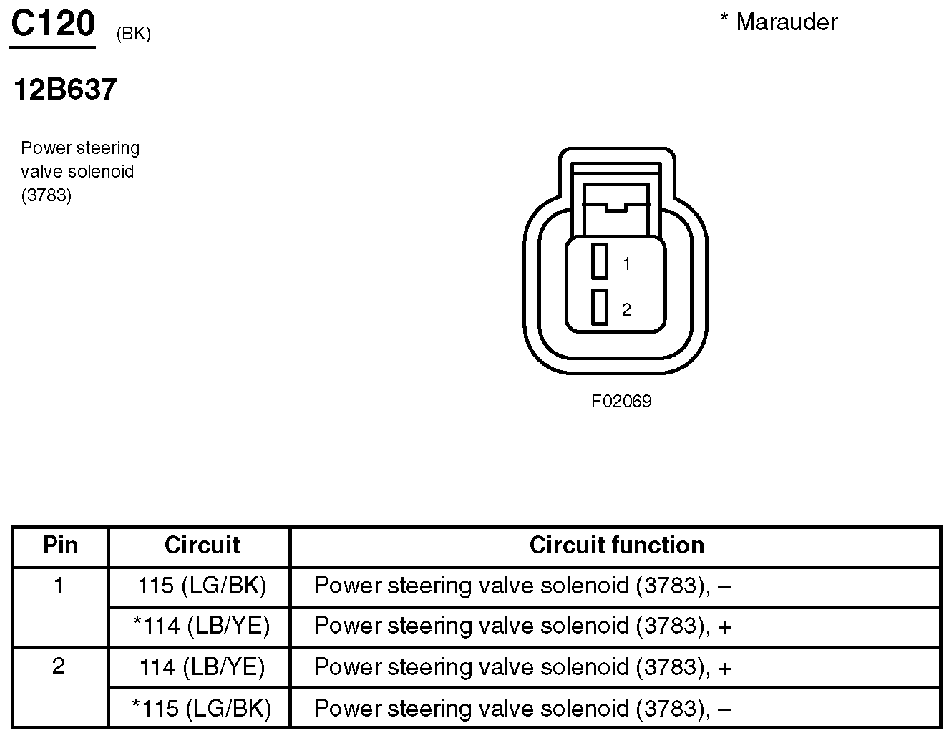

Fig 17: Power Steering Valve Solenoid Connector End View (C120)
Courtesy of FORD MOTOR CO.

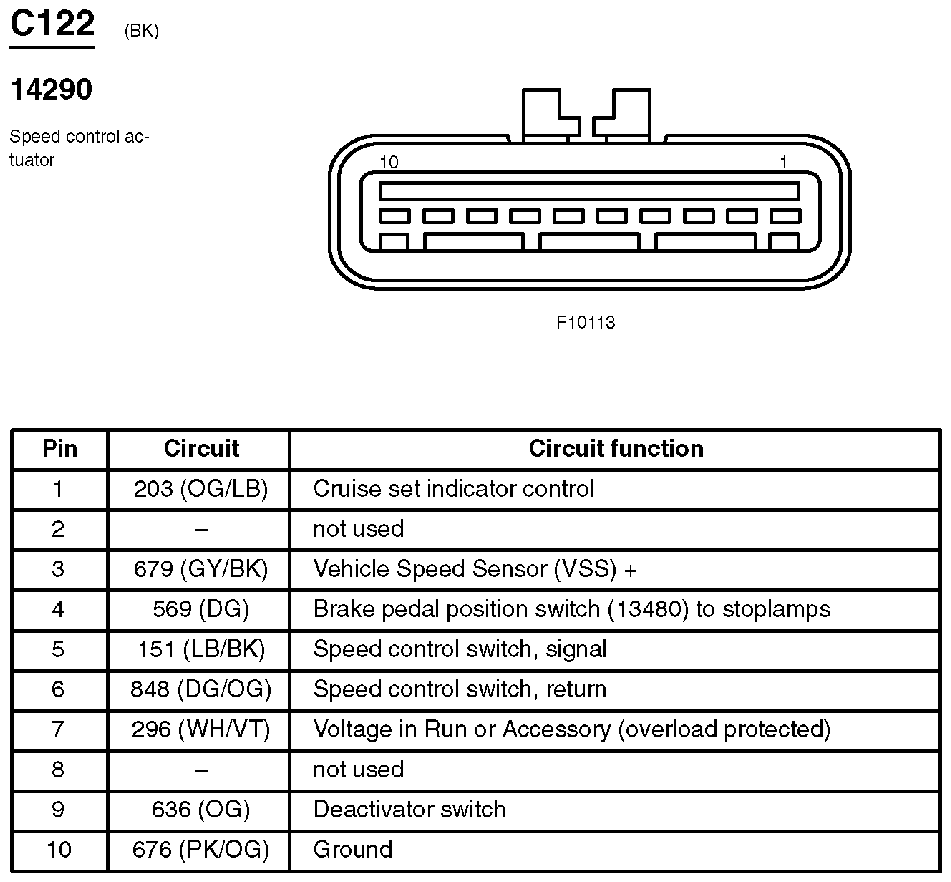

Fig 18: Speed Control Actuator Connector End View (C122)
Courtesy of FORD MOTOR CO.

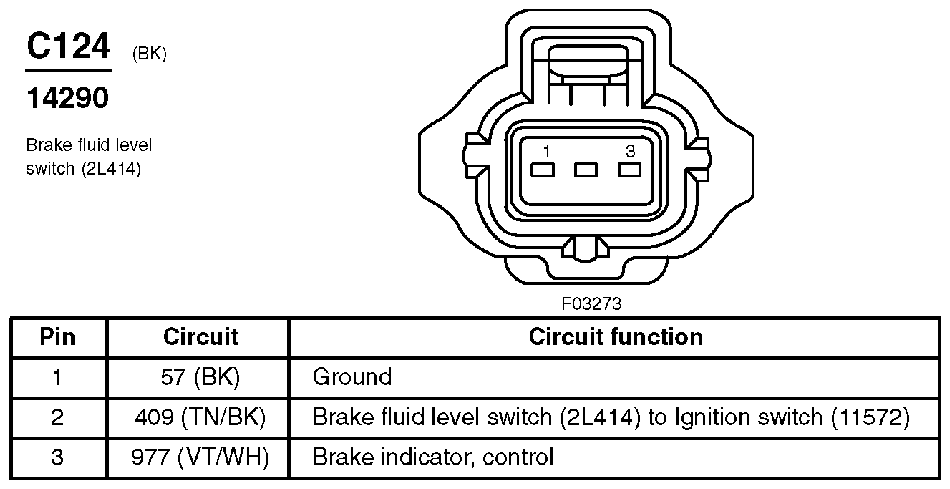

Fig 19: brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

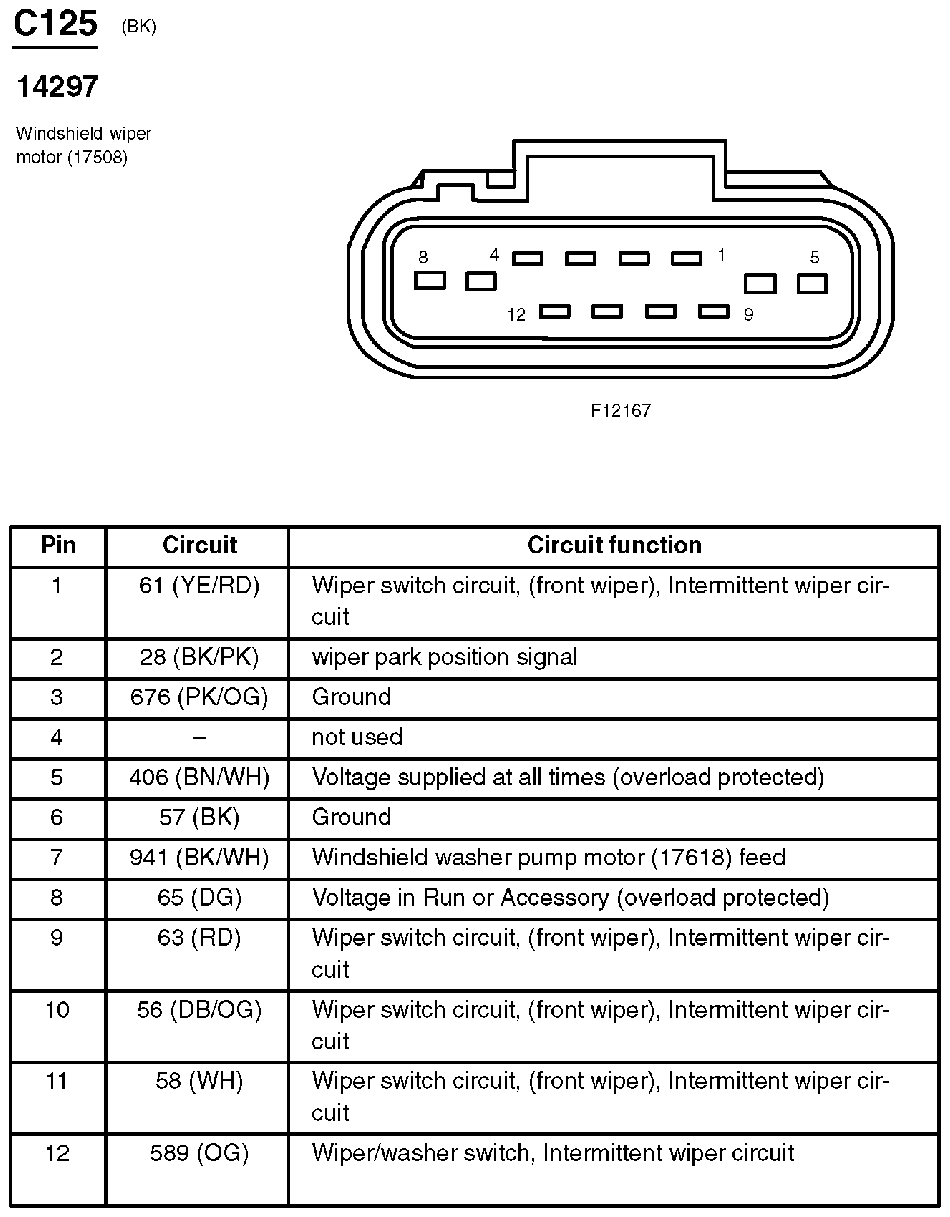

Fig 20: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

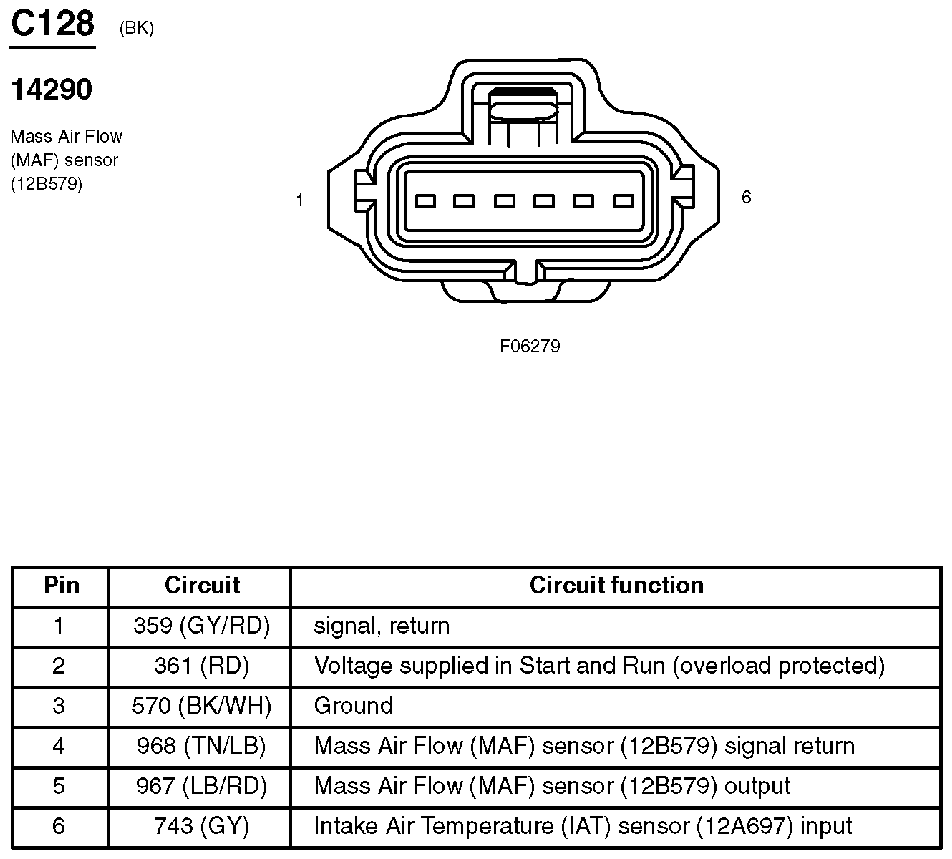

Fig 21: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

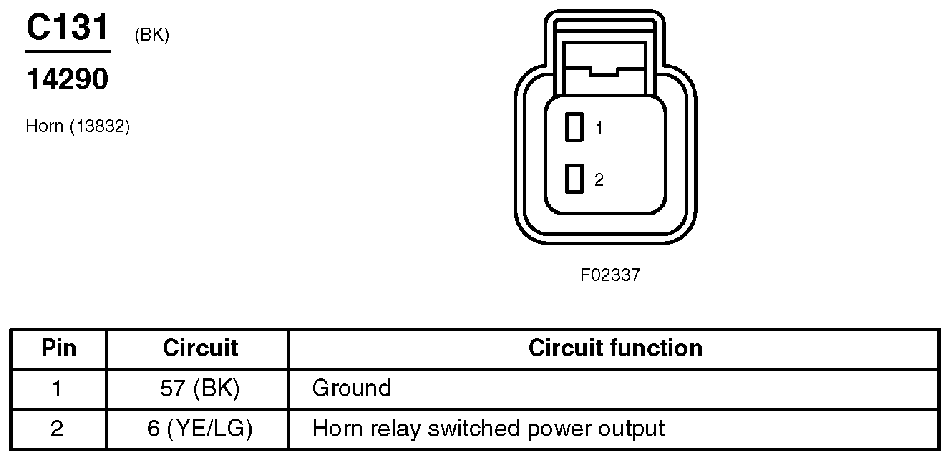

Fig 22: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

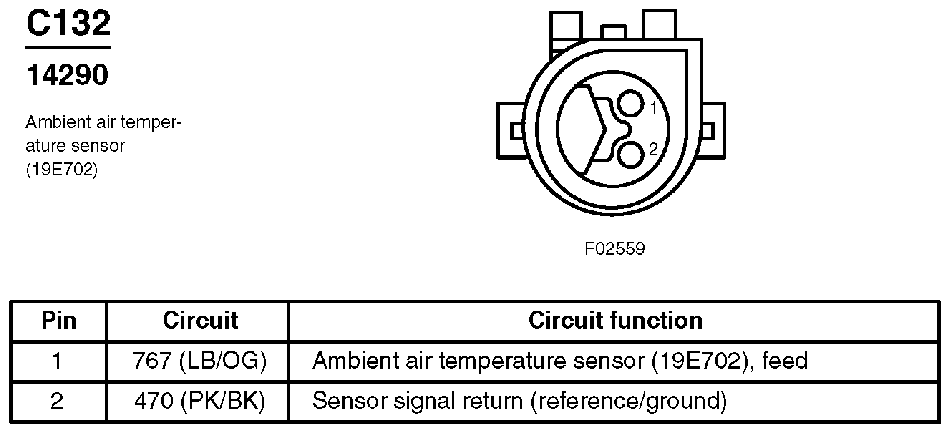

Fig 23: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

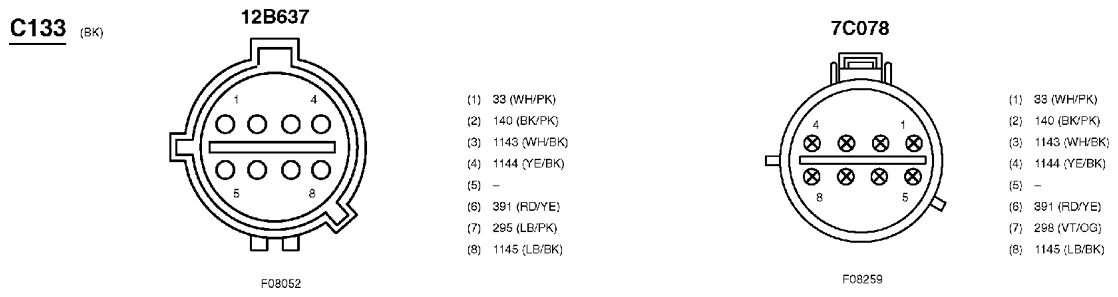

Fig 24: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

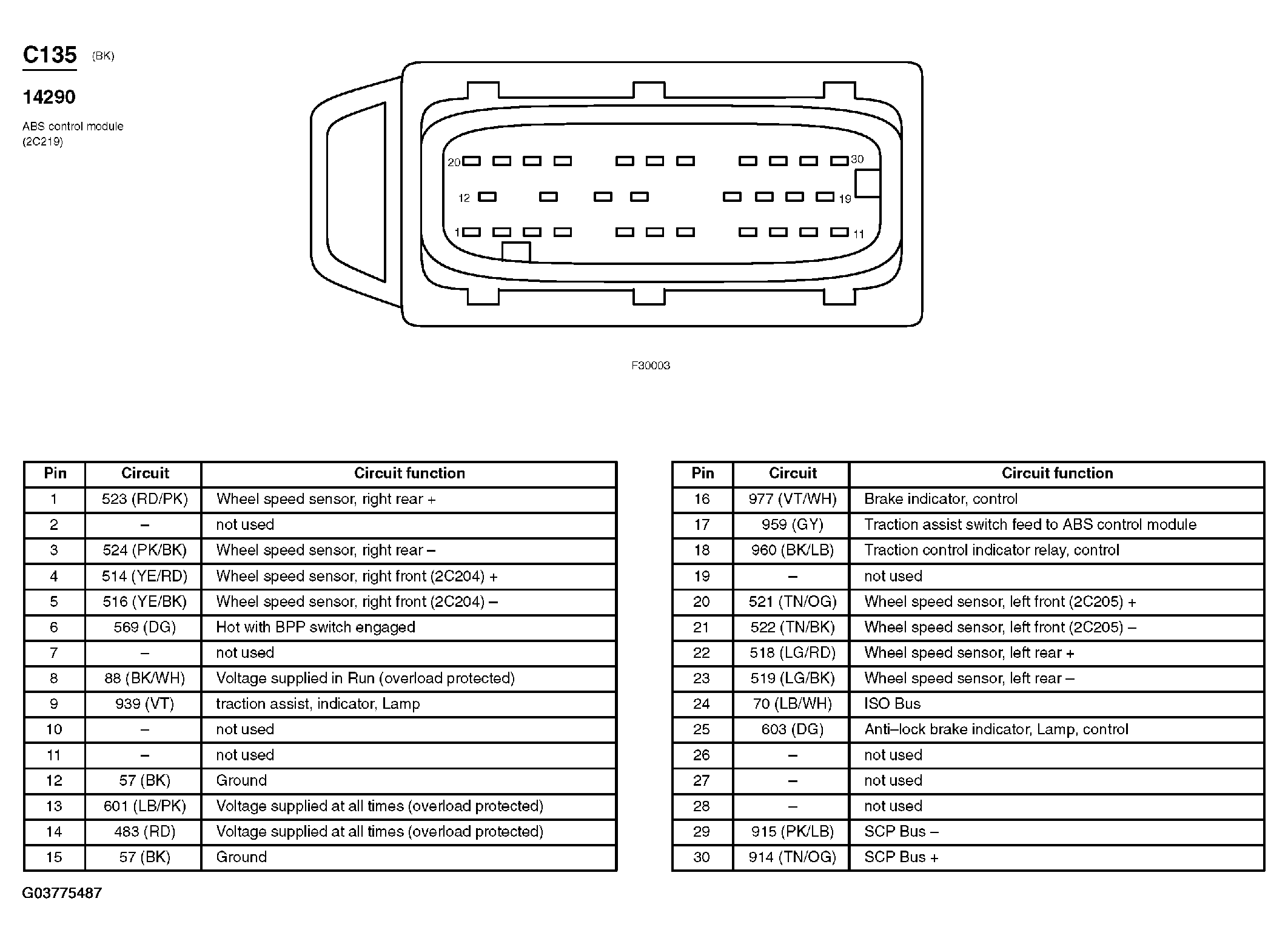

Fig 25: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.

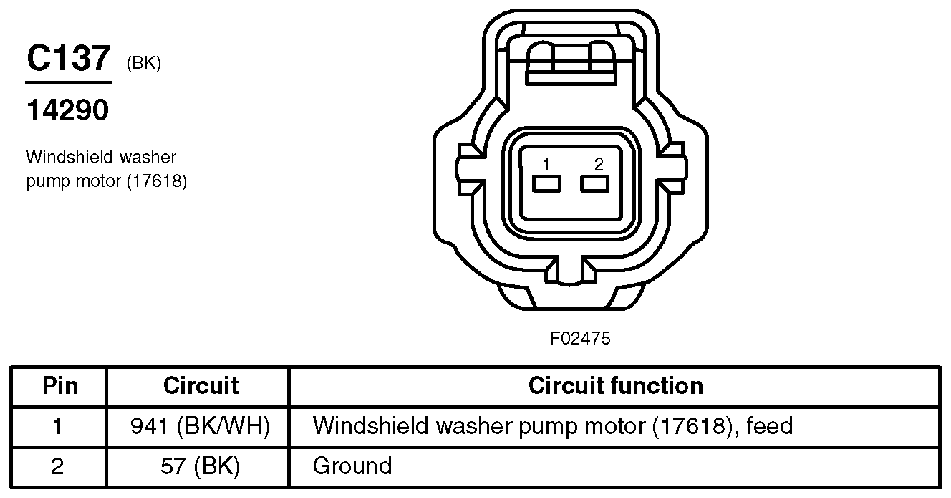

Fig 26: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

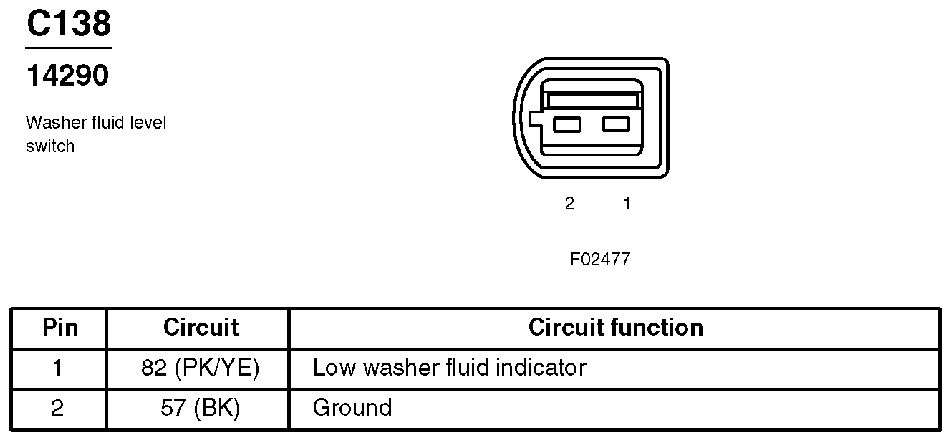

Fig 27: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

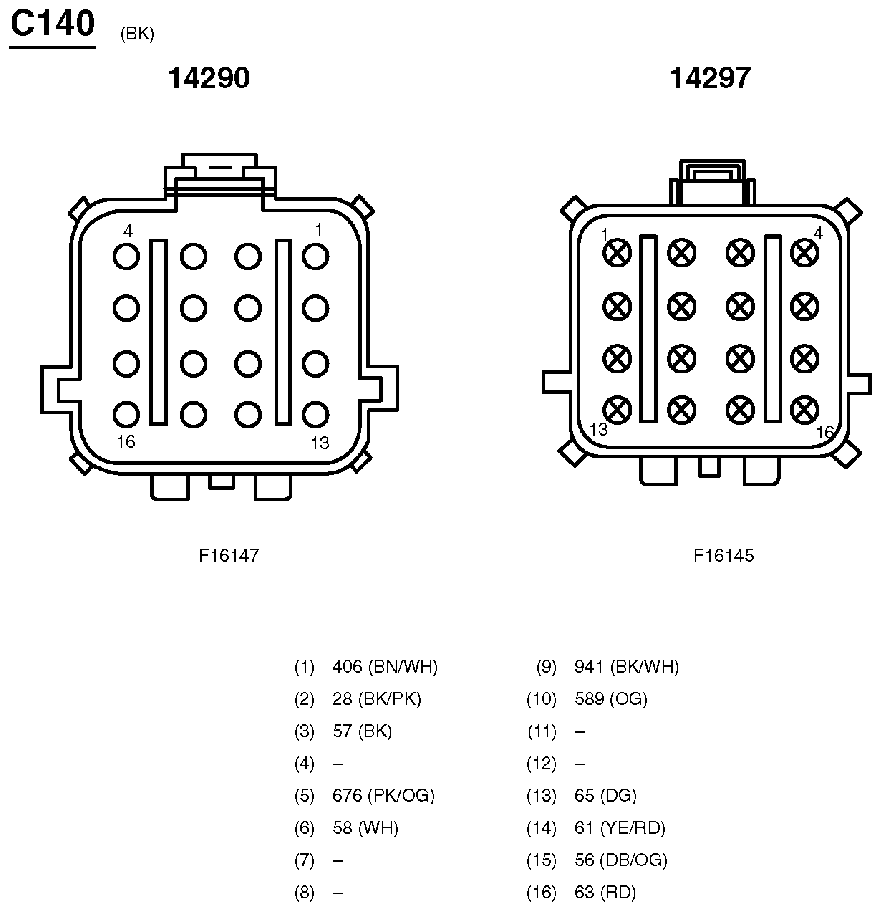

Fig 28: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.

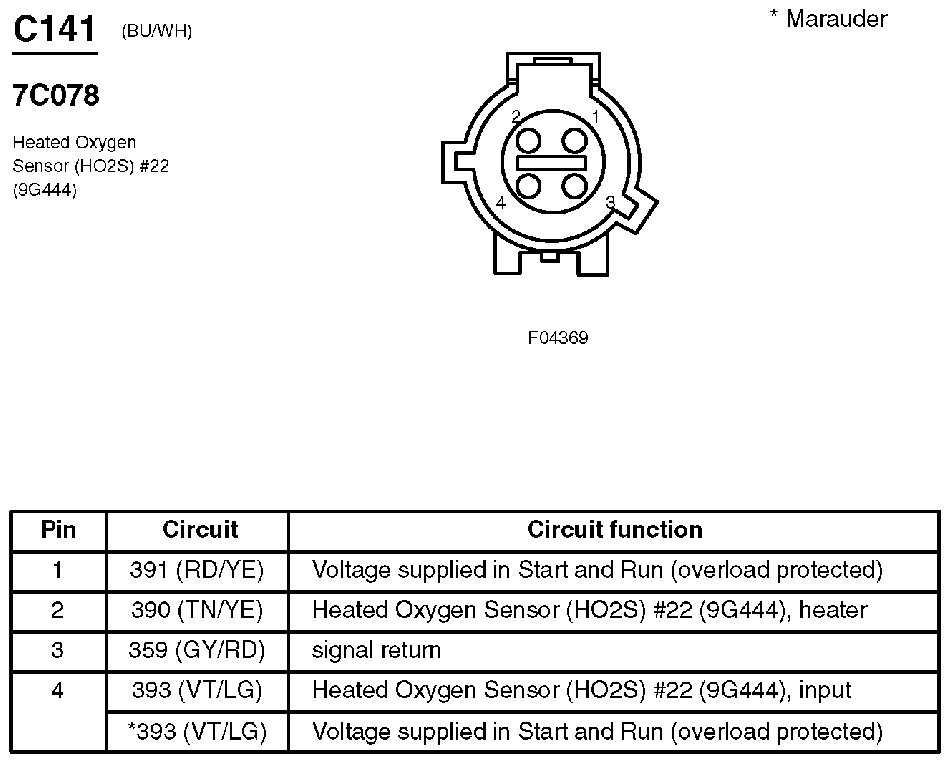

Fig 29: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

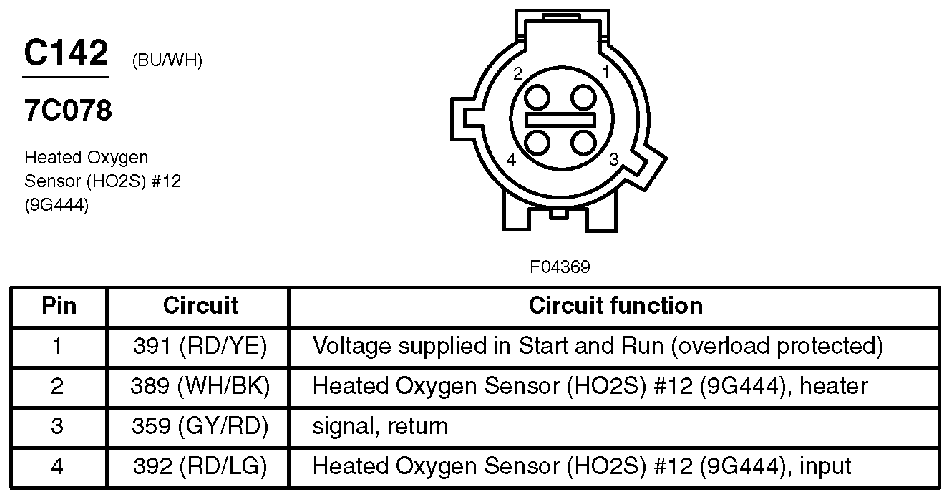

Fig 30: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

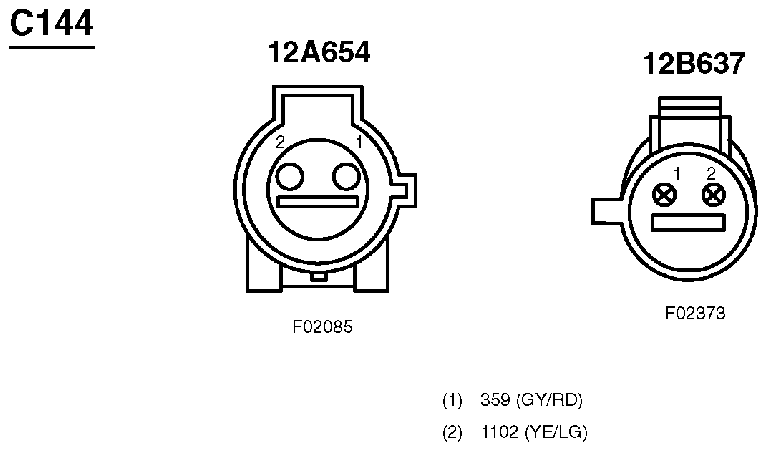

Fig 31: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

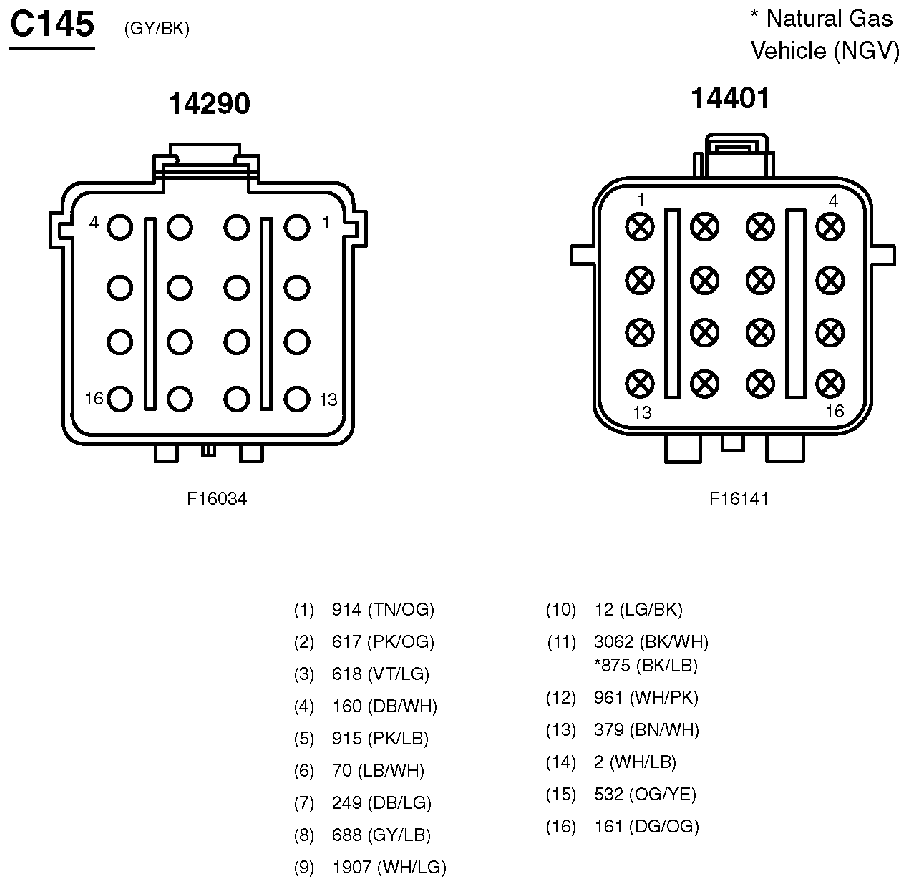

Fig 32: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.

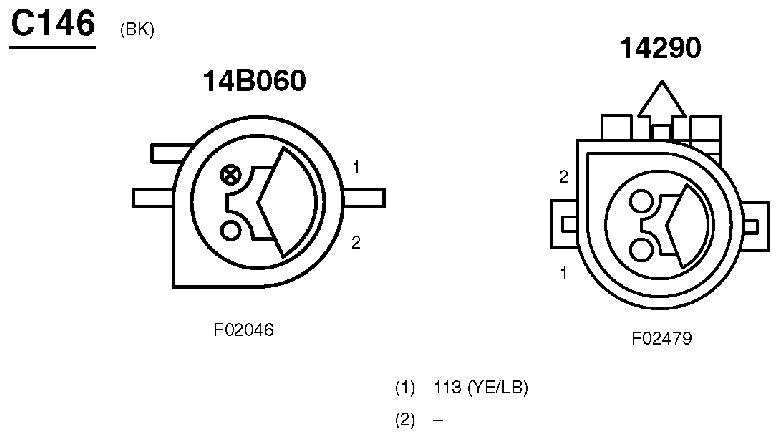

Fig 33: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.

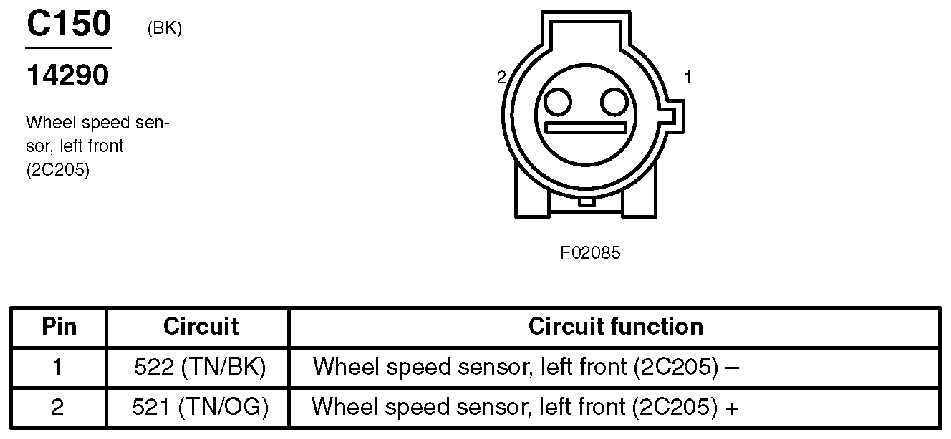

Fig 34: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

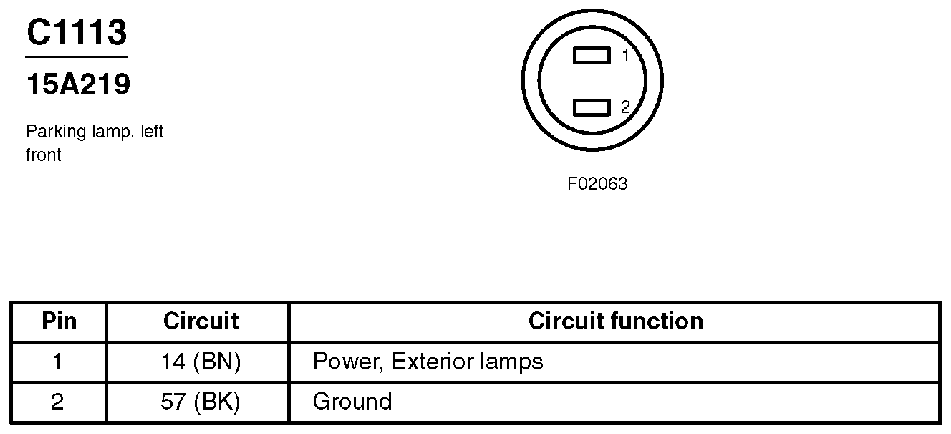

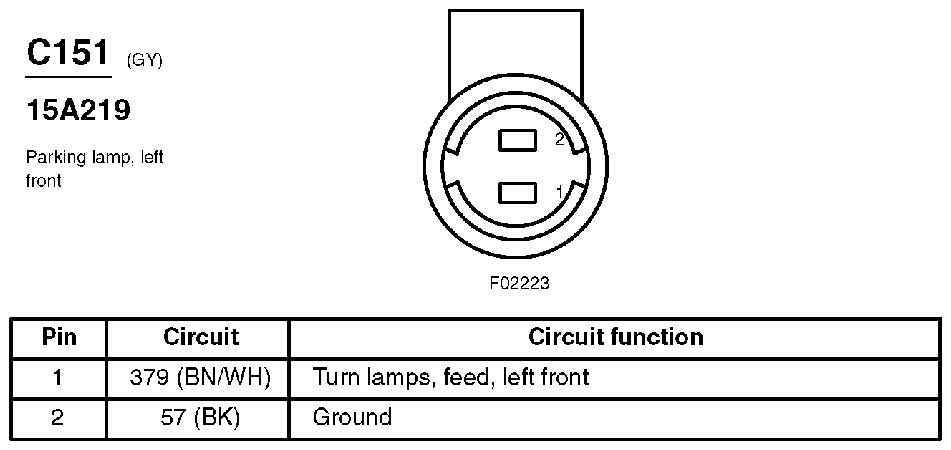

Fig 35: Parking Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.

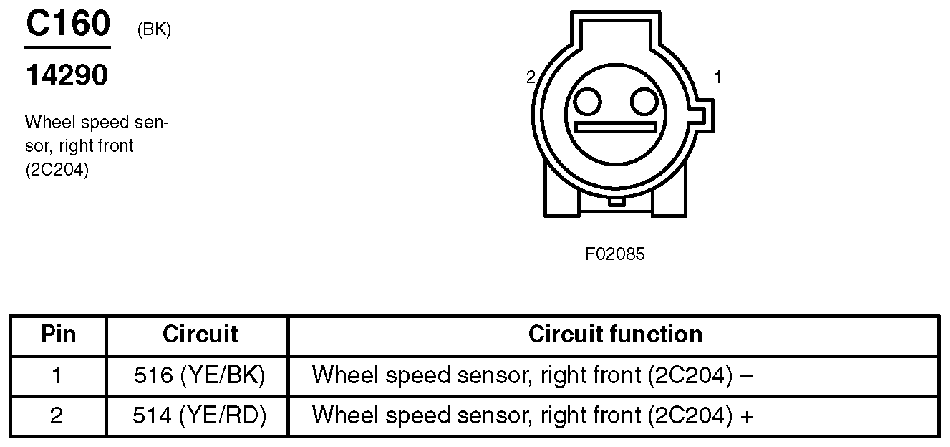

Fig 36: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

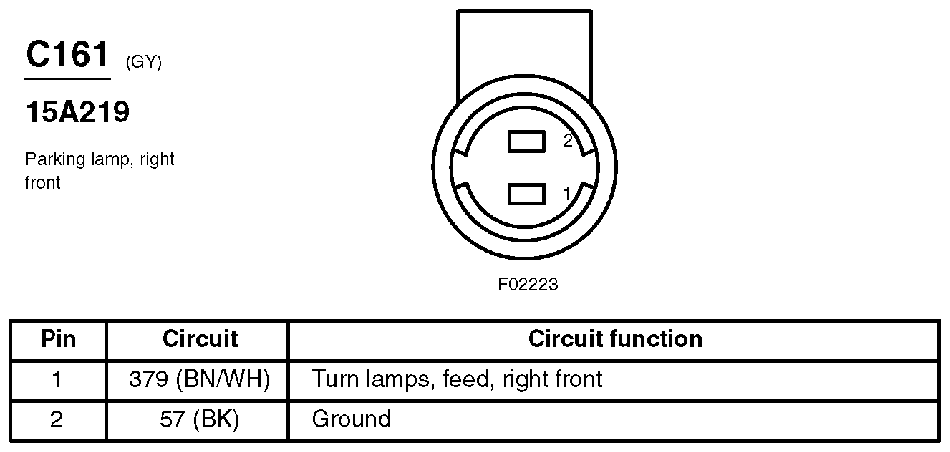

Fig 37: Parking Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.

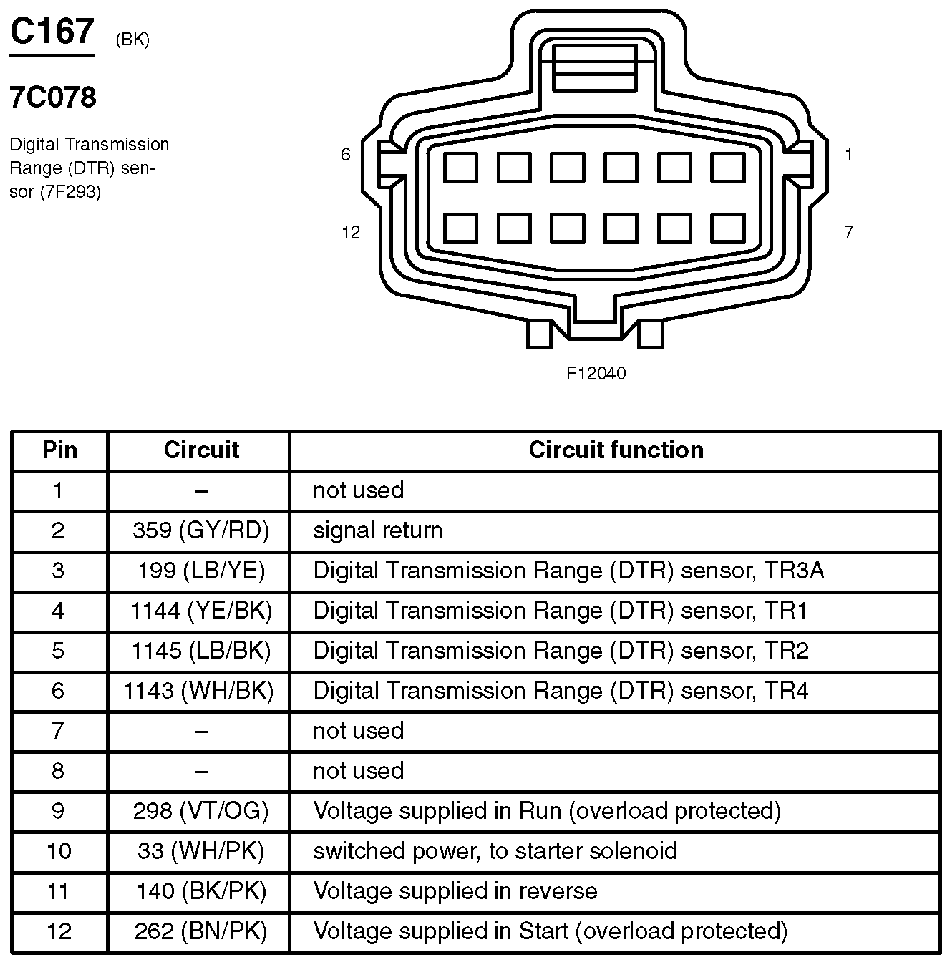

Fig 38: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

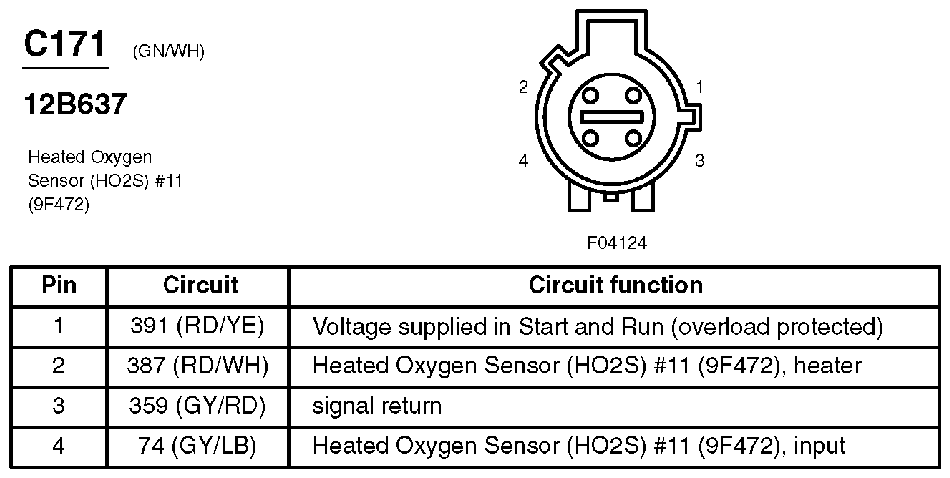

Fig 39: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

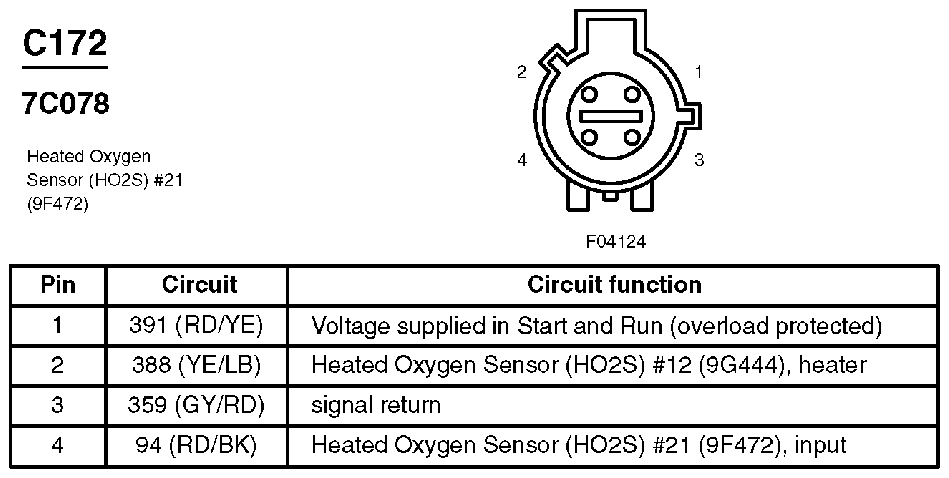

Fig 40: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

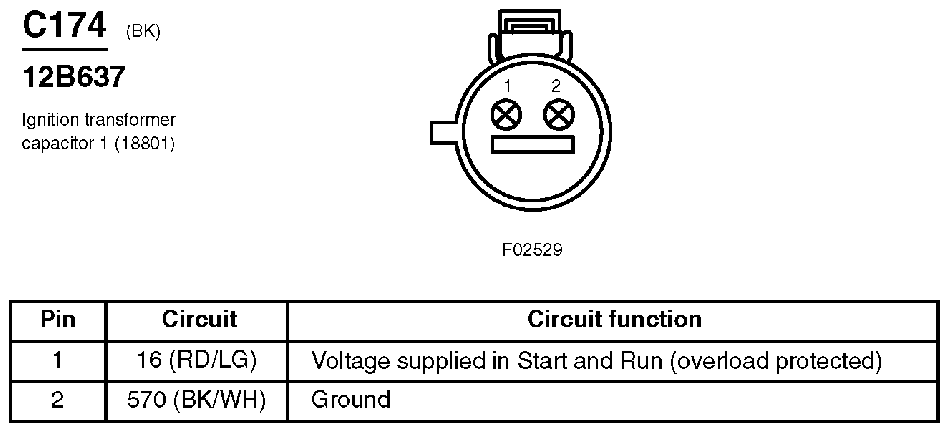

Fig 41: Ignition Transformer Capacitor 1 Connector End View (C174)
Courtesy of FORD MOTOR CO.

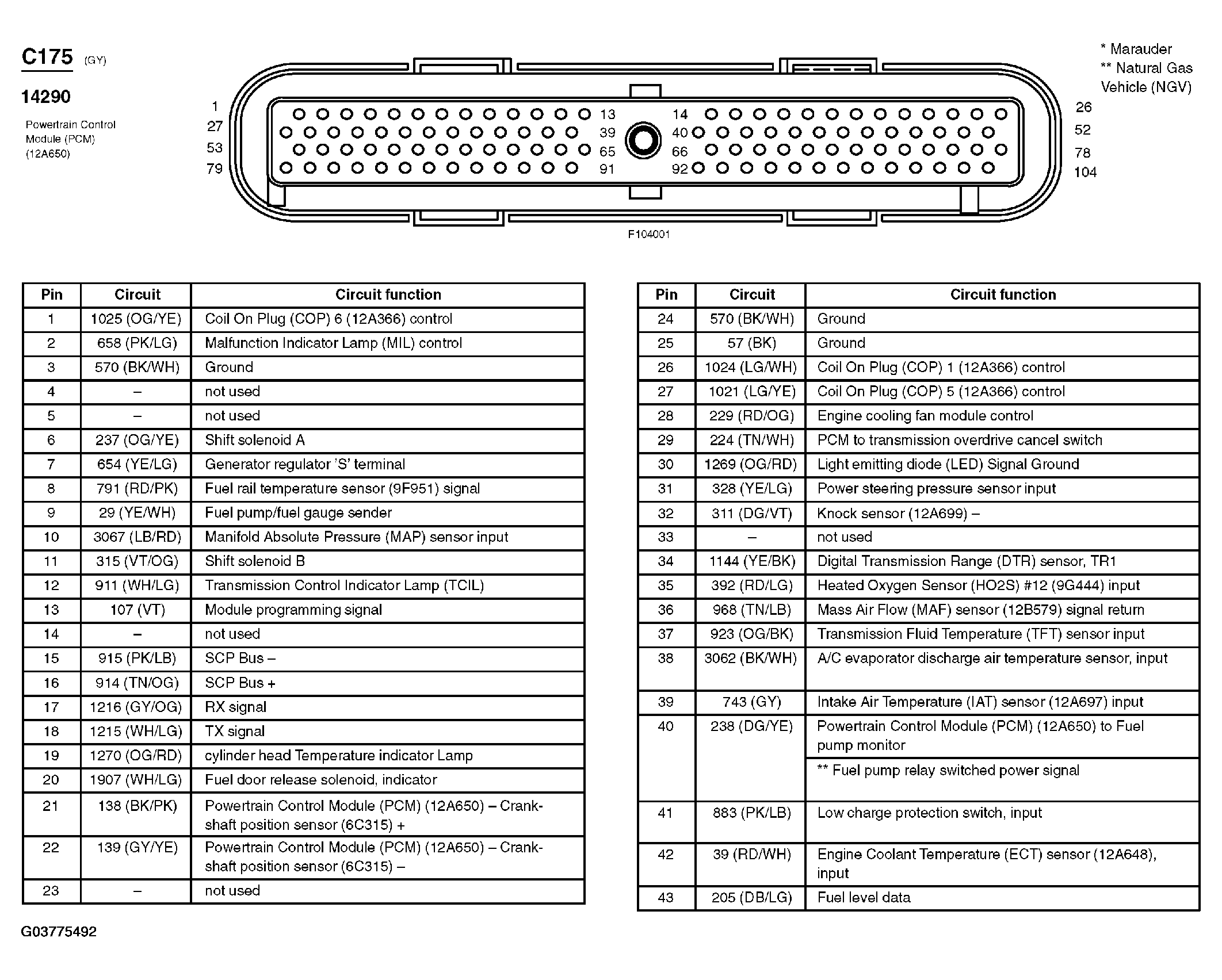

Fig 42: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
Courtesy of FORD MOTOR CO.

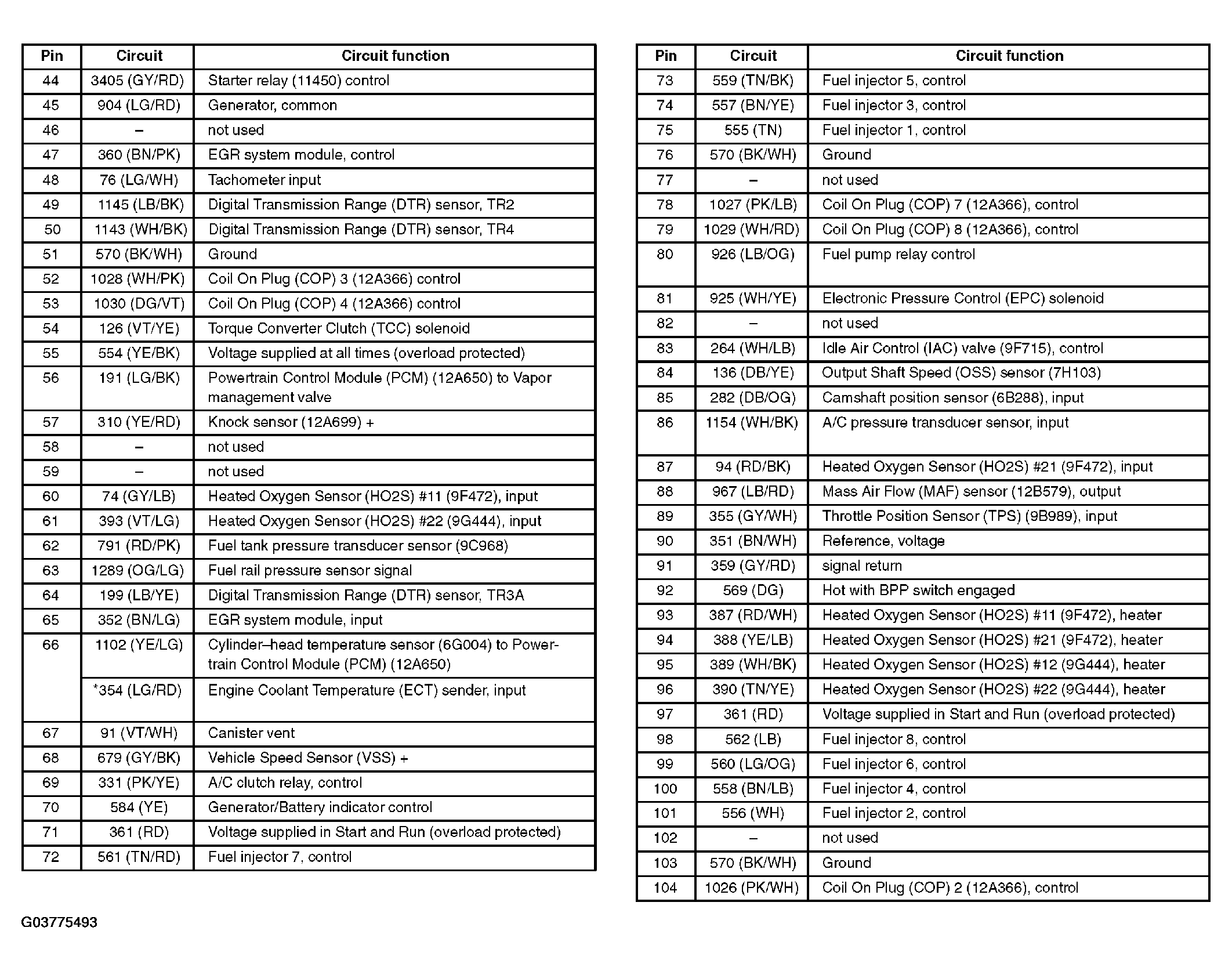

Fig 43: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
Courtesy of FORD MOTOR CO.

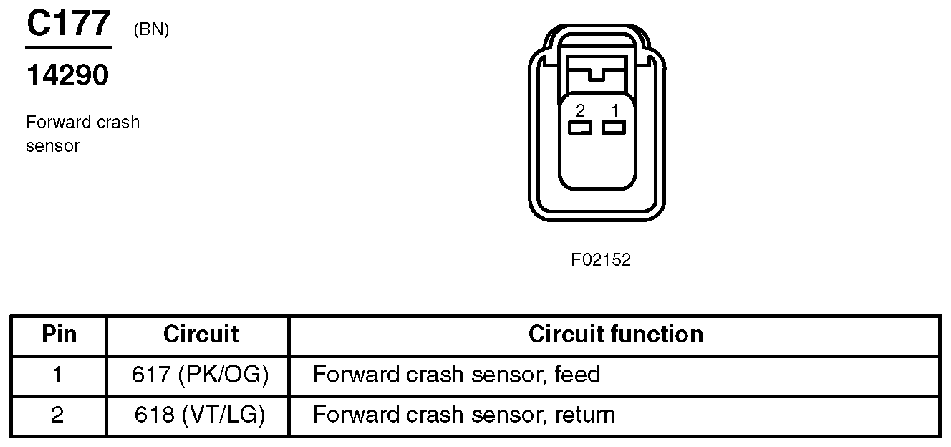

Fig 44: Forward Crash Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.
Fig 45: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

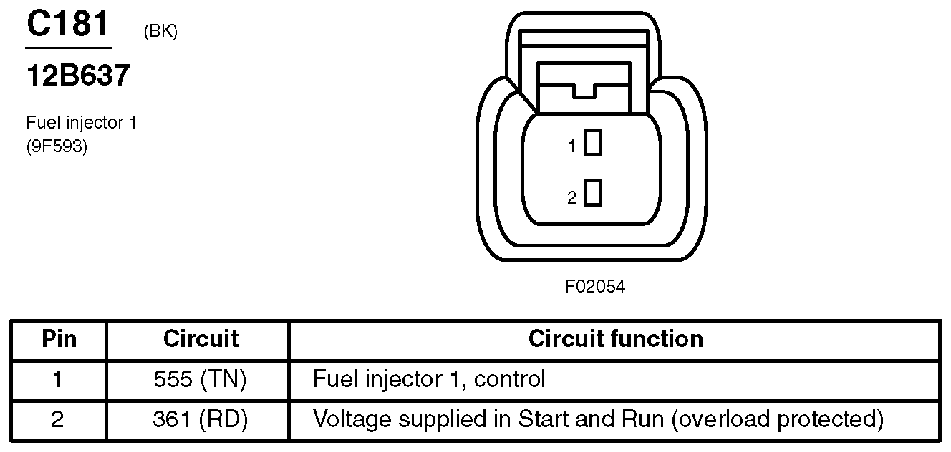

Fig 46: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.

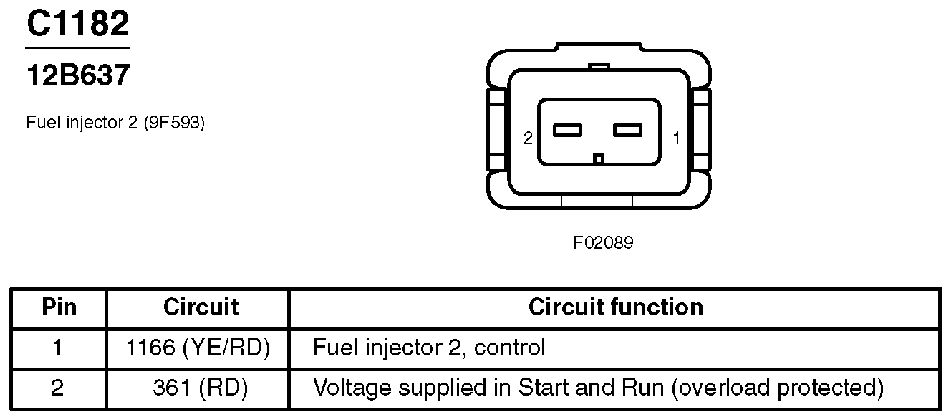

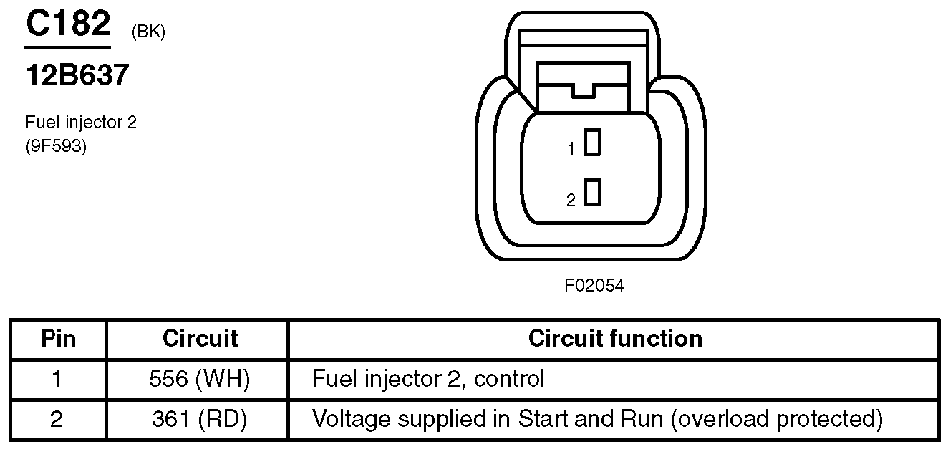

Fig 47: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

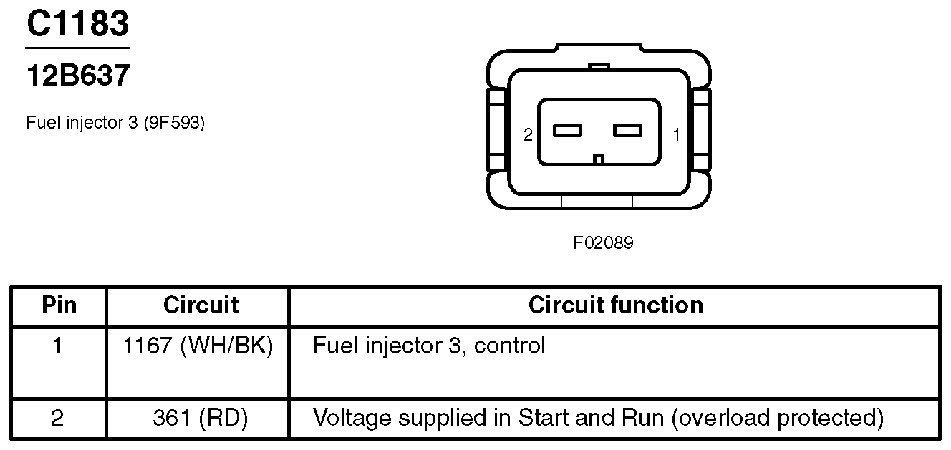

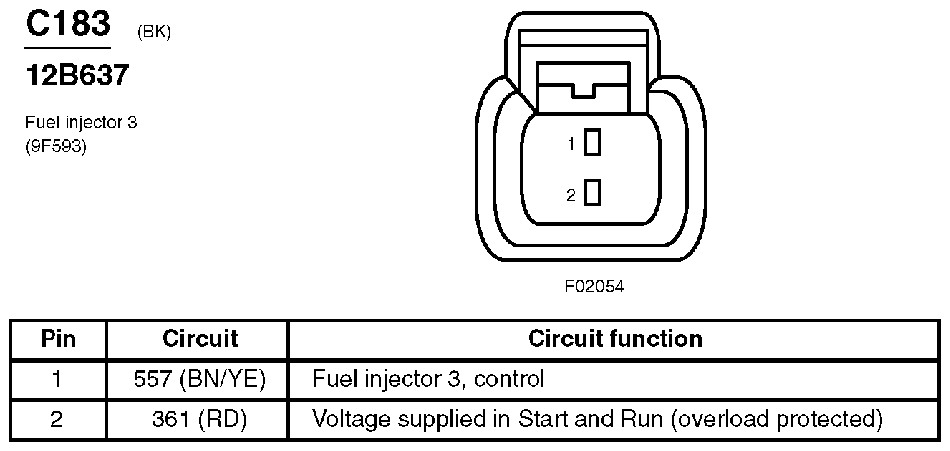

Fig 48: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

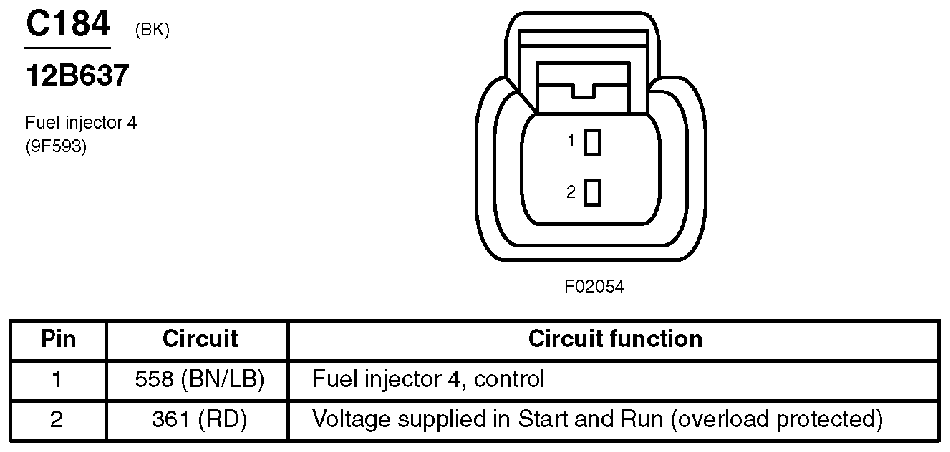

Fig 49: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.

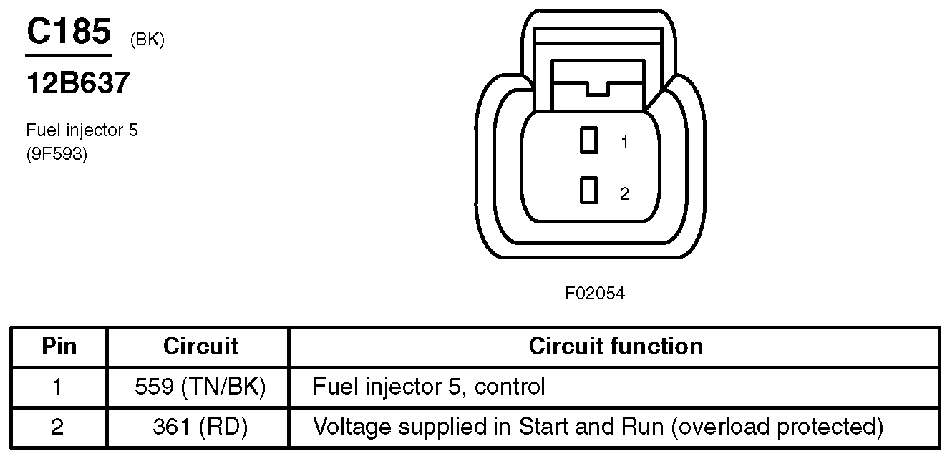

Fig 50: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

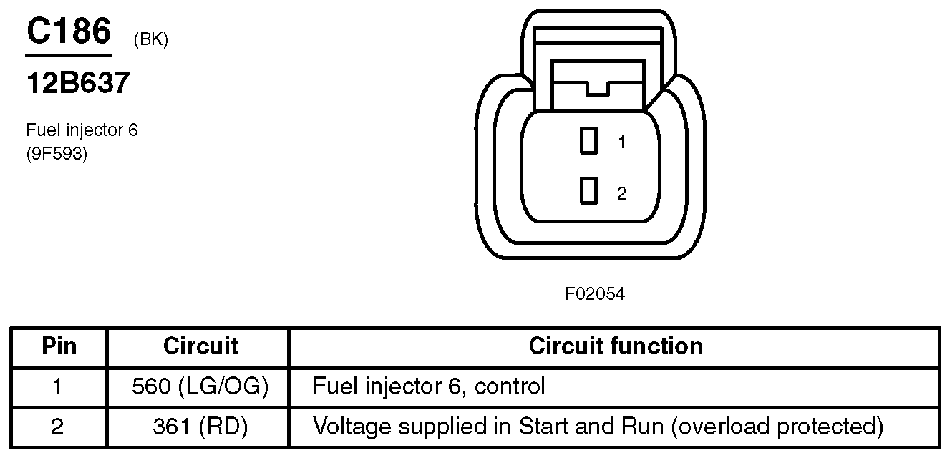

Fig 51: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

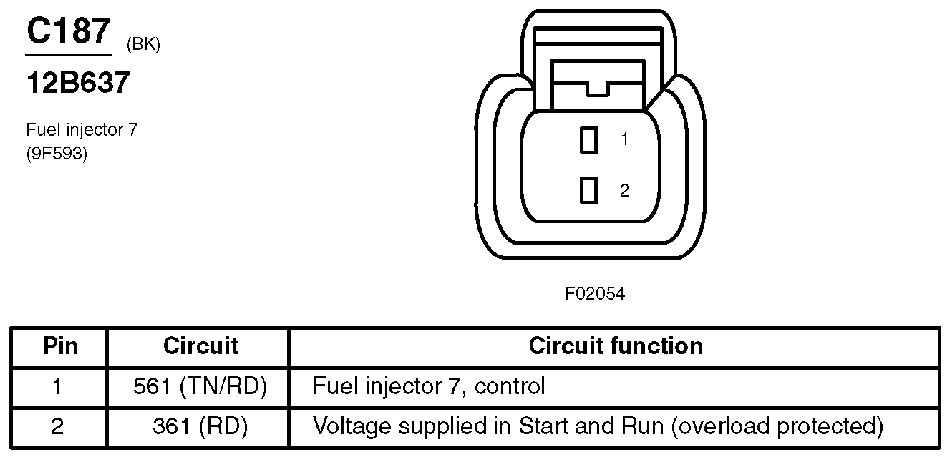

Fig 52: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.

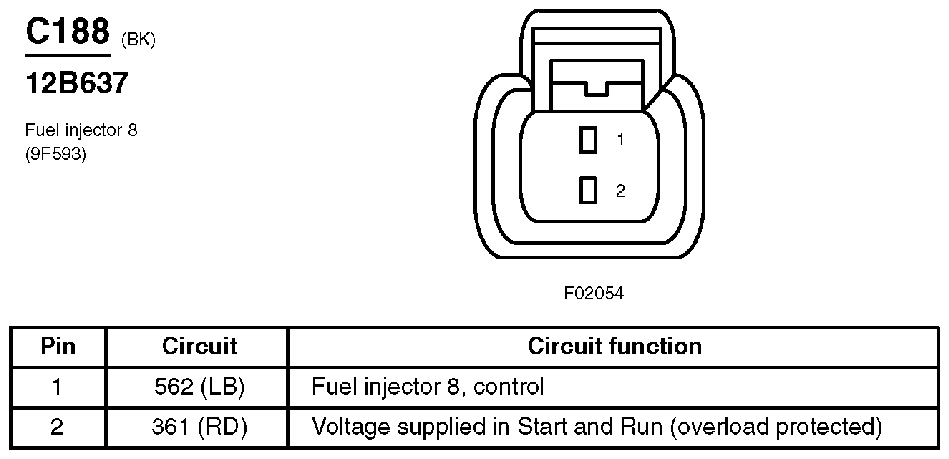

Fig 53: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.

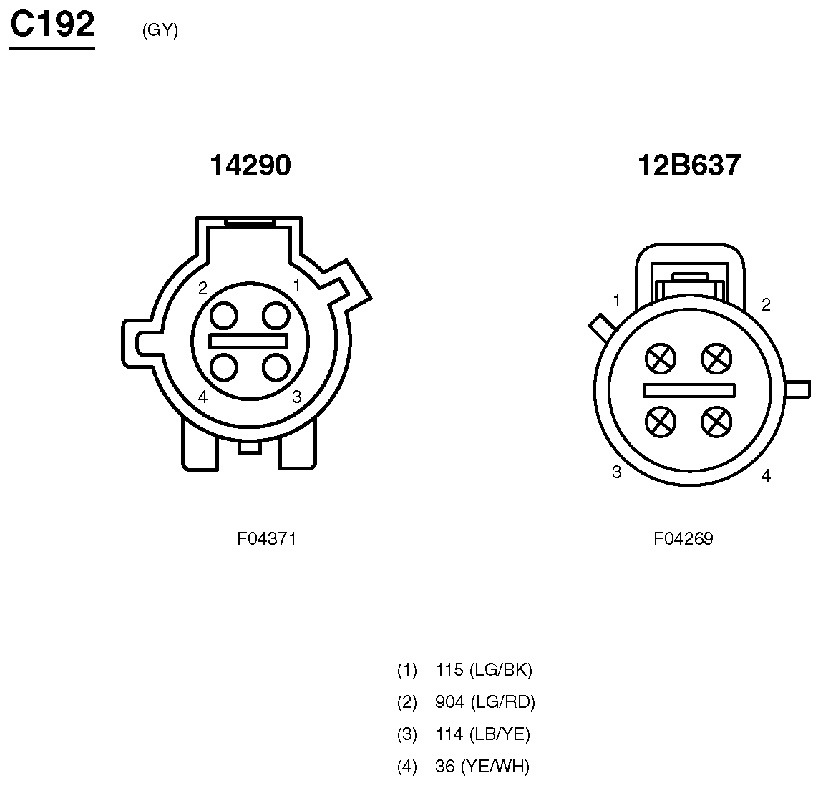

Fig 54: Inline Connector End View (C192)
Courtesy of FORD MOTOR CO.

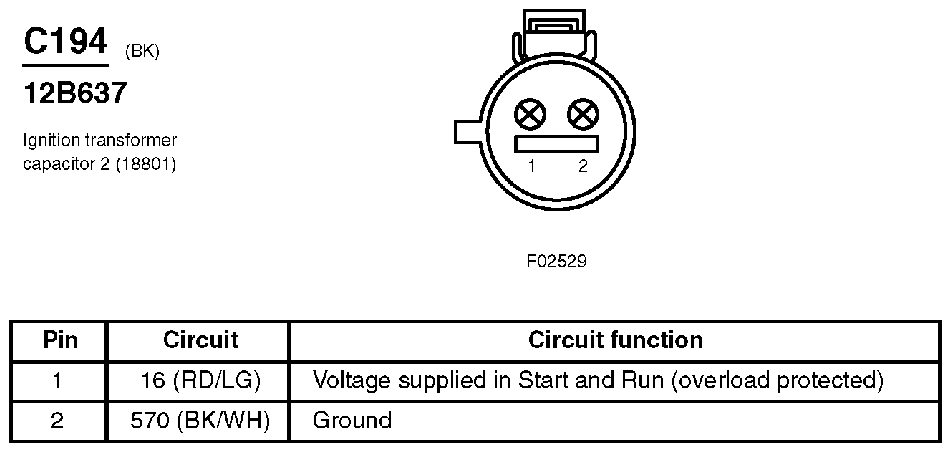

Fig 55: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.

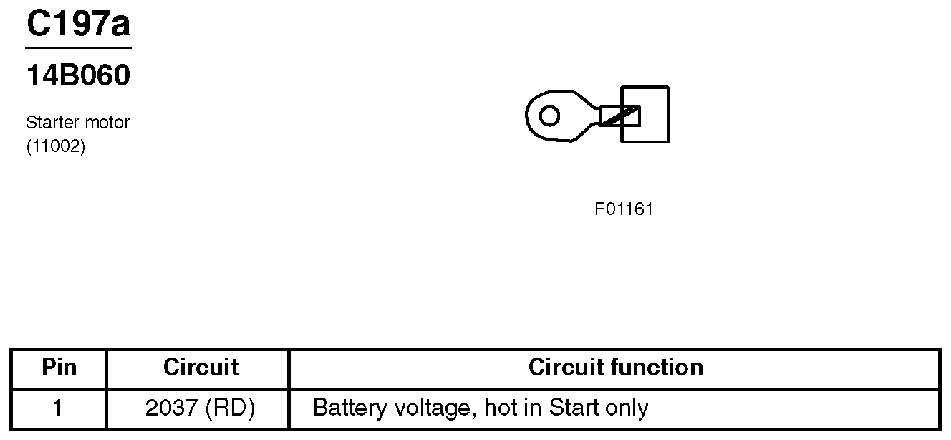

Fig 56: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.

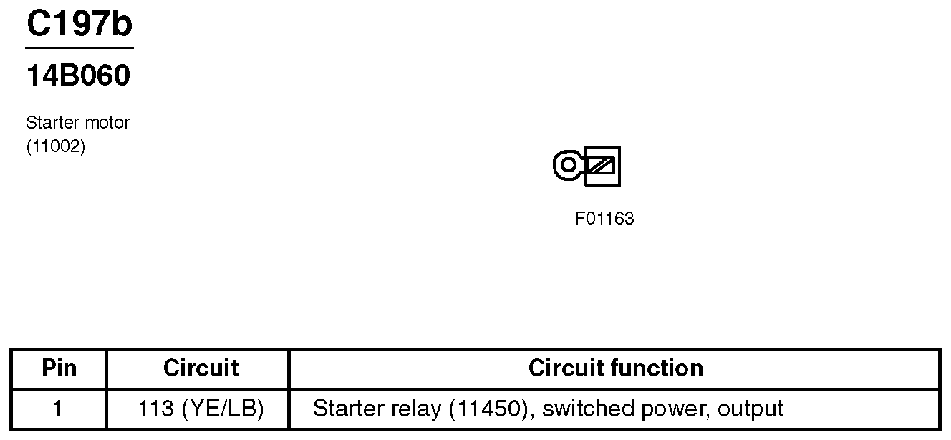

Fig 57: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

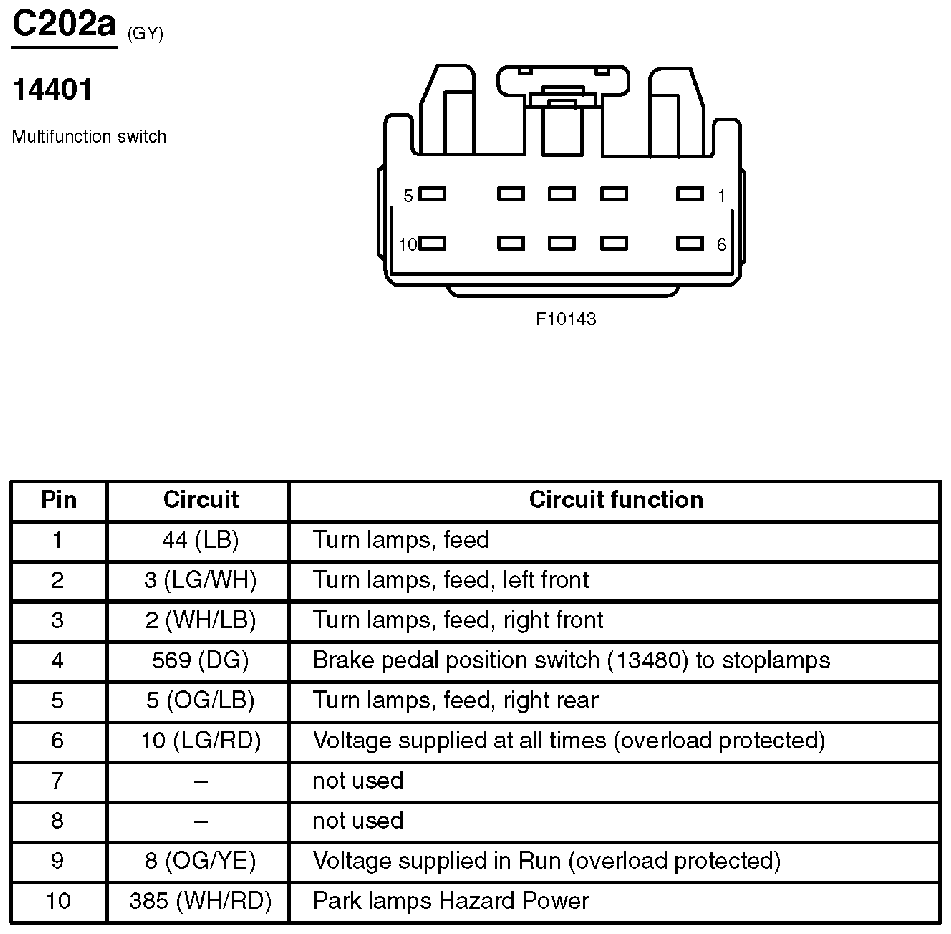

Fig 58: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.

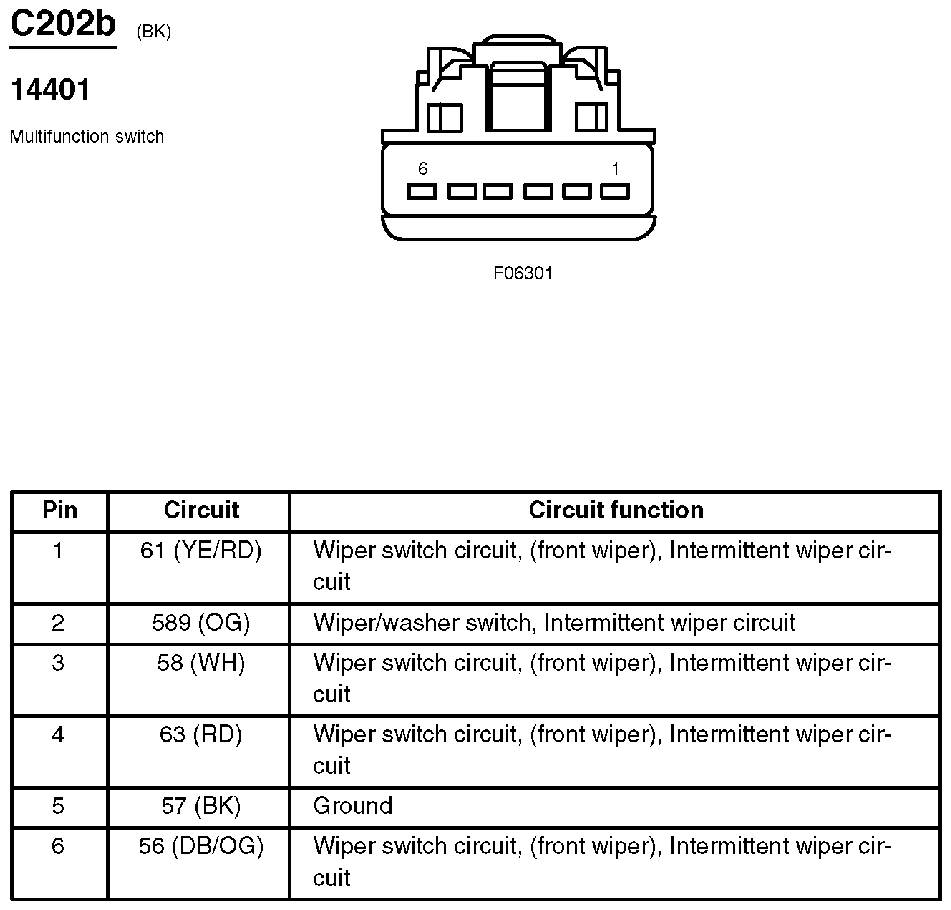

Fig 59: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.

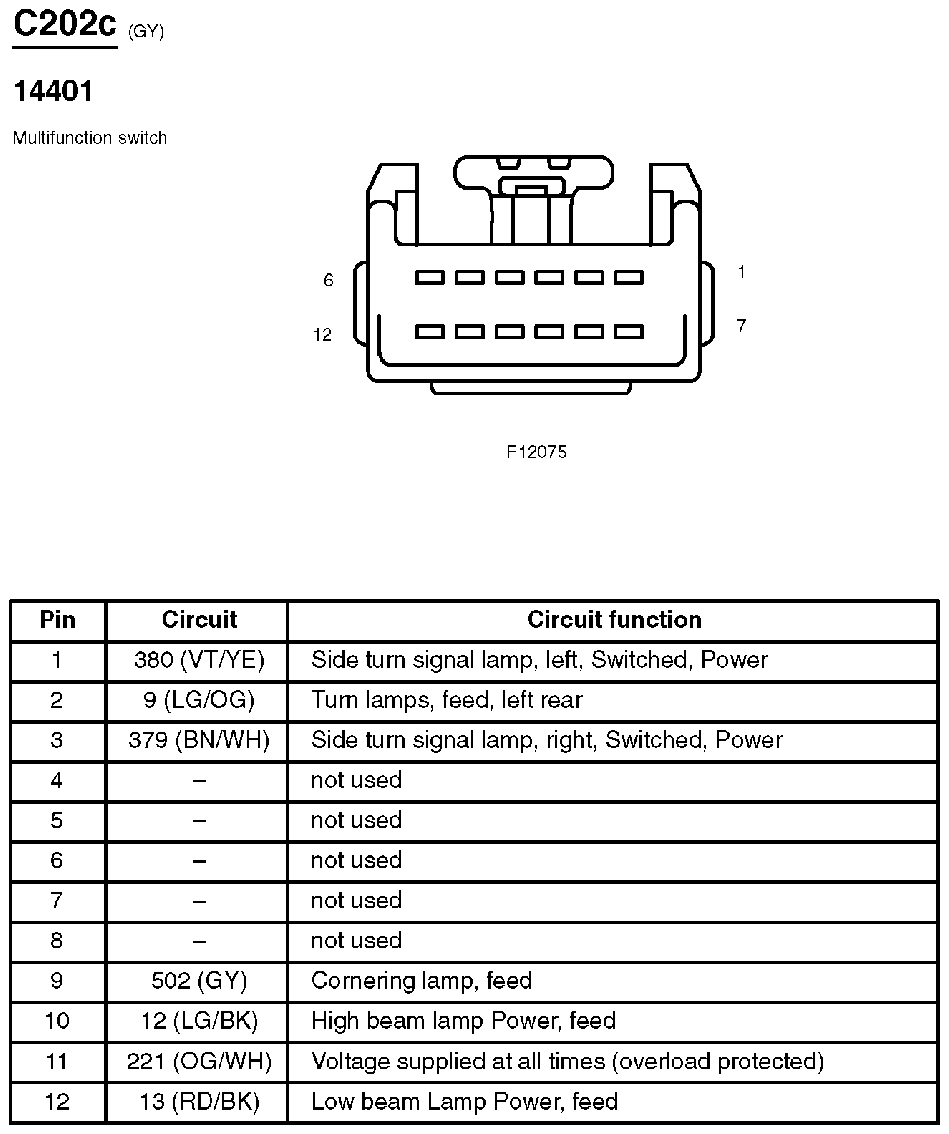

Fig 60: Multifunction Switch Connector End View (C202c)
Courtesy of FORD MOTOR CO.

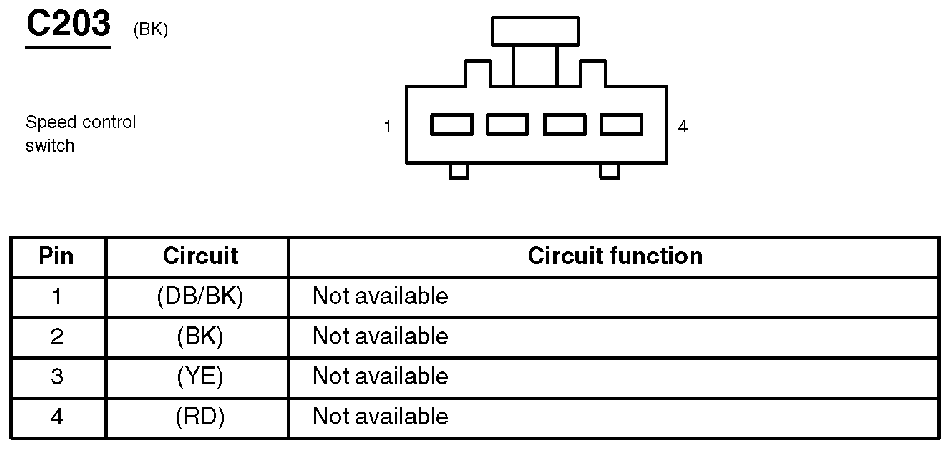

Fig 61: Speed Control Switch Connector End View (C203)
Courtesy of FORD MOTOR CO.

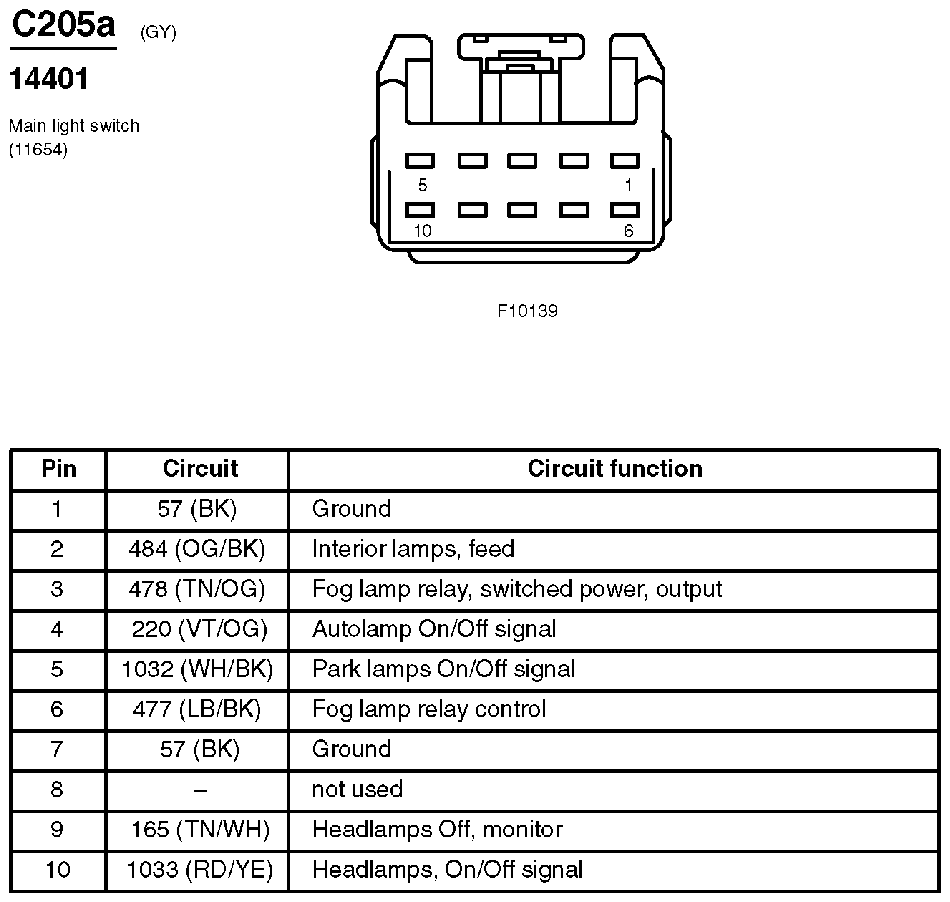

Fig 62: Main Light Switch Connector End View (C205a)
Courtesy of FORD MOTOR CO.

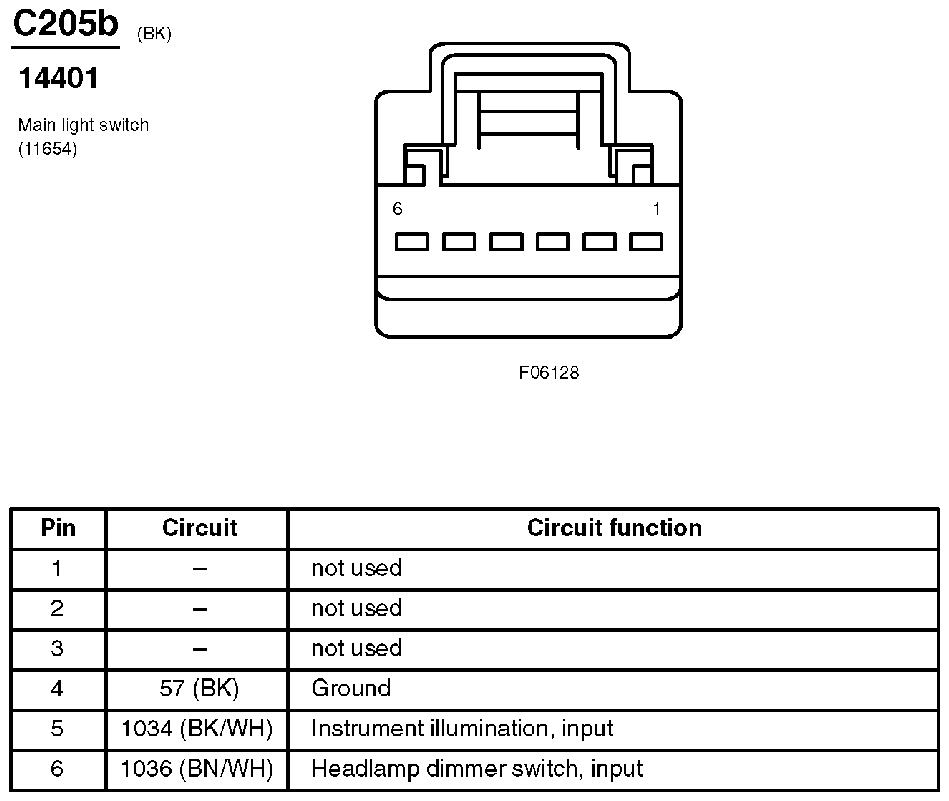

Fig 63: Main Light Switch Connector End View (C205b)
Courtesy of FORD MOTOR CO.

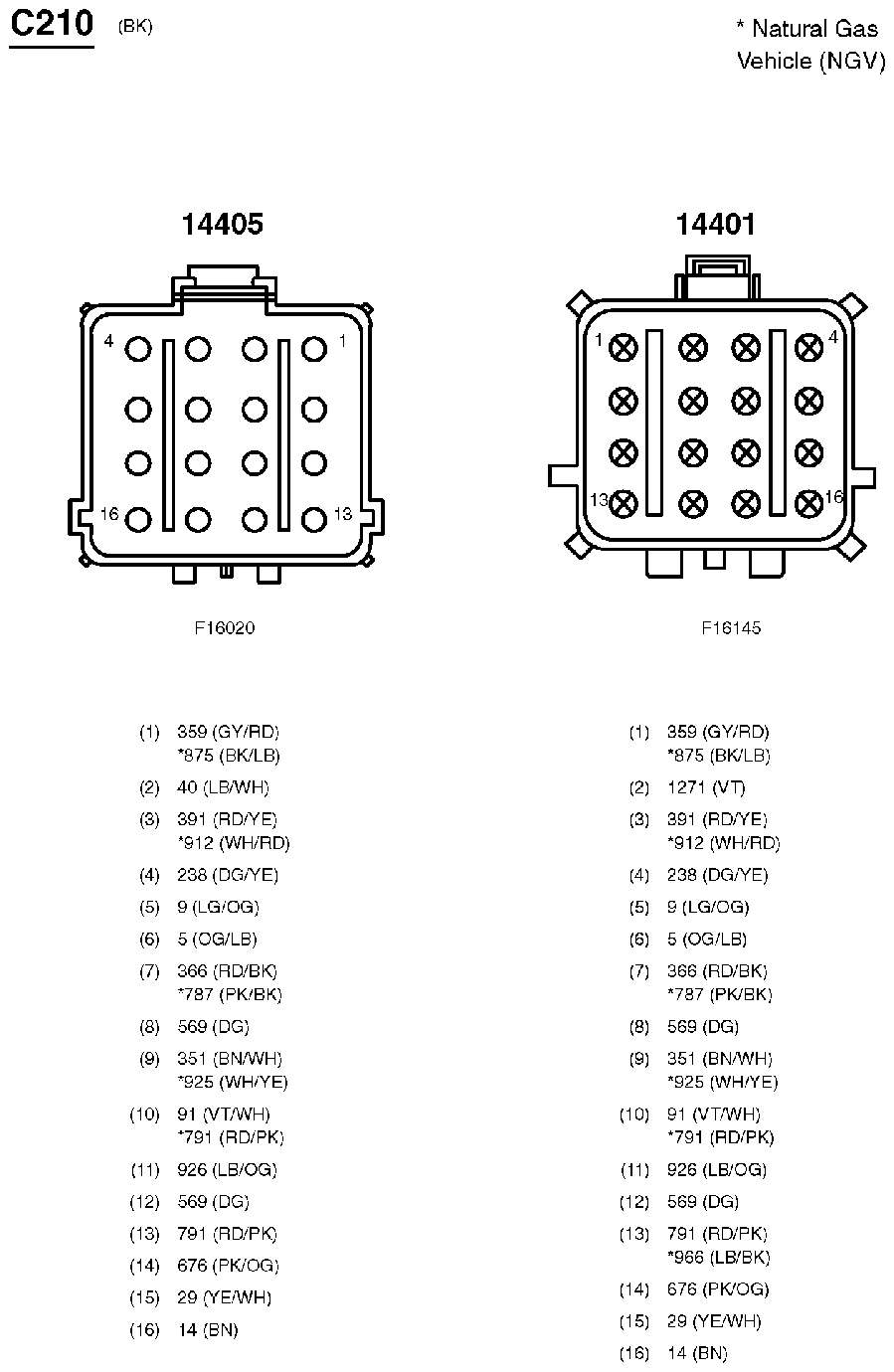

Fig 64: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

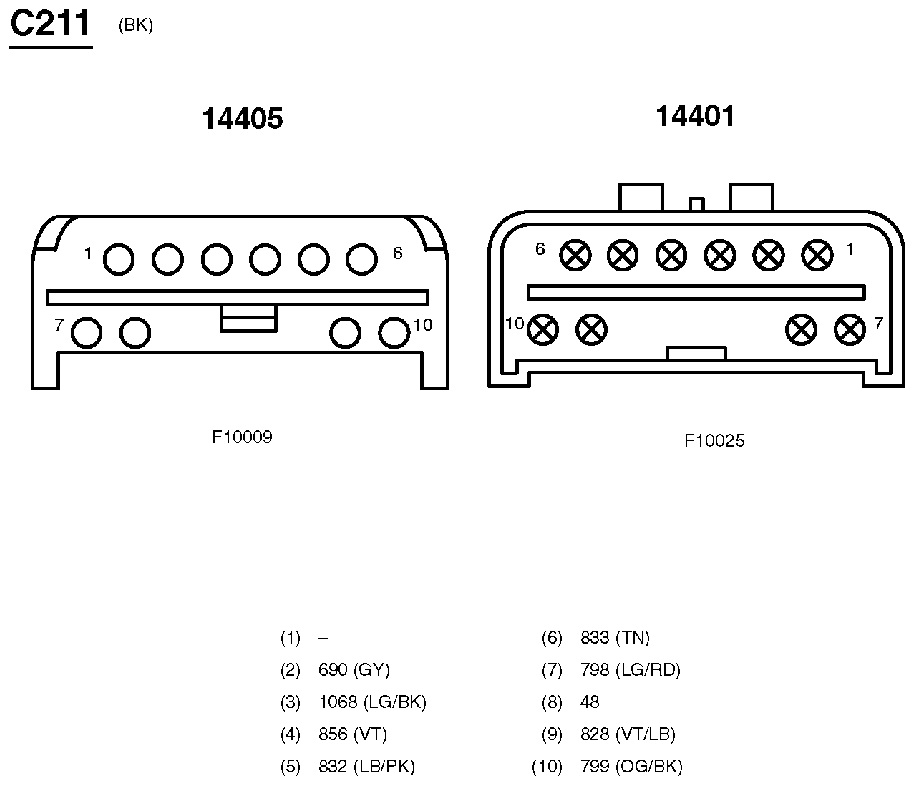

Fig 65: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

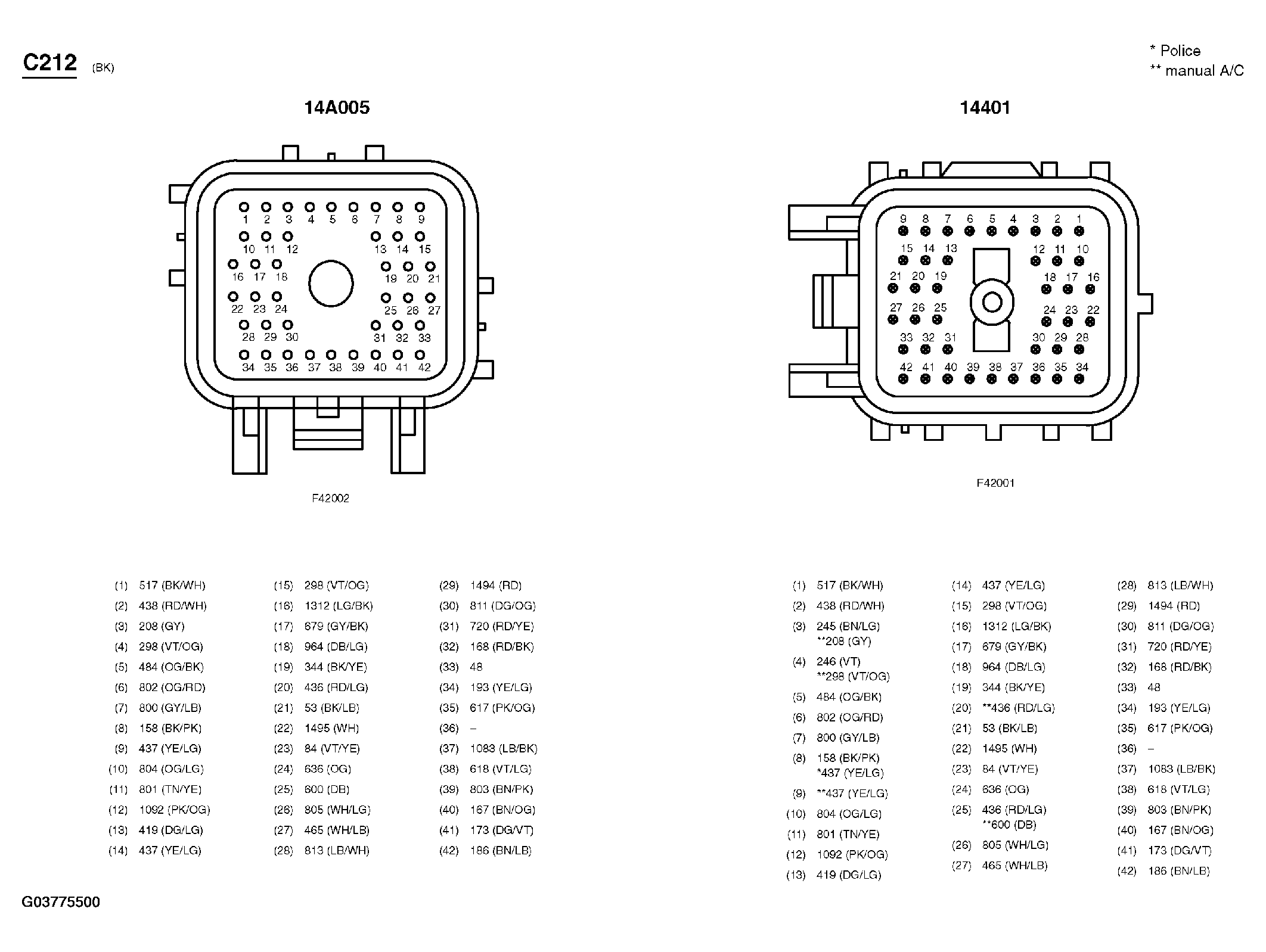

Fig 66: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

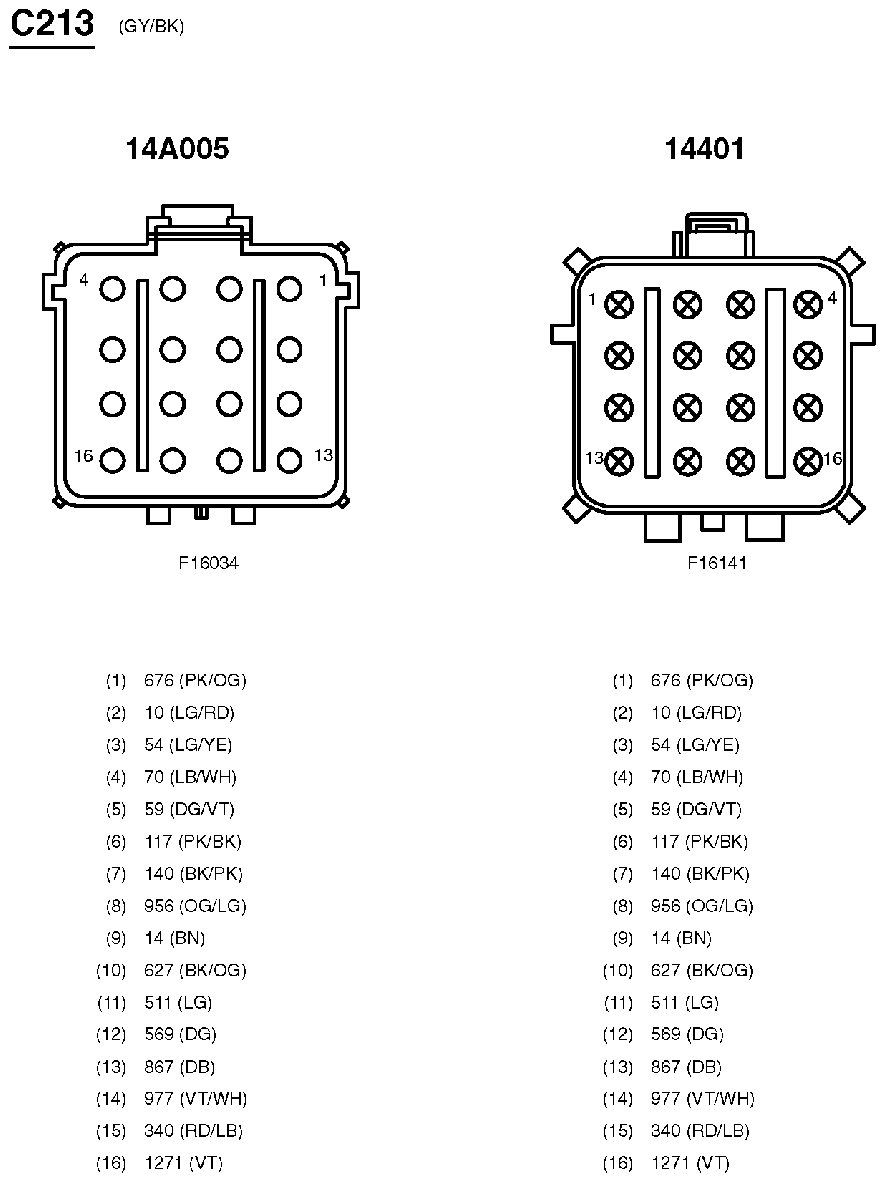

Fig 67: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

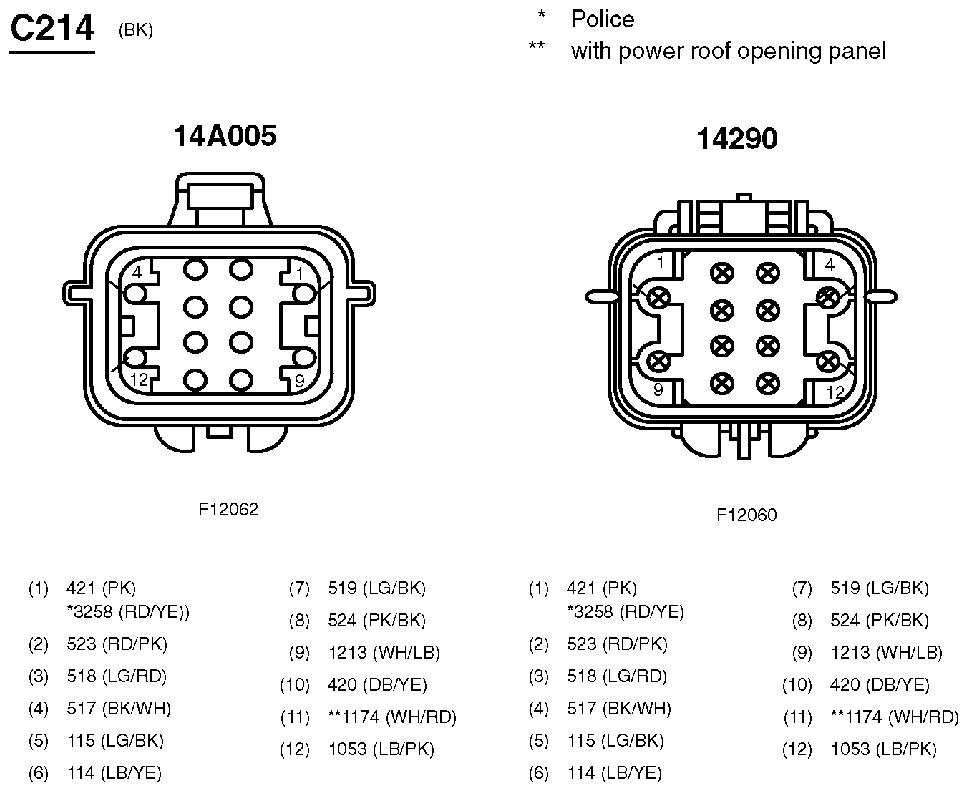

Fig 68: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

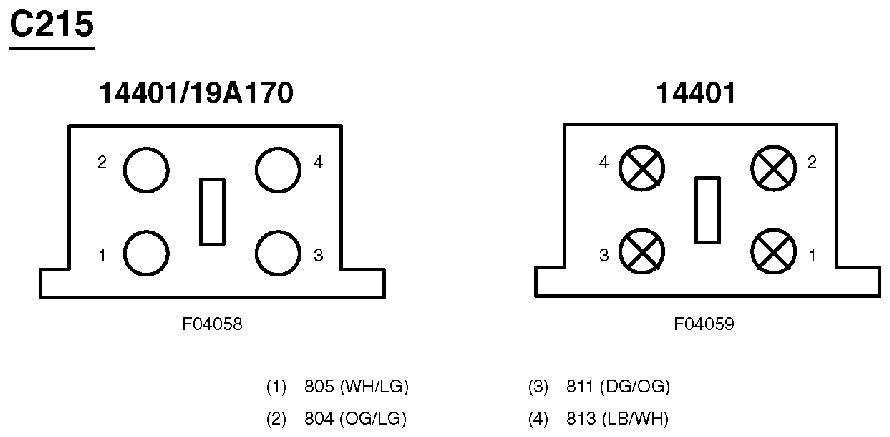

Fig 69: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

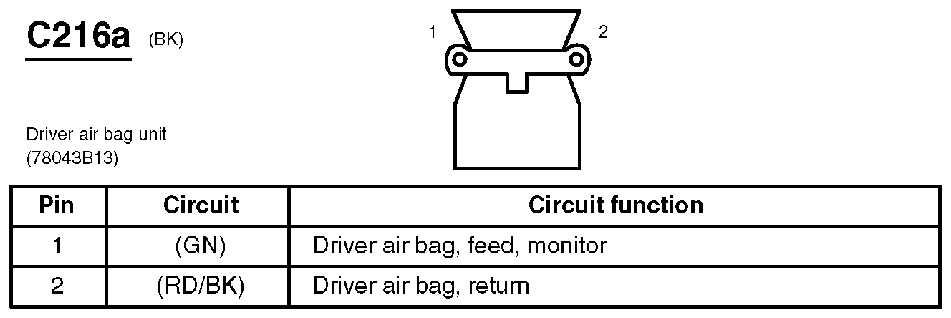

Fig 70: Driver Air Bag Unit Connector End View (C216a)
Courtesy of FORD MOTOR CO.

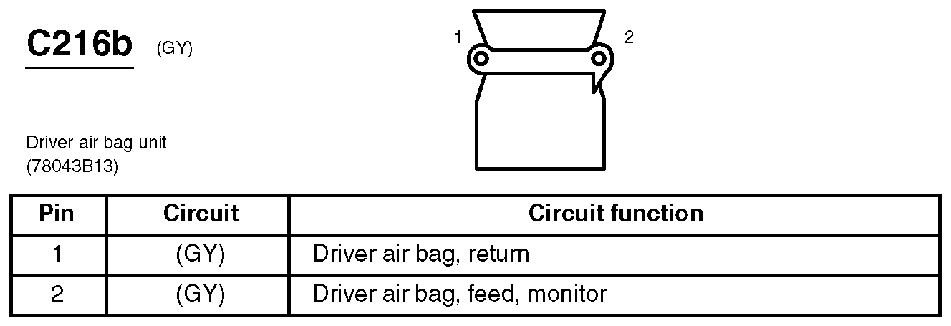

Fig 71: Driver Air Bag Unit Connector End View (C216b)
Courtesy of FORD MOTOR CO.

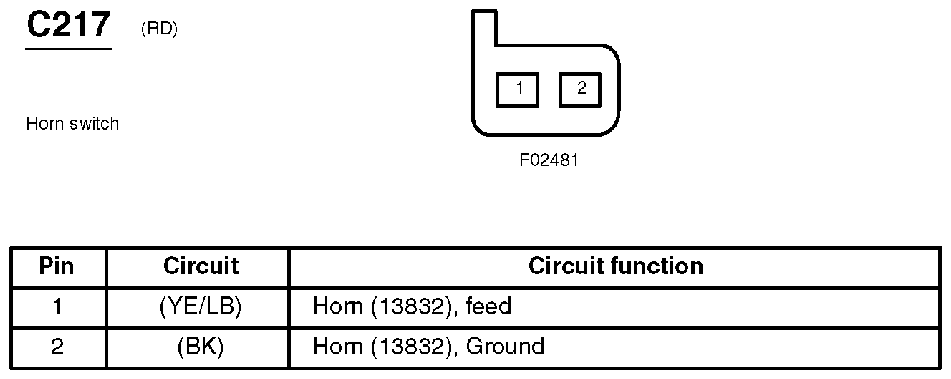

Fig 72: Horn Switch Connector End View (C217)
Courtesy of FORD MOTOR CO.

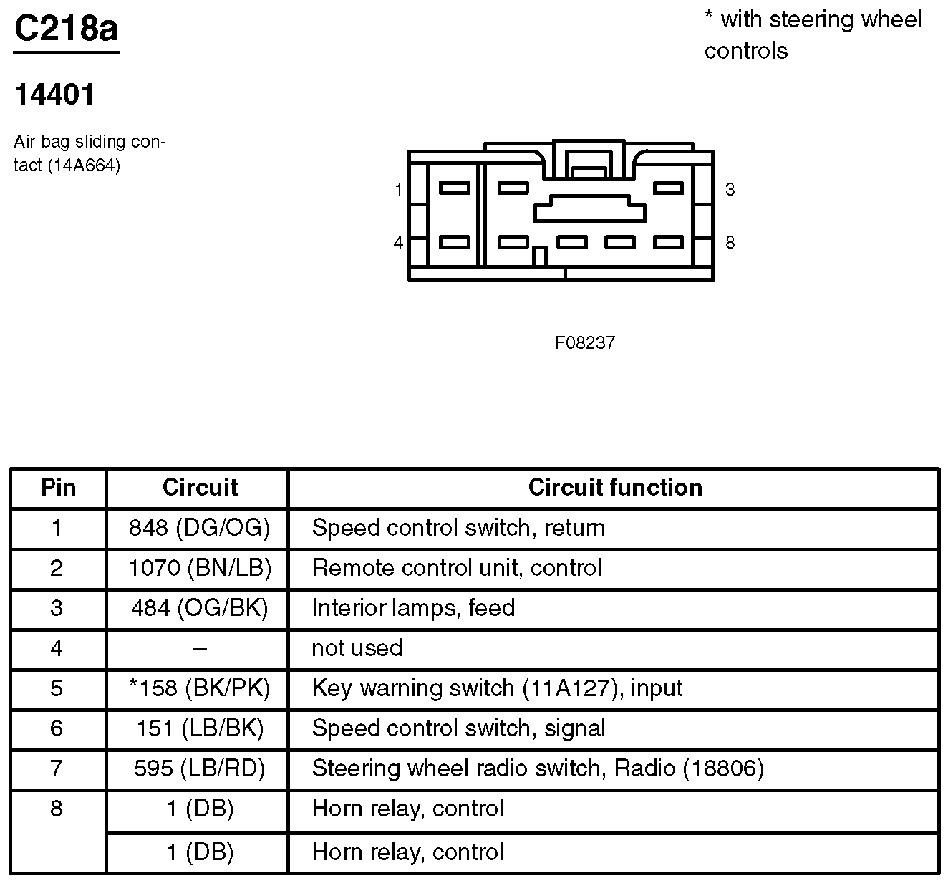

Fig 73: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.

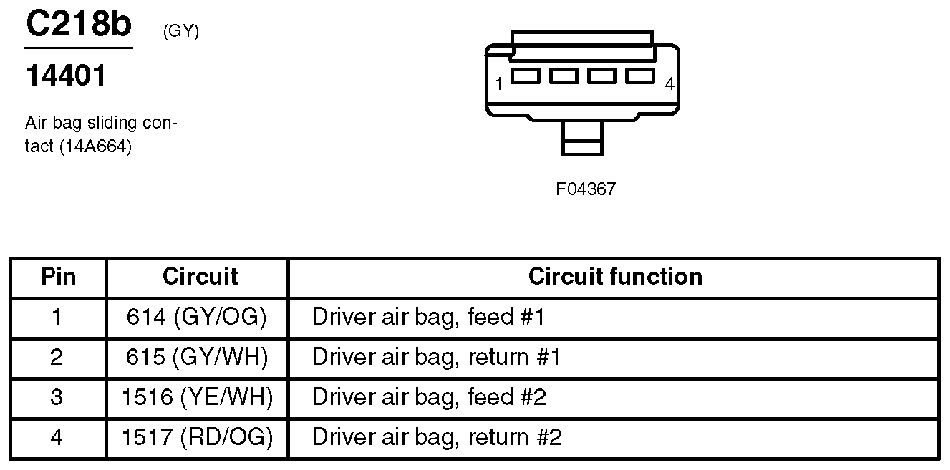

Fig 74: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.

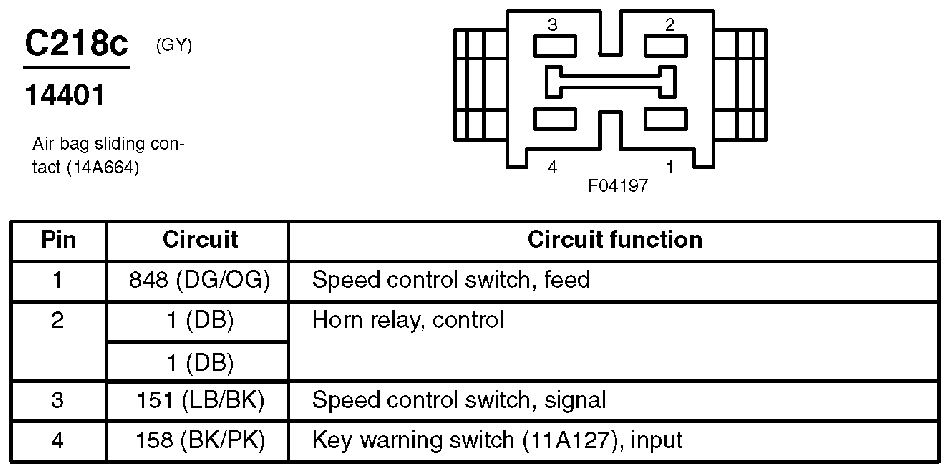

Fig 75: Air Bag Sliding Contact Connector End View (C218c)
Courtesy of FORD MOTOR CO.

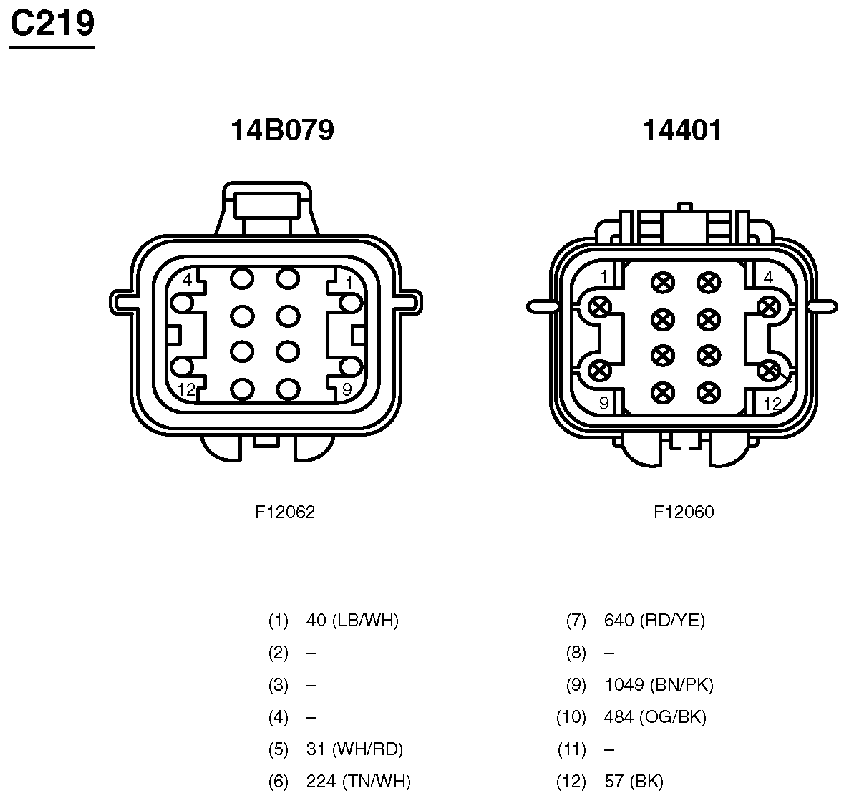

Fig 76: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

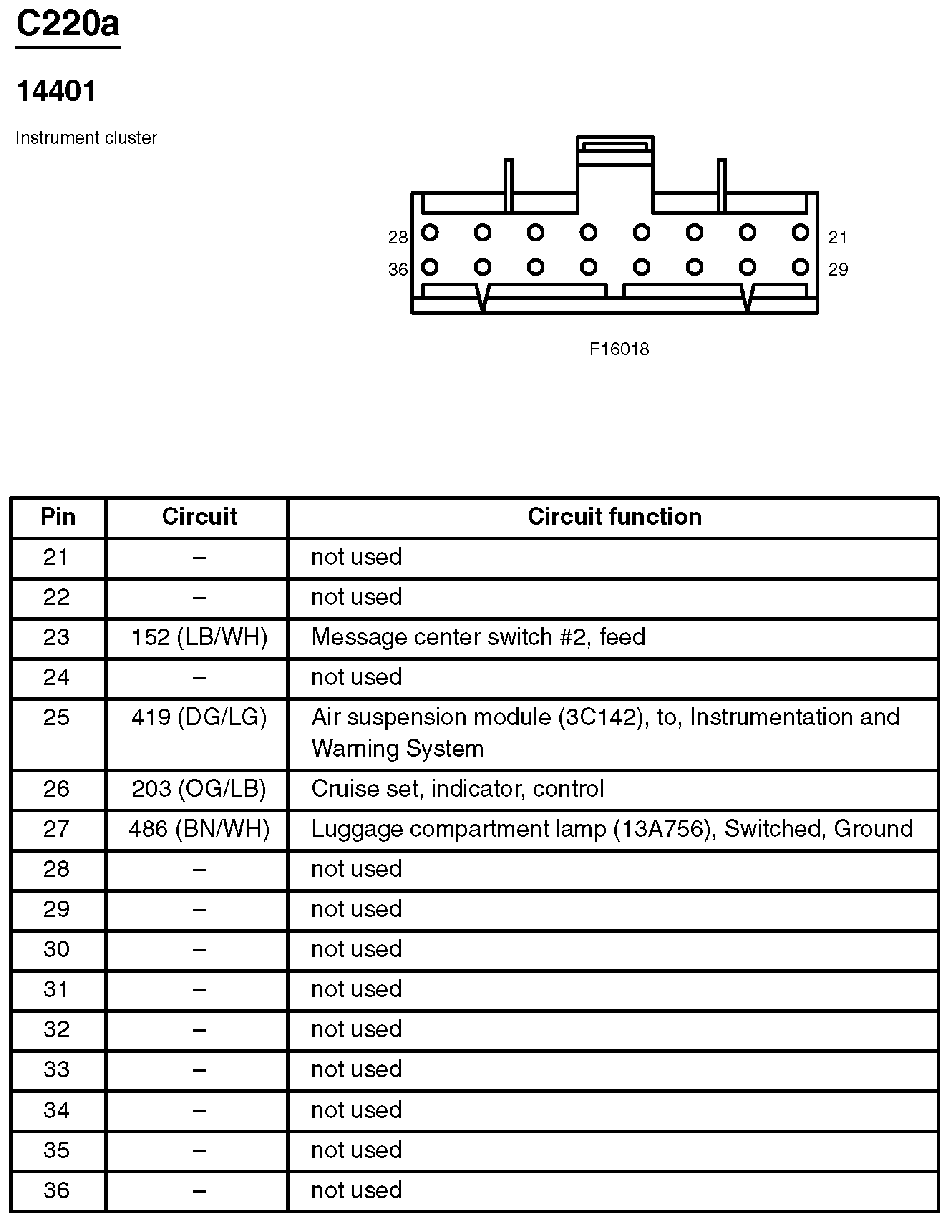

Fig 77: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

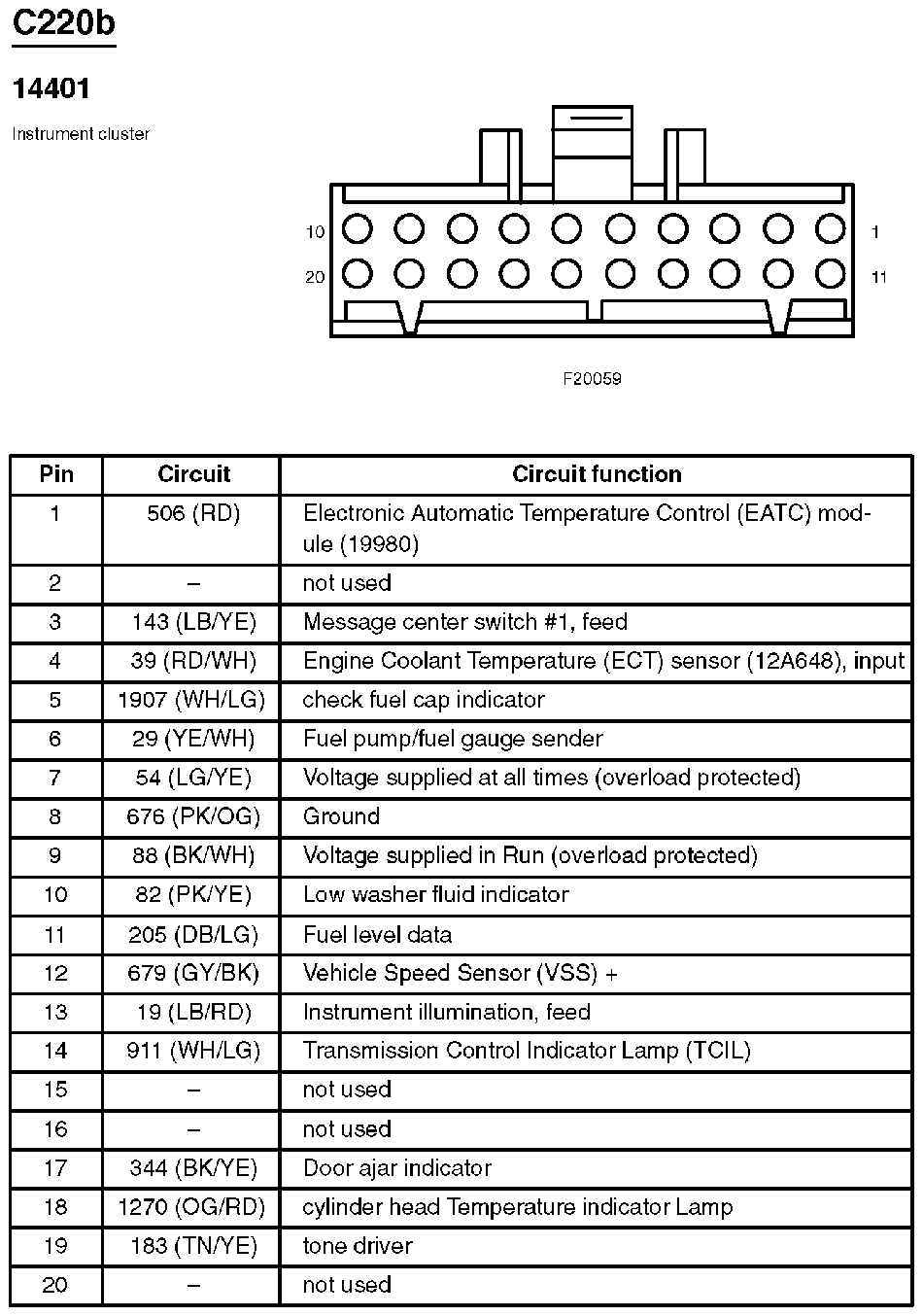

Fig 78: Instrument Cluster Connector End View (C220b)
Courtesy of FORD MOTOR CO.

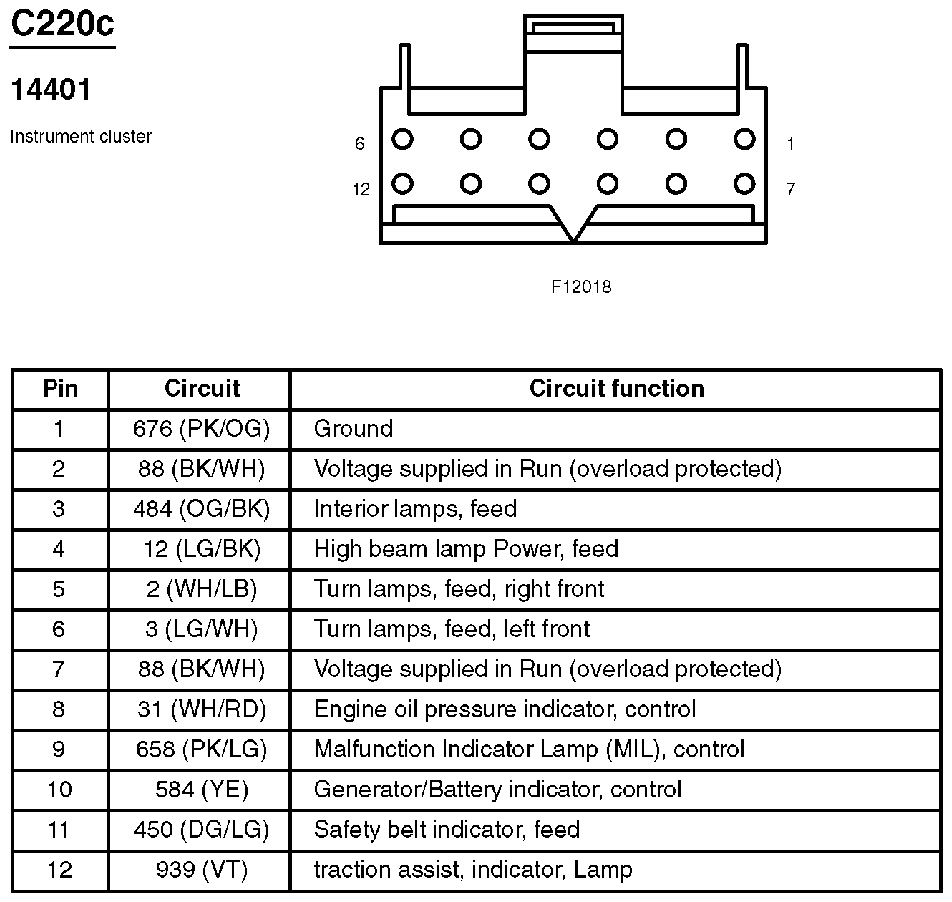

Fig 79: Instrument Cluster Connector End View (C220c)
Courtesy of FORD MOTOR CO.

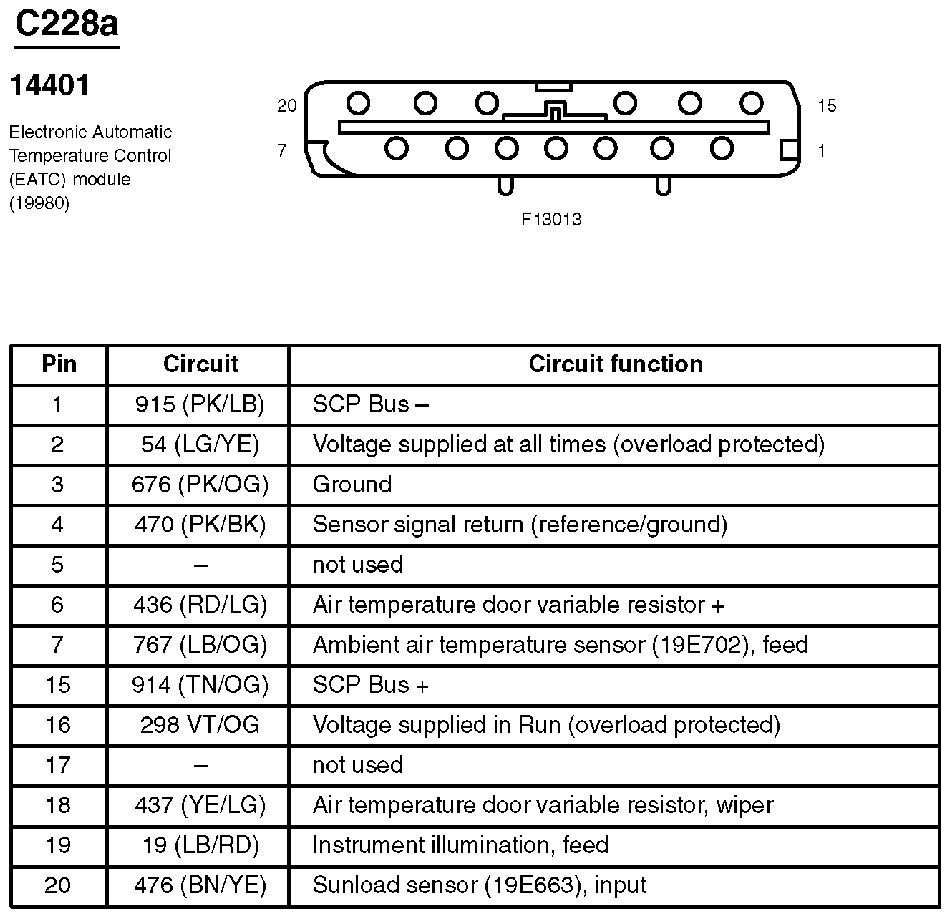

Fig 80: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.

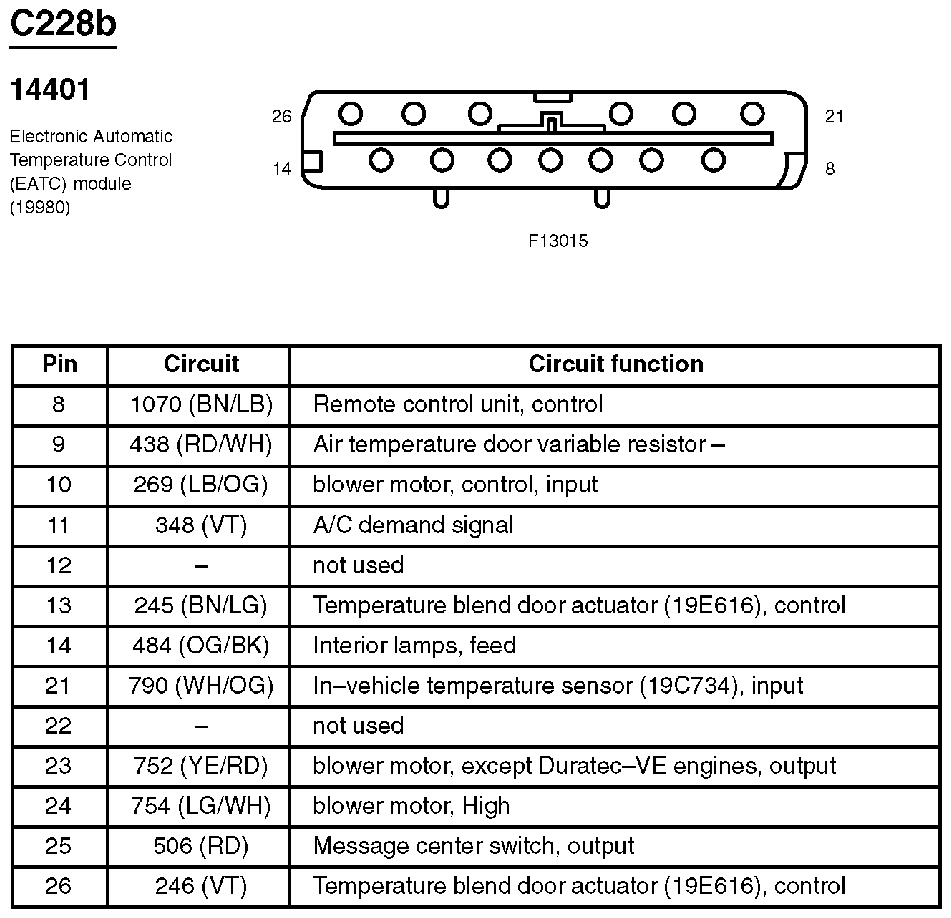

Fig 81: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
Courtesy of FORD MOTOR CO.

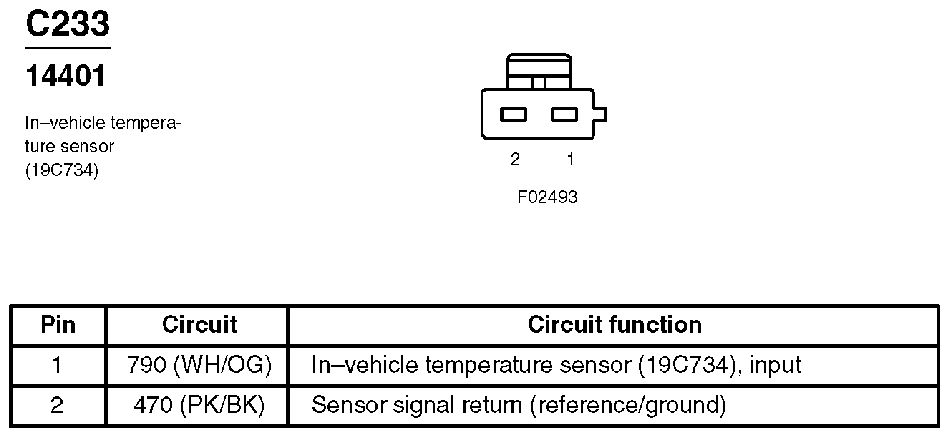

Fig 82: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

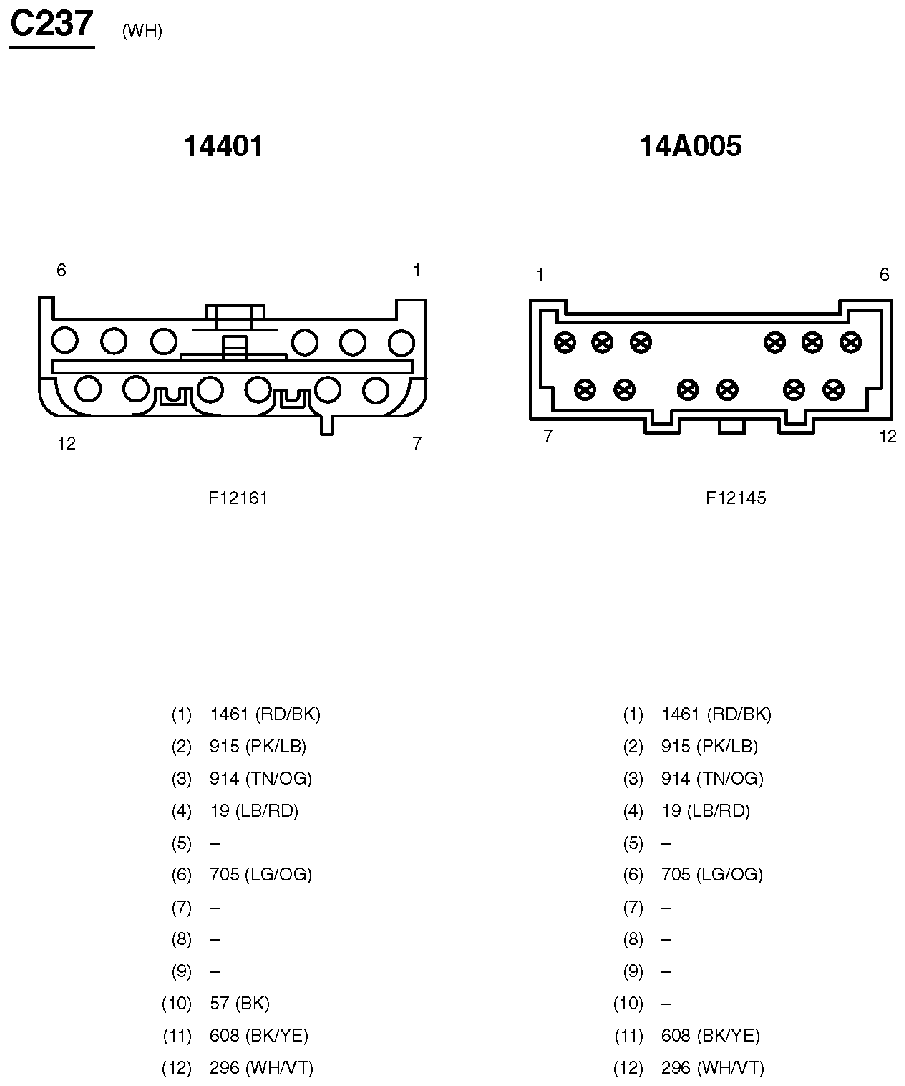

Fig 83: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

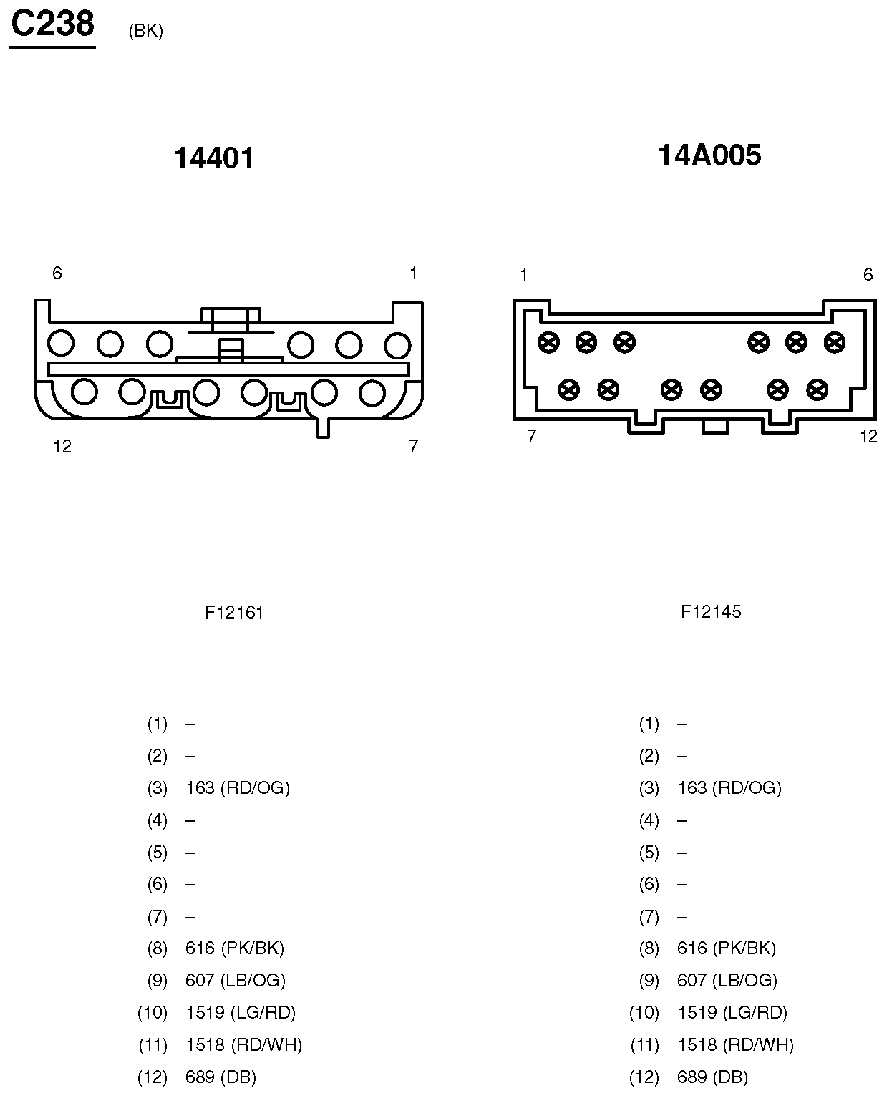

Fig 84: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.

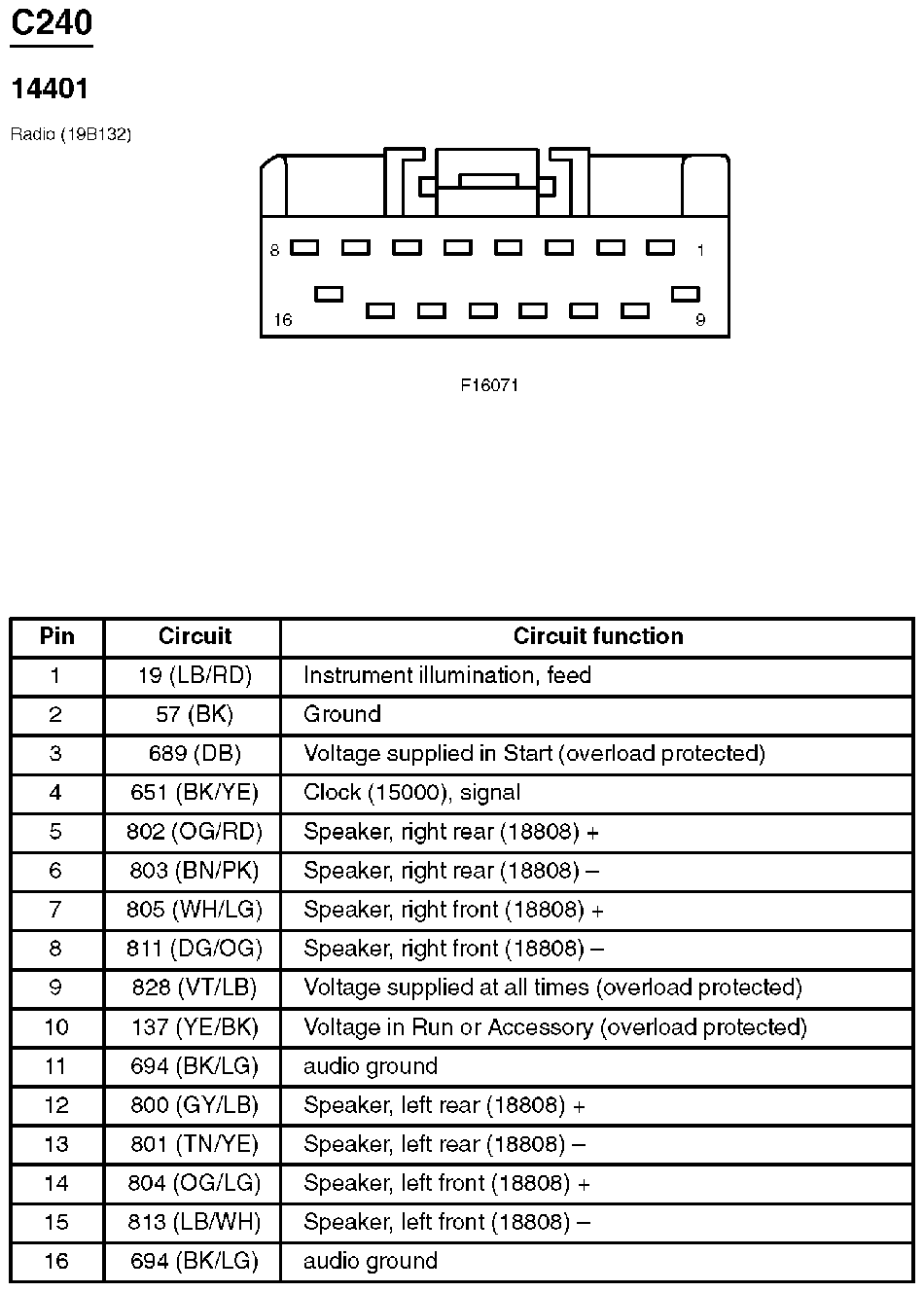

Fig 85: Radio Connector End View (C240)
Courtesy of FORD MOTOR CO.

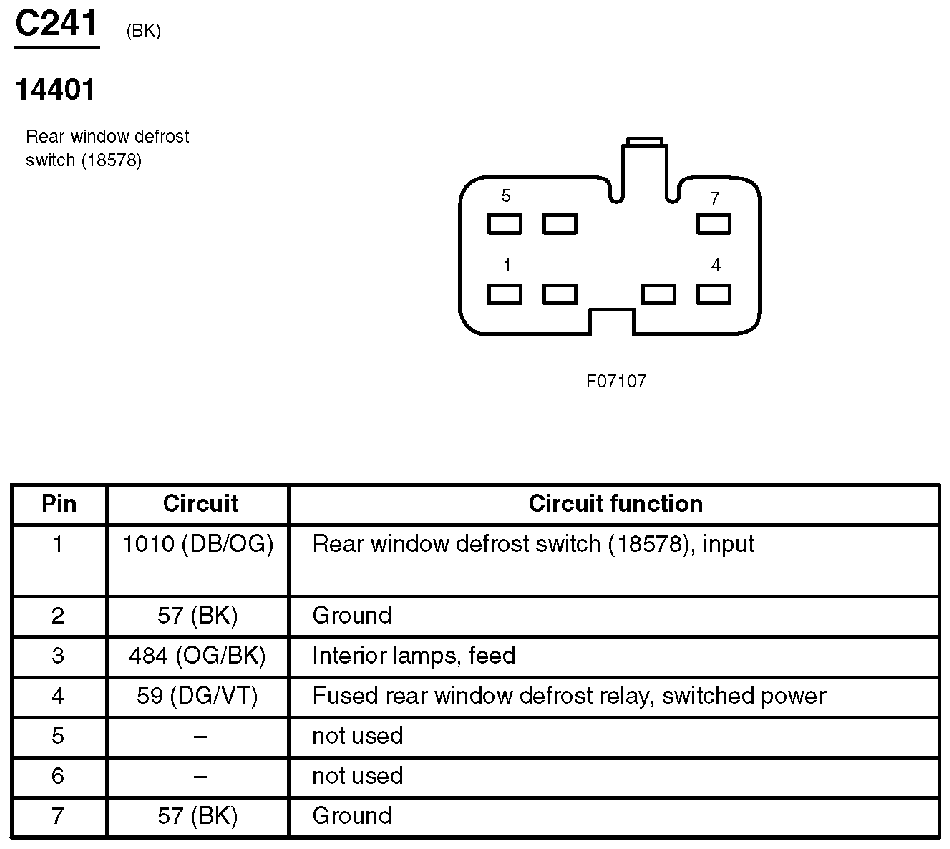

Fig 86: Rear Window Defrost Switch Connector End View (C241)
Courtesy of FORD MOTOR CO.

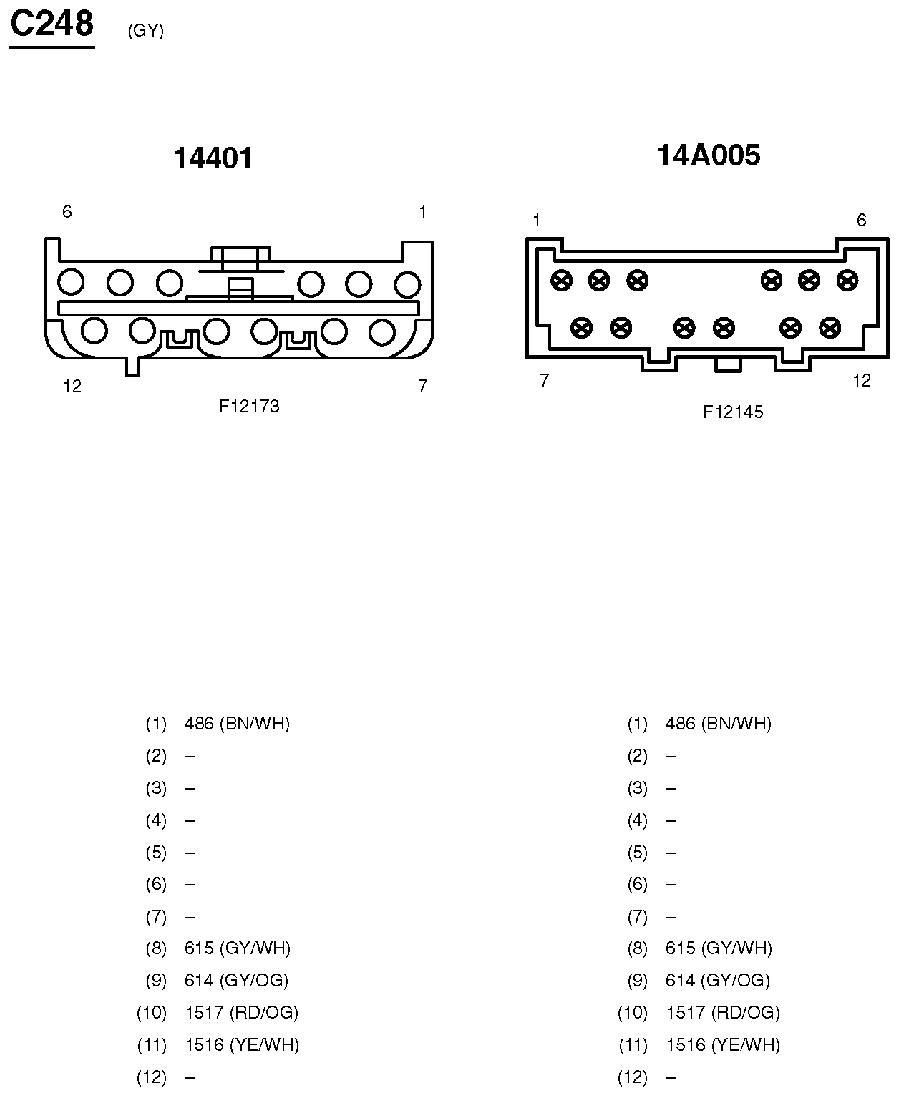

Fig 87: Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.

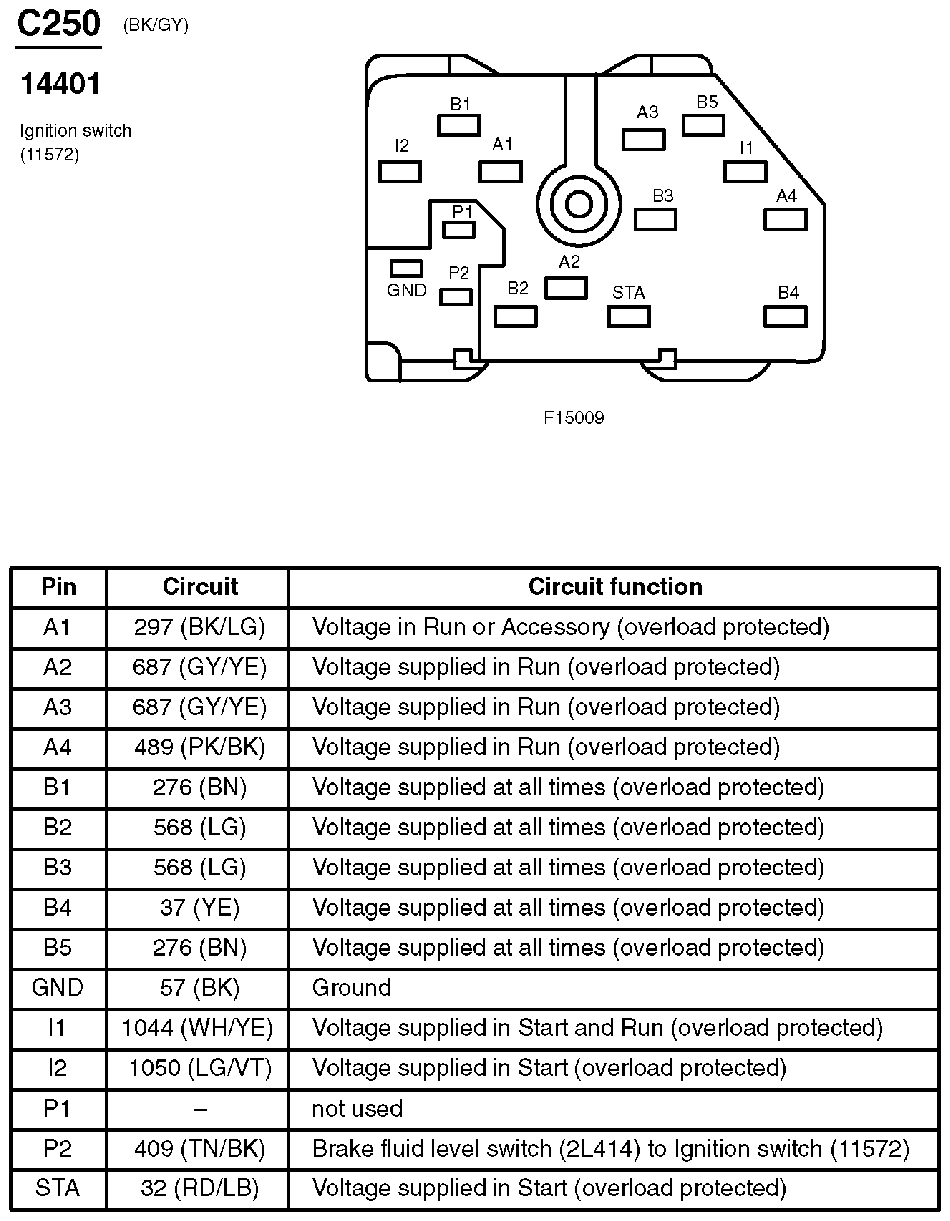

Fig 88: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

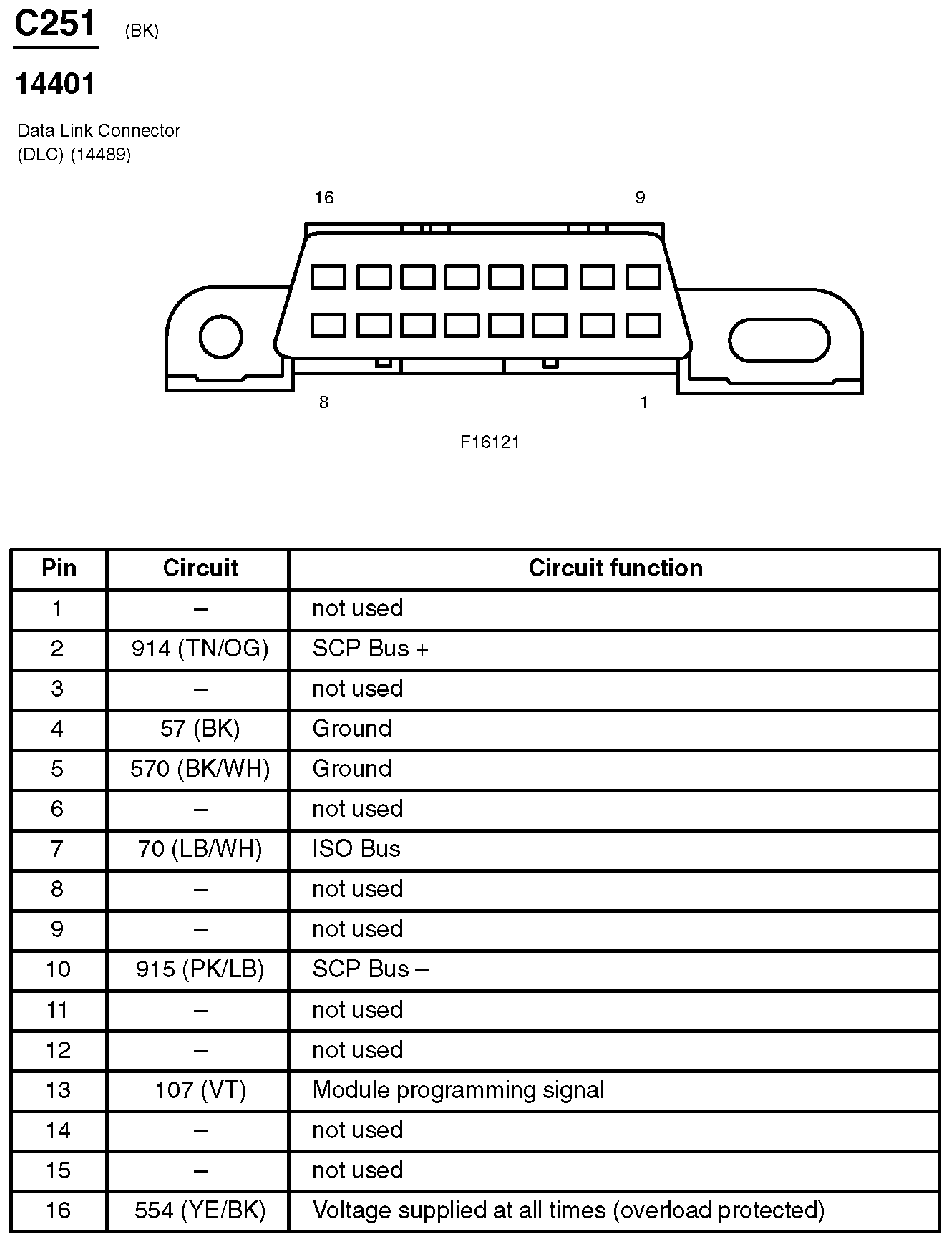

Fig 89: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

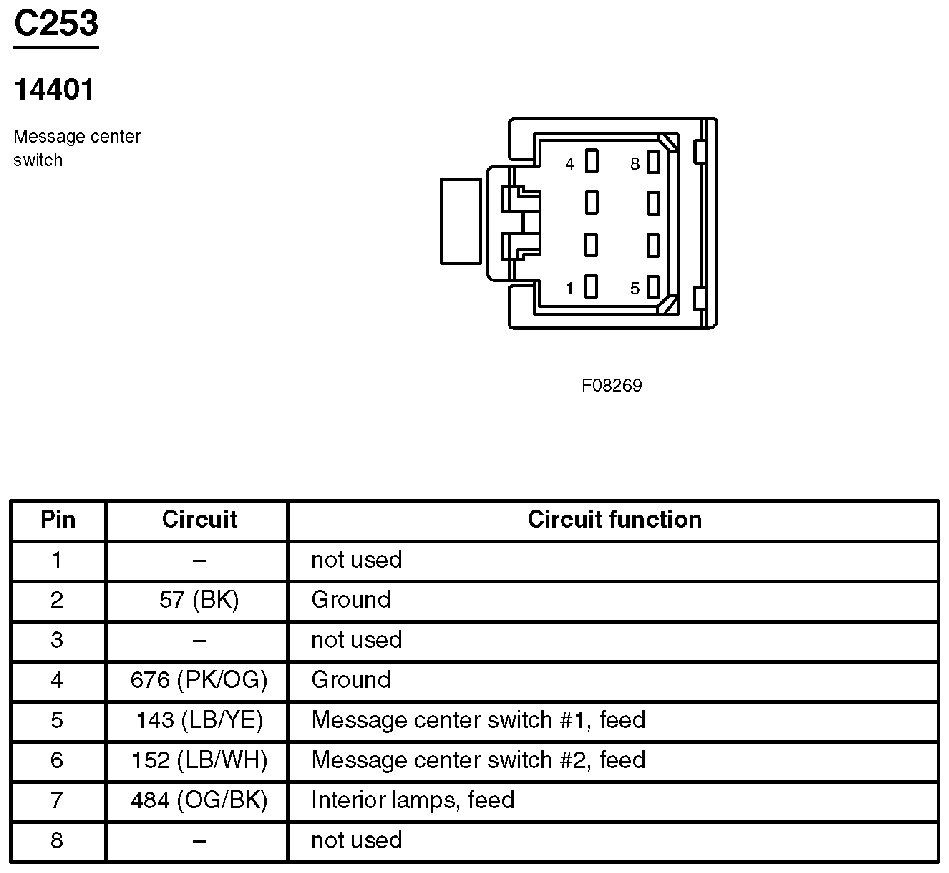

Fig 90: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

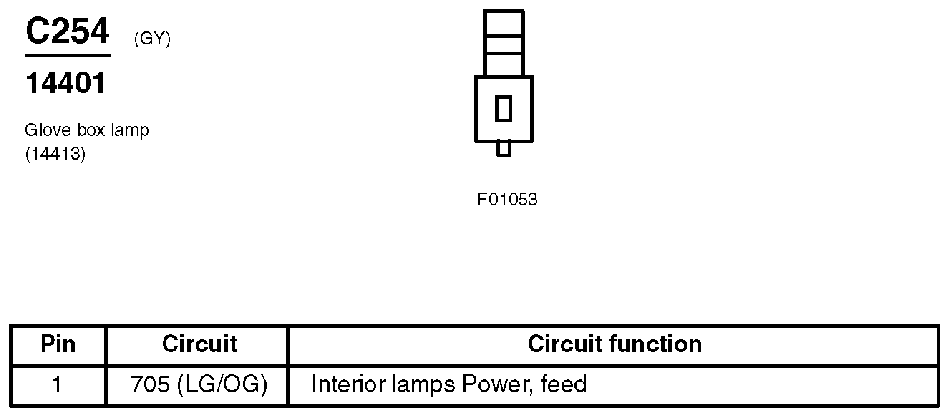

Fig 91: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

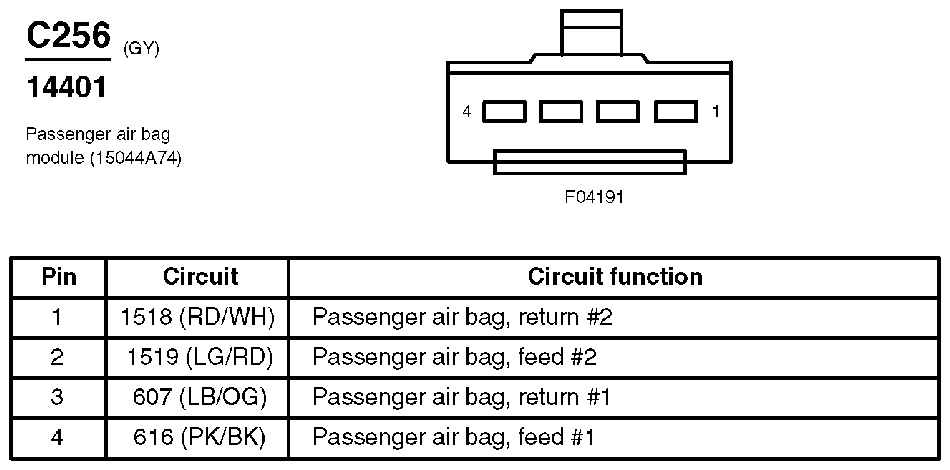

Fig 92: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

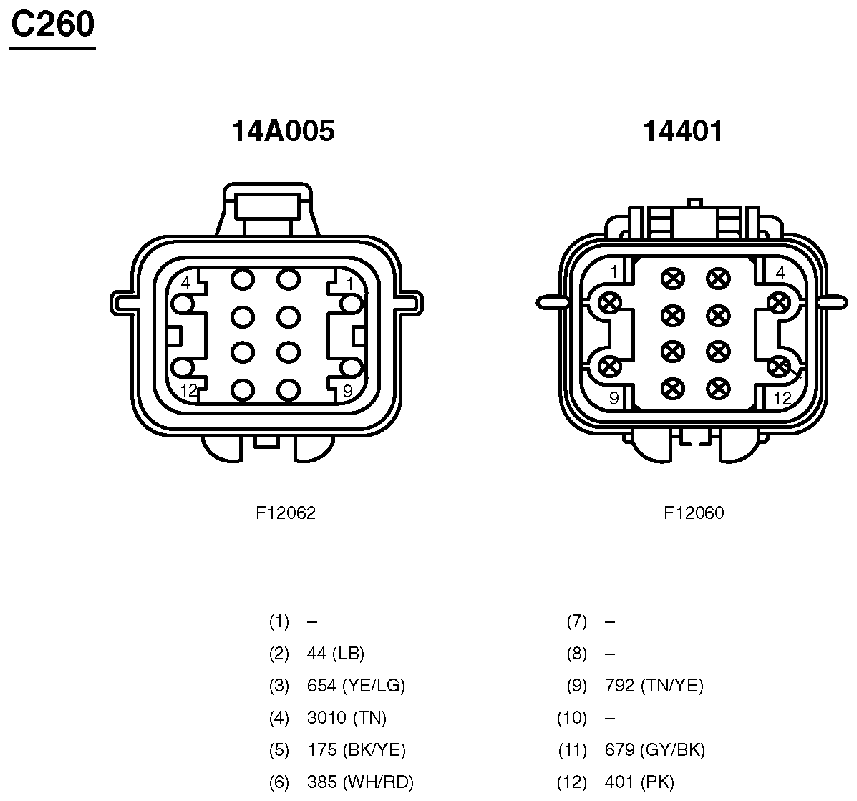

Fig 93: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

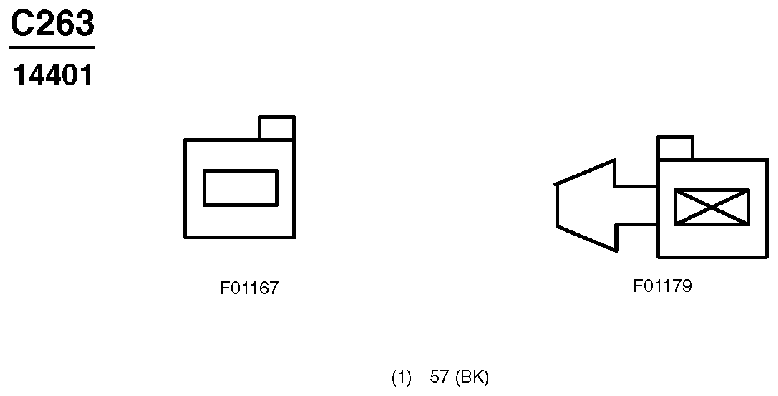

Fig 94: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

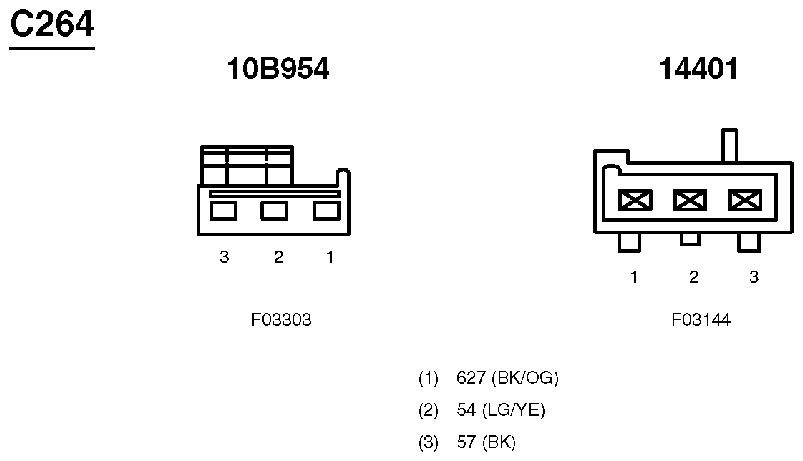

Fig 95: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

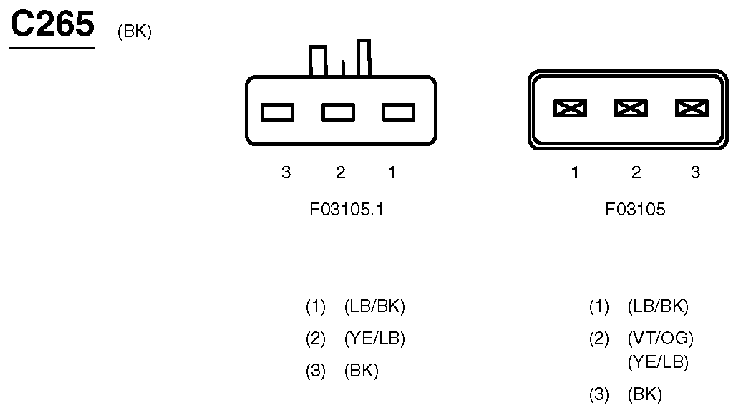

Fig 96: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.

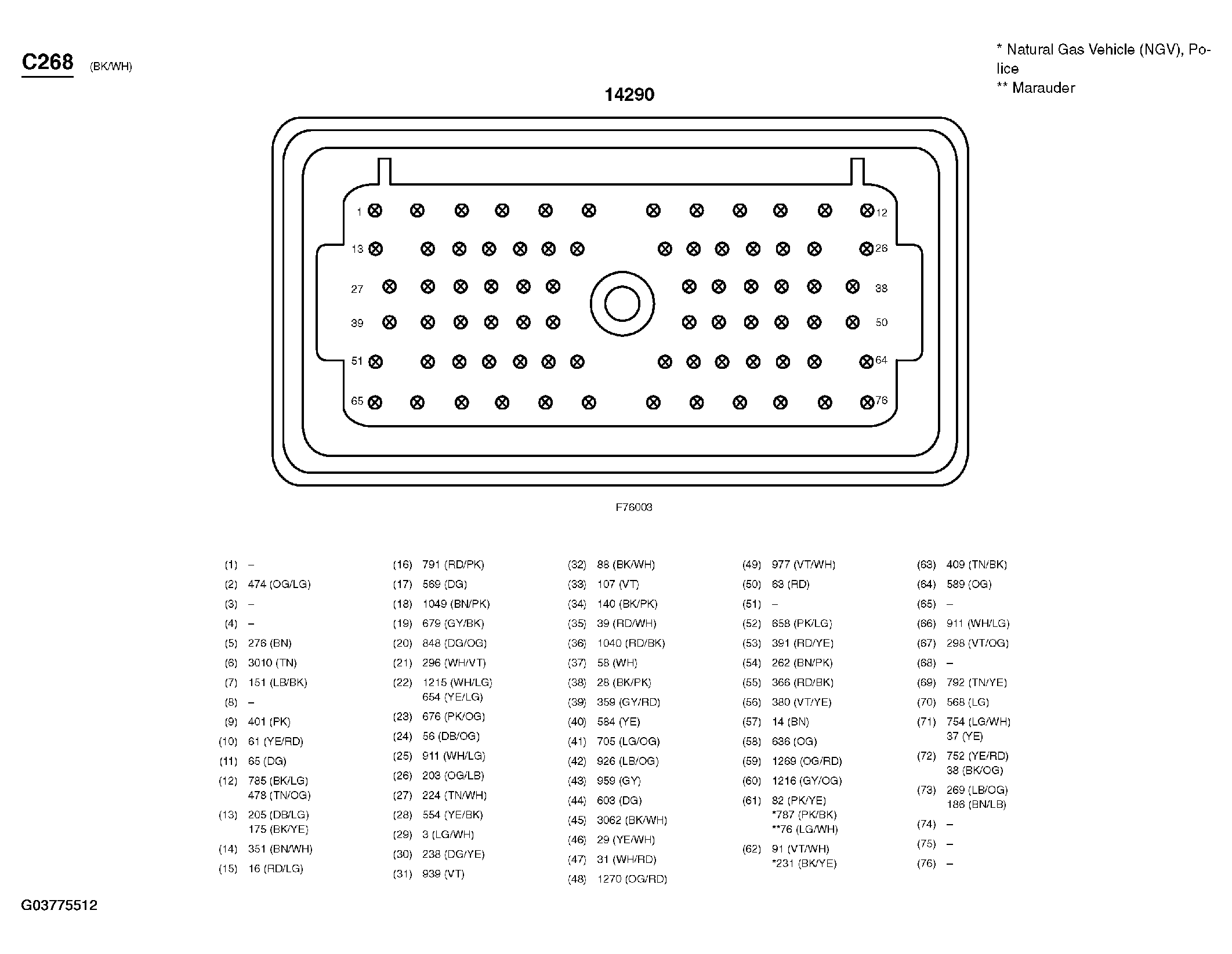

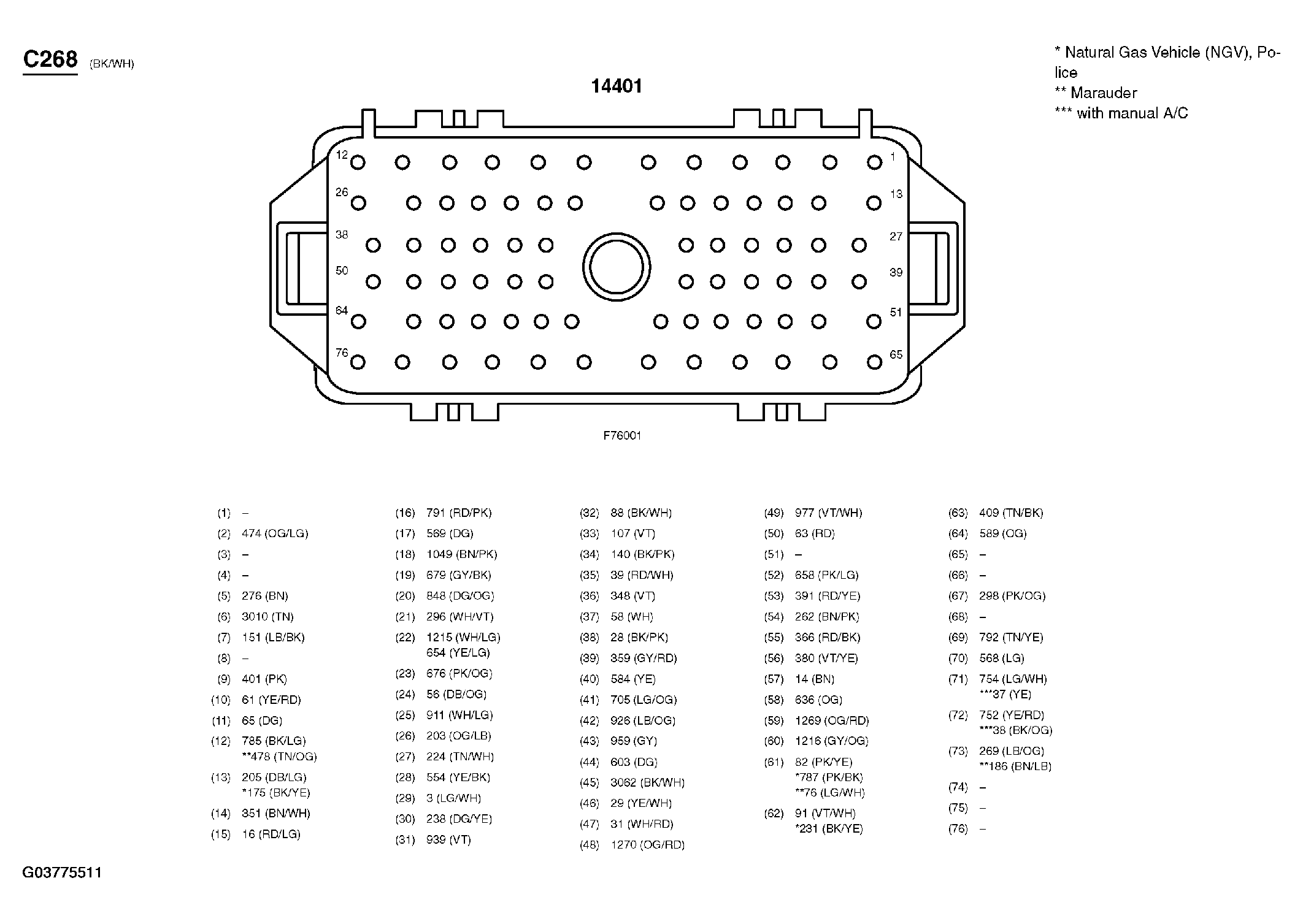

Fig 97: Inline Connector End View (C268)
Courtesy of FORD MOTOR CO.
Fig 98: Inline Connector End View (C268)
Courtesy of FORD MOTOR CO.

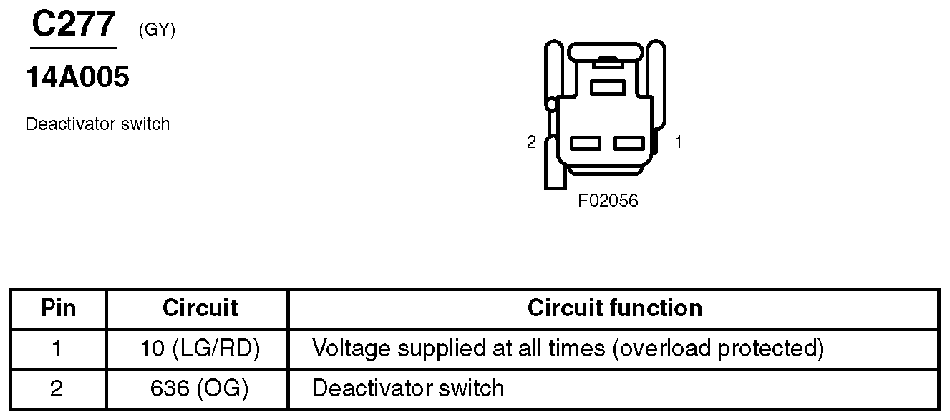

Fig 99: Deactivator Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.

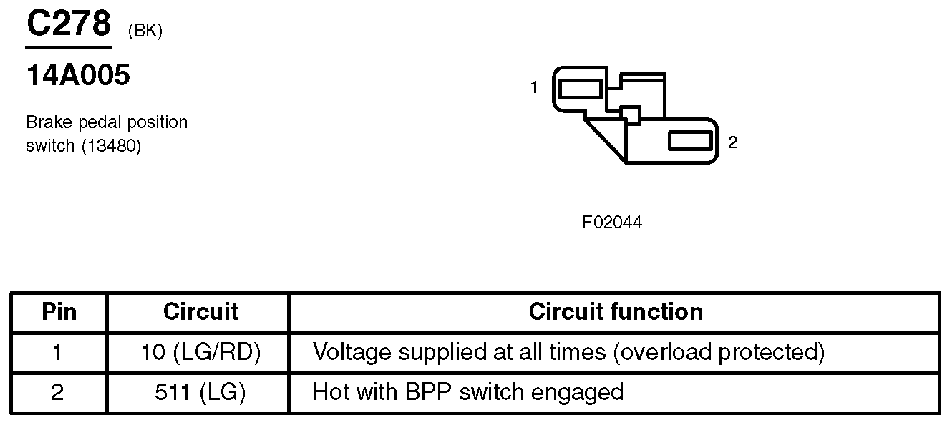

Fig 100: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

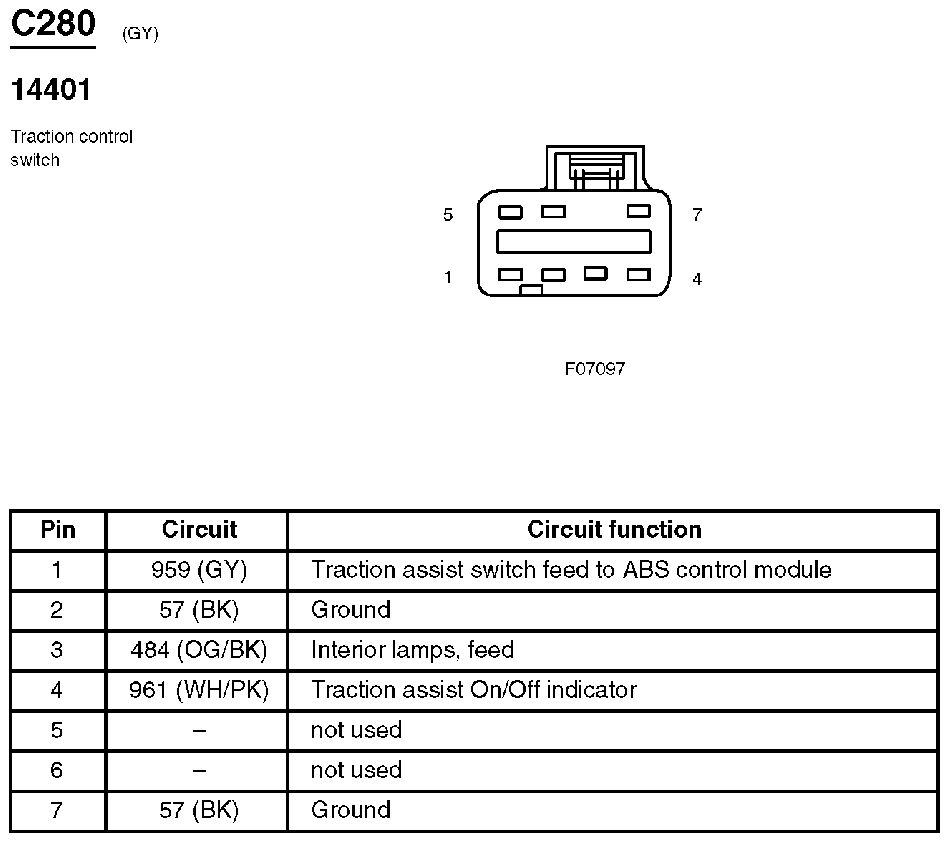

Fig 101: Traction Control Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.

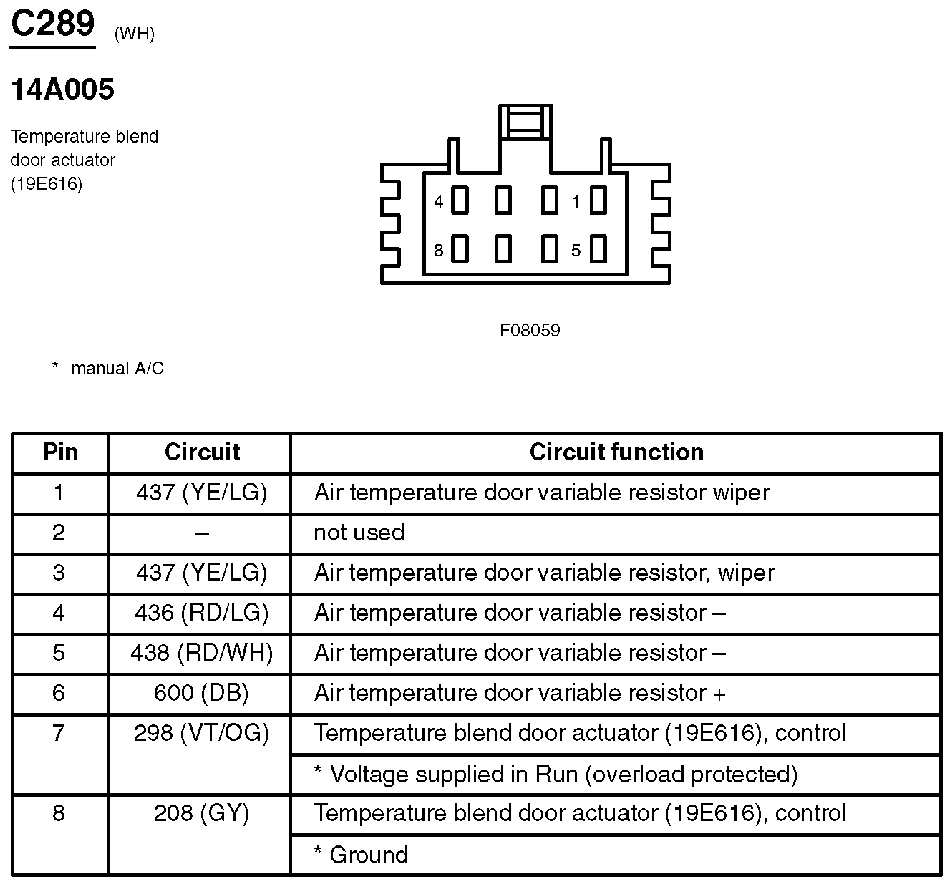

Fig 102: Temperature Blend Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

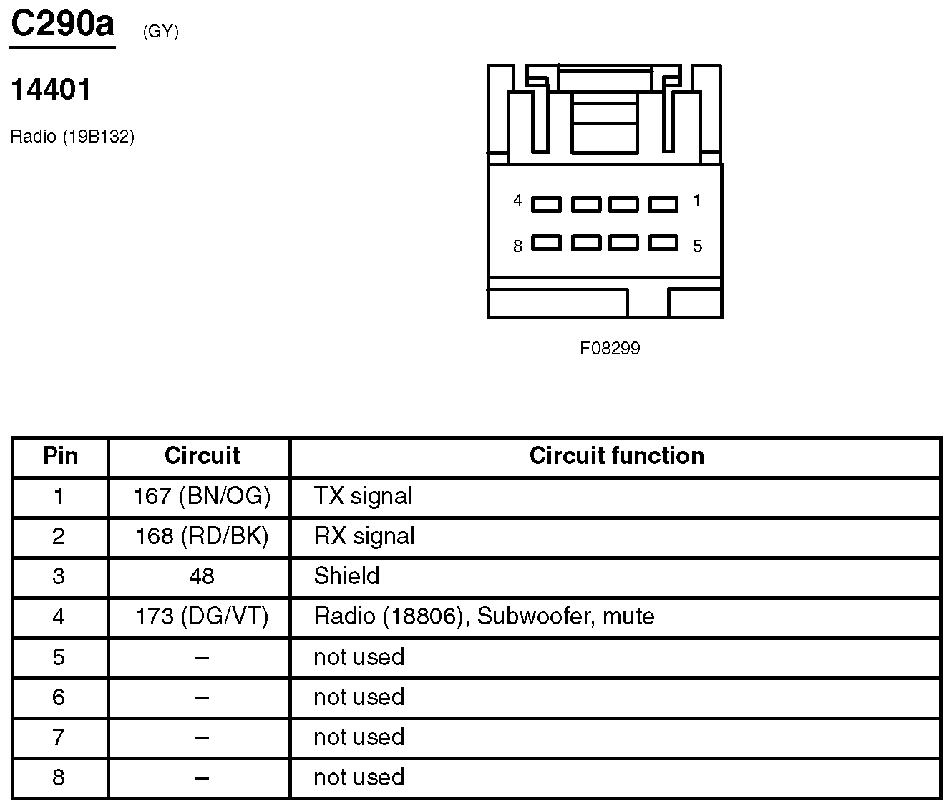

Fig 103: Radio Connector End View (C290a)
Courtesy of FORD MOTOR CO.

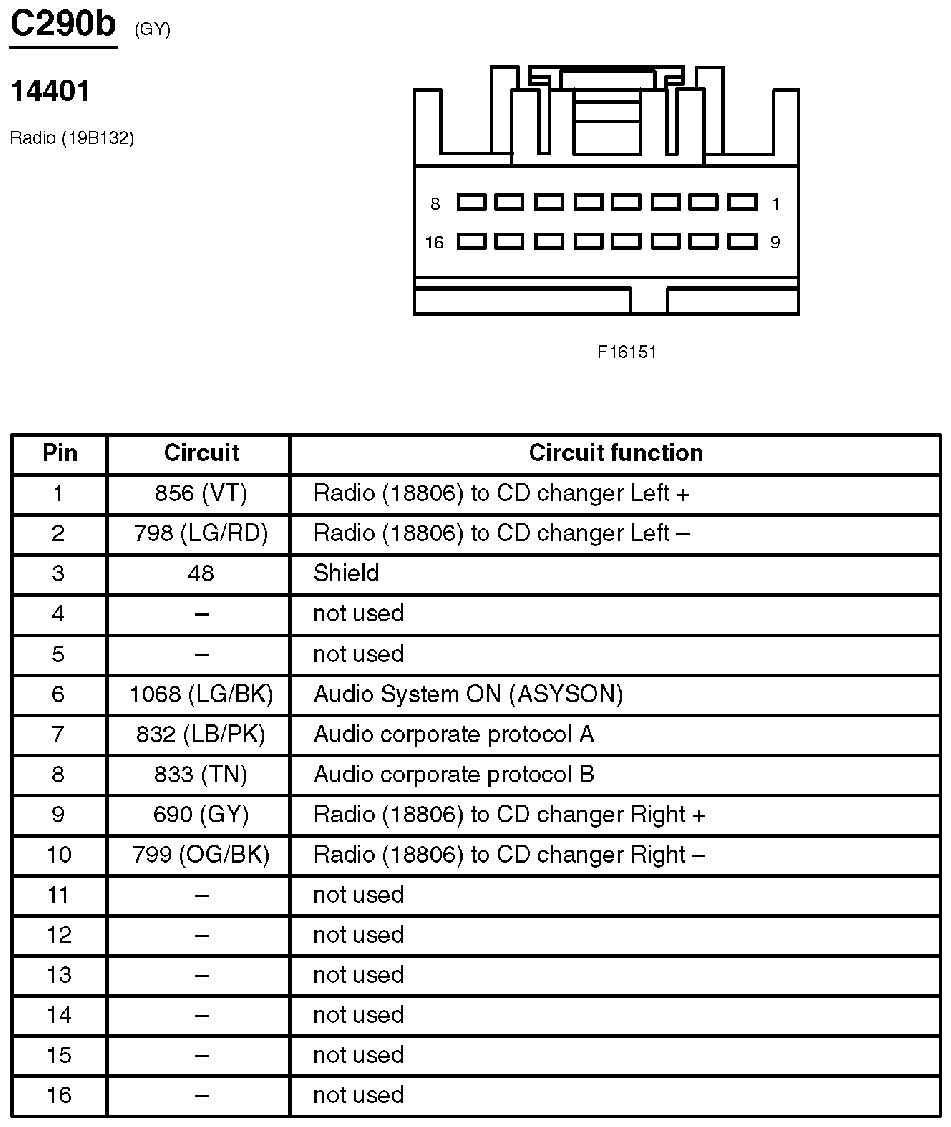

Fig 104: Radio Connector End View (C290b)
Courtesy of FORD MOTOR CO.

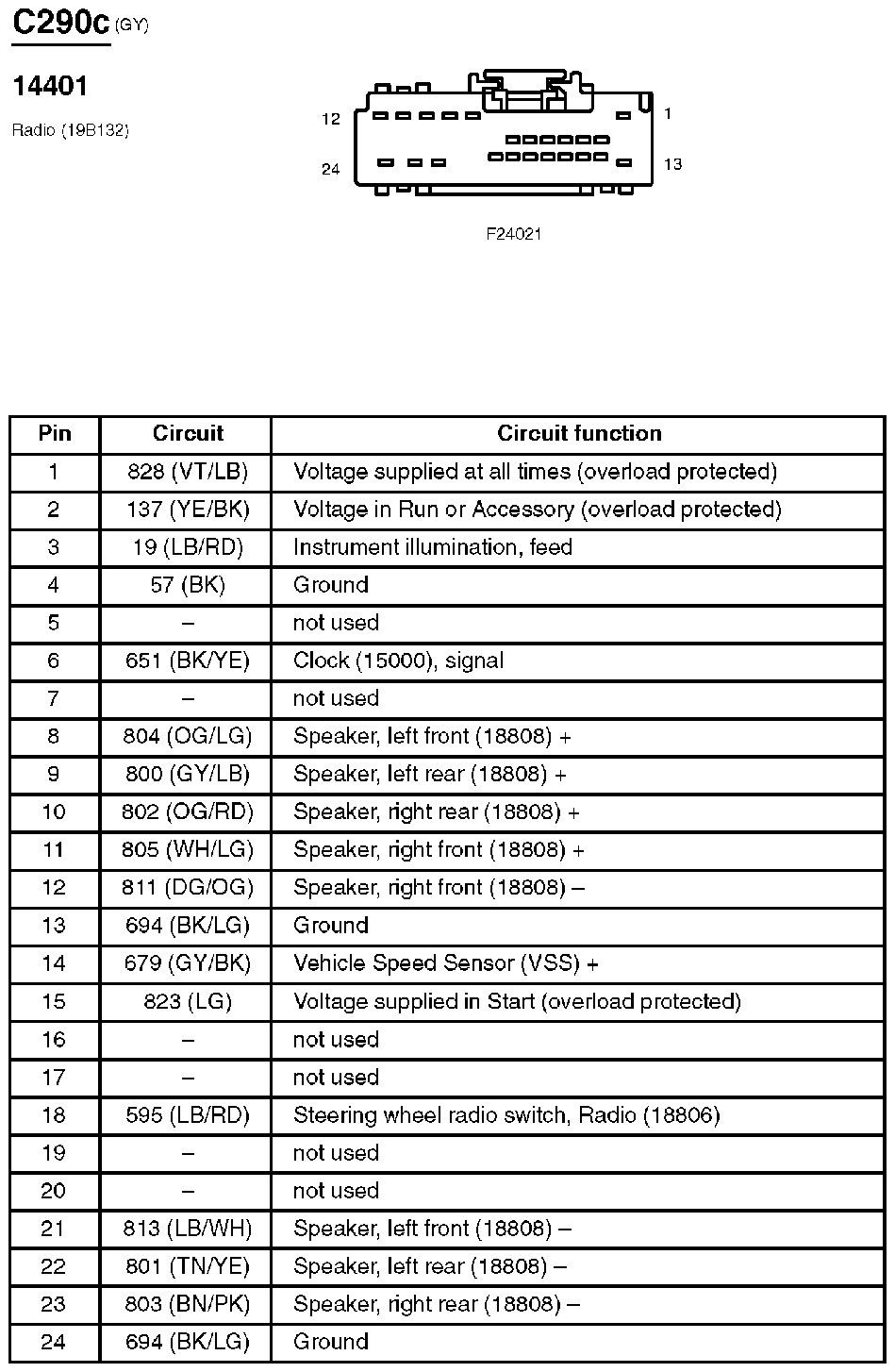

Fig 105: Radio Connector End View (C290c)
Courtesy of FORD MOTOR CO.

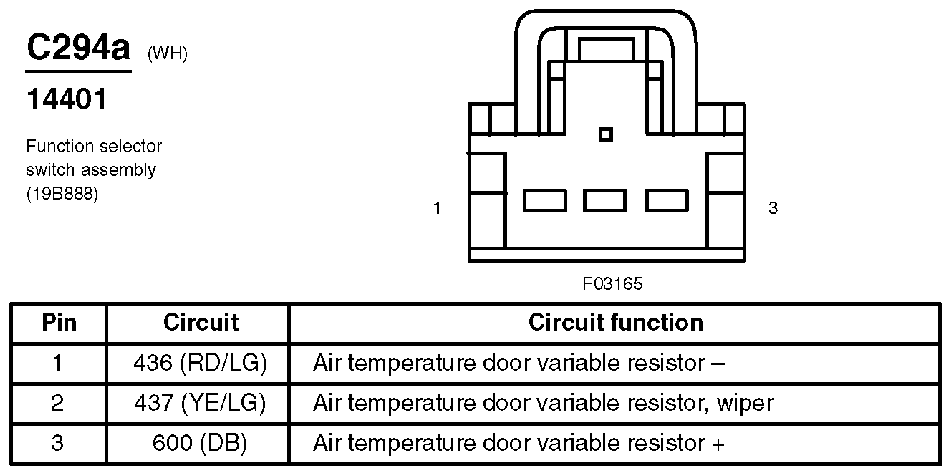

Fig 106: Function Selector Switch Assembly Connector End View (C294a)
Courtesy of FORD MOTOR CO.

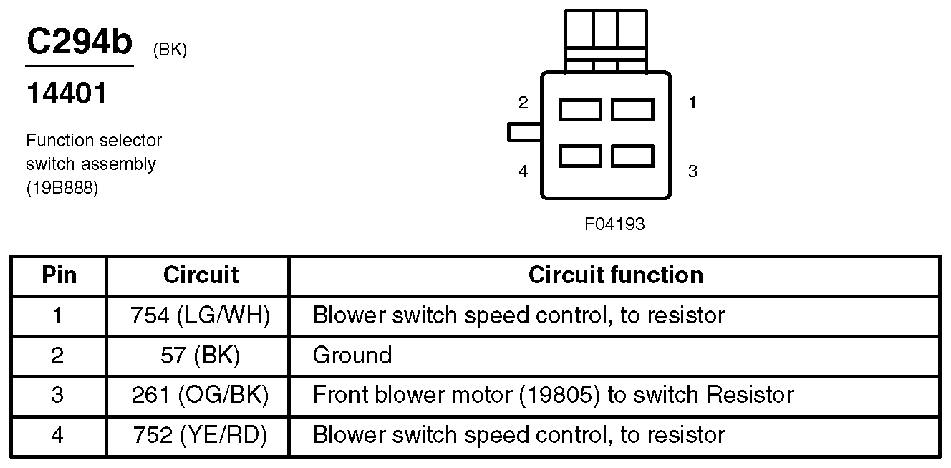

Fig 107: Function Selector Switch Assembly Connector End View (C294b)
Courtesy of FORD MOTOR CO.

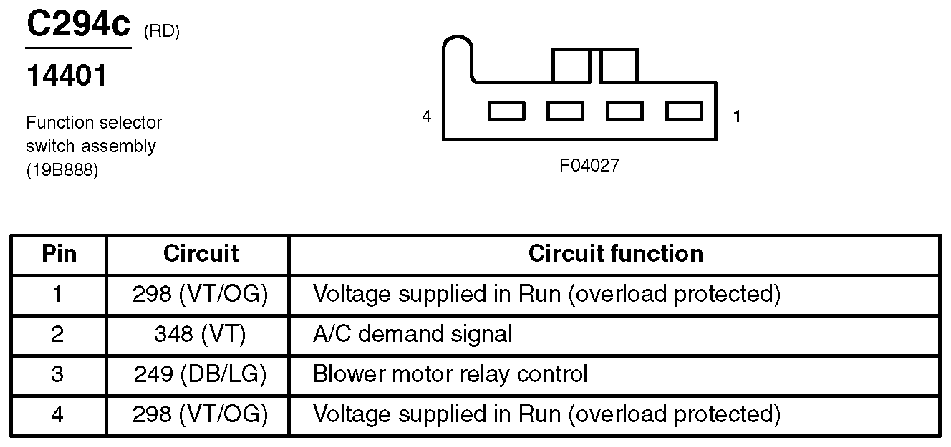

Fig 108: Function Selector Switch Assembly Connector End View (C294c)
Courtesy of FORD MOTOR CO.

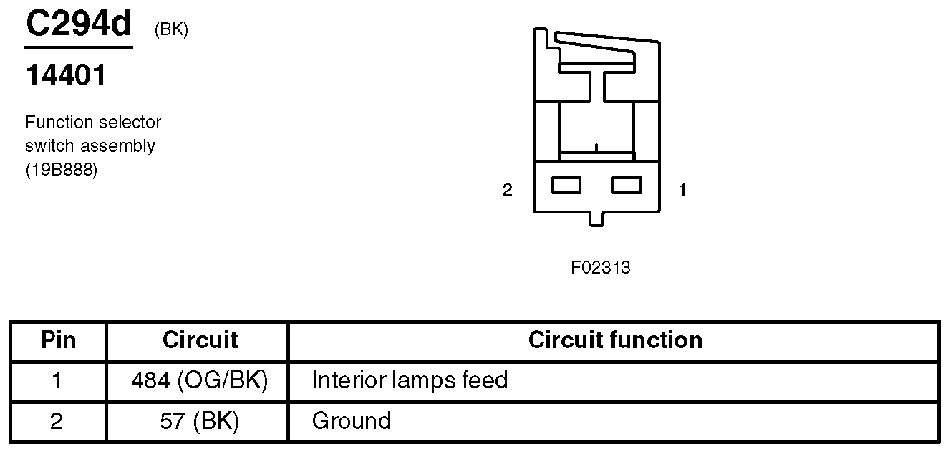

Fig 109: Function Selector Switch Assembly Connector End View (C294d)
Courtesy of FORD MOTOR CO.

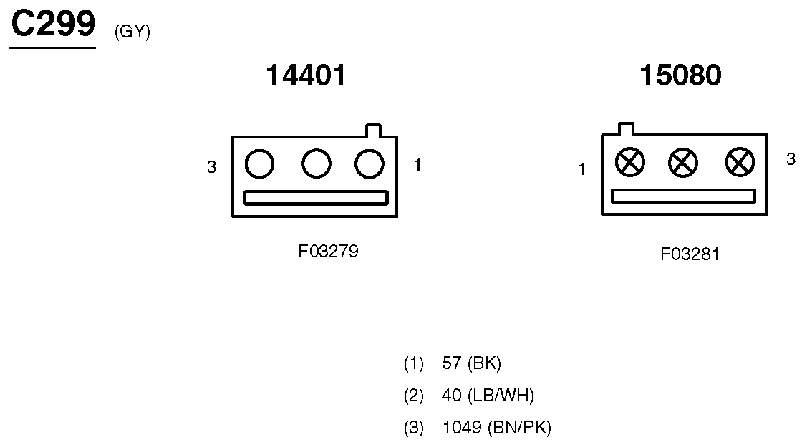

Fig 110: Inline Connector End View (C299)
Courtesy of FORD MOTOR CO.

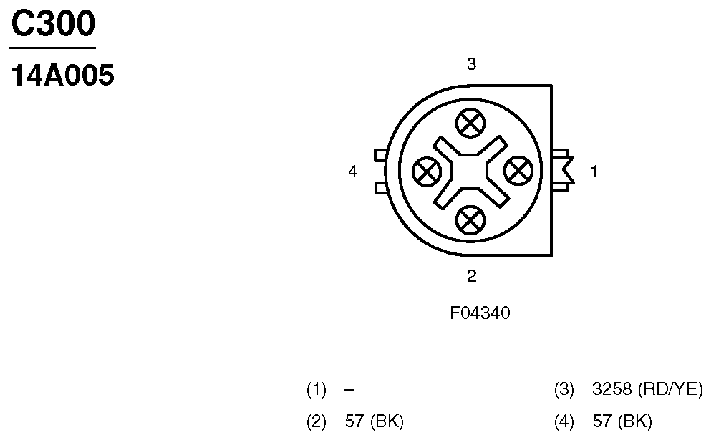

Fig 111: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

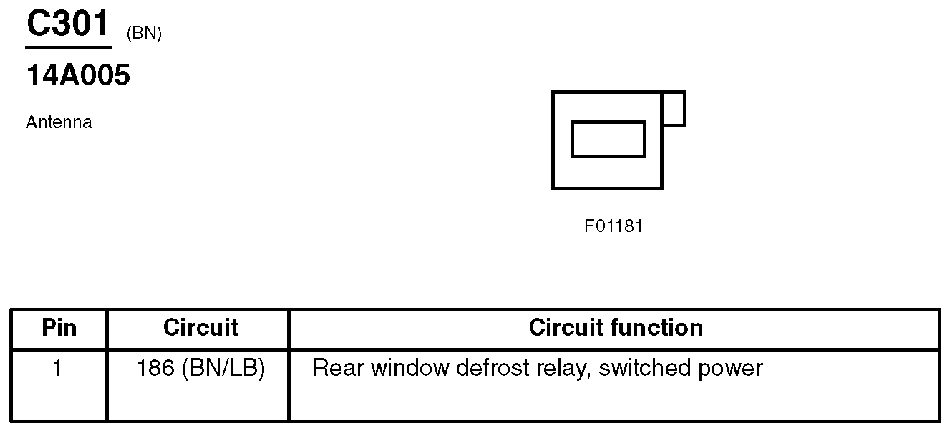

Fig 112: Antenna Connector End View (C301)
Courtesy of FORD MOTOR CO.

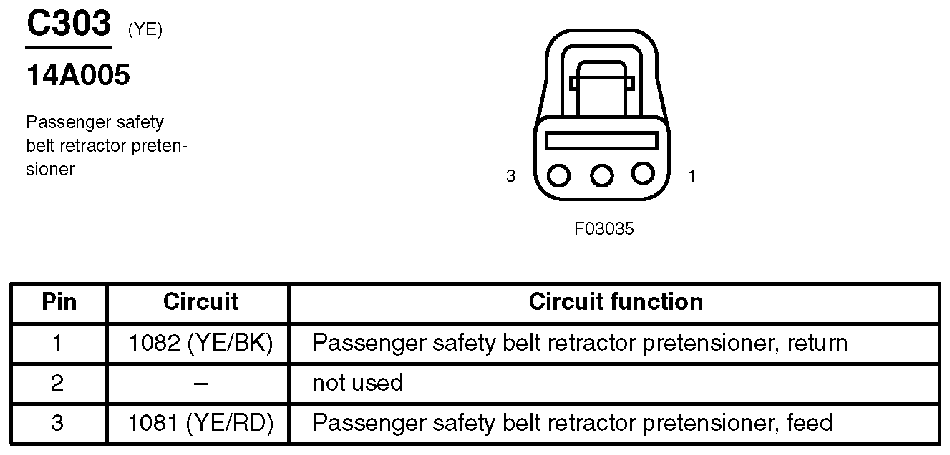

Fig 113: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

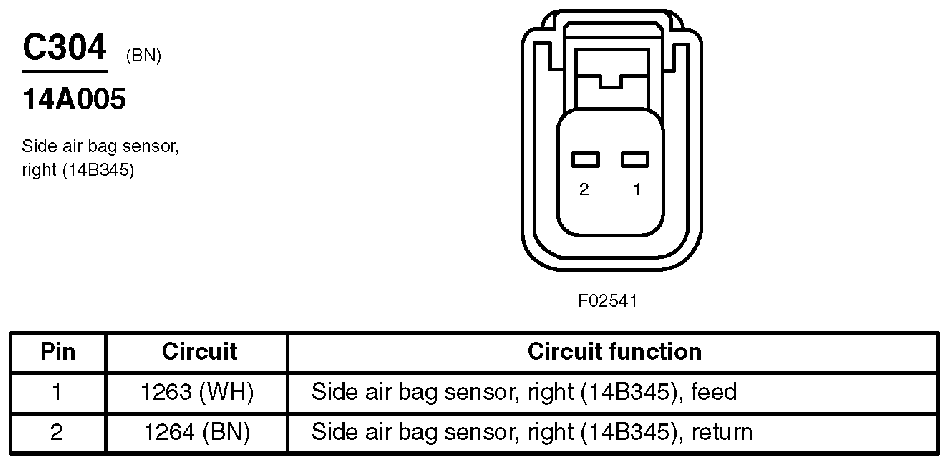

Fig 114: Side Air Bag Sensor, Right Connector End View (C304)
Courtesy of FORD MOTOR CO.

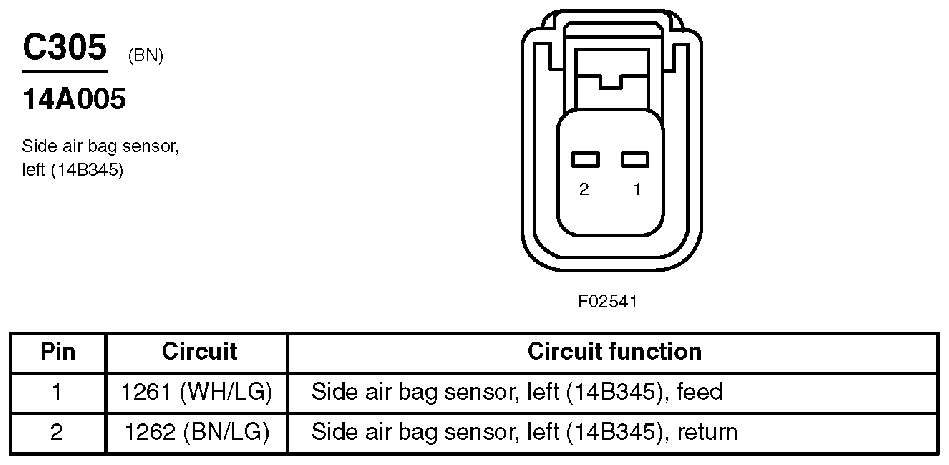

Fig 115: Side Air Bag Sensor, Left Connector End View (C305)
Courtesy of FORD MOTOR CO.

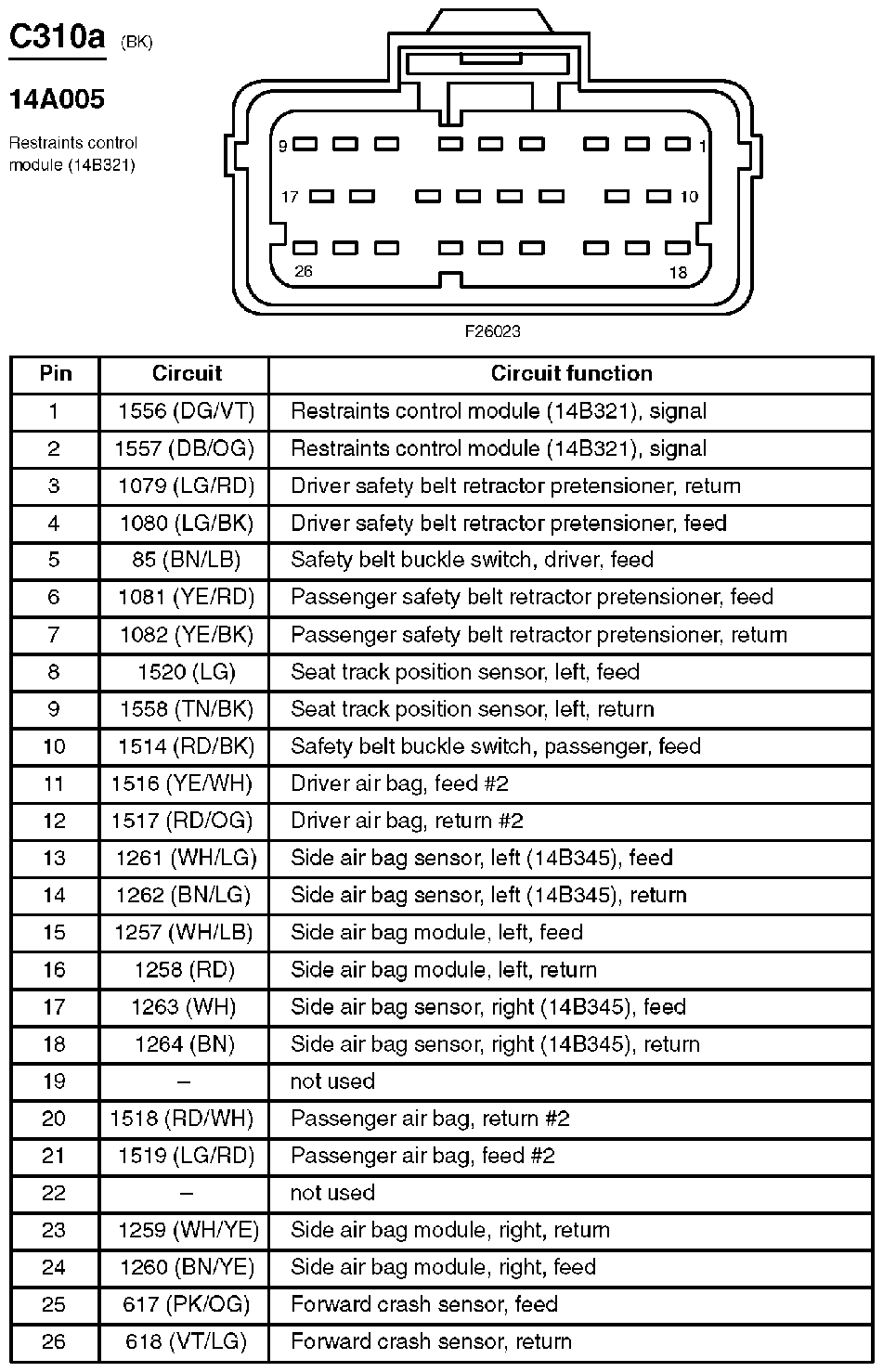

Fig 116: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.

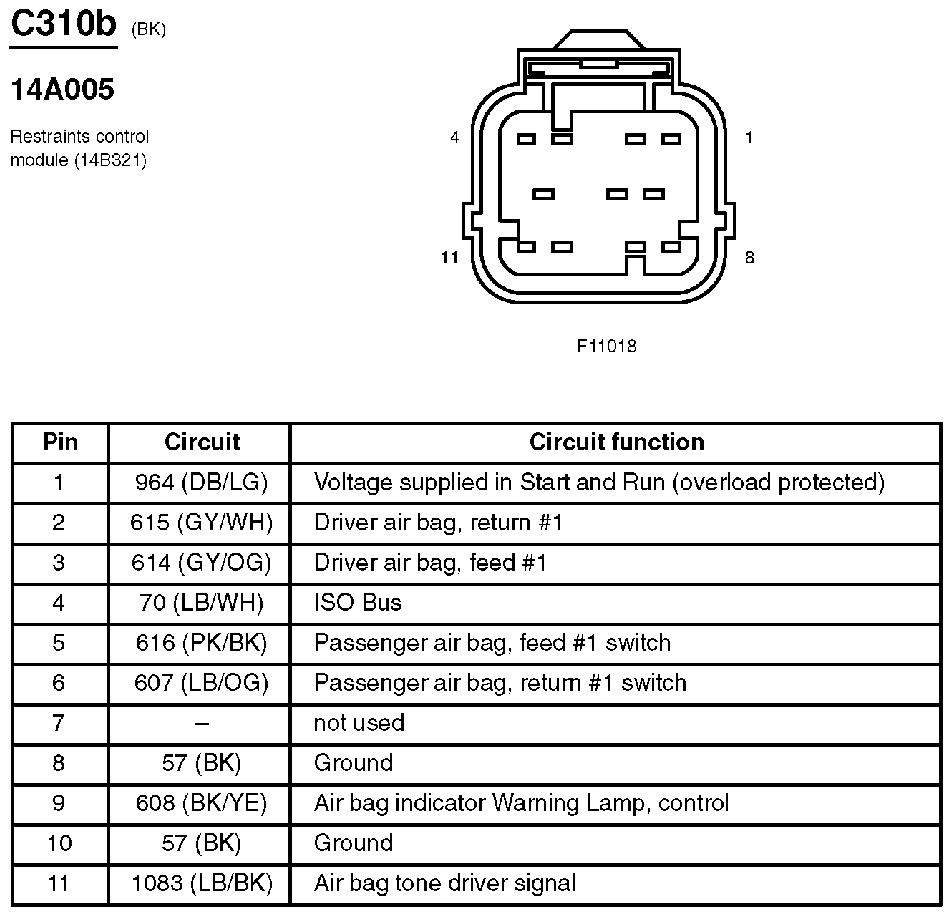

Fig 117: Restraints Control Module Connector End View (C310b)
Courtesy of FORD MOTOR CO.

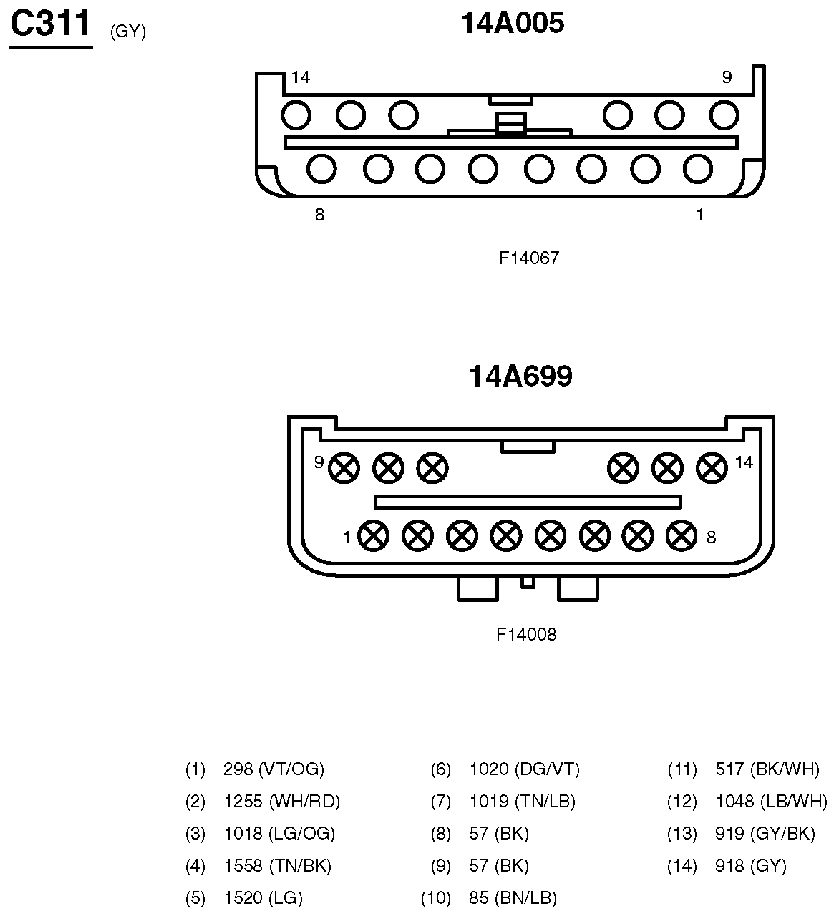

Fig 118: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

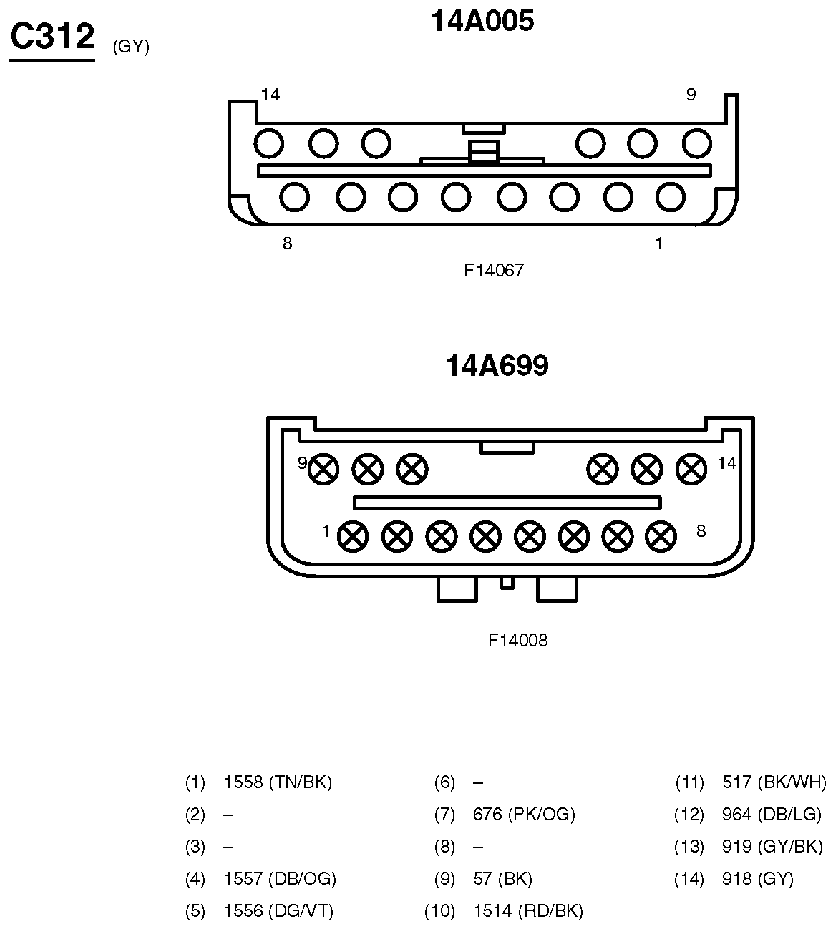

Fig 119: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

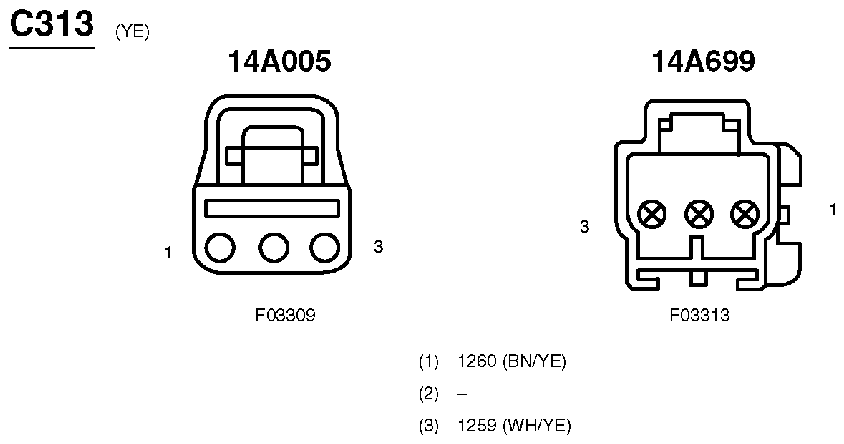

Fig 120: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

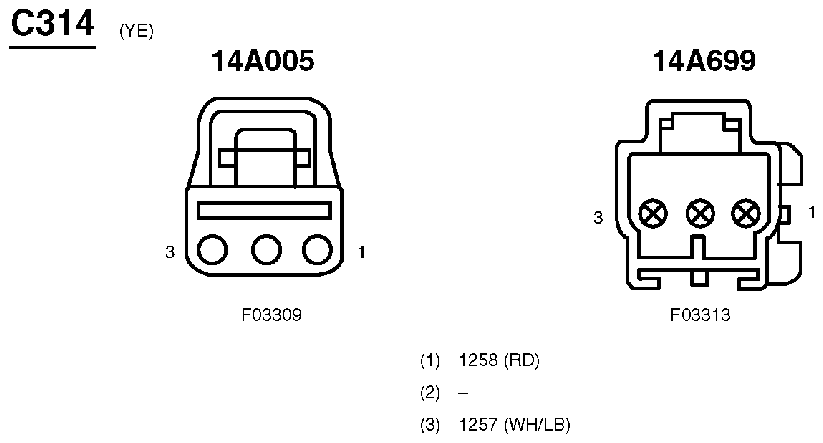

Fig 121: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

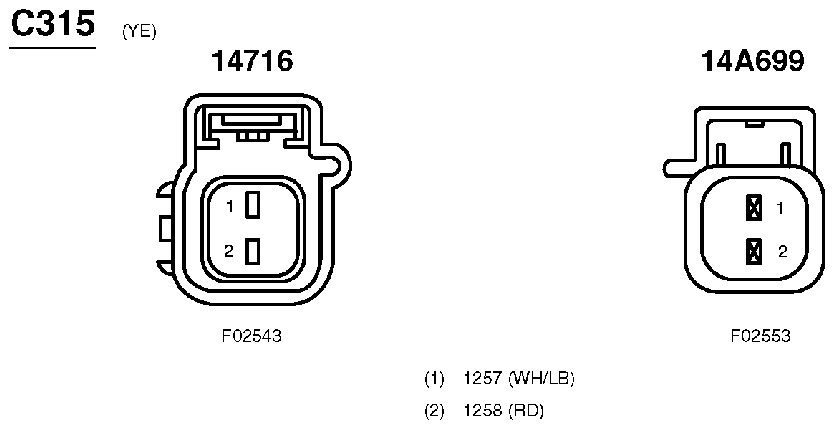

Fig 122: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

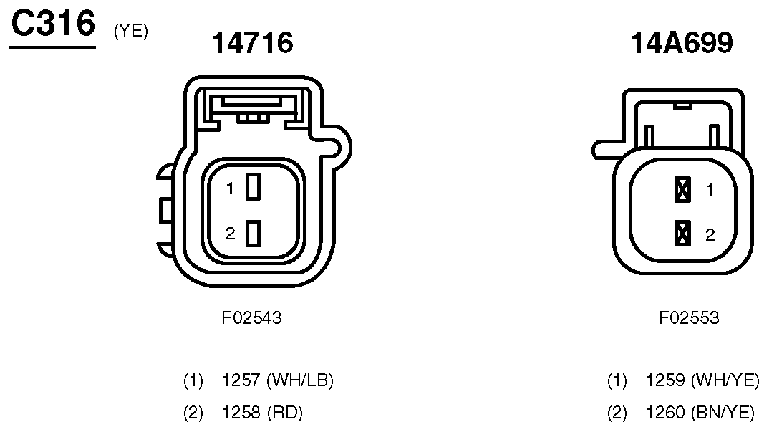

Fig 123: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.

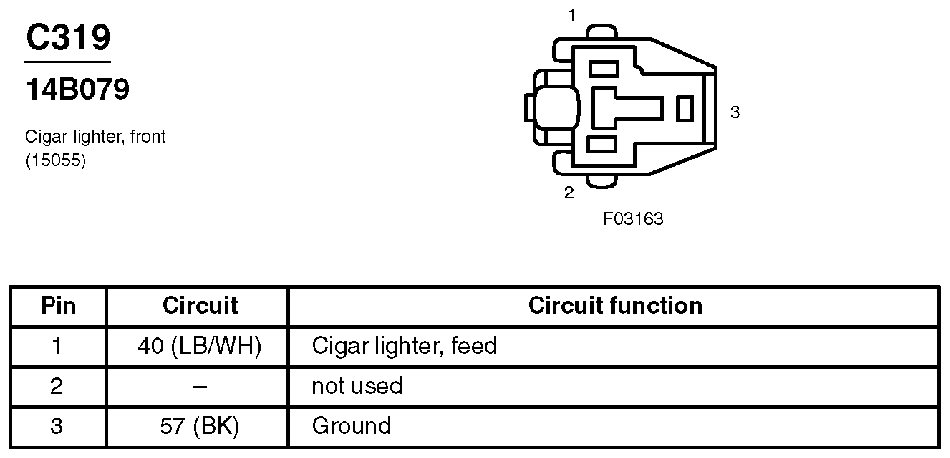

Fig 124: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.

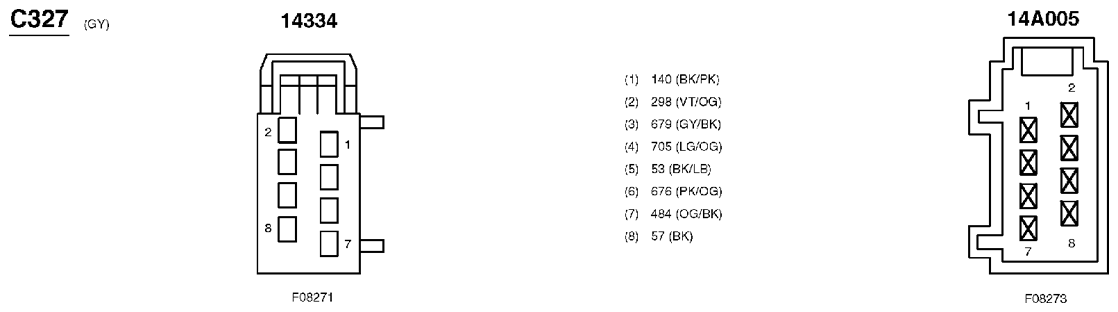

Fig 125: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.

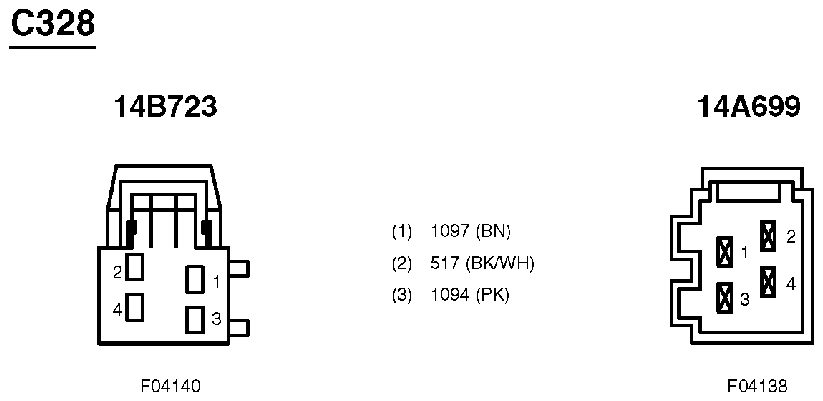

Fig 126: Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.

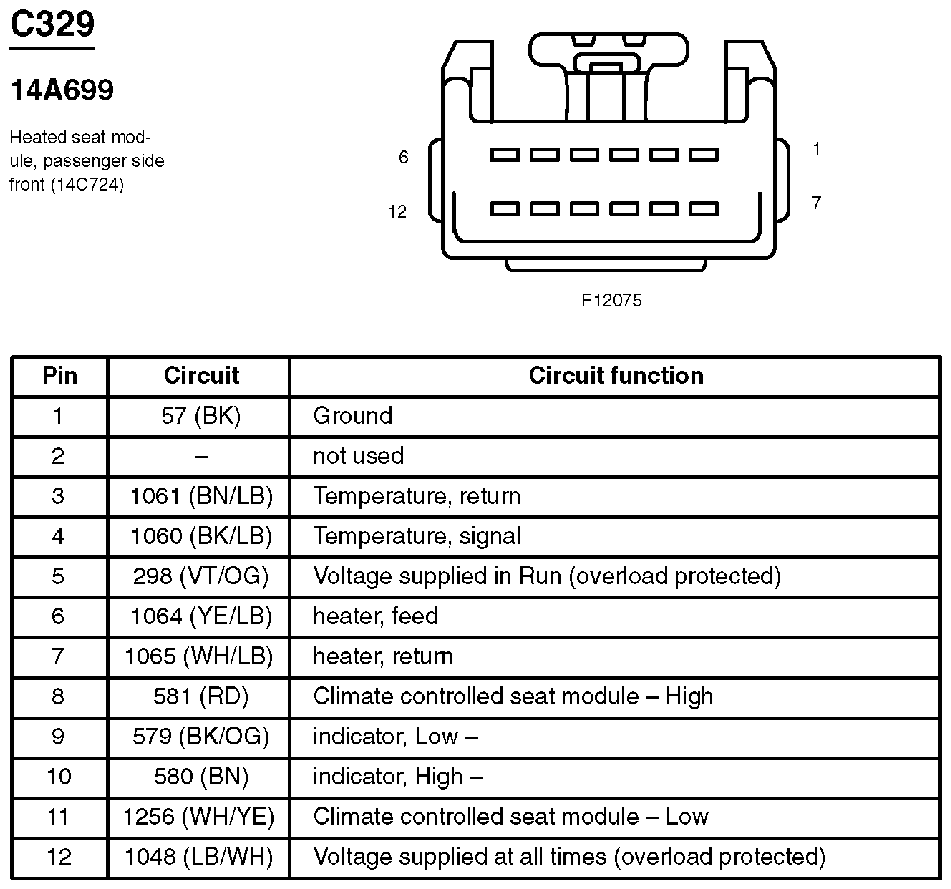

Fig 127: Heated Seat Module, Passenger Side Front Connector End View (C329)
Courtesy of FORD MOTOR CO.

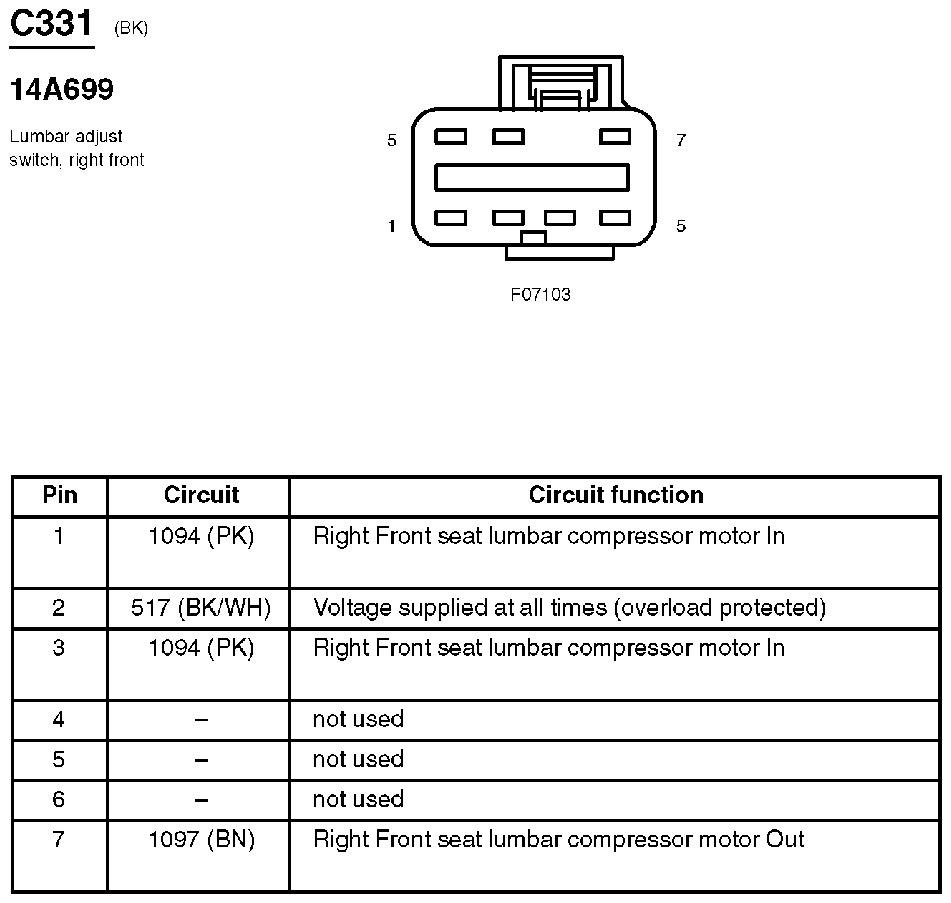

Fig 128: Lumbar Adjust Switch, Right Front Connector End View (C331)
Courtesy of FORD MOTOR CO.

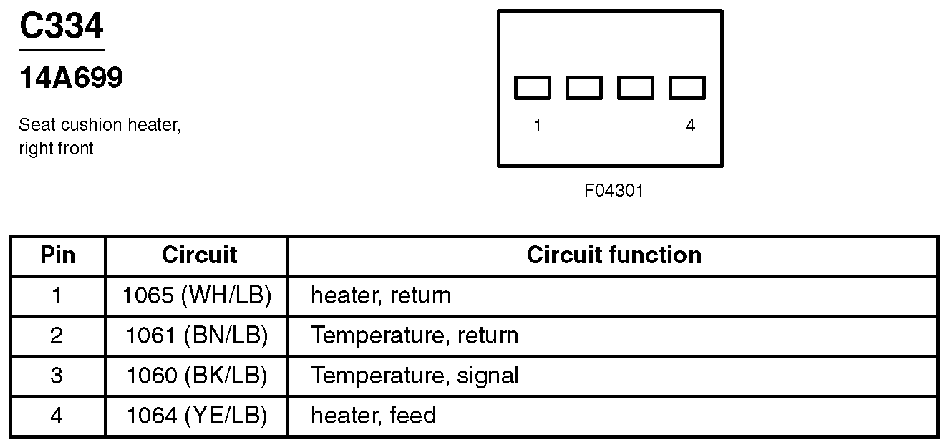

Fig 129: Seat Cushion Heater, Right Front Connector End View (C334)
Courtesy of FORD MOTOR CO.

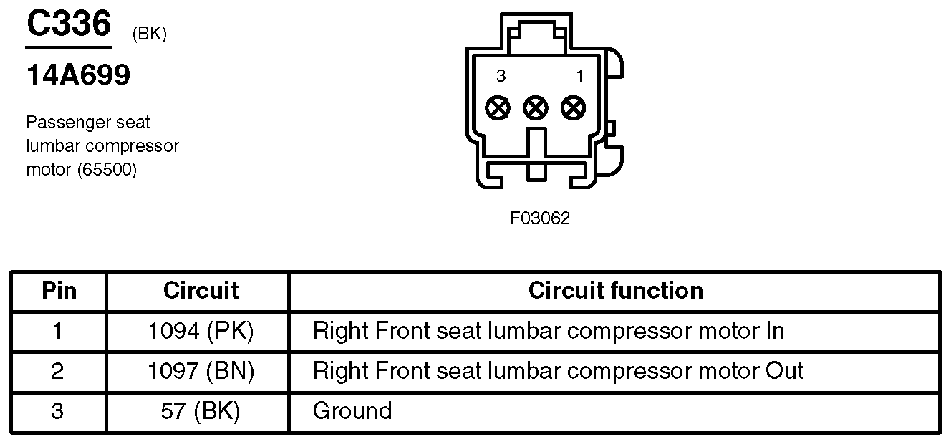

Fig 130: Passenger Seat Lumbar Compressor Motor Connector End View (C336)
Courtesy of FORD MOTOR CO.
Fig 131: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

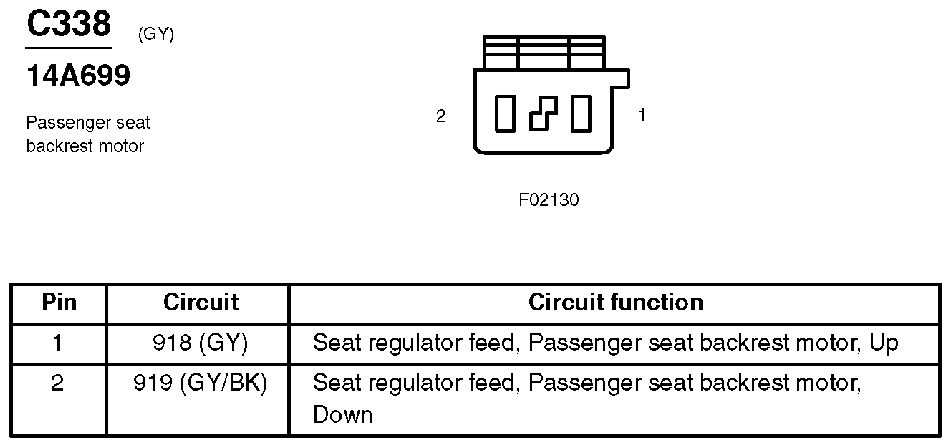

Fig 132: Passenger Seat Backrest Motor Connector End View (C338)
Courtesy of FORD MOTOR CO.

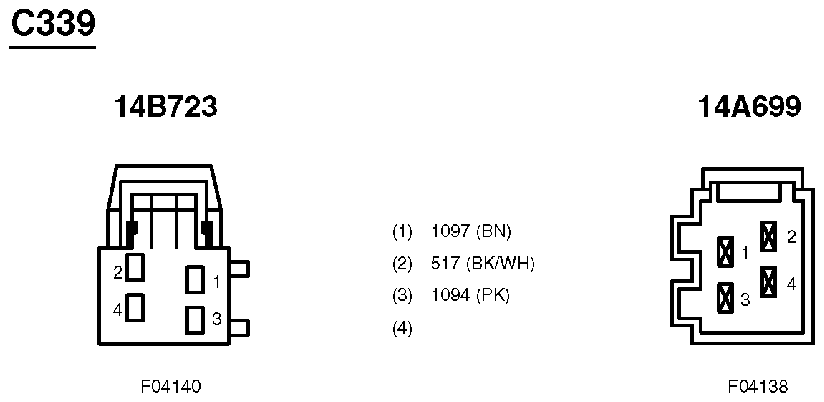

Fig 133: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

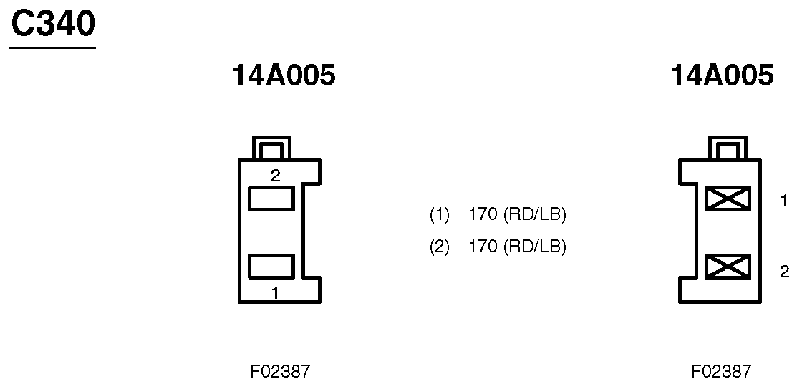

Fig 134: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

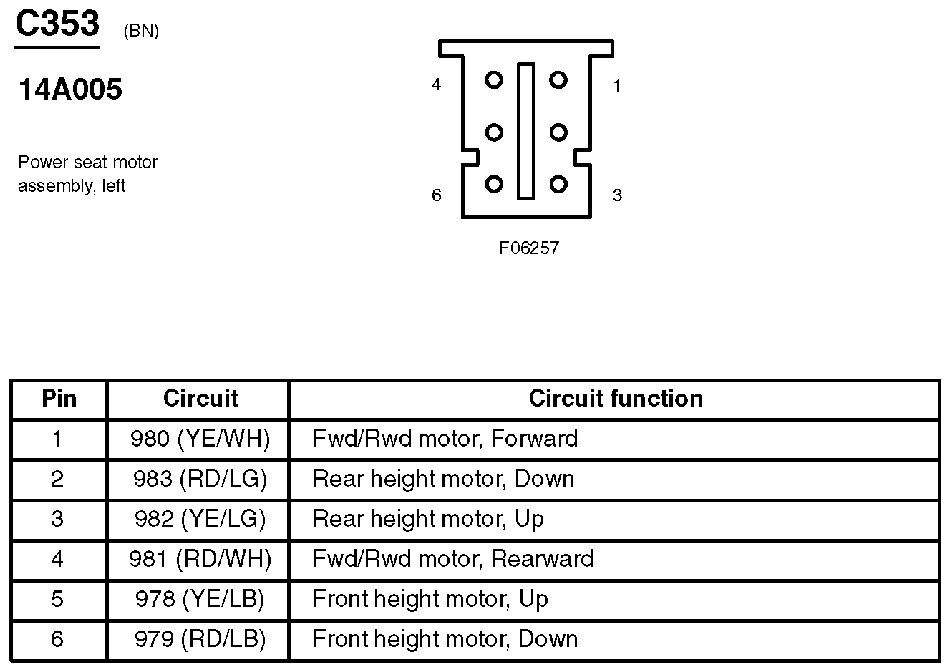

Fig 135: Power Seat Motor Assembly, Left Connector End View (C353)
Courtesy of FORD MOTOR CO.

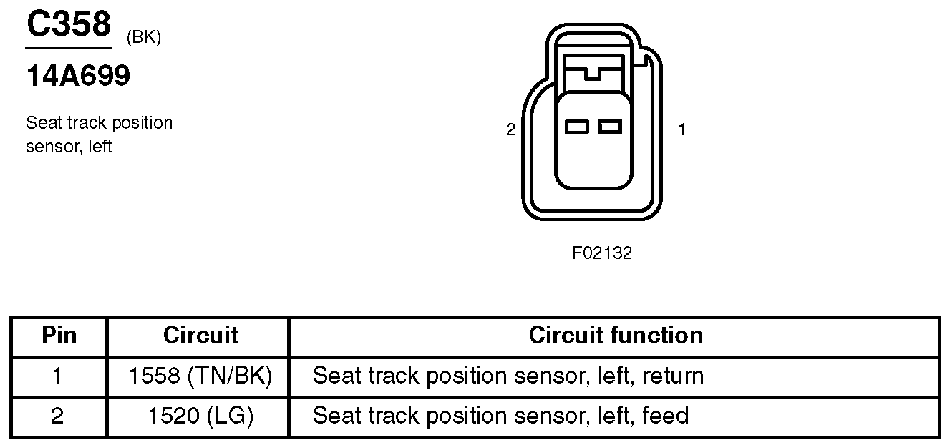

Fig 136: Seat Track Position Sensor, Left Connector End View (C358)
Courtesy of FORD MOTOR CO.

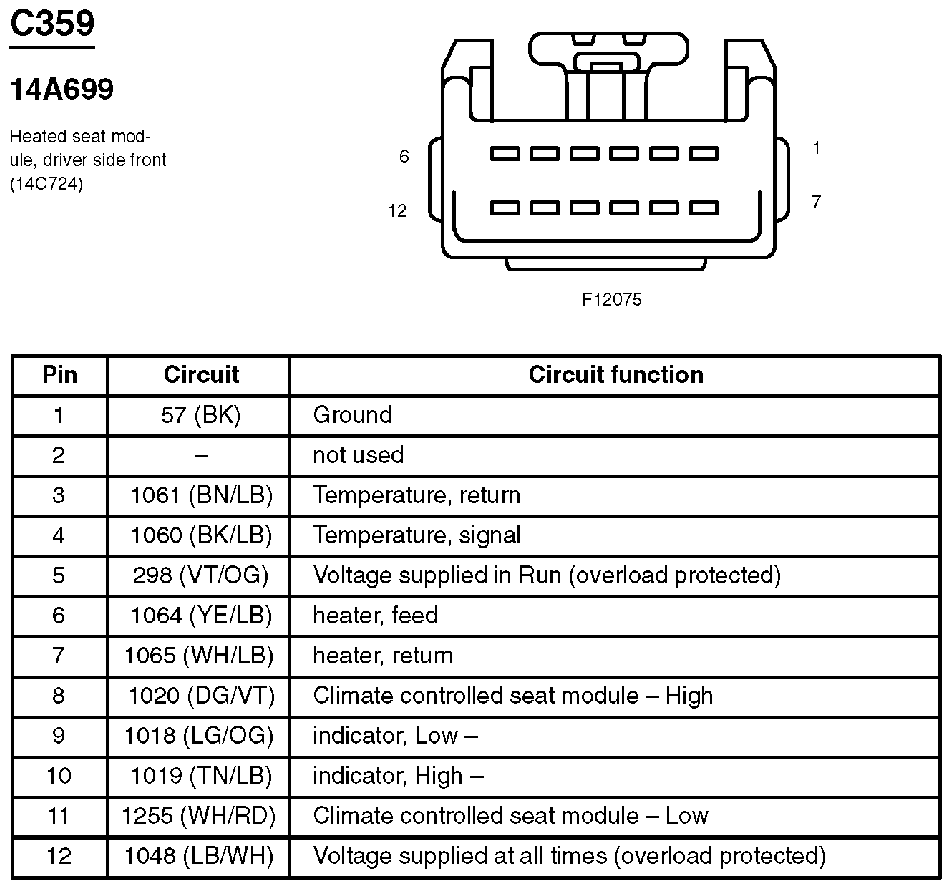

Fig 137: Heated Seat Module, Driver Side Front Connector End View (C359)
Courtesy of FORD MOTOR CO.

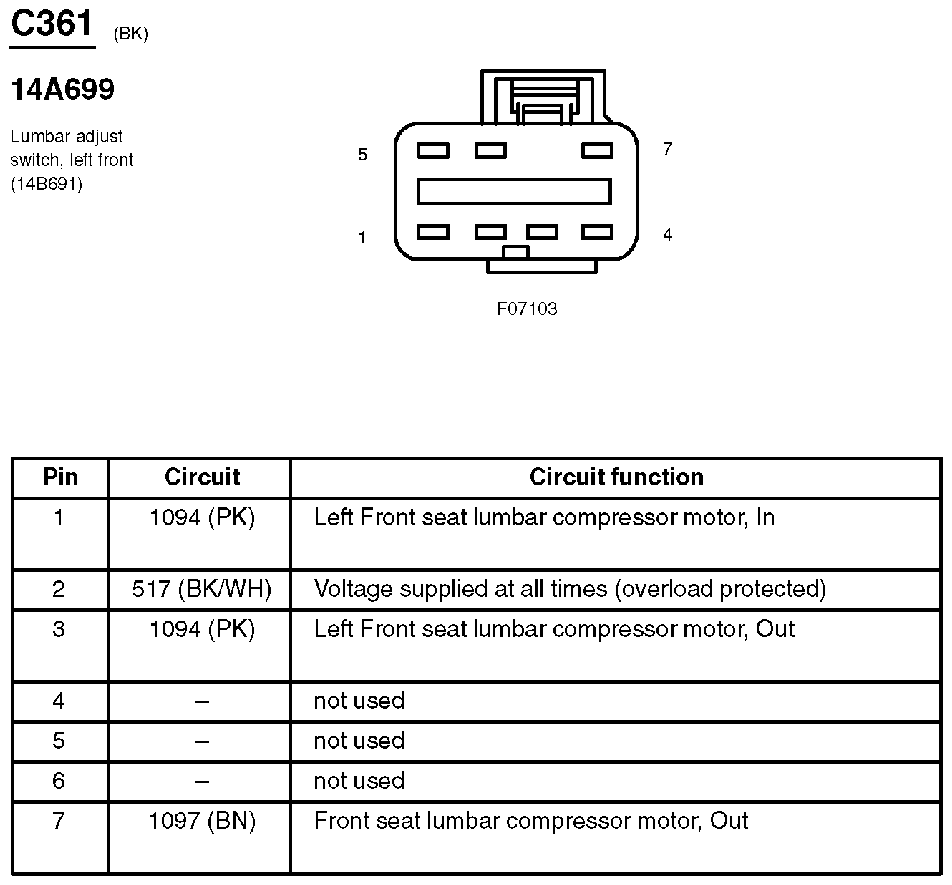

Fig 138: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.

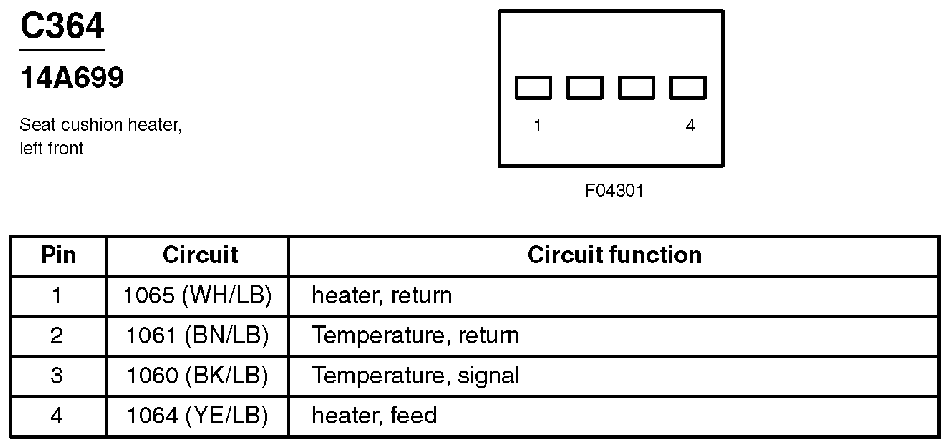

Fig 139: Seat Cushion Heater, Left Front Connector End View (C364)
Courtesy of FORD MOTOR CO.

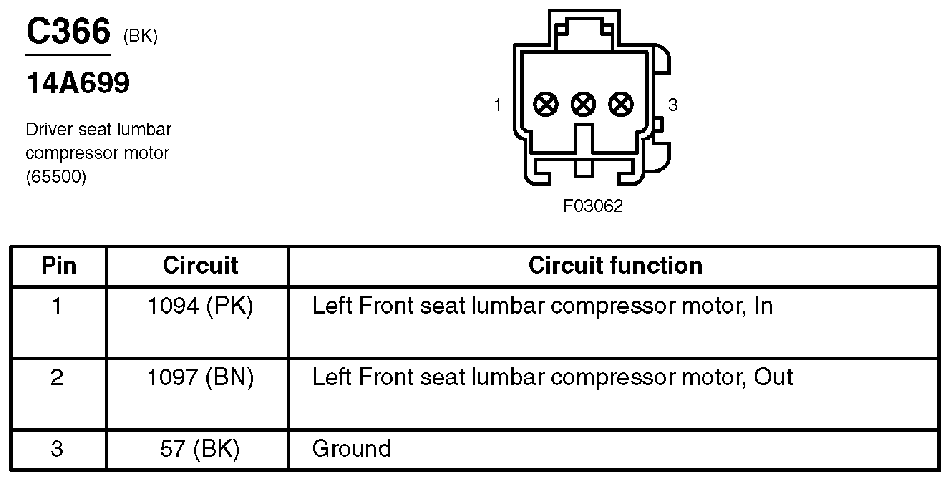

Fig 140: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

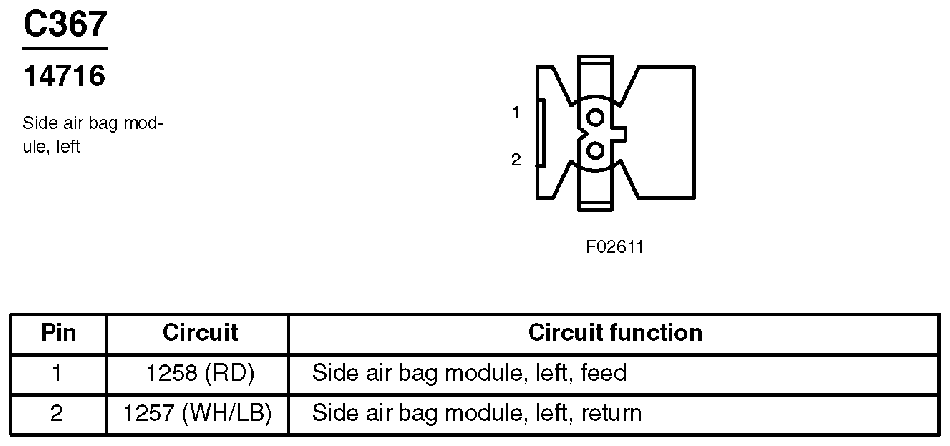

Fig 141: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.

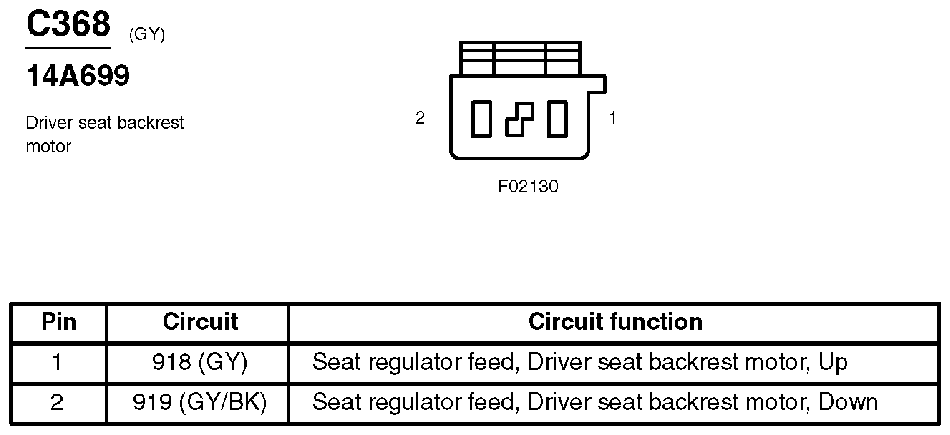

Fig 142: Driver Seat Backrest Motor Connector End View (C368)
Courtesy of FORD MOTOR CO.

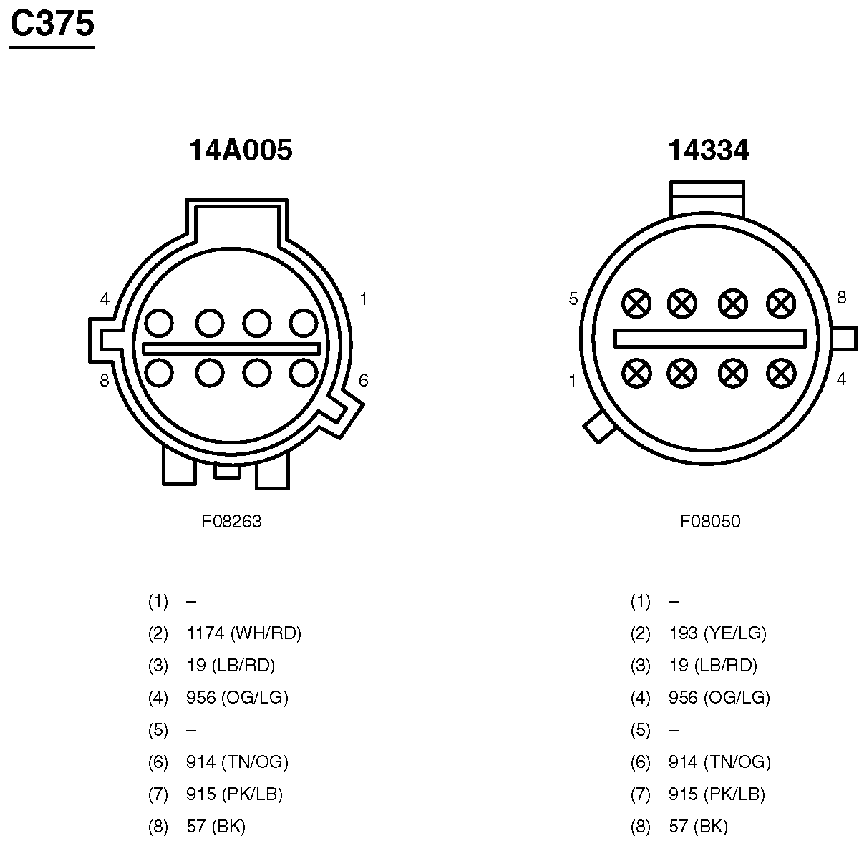

Fig 143: Inline Connector End View (C375)
Courtesy of FORD MOTOR CO.

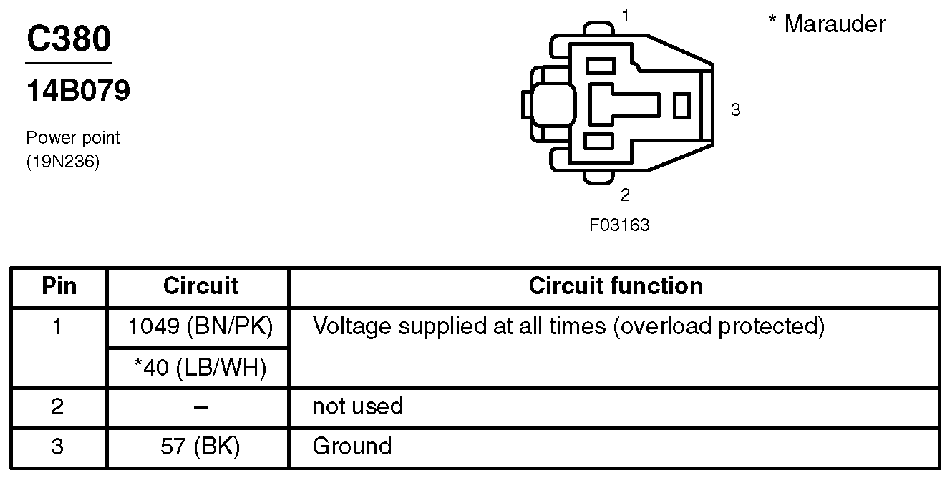

Fig 144: Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.

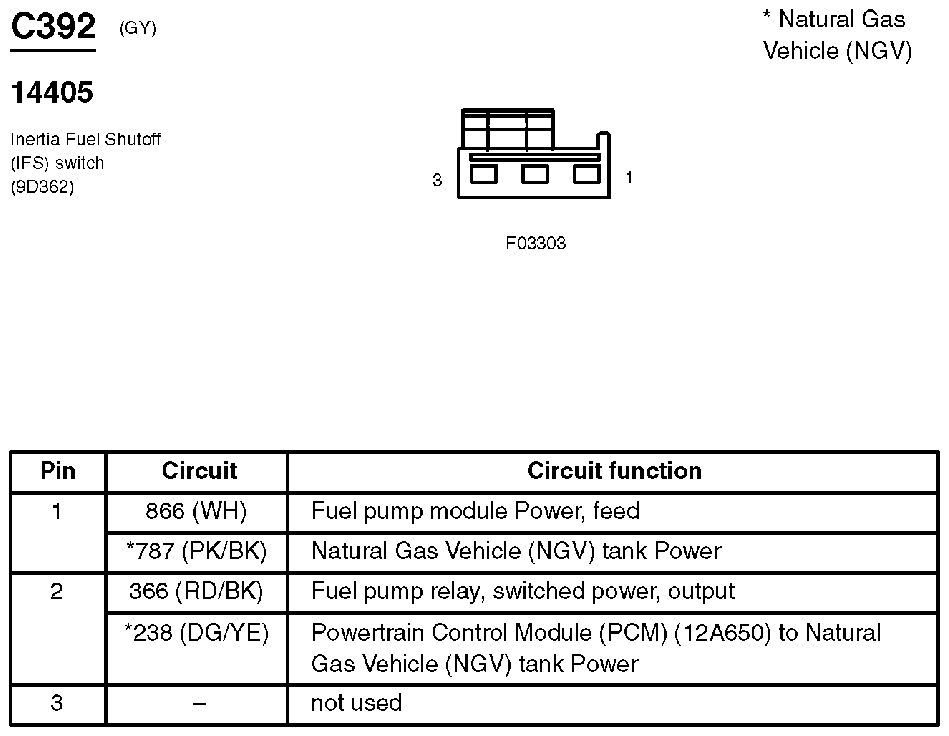

Fig 145: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
Courtesy of FORD MOTOR CO.

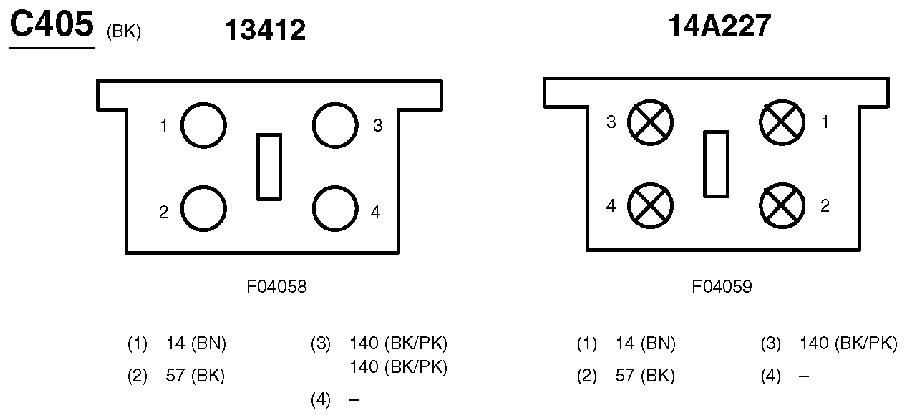

Fig 146: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

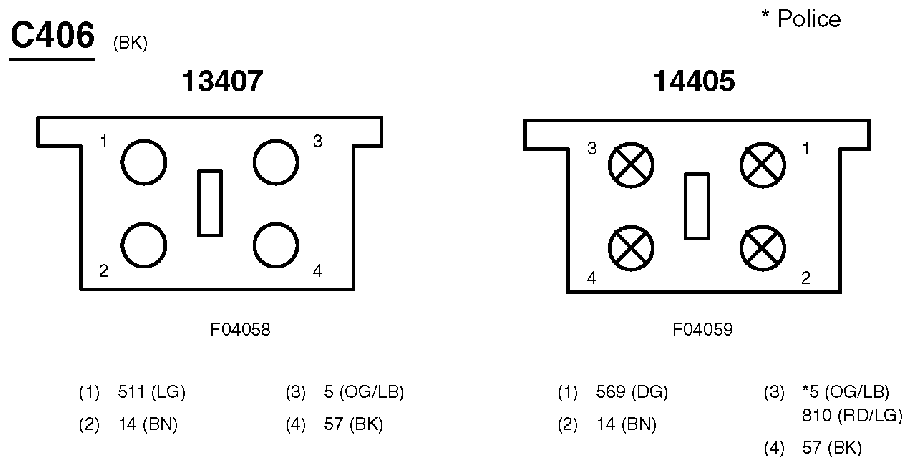

Fig 147: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

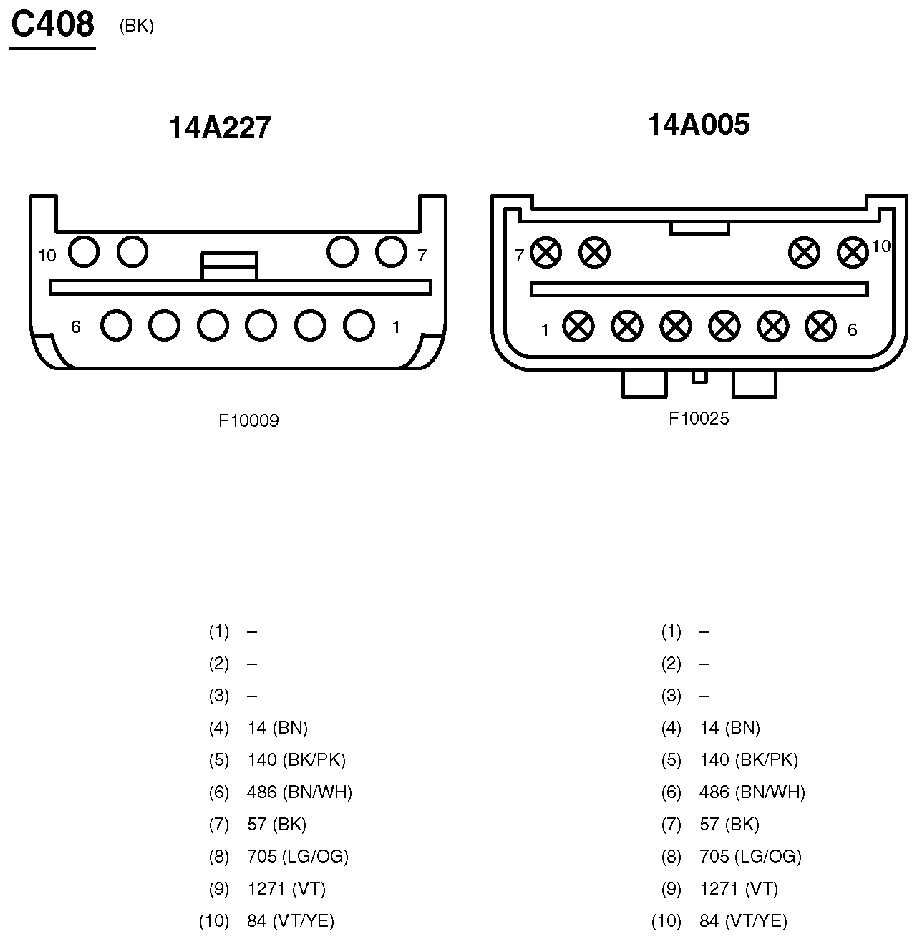

Fig 148: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

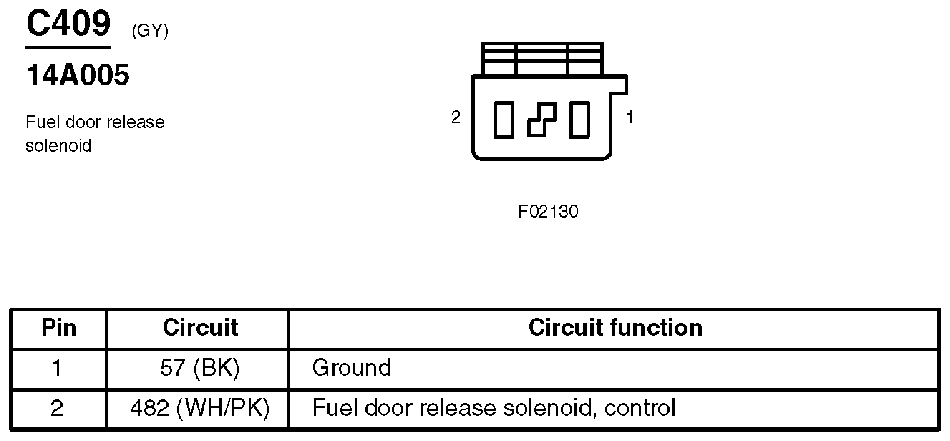

Fig 149: Fuel Door Release Solenoid Connector End View (C409)
Courtesy of FORD MOTOR CO.

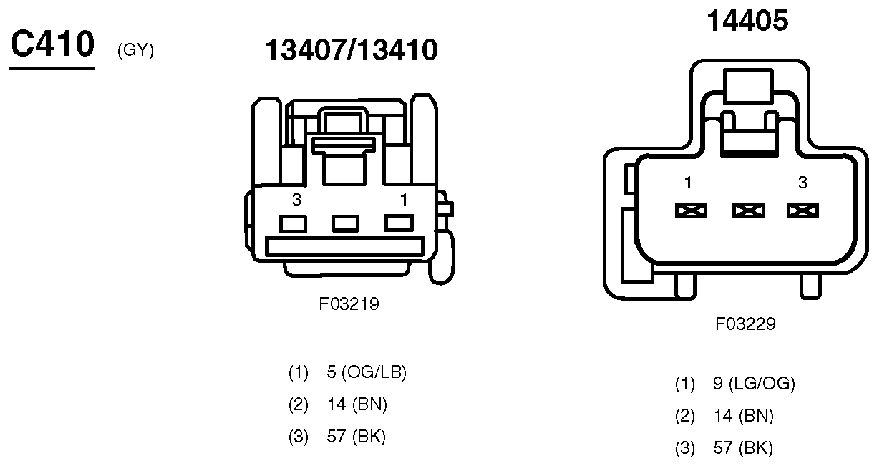

Fig 150: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

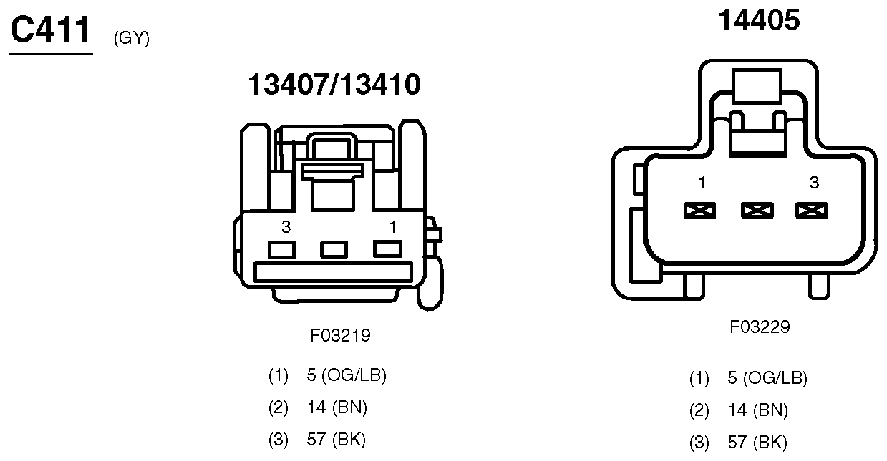

Fig 151: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

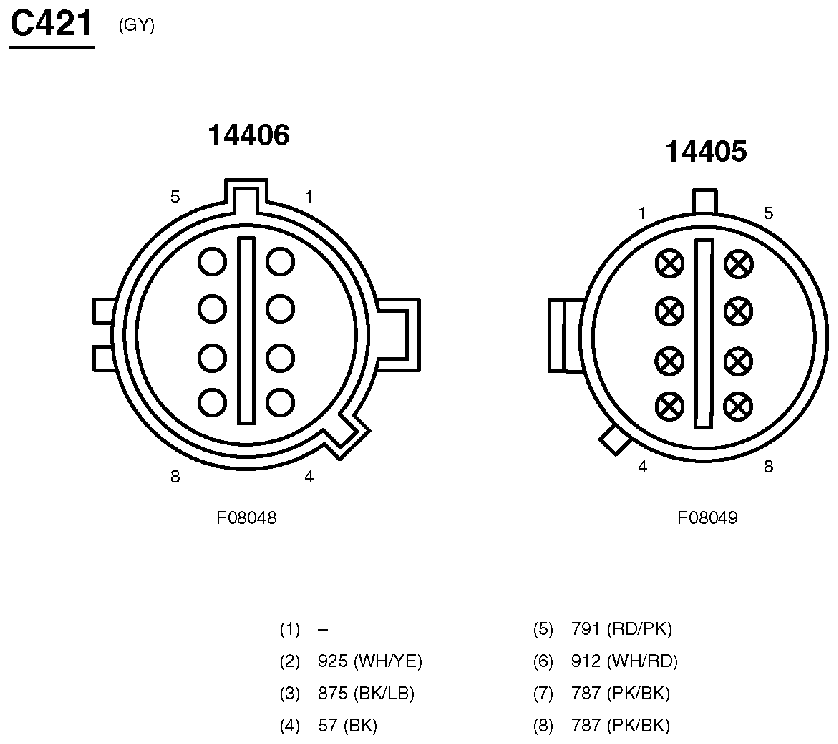

Fig 152: Inline Connector End View (C421)
Courtesy of FORD MOTOR CO.

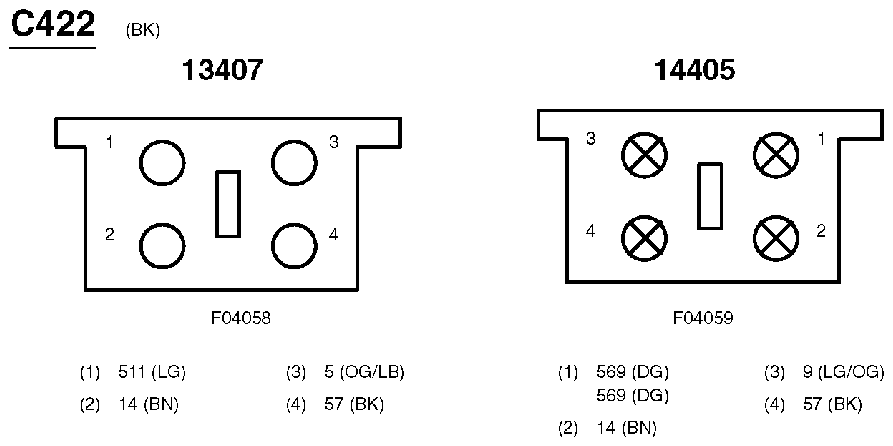

Fig 153: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

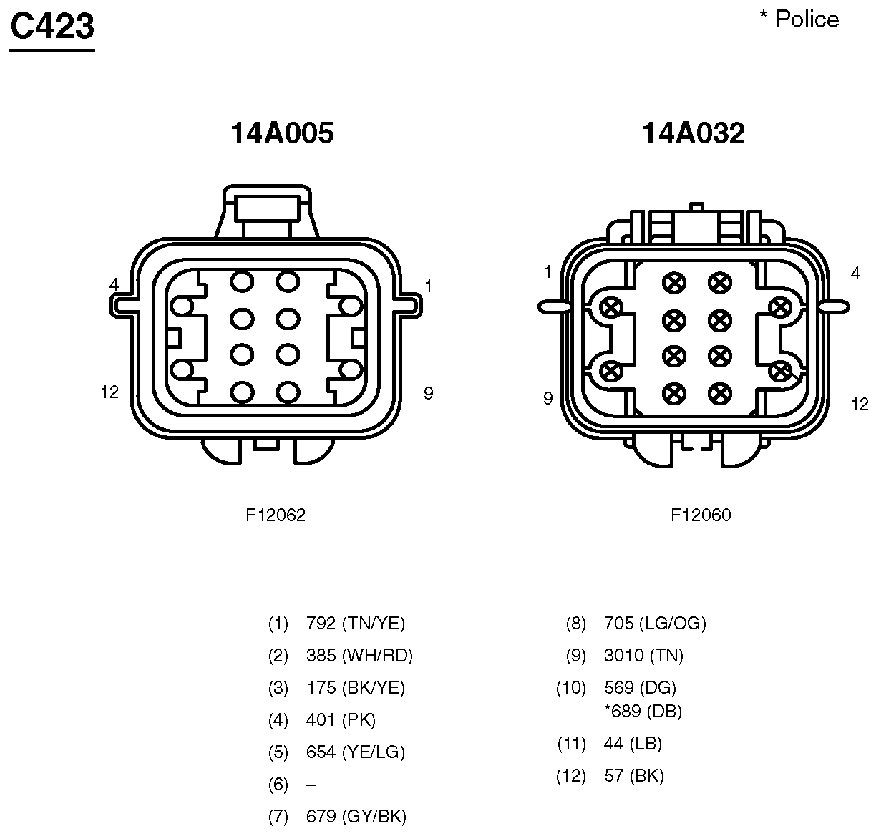

Fig 154: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.

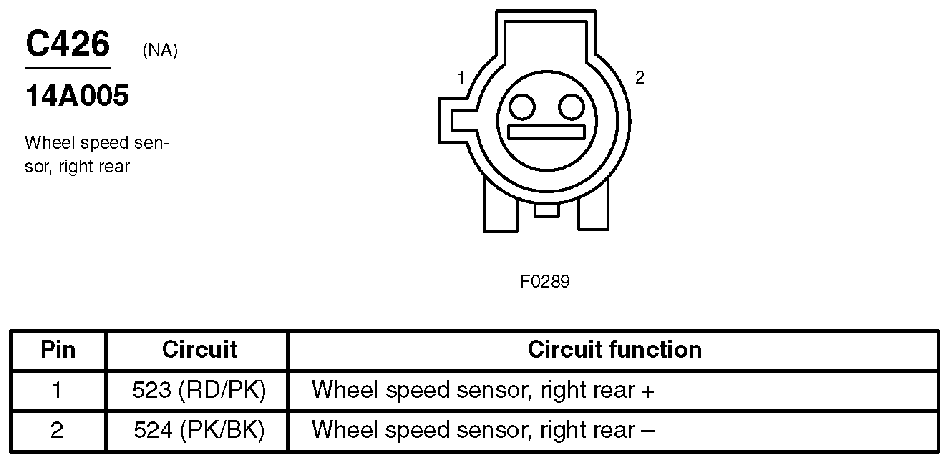

Fig 155: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

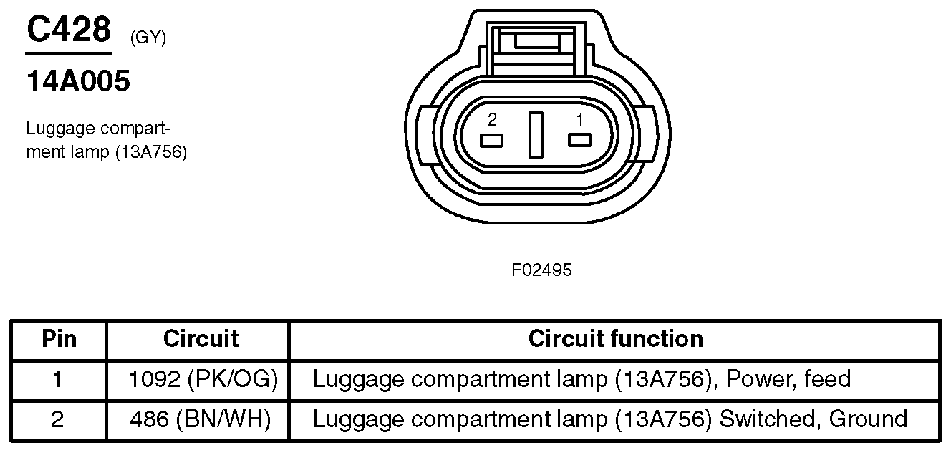

Fig 156: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.

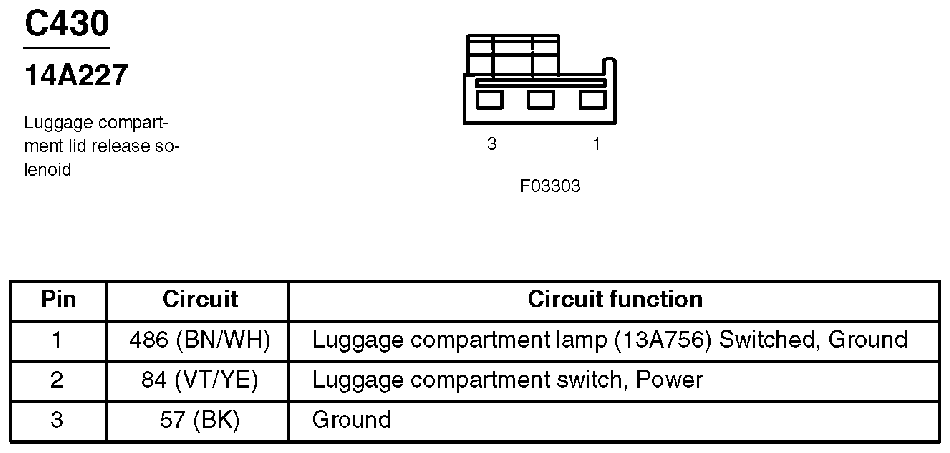

Fig 157: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.

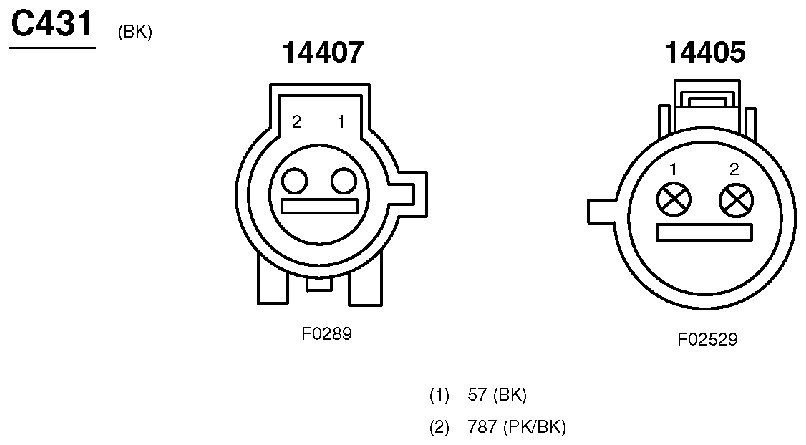

Fig 158: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.

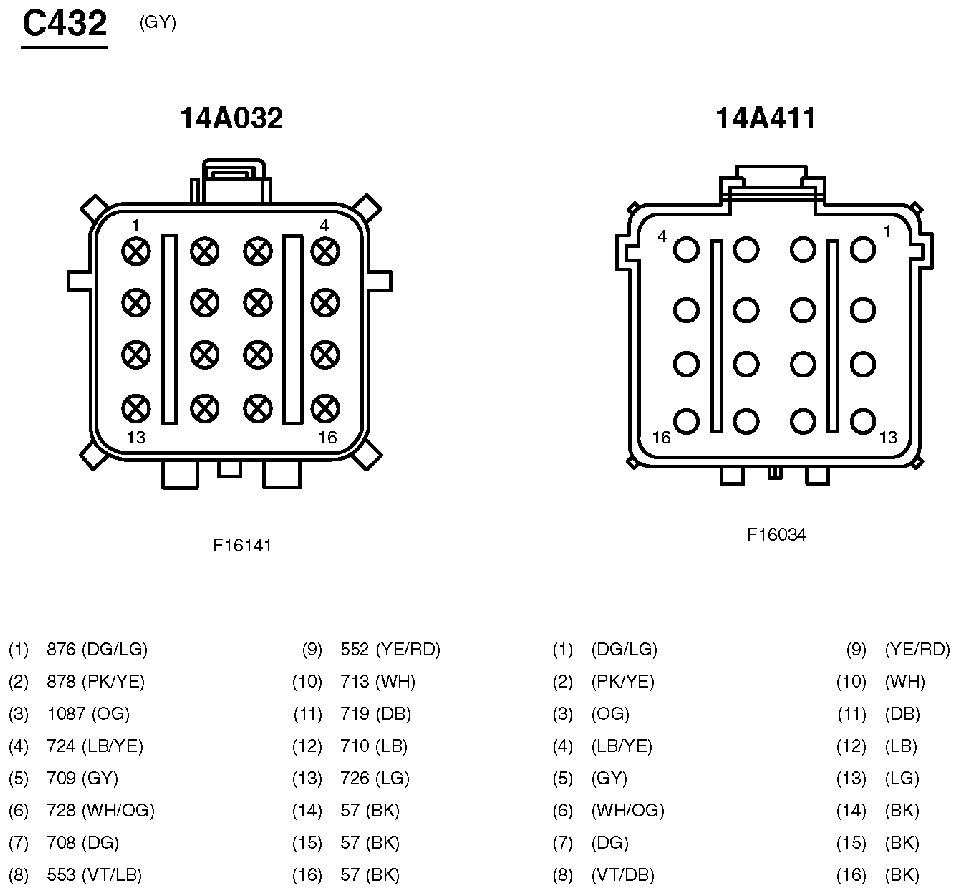

Fig 159: Inline Connector End View (C432)
Courtesy of FORD MOTOR CO.

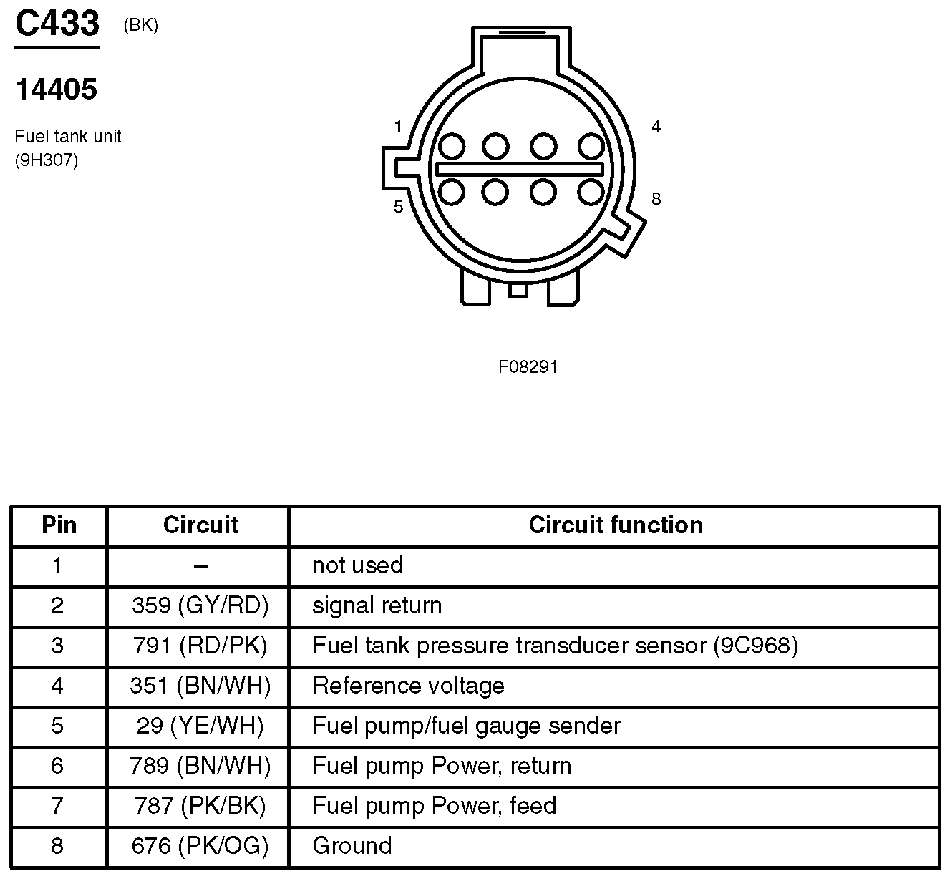

Fig 160: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

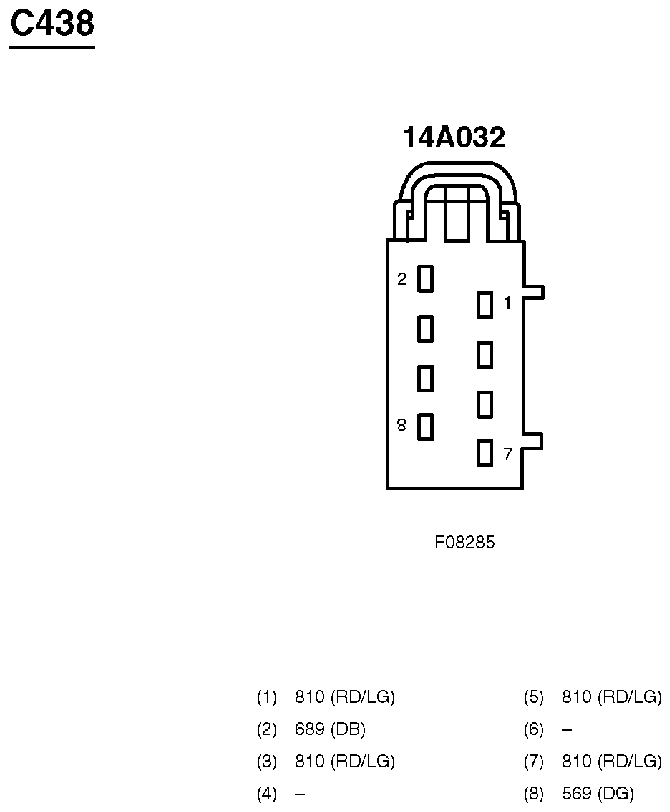

Fig 161: Inline Connector End View (C438)
Courtesy of FORD MOTOR CO.

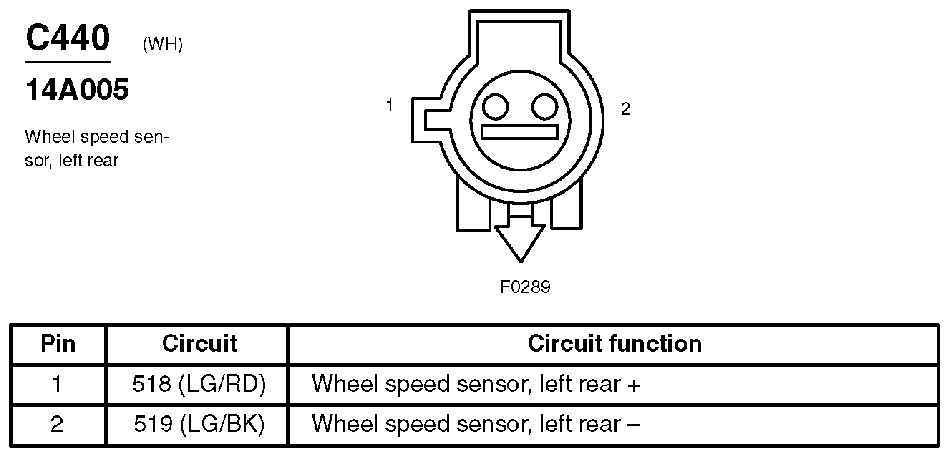

Fig 162: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

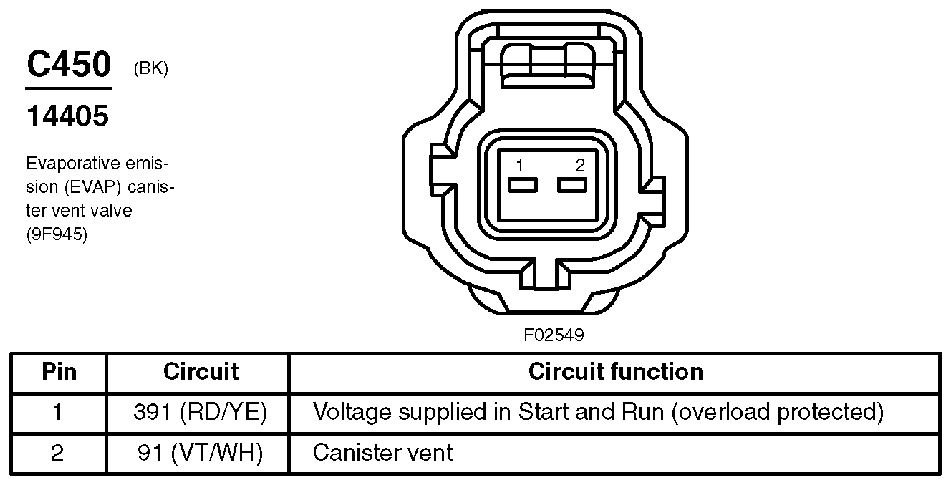

Fig 163: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.

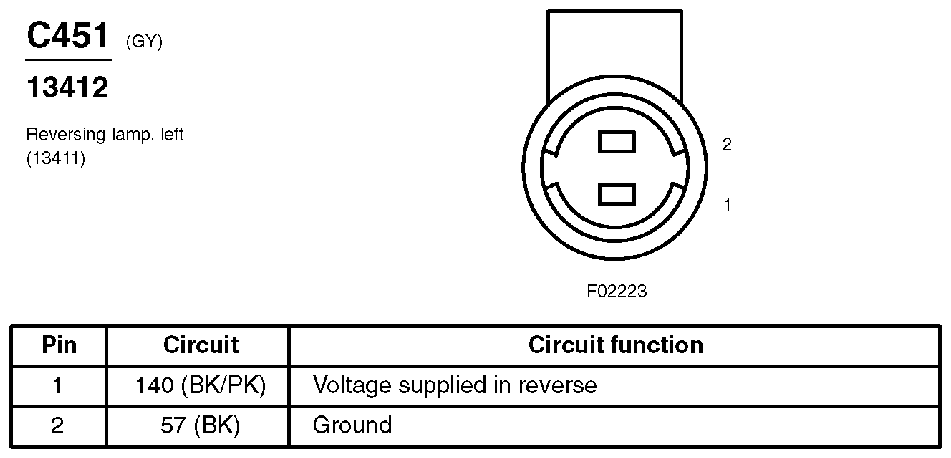

Fig 164: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

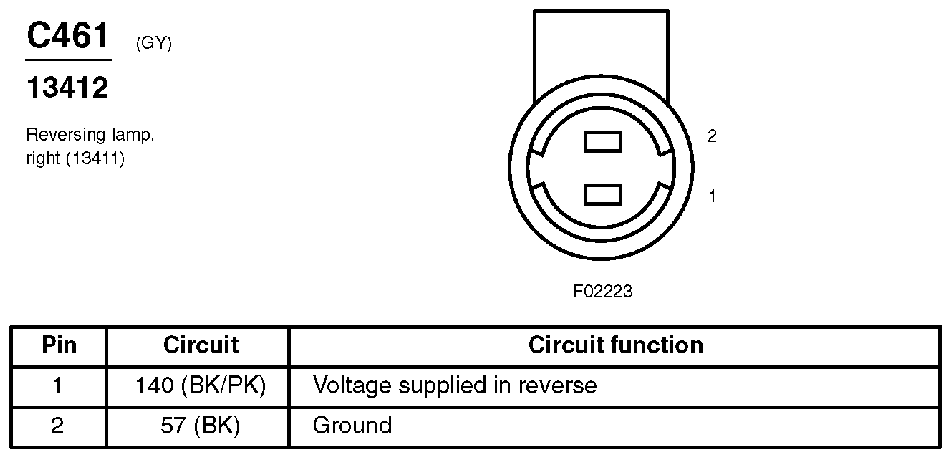

Fig 165: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

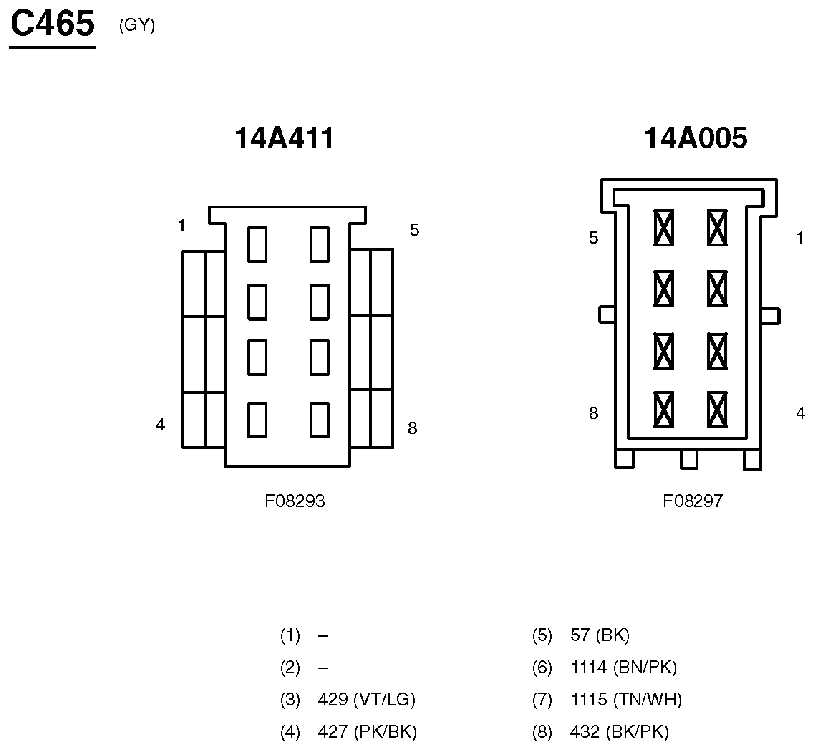

Fig 166: Inline Connector End View (C465)
Courtesy of FORD MOTOR CO.

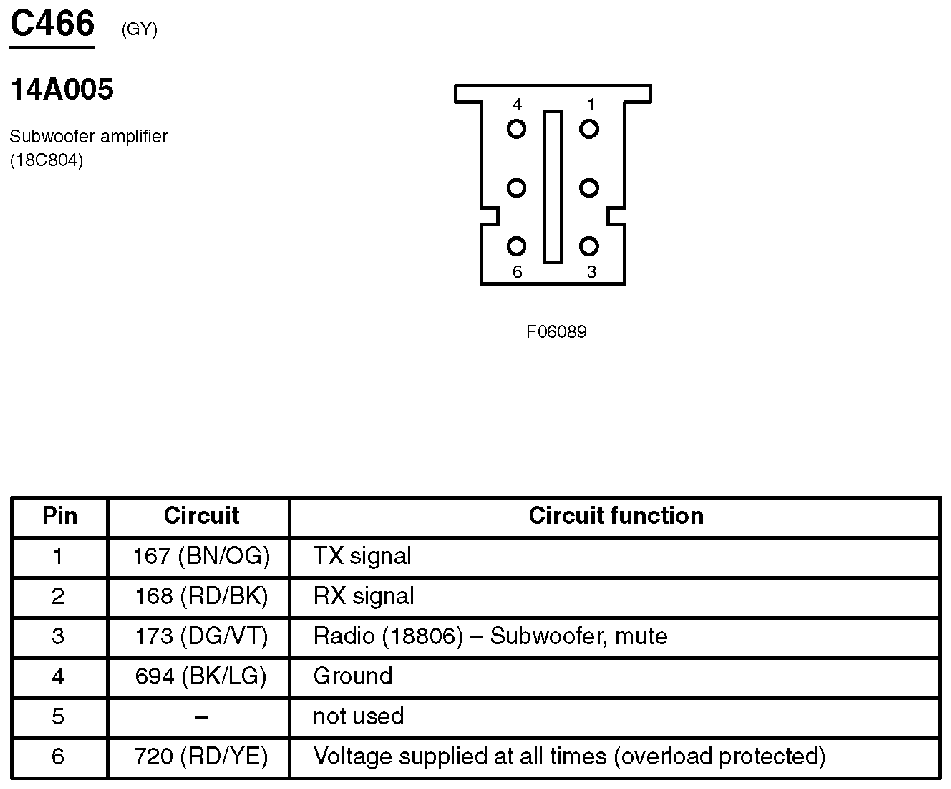

Fig 167: Subwoofer Amplifier Connector End View (C466)
Courtesy of FORD MOTOR CO.

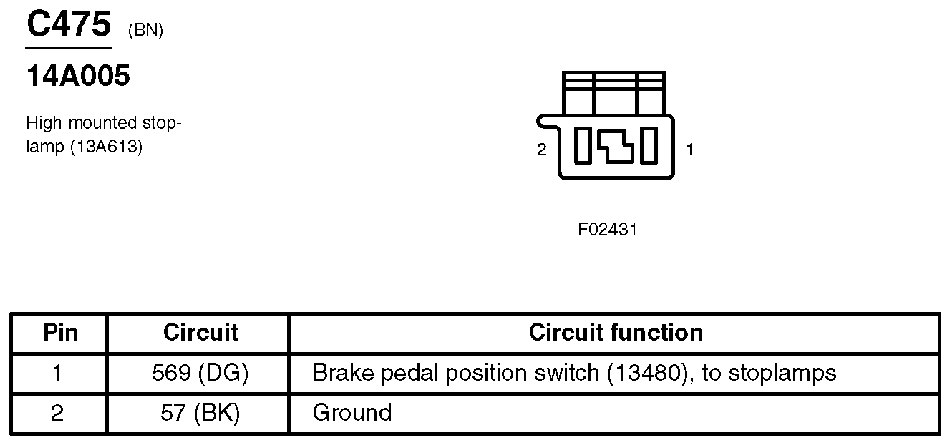

Fig 168: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

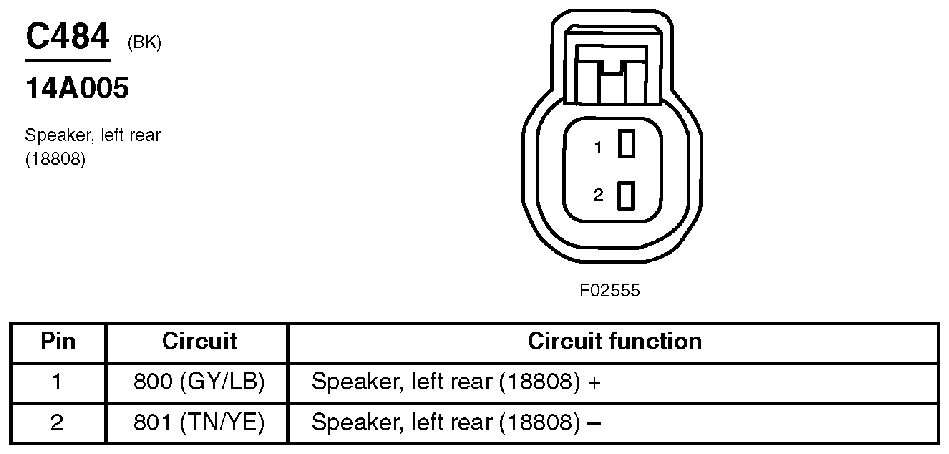

Fig 169: Speaker, Left Rear Connector End View (C484)
Courtesy of FORD MOTOR CO.

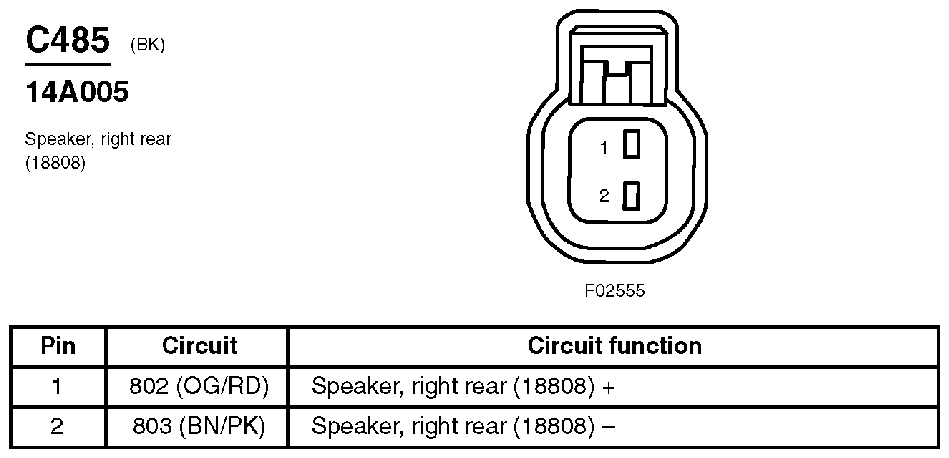

Fig 170: Speaker, Right Rear Connector End View (C485)
Courtesy of FORD MOTOR CO.

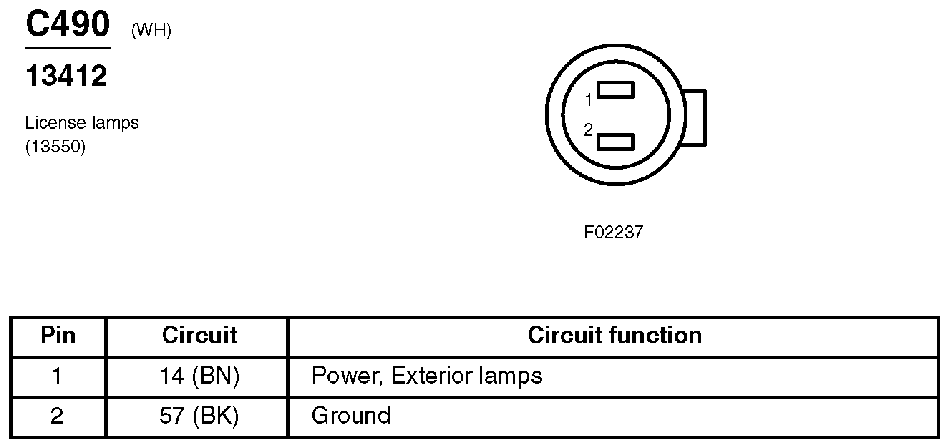

Fig 171: License Lamps Connector End View (C490)
Courtesy of FORD MOTOR CO.

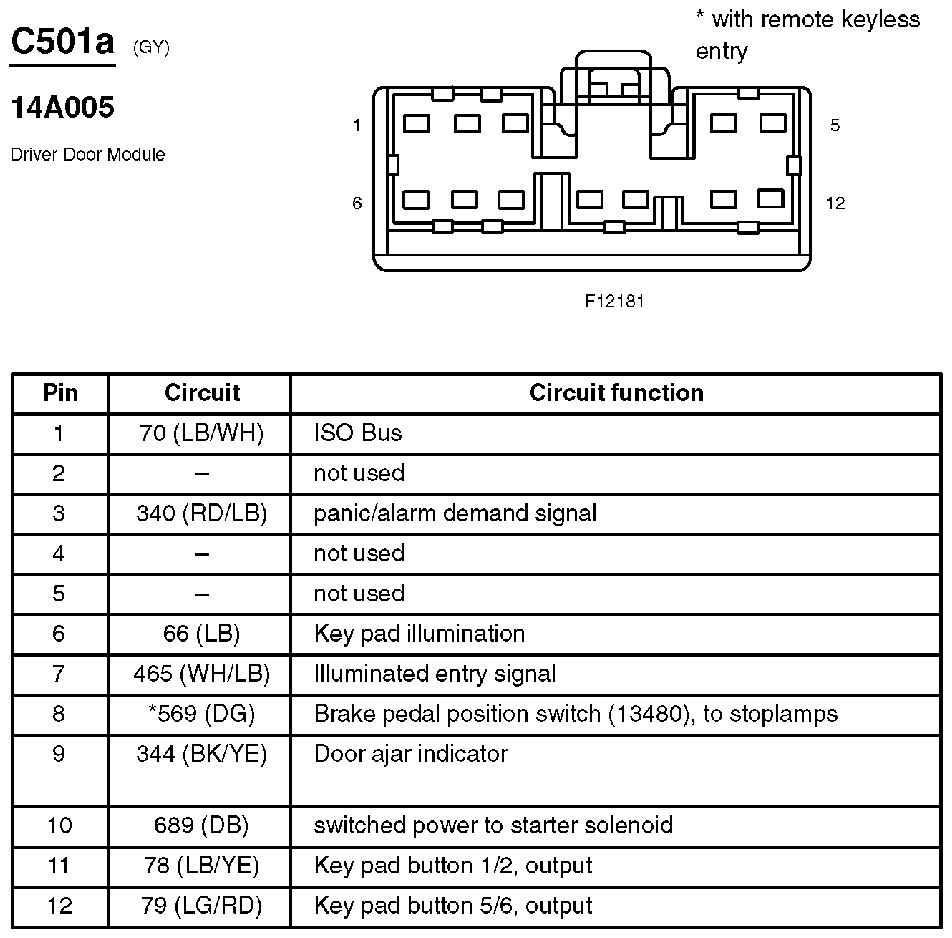

Fig 172: Driver Door Module Connector End View (C501a)
Courtesy of FORD MOTOR CO.

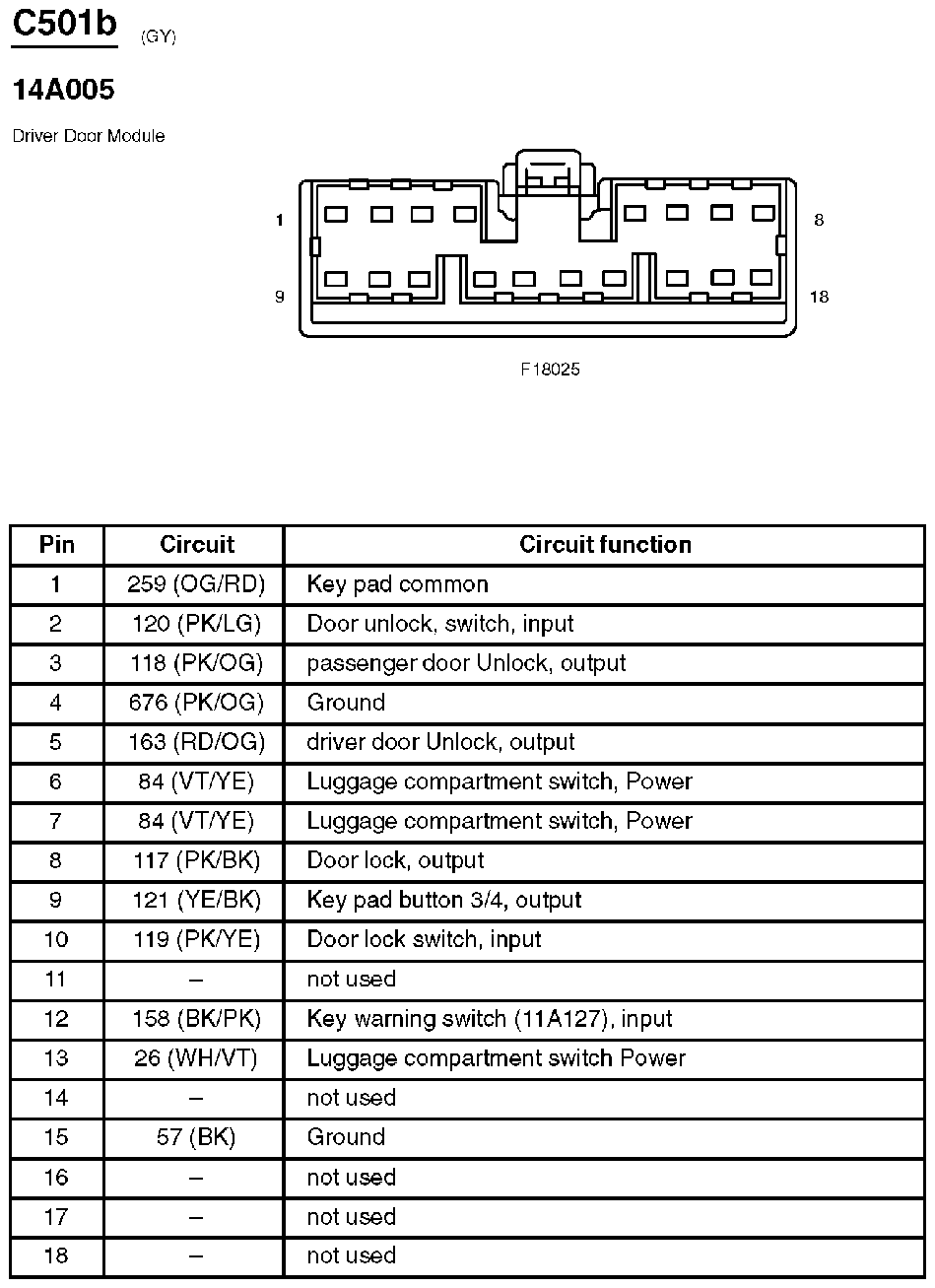

Fig 173: Driver Door Module Connector End View (C501b)
Courtesy of FORD MOTOR CO.

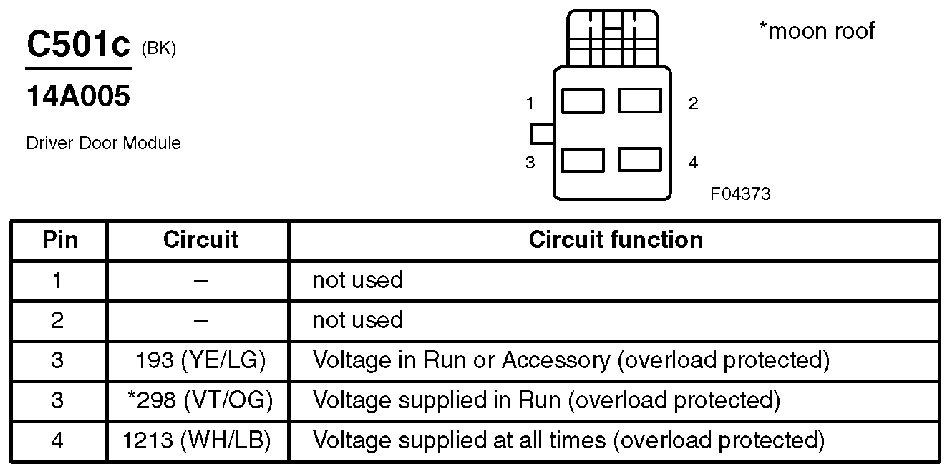

Fig 174: Driver Door Module Connector End View (C501c)
Courtesy of FORD MOTOR CO.

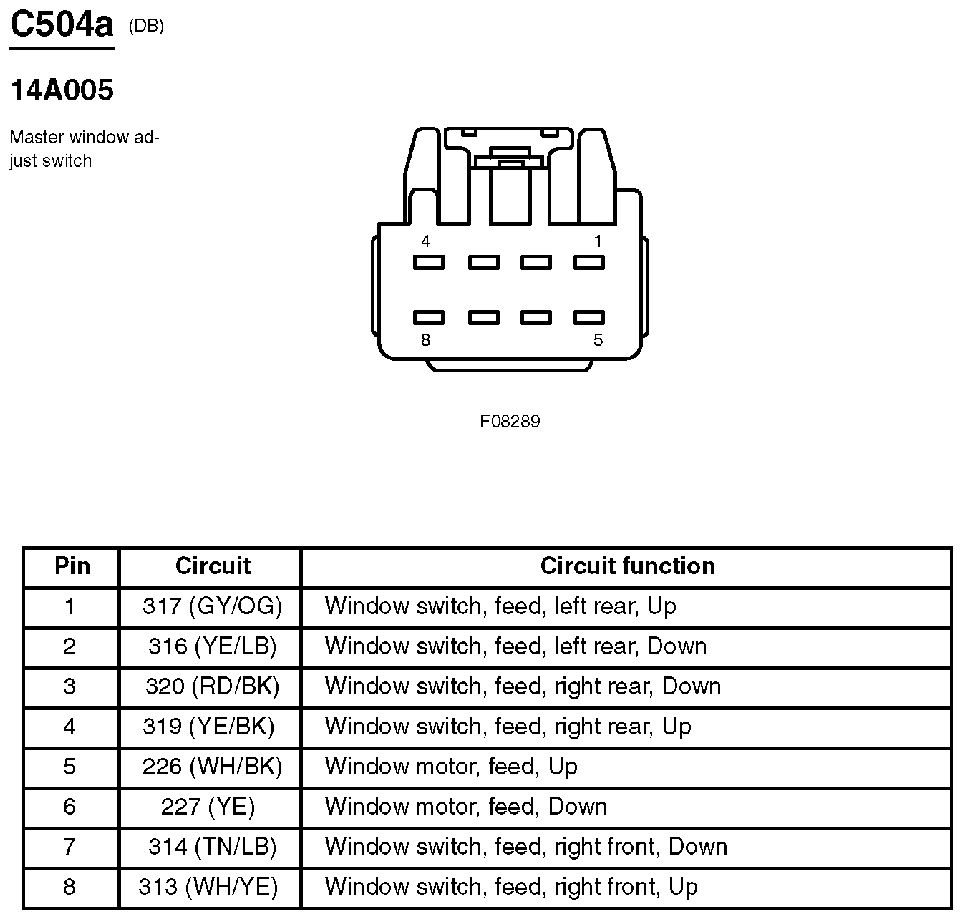

Fig 175: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.

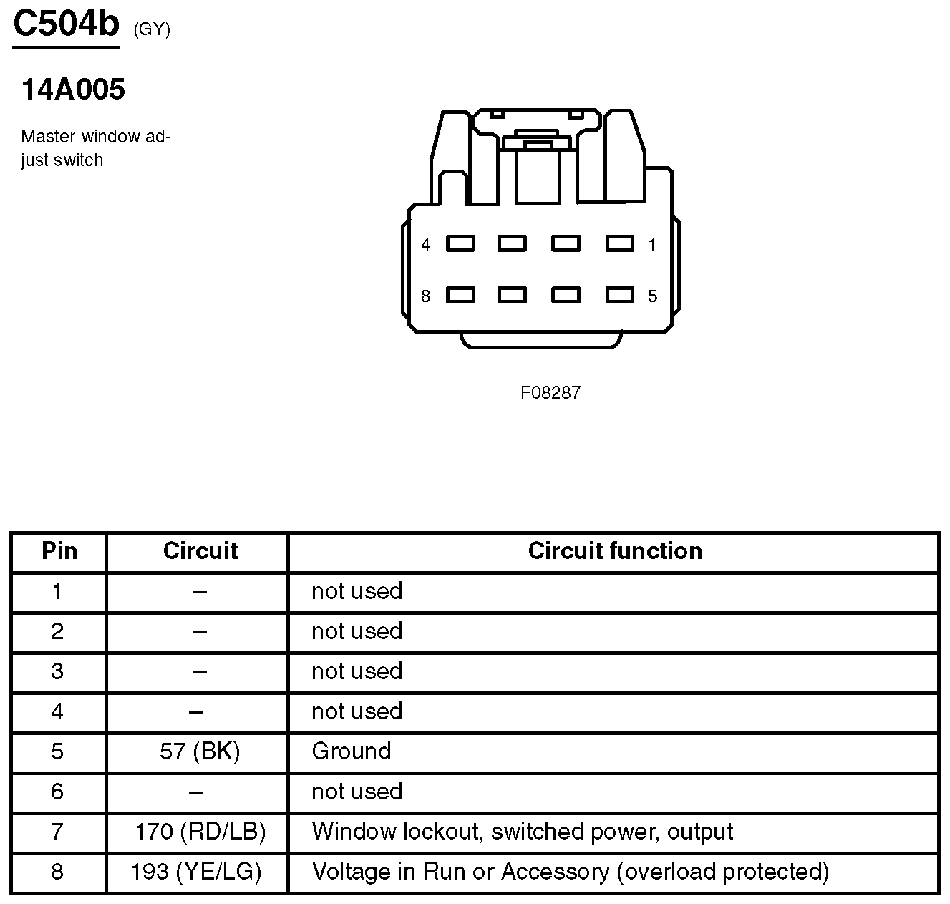

Fig 176: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.

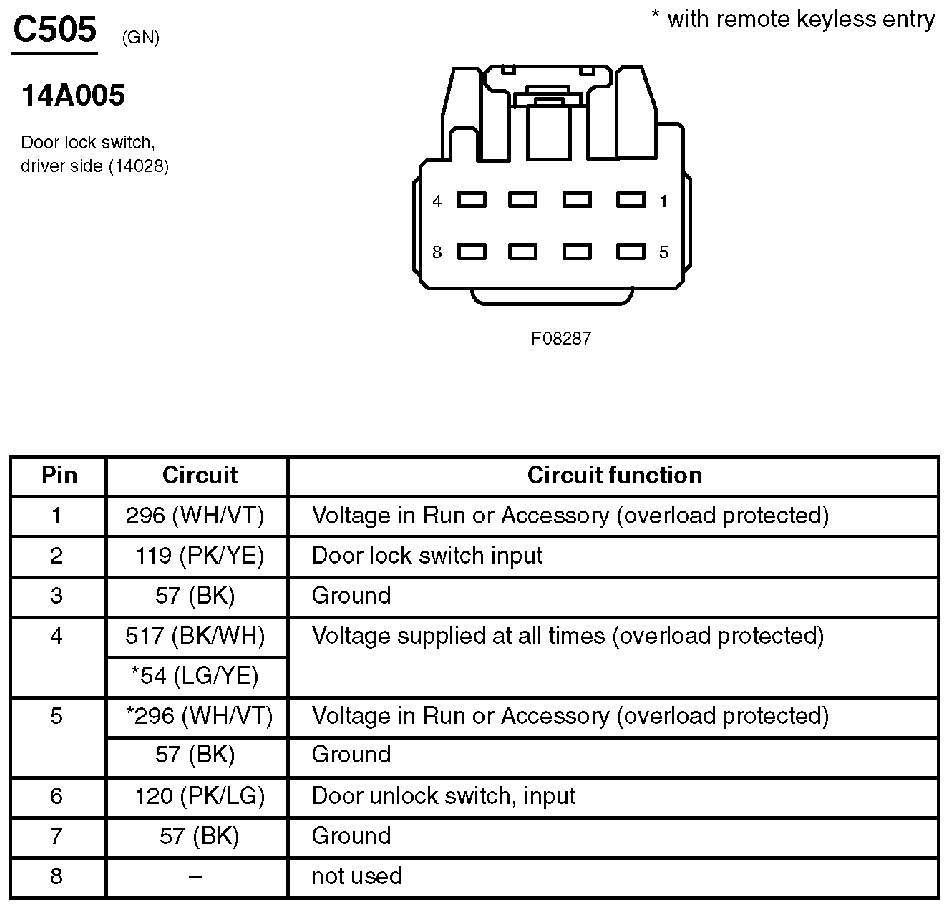

Fig 177: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

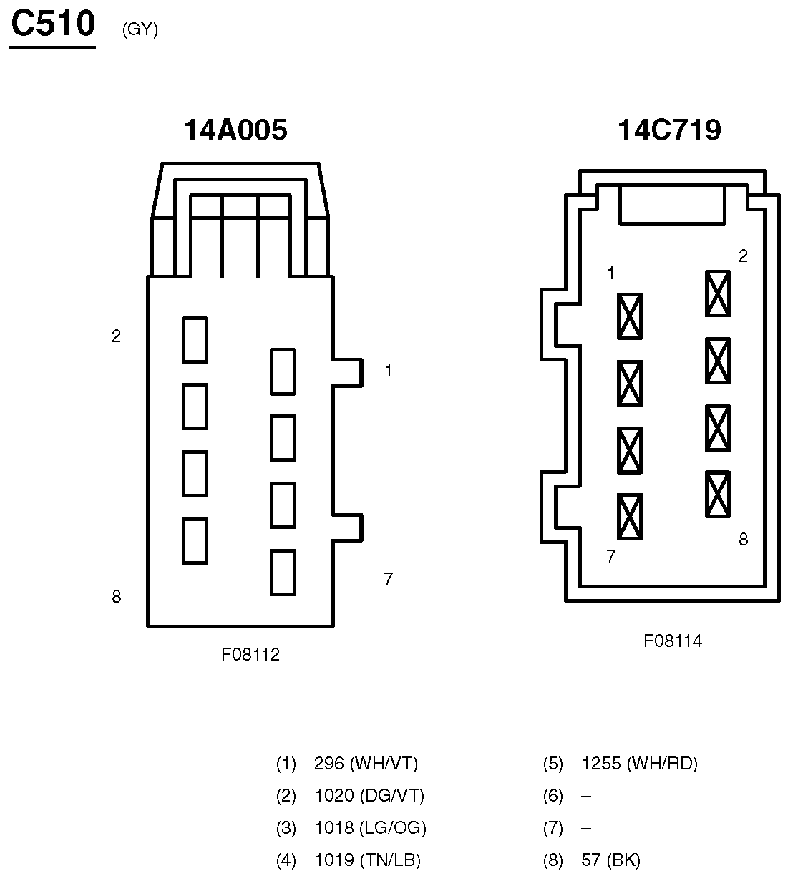

Fig 178: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

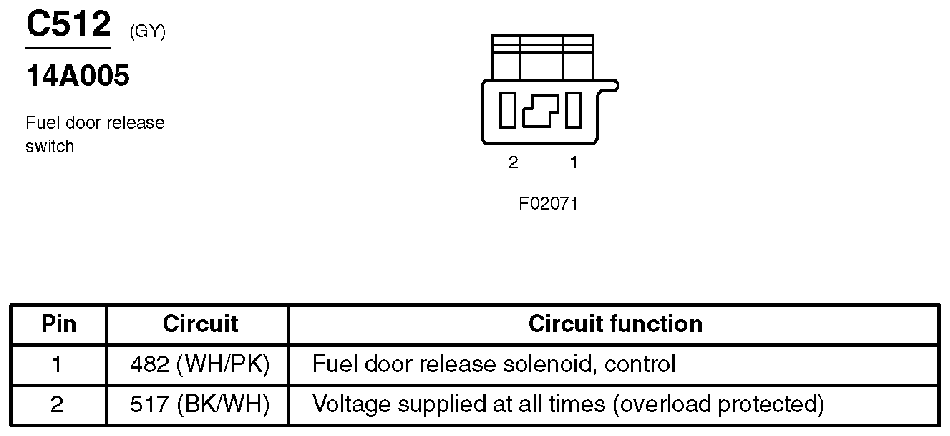

Fig 179: Fuel Door Release Switch Connector End View (C512)
Courtesy of FORD MOTOR CO.

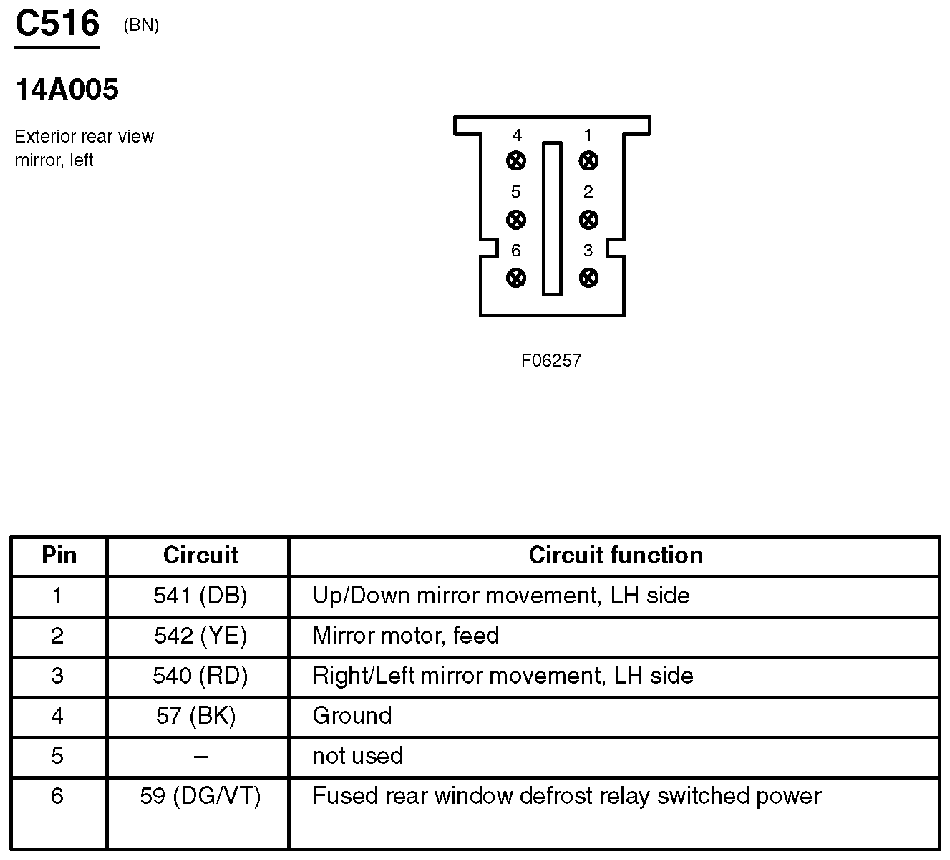

Fig 180: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

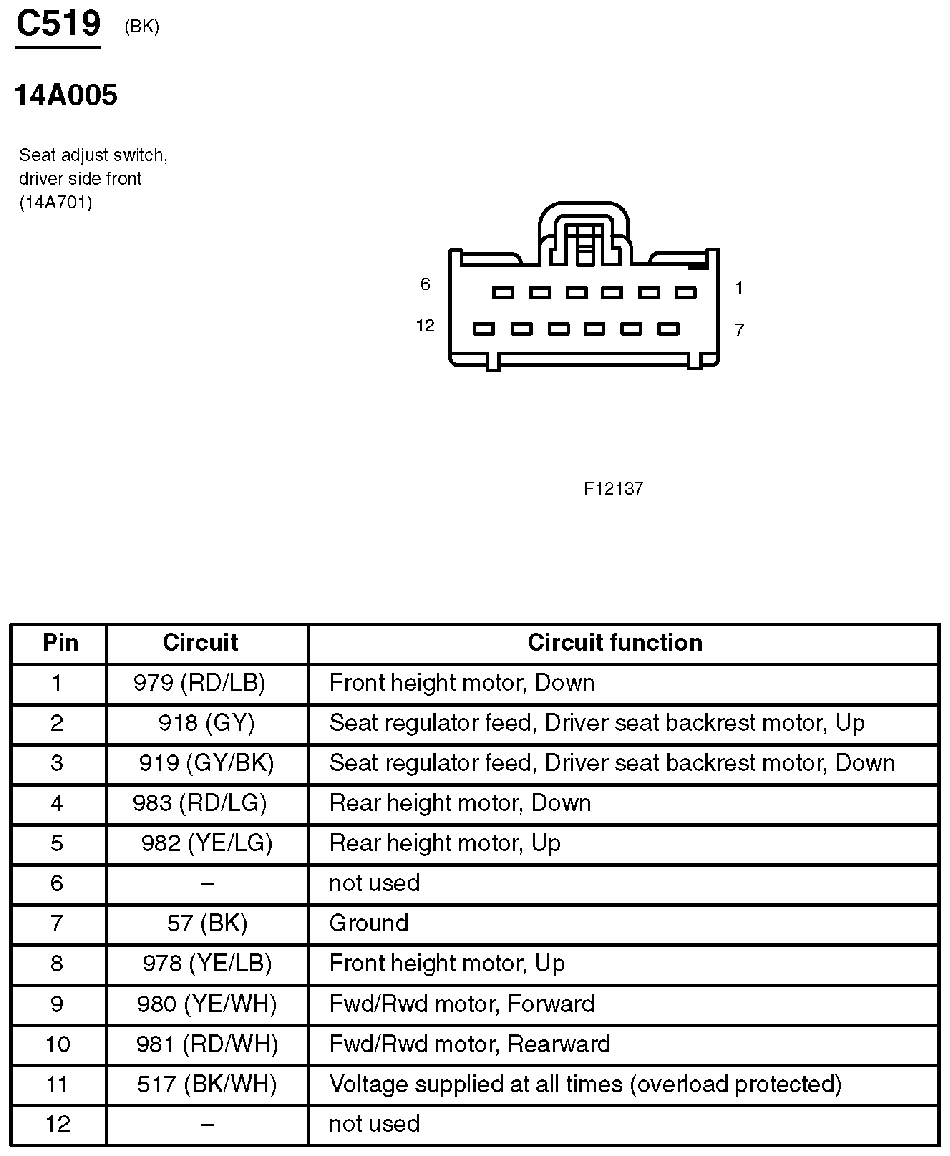

Fig 181: Seat Adjust Switch, Driver Side Front Connector End View (C519)
Courtesy of FORD MOTOR CO.

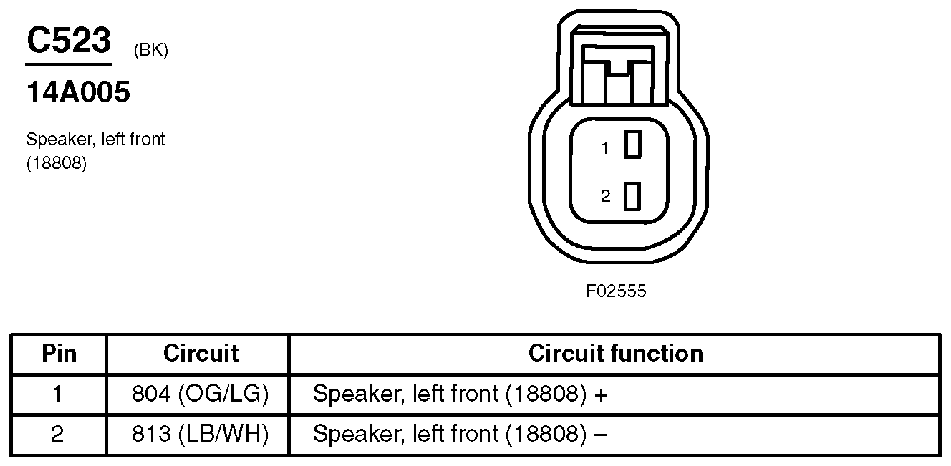

Fig 182: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

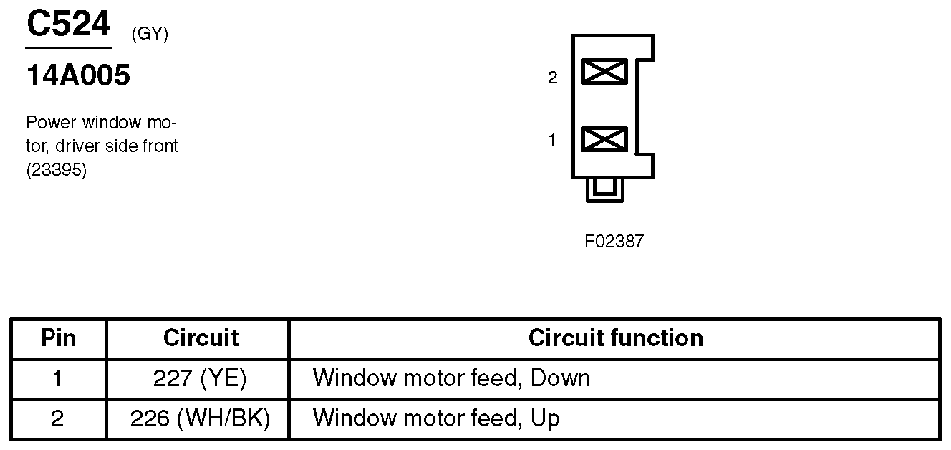

Fig 183: Power Window Motor, Driver Side Front Connector End View (C524)
Courtesy of FORD MOTOR CO.

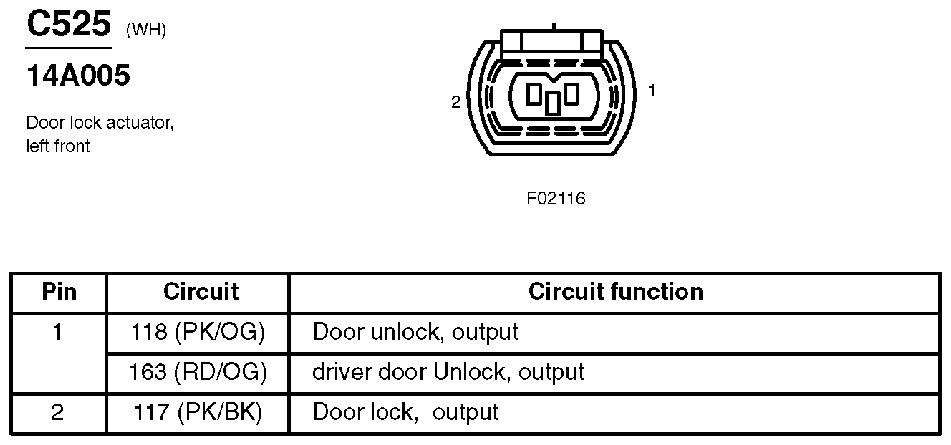

Fig 184: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

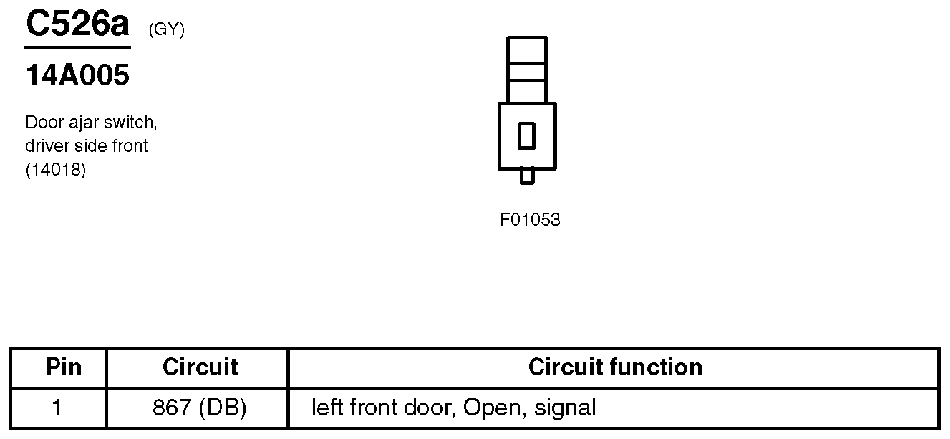

Fig 185: Door Ajar Switch, Driver Side Front Connector End View (C526a)
Courtesy of FORD MOTOR CO.

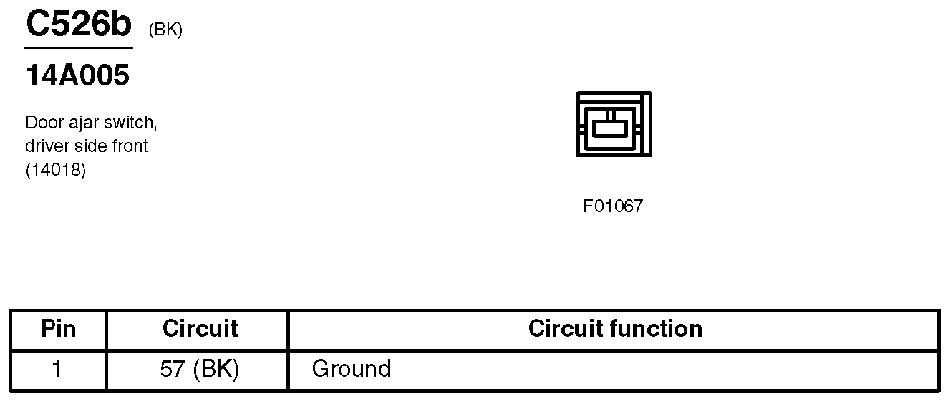

Fig 186: Door Ajar Switch, Driver Side Front Connector End View (C526b)
Courtesy of FORD MOTOR CO.

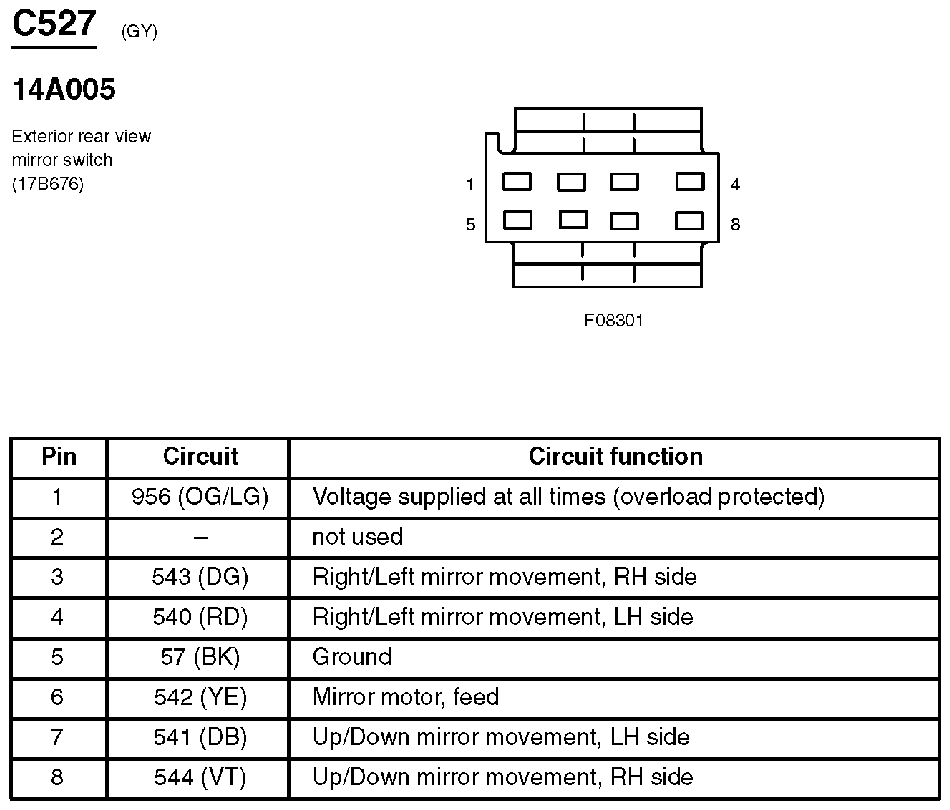

Fig 187: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

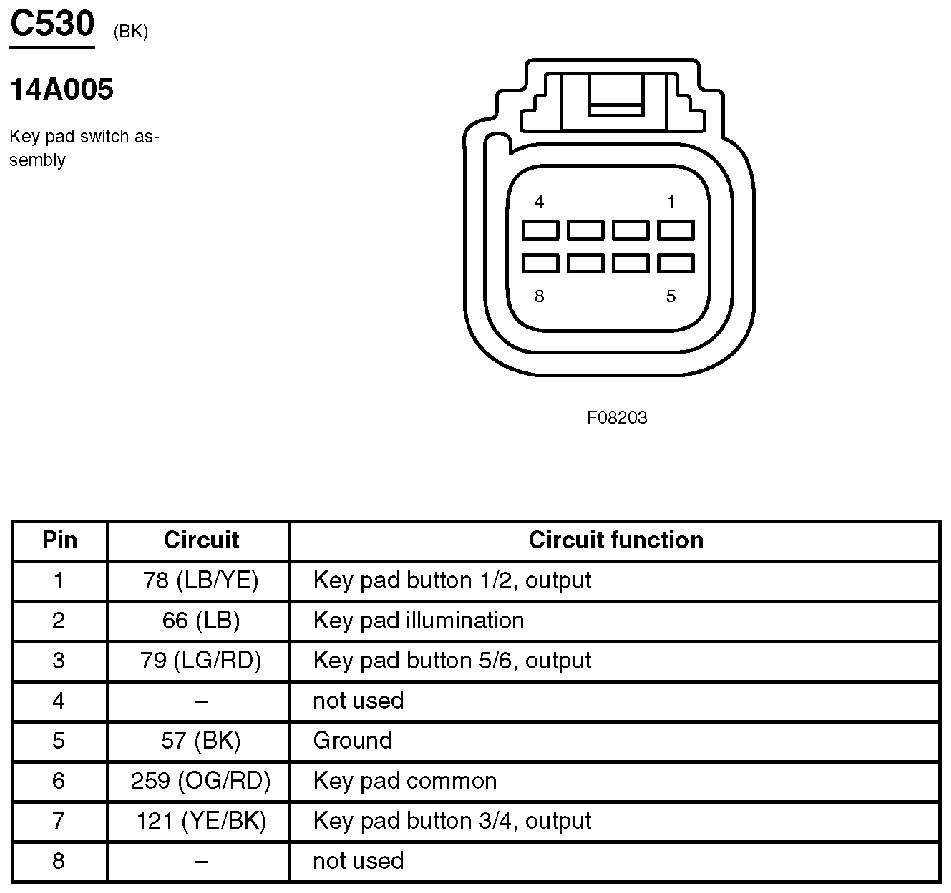

Fig 188: Key Pad Switch Assembly Connector End View (C530)
Courtesy of FORD MOTOR CO.

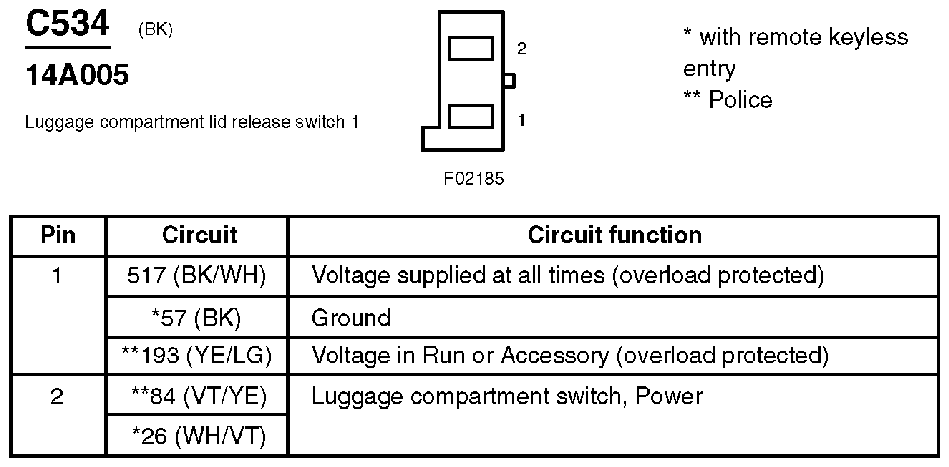

Fig 189: Luggage Compartment Lid Release Switch 1 Connector End View (C534)
Courtesy of FORD MOTOR CO.

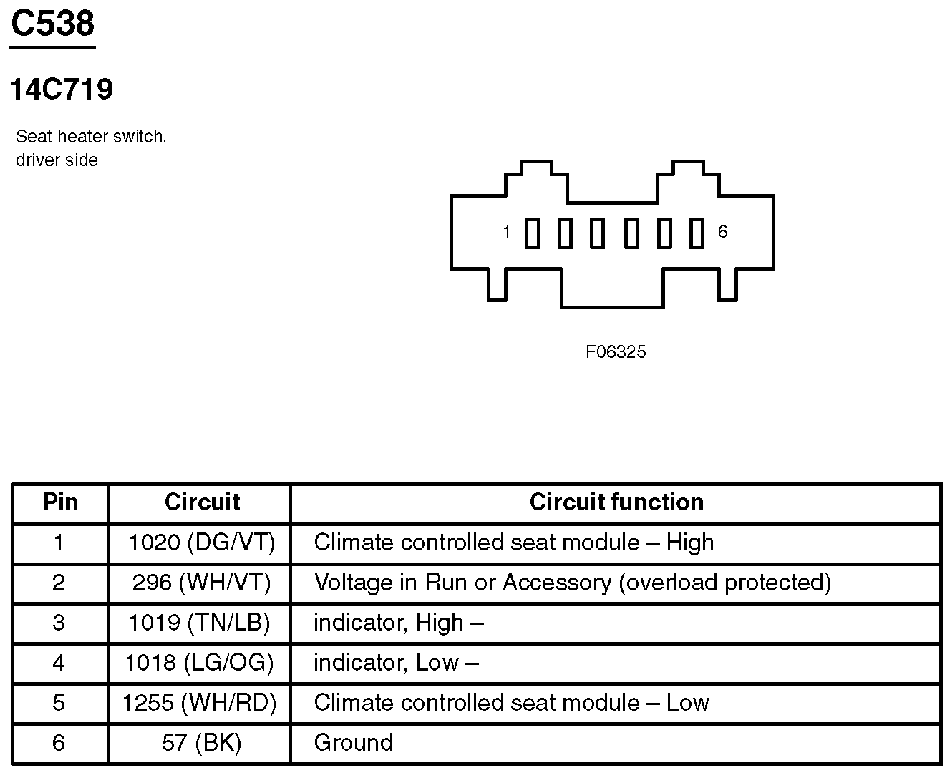

Fig 190: Seat Heater Switch, Driver Side Connector End View (C538)
Courtesy of FORD MOTOR CO.

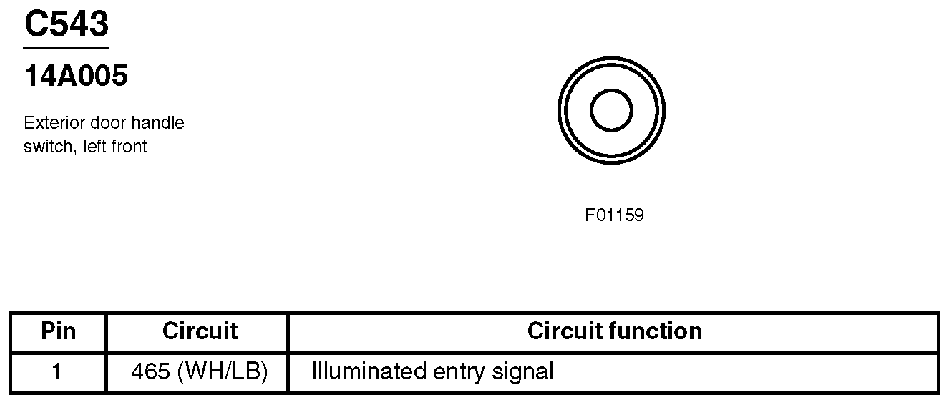

Fig 191: Exterior Door Handle Switch, Left Front Connector End View (C543)
Courtesy of FORD MOTOR CO.

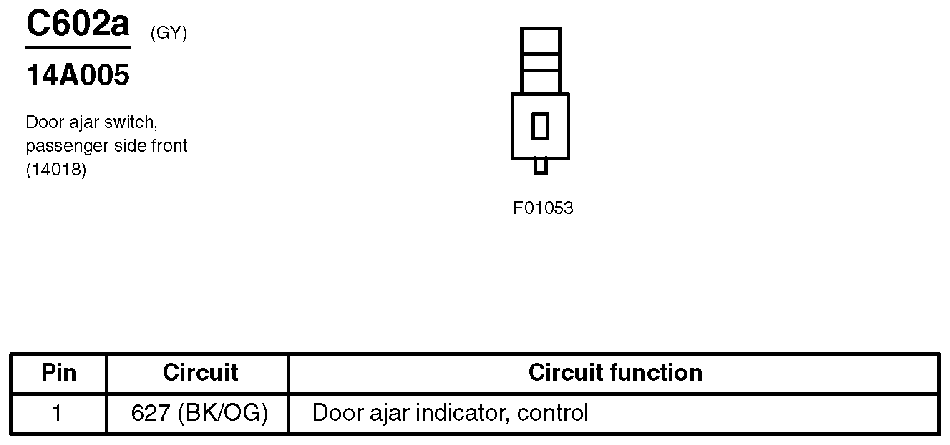

Fig 192: Door Ajar Switch, Passenger Side Front Connector End View (C602a)
Courtesy of FORD MOTOR CO.

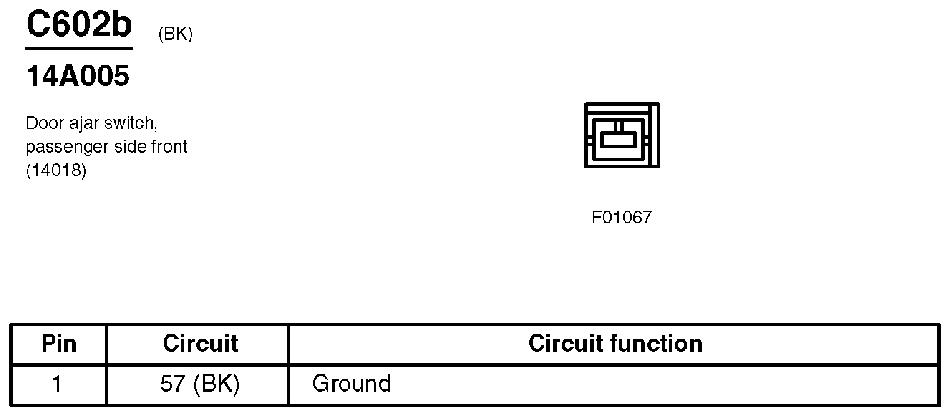

Fig 193: Door Ajar Switch, Passenger Side Front Connector End View (C602b)
Courtesy of FORD MOTOR CO.

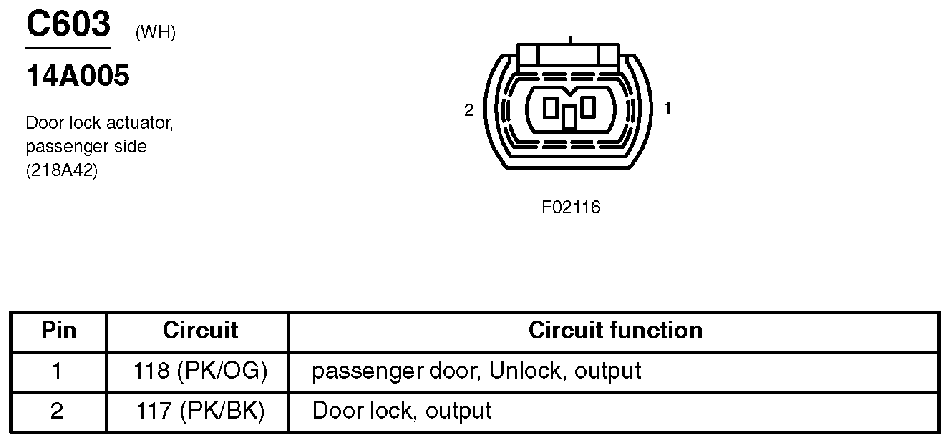

Fig 194: Door Lock Actuator, Passenger Side Connector End View (C603)
Courtesy of FORD MOTOR CO.

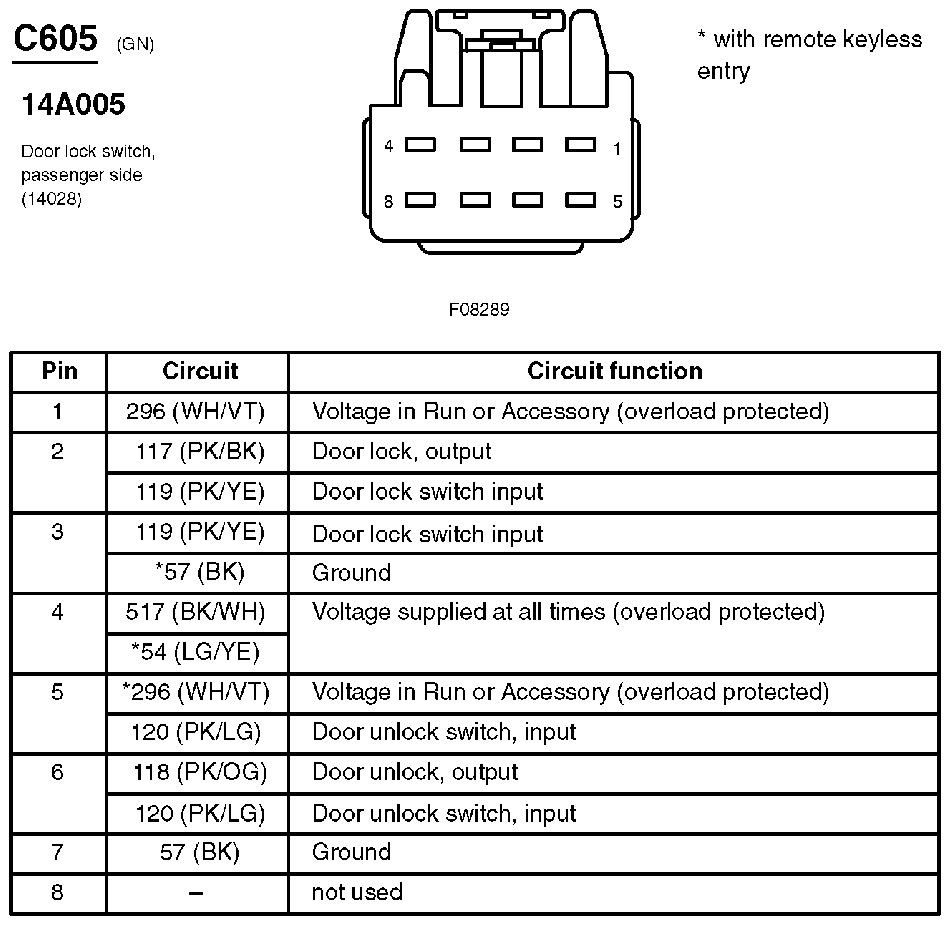

Fig 195: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

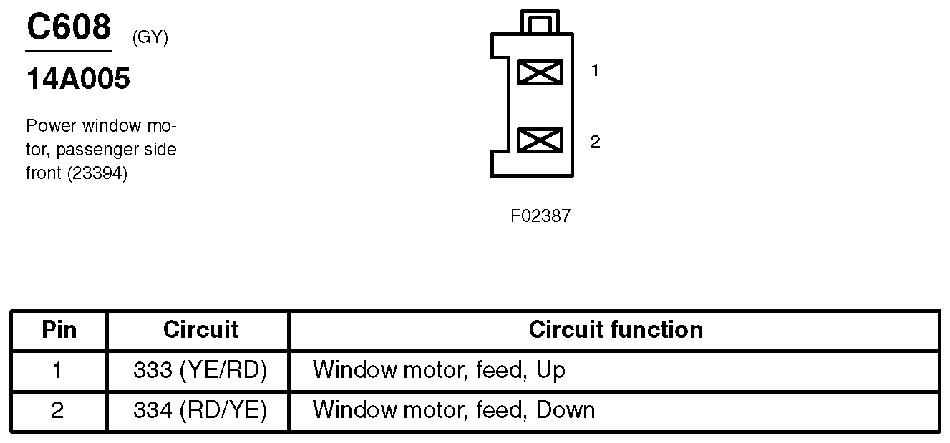

Fig 196: Power Window Motor, Passenger Side Front Connector End View (C608)
Courtesy of FORD MOTOR CO.

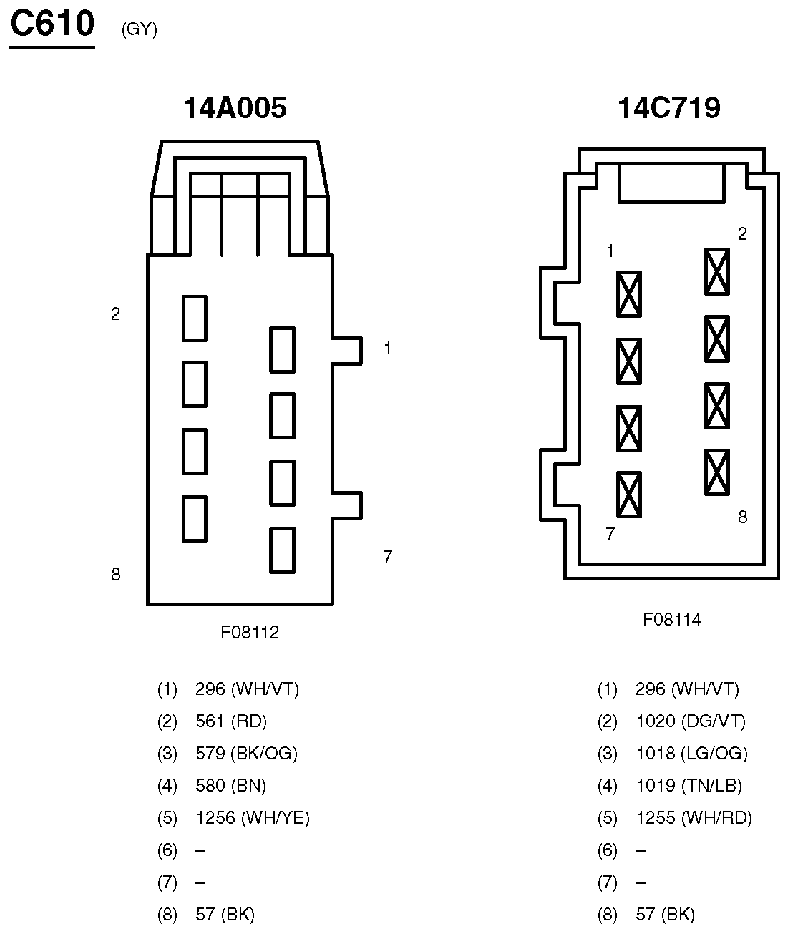

Fig 197: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

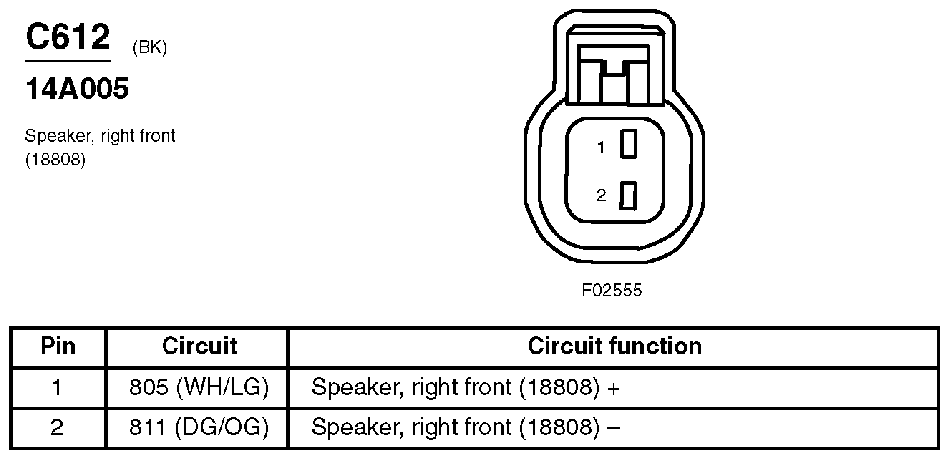

Fig 198: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

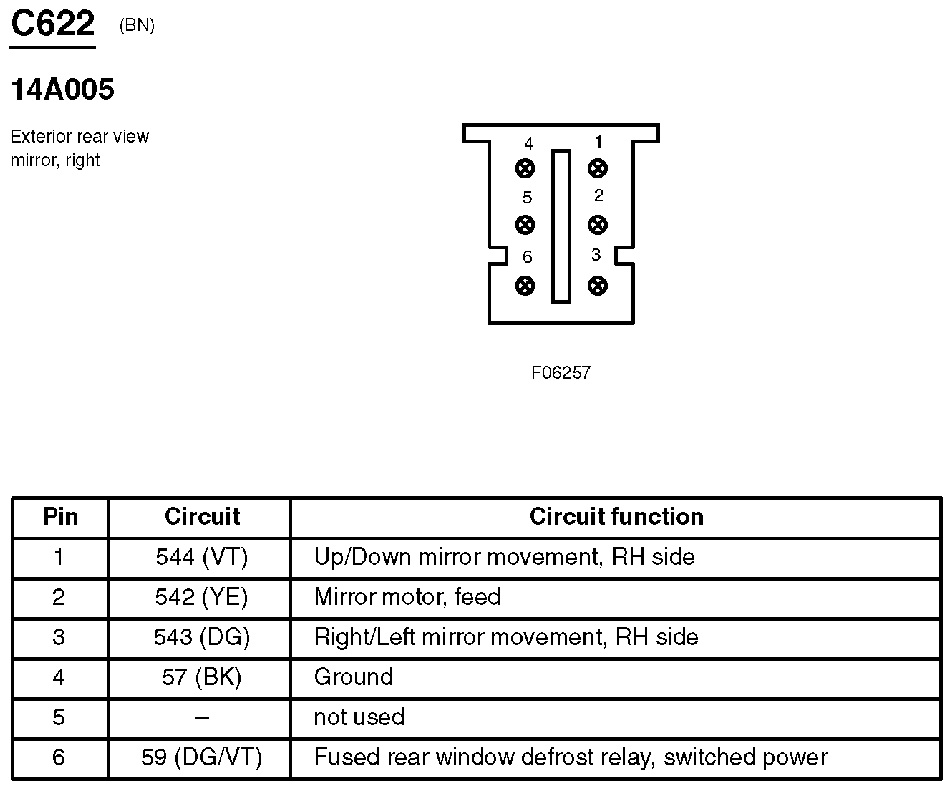

Fig 199: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

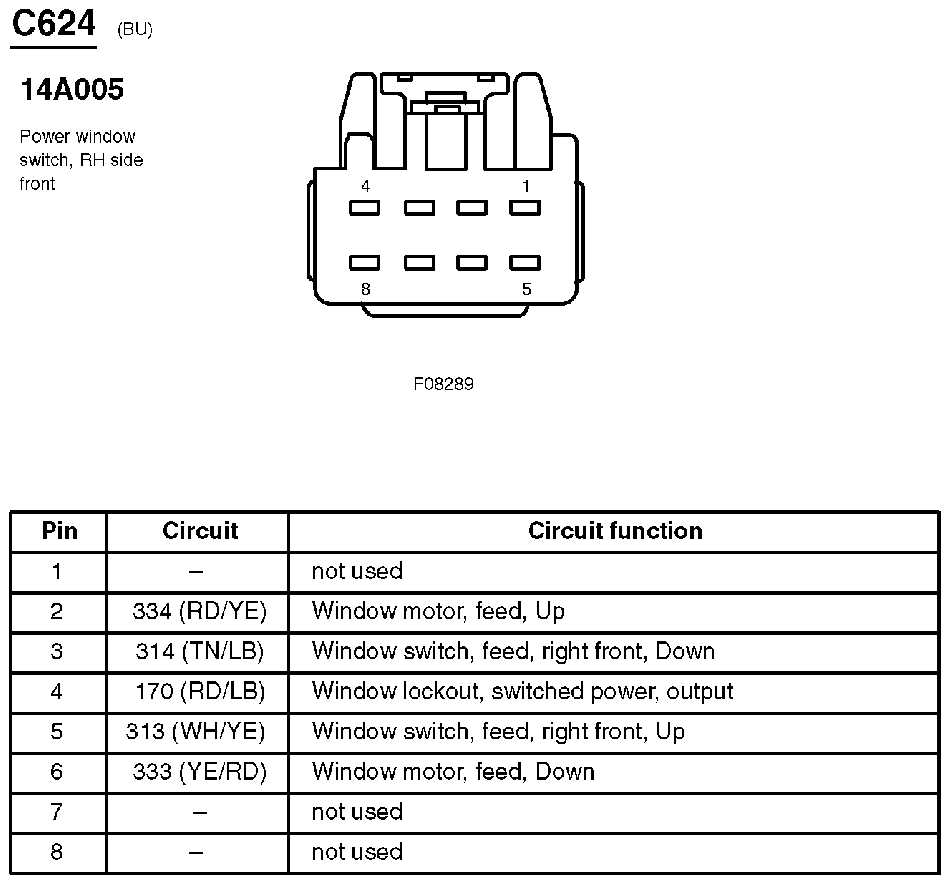

Fig 200: Power Window Switch, RH Side Front Connector End View (C624)
Courtesy of FORD MOTOR CO.

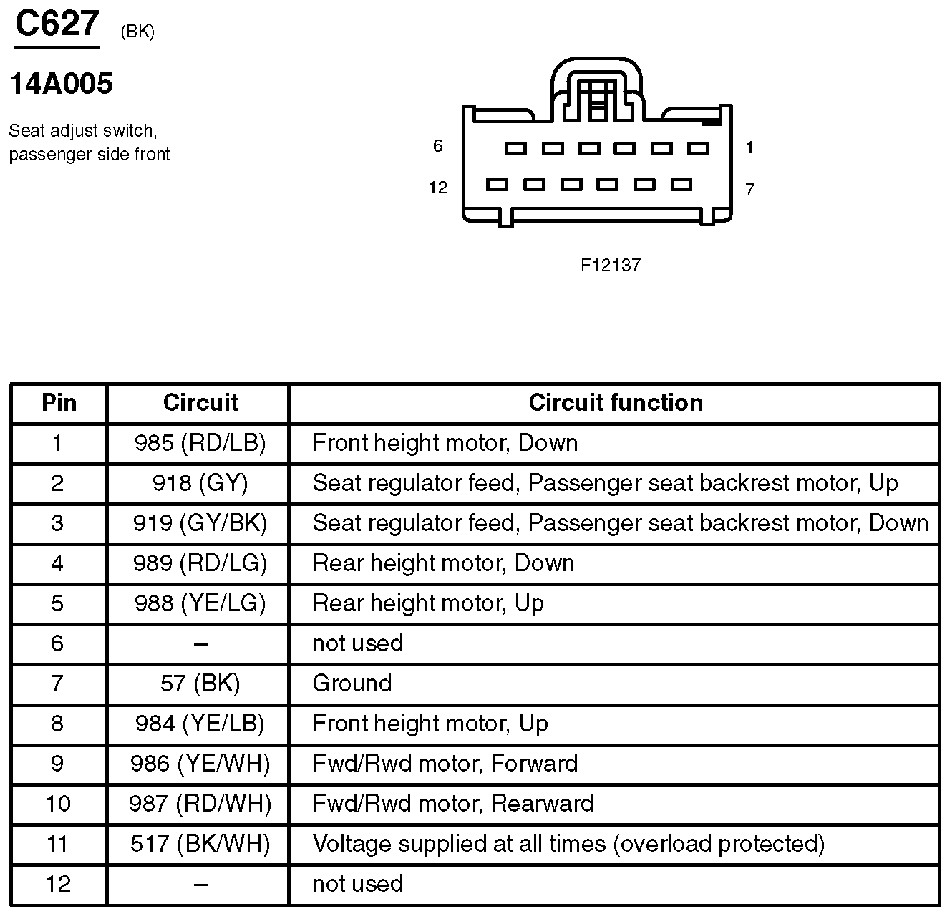

Fig 201: Seat Adjust Switch, Passenger Side Front Connector End View (C627)
Courtesy of FORD MOTOR CO.

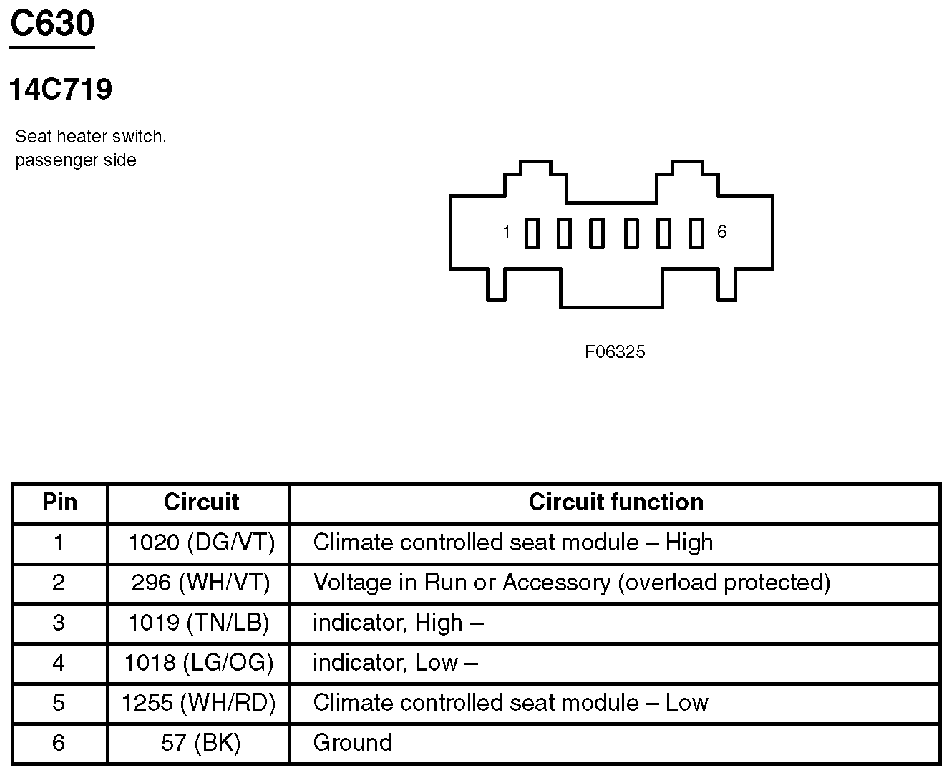

Fig 202: Seat Heater Switch, Passenger Side Connector End View (C630)
Courtesy of FORD MOTOR CO.

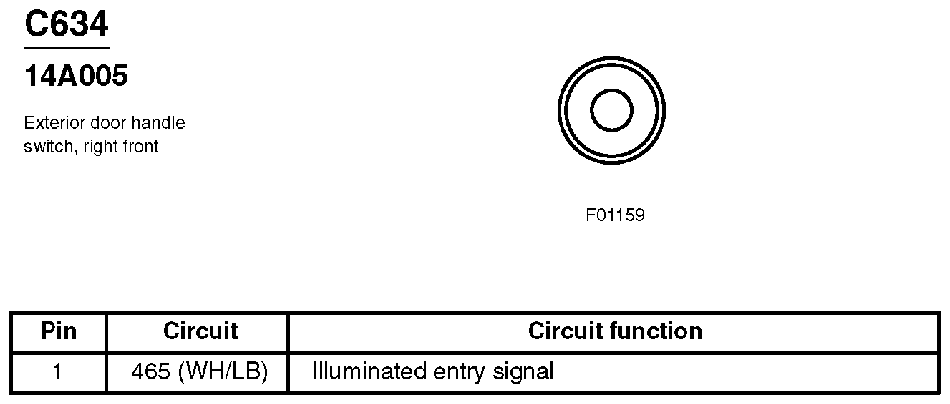

Fig 203: Exterior Door Handle Switch, Right Front Connector End View (C634)
Courtesy of FORD MOTOR CO.
Fig 204: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.

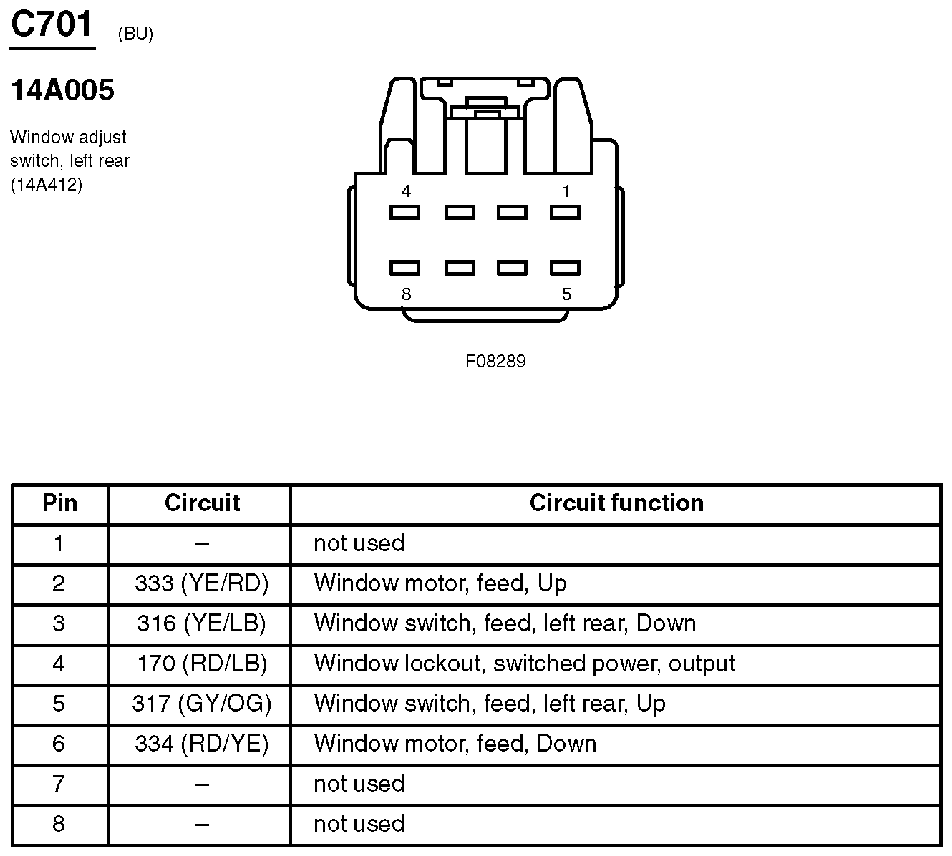

Fig 205: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.

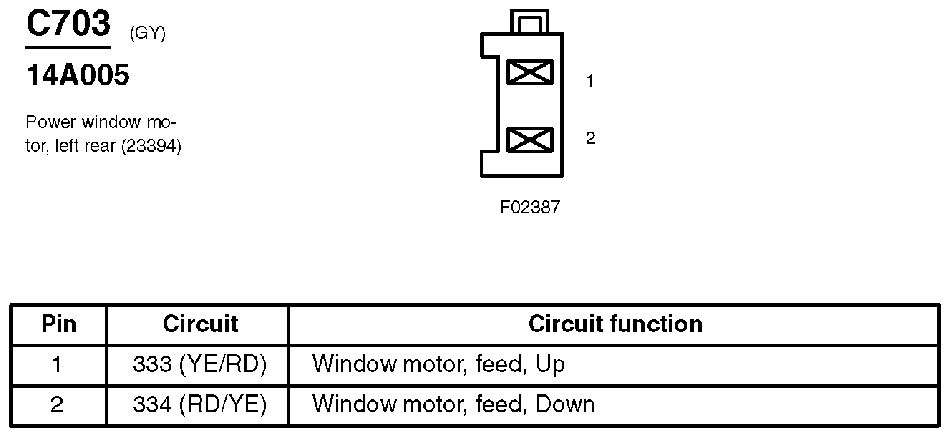

Fig 206: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.

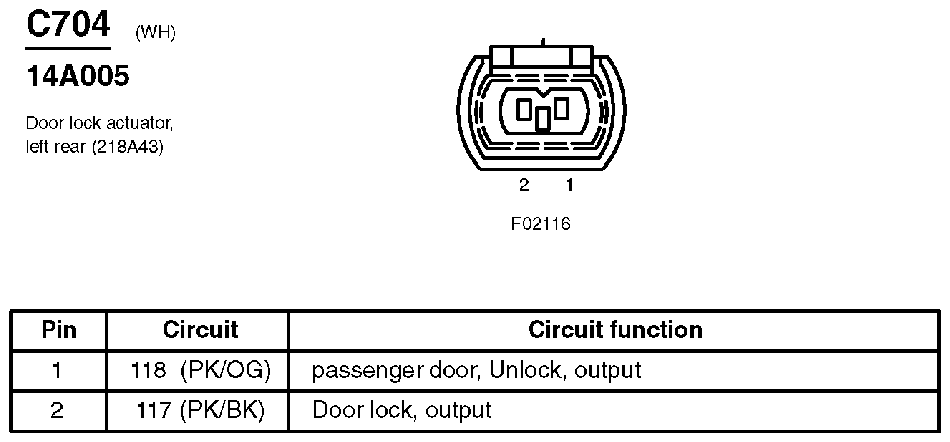

Fig 207: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.

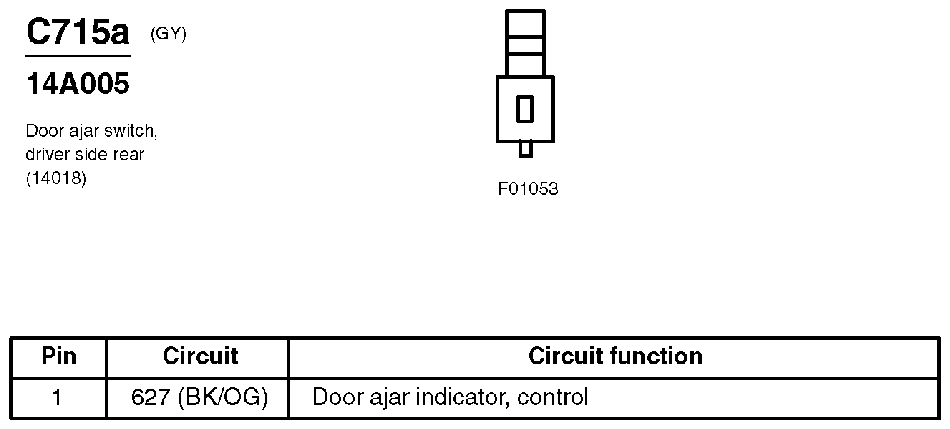

Fig 208: Door Ajar Switch, Driver Side Rear Connector End View (C715a)
Courtesy of FORD MOTOR CO.

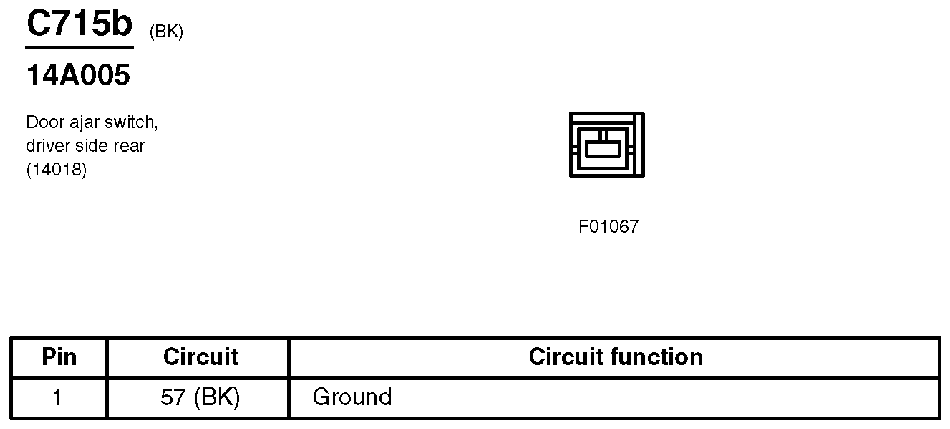

Fig 209: Door Ajar Switch, Driver Side Rear Connector End View (C715b)
Courtesy of FORD MOTOR CO.

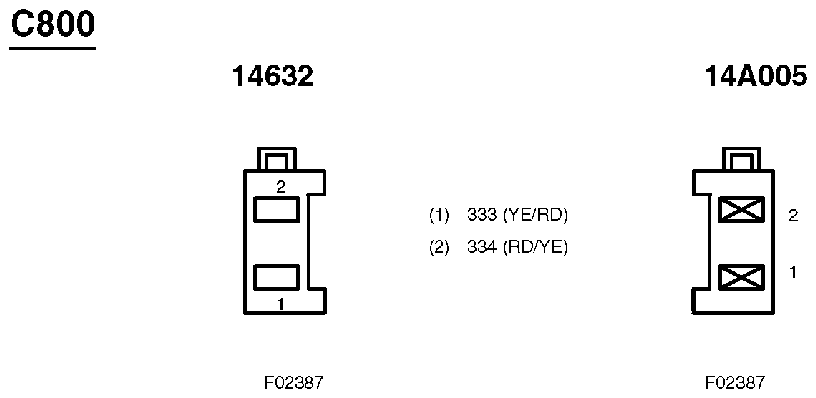

Fig 210: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.

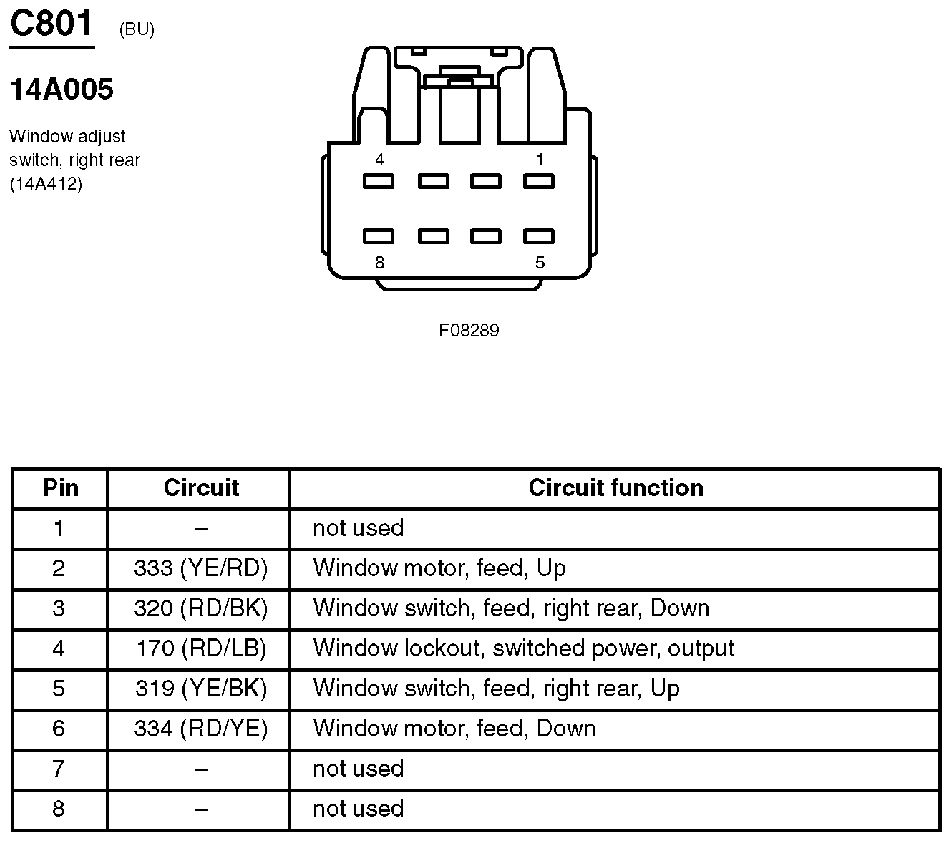

Fig 211: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.

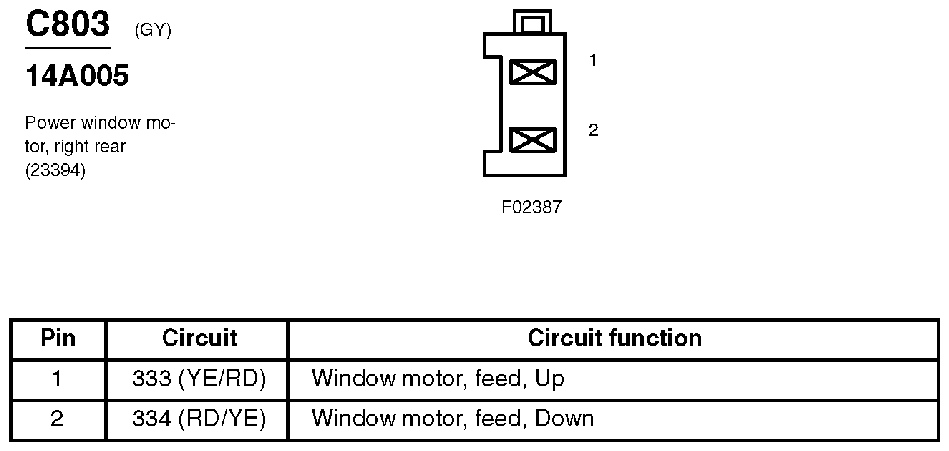

Fig 212: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.

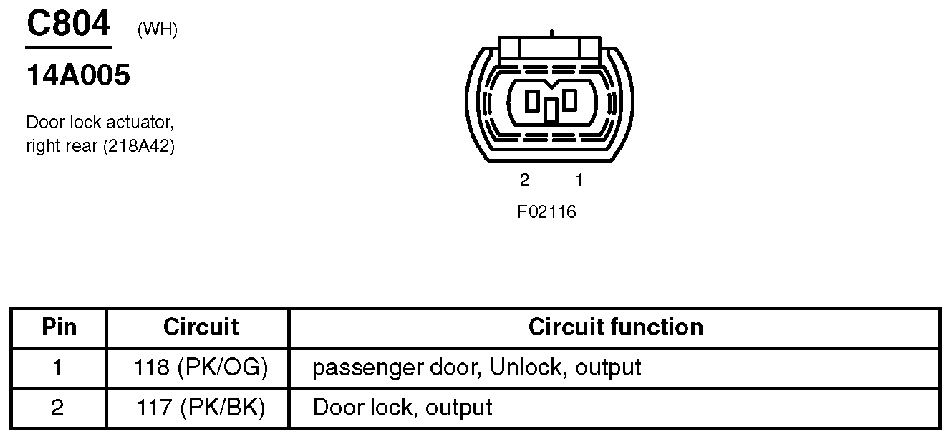

Fig 213: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.

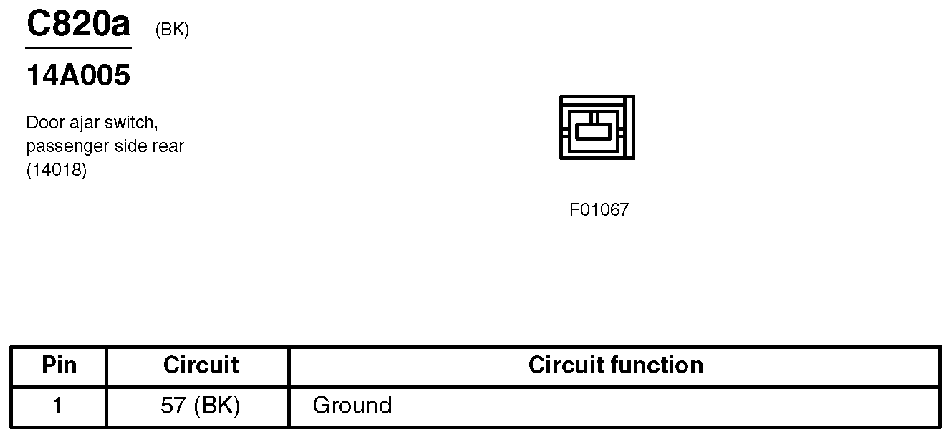

Fig 214: Door Ajar Switch, Passenger Side Rear Connector End View (C820a)
Courtesy of FORD MOTOR CO.

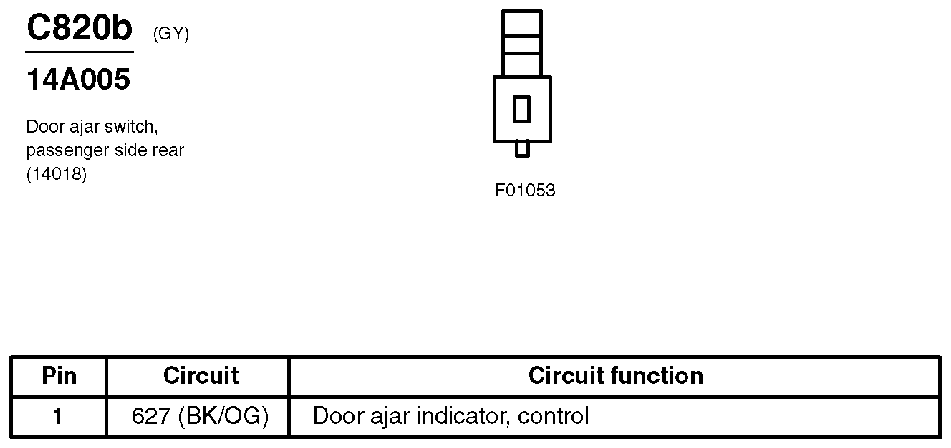

Fig 215: Door Ajar Switch, Passenger Side Rear Connector End View (C820b)
Courtesy of FORD MOTOR CO.

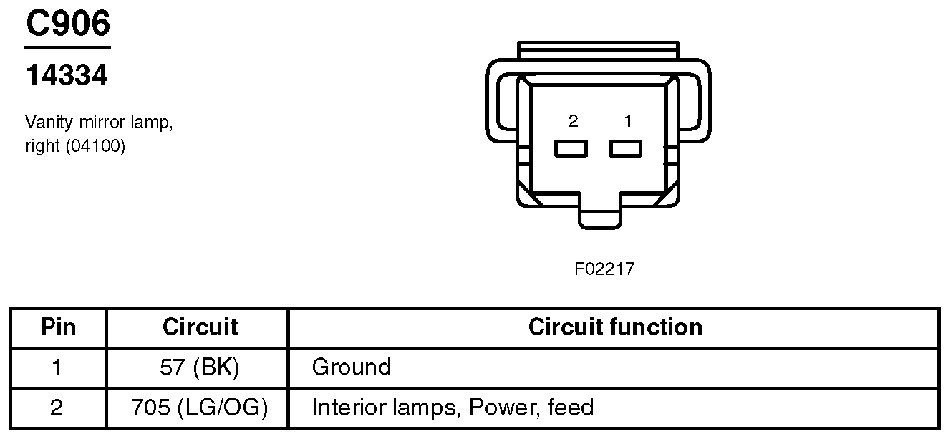

Fig 216: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

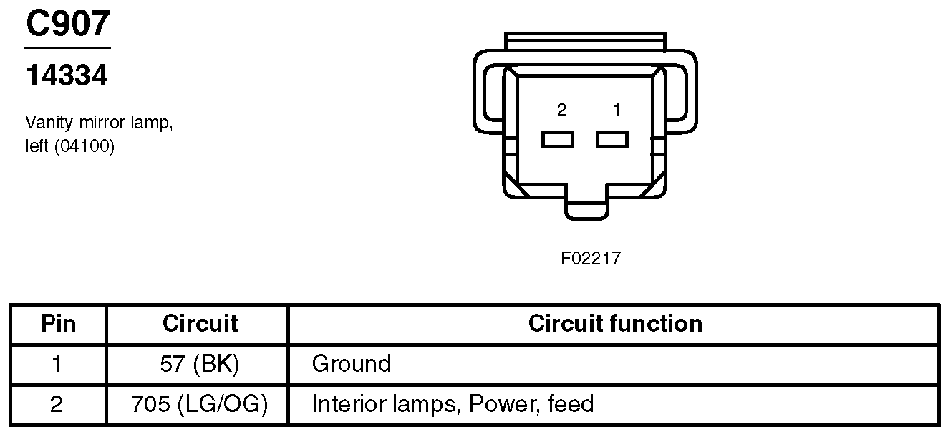

Fig 217: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

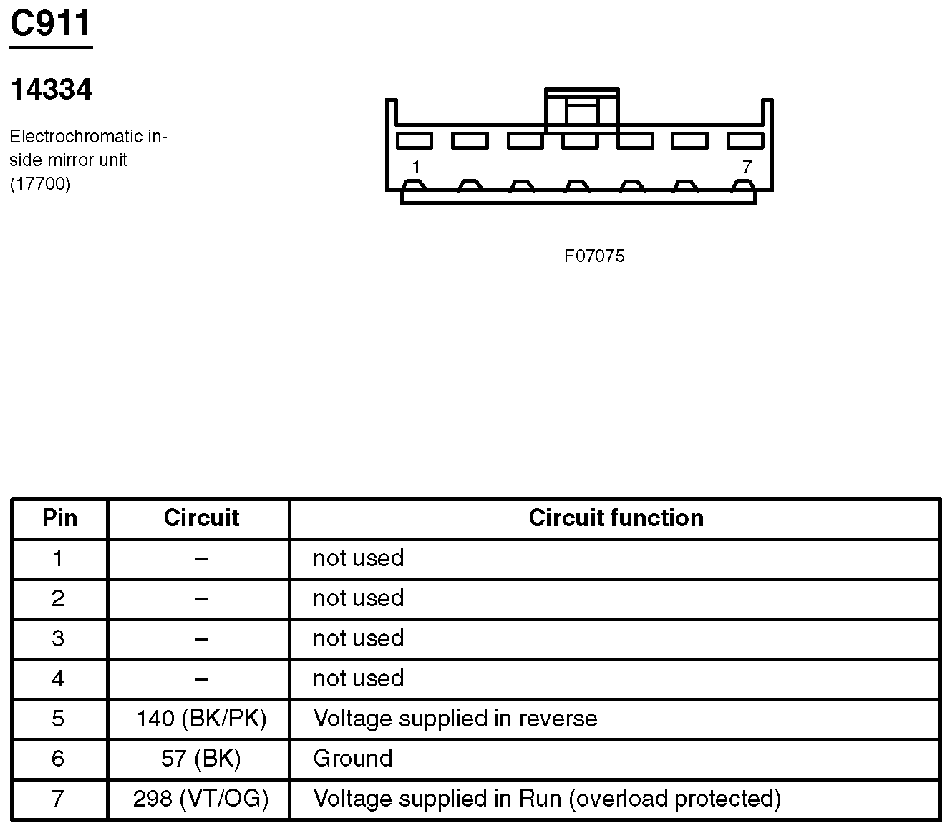

Fig 218: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

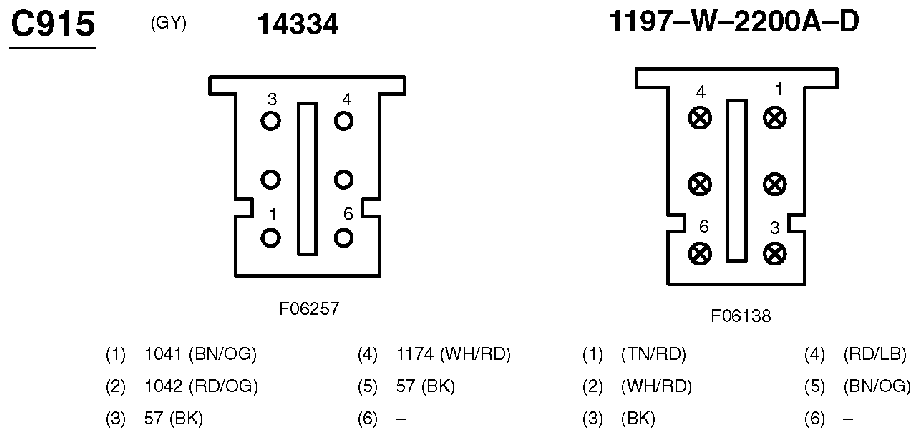

Fig 219: Inline Connector End View (C915)
Courtesy of FORD MOTOR CO.

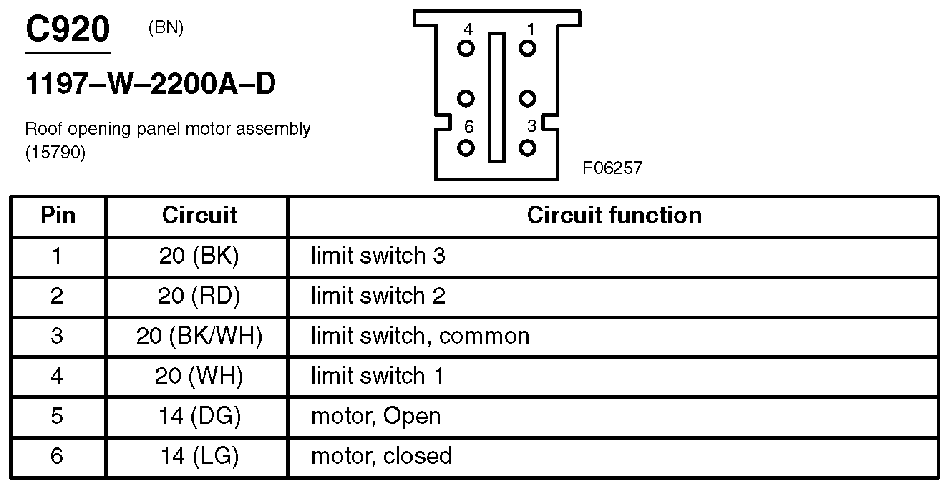

Fig 220: Roof Opening Panel Motor Assembly Connector End View (C920)
Courtesy of FORD MOTOR CO.

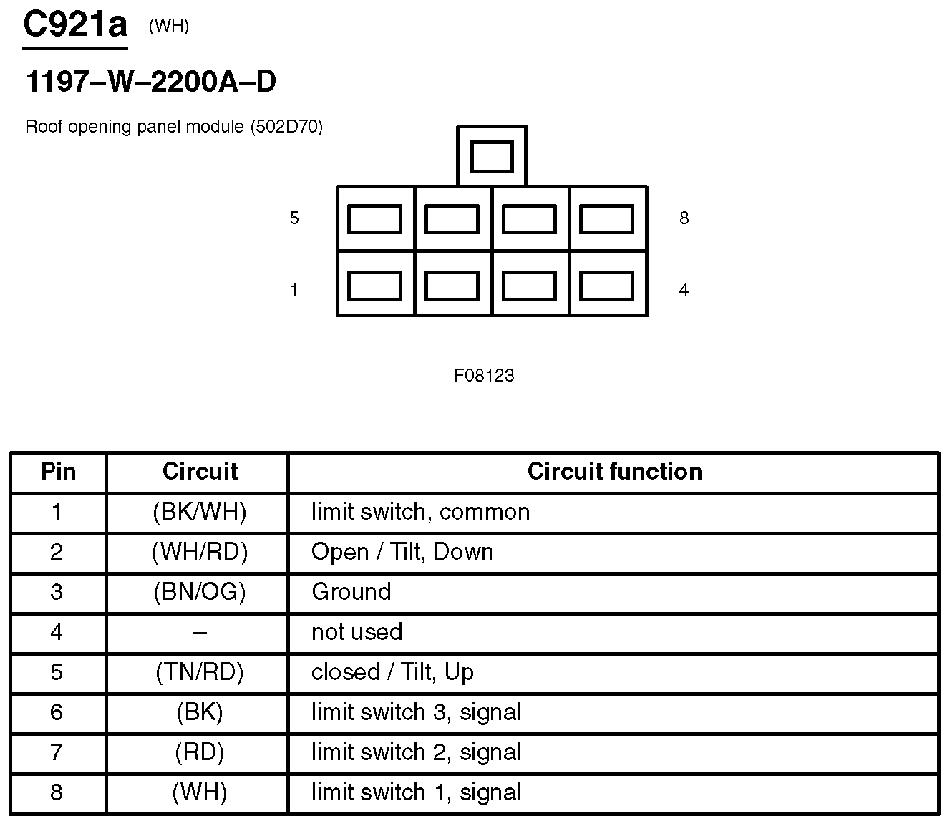

Fig 221: Roof Opening Panel Module Connector End View (C921a)
Courtesy of FORD MOTOR CO.

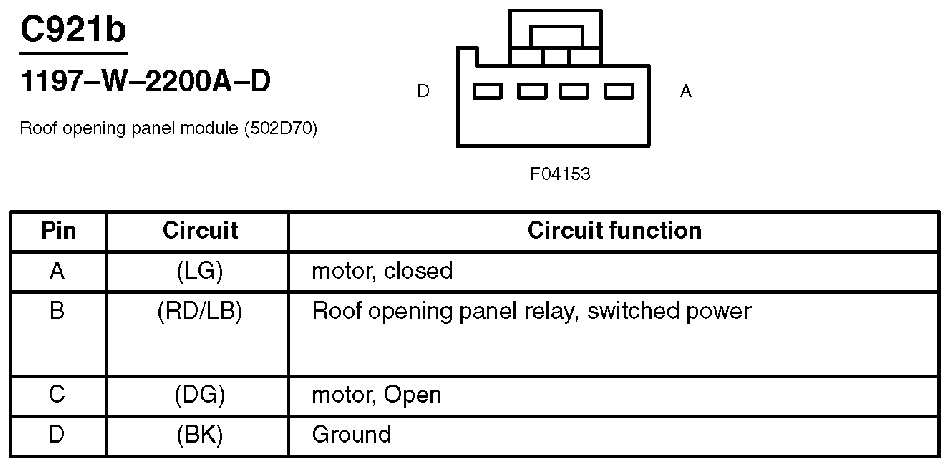

Fig 222: Roof Opening Panel Module Connector End View (C921b)
Courtesy of FORD MOTOR CO.

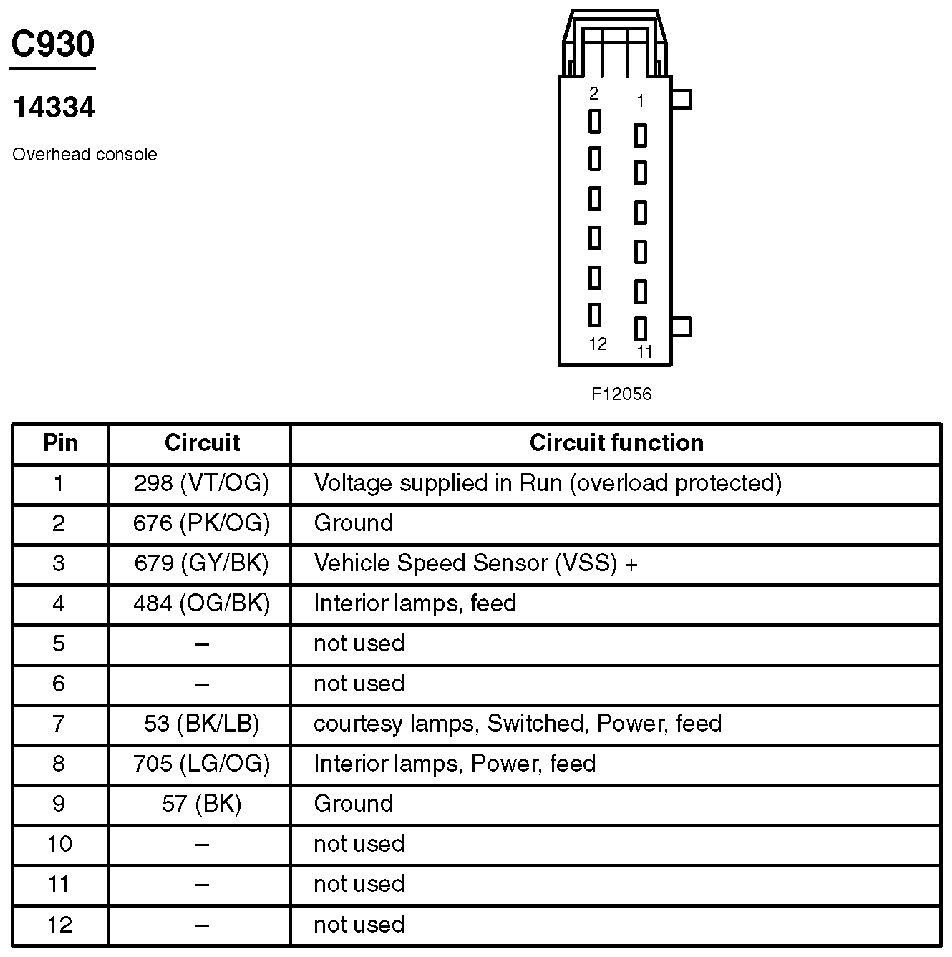

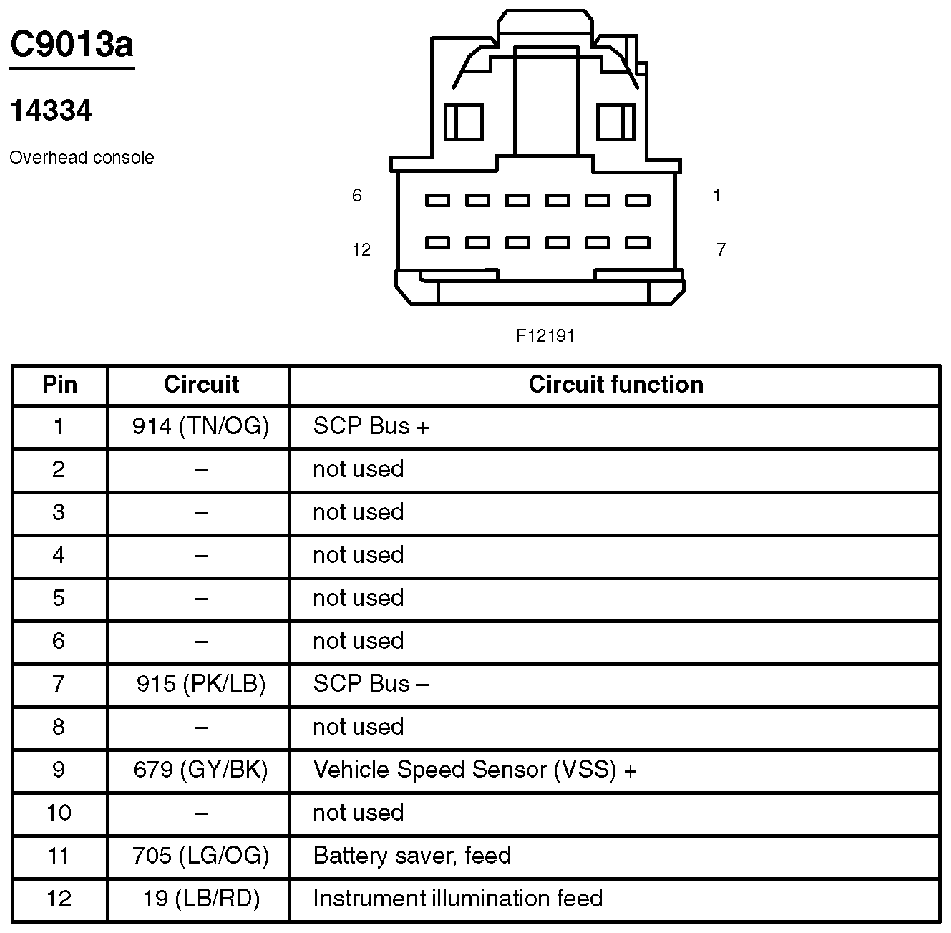

Fig 223: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.

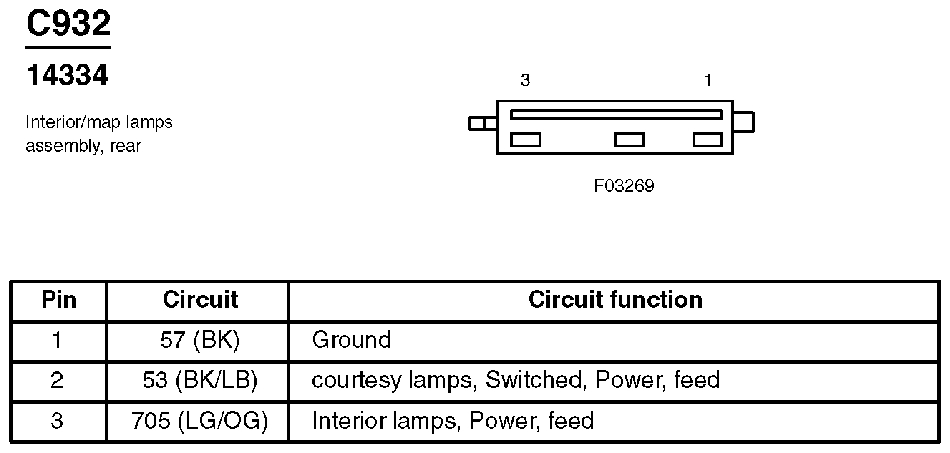

Fig 224: Interior/Map Lamps Assembly, Rear Connector End View (C932)
Courtesy of FORD MOTOR CO.

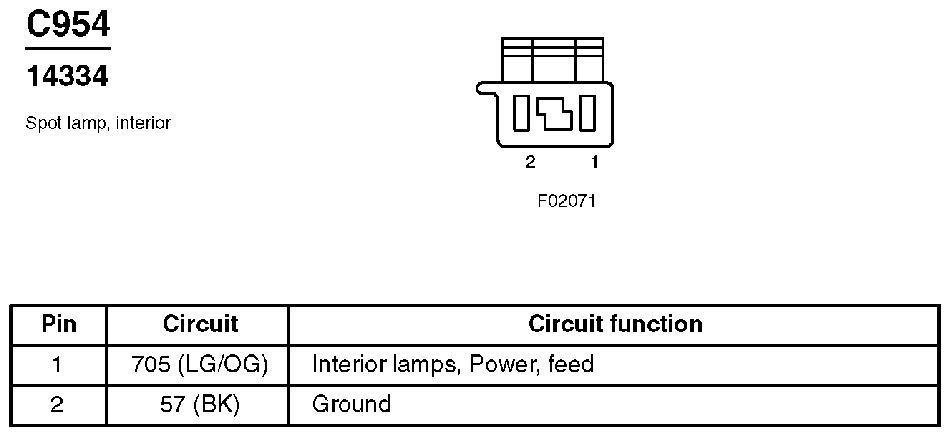

Fig 225: Spot Lamp, Interior Connector End View (C954)
Courtesy of FORD MOTOR CO.

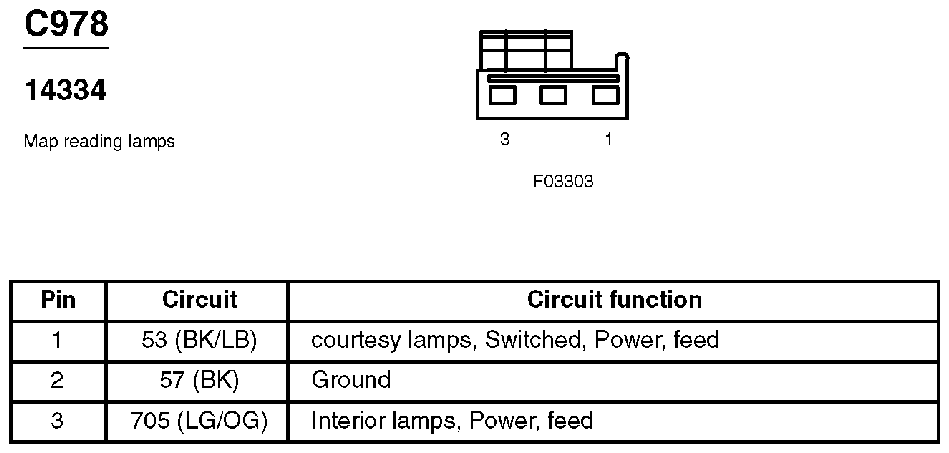

Fig 226: Map Reading Lamps Connector End View (C978)
Courtesy of FORD MOTOR CO.

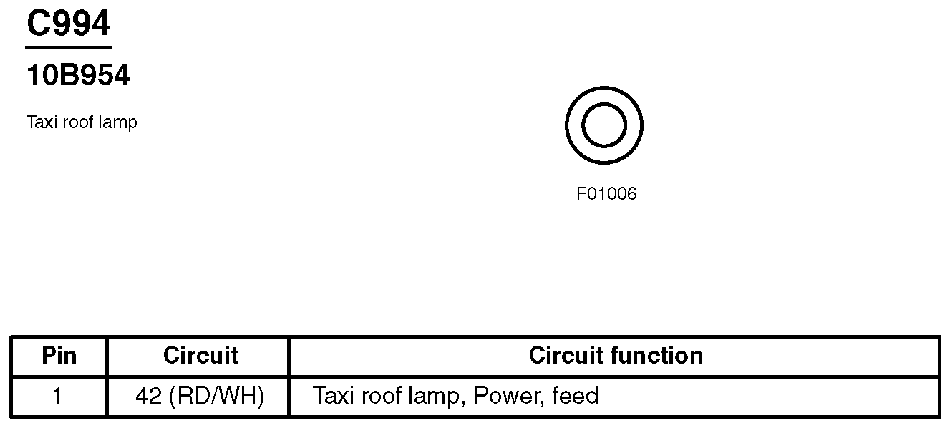

Fig 227: Taxi Roof Lamp Connector End View (C994)
Courtesy of FORD MOTOR CO.

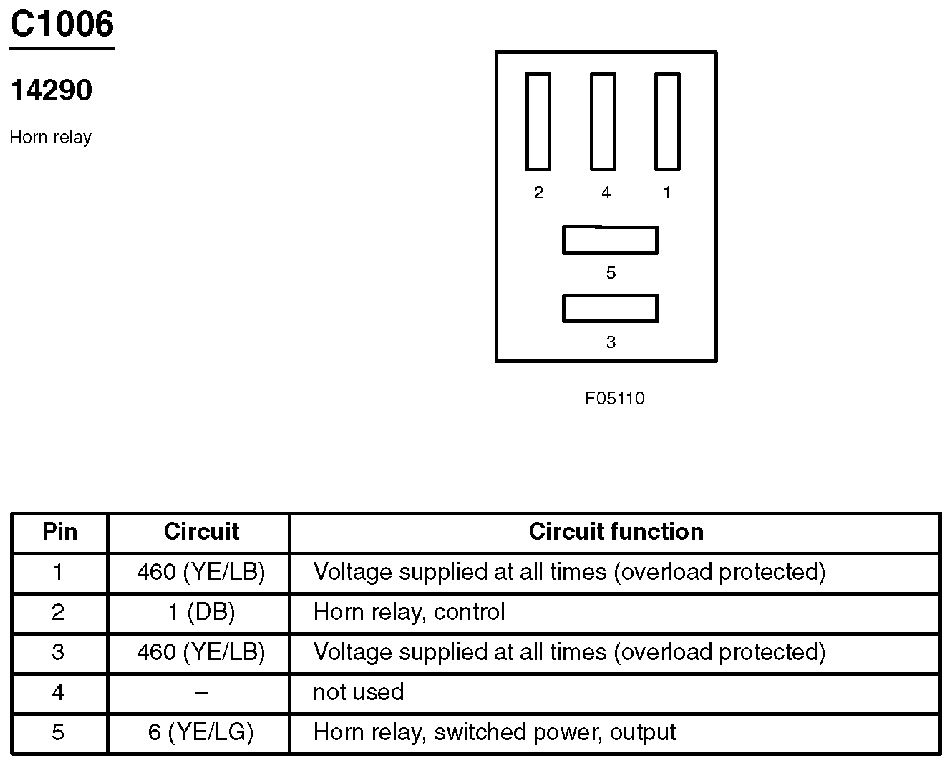

Fig 228: Horn Relay Connector End View (C1006)
Courtesy of FORD MOTOR CO.

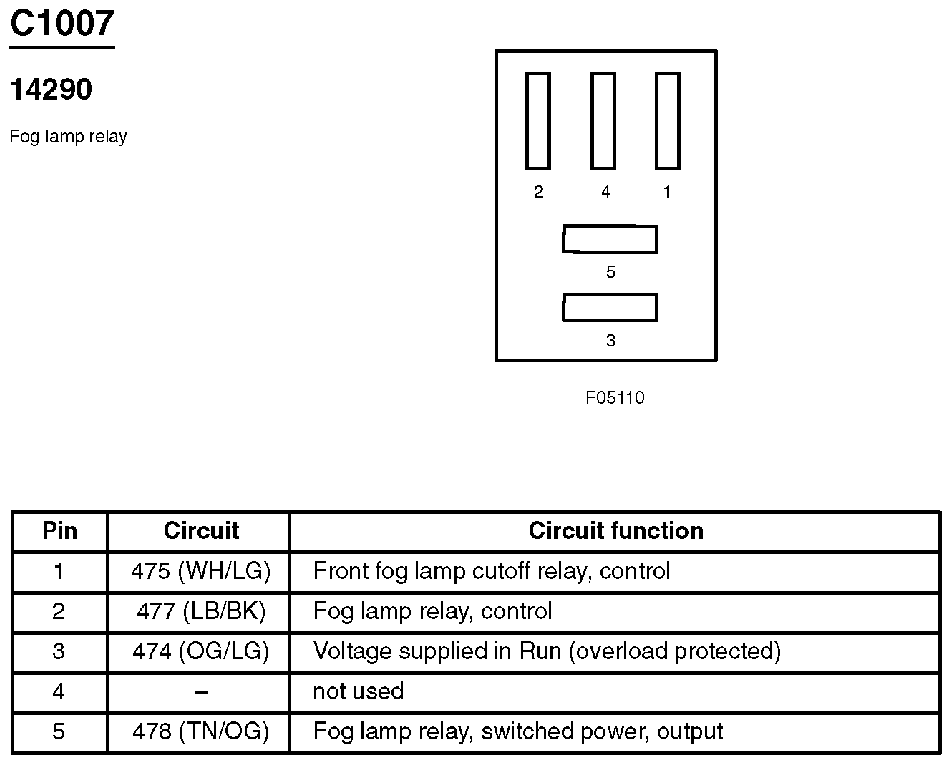

Fig 229: Fog Lamp Relay Connector End View (C1007)
Courtesy of FORD MOTOR CO.

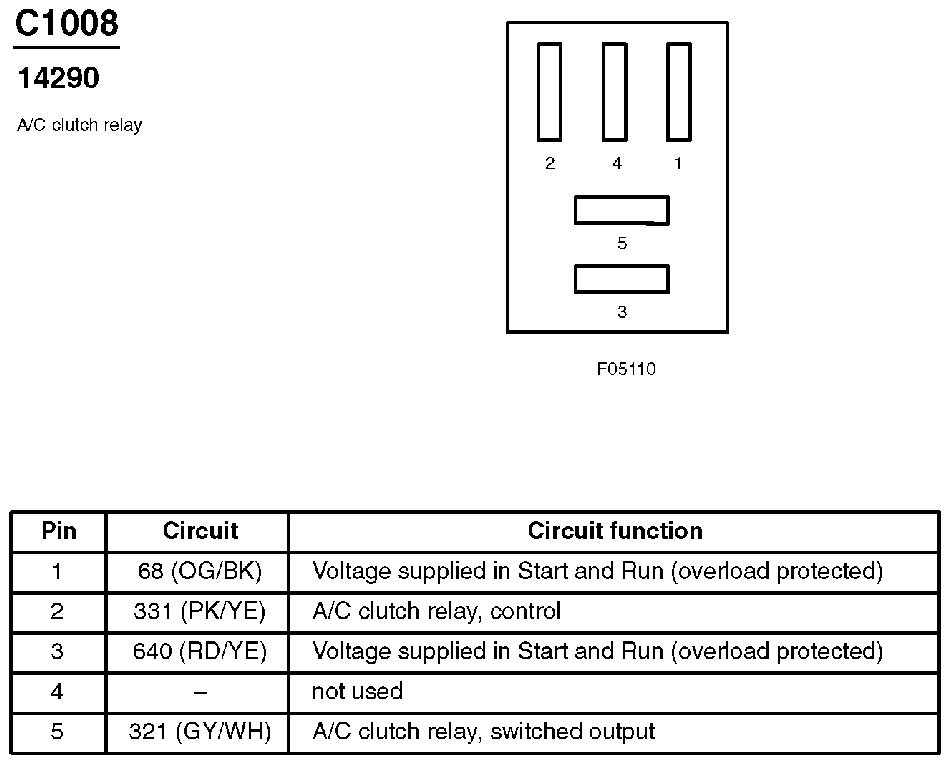

Fig 230: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.

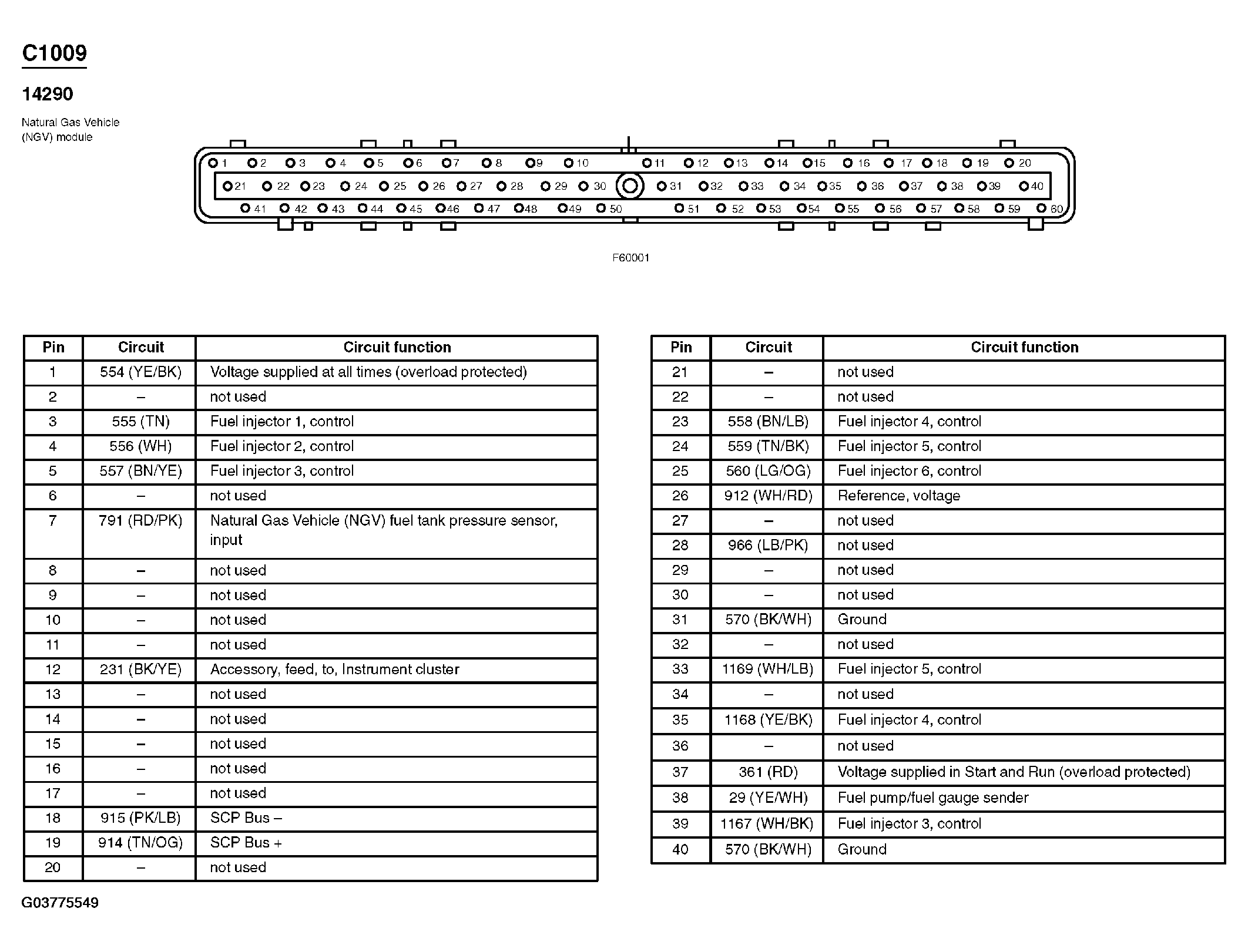

Fig 231: Natural Gas Vehicle (NGV) Module Connector End View (C1009) (1 Of 2)
Courtesy of FORD MOTOR CO.

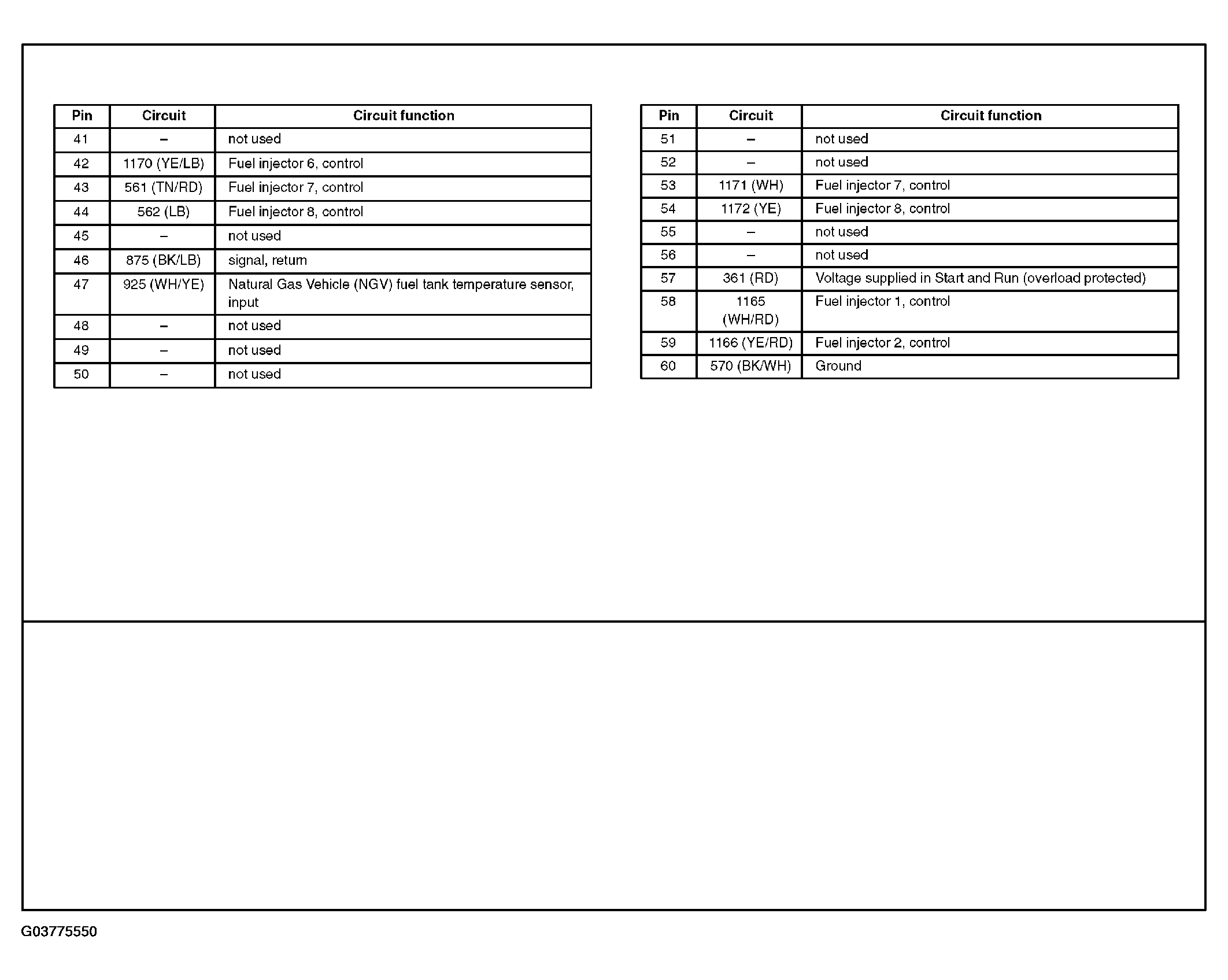

Fig 232: Natural Gas Vehicle (NGV) Module Connector End View (C1009) (2 Of 2)
Courtesy of FORD MOTOR CO.

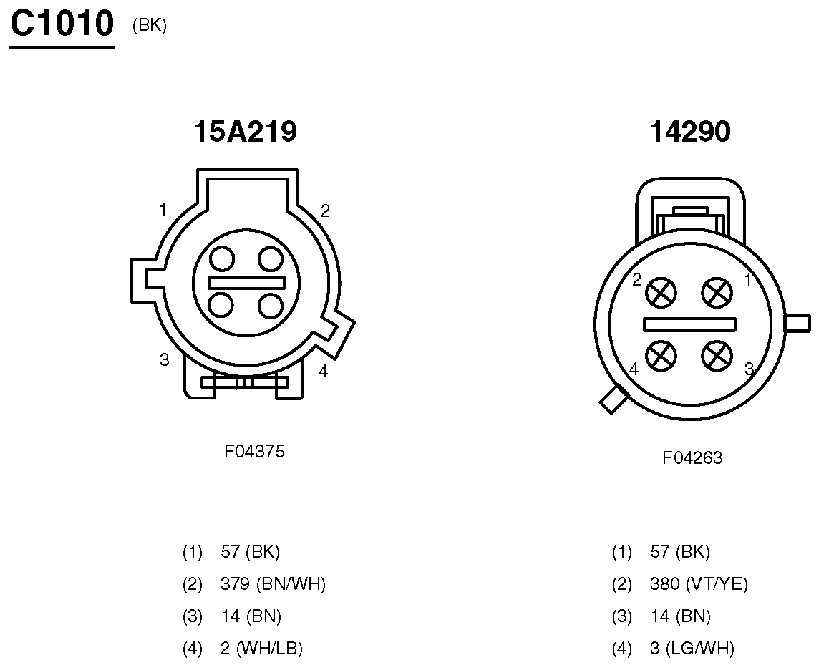

Fig 233: Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.

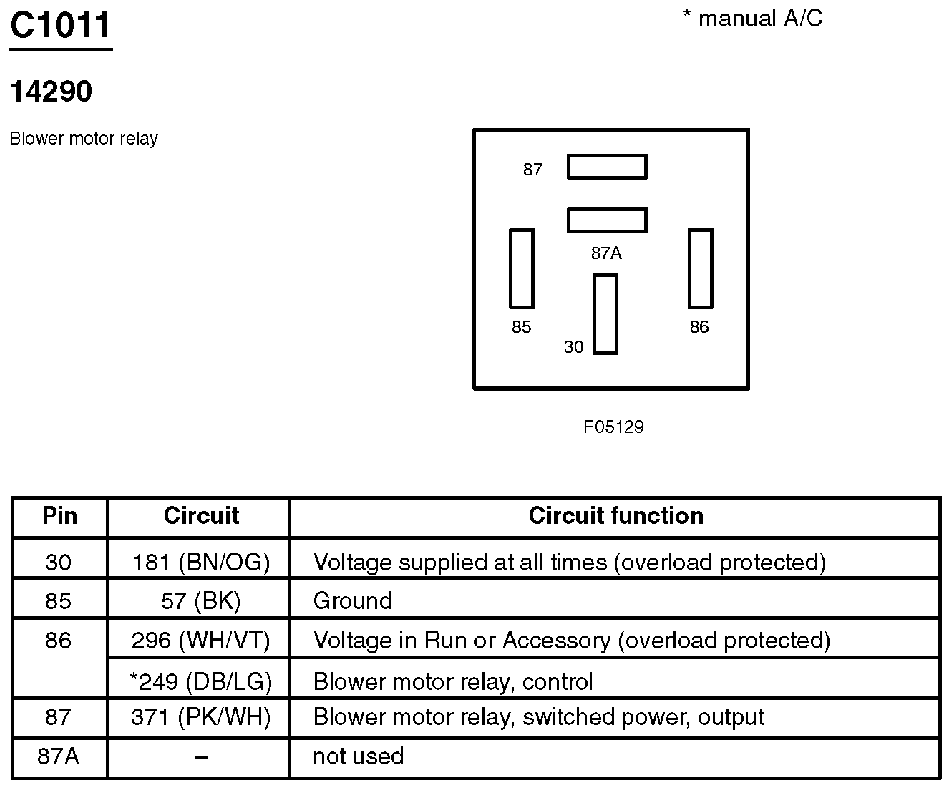

Fig 234: Blower Motor Relay Connector End View (C1011)
Courtesy of FORD MOTOR CO.

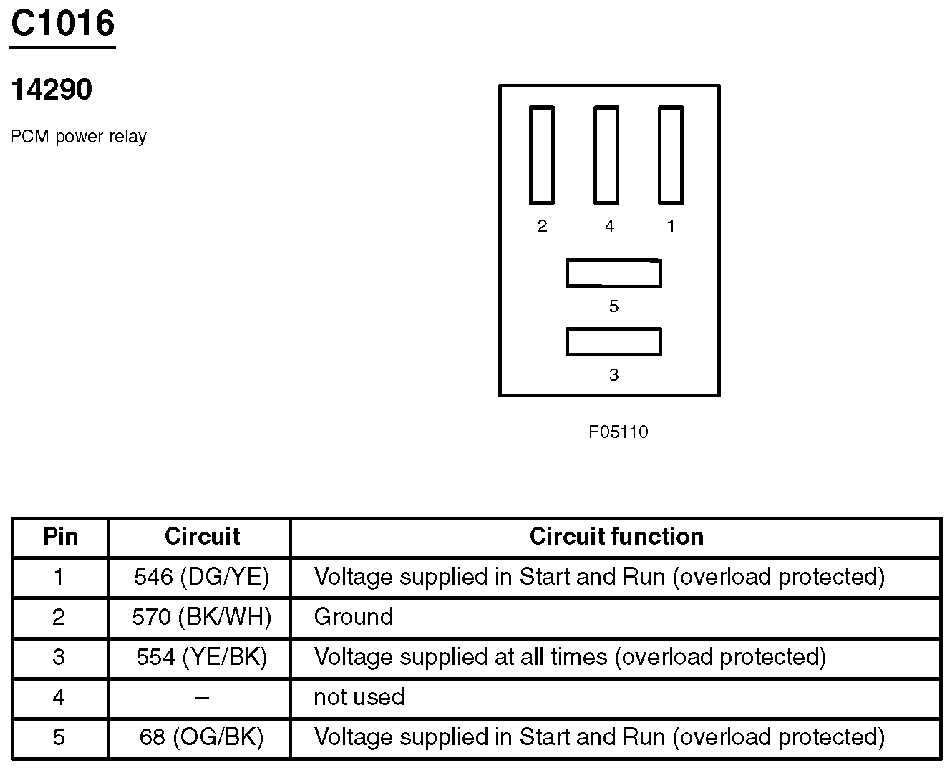

Fig 235: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.

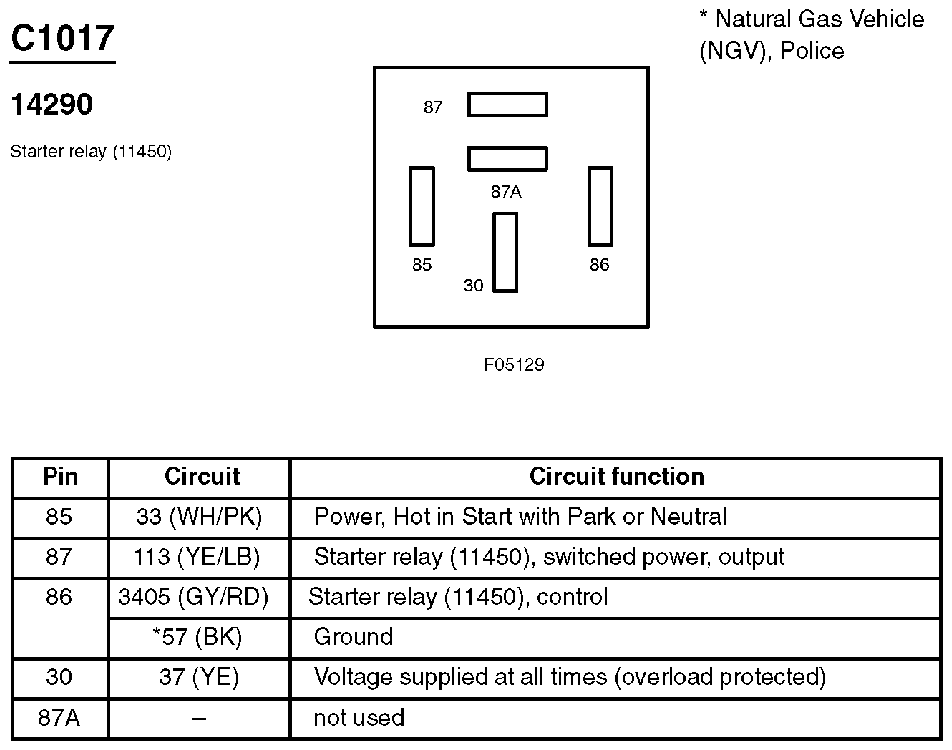

Fig 236: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.

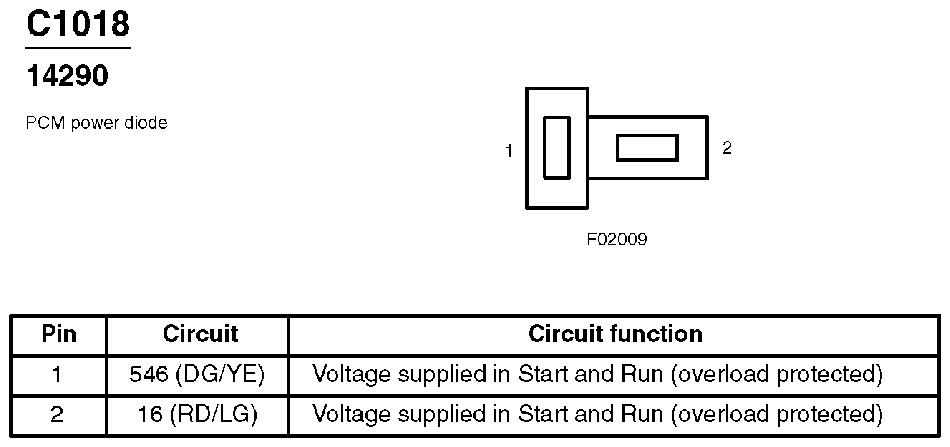

Fig 237: PCM Power Diode Connector End View (C1018)
Courtesy of FORD MOTOR CO.

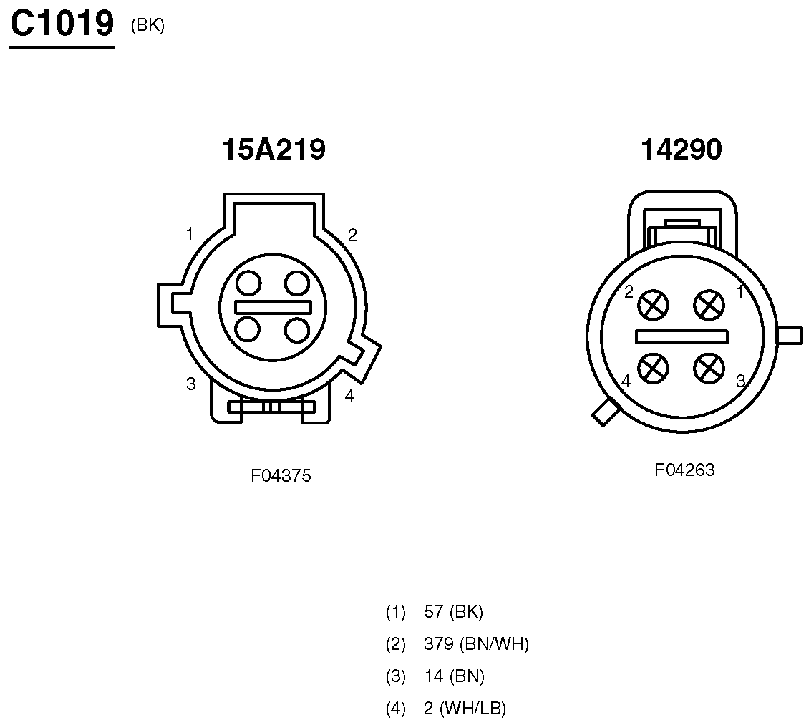

Fig 238: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.

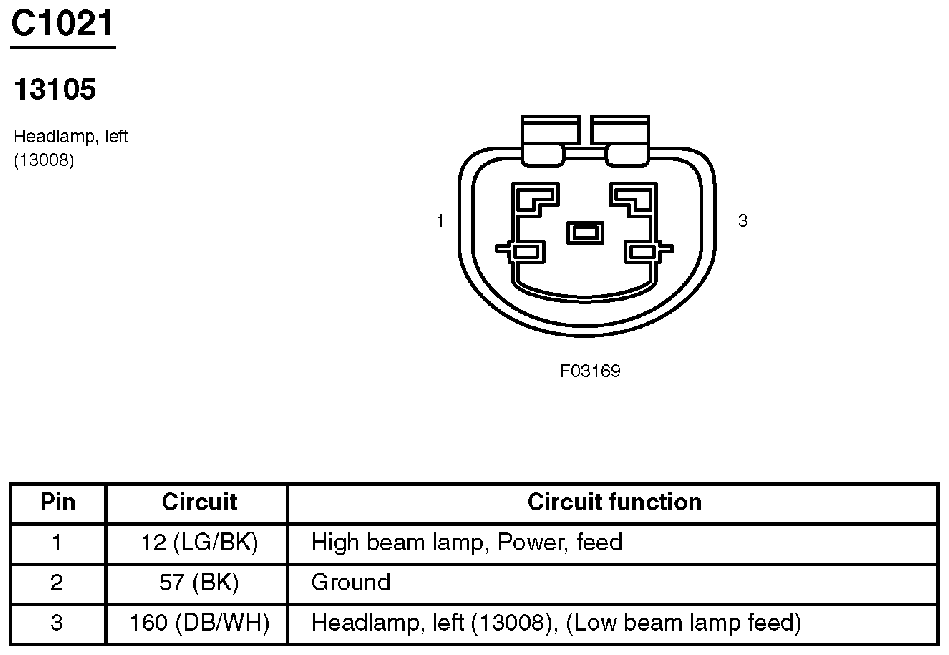

Fig 239: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

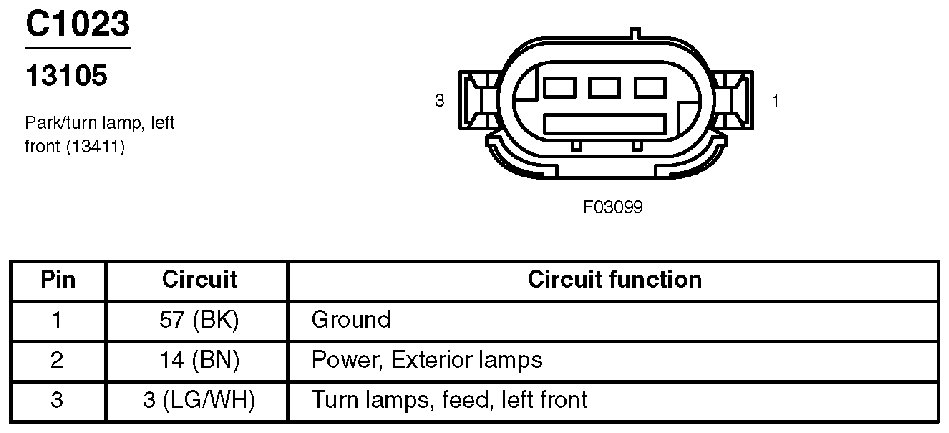

Fig 240: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

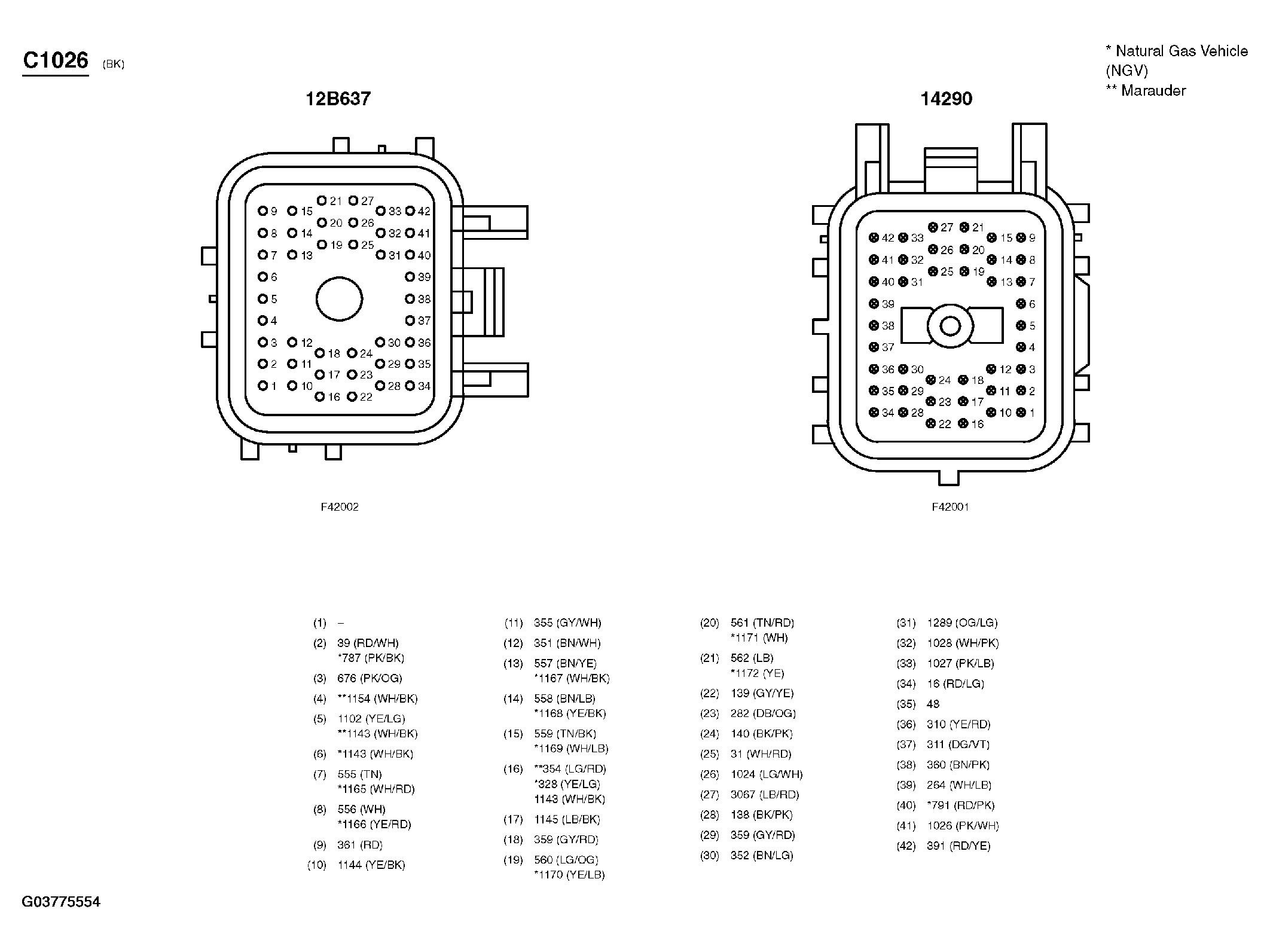

Fig 241: Inline Connector End View (C1026)
Courtesy of FORD MOTOR CO.

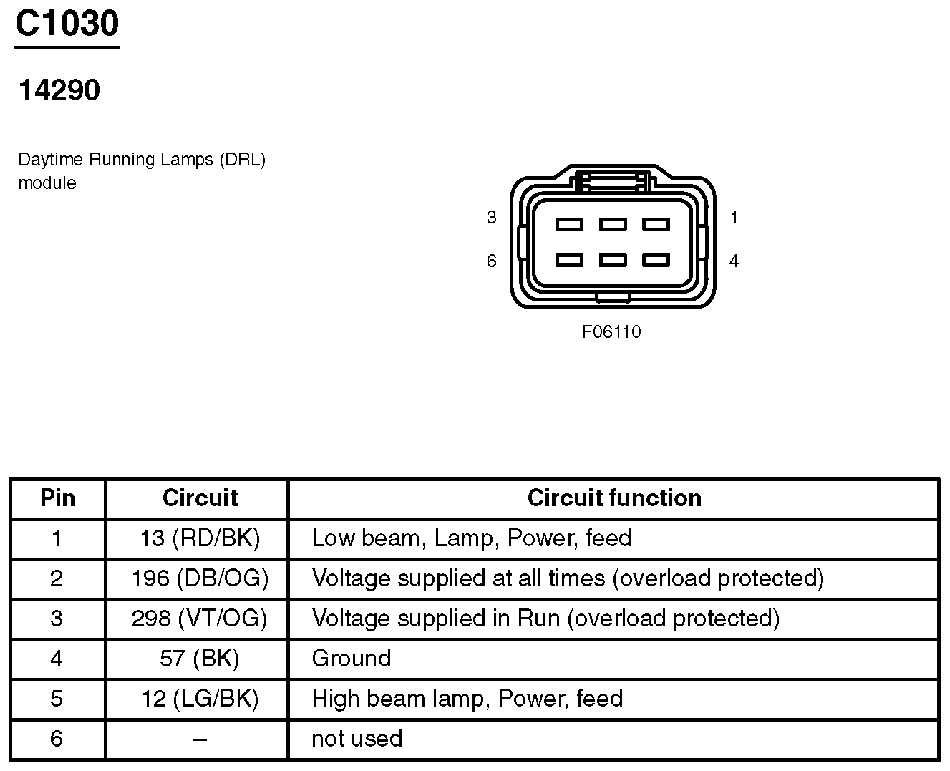

Fig 242: Daytime Running Lamps (DRL) Module Connector End View (C1030)
Courtesy of FORD MOTOR CO.

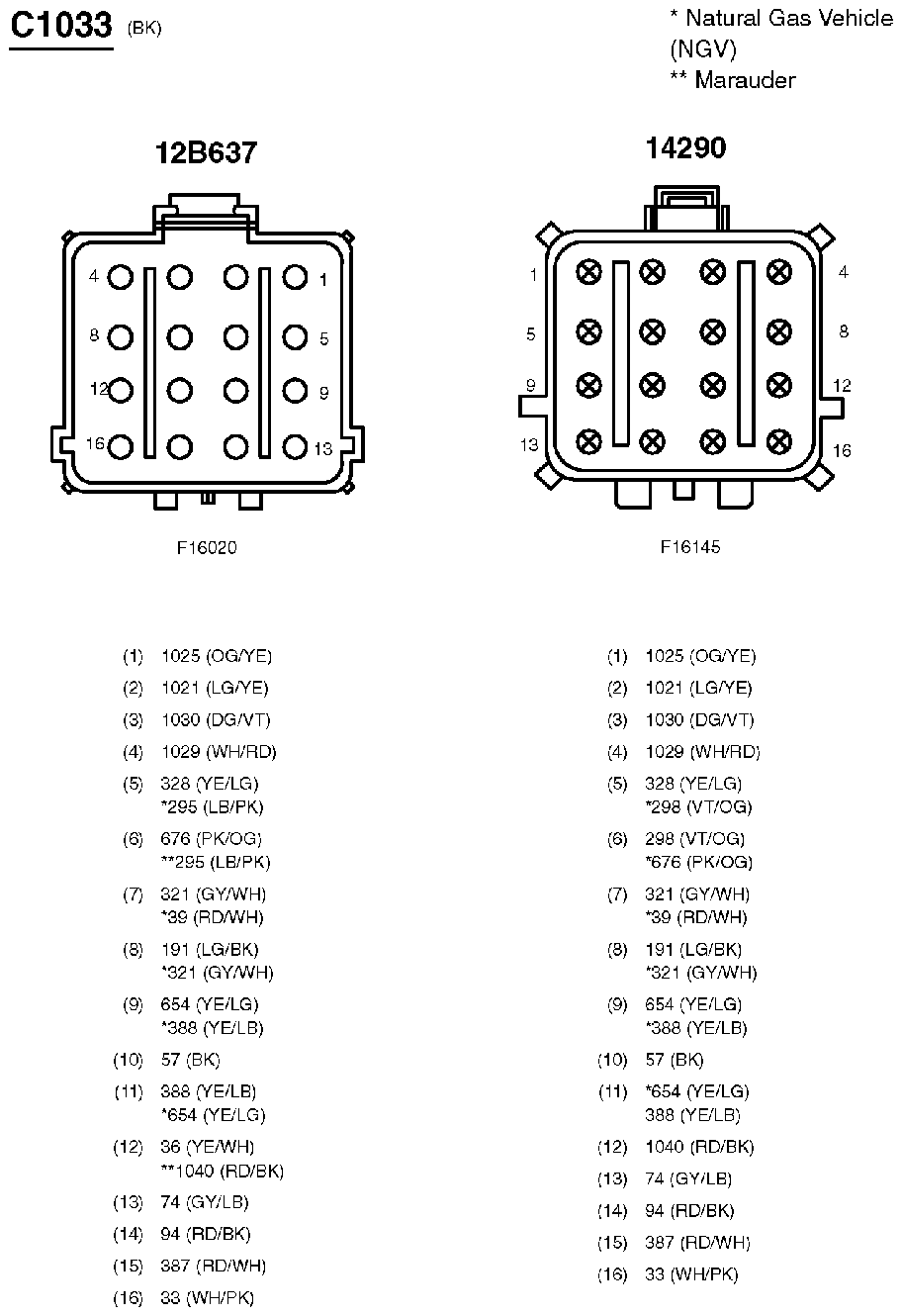

Fig 243: Inline Connector End View (C1033)
Courtesy of FORD MOTOR CO.

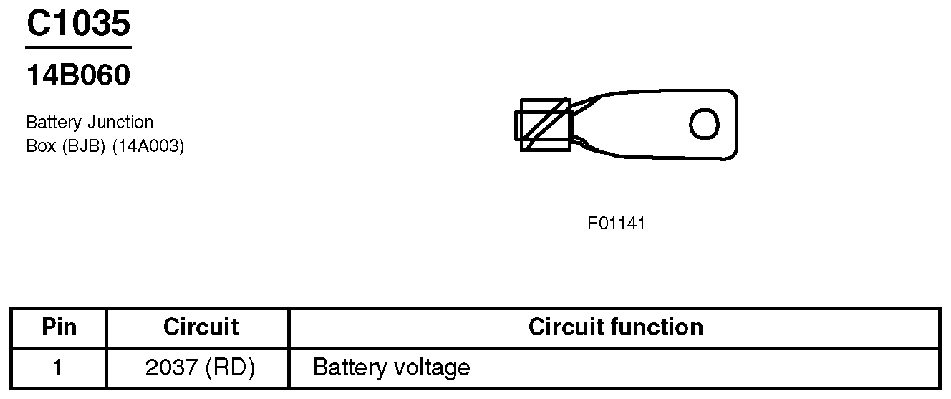

Fig 244: Battery Junction Box (BJB) Connector End View (C1035)
Courtesy of FORD MOTOR CO.

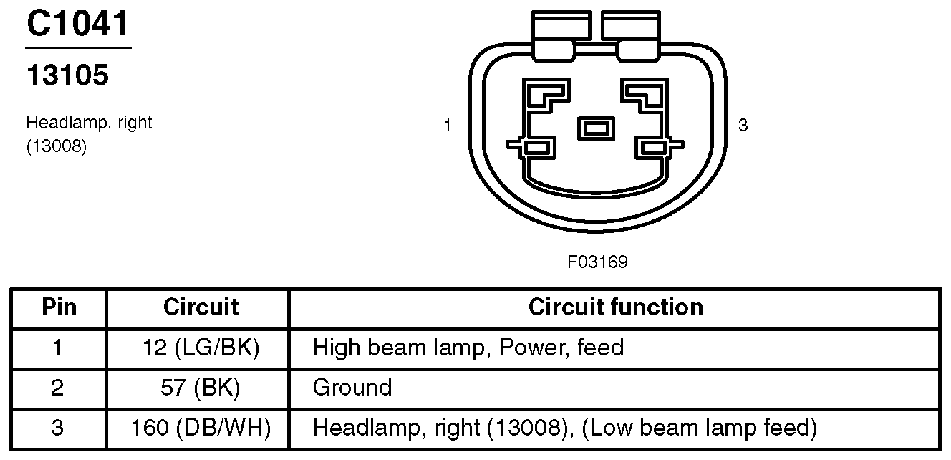

Fig 245: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

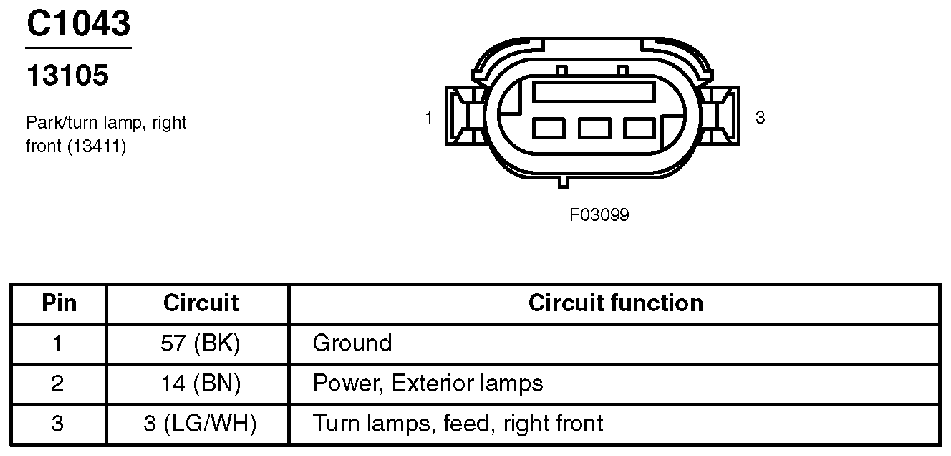

Fig 246: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

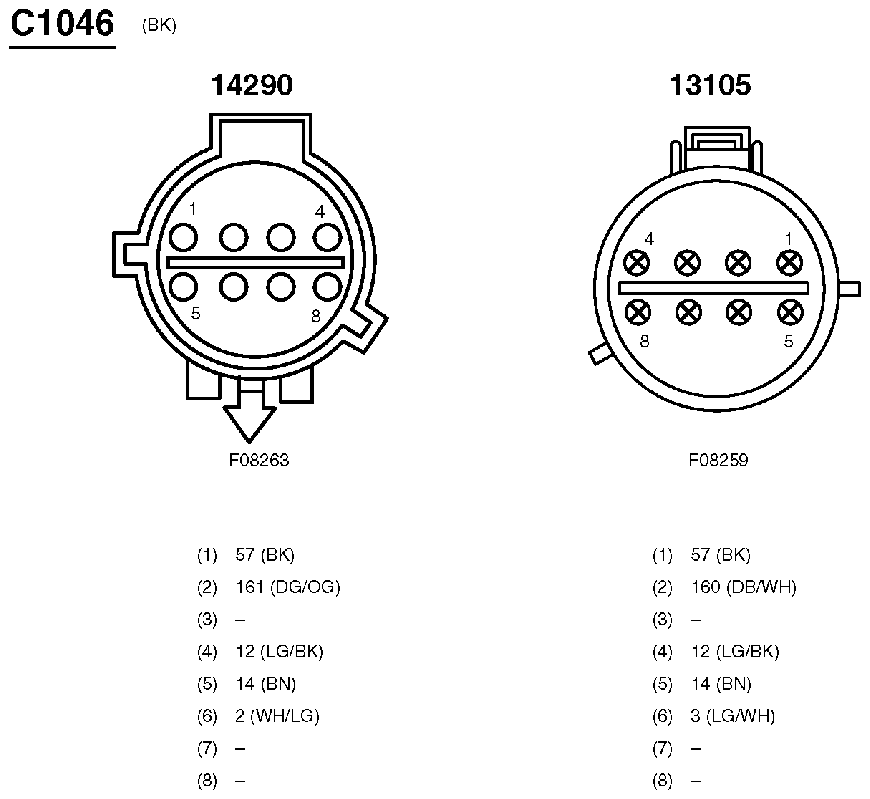

Fig 247: Inline Connector End View (C1046)
Courtesy of FORD MOTOR CO.

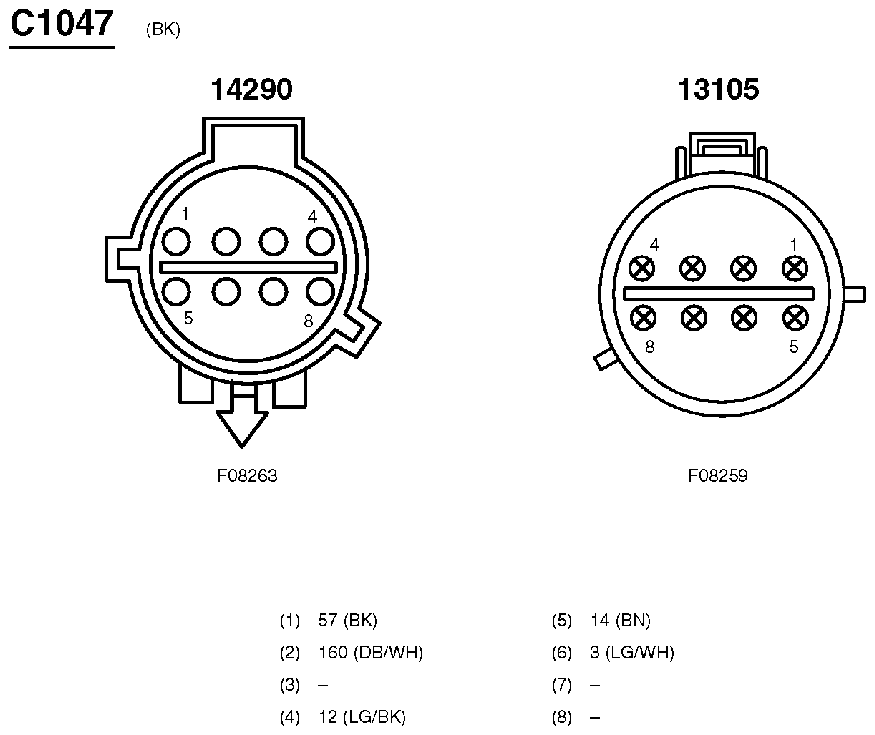

Fig 248: Inline Connector End View (C1047)
Courtesy of FORD MOTOR CO.

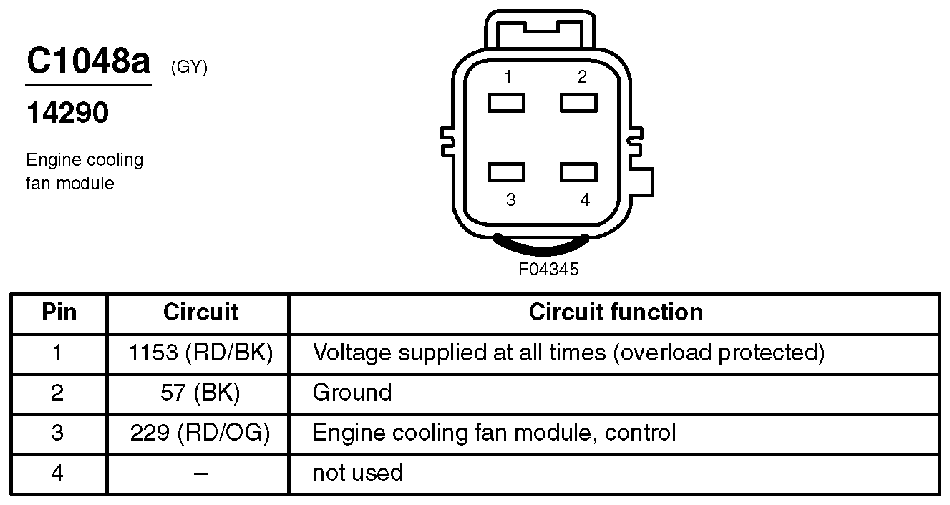

Fig 249: Engine Cooling Tan Module Connector End View (C1048a)
Courtesy of FORD MOTOR CO.

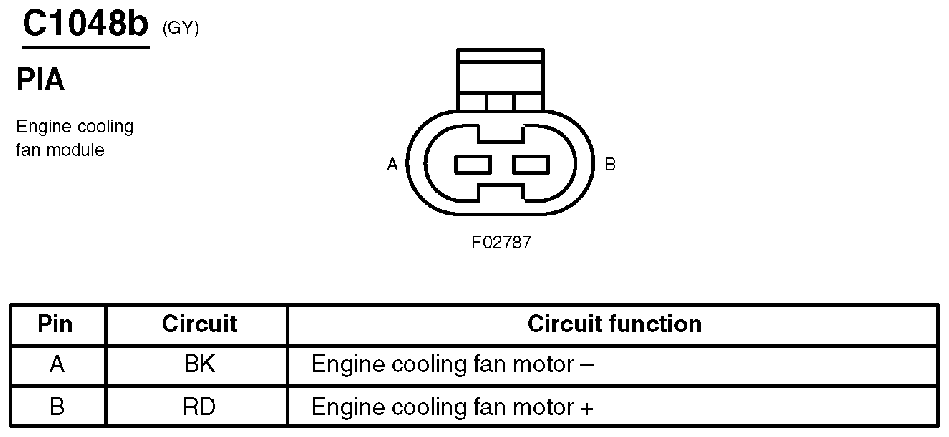

Fig 250: Engine Cooling Fan Module Connector End View (C1048b)
Courtesy of FORD MOTOR CO.

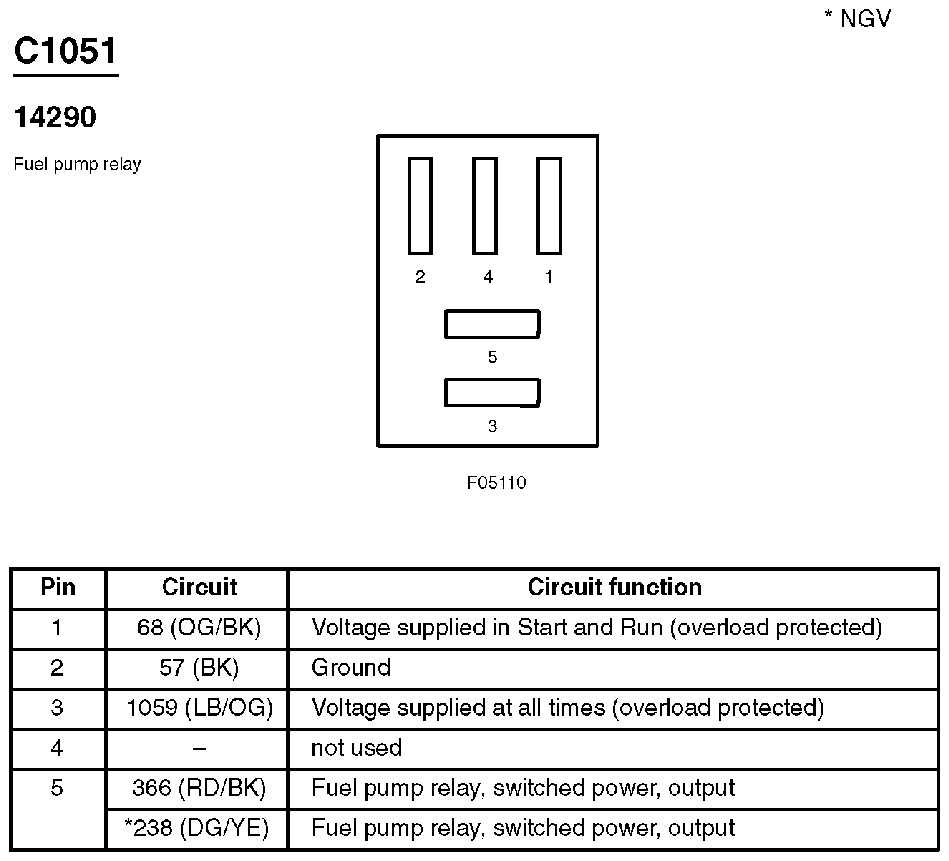

Fig 251: Fuel Pump Relay Connector End View (C1051)
Courtesy of FORD MOTOR CO.

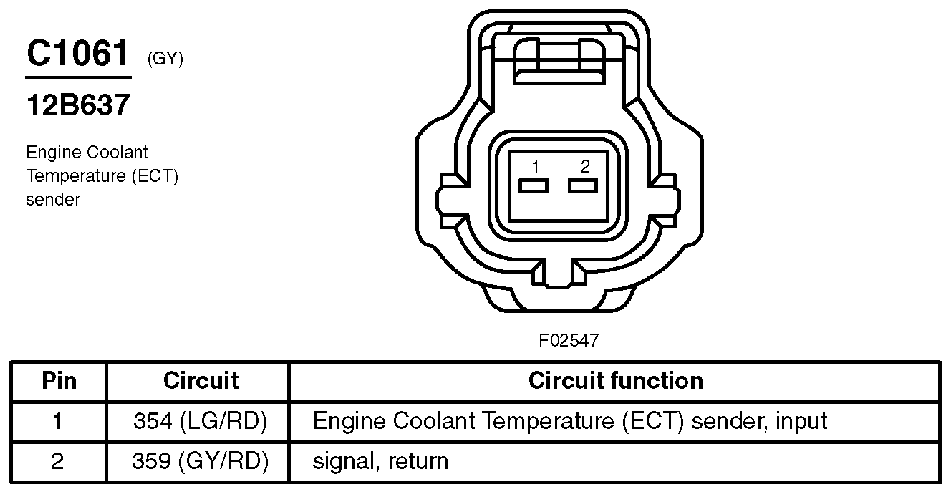

Fig 252: Engine Coolant Temperature (ECT) Sender Connector End View (C1061)
Courtesy of FORD MOTOR CO.
Fig 253: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.

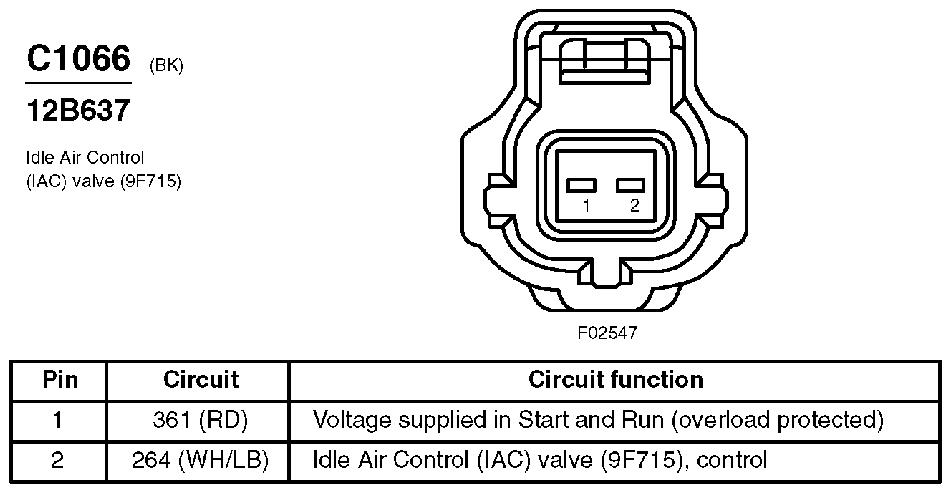

Fig 254: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.

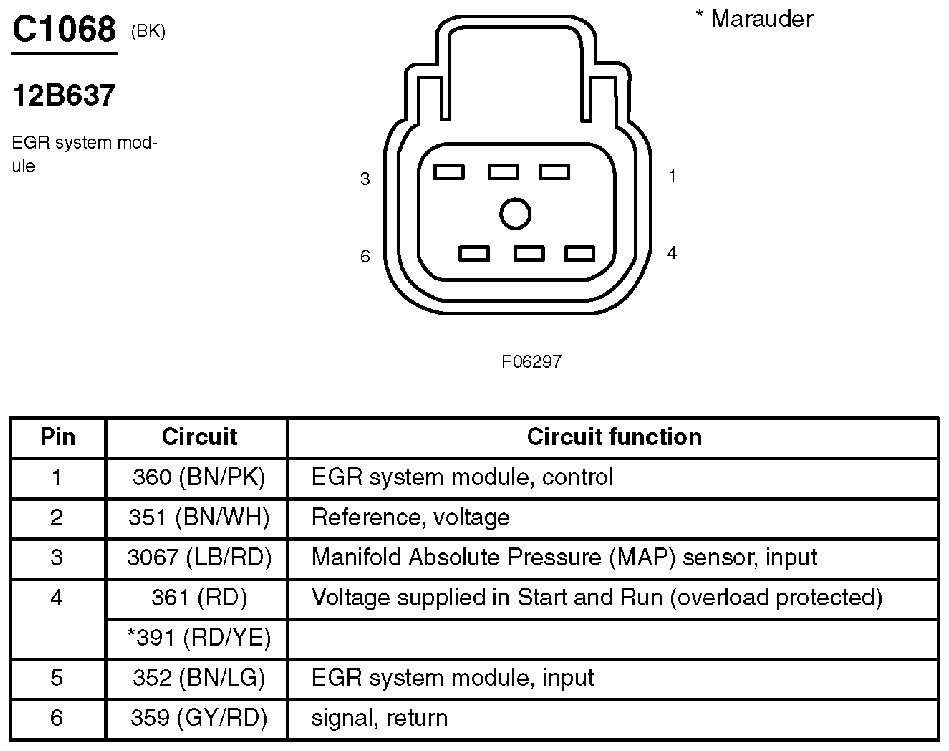

Fig 255: EGR System Module Connector End View (C1068)
Courtesy of FORD MOTOR CO.

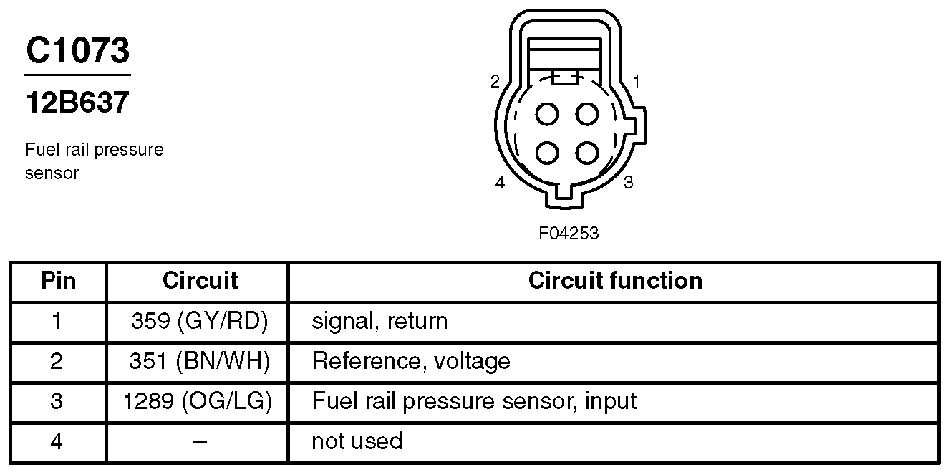

Fig 256: Fuel Rail Pressure Sensor Connector End View (C1073)
Courtesy of FORD MOTOR CO.

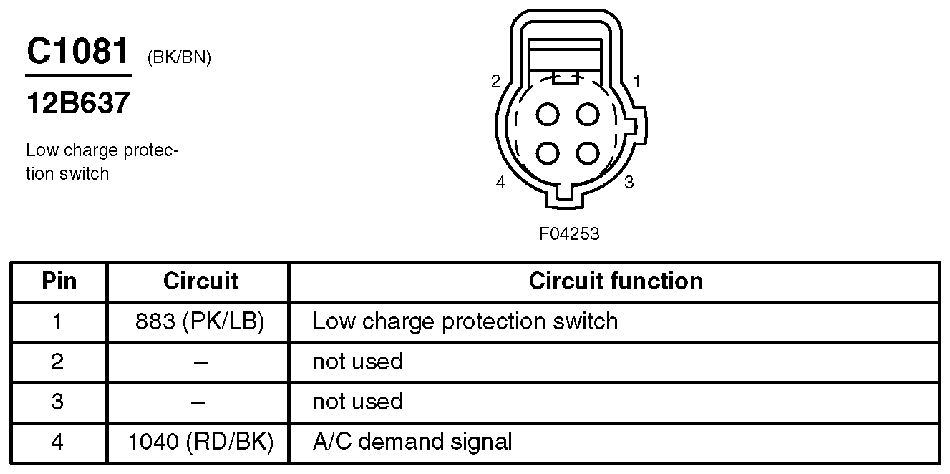

Fig 257: Low Charge Protection Switch Connector End View (C1081)
Courtesy of FORD MOTOR CO.

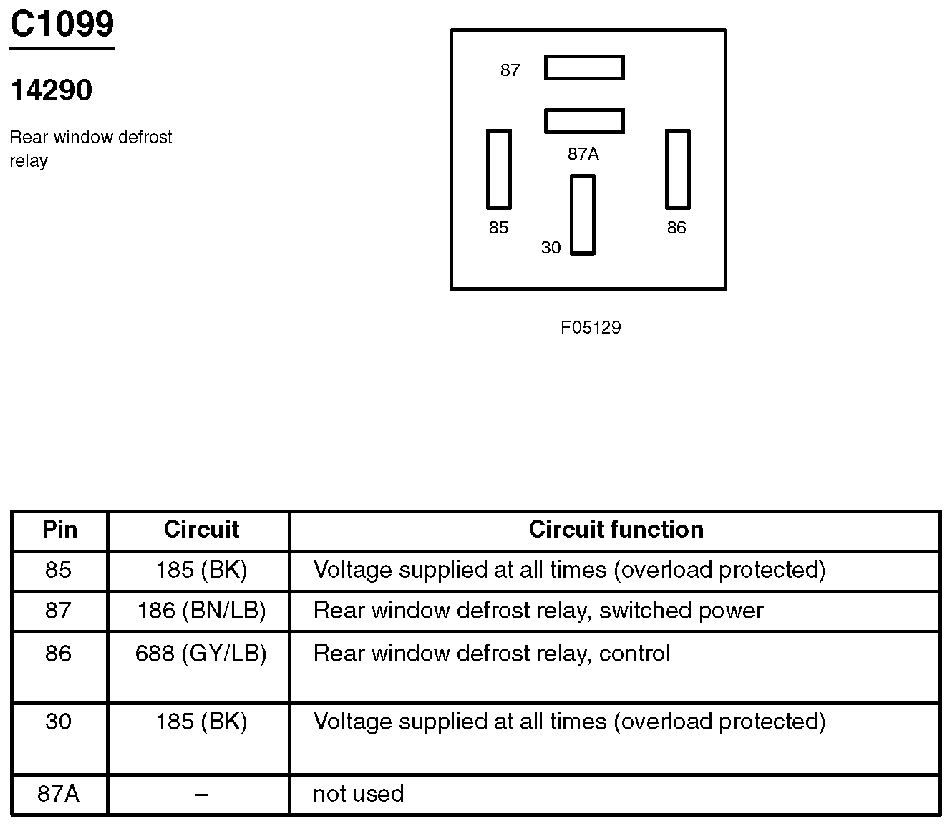

Fig 258: Rear Window Defrost Relay Connector End View (C1099)
Courtesy of FORD MOTOR CO.

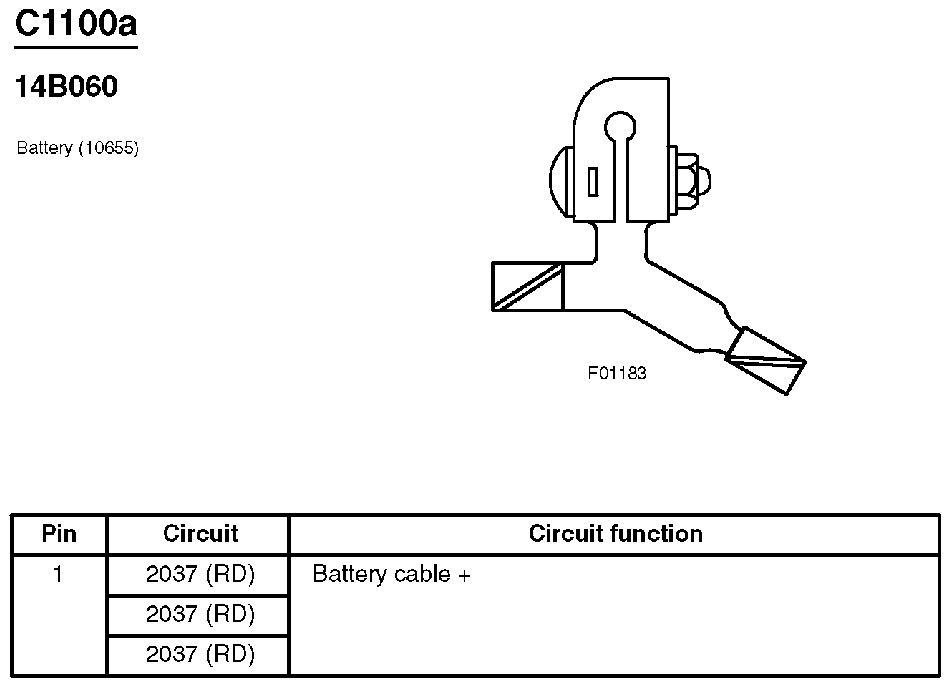

Fig 259: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.

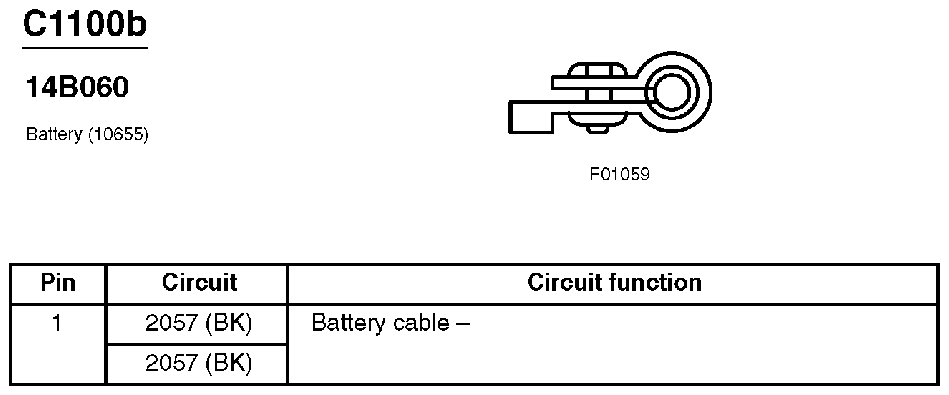

Fig 260: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.

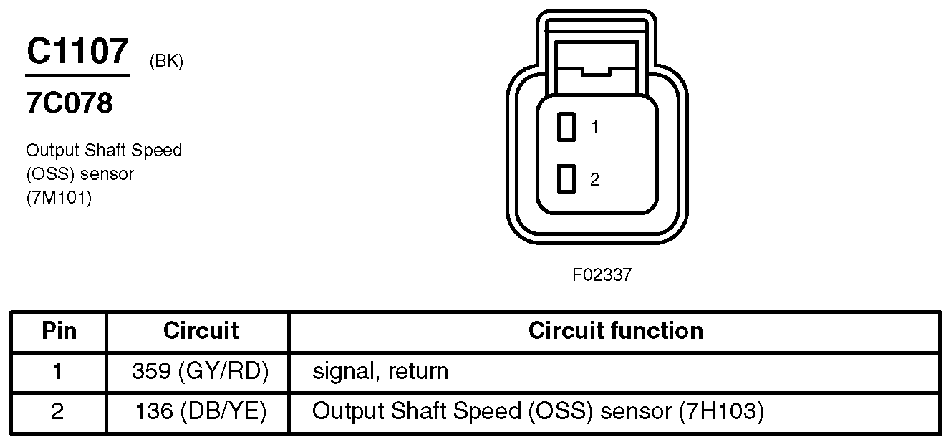

Fig 261: Output Shaft Speed (OSS) Sensor Connector End View (C1107)
Courtesy of FORD MOTOR CO.
Fig 262: Parking Lamp, Left Front Connector End View (C1113)
Courtesy of FORD MOTOR CO.

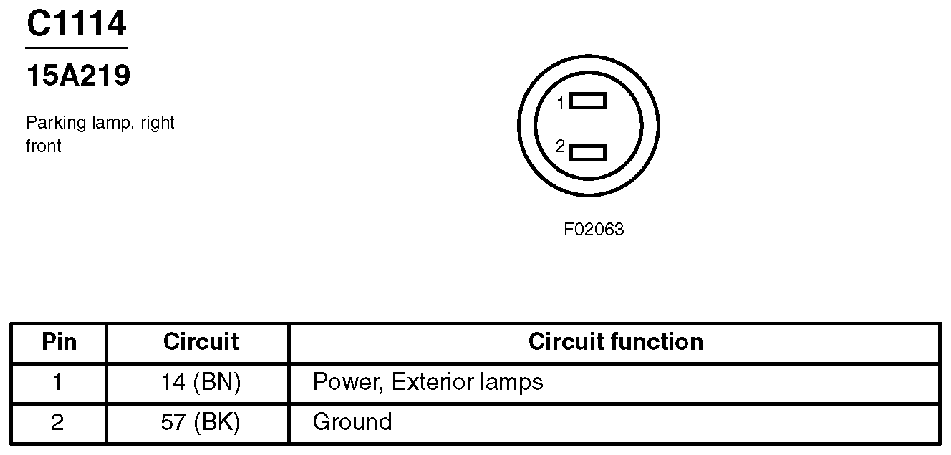

Fig 263: Parking Lamp, Right Front Connector End View (C1114)
Courtesy of FORD MOTOR CO.
Fig 264: Park/Turn Lamp, Left Front Connector End View (C1115)
Courtesy of FORD MOTOR CO.

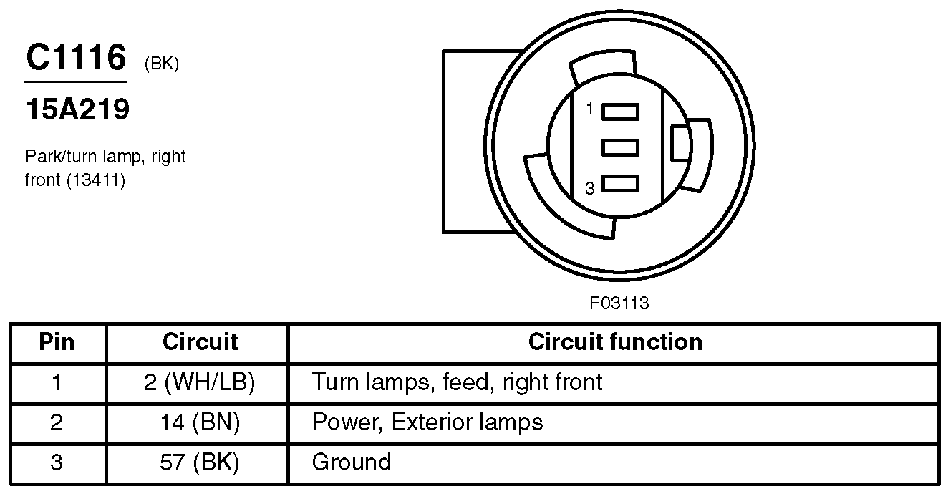

Fig 265: Park/Turn Lamp, Right Front Connector End View (C1116)
Courtesy of FORD MOTOR CO.

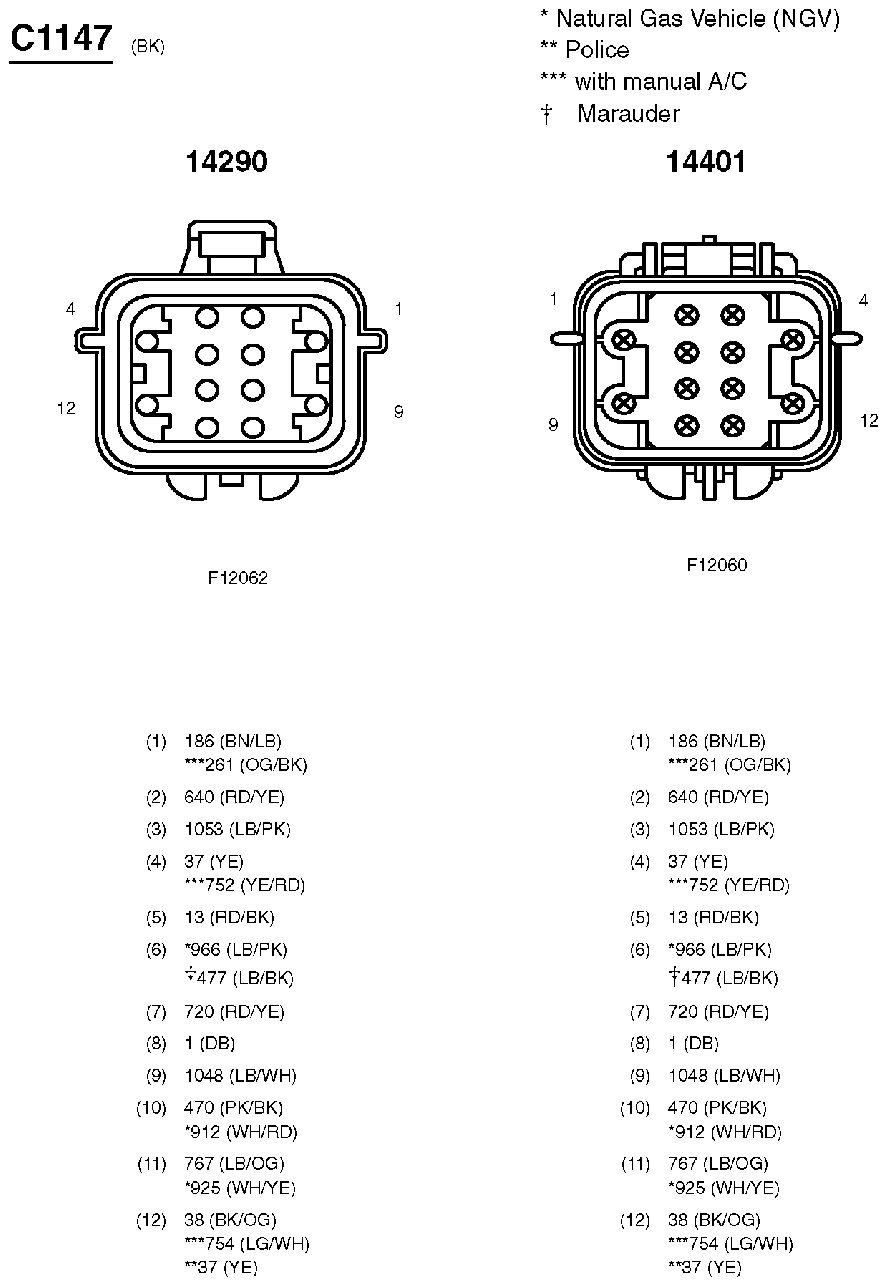

Fig 266: Inline Connector End View (C1147)
Courtesy of FORD MOTOR CO.

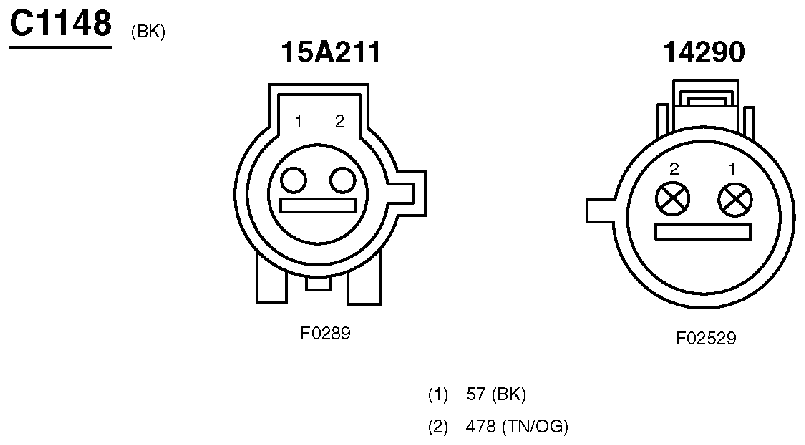

Fig 267: Inline Connector End View (C1148)
Courtesy of FORD MOTOR CO.

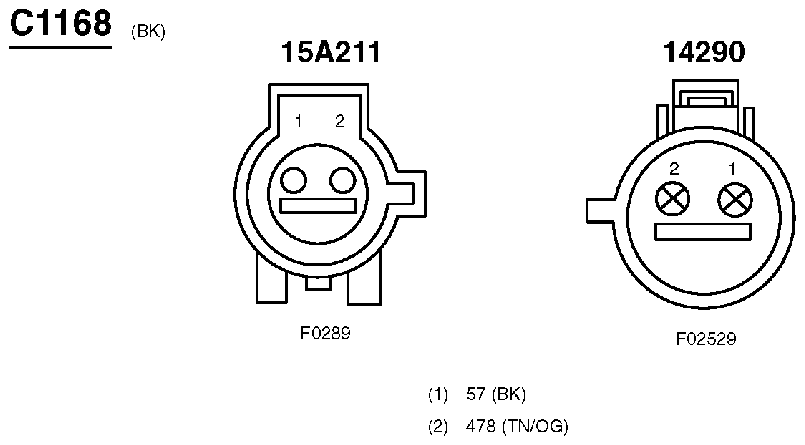

Fig 268: Inline Connector End View (C1168)
Courtesy of FORD MOTOR CO.

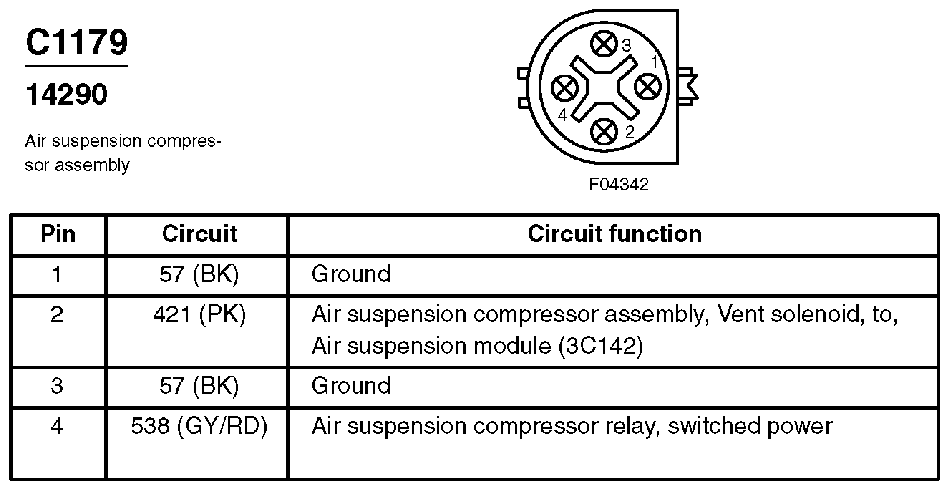

Fig 269: Air Suspension Compressor Assembly Connector End View (C1179)
Courtesy of FORD MOTOR CO.

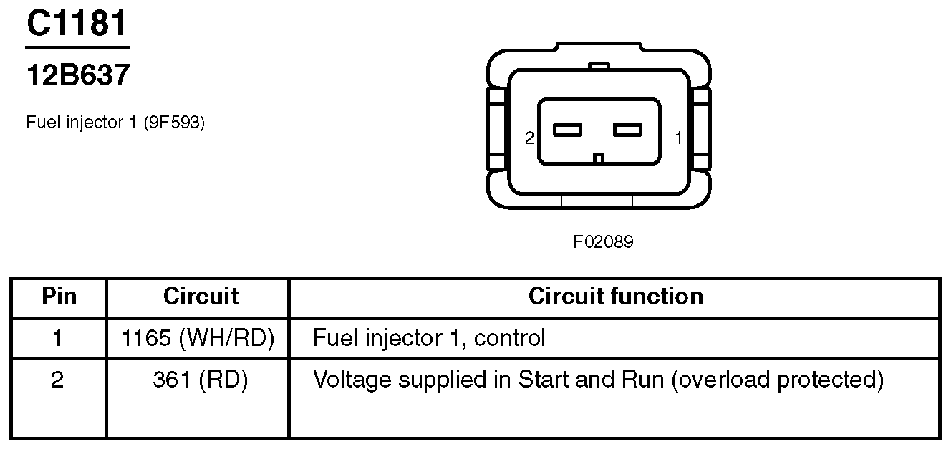

Fig 270: Fuel Injector 1 Connector End View (C1181)
Courtesy of FORD MOTOR CO.
Fig 271: Fuel Injector 2 Connector End View (C1182)
Courtesy of FORD MOTOR CO.
Fig 272: Fuel Injector 3 Connector End View (C1183)
Courtesy of FORD MOTOR CO.

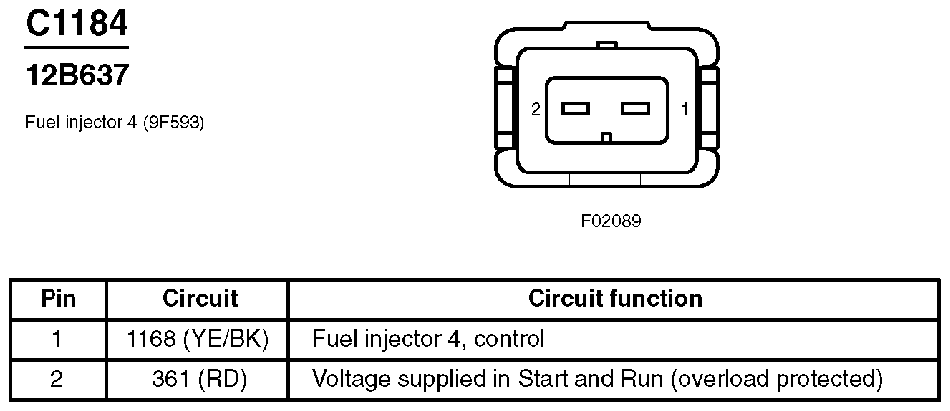

Fig 273: Fuel Injector 4 Connector End View (C1184)
Courtesy of FORD MOTOR CO.

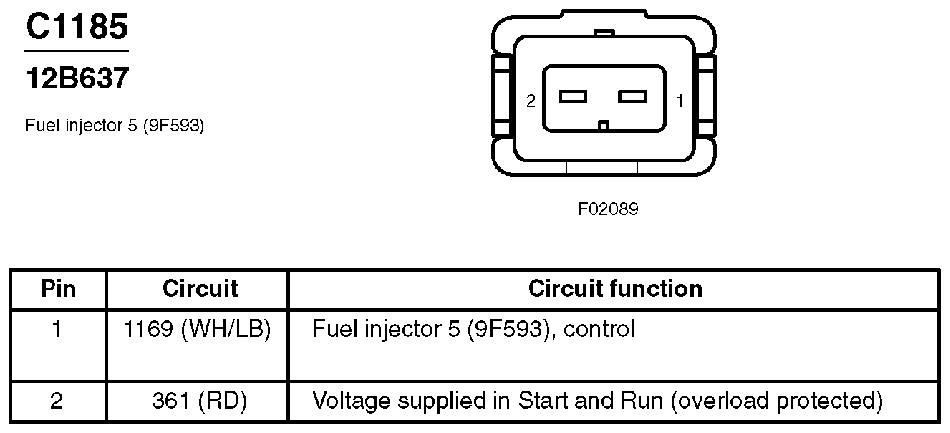

Fig 274: Fuel Injector 5 Connector End View (C1185)
Courtesy of FORD MOTOR CO.

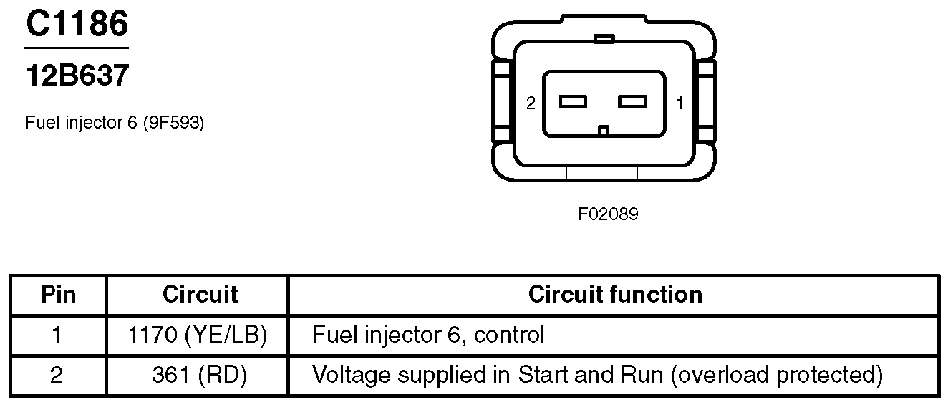

Fig 275: Fuel Injector 6 Connector End View (C1186)
Courtesy of FORD MOTOR CO.

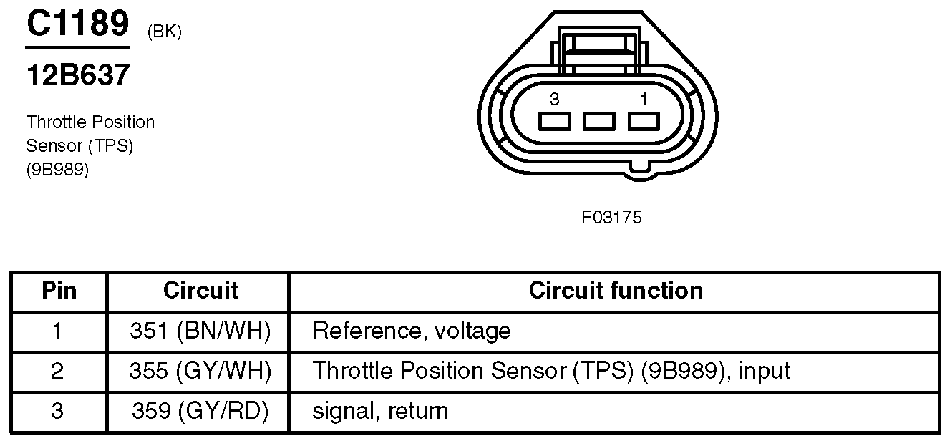

Fig 276: Throttle Position Sensor (TPS) Connector End View (C1189)
Courtesy of FORD MOTOR CO.

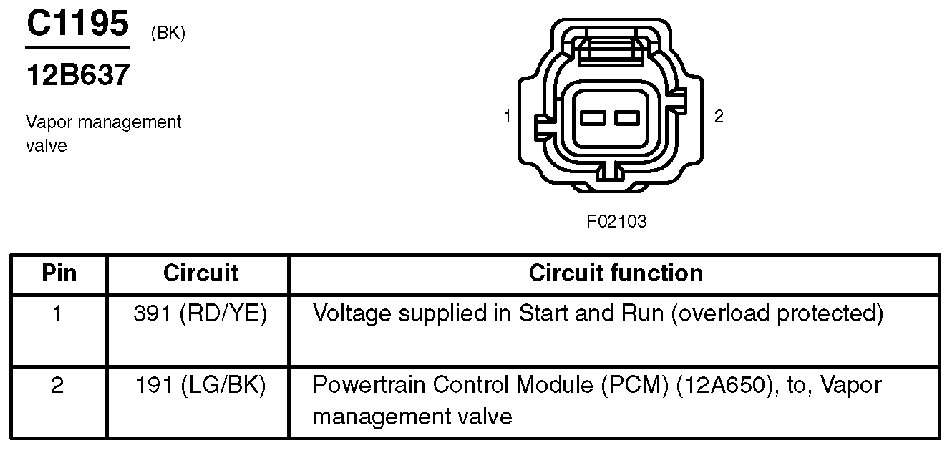

Fig 277: Vapor Management Valve Connector End View (C1195)
Courtesy of FORD MOTOR CO.

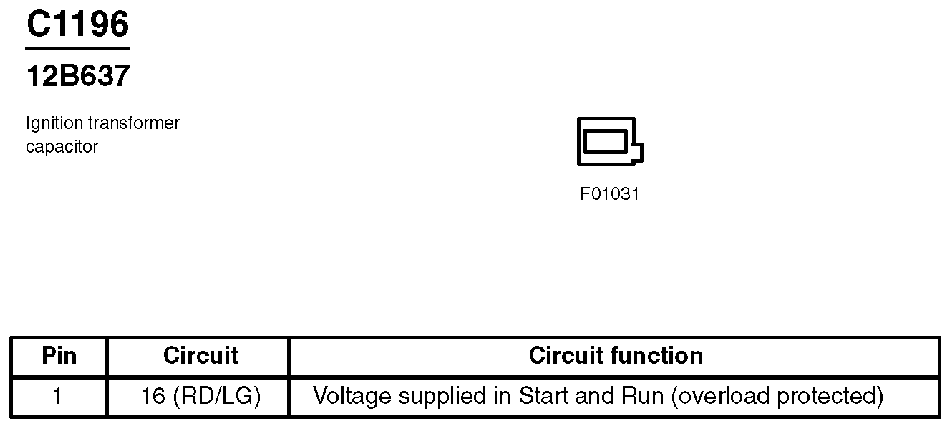

Fig 278: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.

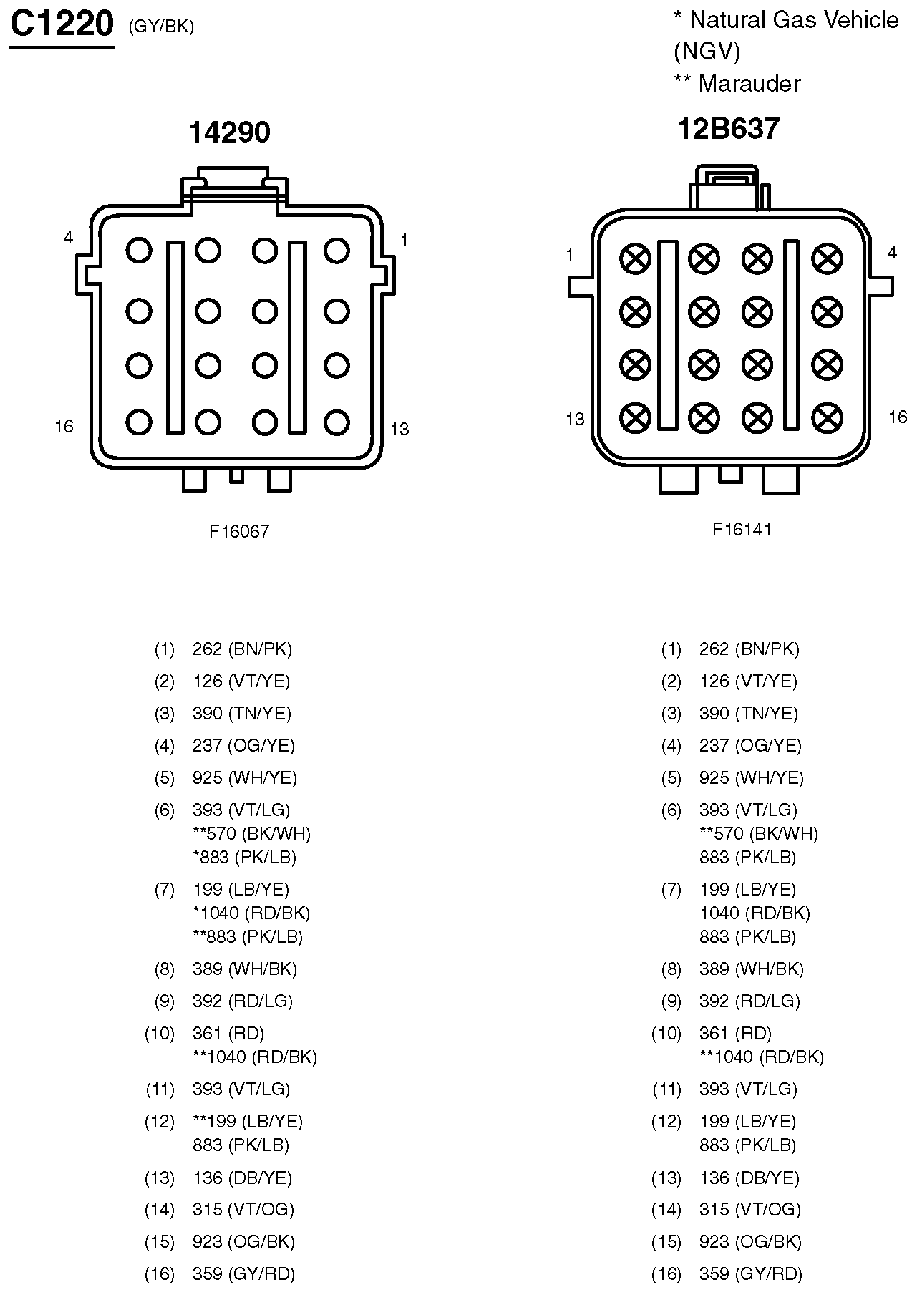

Fig 279: Inline Connector End View (C1220)
Courtesy of FORD MOTOR CO.

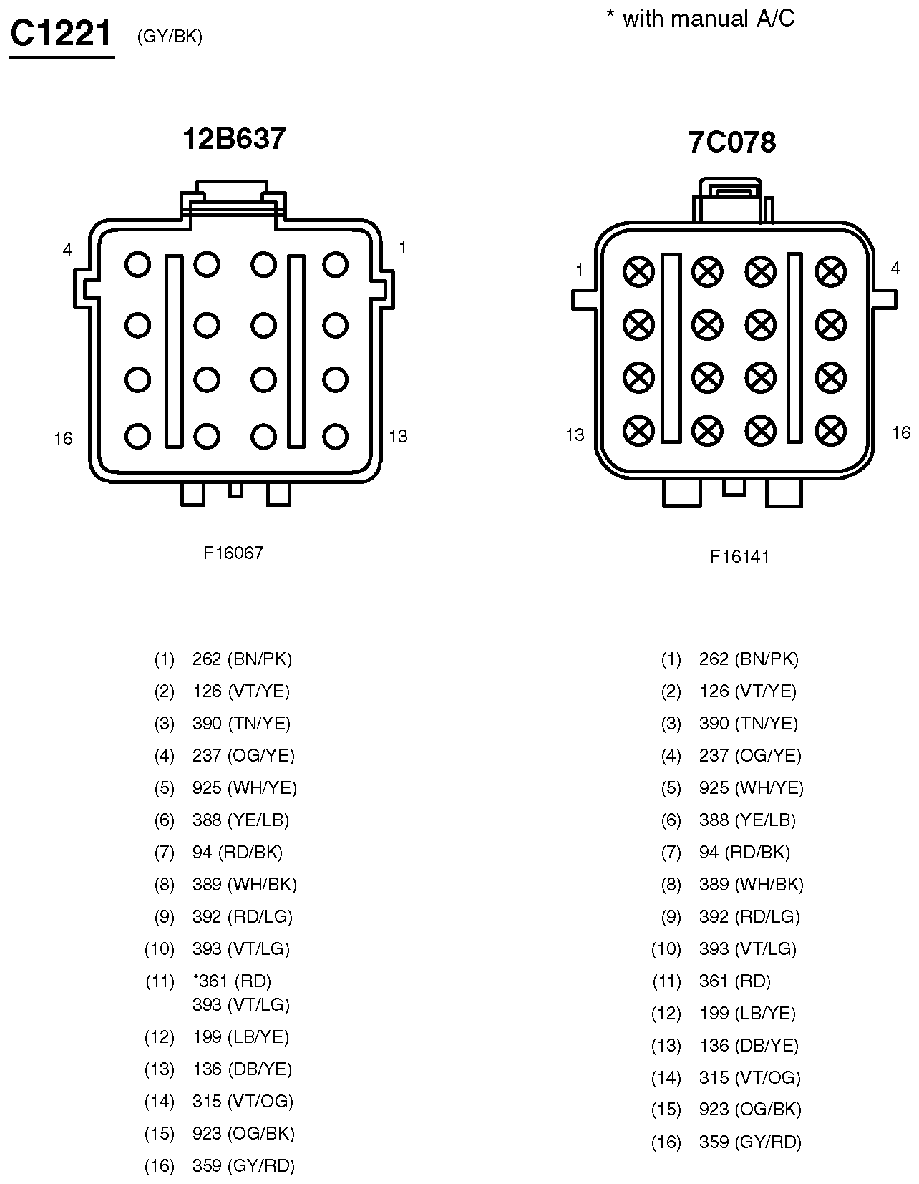

Fig 280: Inline Connector End View (C1221)
Courtesy of FORD MOTOR CO.

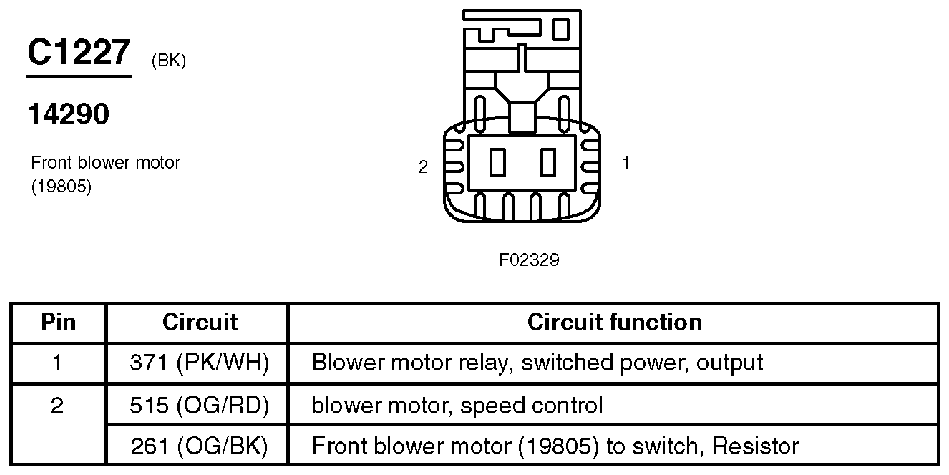

Fig 281: Front Blower Motor Connector End View (C1227)
Courtesy of FORD MOTOR CO.

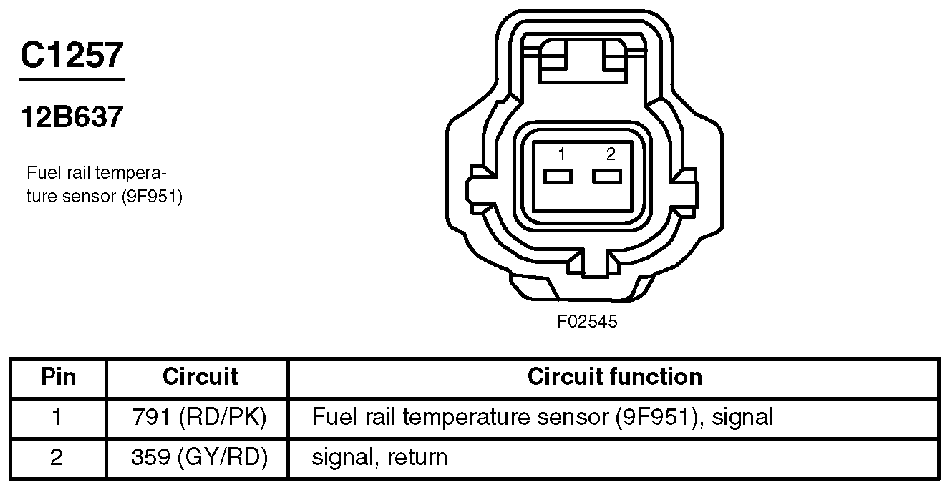

Fig 282: Fuel Rail Temperature Sensor Connector End View (C1257)
Courtesy of FORD MOTOR CO.

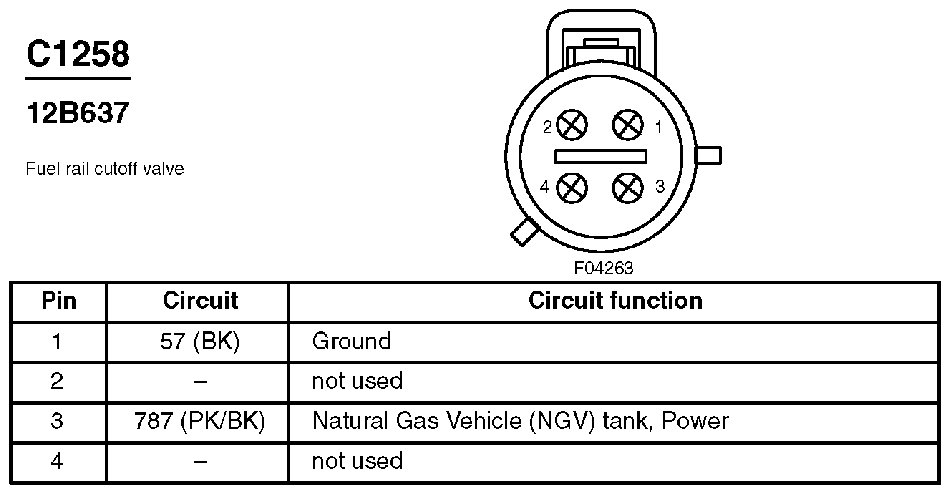

Fig 283: Fuel Rail Cutoff Valve Connector End View (C1258)
Courtesy of FORD MOTOR CO.

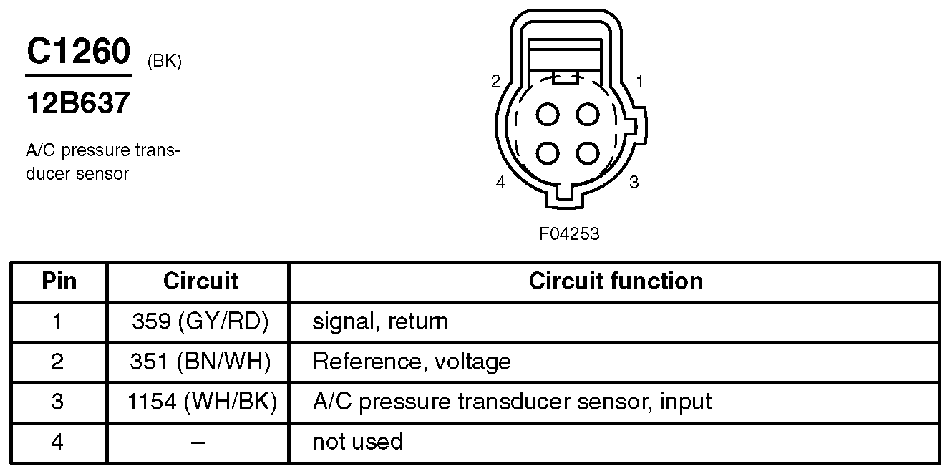

Fig 284: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.
Fig 285: 4R70W Transmission Connector End View (C1274)
Courtesy of FORD MOTOR CO.

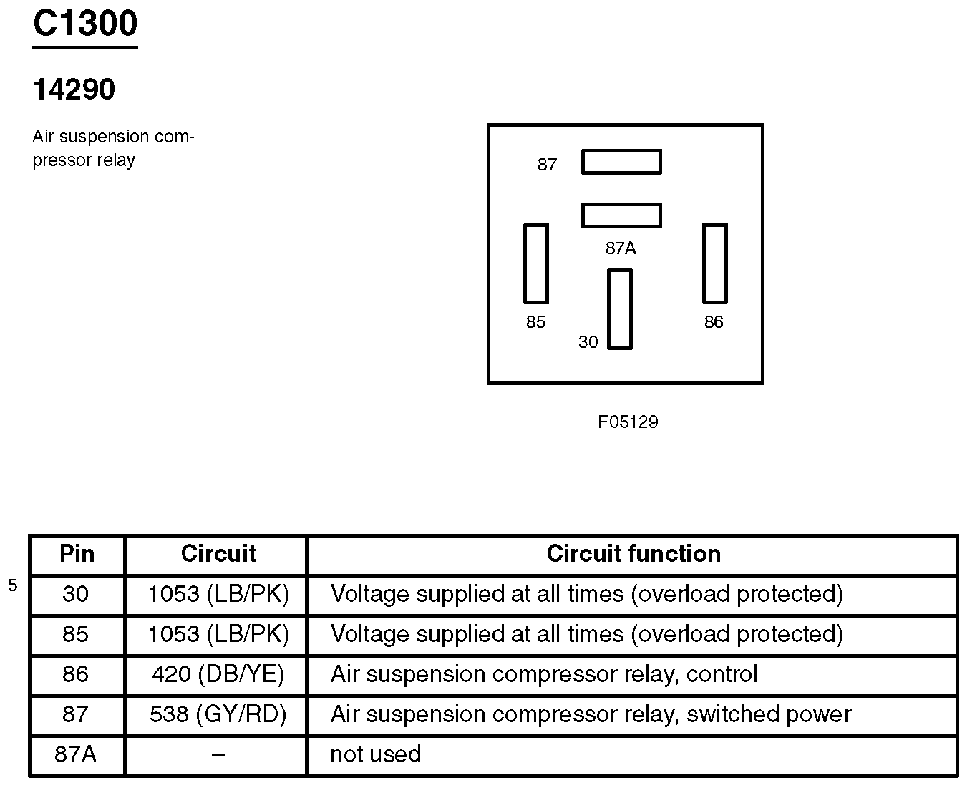

Fig 286: Air Suspension Compressor Relay Connector End View (C1300)
Courtesy of FORD MOTOR CO.

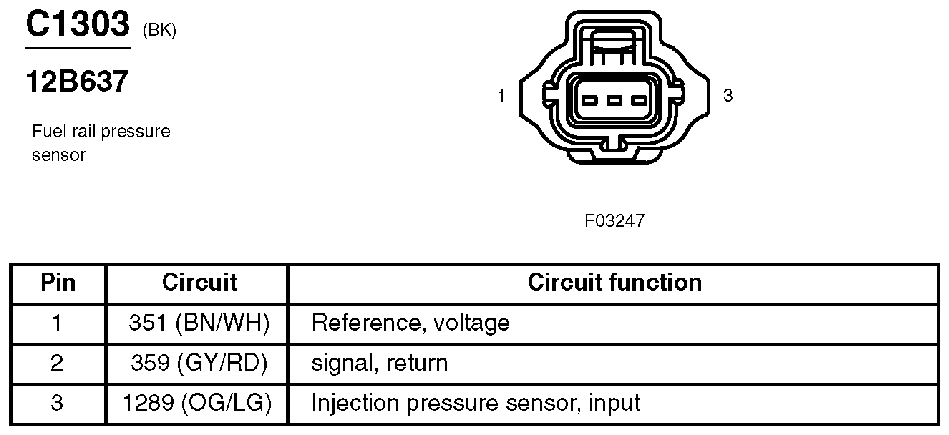

Fig 287: Fuel Rail Pressure Sensor Connector End View (C1303)
Courtesy of FORD MOTOR CO.

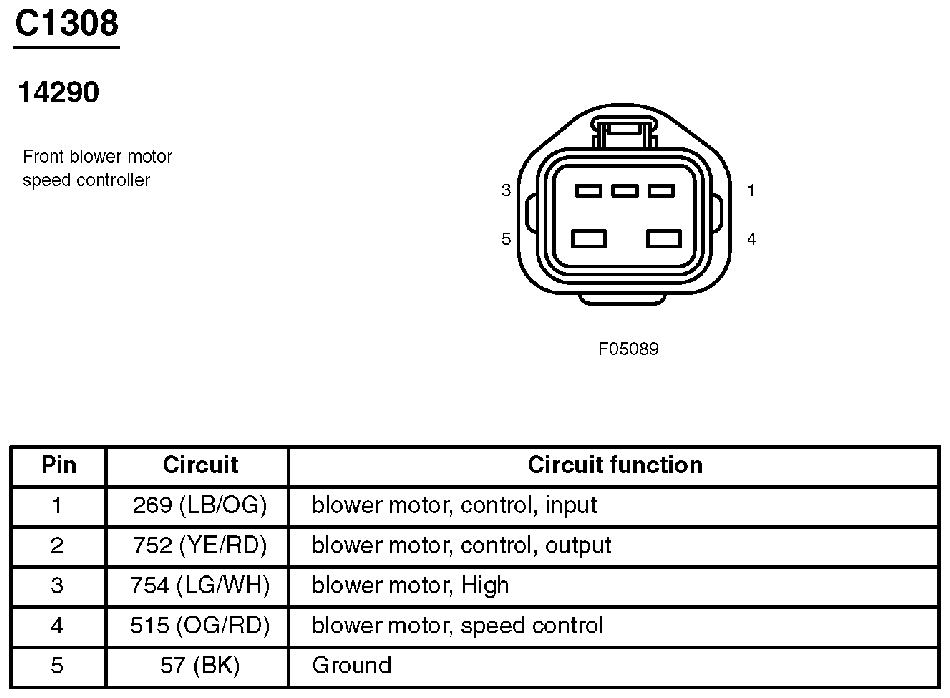

Fig 288: Front Blower Motor Speed Controller Connector End View (C1308)
Courtesy of FORD MOTOR CO.

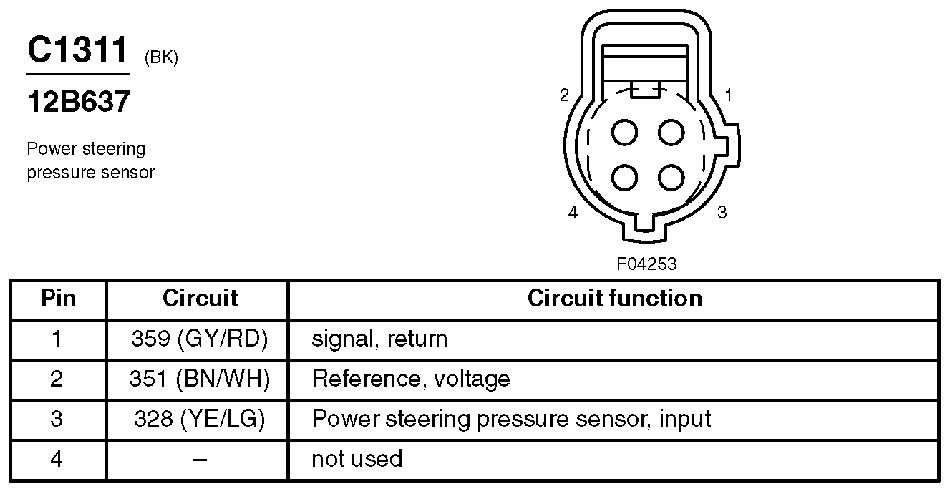

Fig 289: Power Steering Pressure Sensor Connector End View (C1311)
Courtesy of FORD MOTOR CO.

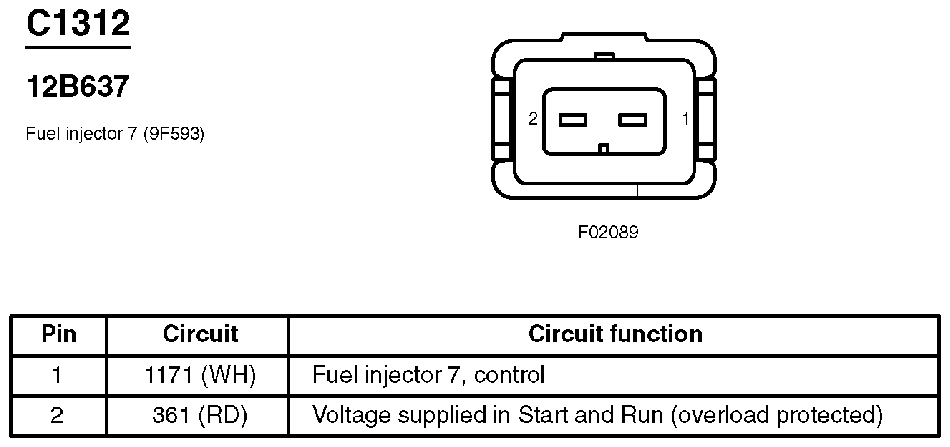

Fig 290: Fuel Injector 7 Connector End View (C1312)
Courtesy of FORD MOTOR CO.

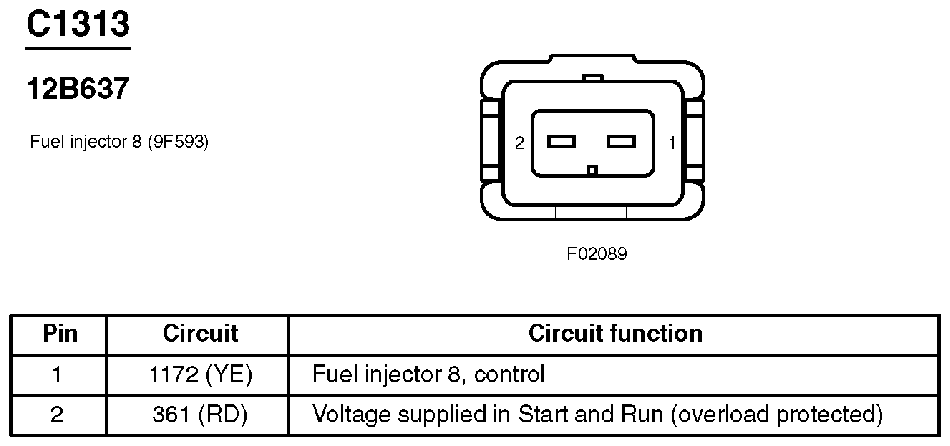

Fig 291: Fuel Injector 8 Connector End View (C1313)
Courtesy of FORD MOTOR CO.

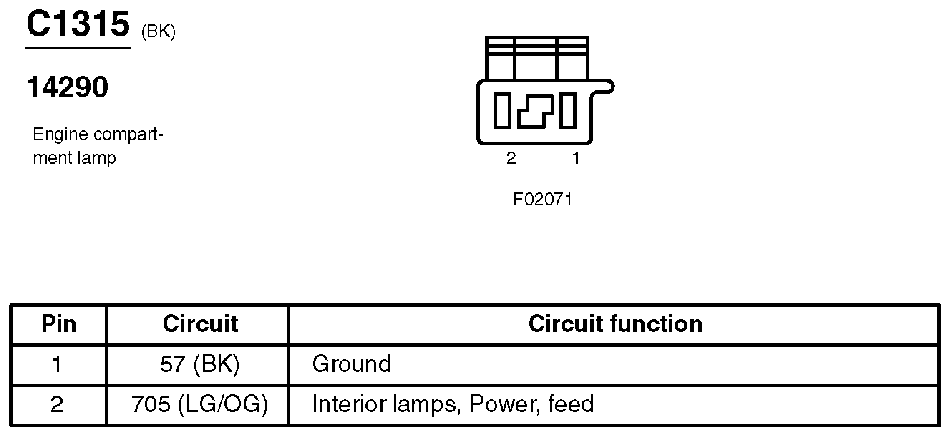

Fig 292: Engine Compartment Lamp Connector End View (C1315)
Courtesy of FORD MOTOR CO.

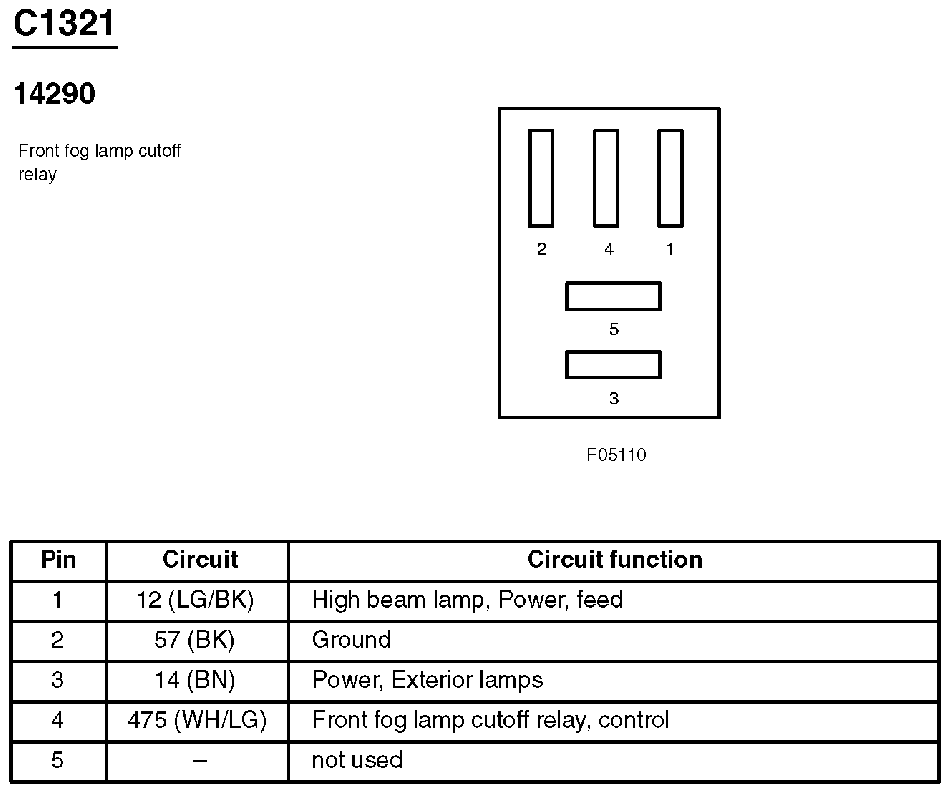

Fig 293: Front Fog Lamp Cutoff Relay Connector End View (C1321)
Courtesy of FORD MOTOR CO.

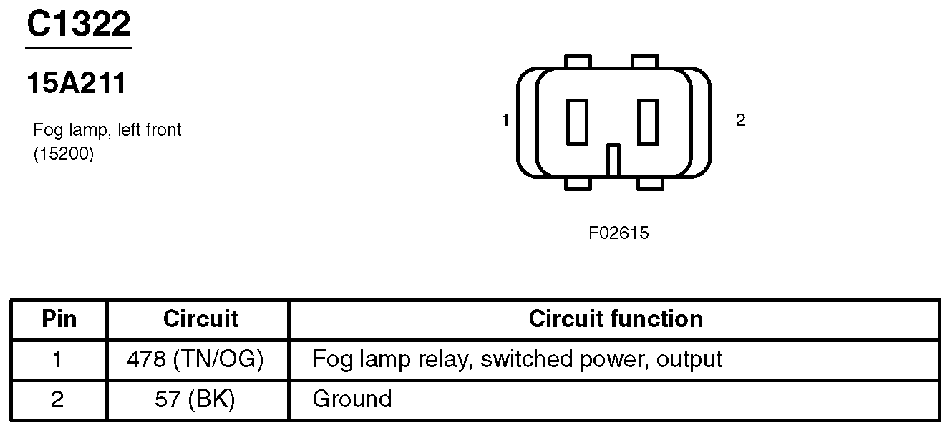

Fig 294: Fog Lamp, Left Front Connector End View (C1322)
Courtesy of FORD MOTOR CO.

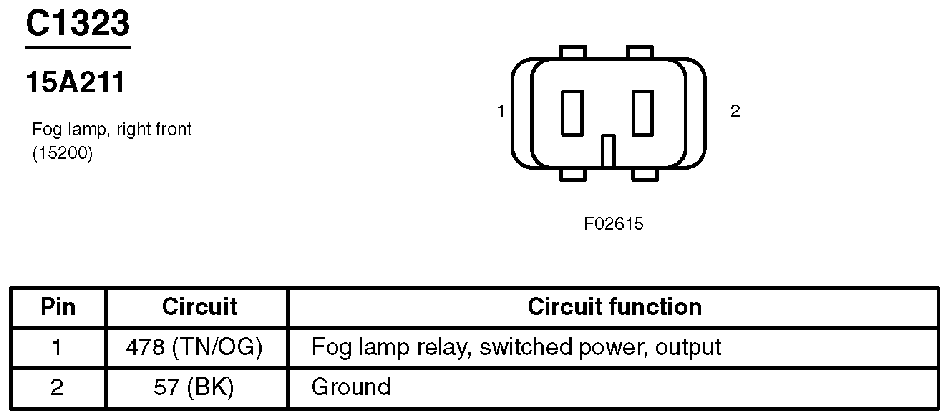

Fig 295: Fog Lamp, Right Front Connector End View (C1323)
Courtesy of FORD MOTOR CO.

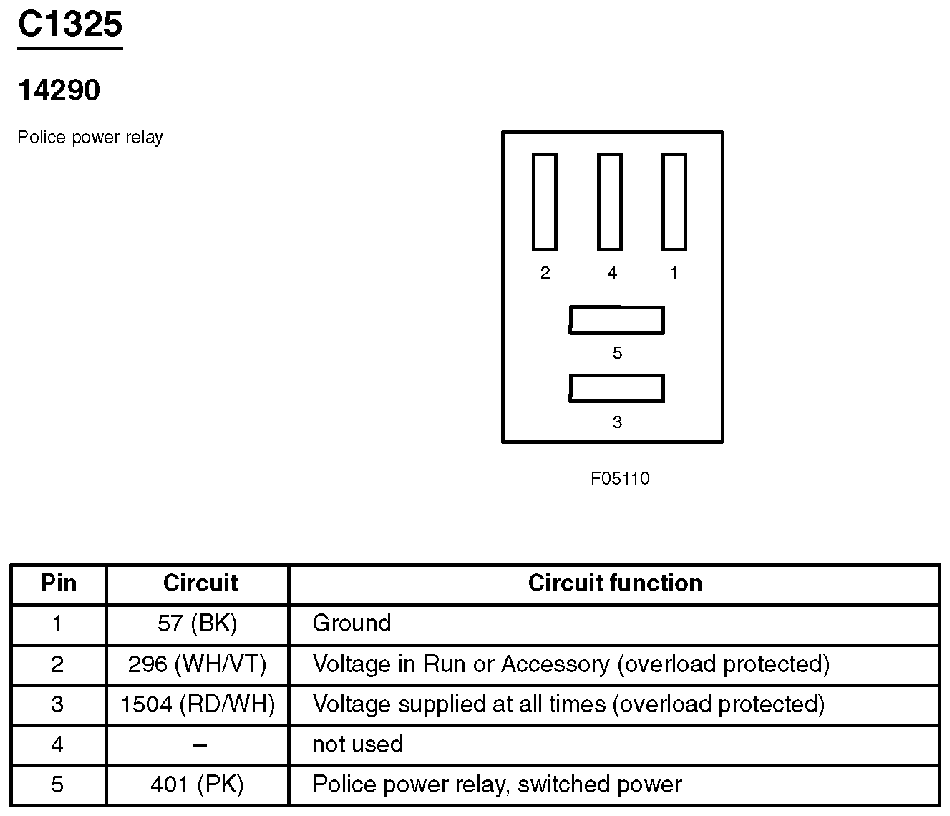

Fig 296: Police Power Relay Connector End View (C1325)
Courtesy of FORD MOTOR CO.

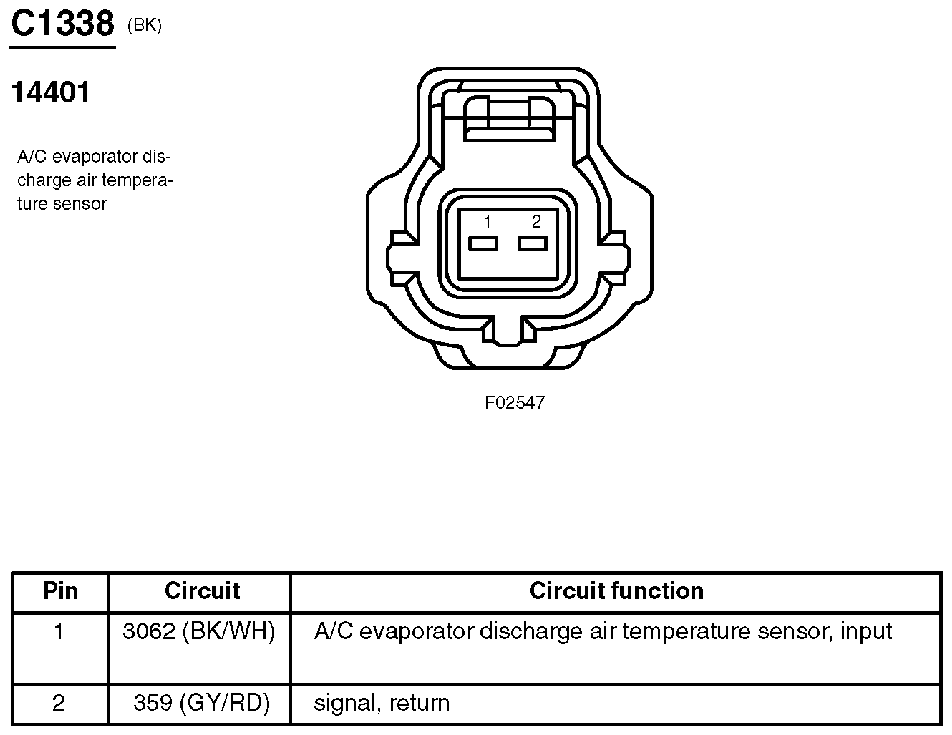

Fig 297: A/C Evaporator Discharge Air Temperature Sensor Connector End View (C1338)
Courtesy of FORD MOTOR CO.

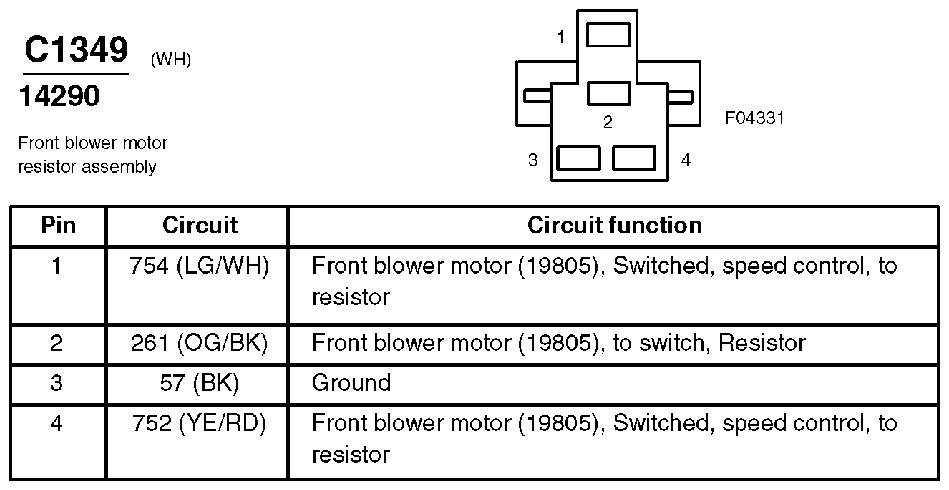

Fig 298: Front Blower Motor Resistor Assembly Connector End View (C1349)
Courtesy of FORD MOTOR CO.

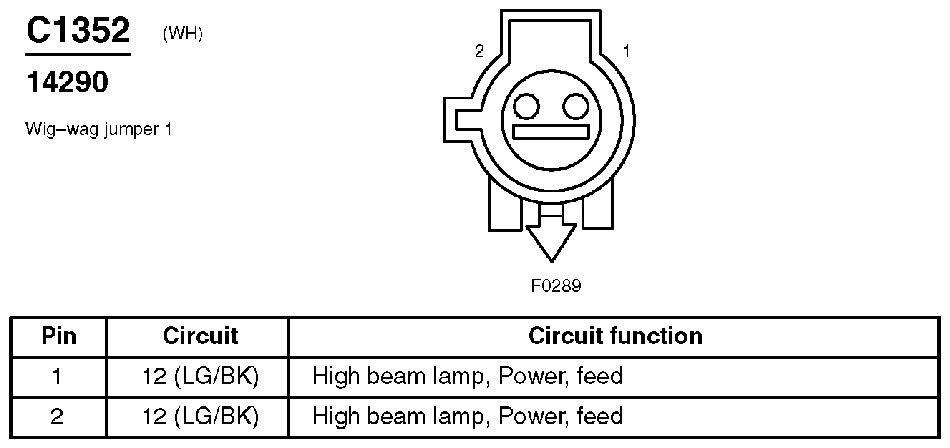

Fig 299: Wig-Wag Jumper 1 Connector End View (C1352)
Courtesy of FORD MOTOR CO.

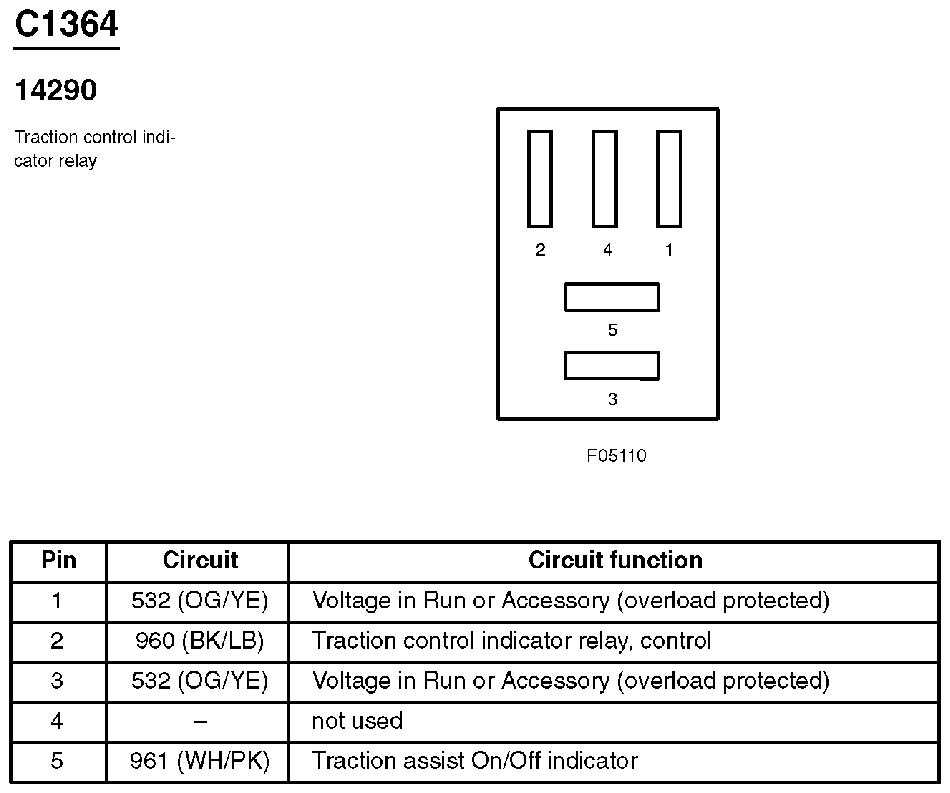

Fig 300: Traction Control Indicator Relay Connector End View (C1364)
Courtesy of FORD MOTOR CO.

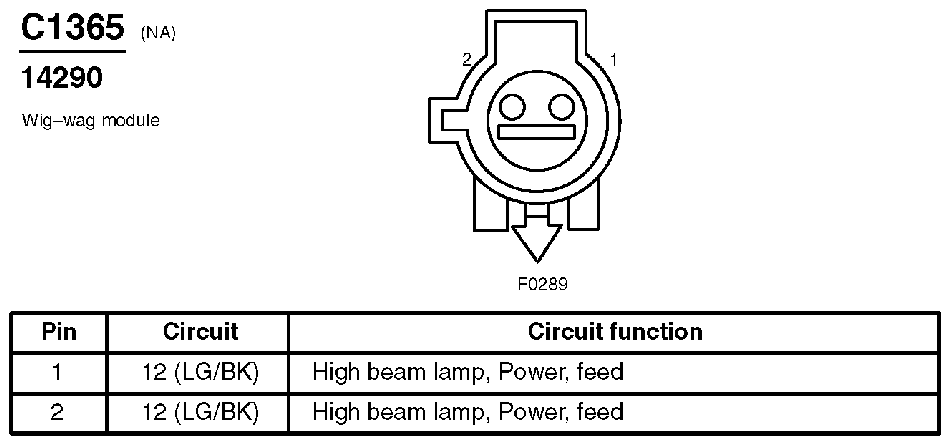

Fig 301: Wig-Wag Module Connector End View (C1365)
Courtesy of FORD MOTOR CO.

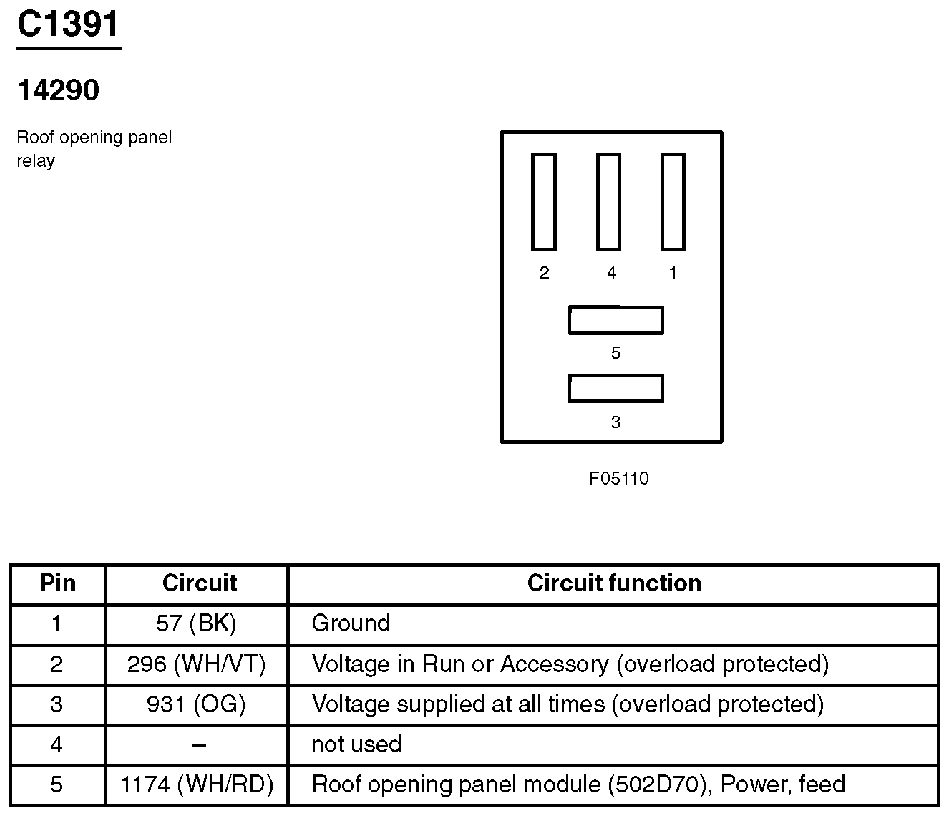

Fig 302: Roof Opening Panel Relay Connector End View (C1391)
Courtesy of FORD MOTOR CO.

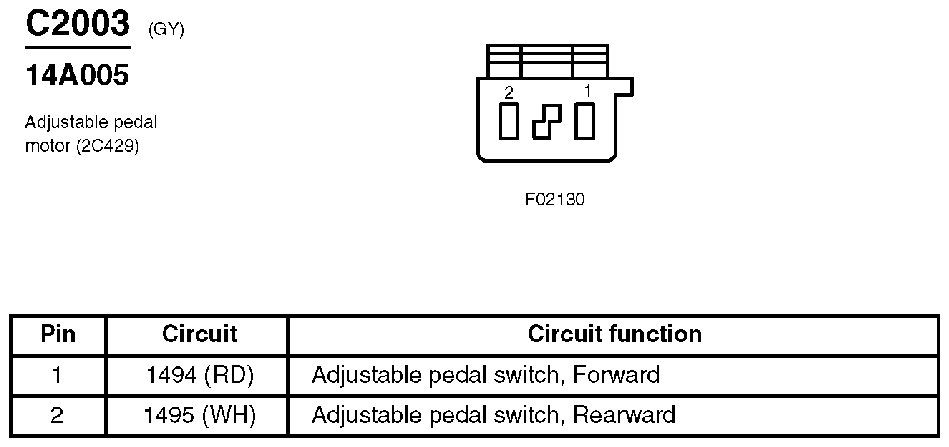

Fig 303: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

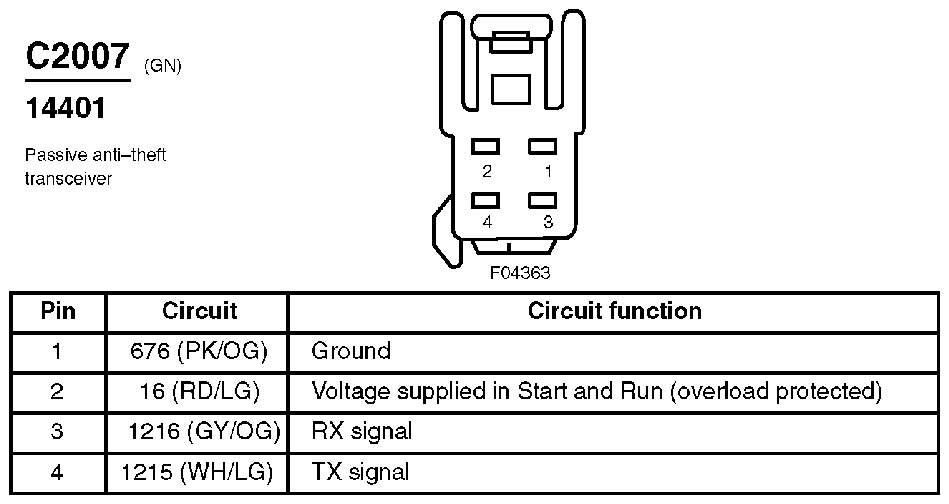

Fig 304: Passive Anti-theft Transceiver Connector End View (C2007)
Courtesy of FORD MOTOR CO.

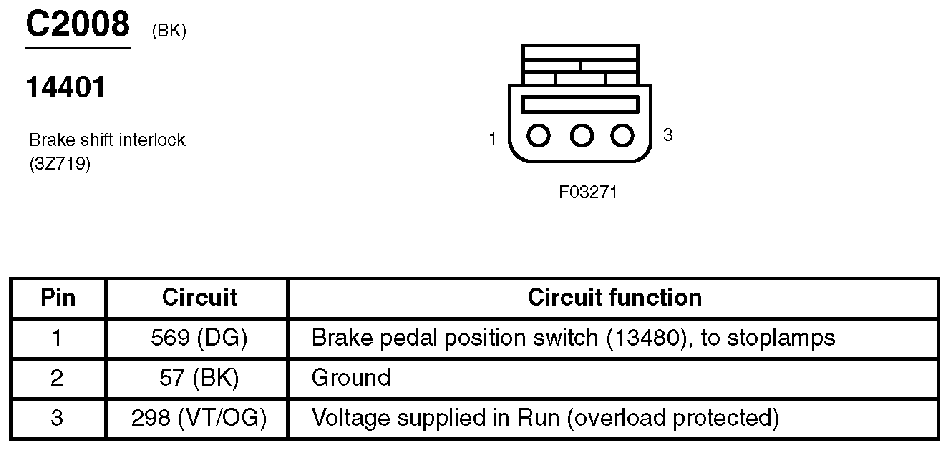

Fig 305: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

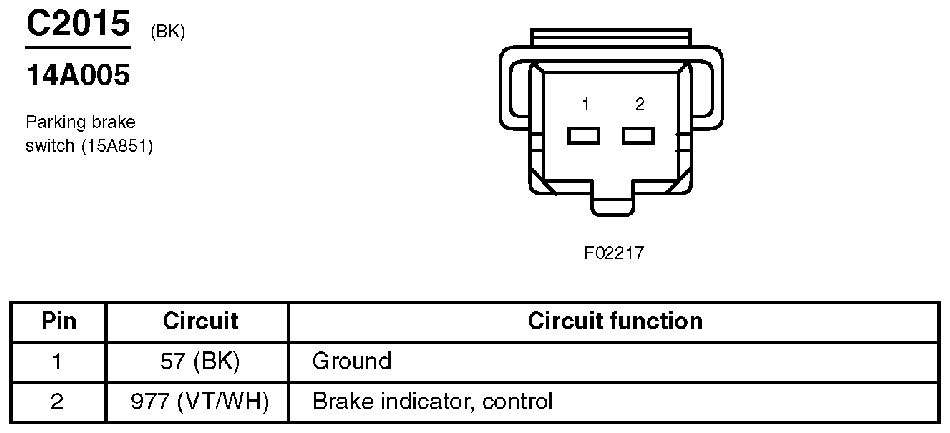

Fig 306: Parking Brake Switch Connector End View (C2015)
Courtesy of FORD MOTOR CO.

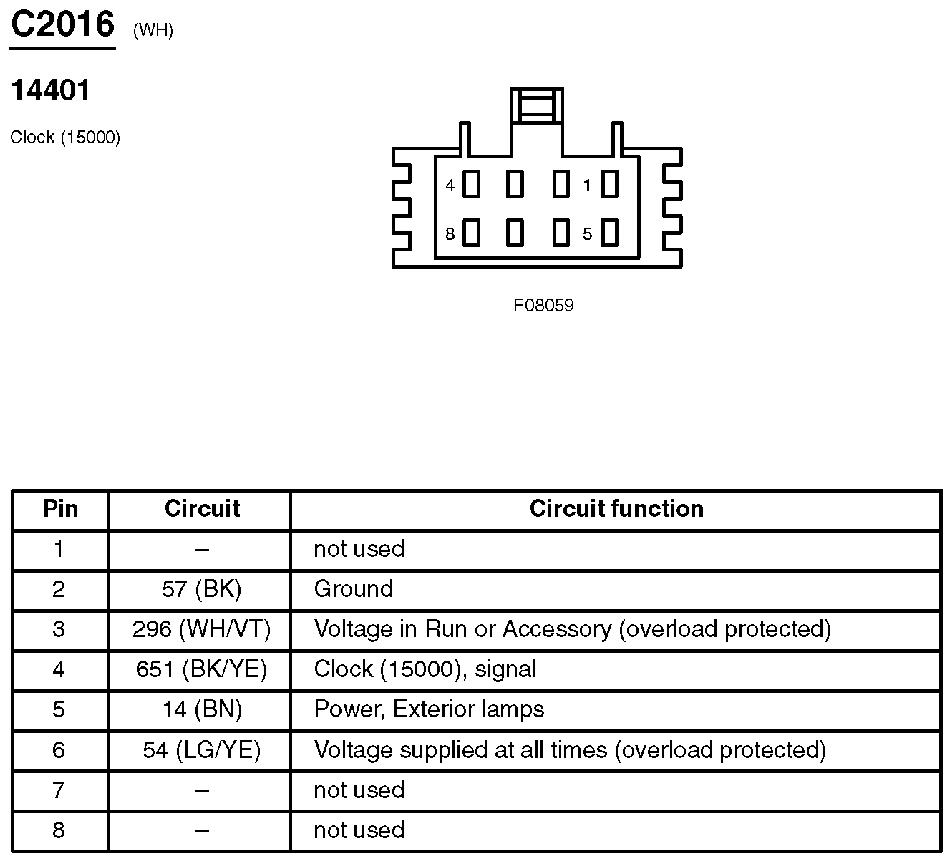

Fig 307: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.

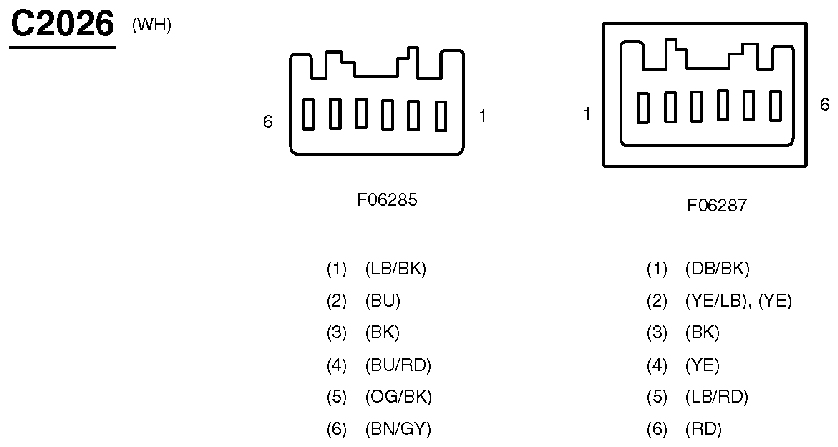

Fig 308: Inline Connector End View (C2026)
Courtesy of FORD MOTOR CO.

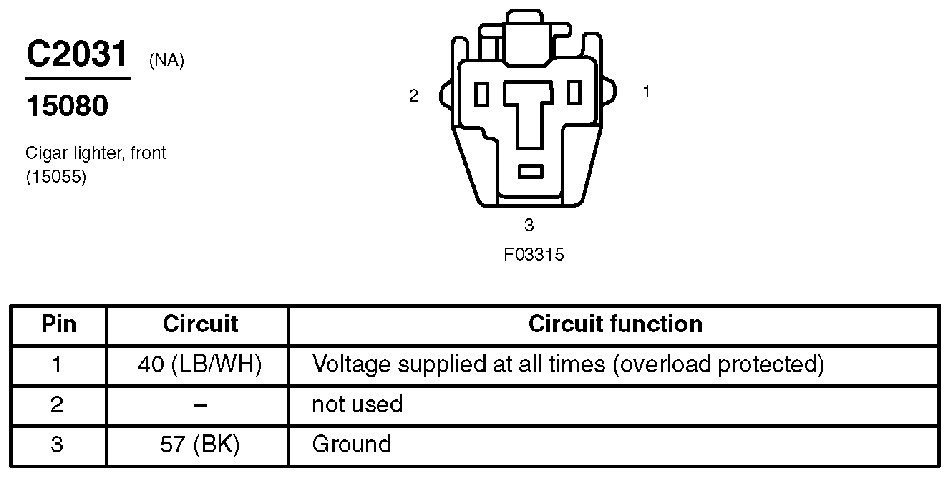

Fig 309: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

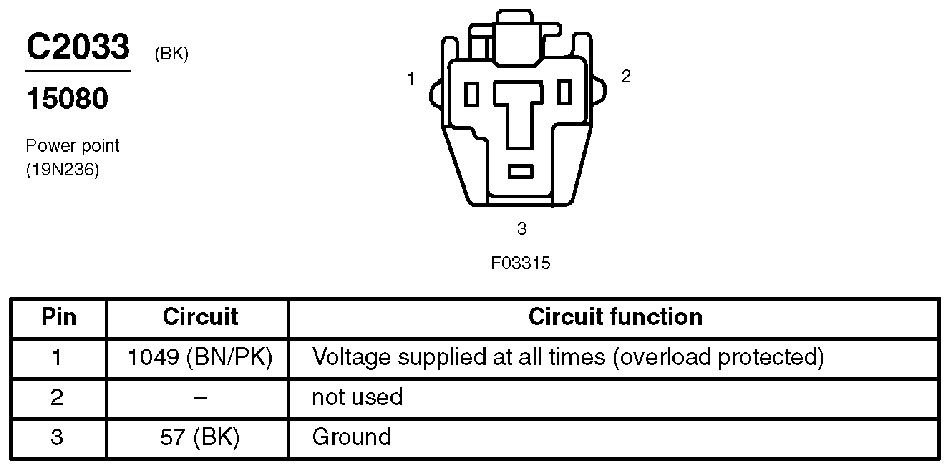

Fig 310: Power Point Connector End View (C2033)
Courtesy of FORD MOTOR CO.

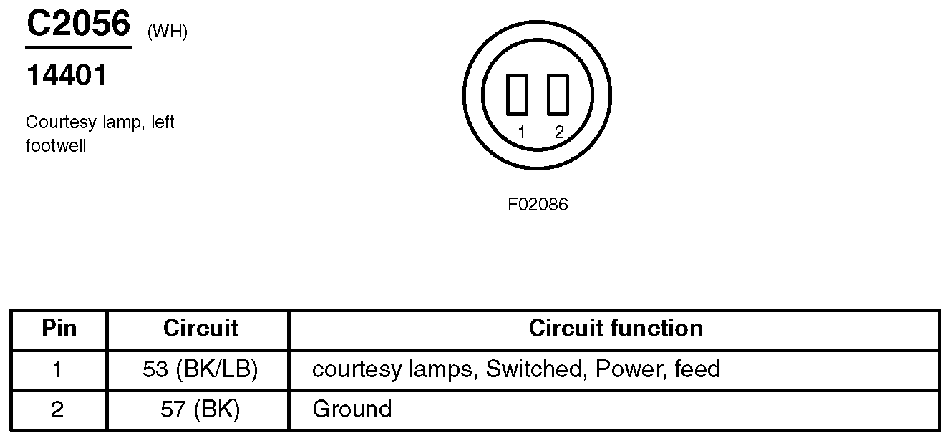

Fig 311: Courtesy Lamp, Left Footwell Connector End View (C2056)
Courtesy of FORD MOTOR CO.

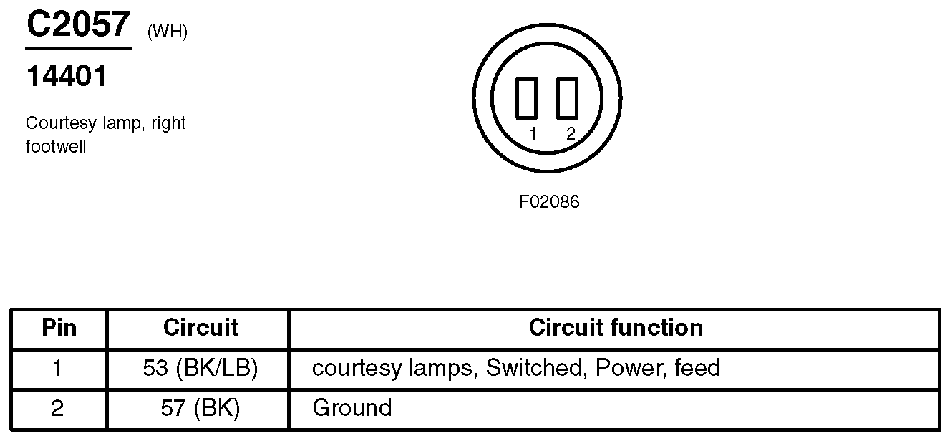

Fig 312: Courtesy Lamp, Right Footwell Connector End View (C2057)
Courtesy of FORD MOTOR CO.

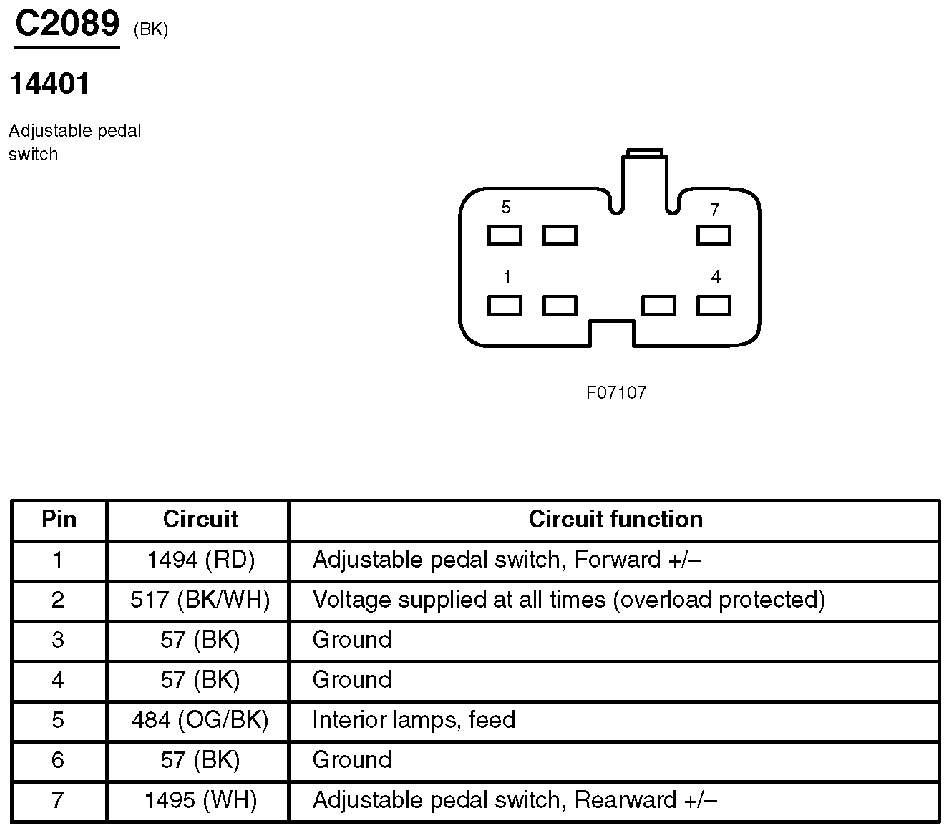

Fig 313: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

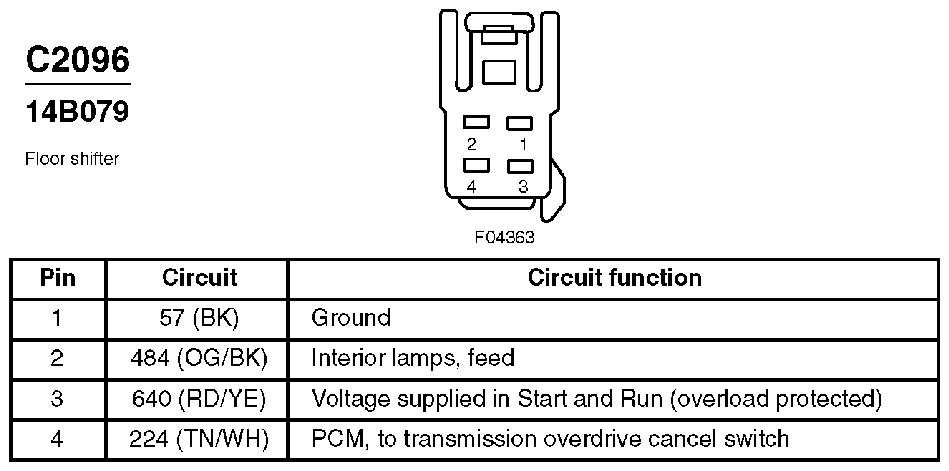

Fig 314: Floor Shifter Connector End View (C2096)
Courtesy of FORD MOTOR CO.

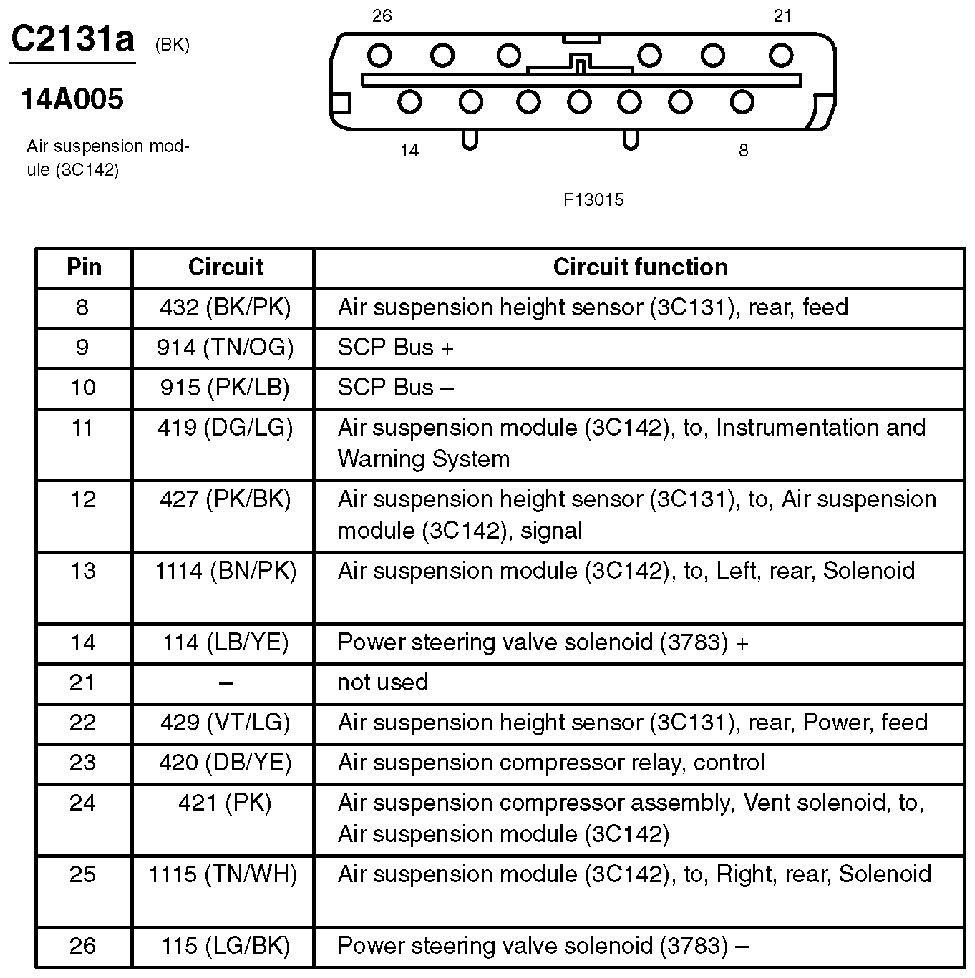

Fig 315: Air Suspension Module Connector End View (C2131a)
Courtesy of FORD MOTOR CO.

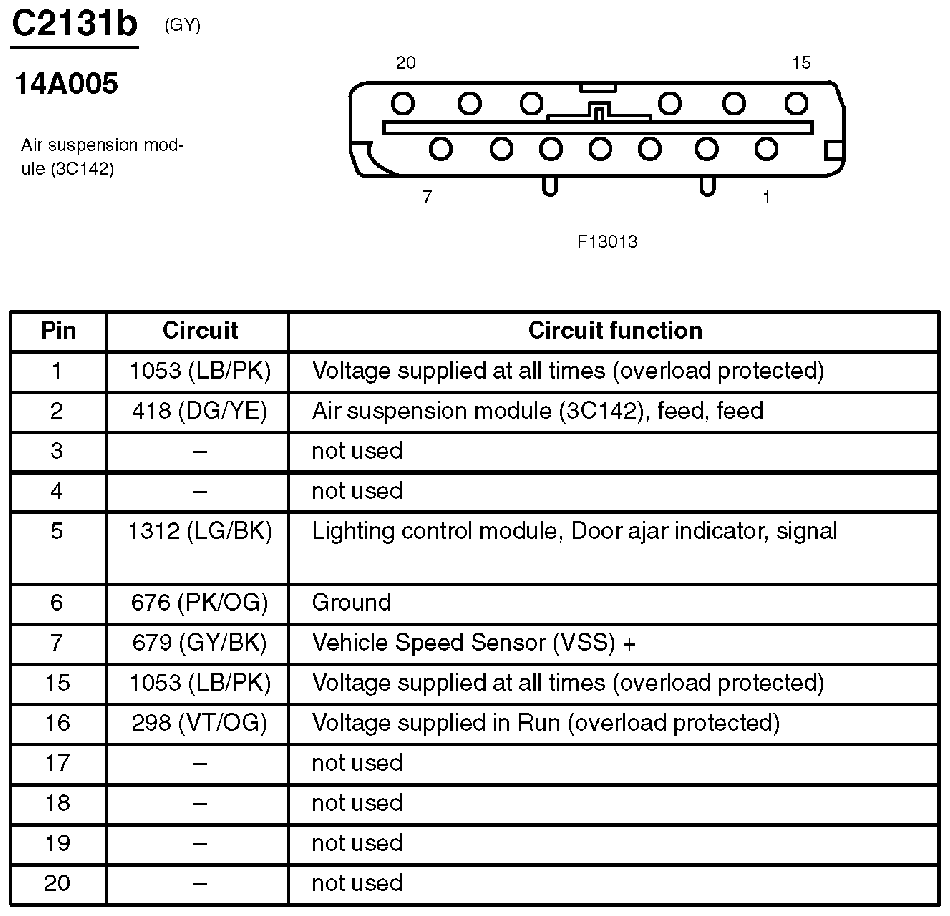

Fig 316: Air Suspension Module Connector End View (C2131b)
Courtesy of FORD MOTOR CO.

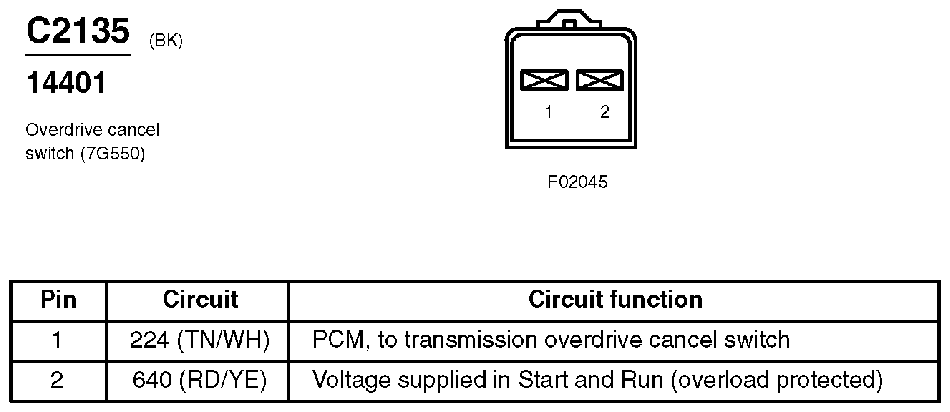

Fig 317: Overdrive Cancel Switch Connector End View (C2135)
Courtesy of FORD MOTOR CO.

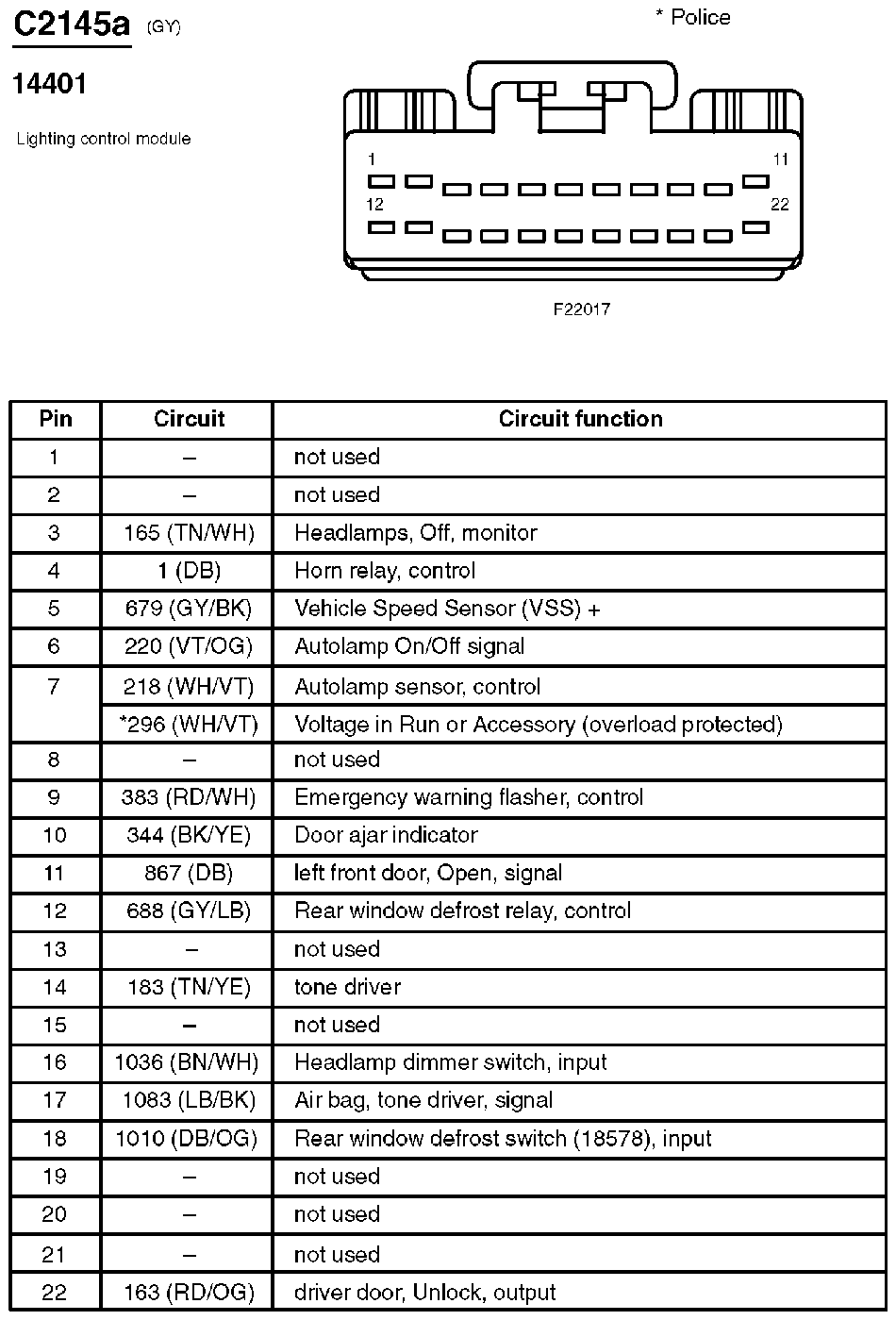

Fig 318: Lighting Control Module Connector End View (C2145a)
Courtesy of FORD MOTOR CO.

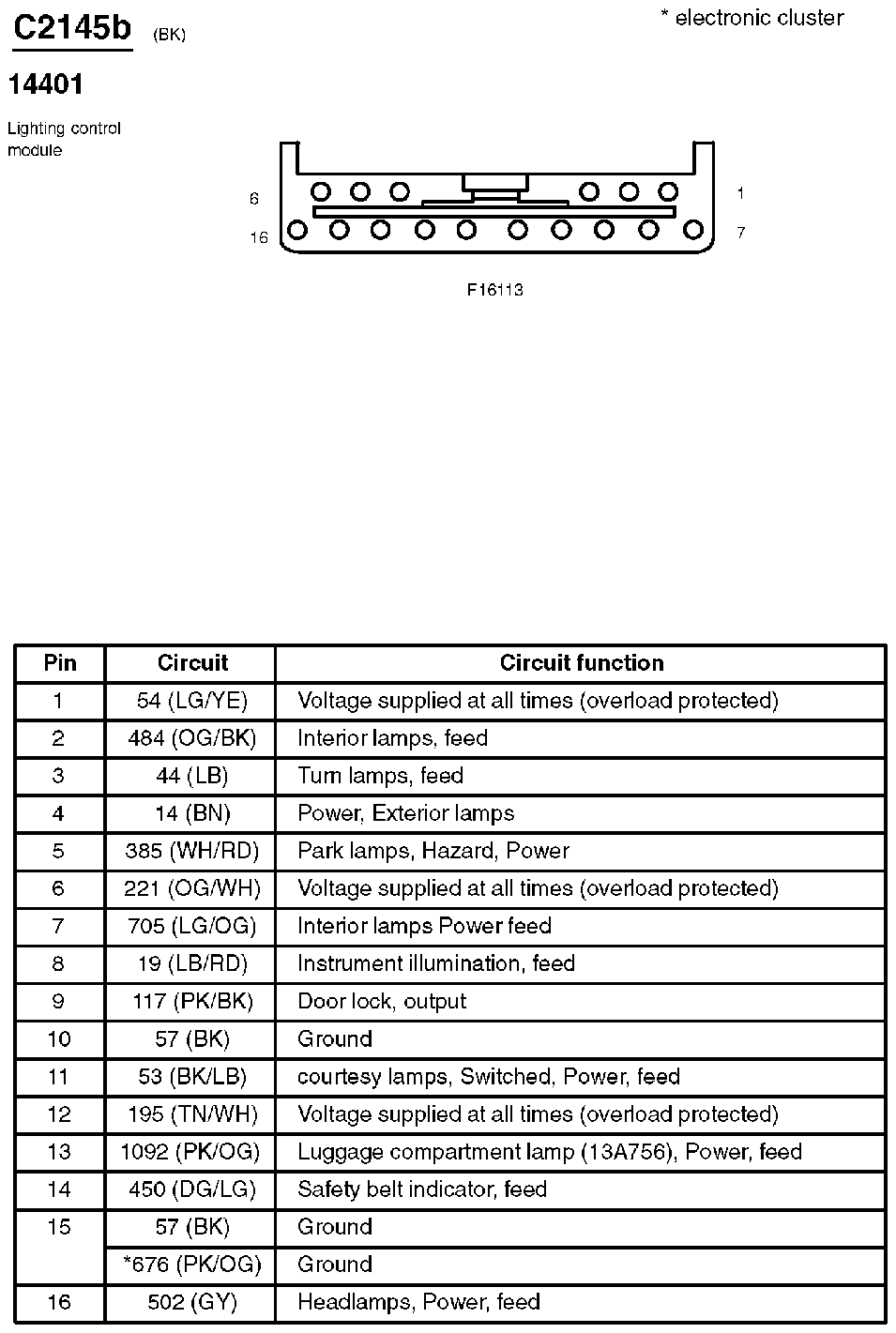

Fig 319: Lighting Control Module Connector End View (2145b)
Courtesy of FORD MOTOR CO.

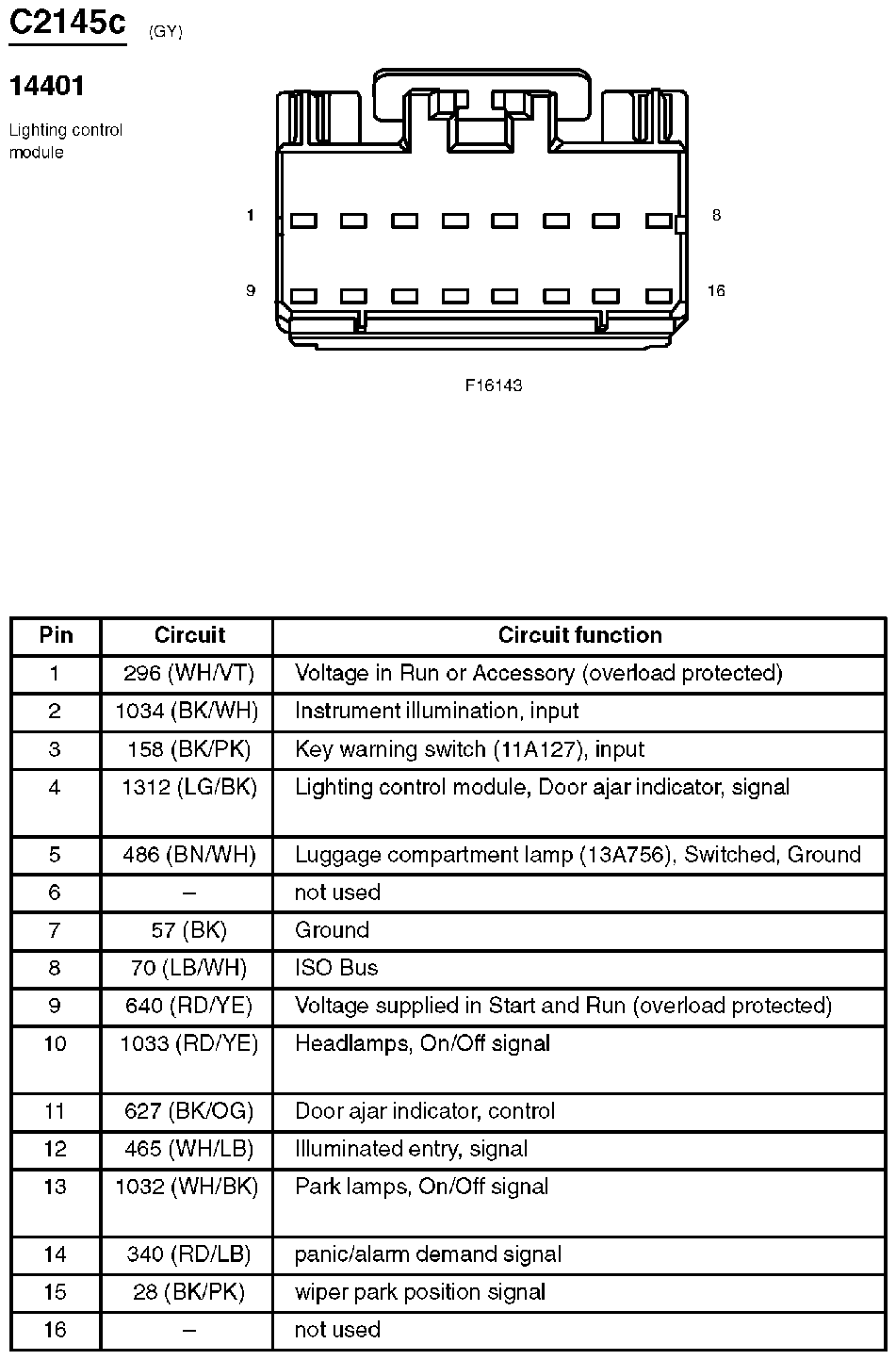

Fig 320: Lighting Control Module Connector End View (C2145c)
Courtesy of FORD MOTOR CO.

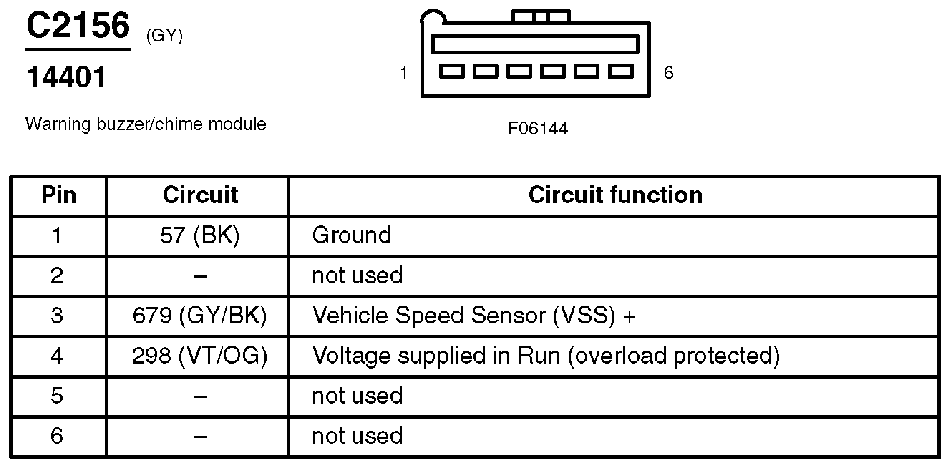

Fig 321: Warning Buzzer/Chime Module Connector End View (C2156)
Courtesy of FORD MOTOR CO.

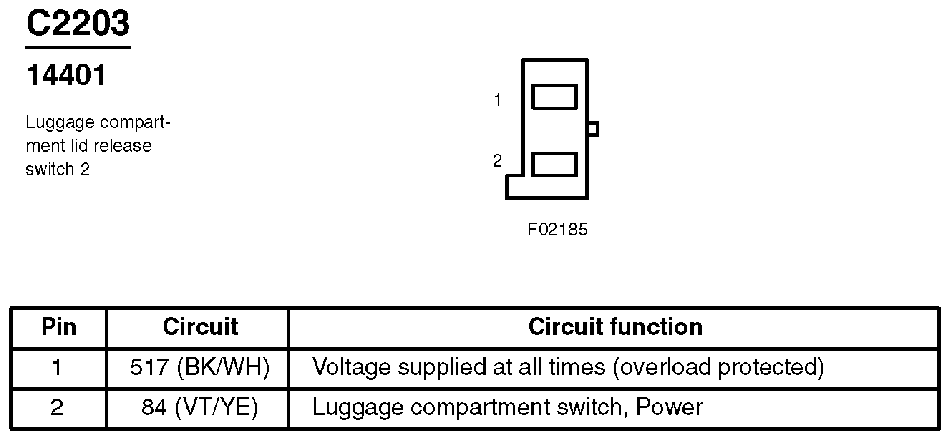

Fig 322: Luggage Compartment Lid Release Switch 2 Connector End View (C2203)
Courtesy of FORD MOTOR CO.

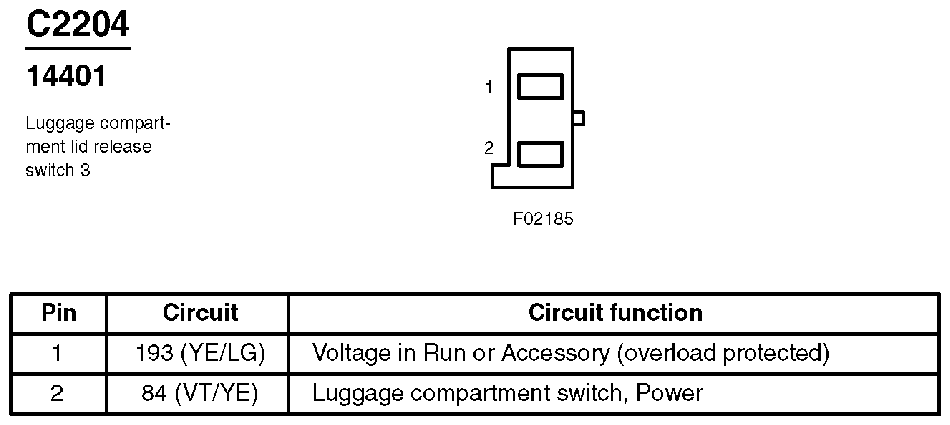

Fig 323: Luggage Compartment Lid Release Switch 3 Connector End View (C2204)
Courtesy of FORD MOTOR CO.

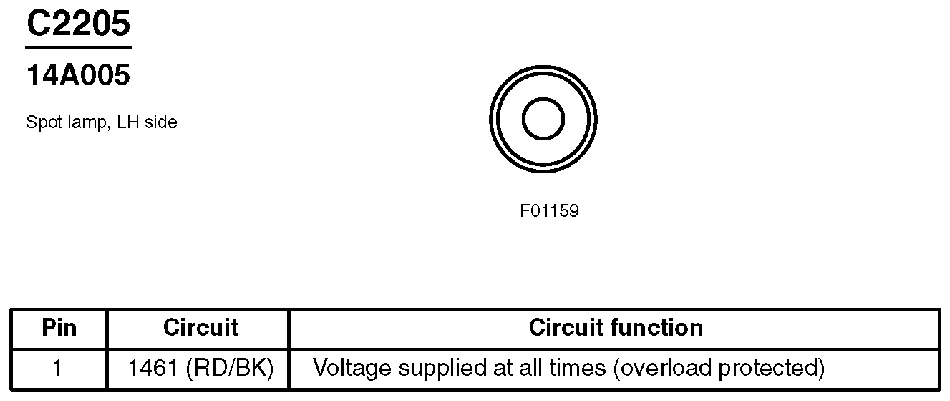

Fig 324: Spot Lamp, LH Side Connector End View (C2205)
Courtesy of FORD MOTOR CO.

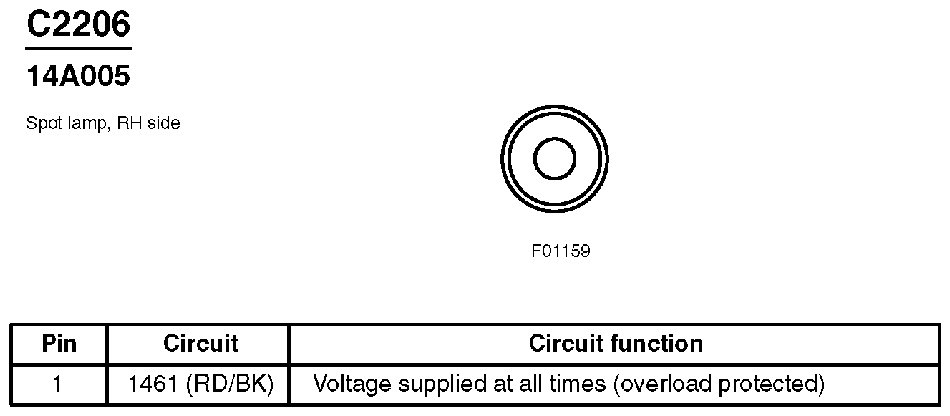

Fig 325: Spot Lamp, RH Side Connector End View (C2206)
Courtesy of FORD MOTOR CO.

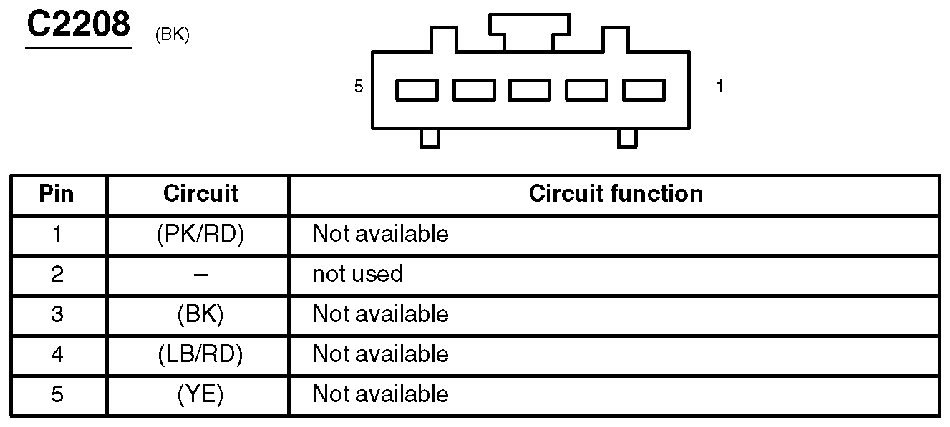

Fig 326: Inline Connector End View (C2208)
Courtesy of FORD MOTOR CO.

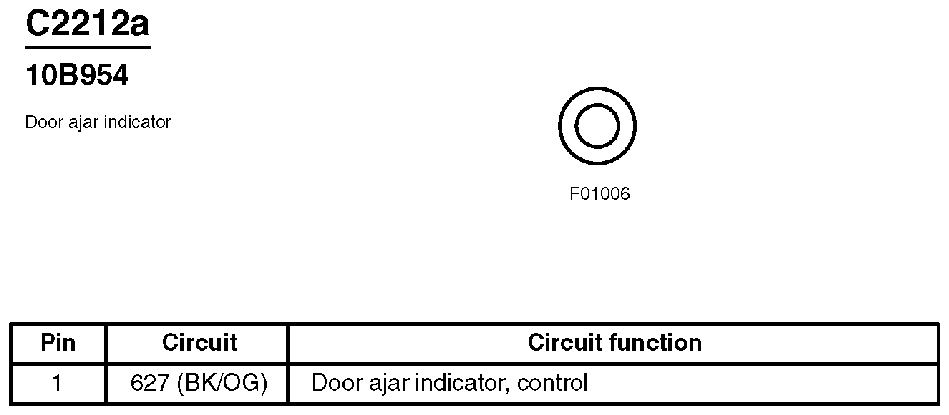

Fig 327: Door Ajar Indicator Connector End View (C2212a)
Courtesy of FORD MOTOR CO.

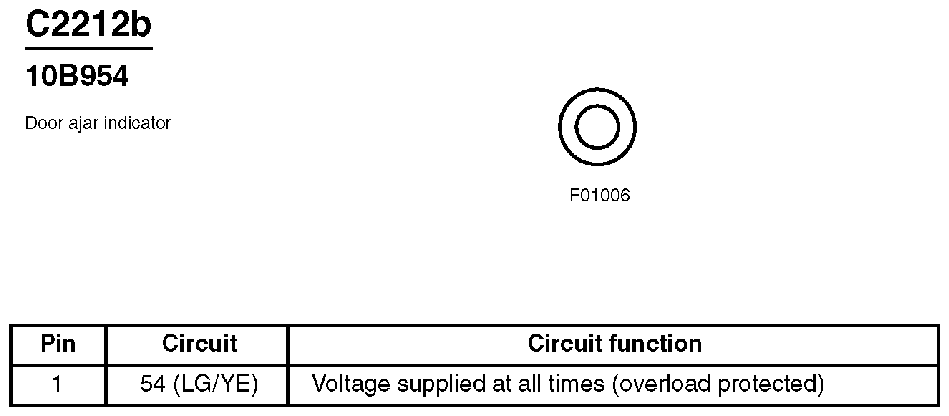

Fig 328: Door Ajar Indicator Connector End View (C2212b)
Courtesy of FORD MOTOR CO.

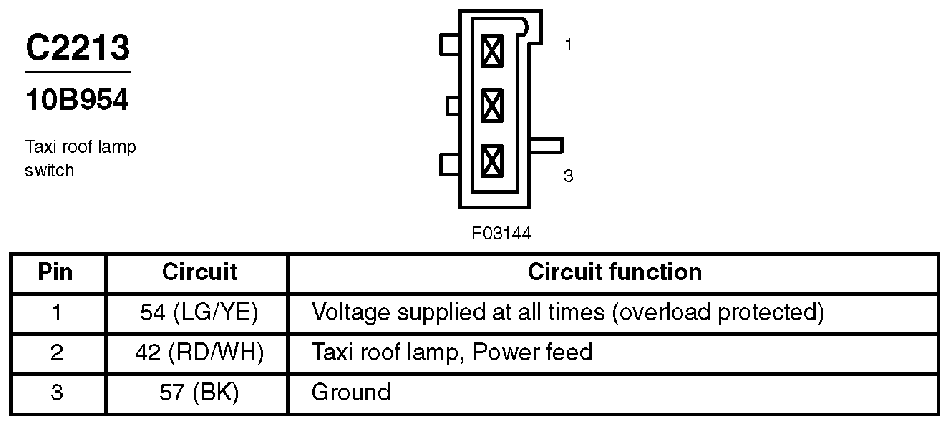

Fig 329: Taxi Roof Lamp Switch Connector End View (C2213)
Courtesy of FORD MOTOR CO.

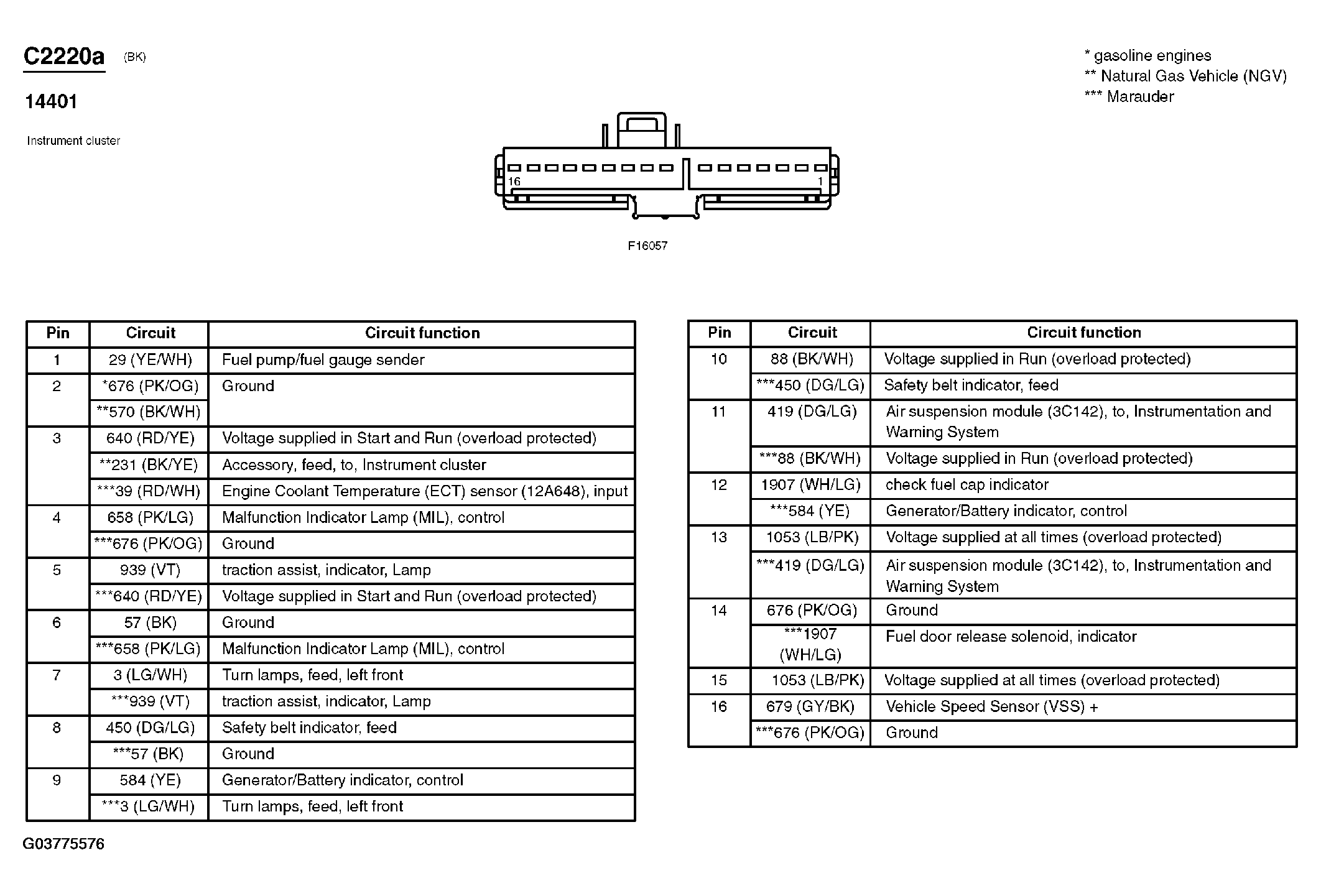

Fig 330: Instrument Cluster Connector End View (C2220a)
Courtesy of FORD MOTOR CO.
Fig 331: Instrument Cluster Connector End View (C2220b)
Courtesy of FORD MOTOR CO.

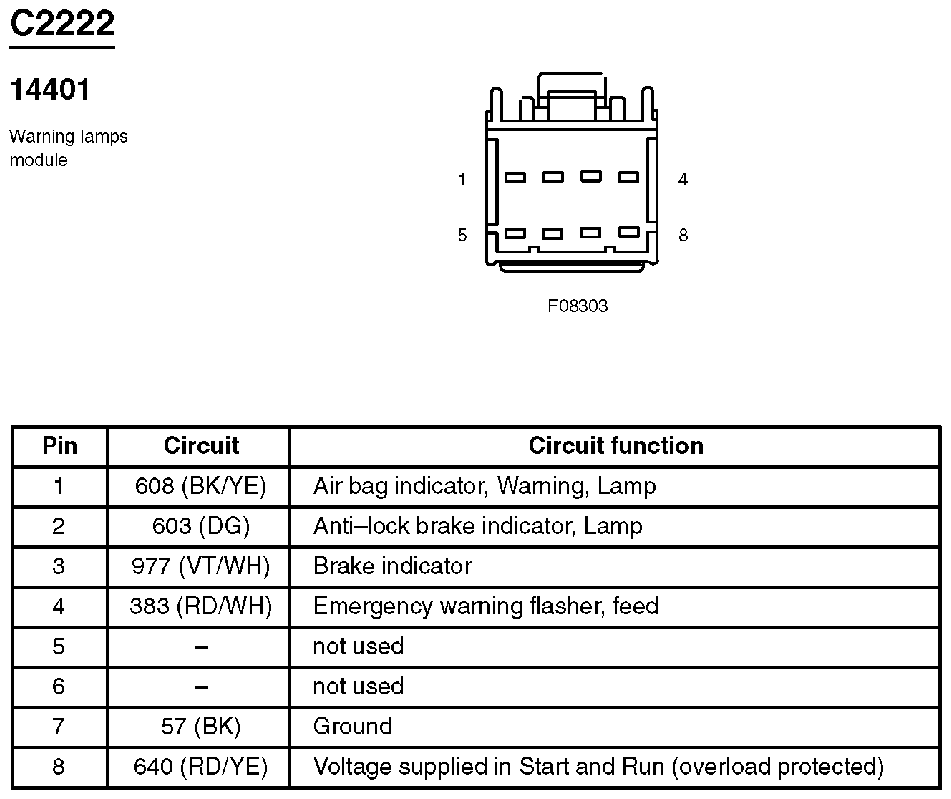

Fig 332: Warning Lamps Module Connector End View (C2222)
Courtesy of FORD MOTOR CO.

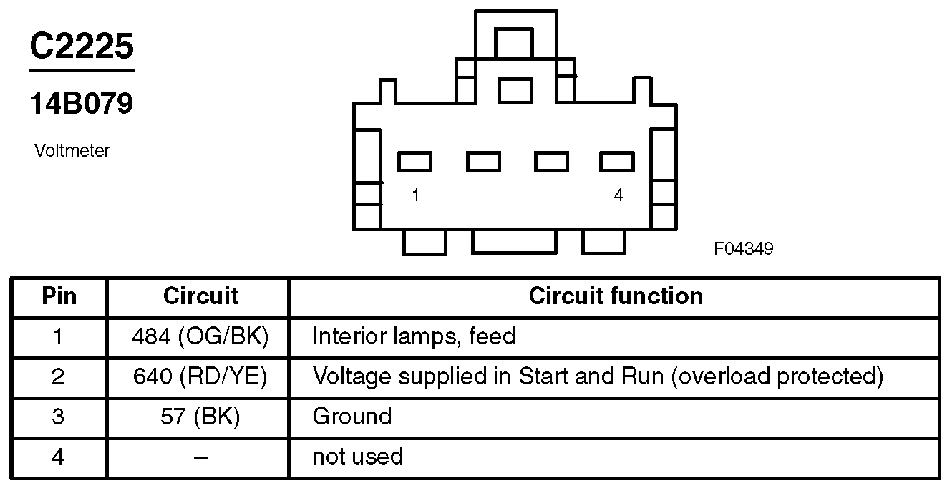

Fig 333: Voltmeter Connector End View (C2225)
Courtesy of FORD MOTOR CO.

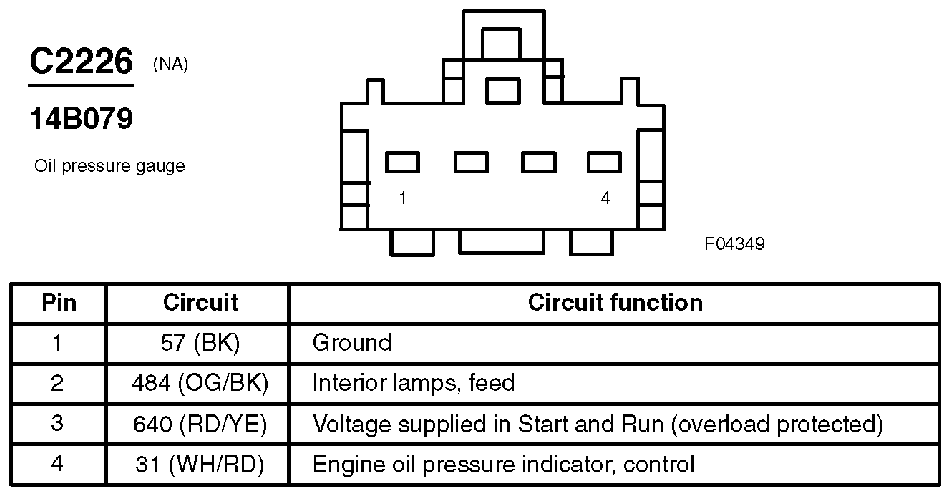

Fig 334: Oil Pressure Gauge Connector End View (C2226)
Courtesy of FORD MOTOR CO.

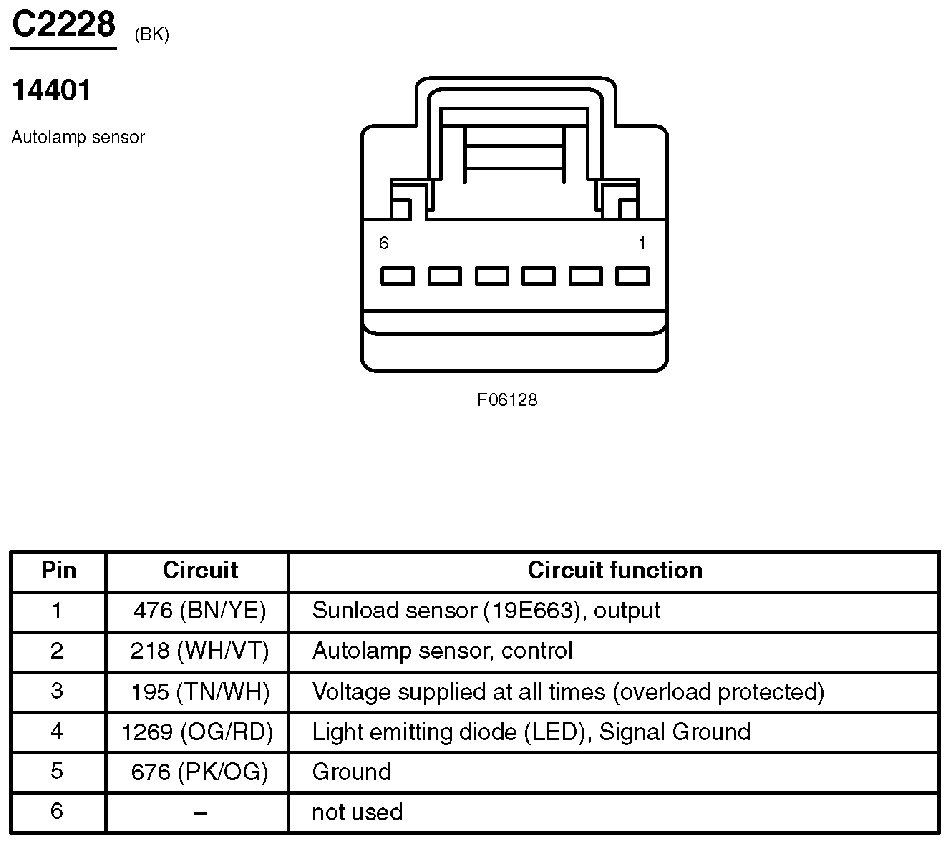

Fig 335: Autolamp Sensor Connector End View (C2228)
Courtesy of FORD MOTOR CO.

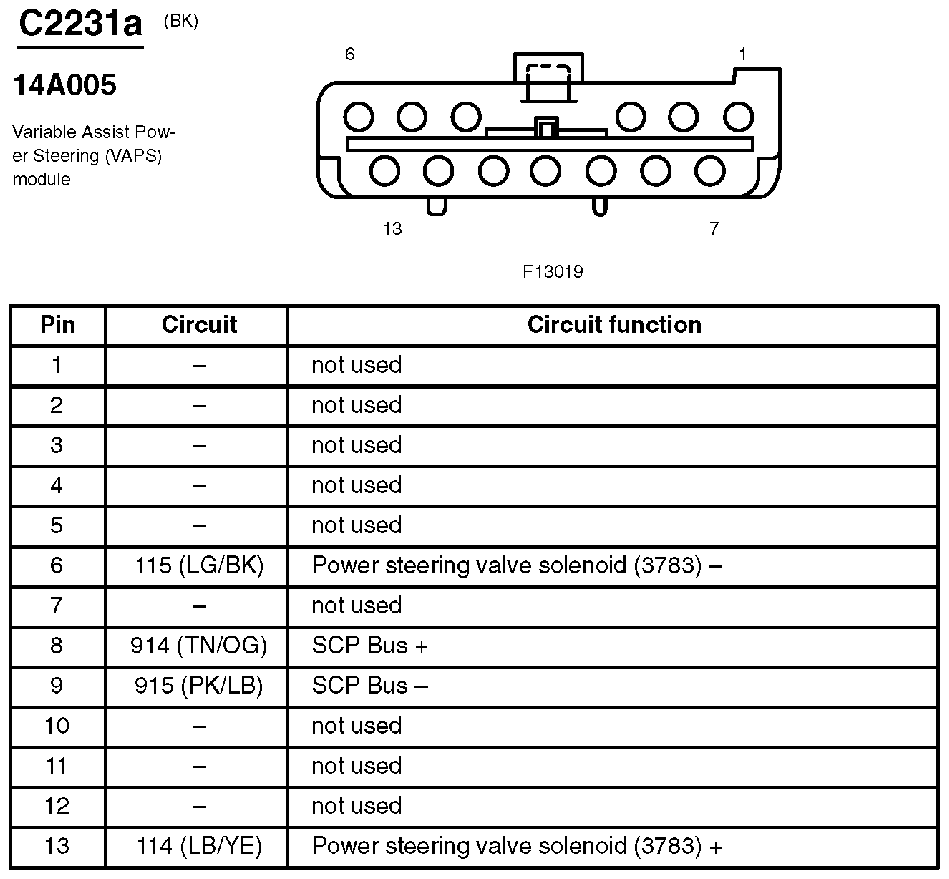

Fig 336: Variable Assist Power Steering (VAPS) Module Connector End View (C2231a)
Courtesy of FORD MOTOR CO.

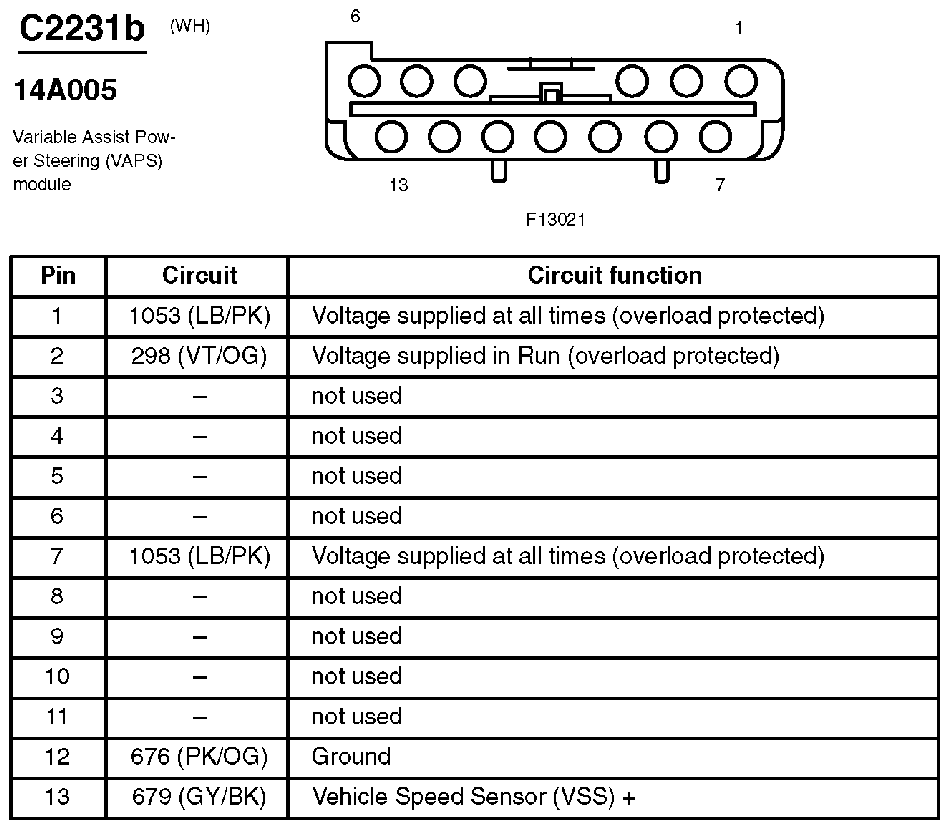

Fig 337: Variable Assist Power Steering (VAPS) Module Connector End View (C2231b)
Courtesy of FORD MOTOR CO.
Fig 338: Police Auxiliary Junction Box, Front Connector End View (C2232a)
Courtesy of FORD MOTOR CO.

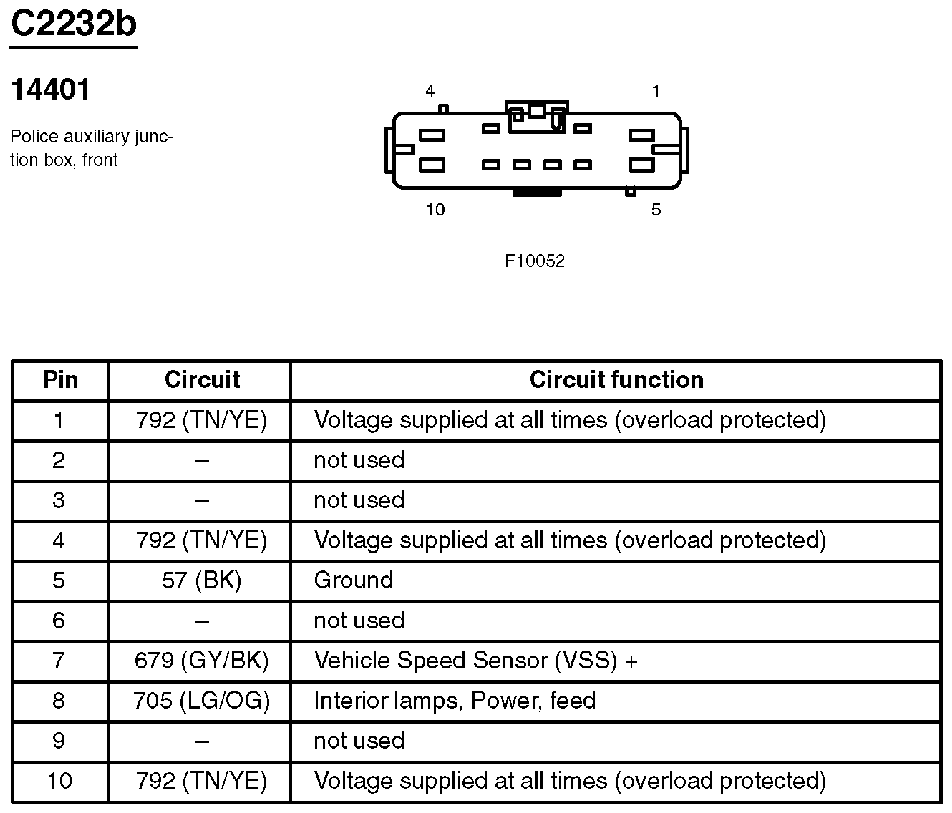

Fig 339: Police Auxiliary Junction Box, Front Connector End View (C2232b)
Courtesy of FORD MOTOR CO.

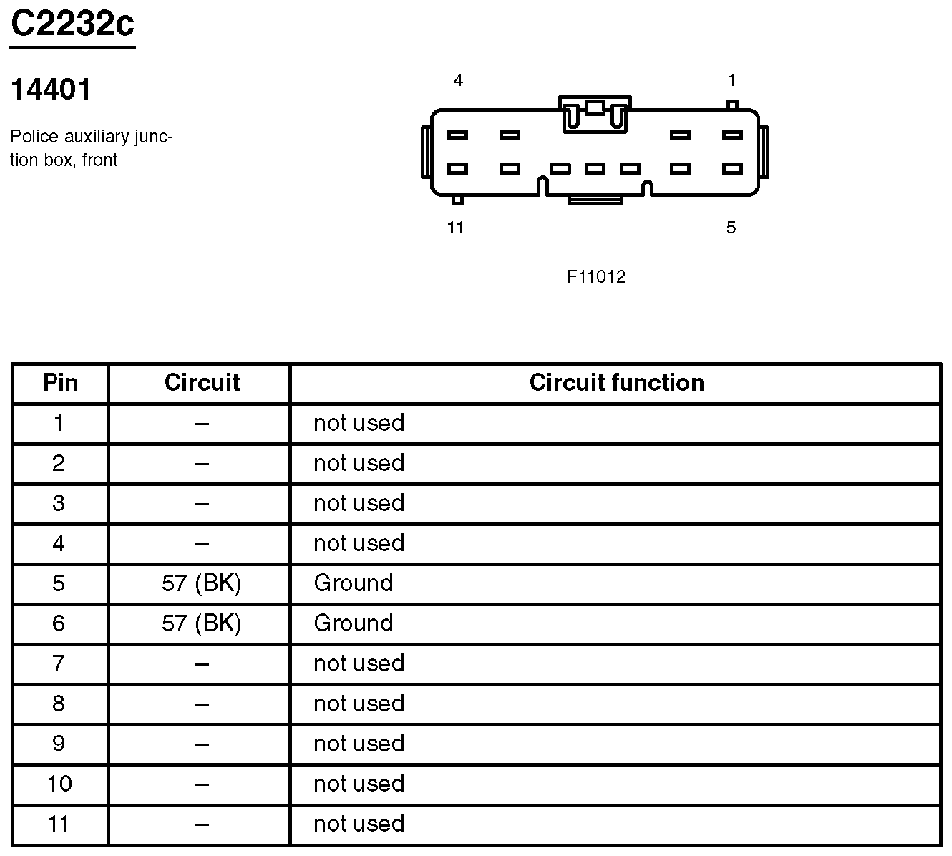

Fig 340: Police Auxiliary Junction Box, Front Connector End View (C2232c)
Courtesy of FORD MOTOR CO.

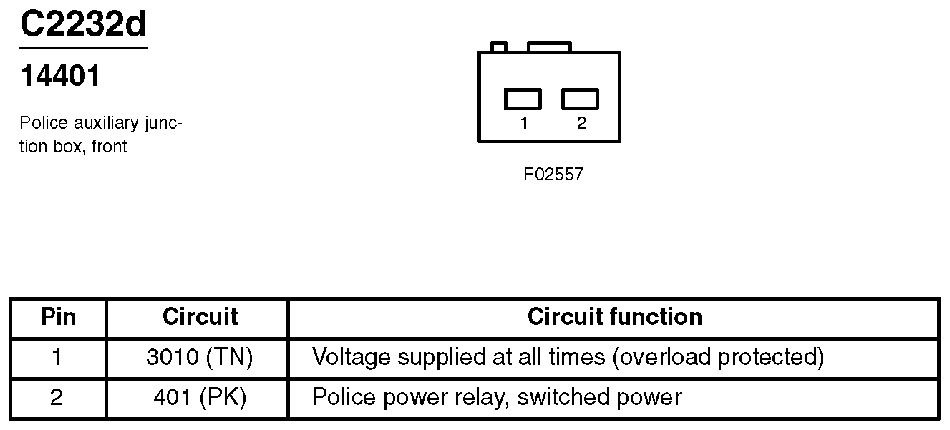

Fig 341: Police Auxiliary Junction Box, Front Connector End View (C2232d)
Courtesy of FORD MOTOR CO.

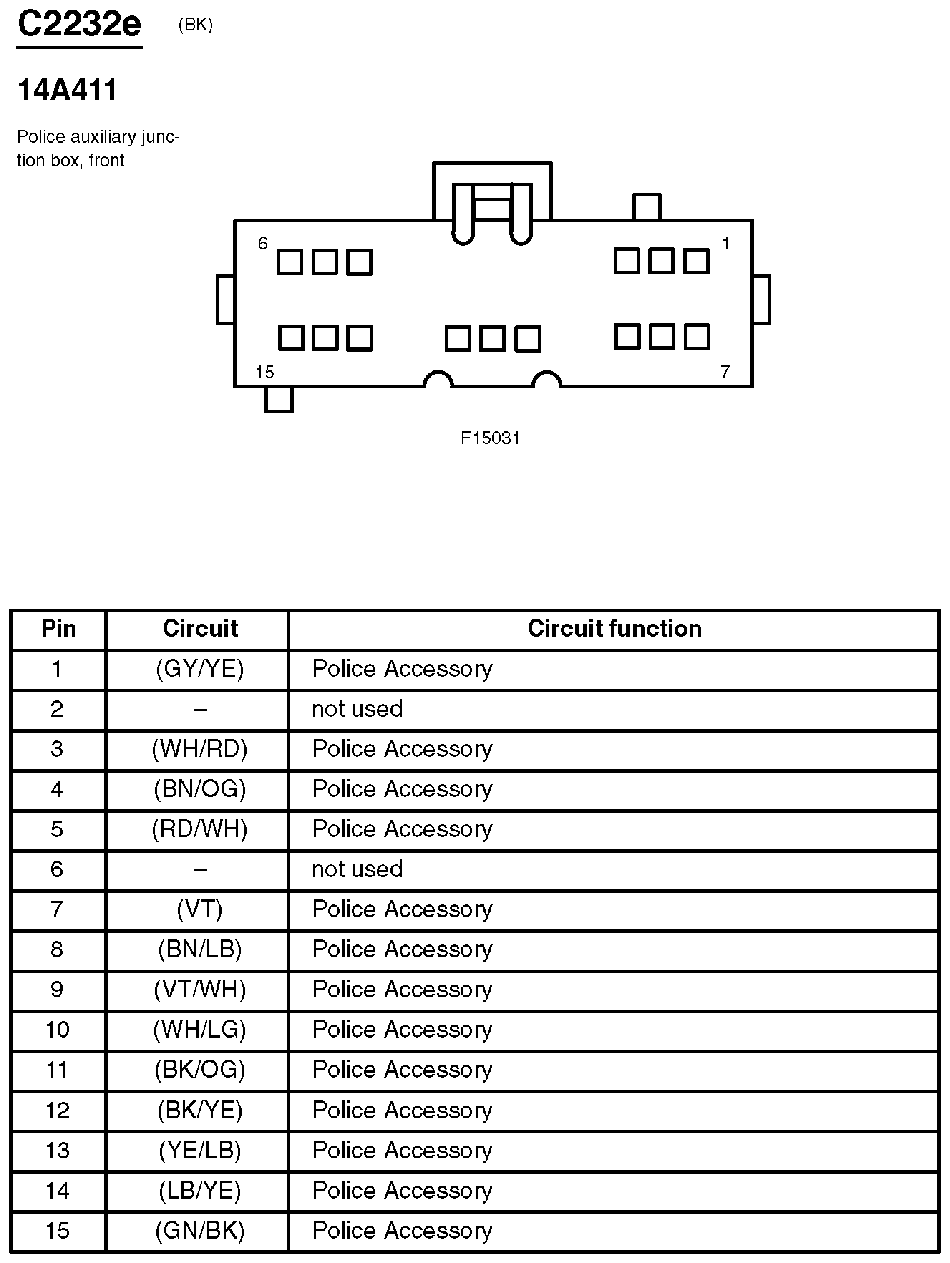

Fig 342: Police Auxiliary Junction Box, Front Connector End View (C2232e)
Courtesy of FORD MOTOR CO.

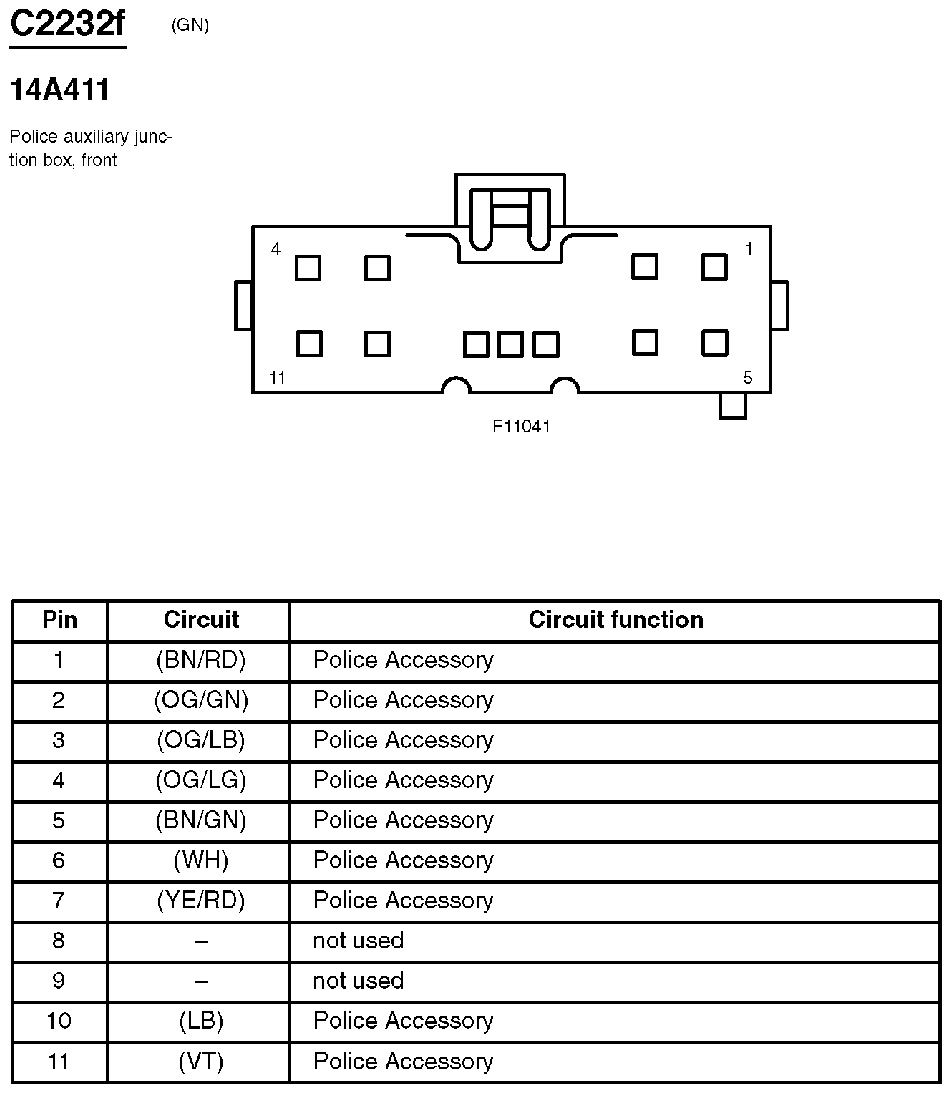

Fig 343: Police Auxiliary Junction Box, Front Connector End View (C2232f)
Courtesy of FORD MOTOR CO.

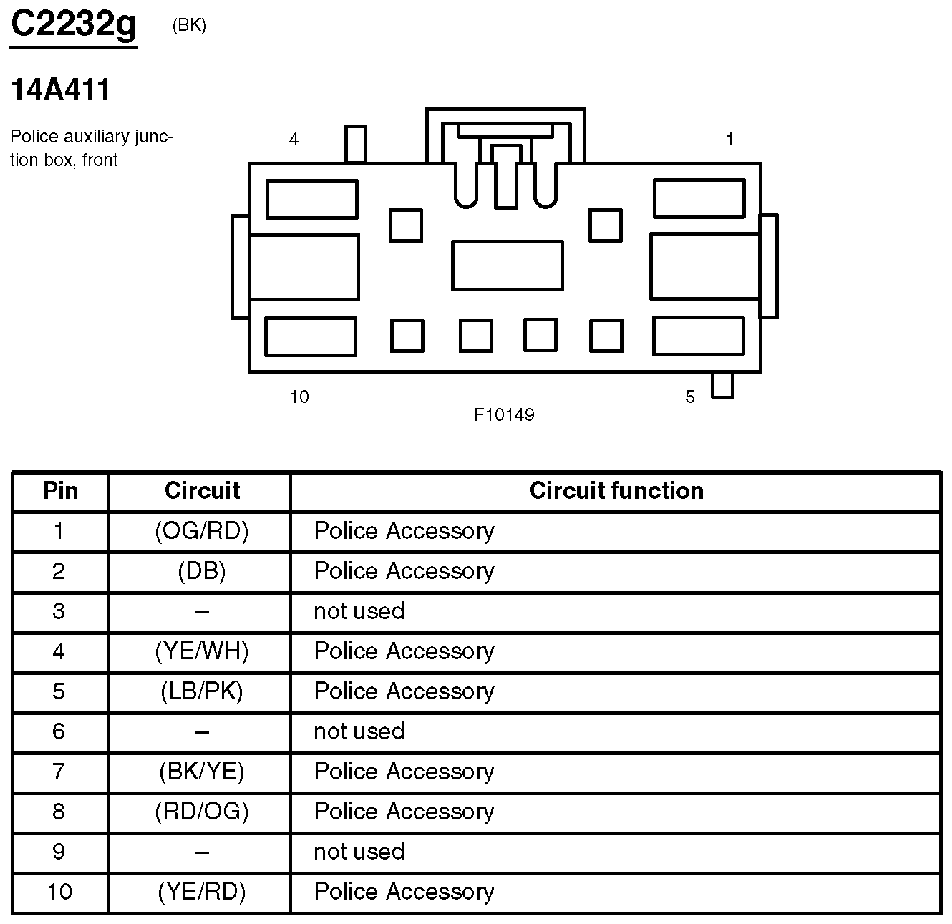

Fig 344: Police Auxiliary Junction Box, Front Connector End View (C2232g)
Courtesy of FORD MOTOR CO.

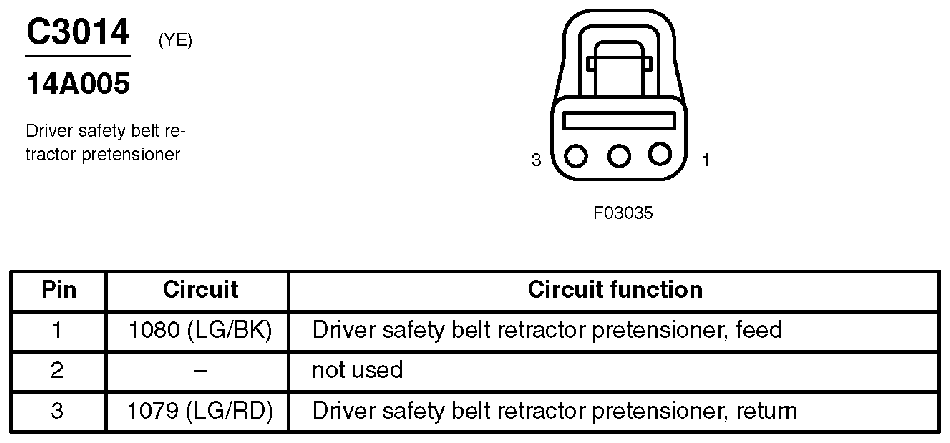

Fig 345: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)
Courtesy of FORD MOTOR CO.

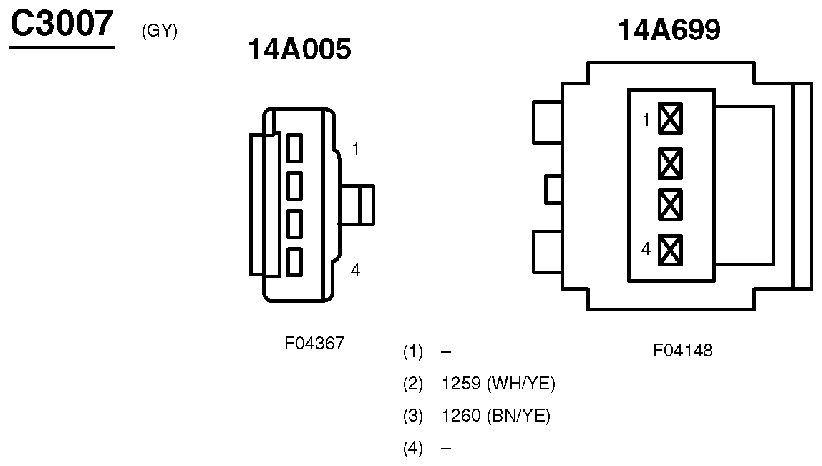

Fig 346: Inline Connector End View (C3007)
Courtesy of FORD MOTOR CO.

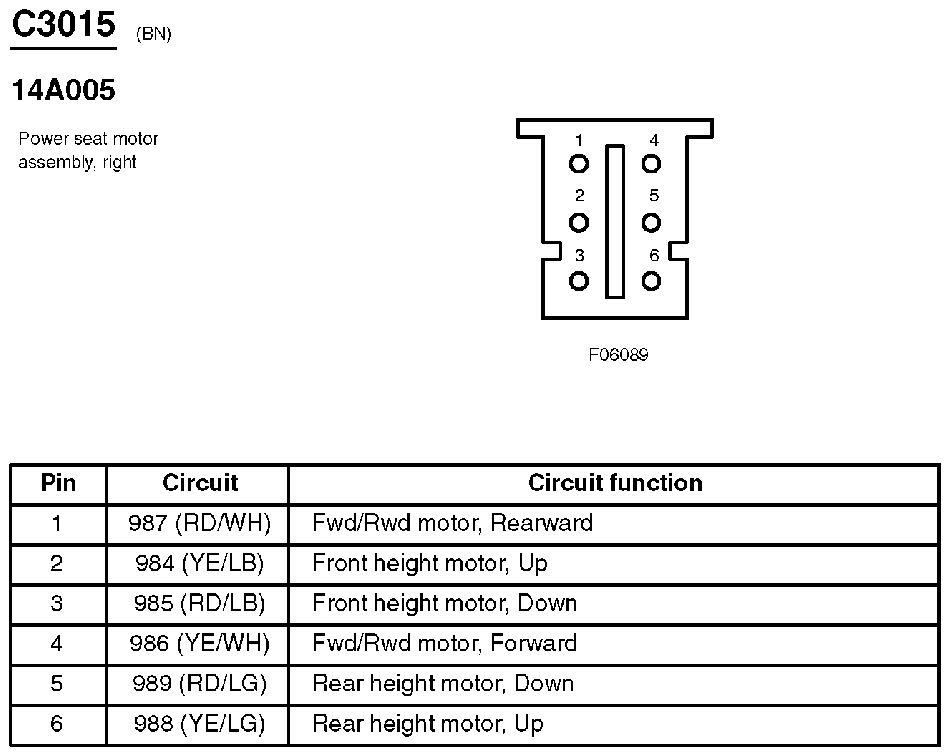

Fig 347: Power Seat Motor Assembly, Right Connector End View (C3015)
Courtesy of FORD MOTOR CO.

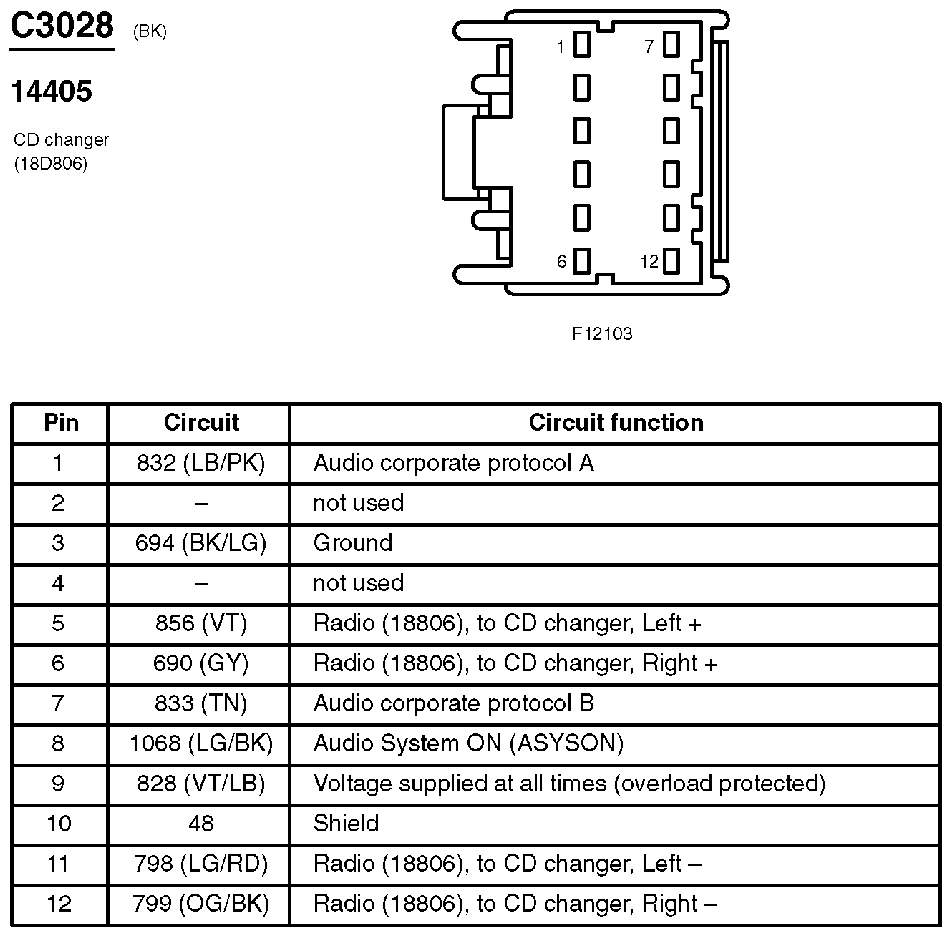

Fig 348: CD Changer Connector End View (C3028)
Courtesy of FORD MOTOR CO.

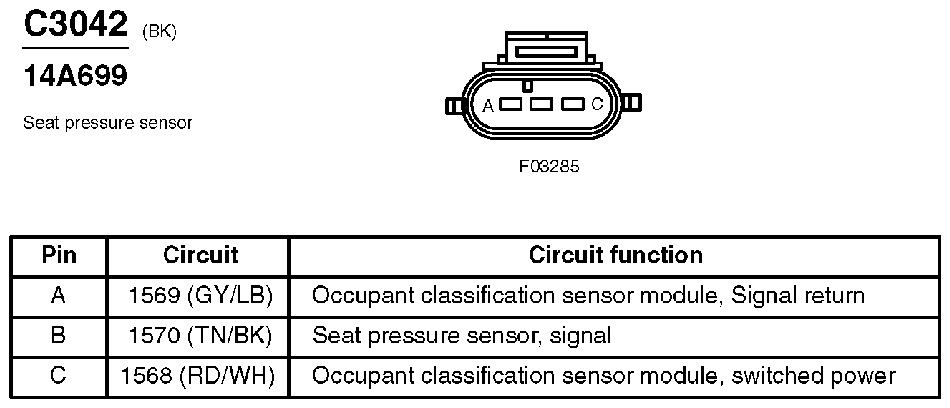

Fig 349: Seat Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.

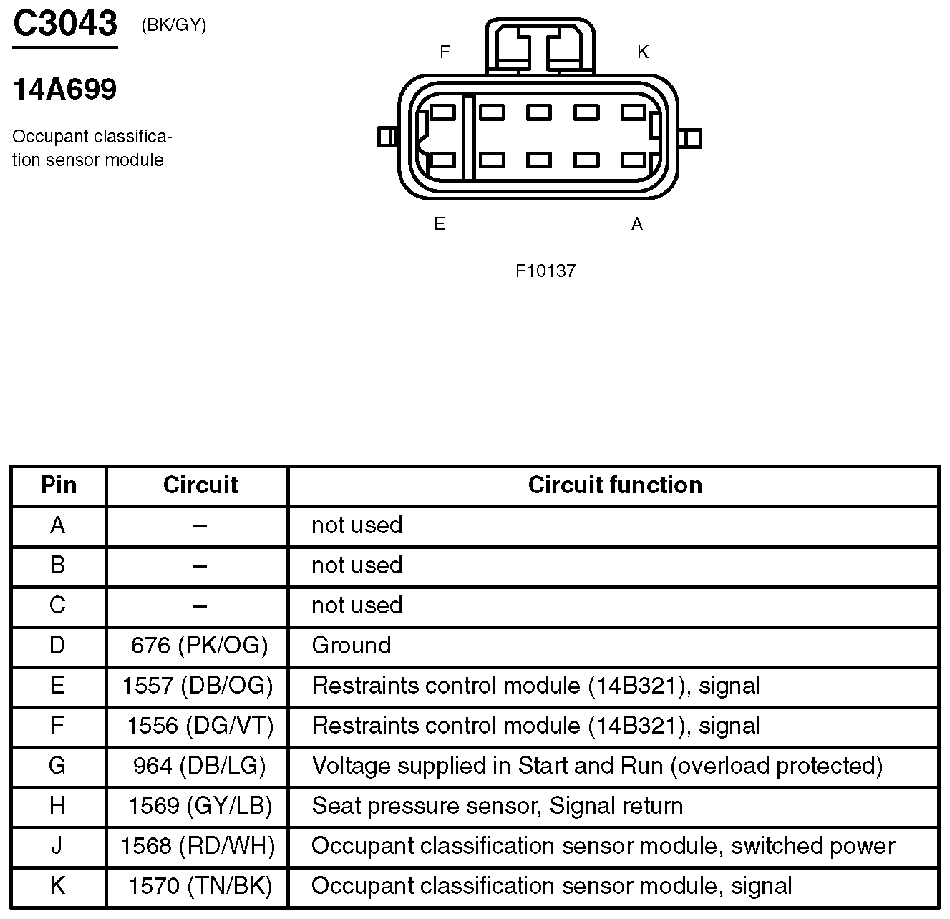

Fig 350: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.

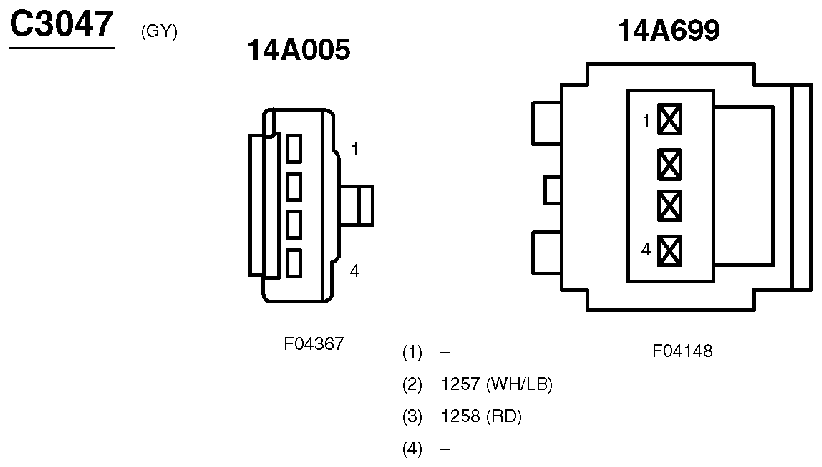

Fig 351: Inline Connector End View (C3047)
Courtesy of FORD MOTOR CO.

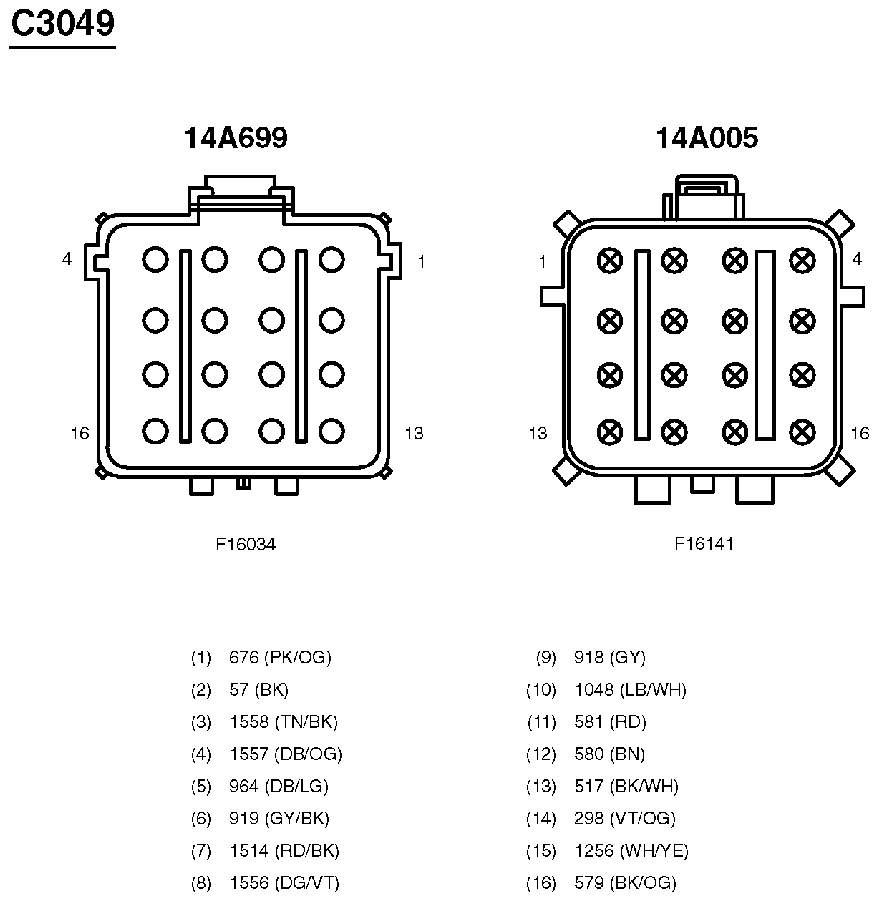

Fig 352: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.

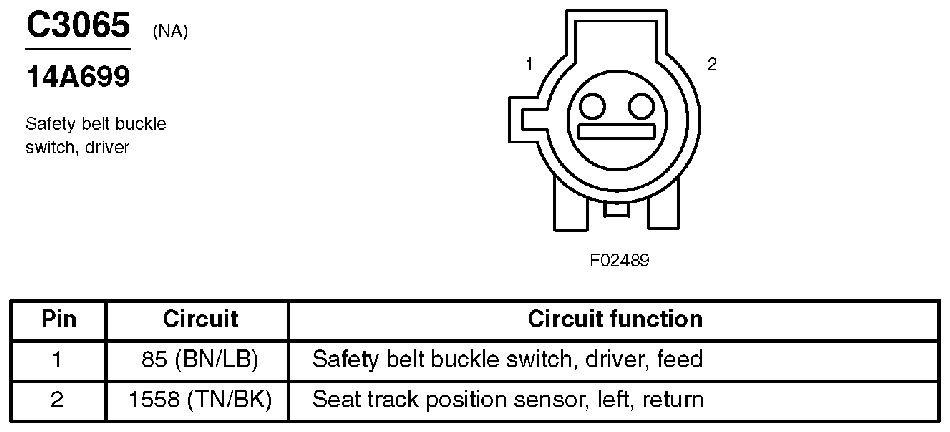

Fig 353: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.

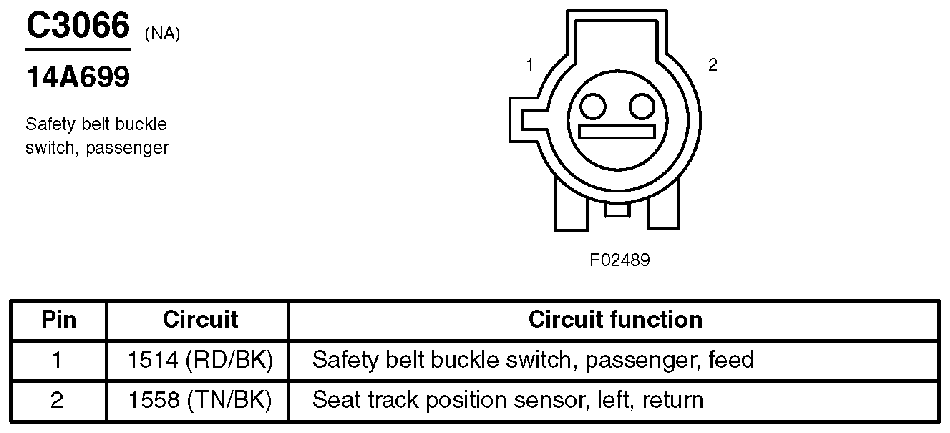

Fig 354: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

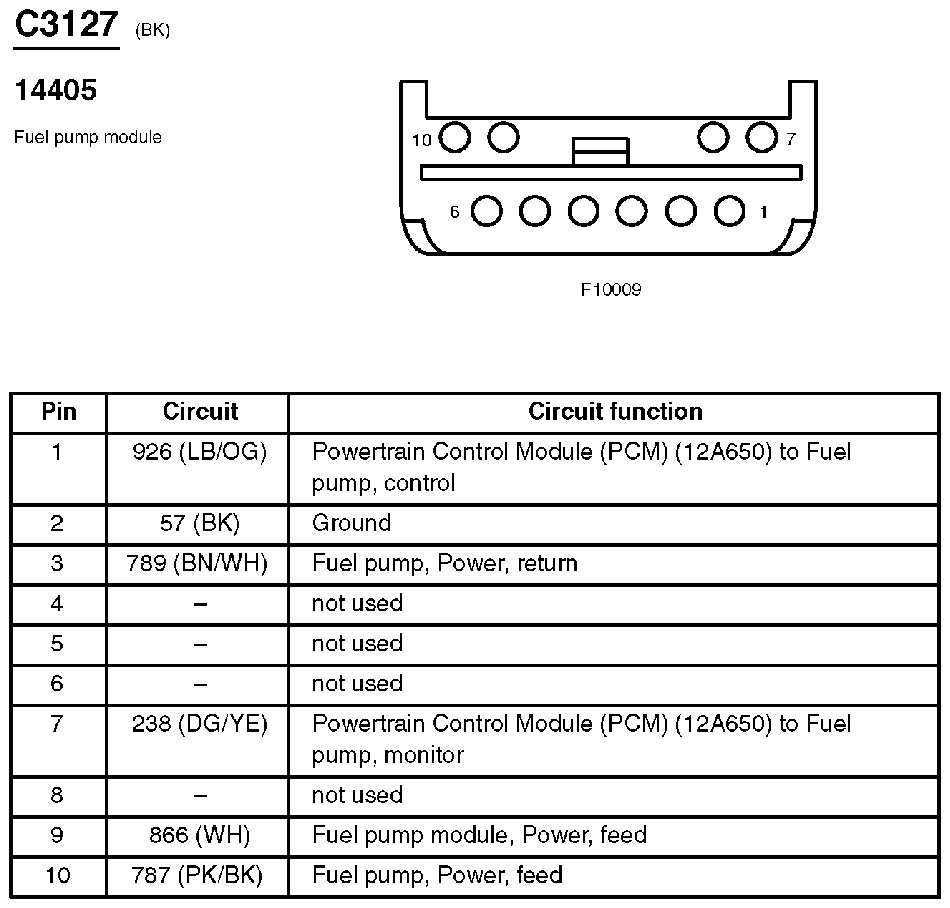

Fig 355: Fuel Pump Module Connector End View (C3127)
Courtesy of FORD MOTOR CO.

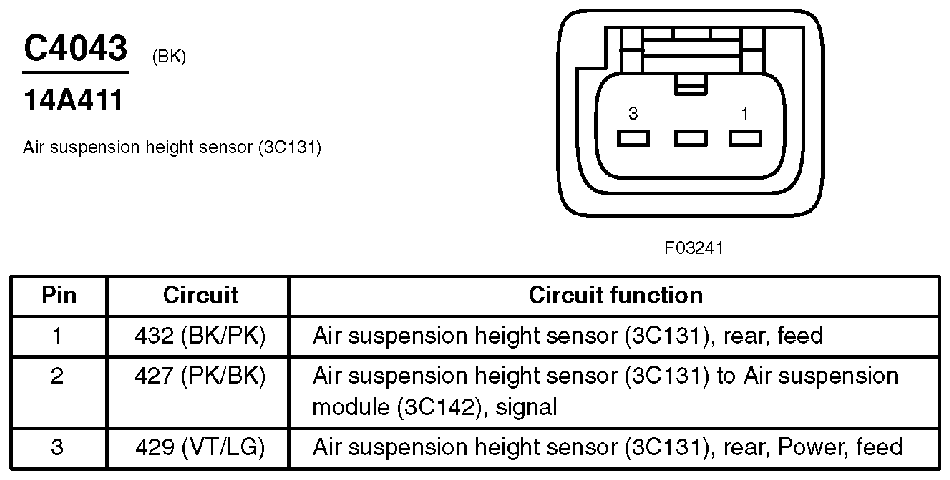

Fig 356: Air Suspension Height Sensor Connector End View (C4043)
Courtesy of FORD MOTOR CO.

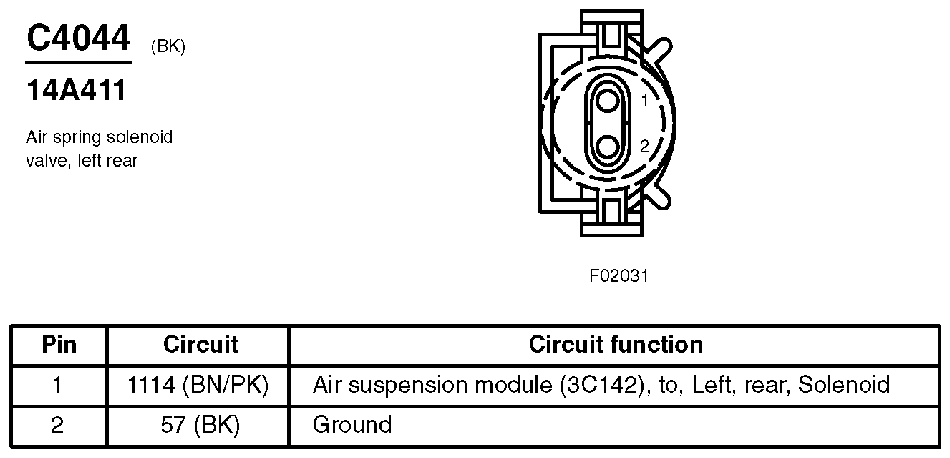

Fig 357: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)
Courtesy of FORD MOTOR CO.
Fig 358: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)
Courtesy of FORD MOTOR CO.

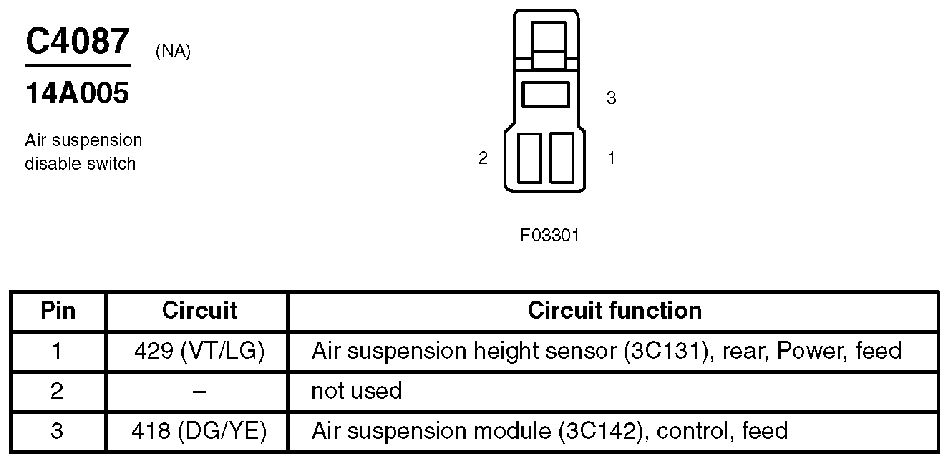

Fig 359: Air Suspension Disable Switch Connector End View (C4087)
Courtesy of FORD MOTOR CO.

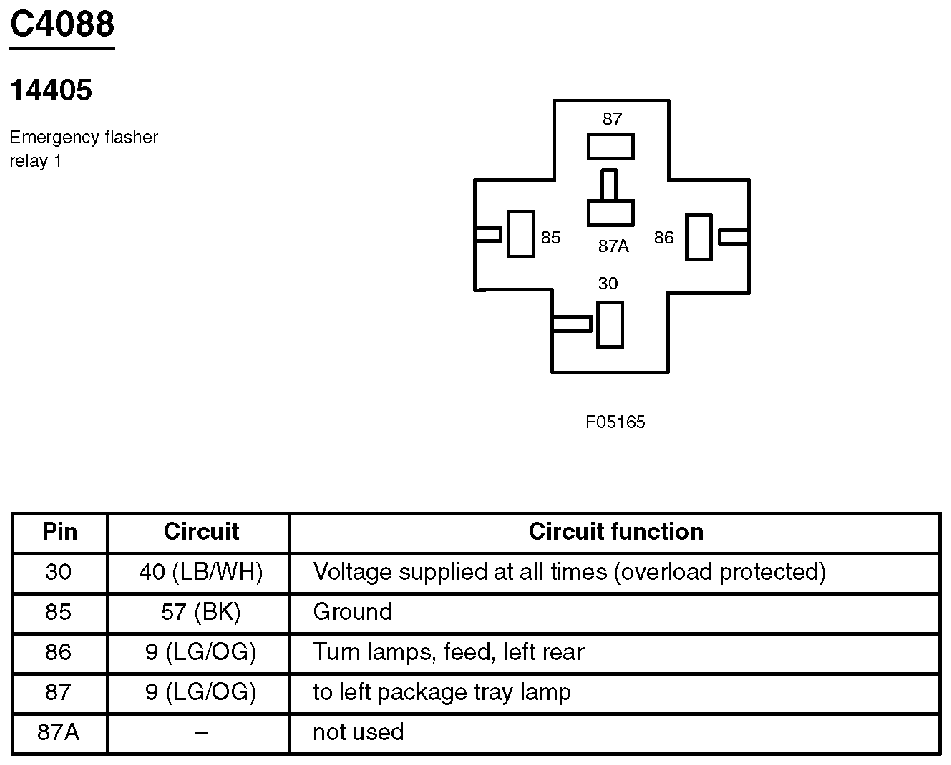

Fig 360: Emergency Flasher Relay 1 Connector End View (C4088)
Courtesy of FORD MOTOR CO.
Fig 361: Emergency Flasher Relay 2 Connector End View (C4089)
Courtesy of FORD MOTOR CO.

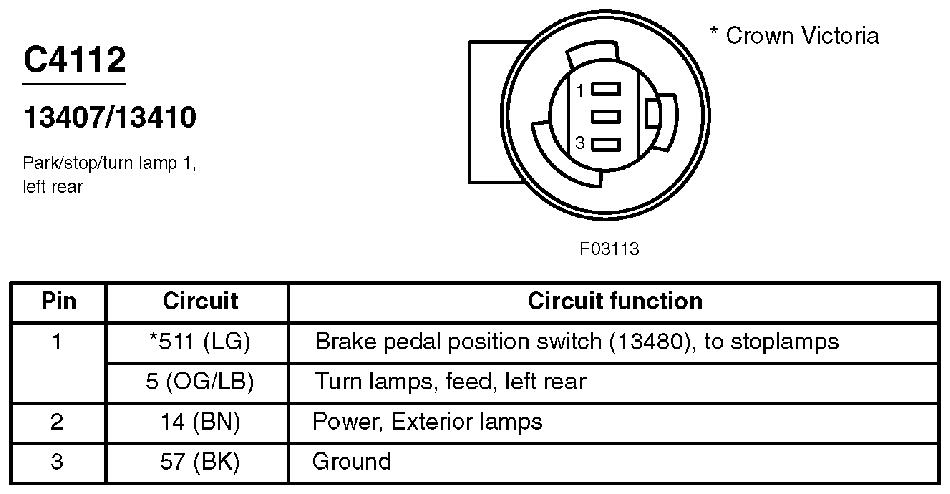

Fig 362: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)
Courtesy of FORD MOTOR CO.

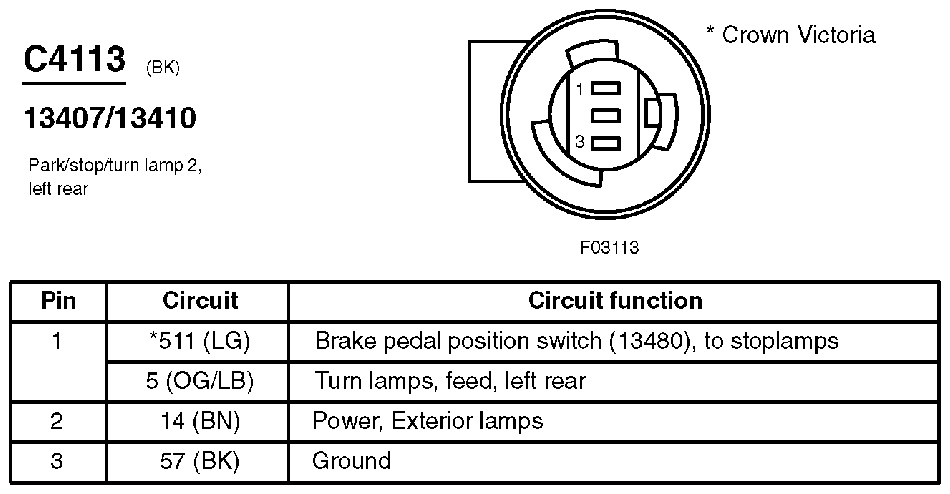

Fig 363: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)
Courtesy of FORD MOTOR CO.

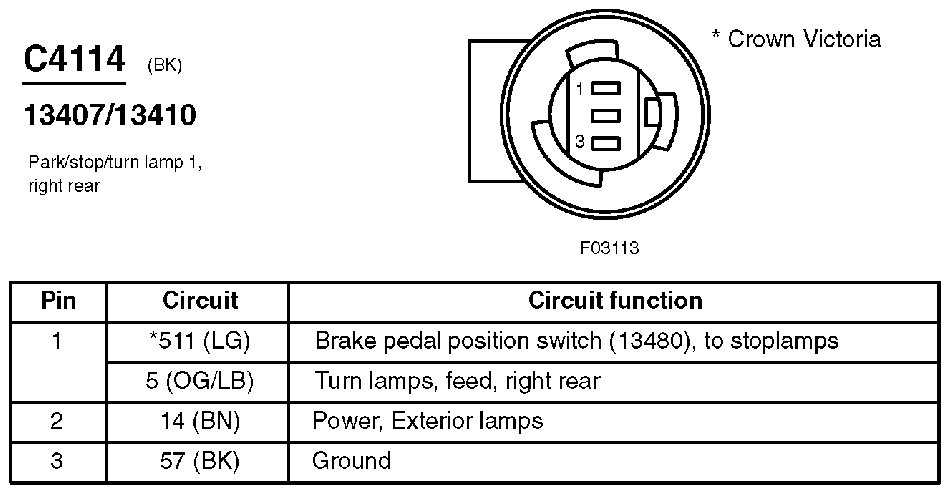

Fig 364: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)
Courtesy of FORD MOTOR CO.
Fig 365: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)
Courtesy of FORD MOTOR CO.

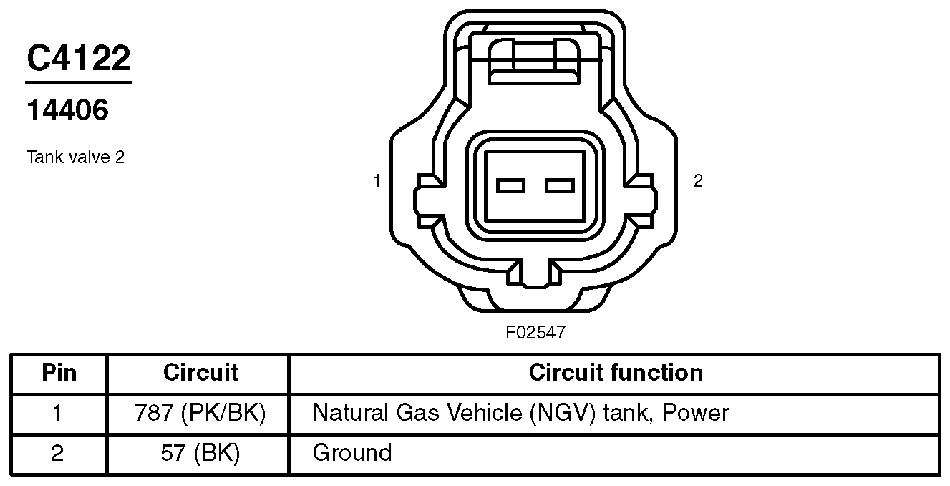

Fig 366: Tank Valve 2 Connector End View (C4122)
Courtesy of FORD MOTOR CO.
Fig 367: Natural Gas Vehicle (NGV) Fuel Tank Pressure Sensor Connector End View (C4127)
Courtesy of FORD MOTOR CO.

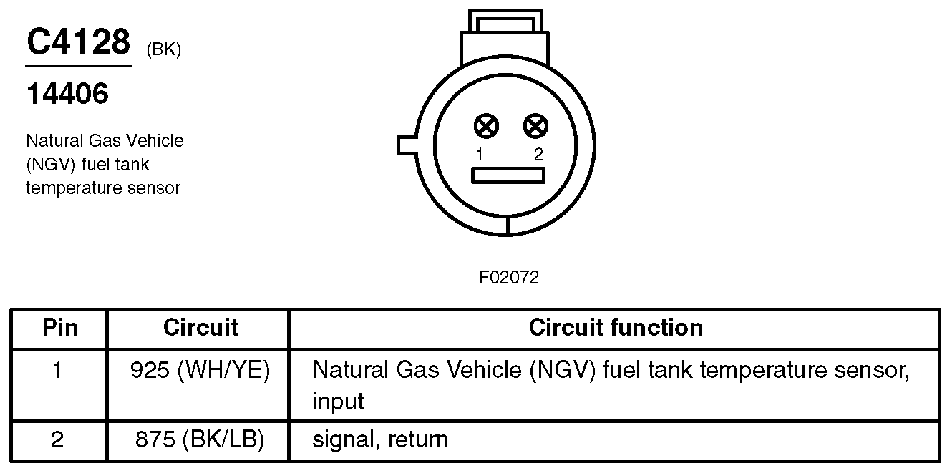

Fig 368: Natural Gas Vehicle (NGV) Fuel Tank Temperature Sensor Connector End View (C4128)
Courtesy of FORD MOTOR CO.

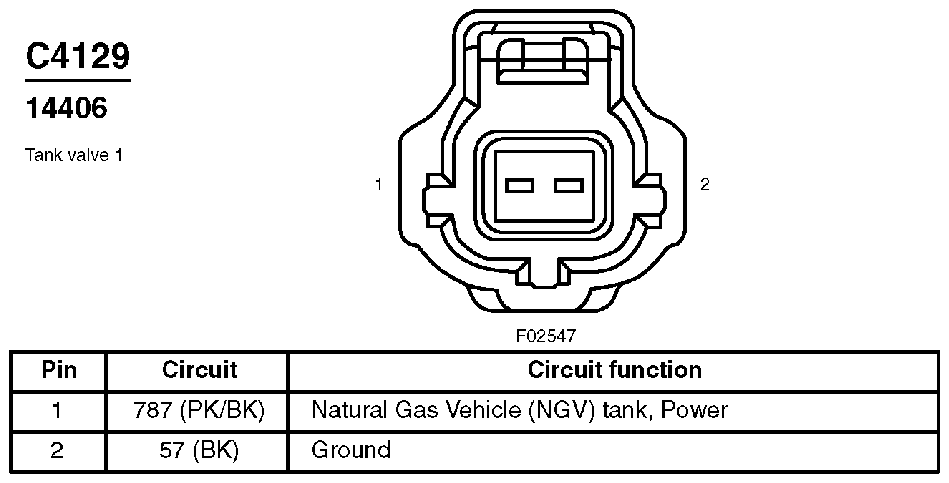

Fig 369: Tank Valve 1 Connector End View (C4129)
Courtesy of FORD MOTOR CO.

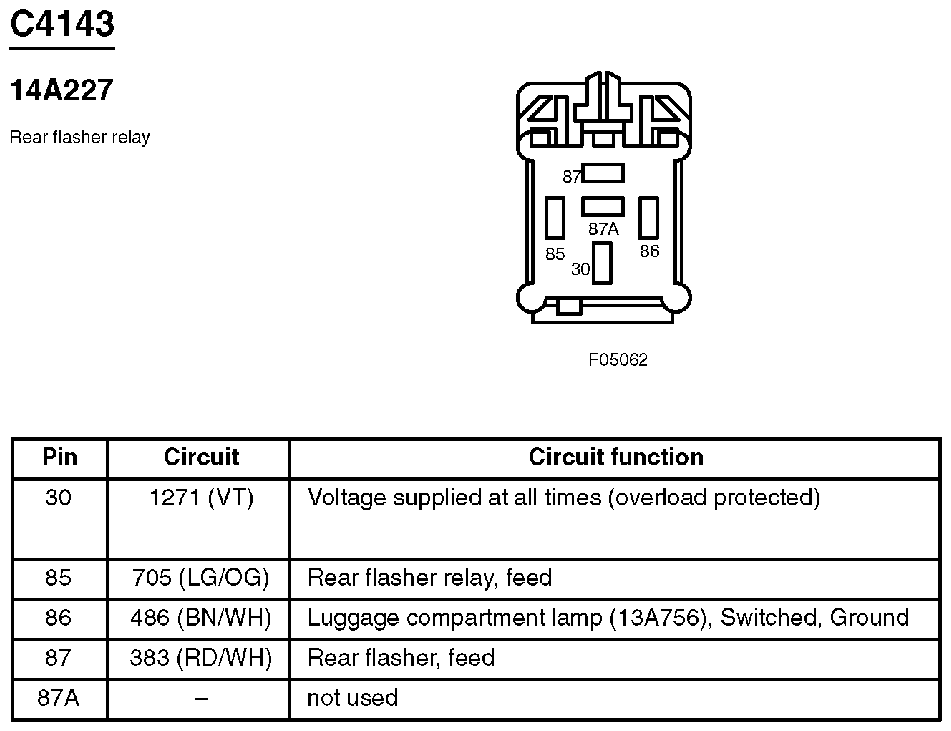

Fig 370: Rear Flasher Relay Connector End View (C4143)
Courtesy of FORD MOTOR CO.

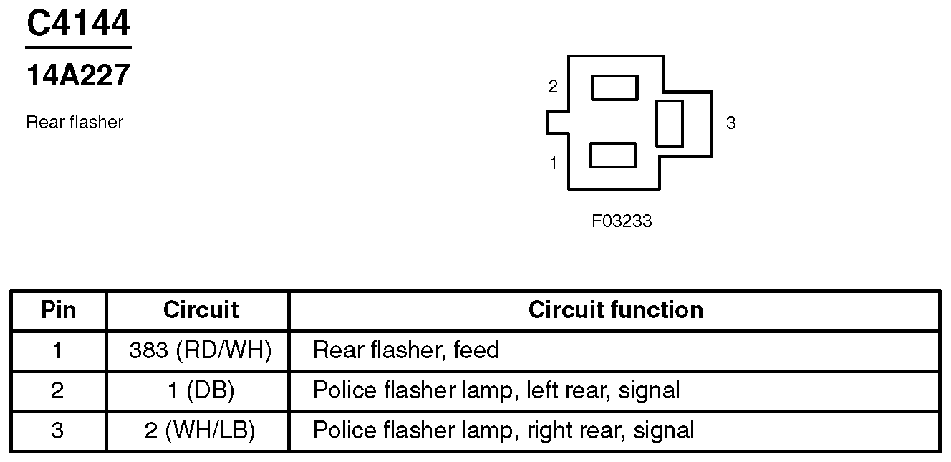

Fig 371: Rear Flasher Connector End View (C4144)
Courtesy of FORD MOTOR CO.

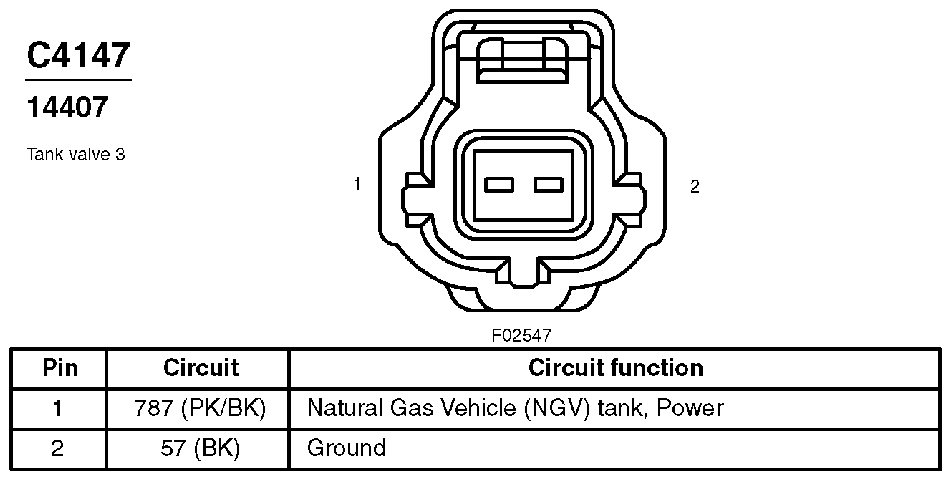

Fig 372: Tank Valve 3 Connector End View (C4147)
Courtesy of FORD MOTOR CO.

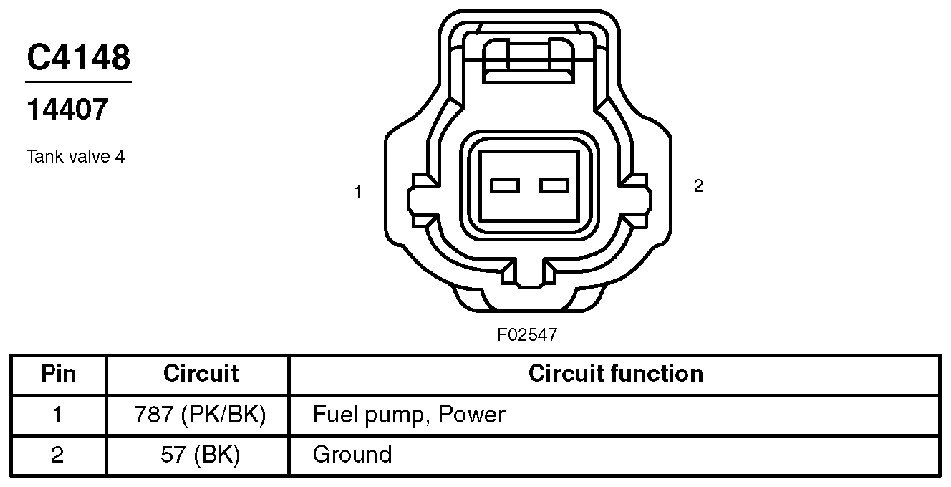

Fig 373: Tank Valve 4 Connector End View (C4148)
Courtesy of FORD MOTOR CO.

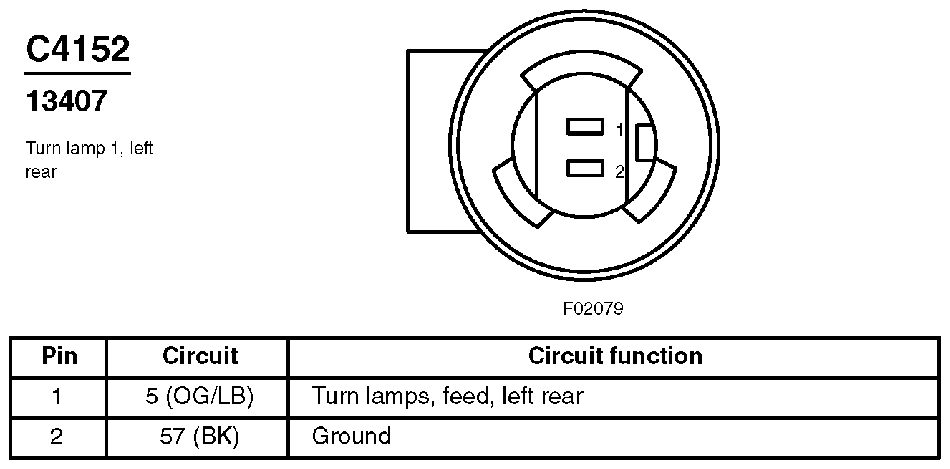

Fig 374: Turn Lamp 1, Left Rear Connector End View (C4152)
Courtesy of FORD MOTOR CO.

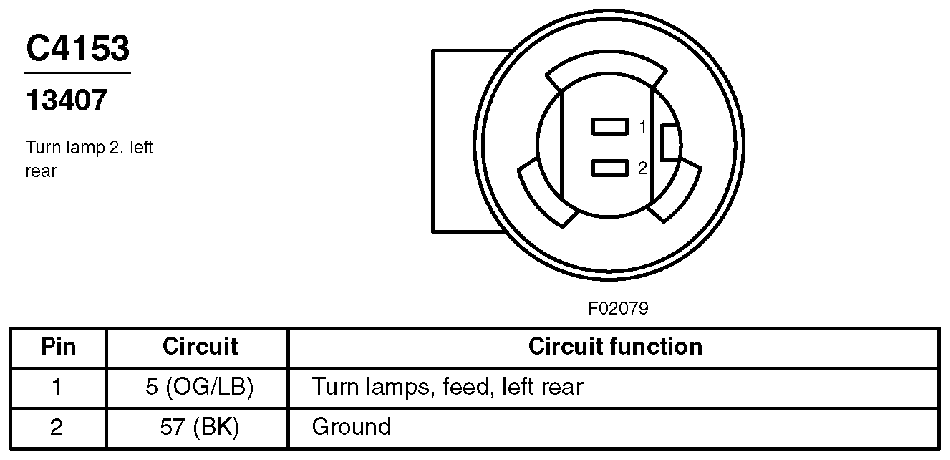

Fig 375: Turn Lamp 2, Left Rear Connector End View (C4153)
Courtesy of FORD MOTOR CO.

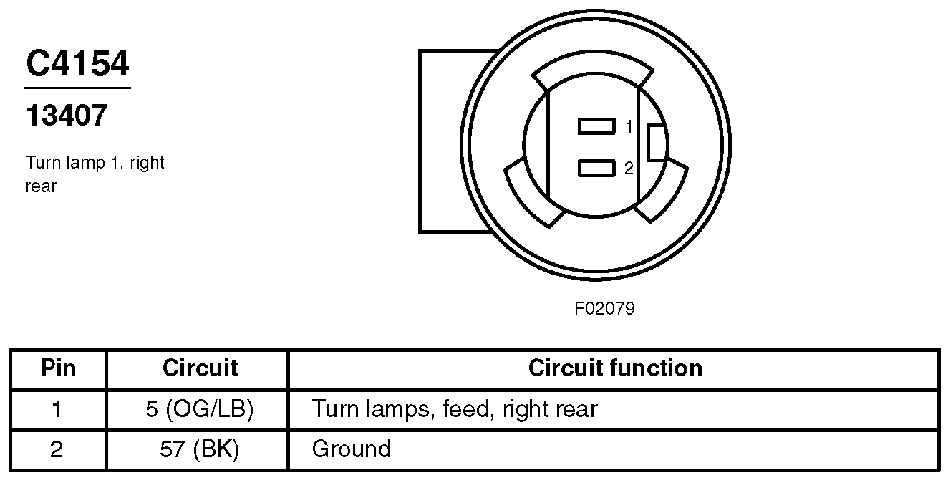

Fig 376: Turn Lamp 1, Right Rear Connector End View (C4154)
Courtesy of FORD MOTOR CO.

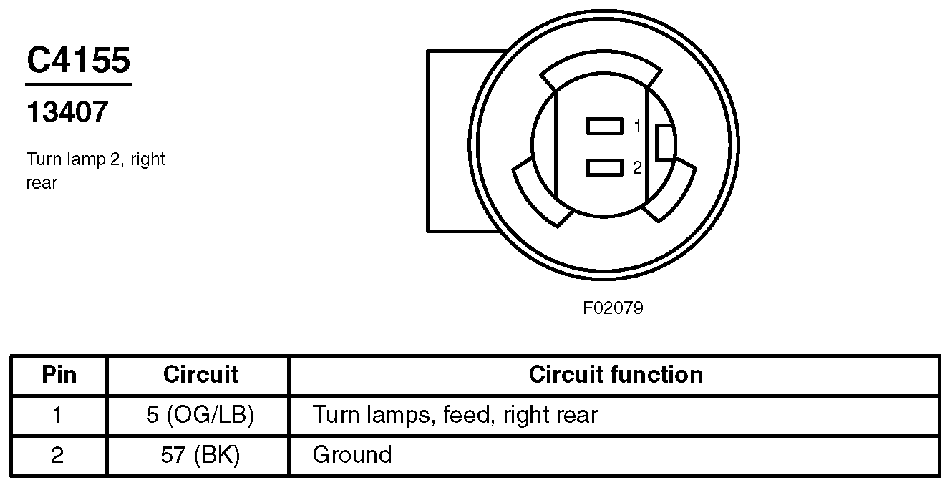

Fig 377: Turn Lamp 2, Right Rear Connector End View (C4155)
Courtesy of FORD MOTOR CO.

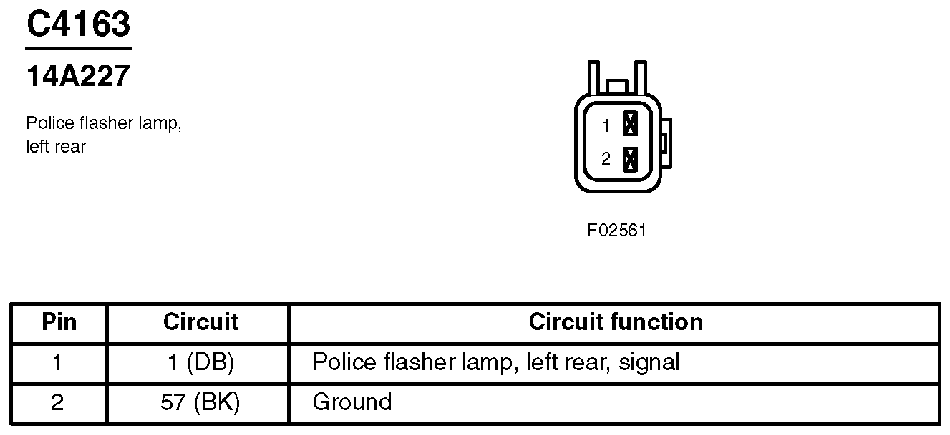

Fig 378: Police Flasher Lamp, Left Rear Connector End View (C4163)
Courtesy of FORD MOTOR CO.

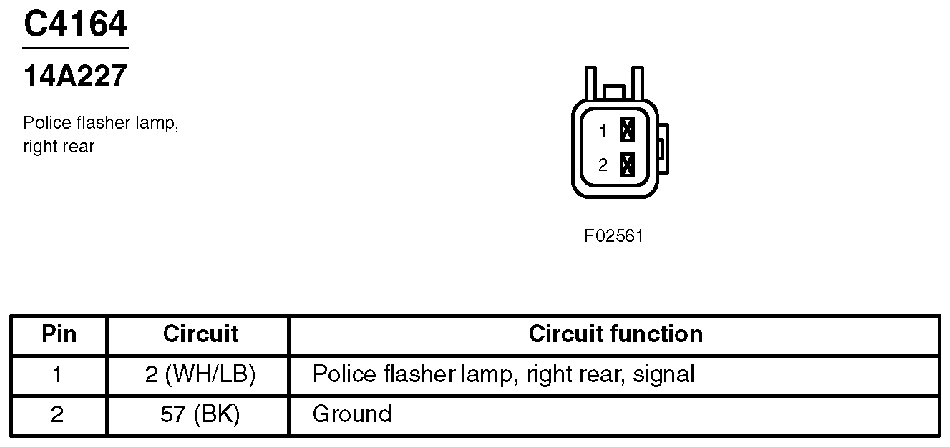

Fig 379: Police Flasher Lamp, Right Rear Connector End View (C4164)
Courtesy of FORD MOTOR CO.

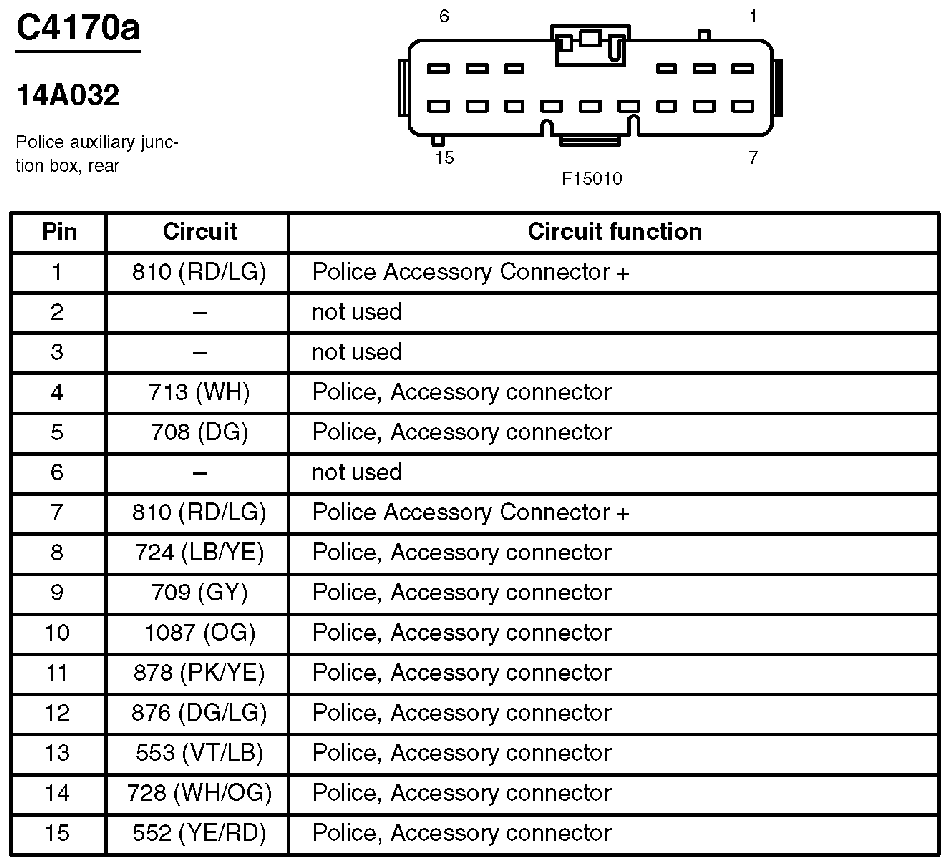

Fig 380: Police Auxiliary Junction Box, Rear Connector End View (C4170a)
Courtesy of FORD MOTOR CO.

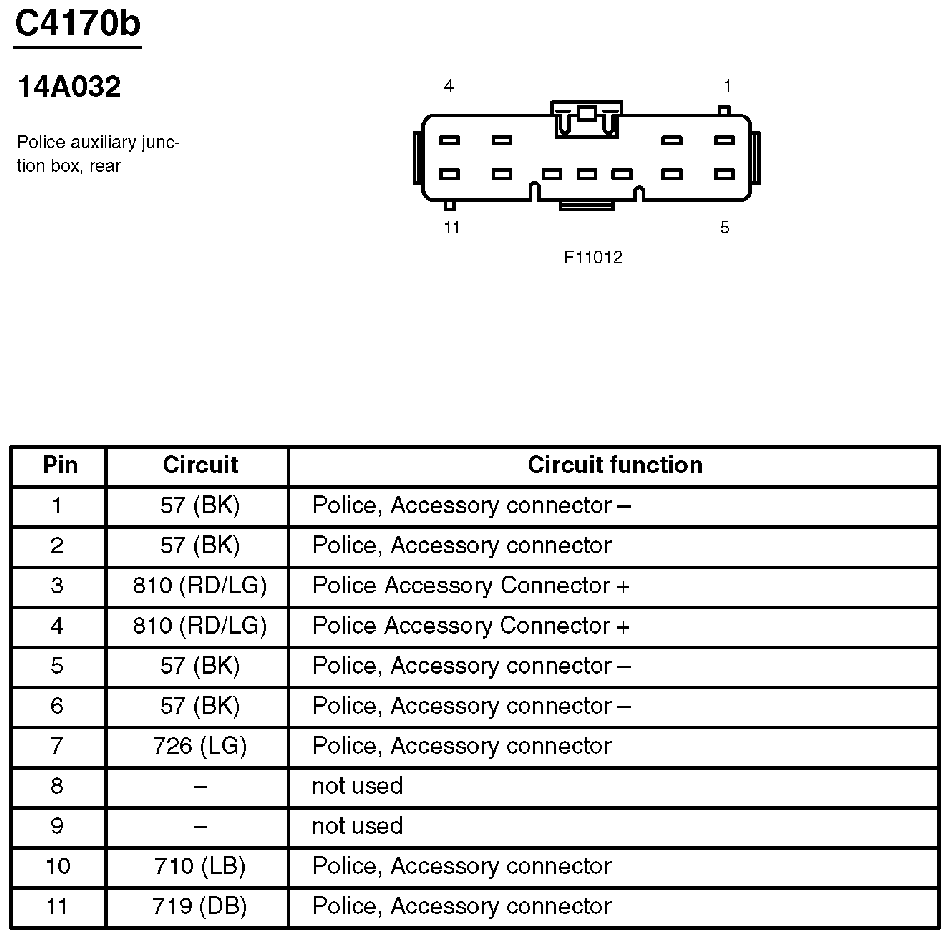

Fig 381: Police Auxiliary Junction Box, Rear Connector End View (C4170b)
Courtesy of FORD MOTOR CO.

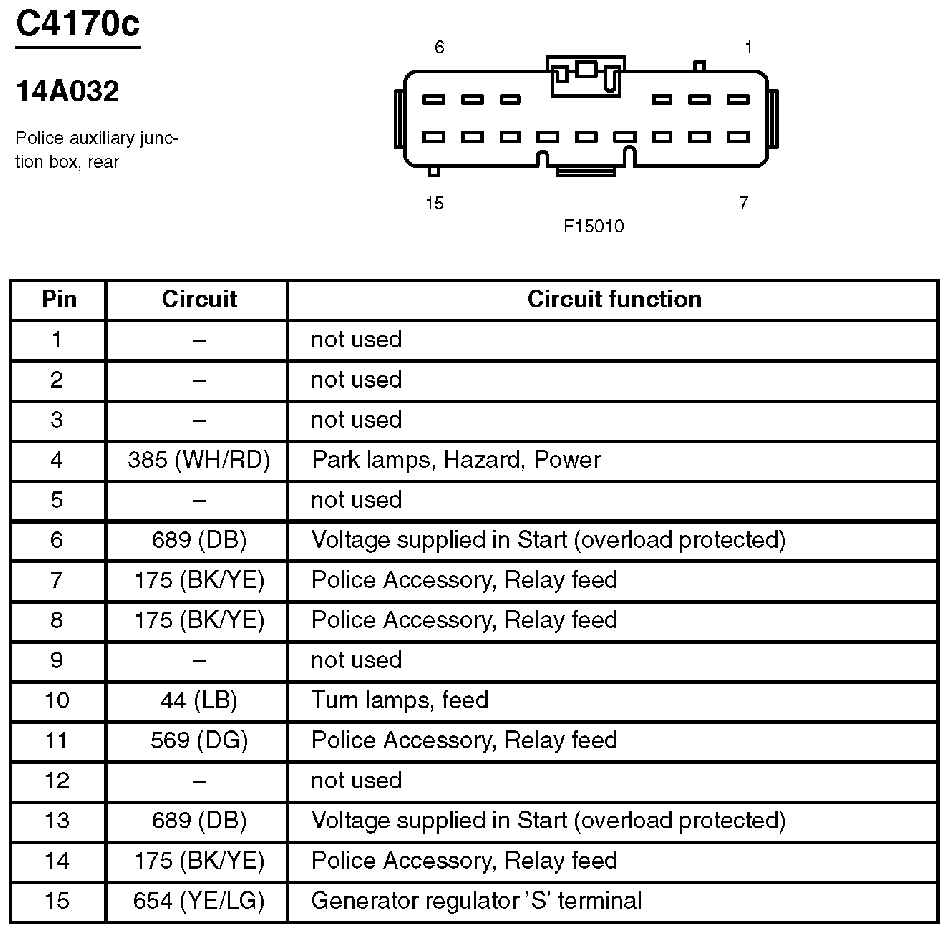

Fig 382: Police Auxiliary Junction Box, Rear Connector End View (C4170c)
Courtesy of FORD MOTOR CO.

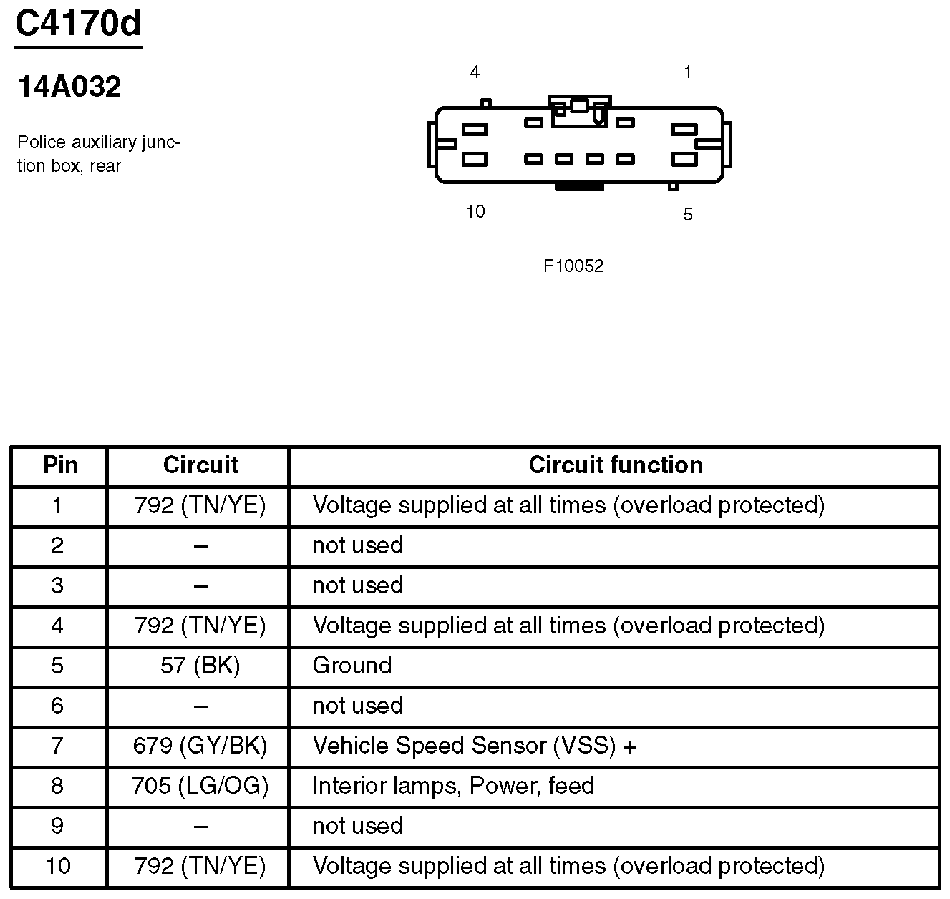

Fig 383: Police Auxiliary Junction Box, Rear Connector End View (C4170d)
Courtesy of FORD MOTOR CO.

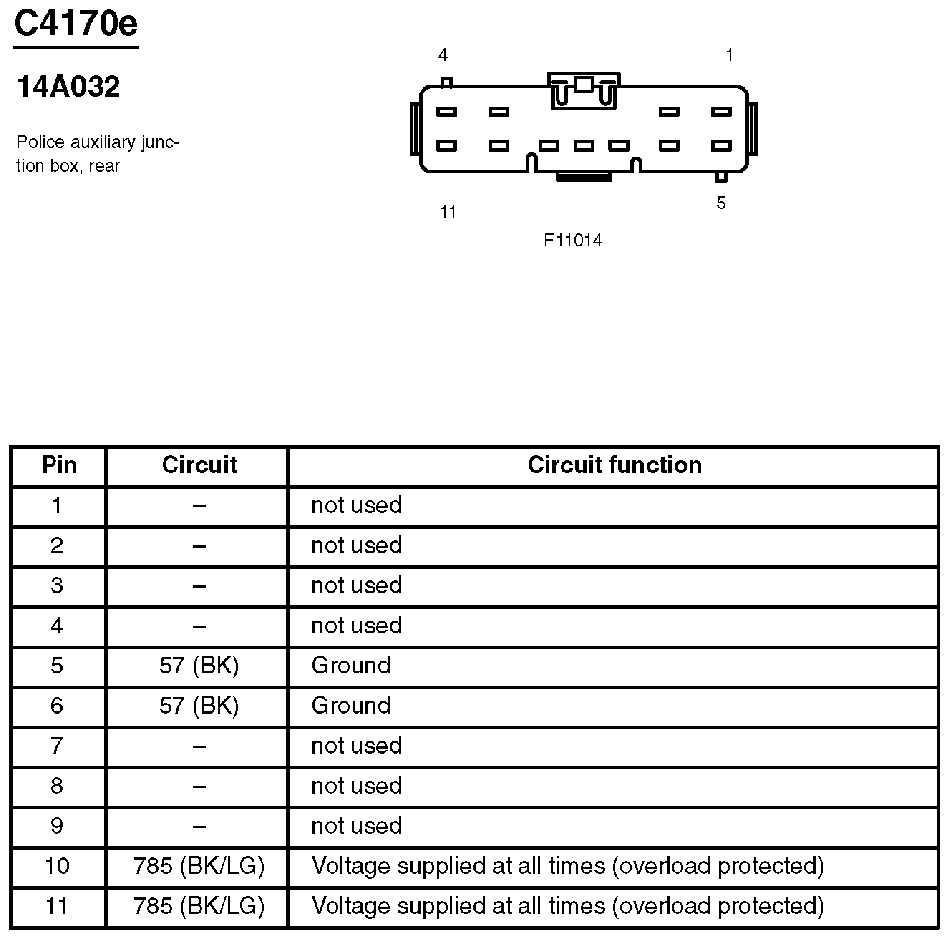

Fig 384: Police Auxiliary Junction Box, Rear Connector End View (C4170e)
Courtesy of FORD MOTOR CO.

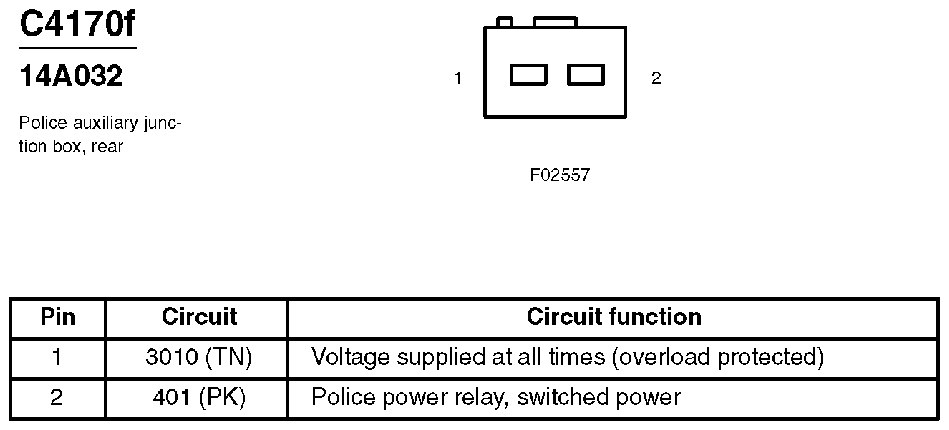

Fig 385: Police Auxiliary Junction Box, Rear Connector End View (C4170f)
Courtesy of FORD MOTOR CO.

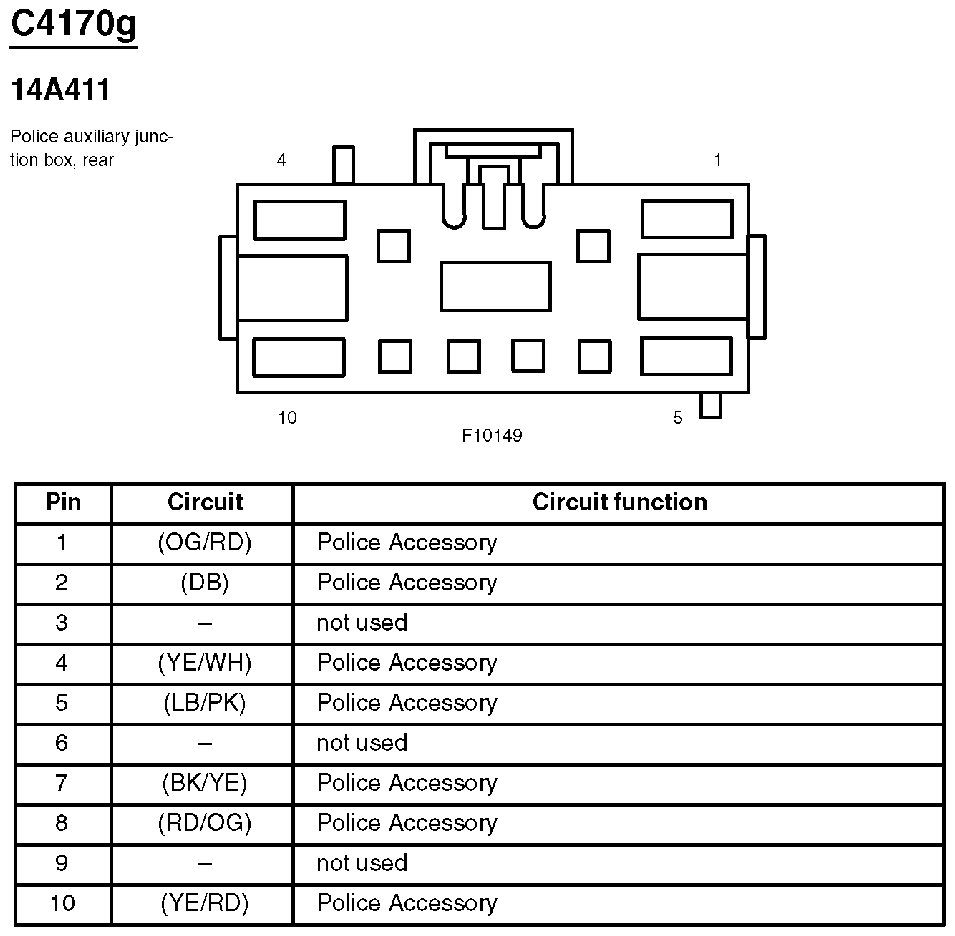

Fig 386: Police Auxiliary Junction Box, Rear Connector End View (C4170g)
Courtesy of FORD MOTOR CO.

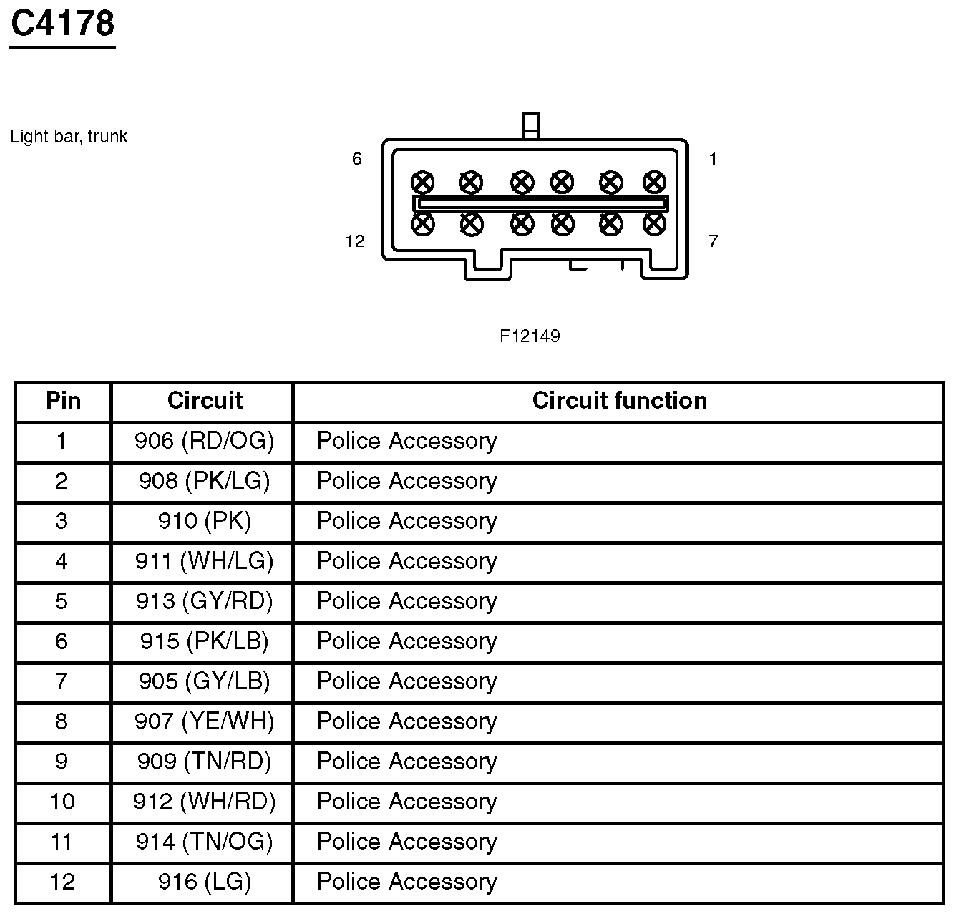

Fig 387: Light Bar, Trunk Connector End View (C4178)
Courtesy of FORD MOTOR CO.

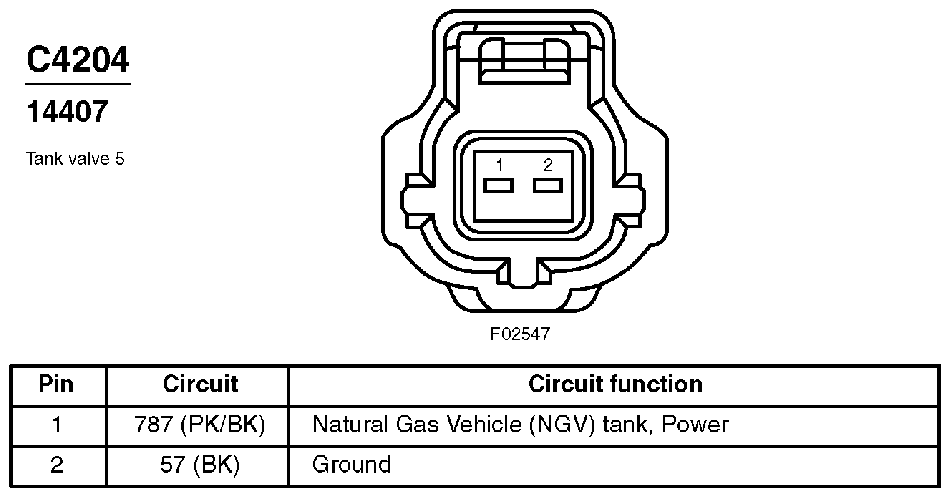

Fig 388: Tank Valve 5 Connector End View (C4204)
Courtesy of FORD MOTOR CO.

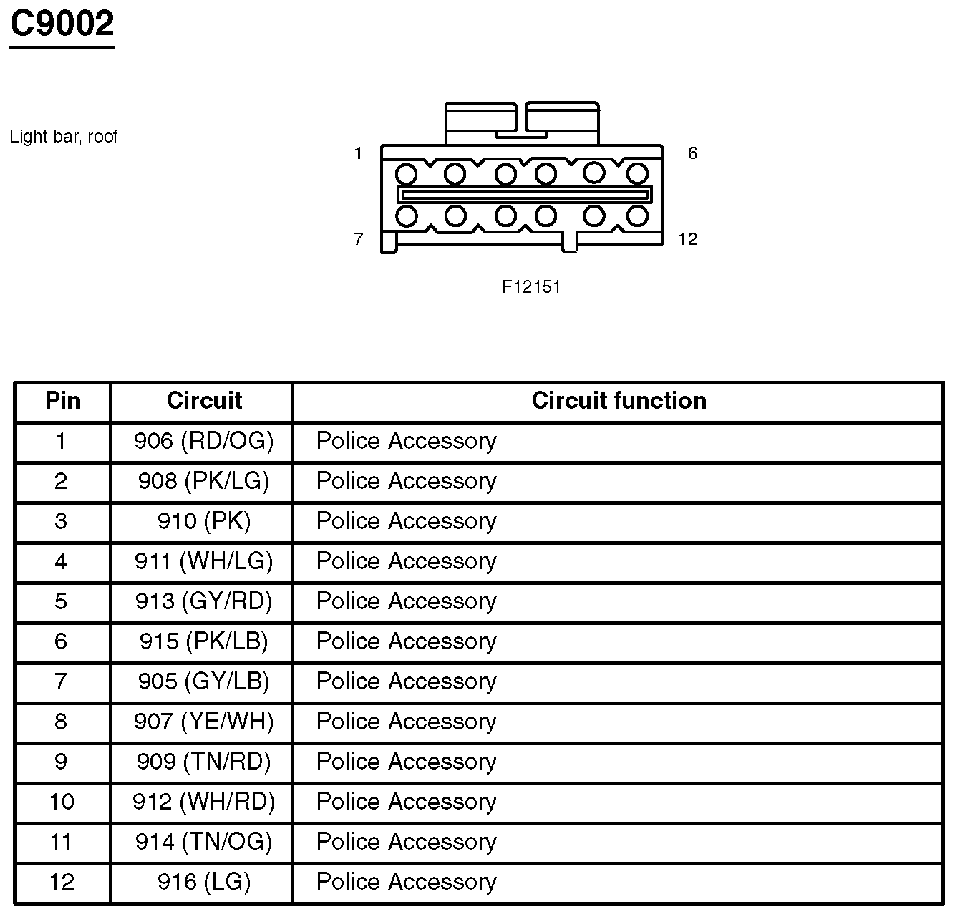

Fig 389: Light Bar, Roof Connector End View (C9002)
Courtesy of FORD MOTOR CO.
Fig 390: Overhead Console Connector End View (C9013a)
Courtesy of FORD MOTOR CO.

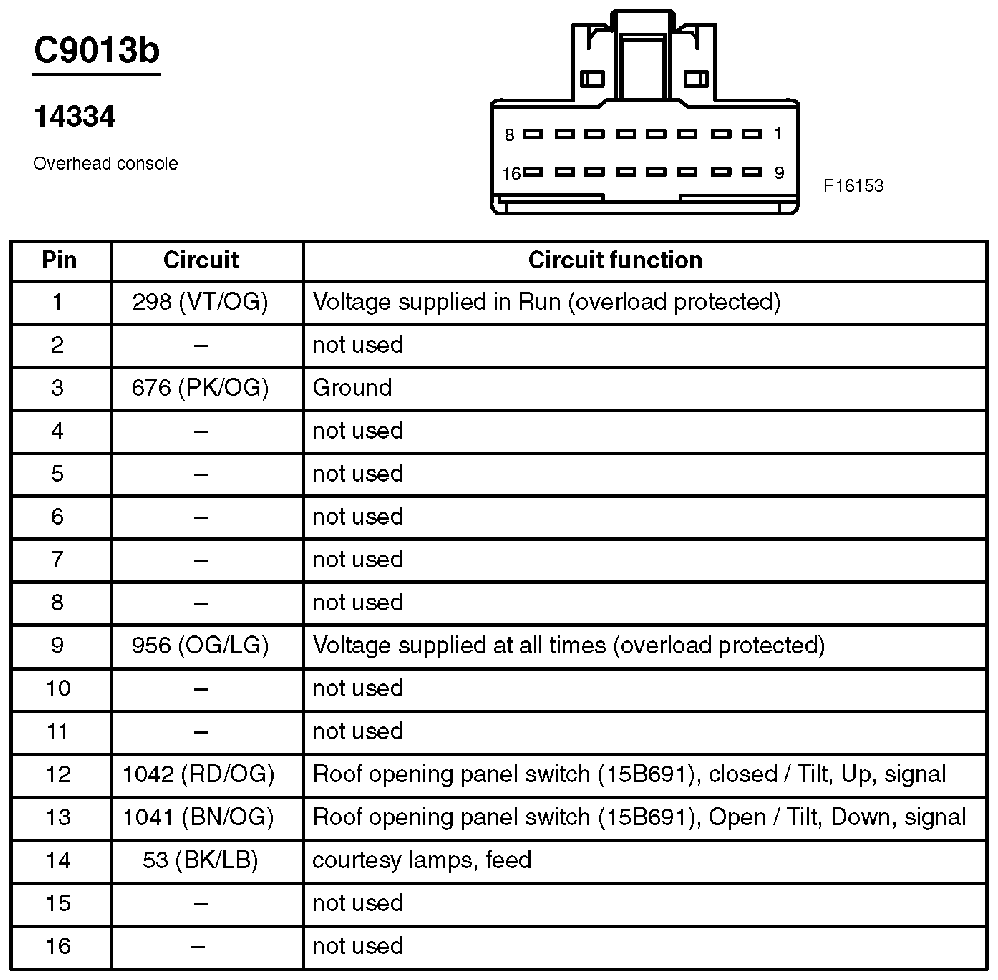

Fig 391: Overhead Console Connector End View (C9013b)
Courtesy of FORD MOTOR CO.
