Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the screw.

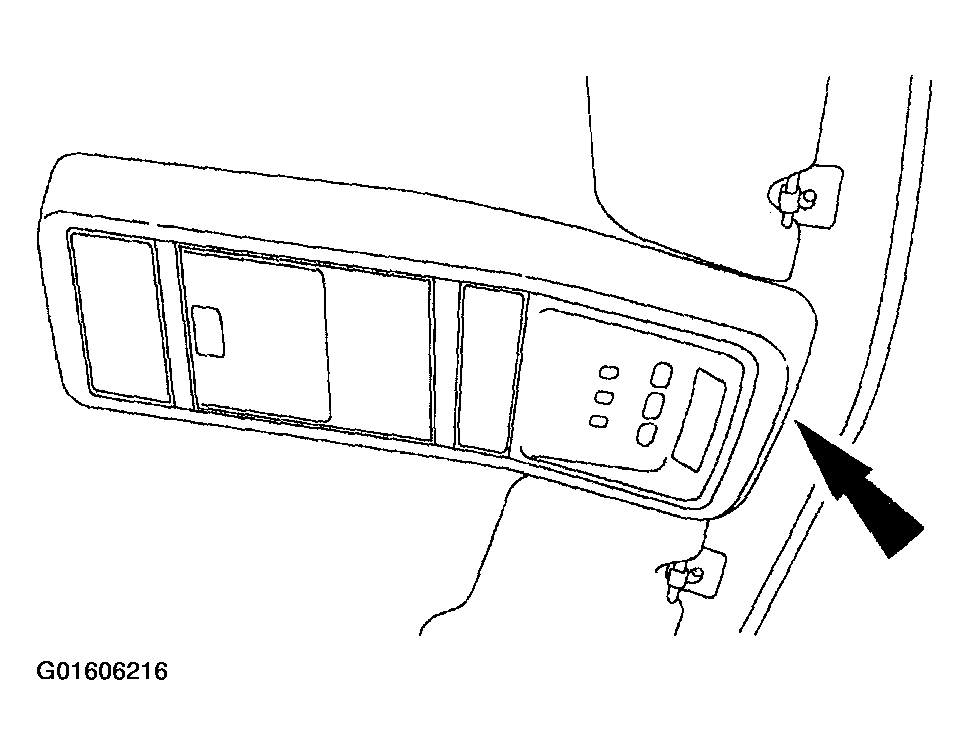

Fig 1: Removing Screw
Courtesy of FORD MOTOR CO.
Open the storage compartment and remove the two screws.

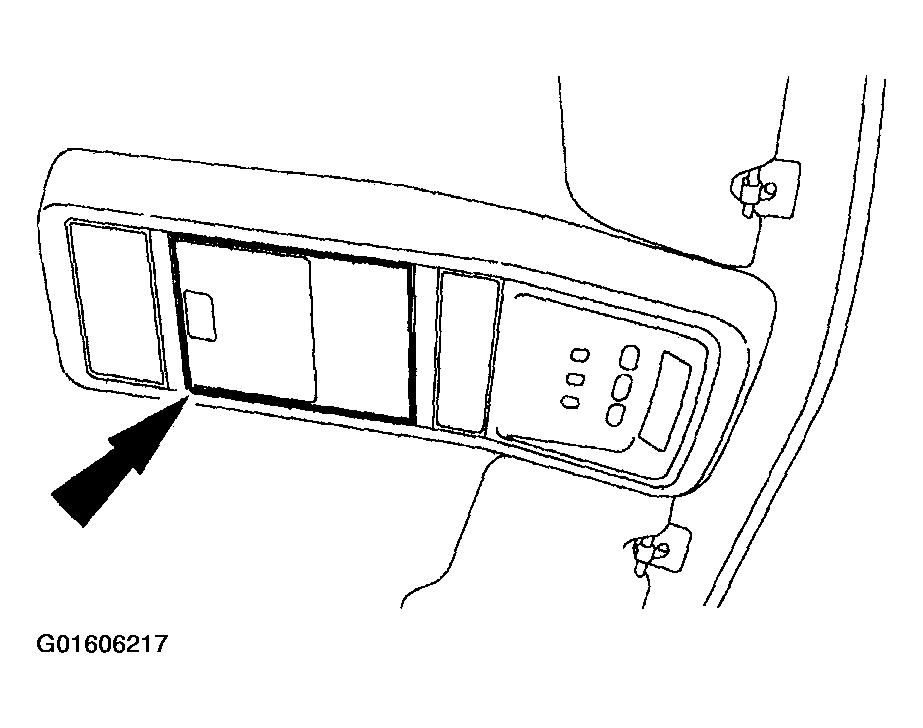

Fig 2: Opening Storage Compartment And Removing Screws
Courtesy of FORD MOTOR CO.

NOTE: Disengage the six clip attachments by first pulling down on the front of the overhead console and then the rear of the overhead console.

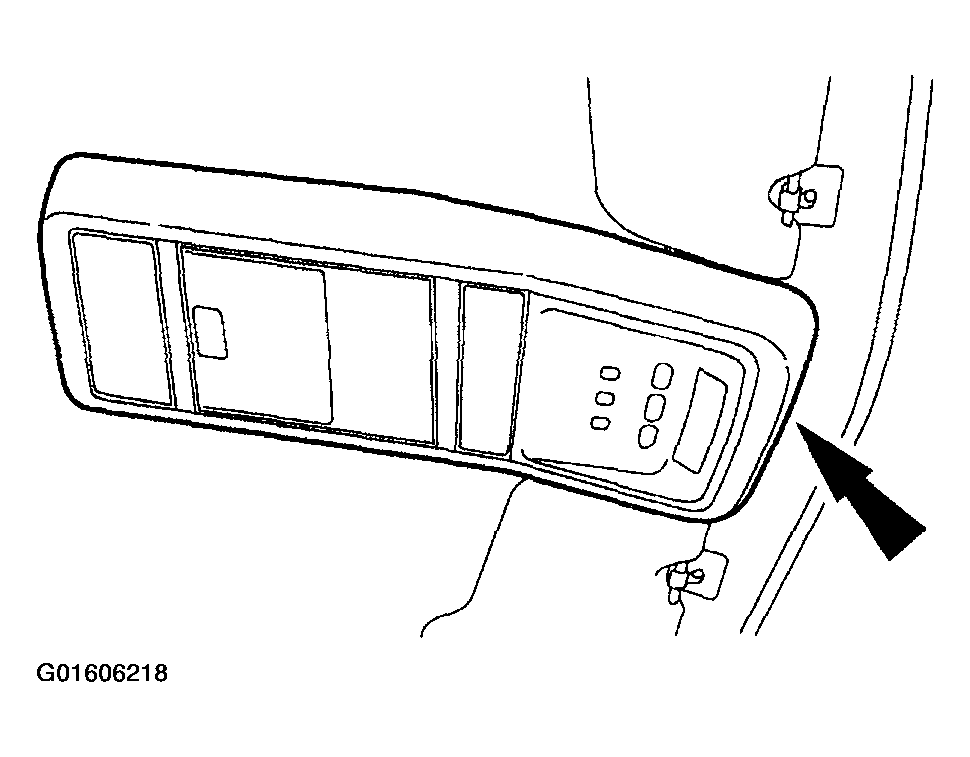

Fig 3: Removing Overhead Console

G01606218

Courtesy of FORD MOTOR CO.

Remove the overhead console.
- Disconnect the electrical connectors.
Remove the screws.

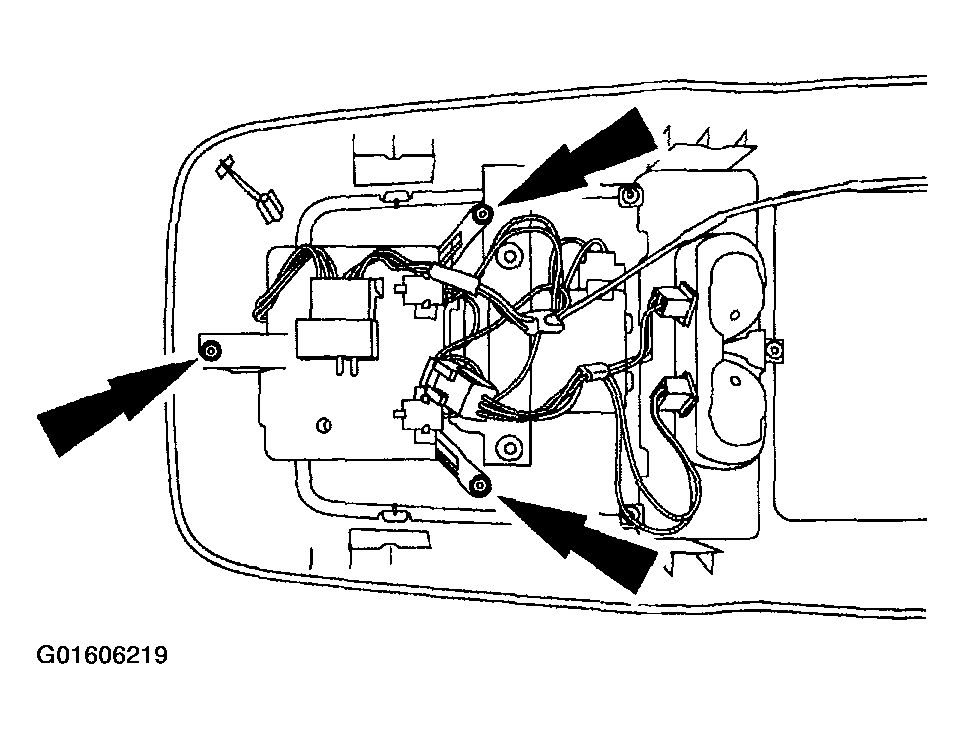

Fig 4: Removing Screws
Courtesy of FORD MOTOR CO.
Disconnect the electrical harness connector and remove the switches and the harness from the compass module.

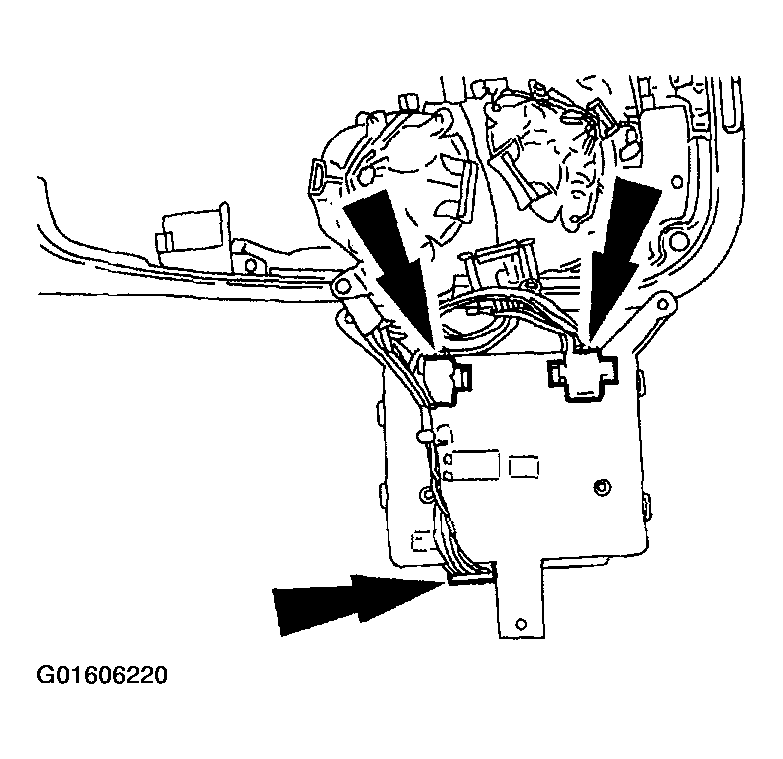

Fig 5: Disconnecting Electrical Harness Connector And Removing Switches And Harness From Compass Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
