Caster Adjustment
NOTE:
Caster adjustment can effect camber and toe settings. The left caster bushing may have a centering washer that needs to be removed and discarded prior to adjustment.

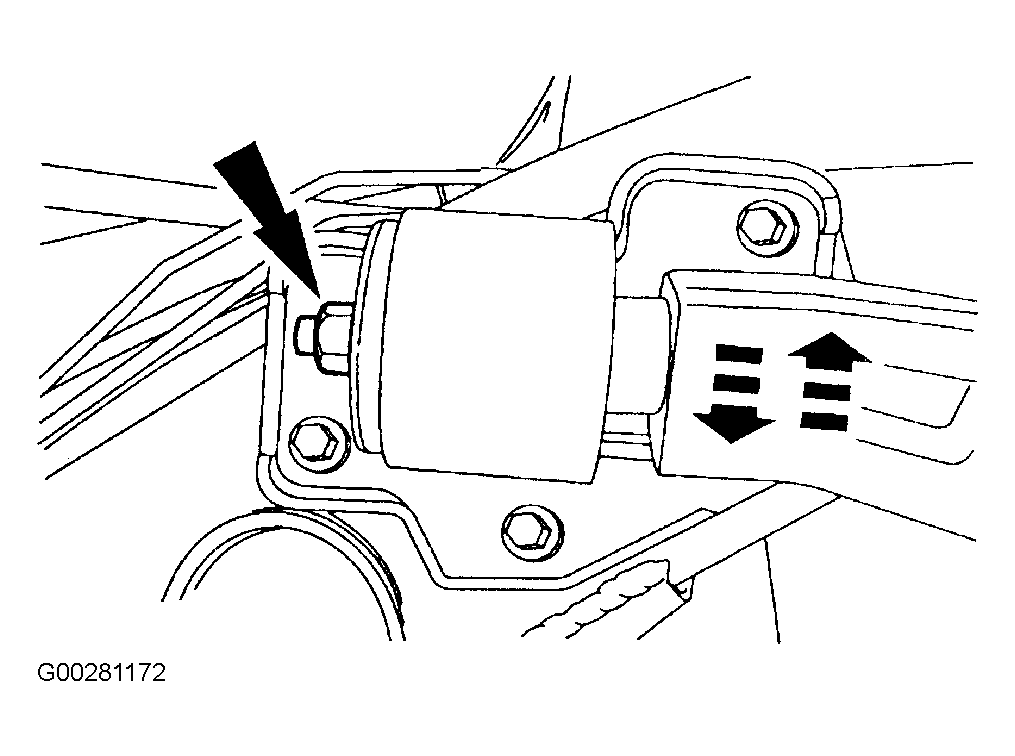

- Loosen the nut and move the arm inward to decrease the caster and outward to increase the caster. See Fig 1 . See WHEEL ALIGNMENT SPECIFICATIONS .
- While holding the arm, tighten the nut to specification. See TORQUE SPECIFICATIONS . Recheck the camber, caster and toe, and adjust as needed.
