Lead Terminal Repair

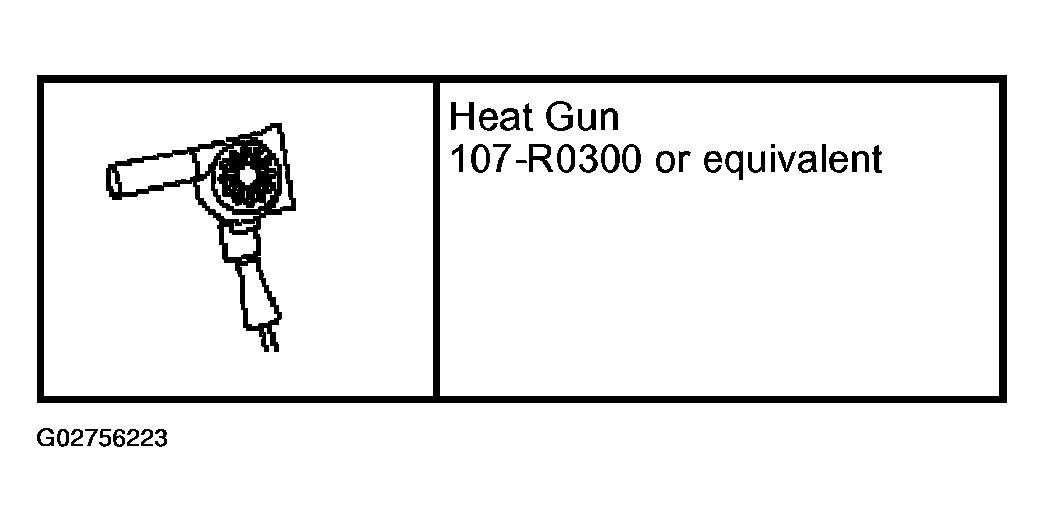

Fig 1: Identifying Special Tool(S)

Courtesy of FORD MOTOR CO.

MATERIAL

Item	Specification
Rear Window Defroster Repair PM-11 (CPM-11 in Canada) or equivalent	WSB-M4J58-B

NOTE: The rear window glass must be at room temperature at the time of the repair.

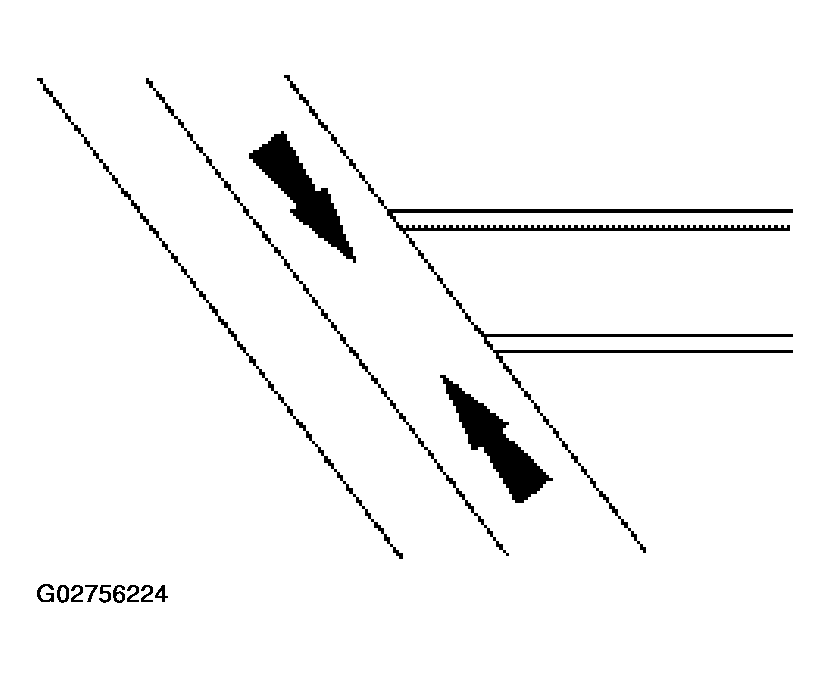

Fig 2: Cleaning Bus Bar In Area To Be Repaired With Steel Wool

Courtesy of FORD MOTOR CO.

Clean the bus bar in the area to be repaired with steel wool (3/0 to 4/0 grade).

NOTE: Allow 10 minutes of drying time between the coats.

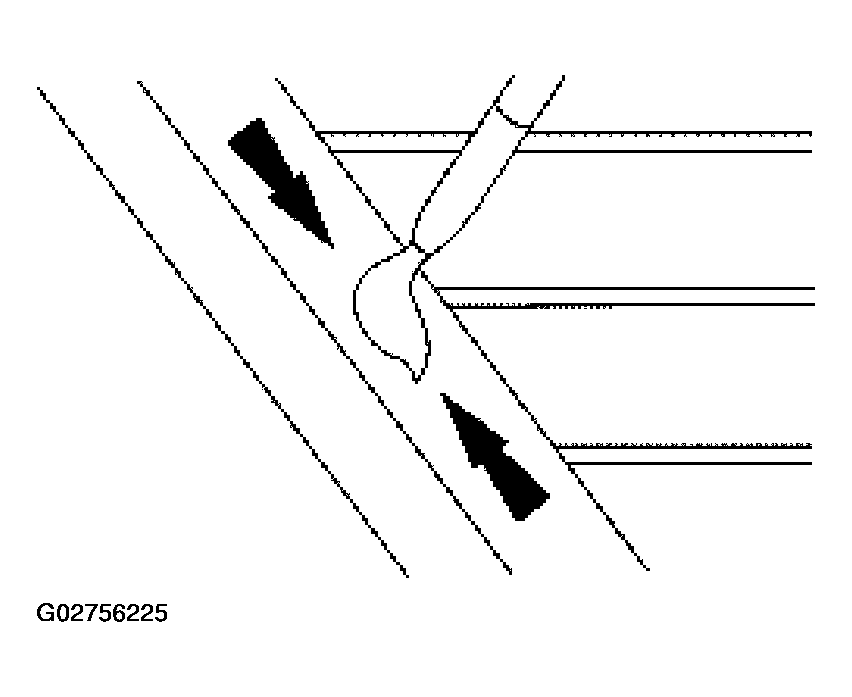

Fig 3: Applying Coats Of Rear Window Defroster Repair To Surface

Courtesy of FORD MOTOR CO.

CAUTION: Do not overheat the rear window glass or damage to the rear window glass may occur.

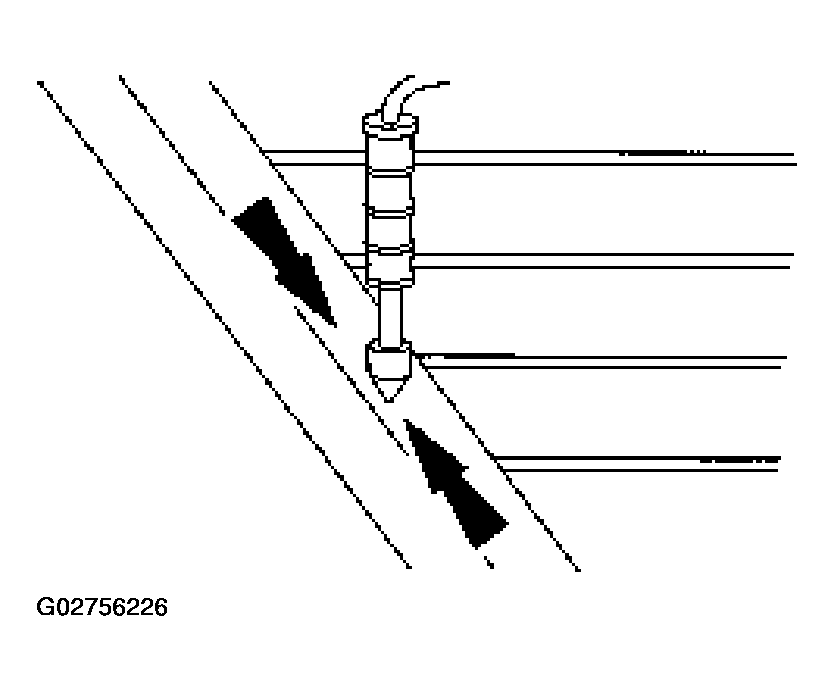

Fig 4: Identifying Tin Bus Bar Repair Area With Solder

Courtesy of FORD MOTOR CO.

CAUTION: To prevent overheating the rear window glass, remove the soldering gun as soon as the solder flows.

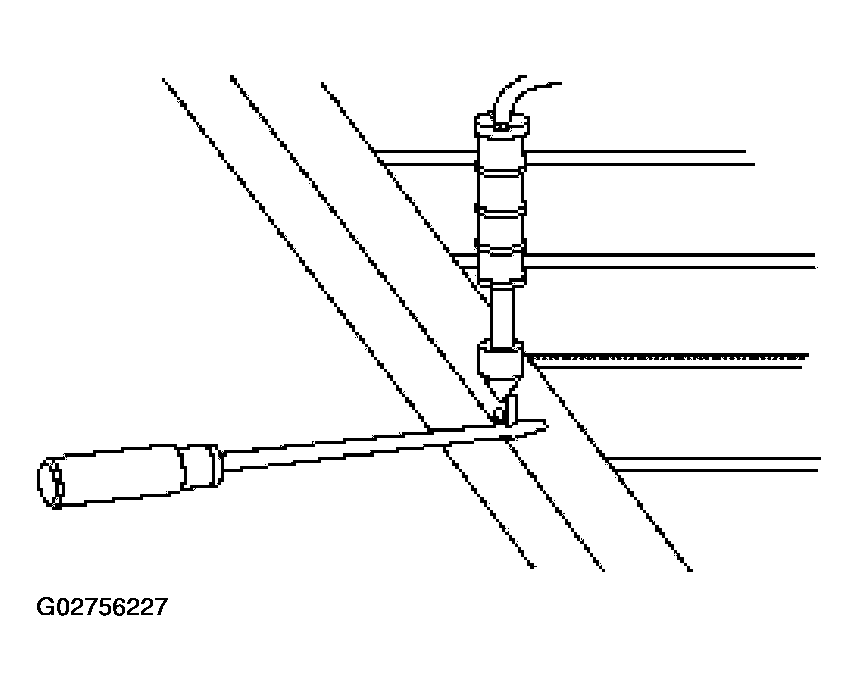

Fig 5: Repairing Preheat Rear Window Glass Area

Courtesy of FORD MOTOR CO.

Preheat the rear window glass in the area to be repaired using the special tool and solder the terminal to the bus bar.

NOTE: Turn the heated rear window switch on for 5 minutes prior to the final inspection of the repair.
