Removal and Installation

Remove the front engine appearance cover.
Remove the throttle control spring.

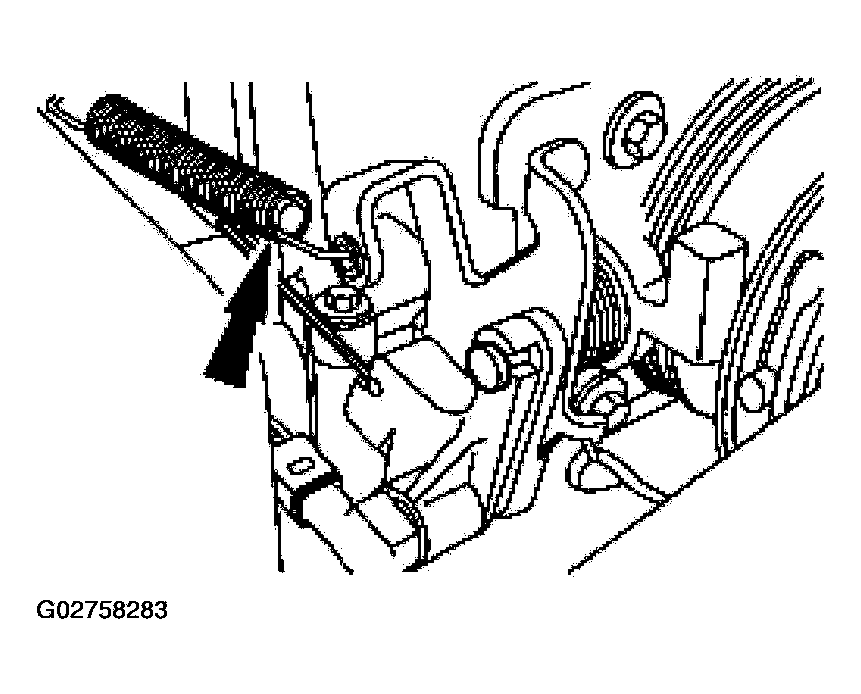

Fig 1: Removing Throttle Control Spring
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the throttle body lever.

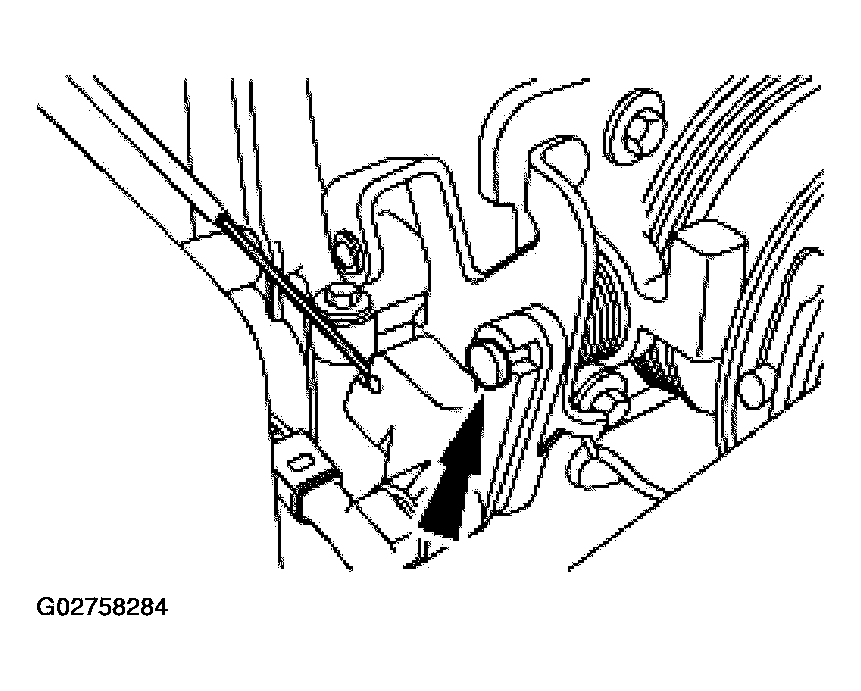

Fig 2: Disconnecting Accelerator Cable From Throttle Body Lever
Courtesy of FORD MOTOR CO.
Remove the screw (cable to bracket) and remove the accelerator cable from the accelerator cable bracket.

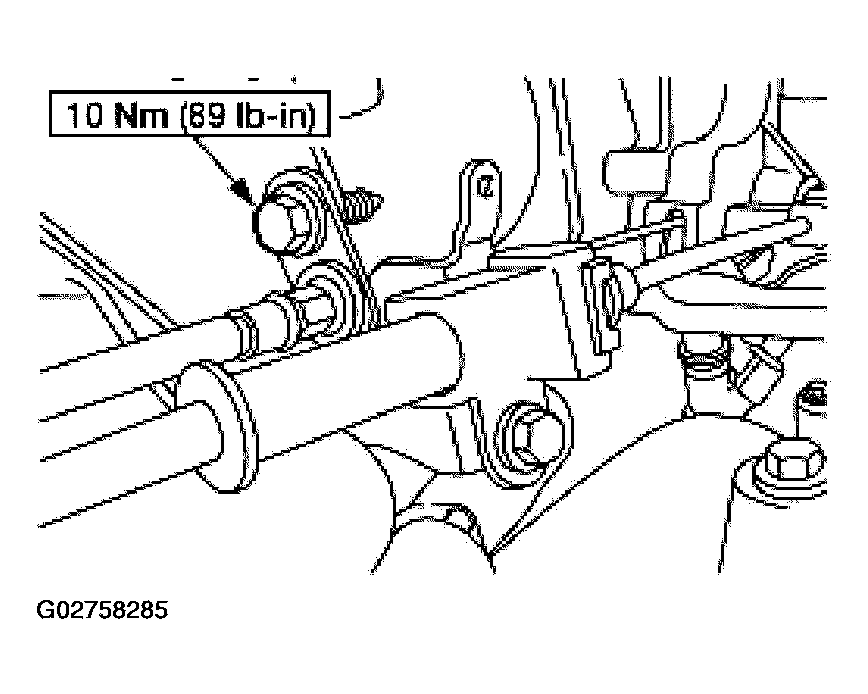

Fig 3: Removing Accelerator Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the accelerator cable from the clip.

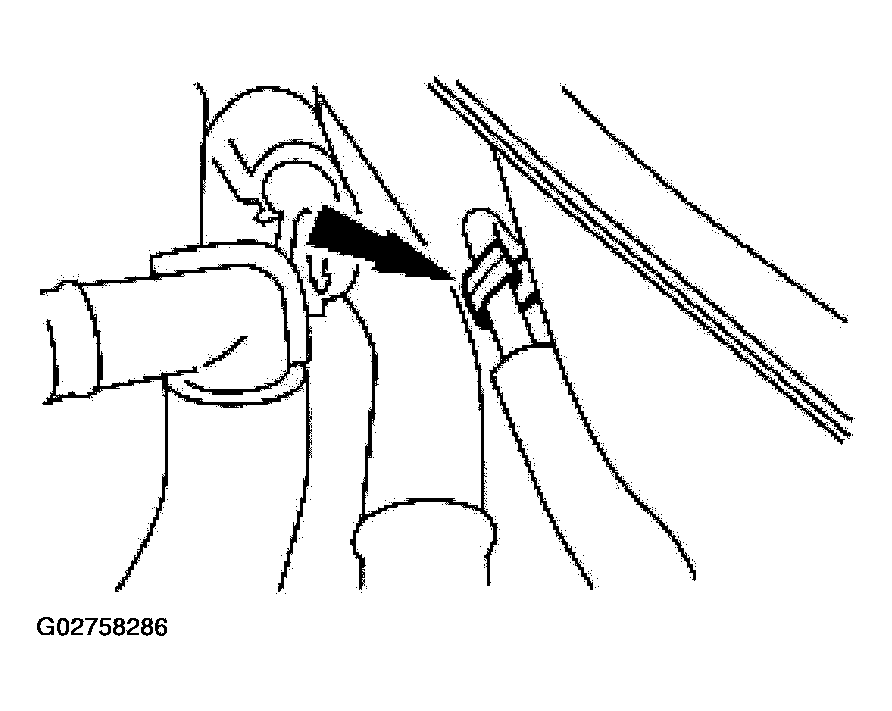

Fig 4: Removing Accelerator Cable From Clip
Courtesy of FORD MOTOR CO.
Remove the nuts and the LH cowl extension bracket.

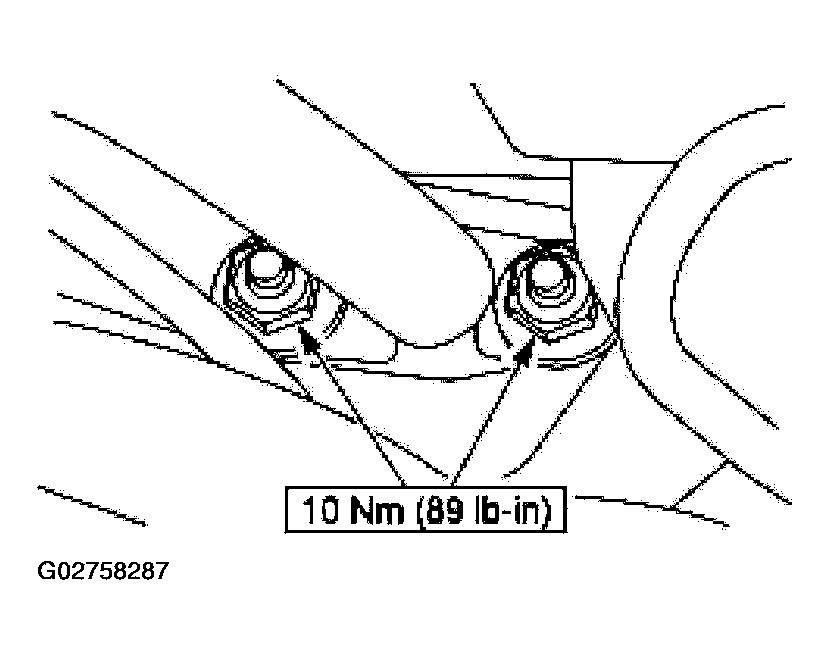

Fig 5: Removing Nuts And LH Cowl Extension Bracket
Courtesy of FORD MOTOR CO.

NOTE: Non-memory pedal shown, memory pedal similar.

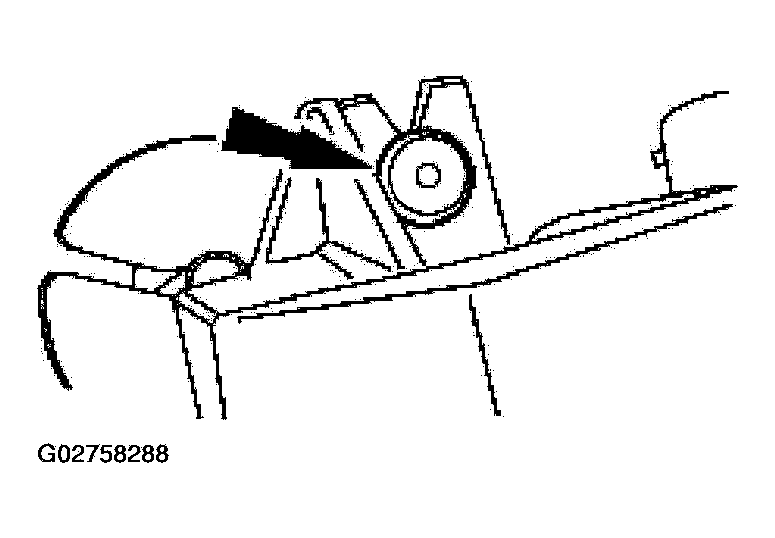

Fig 6: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft

Courtesy of FORD MOTOR CO.

Disconnect the accelerator cable from the accelerator pedal and shaft.
Remove the accelerator cable retainer (9E728).

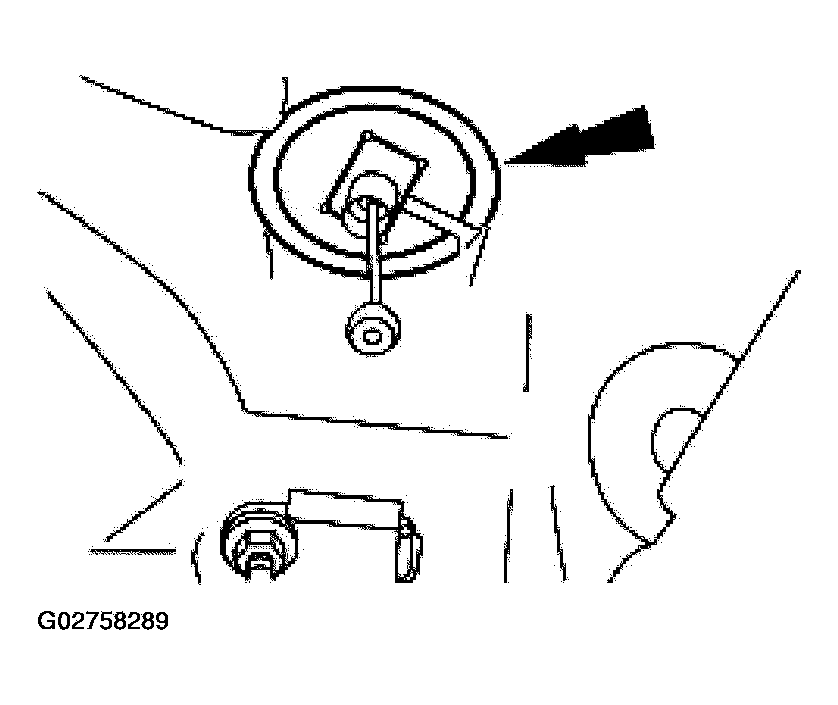

Fig 7: Removing Accelerator Cable Retainer
Courtesy of FORD MOTOR CO.
Remove the cable and grommet from the bulkhead.

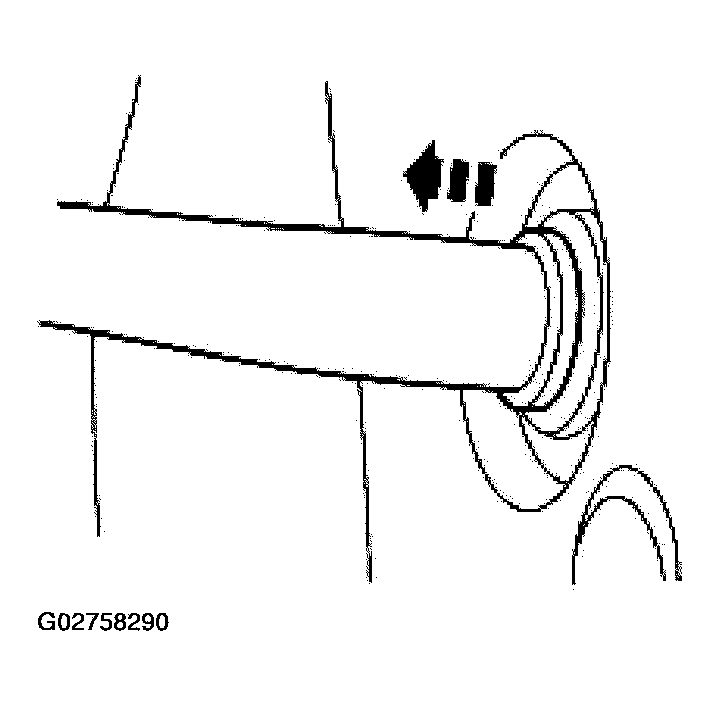

Fig 8: Removing Cable And Grommet From Bulkhead
Courtesy of FORD MOTOR CO.
Pull cable through the dash panel and remove from the vehicle.
To install, reverse the removal procedure.
