Removal and Installation

Remove the bolts and the accelerator splash shield.

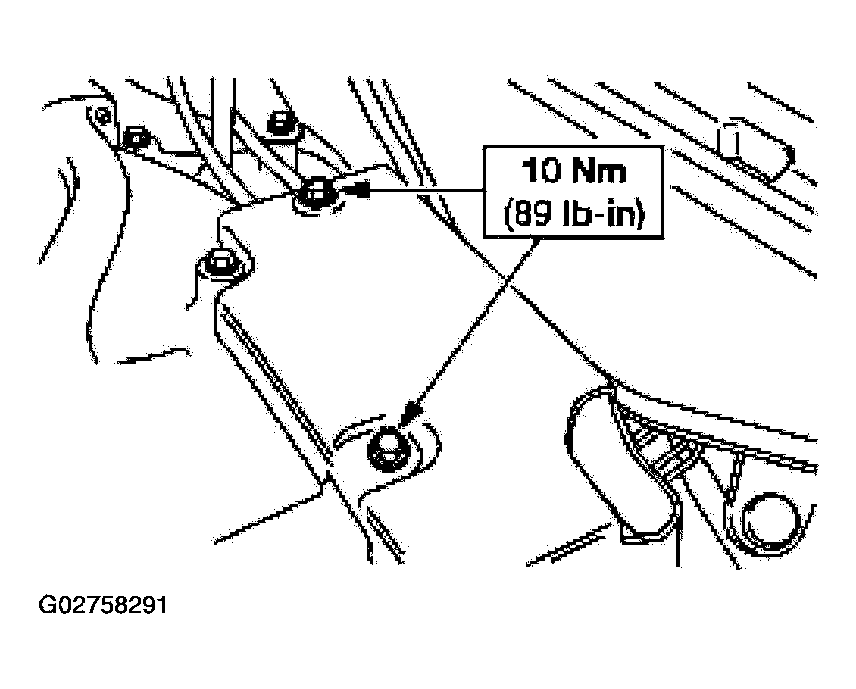

Fig 1: Removing Bolts And Accelerator Splash Shield
Courtesy of FORD MOTOR CO.
Remove the spring and disconnect the accelerator cable.

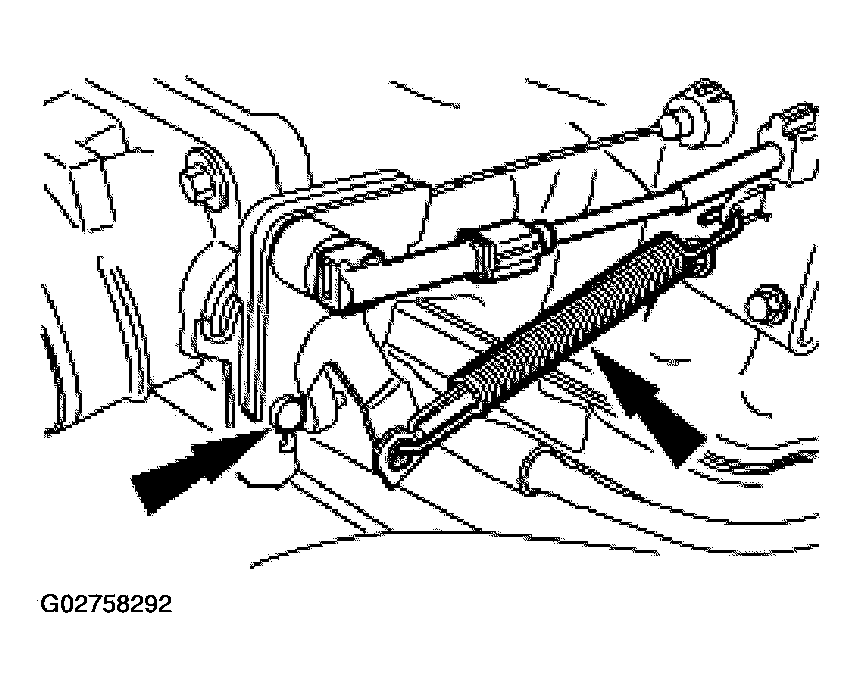

Fig 2: Disconnecting Accelerator Cable
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the bracket.

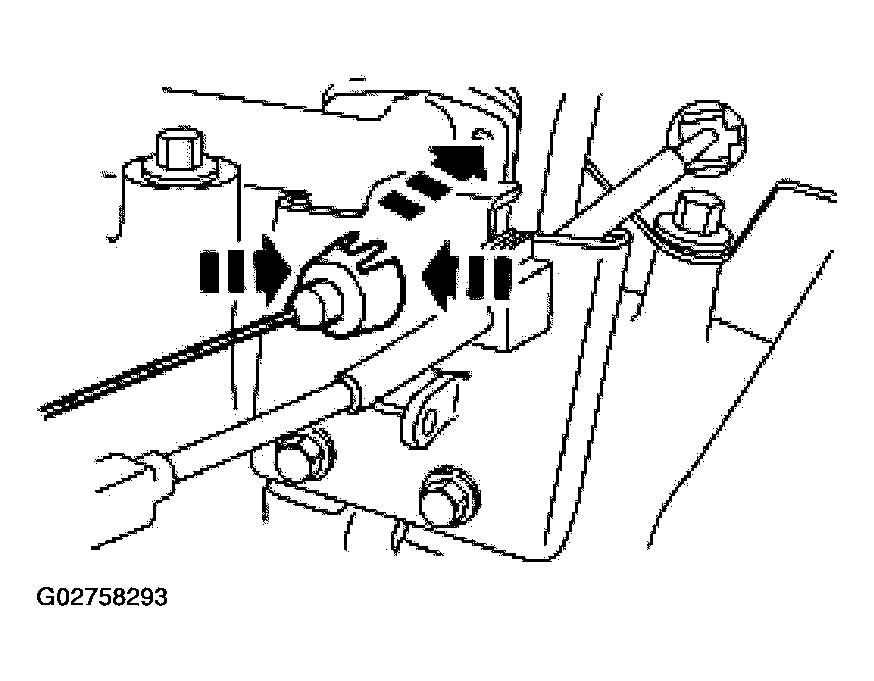

Fig 3: Disconnecting Accelerator Cable From Bracket
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the cable retainer.

Fig 4: Disconnecting Accelerator Cable From Cable Retainer
Courtesy of FORD MOTOR CO.
Remove the wiper mounting arm and pivot shaft assembly. For additional information, refer to WIPER MOUNTING ARM AND PIVOT SHAFT .
Position aside the wiring harness shield.
Remove the nuts.

Fig 5: Removing Nuts
Courtesy of FORD MOTOR CO.

NOTE: Non-memory pedal shown, memory pedal similar.

Fig 6: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft

Courtesy of FORD MOTOR CO.

Disconnect the accelerator cable from the accelerator pedal and shaft.
Remove the accelerator cable retainer.

Fig 7: Removing Accelerator Cable Retainer
Courtesy of FORD MOTOR CO.
Pull the cable through the dash panel and remove from the vehicle.
To install, reverse the removal procedure.
