Reverse Clutch: Notes

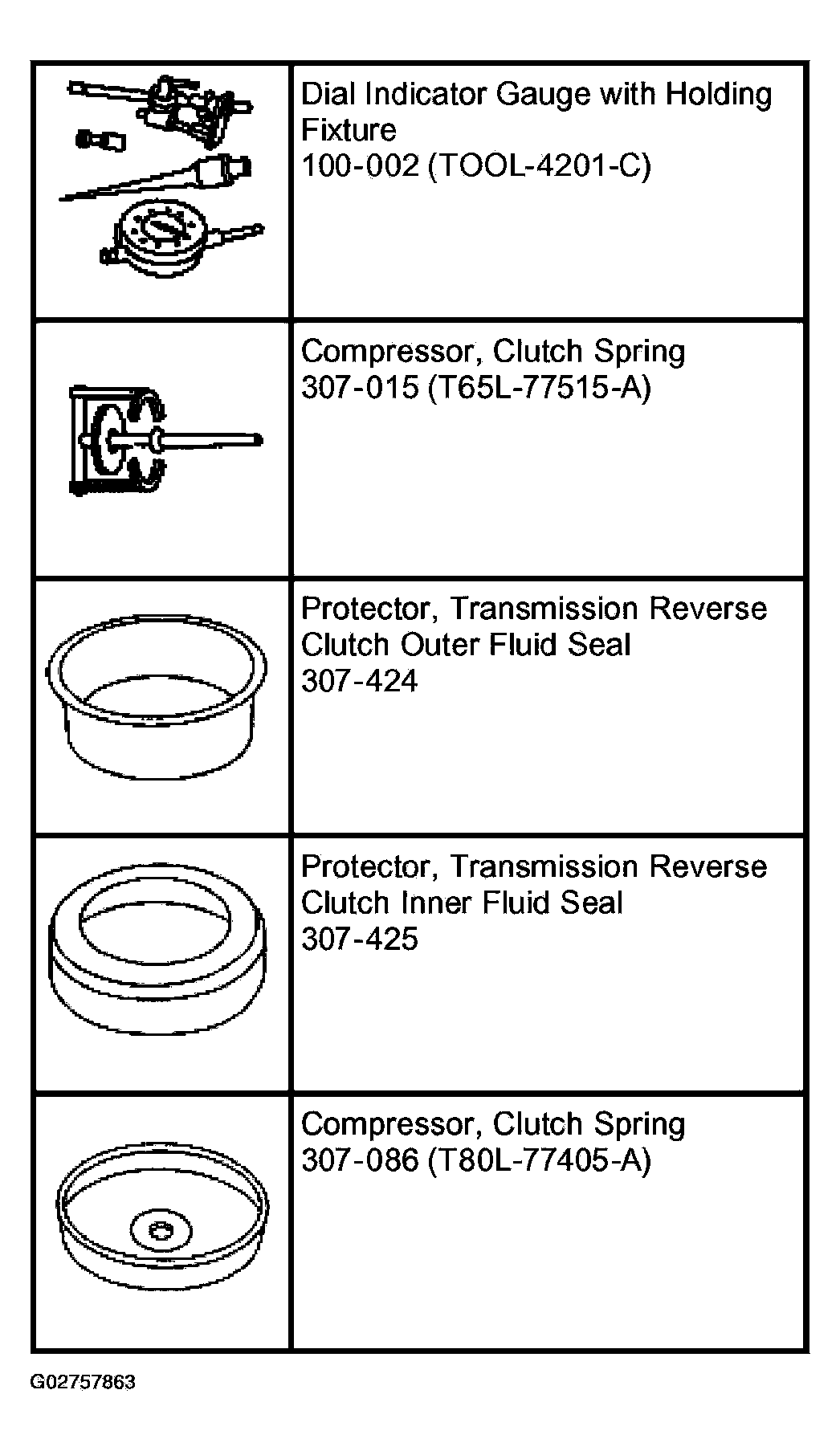

Fig 1: Identifying Special Tool(s)
G02757863Courtesy of FORD MOTOR CO.
MATERIAL SPECIFICATIONS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

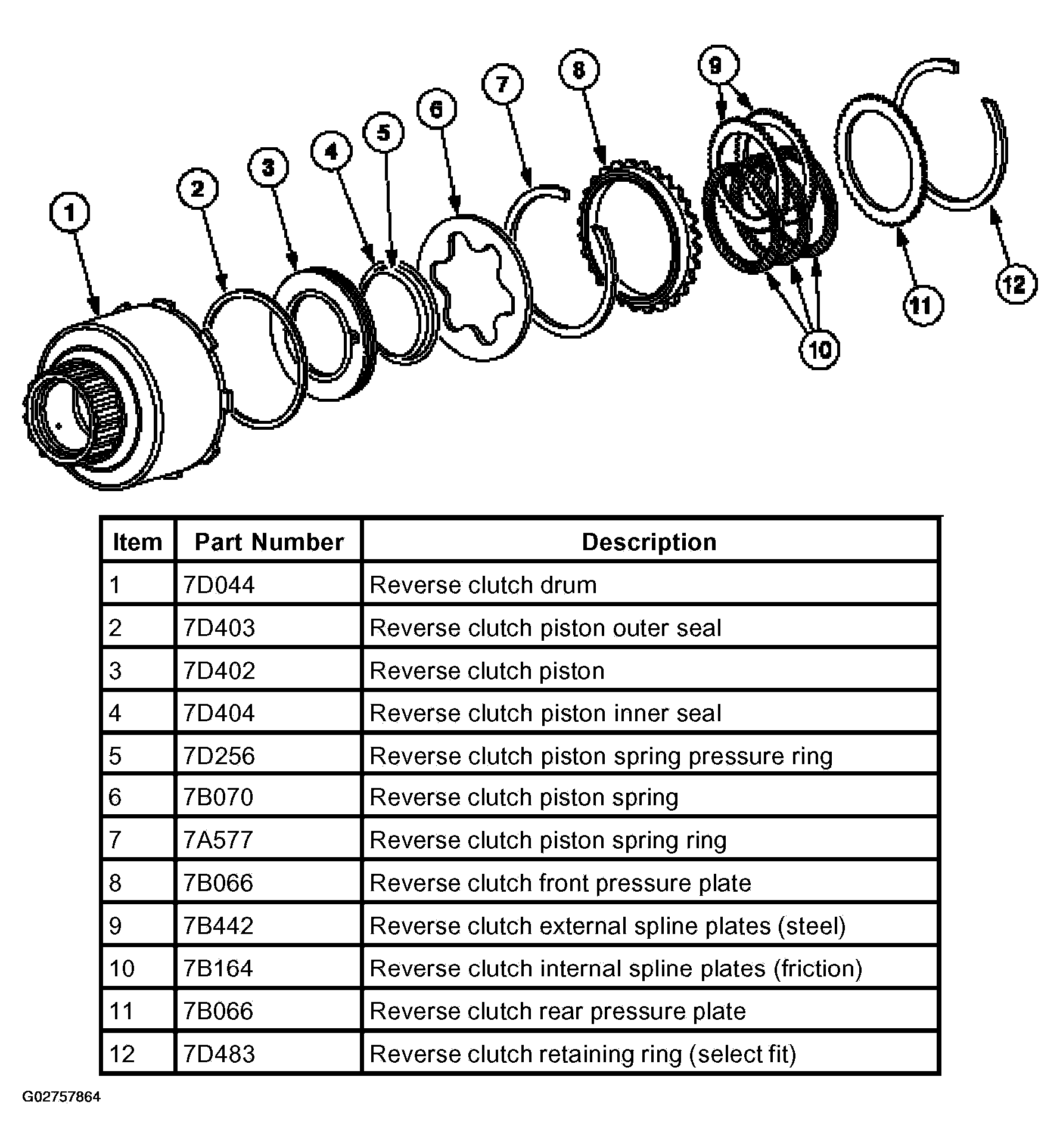

Fig 2: Disassembled View Of Reverse Clutch
G02757864Courtesy of FORD MOTOR CO.
