Removal and Installation

  1. Disconnect the accelerator pedal cable.
    1. Position the accelerator pedal to relieve tension on the accelerator cable.
    2. Depress the tabs on the accelerator pedal retaining pin and disconnect the cable.

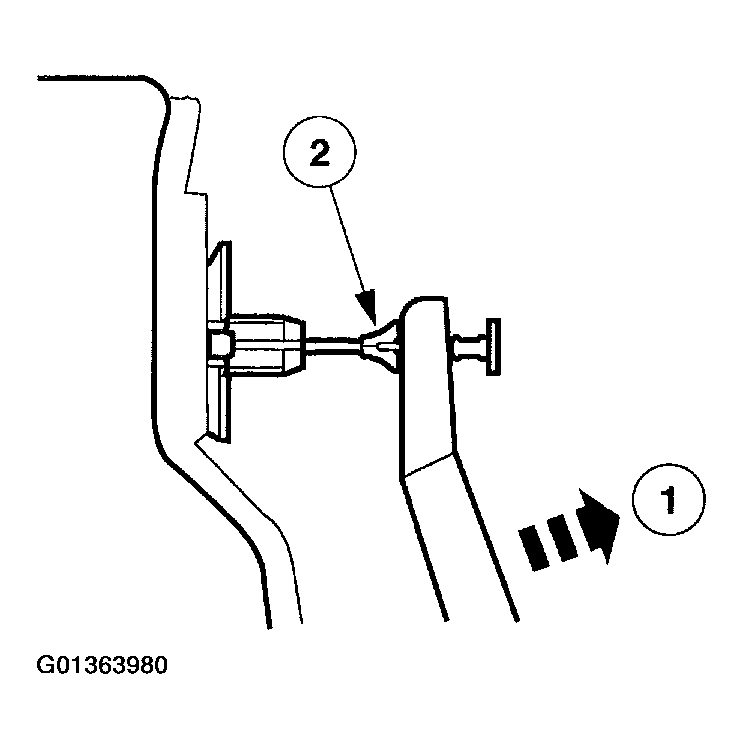

      Fig 1: Disconnecting Accelerator Pedal Cable
      G01363980Courtesy of FORD MOTOR CO.
  2. Remove the accelerator pedal.
    • Remove the nuts.
    • Remove the accelerator pedal assembly.

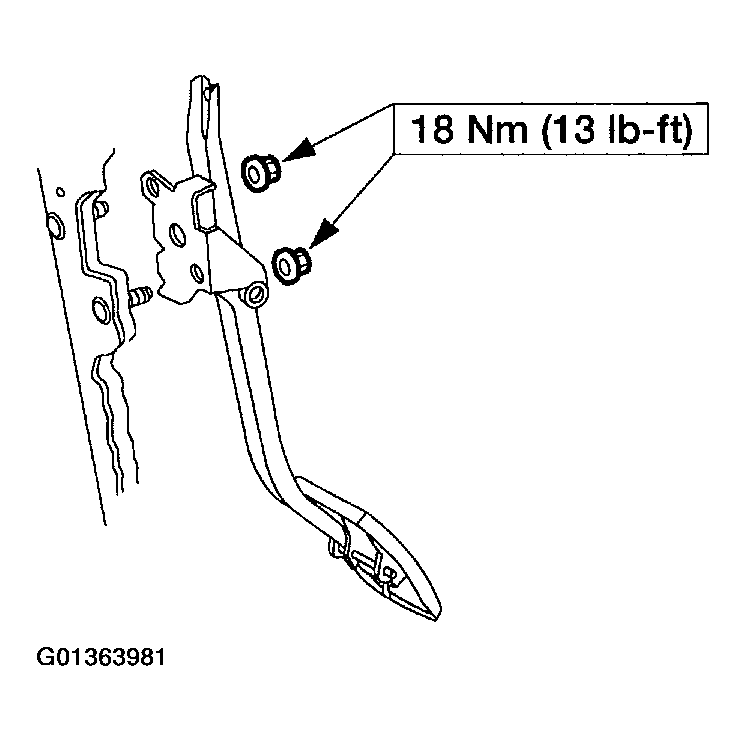

      Fig 2: Removing Nuts Accelerator Pedal Assembly
      G01363981Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
